1995 ACURA TL steering

Steering Gearbox

Installation

CAUTION: Be careful not to bend or damage cylinder

lines A and B or the four fluid lines when installing the

gearbox.

1. Install the mount cushion on the right side.

2. Loosely install the mounting bracket on the cushion

with the two gearbox mounting bolts.

MOUNT CUSHION

STEERING GEARBOX

GEARBOX MOUNTING BOLTS

38 N-m (3.9 kgf-m, 28 Ibf-ft)

Loosely install.

3. Center the steering rack within its stroke.
4. Install the steering joint, and reconnect the steering

shaft and pinion shaft.

NOTE: Make sure the steering joint is connected as

follows:

a. Insert the upper end of the steering joint onto the

steering shaft (line up the bolt hole with the flat on

the shaft), and loosely install the upper joint bolt,

b. Slip the lower end of the steering joint onto the

pinion shaft (line up the bolt hole with the

groove around the shaft), and loosely install the

lower joint bolt.

Be sure that the lower joint bolt is securely in the

groove in the pinion shaft,

c. Pull on the steering joint to make sure that the

steering joint is fully seated. Then tighten the

joint bolts.

STEERING JOINT
STEERING JOINT BOLTS

2.2 N-m (2.2 kgf-m, 16 Ibf-ft)

UPPER JOINT BOLT

Bolt must line up

with flat on shaft.

Flat portion.

Groove.
STEERING

SHAFT

PINION

SHAFT
STEERING JOINT

LOWER JOINT BOLT

Bolt must line up with

groove around on shaft.

5. Center the cable reel by first rotating it clockwise

until it stops. Then rotate it counterclockwise

(approximately two turns) until the arrow mark on

the label points straight up.

Reinstall the steering wheel (refer to the '95 - 98

Acura 2.5TL Service Manual, P/N 61SW504):ProCarManuals.com

Steering Gearbo x
Installatio n (cont'd )
13. Reconnec t th e tie-ro d end s t o th e steerin g knuckles ,
tighte n th e castl e nu t t o th e specifie d torque , an d
instal l ne w cotte r pins .
NOTE : Befor e connectin g th e tie-ro d ends , chec k
th e bal l join t pi n tapere d sectio n an d thread s sec -
tio n fo r greas e contamination , an d wip e i t i f neces -
sary.
CAUTION : Torqu e th e castl e nu t t o th e lowe r
torqu e specification , the n tighte n it onl y fa r enoug h
t o alig n th e slo t wit h th e pi n hole . D o no t alig n th e
nu t b y loosening .
14 . Instal l th e fron t wheels .
15 . Fil l th e syste m wit h powe r steerin g fluid , an d blee d
ai r fro m th e syste m (refe r t o th e '9 5 - 9 8 Acur a
2.5T L Servic e Manual , P/ N 61SW504) .
16 . Afte r installation , perfor m th e followin g checks .
• Star t th e engine , allo w it t o idle , an d tur n th e
steerin g whee l fro m lock-to-loc k severa l time s t o
war m u p th e fluid . Chec k th e gearbo x fo r leaks .
• Adjus t th e fron t to e (se e sectio n 18 ).
• Chec k th e steerin g whee l spok e angle . Adjus t b y
turning the righ t an d lef t tie-rods , i f necessary .
NOTE : Tur n th e righ t an d lef t tie-rod s equally .
CASTLE NU T49 - 5 9 N- m(5. 0 - 6. 0 kgf-m , 3 6 - 4 3 Ibf-ft )
COTTE R PI NReplace .On reassembly , ben d
th e cotte r pi n a s shown .
ProCarManuals.com

Steering Gearbo x

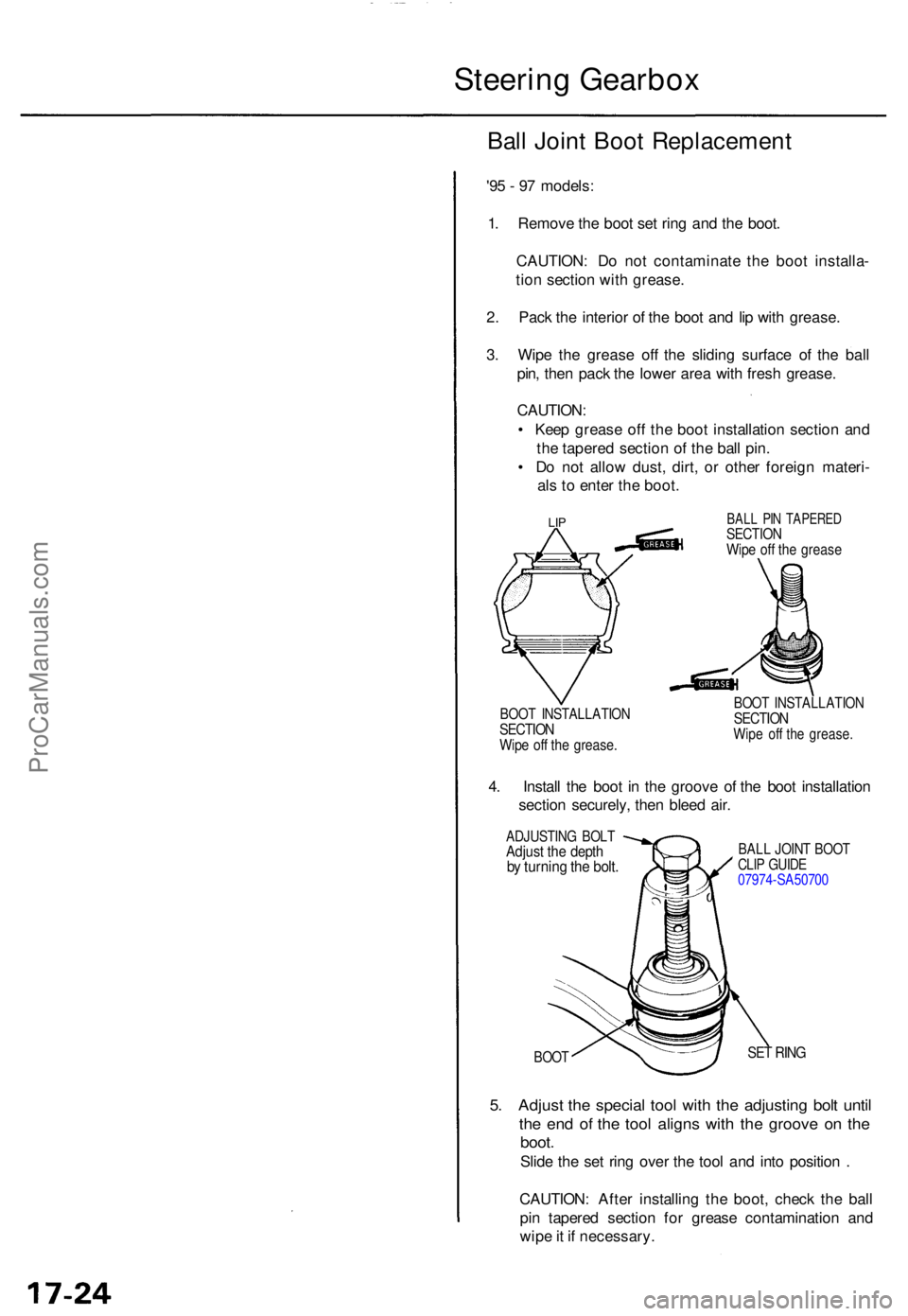

Ball Join t Boo t Replacemen t
'95 - 9 7 models :
1 . Remov e th e boo t se t rin g an d th e boot .
CAUTION : D o no t contaminat e th e boo t installa -
tio n sectio n wit h grease .
2 . Pac k th e interio r o f th e boo t an d li p wit h grease .
3 . Wip e th e greas e of f th e slidin g surfac e o f th e bal l
pin , the n pac k th e lowe r are a wit h fres h grease .
CAUTION :
• Kee p greas e of f th e boo t installatio n sectio n an d
th e tapere d sectio n o f th e bal l pin .
• D o no t allo w dust , dirt , o r othe r foreig n materi -
al s to ente r th e boot .
BALL PI N TAPERE DSECTIONWipe of f th e greas e
BOOT INSTALLATIO NSECTIONWipe of f th e grease .
BOOT INSTALLATIO NSECTIONWipe of f th e grease .
4. Instal l th e boo t i n th e groov e o f th e boo t installatio n
sectio n securely , the n blee d air .
ADJUSTIN G BOL TAdjus t th e dept hby turnin g th e bolt .
BAL L JOIN T BOO TCLIP GUID E07974-SA5070 0
BOOTSET RIN G
5. Adjus t th e specia l too l wit h th e adjustin g bol t unti l
the en d o f th e too l align s wit h th e groov e o n th e
boot .
Slide th e se t rin g ove r th e too l an d int o positio n .
CAUTION : Afte r installin g th e boot , chec k th e bal l
pi n tapere d sectio n fo r greas e contaminatio n an d
wip e it i f necessary .
LIP
ProCarManuals.com

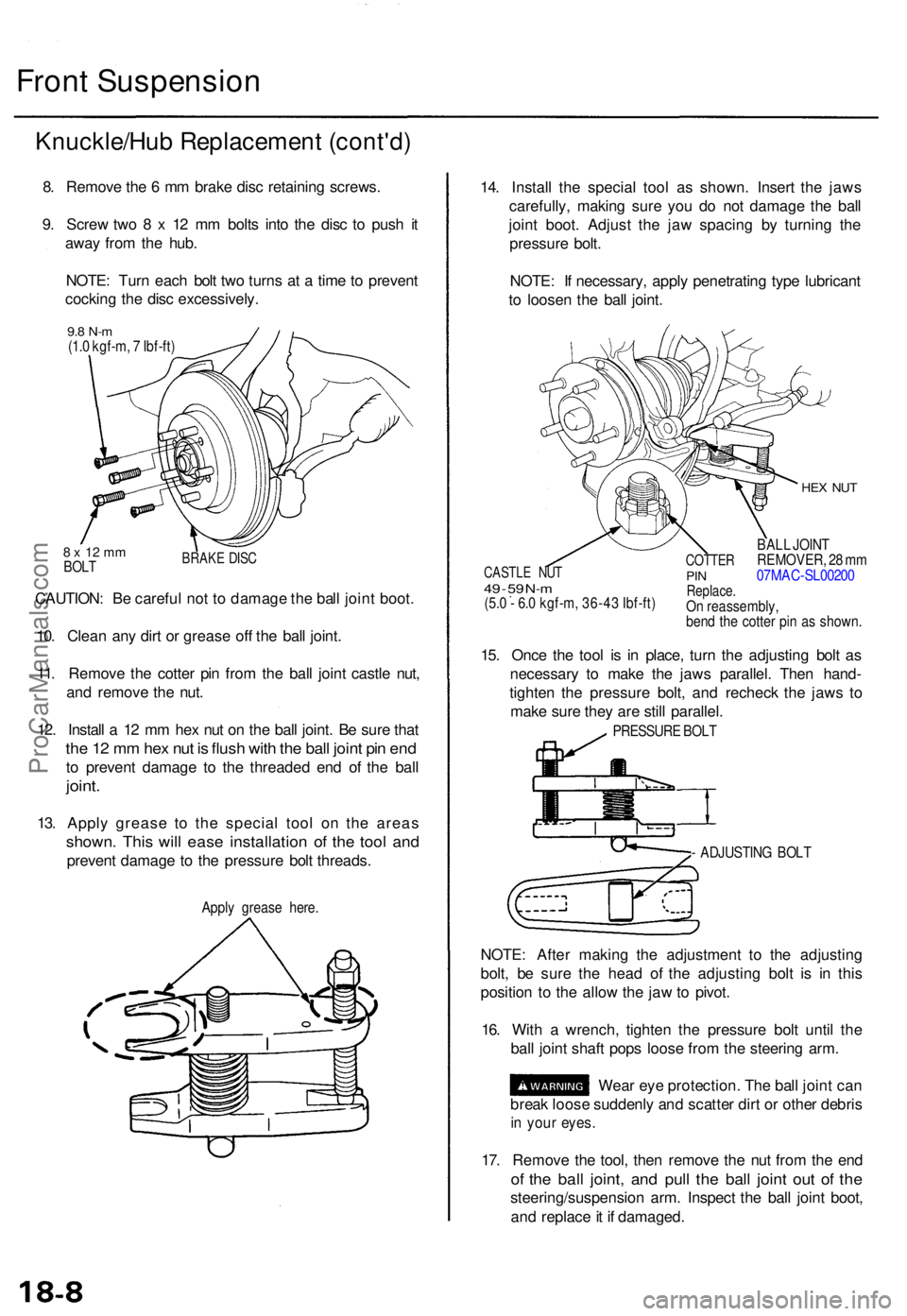

Front Suspensio n
Knuckle/Hu b Replacemen t (cont'd )
8. Remov e th e 6 m m brak e dis c retainin g screws .
9 . Scre w tw o 8 x 1 2 m m bolt s int o th e dis c t o pus h i t
awa y fro m th e hub .
NOTE : Tur n eac h bol t tw o turn s a t a tim e to preven t
cockin g th e dis c excessively .
9.8 N- m(1.0 kgf-m , 7 Ibf-ft )
8 x 1 2 m mBOL T
CAUTION : B e carefu l no t t o damag e th e bal l join t boot .
10 . Clea n an y dir t o r greas e of f th e bal l joint .
11 . Remov e th e cotte r pi n fro m th e bal l join t castl e nut ,
an d remov e th e nut .
12 . Instal l a 12 m m he x nu t o n th e bal l joint . B e sur e tha t
the 1 2 m m he x nu t i s flus h wit h th e bal l join t pi n en d
to preven t damag e t o th e threade d en d o f th e bal l
joint.
13. Appl y greas e t o th e specia l too l o n th e area s
shown . Thi s wil l eas e installatio n o f th e too l an d
preven t damag e t o th e pressur e bol t threads .
Apply greas e here .
14. Instal l th e specia l too l a s shown . Inser t th e jaw s
carefully , makin g sur e yo u d o no t damag e th e bal l
join t boot . Adjus t th e ja w spacin g b y turnin g th e
pressur e bolt .
NOTE : I f necessary , appl y penetratin g typ e lubrican t
t o loose n th e bal l joint .
CASTL E NU T49 - 5 9 N- m(5. 0 - 6. 0 kgf-m , 36-4 3 Ibf-ft )
HEX NU T
COTTE RPINReplace .On reassembly ,
ben d th e cotte r pi n a s shown .
15. Onc e th e too l i s i n place , tur n th e adjustin g bol t a s
necessar y t o mak e th e jaw s parallel . The n hand -
tighte n th e pressur e bolt , an d rechec k th e jaw s t o
mak e sur e the y ar e stil l parallel .
PRESSUR E BOL T
NOTE : Afte r makin g th e adjustmen t t o th e adjustin g
bolt , b e sur e th e hea d o f th e adjustin g bol t i s i n thi s
positio n t o th e allo w th e ja w to pivot .
16 . Wit h a wrench , tighte n th e pressur e bol t unti l th e
bal l join t shaf t pop s loos e fro m th e steerin g arm .
Wea r ey e protection . Th e bal l join t ca n
brea k loos e suddenl y an d scatte r dir t o r othe r debri s
in you r eyes .
17. Remov e th e tool , the n remov e th e nu t fro m th e en d
of th e bal l joint , an d pul l th e bal l join t ou t o f th e
steering/suspensio n arm . Inspec t th e bal l join t boot ,
an d replac e it i f damaged .
- ADJUSTIN G BOL T
BAL
L JOIN T
REMOVER , 2 8 m m
07MA C-SL0020 0
BRAKE DIS C
ProCarManuals.com

Construction and Function

TCS Control unit

Driving Control

When the drive wheel speed exceeds the vehicle speed by a given amount, the TCS control unit judges that the drive

wheels are slipping, and it outputs the traction control signal to reduce engine power.

Handling Control

Based on signals about right and left driven wheel rotational speeds, the control unit calculates the vehicle's "yaw" rate

(the turn rate of the vehicle's body). Based on signals from the steering angle sensor, the control unit also calculates the

yaw rate expected by the driver. If the difference between actual and expected yaw rates is substantial — that is, if the

direction of the vehicle's body will exceed the driver's expected line — the control unit signals the TCS control valve actu-

ator and PCM, thus reducing engine power and maintaining the expected line.

Rough Road Control

Based on signals from the wheel sensors, the control unit detects a rough road based on frequency of wheel rotational

vibration. The control unit then signals the TCS control valve actuator and PCM to relax engine power, thus improving

acceleration efficiency.

Grip Control

Based on signals about wheel speed and yaw rate, the control unit determines the efficiency of the grip of the tires on the

road and signals the TCS control valve actuator and PCM to relax engine power, if necessary, thus improving grip.

Main Control BlockProCarManuals.com

Electronic Component s
Steering Angl e Senso r Replacemen t
CAUTION: D o no t damag e o r dro p th e steerin g angl e senso r a s it i s sensitive .
1 . Remov e th e combinatio n switc h (refe r t o sectio n 1 7 in th e '9 5 - '9 8 Acur a 2.5T L servic e manual , P/ N 61SW504) .
2 . Remov e th e circli p an d screw , the n remov e th e steerin g angl e senso r fro m th e combinatio n switch .
3 . Installatio n i s i n th e revers e orde r o f removal .
CAUTION : D o no t appl y an y greas e o r oi l t o th e steerin g angl e sensor .
4 . Perfor m th e steerin g angl e senso r syste m check . SCRE W
STEERING ANGL E SENSO R
COMBINATIO N SWITC H
CANCE L CA M
WAV E WASHE R
SPRING
LOWER COVE R
NOTE: Whe n reassembling , alig n th e tab s o f th e join t an d
cance l ca m to th e sli t o f th e steerin g angl e sensor .
Steering Angl e Senso r Syste m Chec k
1. Star t th e engine .
2 . Pus h th e TC S switc h thre e time s withi n thre e seconds .
NOTE: Alway s maintai n th e sam e numbe r o f rotations .
3. Slowl y tur n th e steerin g whee l fro m clockwis e mor e tha n 1. 5 turns .
NOTE :
• Star t checkin g afte r th e steerin g whee l move s a t leas t 1. 5 turns .
• Tur n th e steerin g whee l slowly , n o faste r tha n on e tur n in fou r seconds .
4 . Pus h th e TC S switc h twic e withi n thre e seconds .
NOTE : Alway s maintai n th e sam e numbe r o f rotations .
5 . Slowl y tur n th e steerin g whee l counterclockwise , an d chec k th e numbe r o f time s th e TC S indicato r ligh t flashe s afte r
th e whee l ha s move d approximatel y on e turn .
NOTE :
• Star t countin g afte r th e steerin g whee l move s on e turn .
• Tur n th e steerin g whee l slowly , n o faste r tha n on e tur n i n fou r seconds .
Standar d numbe r o f time s th e TC S indicato r ligh t flashes : 2 time s ('9 6 model )
: 4 time s ('9 7 model )
6 . I f ther e is a n abnormality , chec k th e troubleshooting flowchart (se e pag e 19-126 ).
JOIN T
CIRCLI P
ProCarManuals.com

Precautions/Procedures
Steering-related Precaution s
Steering Whee l an d Cabl e Ree l Alignmen t
NOTE : T o avoi d misalignmen t o f th e steerin g whee l o n
reassembly , mak e sur e th e wheel s ar e turne d straigh t
ahea d befor e removin g th e steerin g wheel .
'9 6 Model : Rotat e th e cabl e ree l clockwis e unti l i t stops .
The n rotat e i t counterclockwis e (approximatel y tw o
turns ) unti l th e hol e i n th e whit e gea r line s u p wit h th e
windo w o n th e cove r an d th e arro w mar k o n th e cabl e
ree l labe l point s straigh t up .
'9 7 - 9 8 Models : Rotat e th e cabl e ree l clockwis e unti l i t
stops . The n rotat e i t counterclockwis e (approximatel y tw o
an d a hal f turns ) unti l th e arro w mar k o n th e cabl e ree l
labe l point s straigh t up .
ARRO W MAR K
WHITEGEARCABL E REE LLABE L
HOLE
'96 Mode l
only:
WINDO W
Steering Colum n Remova l
CAUTION :
Before removin g th e steerin g column , firs t discon -
nec t th e connecto r betwee n th e cabl e ree l an d th e
SR S mai n harness .
I f th e steerin g colum n is goin g t o b e remove d with -
ou t dismountin g th e steerin g wheel , loc k th e steer -
in g b y turnin g th e ignitio n ke y t o 0-LOC K position , o r
remov e th e ke y fro m th e ignitio n s o tha t th e steerin g
whee l wil l no t turn .
NOTE :
Whe n th e airba g assembl y an d cabl e ree l ar e discon -
nected , an d th e batter y i s reconnecte d an d th e igni -
tion switc h is turne d O N (II) , th e SR S uni t wil l stor e
this a s a n ope n i n th e driver' s airba g inflator , an d th e
SR S indicato r ligh t wil l com e on . I n suc h a case ,
mak e sur e t o confir m th e DTC , the n clea r th e SR S
uni t memory .
Fo r disconnectin g th e spring-loade d loc k typ e con -
nector , refe r t o pag e 24-9 .
CONNECTO RHOLDER
CABLE REE L2P CONNECTO R
SRS MAI N HARNES S2P CONNECTO R
Do no t replac e th e origina l steerin g whee l wit h an y othe r
desig n becaus e i t will mak e i t impossibl e t o properl y
instal l th e airba g (us e onl y genuin e Hond a replacemen t
parts).
After reassembly , confir m th e wheel s ar e stil l turne d
straigh t ahea d an d tha t th e steerin g whee l spok e angl e
i s correct . I f mino r spok e angl e adjustmen t i s necessary ,
d o s o onl y b y adjustin g th e tie-rods , no t b y removin g
an d repositionin g th e steerin g wheel .
ProCarManuals.com

Airbag

Replacement

After a collision in which the airbags were deployed, the

airbag assemblies and the SRS unit must be replaced.

Store a removed airbag assembly with

the pad surface up. If the airbag is improperly stored

face down, accidental deployment could propel the unit

with enough force to cause serious injury.

CAUTION:

Always disconnect the airbag connectors when the

SRS main harness is disconnected.

'96 Model: Always keep the short connector (RED) on

the passenger's airbag when the harness is discon-

nected.

Do not disassemble or tamper with the airbag.

NOTE:

Do not install used SRS parts from another vehicle.

When repairing, use only new SRS parts.

Carefully inspect the airbag before you install it. Do

not install an airbag that shows signs of being

dropped or improperly handled, such as dents, cracks

or deformation.

1. Make sure you have the anti-theft code for the radio,

then write down the frequencies for the radio's pre-

set buttons.

2. Disconnect the battery negative cable, then discon-

nect the positive cable from the battery, and wait at

least three minutes.

3. Disconnect the airbag connectors:

Driver's Side:

Remove the access panel from the steering wheel,

then disconnect the 2P connector between the driver's

airbag and cable reel.

ACCESS

PANEL
Front Passenger's Side:

'96 Model:

Remove the glove box, then remove the short connec-

tor (RED) from it's holder.

Disconnect the 3P connector between the front pas-

senger's airbag and SRS main harness, then connect

the short connector (RED) to the airbag side of the con-

nector.

FRONT PASSENGER'S

AIRBAG

3P CONNECTOR
SHORT CONNECTOR (RED)

SRS MAIN HARNESS

'97 - 98 Models:

Remove the glove box.

Disconnect the 2P connector between the front pas-

senger's airbag and SRS main harness.

FRONT PASSENGER'S AIRBAG

2P CONNECTOR

SRS MAIN HARNESS

2P CONNECTOR

DRIVER'S AIRBAG

2P CONNECTOR
CABLE REEL

2P CONNECTOR
DRIVER'S

AIRBAG.ProCarManuals.com
