1994 CHEVROLET CORVETTE Owners Manual

Downloaded from www.Manualslib.com manuals search engine Service and Appearance Care

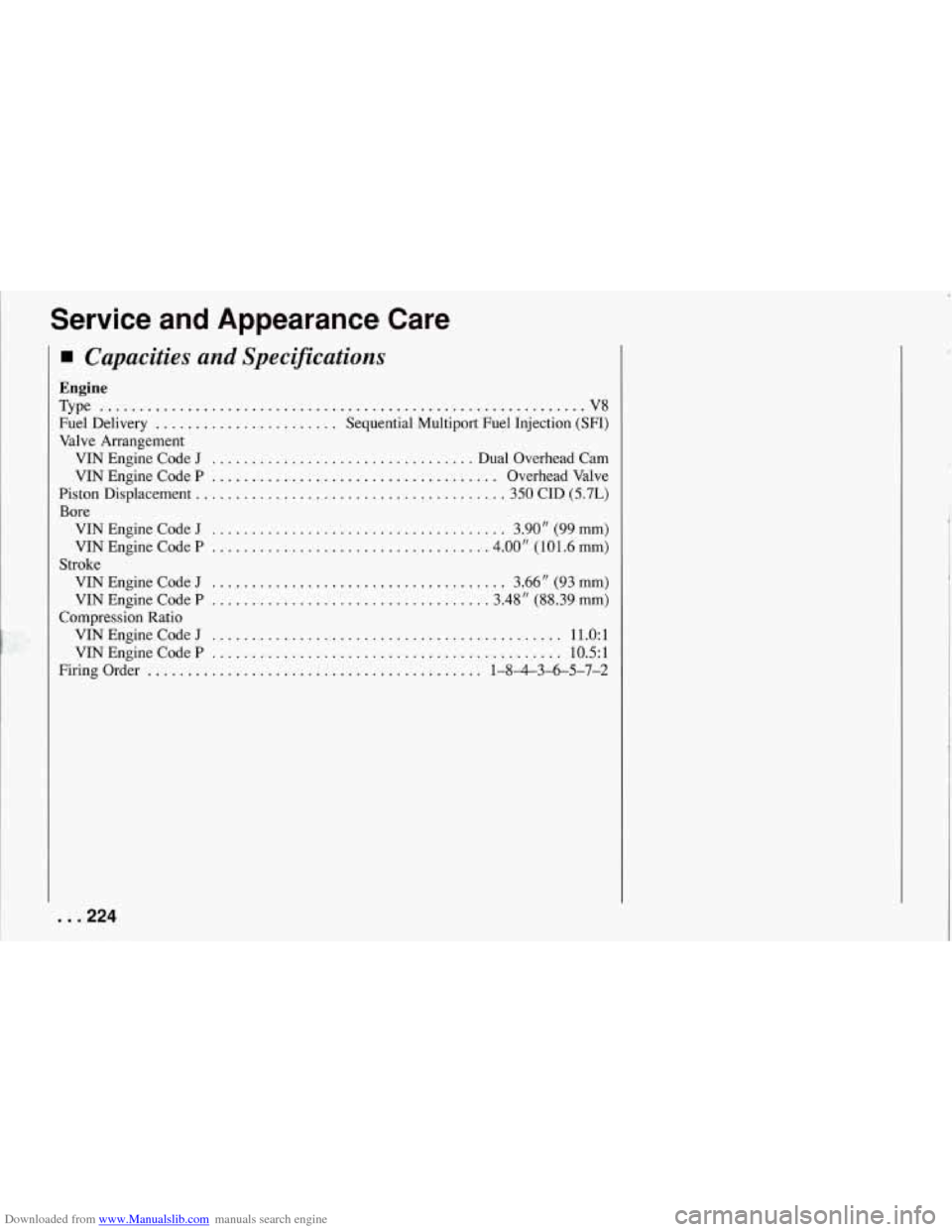

Capacities and Specifications
Engine
Type ............................................................. V8
Fuel Delivery
....................... Sequential Multiport Fuel Injection (SFI)
Valve Arrangement VIN Engine Code
J ................................. Dual Overhead Cam
VIN Engine Code
P .................................... Overhead Valve
Piston Displacement ....................................... 350 CID (5.7L)
Bore
VIN Engine Code
J ..................................... 3.90" (99 mm)
VIN Engine Code P .................................. .4.00" (101.6 mm)
VIN Engine Code
J ..................................... 3.66" (93 mm)
VIN Engine Code
P .................................. .3.48" (88.39 mm)
VIN Engine Code
J ............................................ 11 .O: 1
VIN Engine Code
P ............................................ 10.5: 1
Firingorder .......................................... 1-843-6-5-7-2
Stroke
Compression Ratio
.. .224

Downloaded from www.Manualslib.com manuals search engine Replacement Parts
AirCleanerFilter .............................................. A1097C
Battery VINEngineCodeJ
........................................... 752-72
VIN Engine Code P
........................................... 75B-72
Coolant High Fill Reservoir Cap
.................................... RC36
Crankcase Ventilation Valve VIN Engine Code J
.............................. CV746CB and CV9 13C
VIN Engine Code P
................. : ........................ CV895C
VIN Engine Code
J .................................... PF970C (black)
VINEngineCodeP
............................................. PF51
VIN Engine Code J
.............................. GM Part No. 10067477
VIN Engine Code P
.............................. GM Part No. 10230259
VIN Engine Code
J ................................... 907 (0.050" Gap)
VIN Engine Code P
.................................... 906 (0.050" Gap)
Thermostat Temperature Specification
......................... 1 80 "F (82 O C)
Wheel Nuts
Wheel Nut Torque ................................... 100 lb. ft. ( 140 Nam)
Engine Oil Filter
Serpentine Belt
Spark Plug
225. ..

Downloaded from www.Manualslib.com manuals search engine l Service and Appearance Care

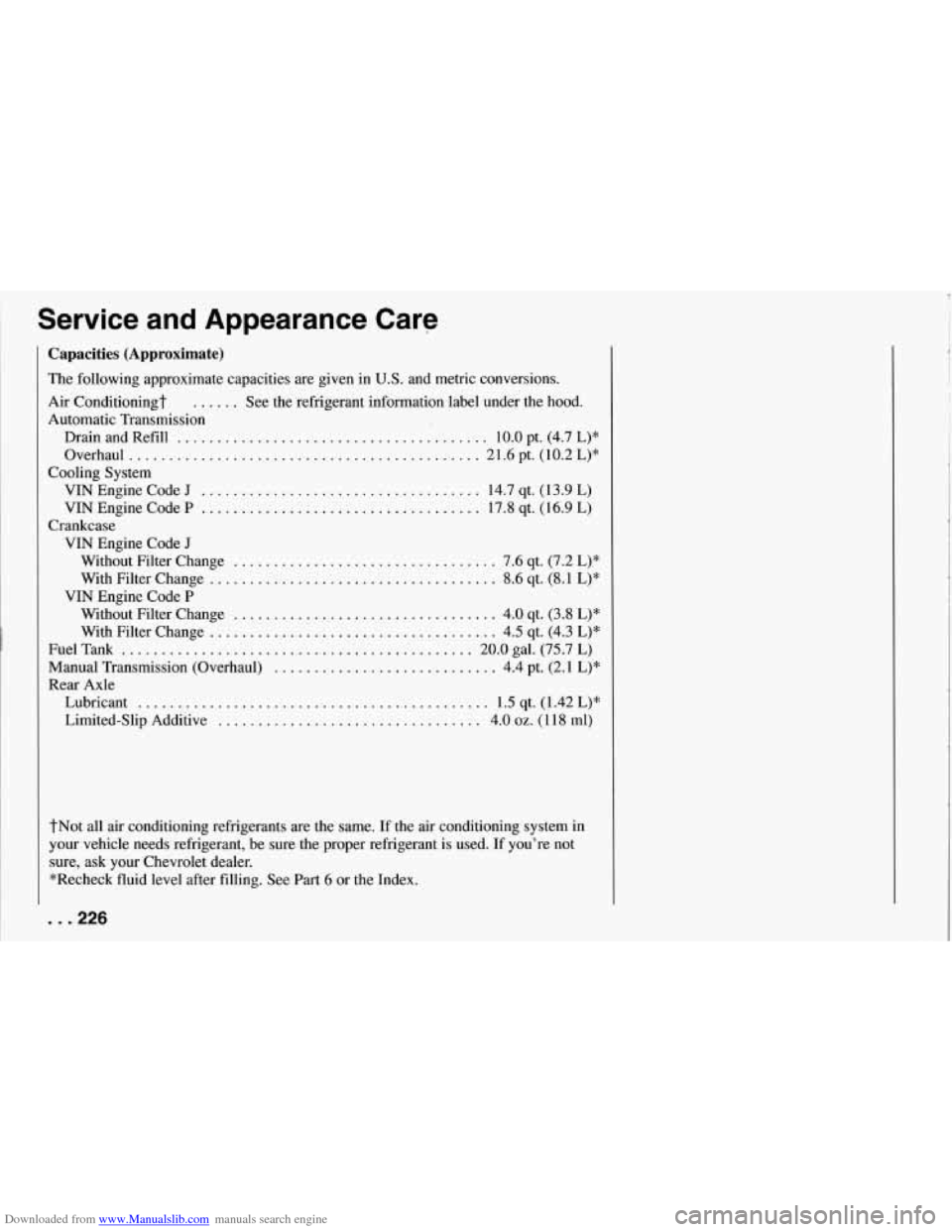

Capacities (Approximate)
The following approximate capacities are given in U.S. and metric conversions.
Air Conditioningt
...... See the refrigerant information label under the hood.
Automatic Transmission
Drain and Refill
....................................... 10.0 pt. (4.7 L)*
Overhaul
............................................ 21.6 pt. (10.2 L)*
VIN Engine Code J ................................... 14.7 qt. (1 3.9 L)
VIN Engine Code
P ................................... 17.8 qt. (16.9 L)
VIN Engine Code J
Cooling System
Crankcase Without Filter Change
................................. 7.6 qt. (7.2 L)*
With Filter Change
.................................... 8.6 qt. (8.1 L)*
Without Filter Change ................................. 4.0 qt. (3.8 L)*
With Filter Change .................................... 4.5 qt. (4.3 L)*
Fuel Tank ............................................ 20.0 gal. (75.7 L)
Manual Transmission (Overhaul)
............................ 4.4 pt. (2.1 L)*
Rear Axle
Lubricant
............................................ 1.5 qt. (1.42 L)*
Limited-Slip Additive
................................. 4.0 oz. (1 18 ml)
VIN Engine
Code
P
tNot all air conditioning refrigerants are the same. If the air conditioning system in
your vehicle needs refrigerant, be sure the proper refrigerant is used. If you’re not
sure, ask your Chevrolet dealer.
*Recheck fluid level after filling. See Part
6 or the Index.
.. .226

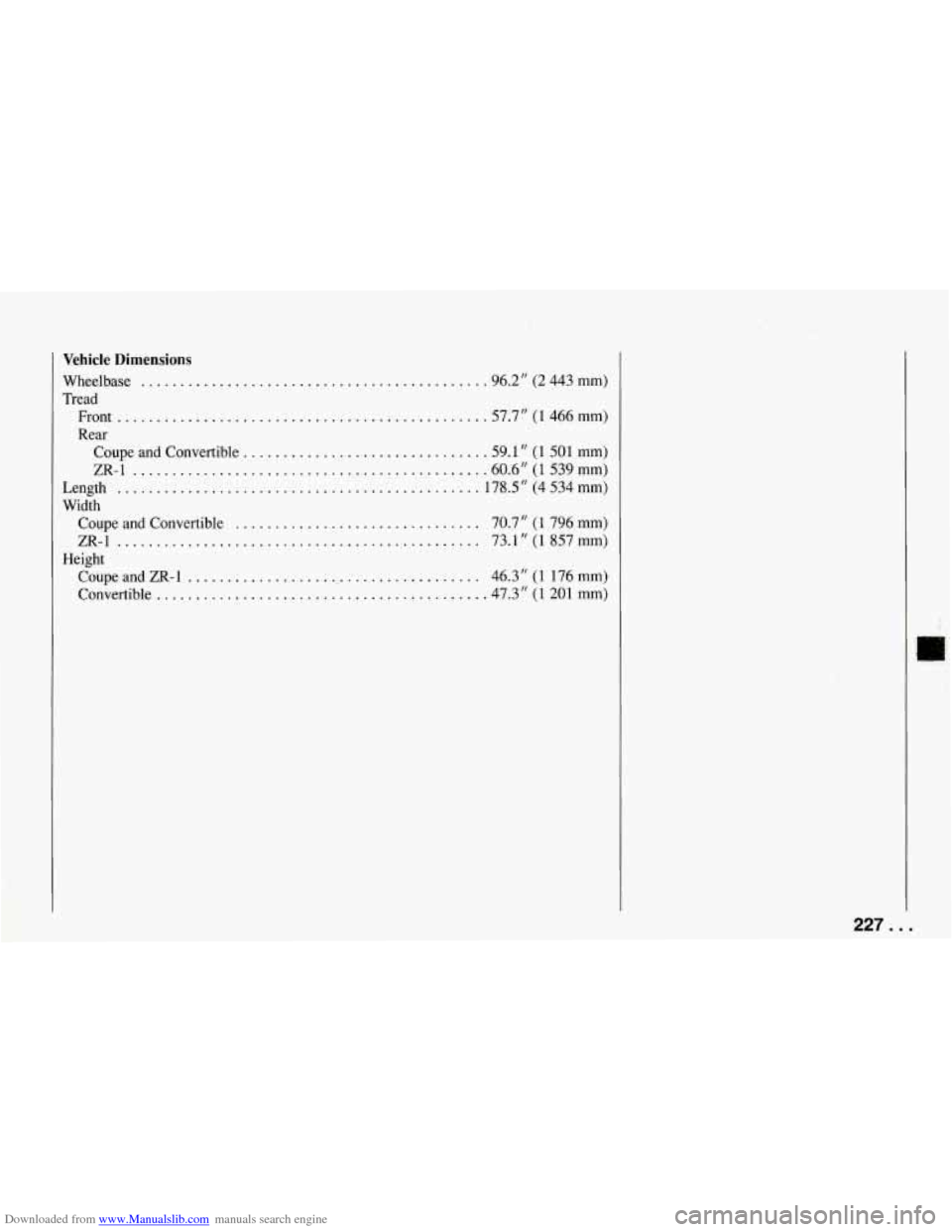

Downloaded from www.Manualslib.com manuals search engine Vehicle Dimensions
Wheelbase ........................................... .96.2" (2 443 mm)
Tread Front
............................................... 57.7" (1 466 mm)
Rear Coupe and Convertible
.............................. .59.1 I' (1 501 mm)
ZR-1
............................................ .60.6" (1 539 mm)
Length
............................................... 178.5'' (4 534 mm)
Width Coupe and Convertible
............................... 70.7" (1 796 mm)
ZR-1
.............................................. 73.1 I' (1 857 mm)
Coupe and ZR- 1
...................................... 46.3 (1 176 mm)
Convertible
......................................... -47.3" (1 201 mm)
Height
I 'I
227. ..

Downloaded from www.Manualslib.com manuals search engine Service and Appearance Care
450 500 L
g 200
100

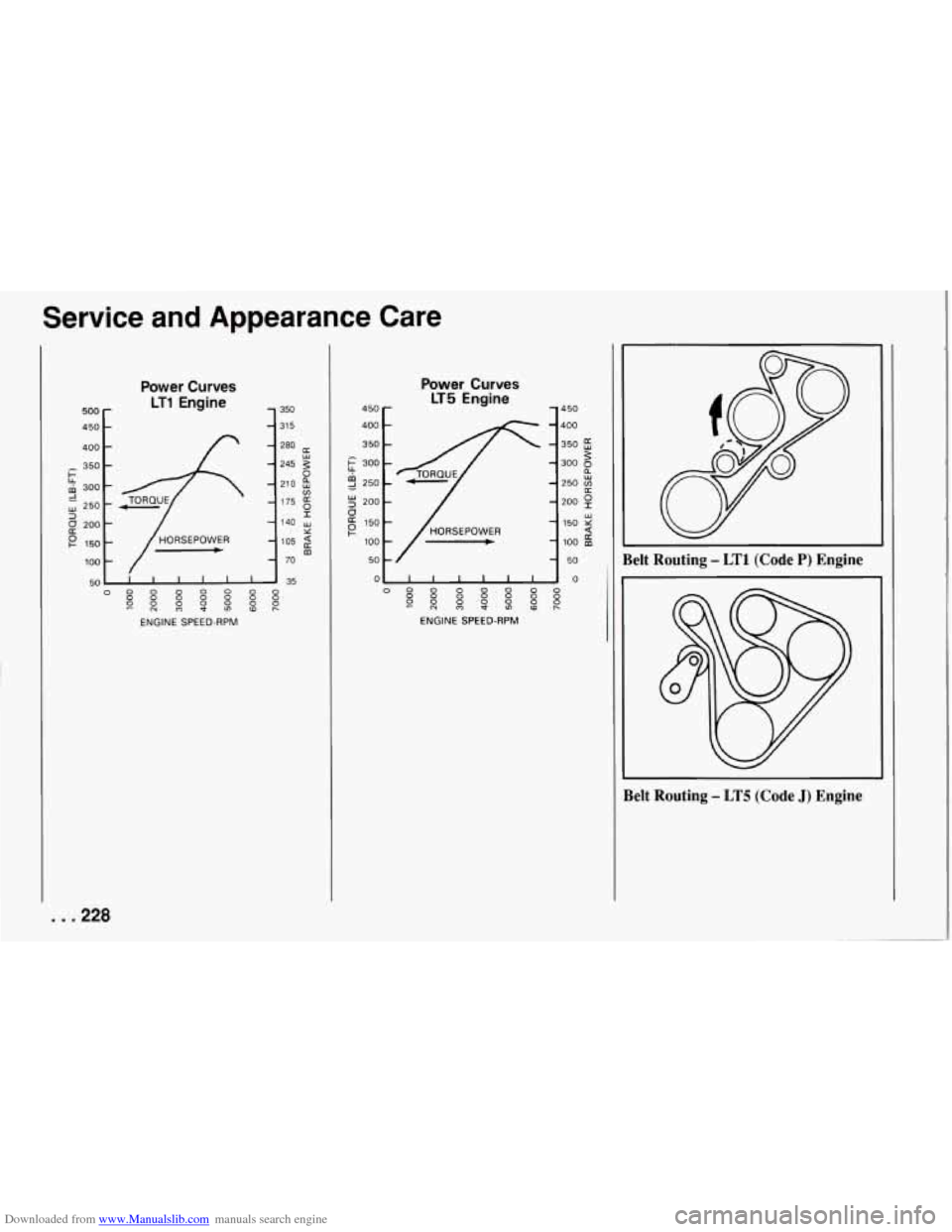

Power Curves
LT1 Engine
280
245 $
210 g
175 In
140 w I
105 2 Y
70 m
ENGINE SPEED-RPM
. . ,228
450 r
400 -
350 -
i= 300 -
$ 250 -
$ 200
P
-
' 150 -
100 -
50 -
Power Curves
LT5 Engine
HORSEPOWER -
450
- 400
350 3
- 300 0 3
a - 250 % U
-
- 200 p
2
w -
-
- 50
150 2
100 m
ENGINE SPEED-RPM
Belt Routing - LT1 (Code P) Engine
Belt Routing
- LT5 (Code J) Engine

Downloaded from www.Manualslib.com manuals search engine IMPORTANT:
KEEP THE ENGINE OIL
AT THE PROPER
LEVEL AND CHANGE AS
RECOMMENDED

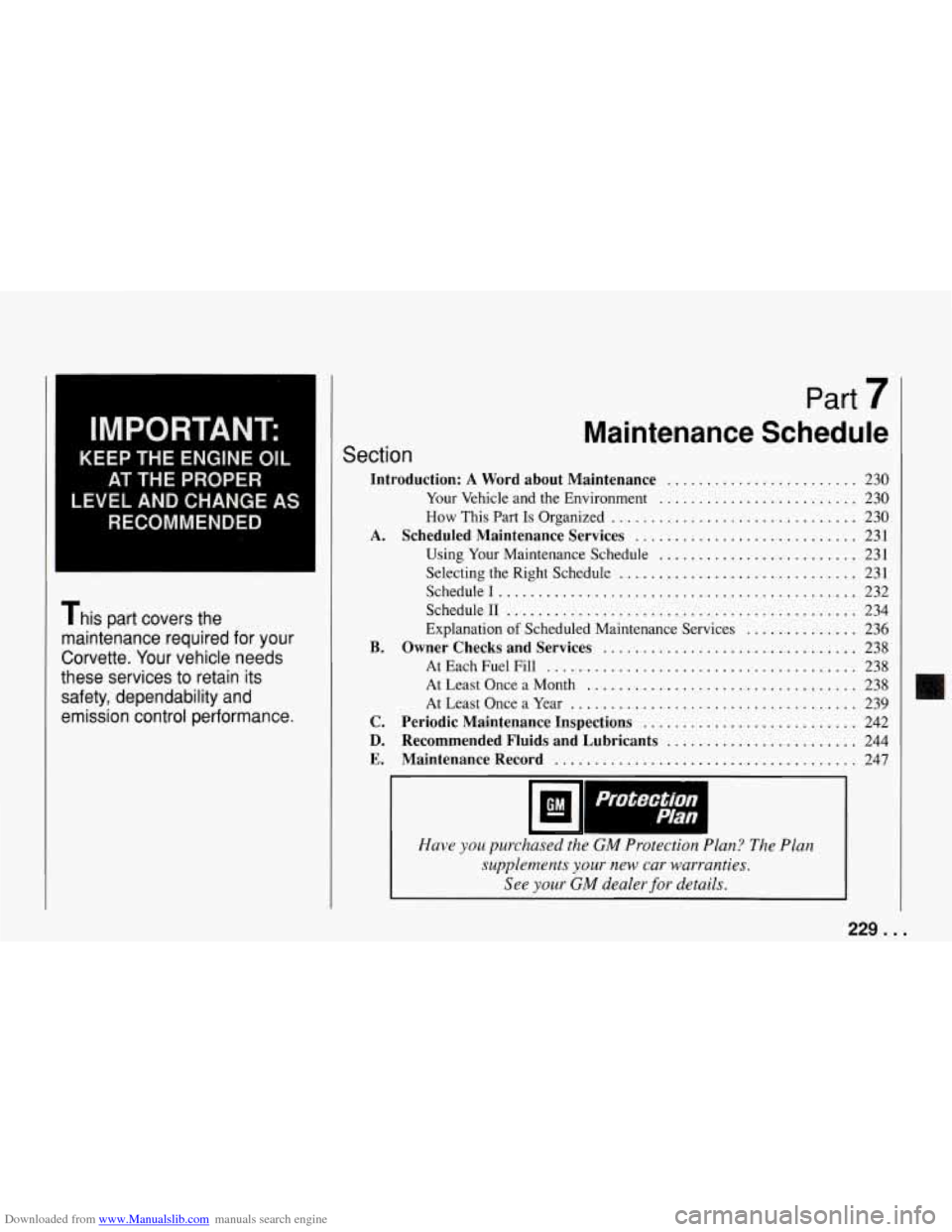

This part covers the
maintenance required for your
Corvette
. Your vehicle needs
these services to retain its
safety. dependability and
emission control performance
.
.
Maintenance Schedule
Section
Introduction: A Word about Maintenance ........................ 230
A .
B .
C .
D .
E .
Your Vehicle and the Environment ......................... 230
How This Part Is Organized ............................... 230
Scheduled Maintenance Services ............................ 231
Using Your Maintenance Schedule
......................... 231
Selecting the Right Schedule
.............................. 231
Schedule1
............................................. 232
Schedule11
............................................ 234
Explanation
of Scheduled Maintenance Services .............. 236
Owner Checks and Services ................................ 238
At Each Fuel
Fill ....................................... 238
AtLeastOnceaMonth
.................................. 238
At Least Once
a Year .................................... 239
Periodic Maintenance Inspections ........................... 242
Recommended Fluids and Lubricants ........................ 244
Maintenance Record ...................................... 247
I
Protection
Plan
Have you purchased the GM Protection Plan? The Plan
supplements your new car warranties
.
See your GM dealer for details .
229 ...

Downloaded from www.Manualslib.com manuals search engine Maintenance Schedule

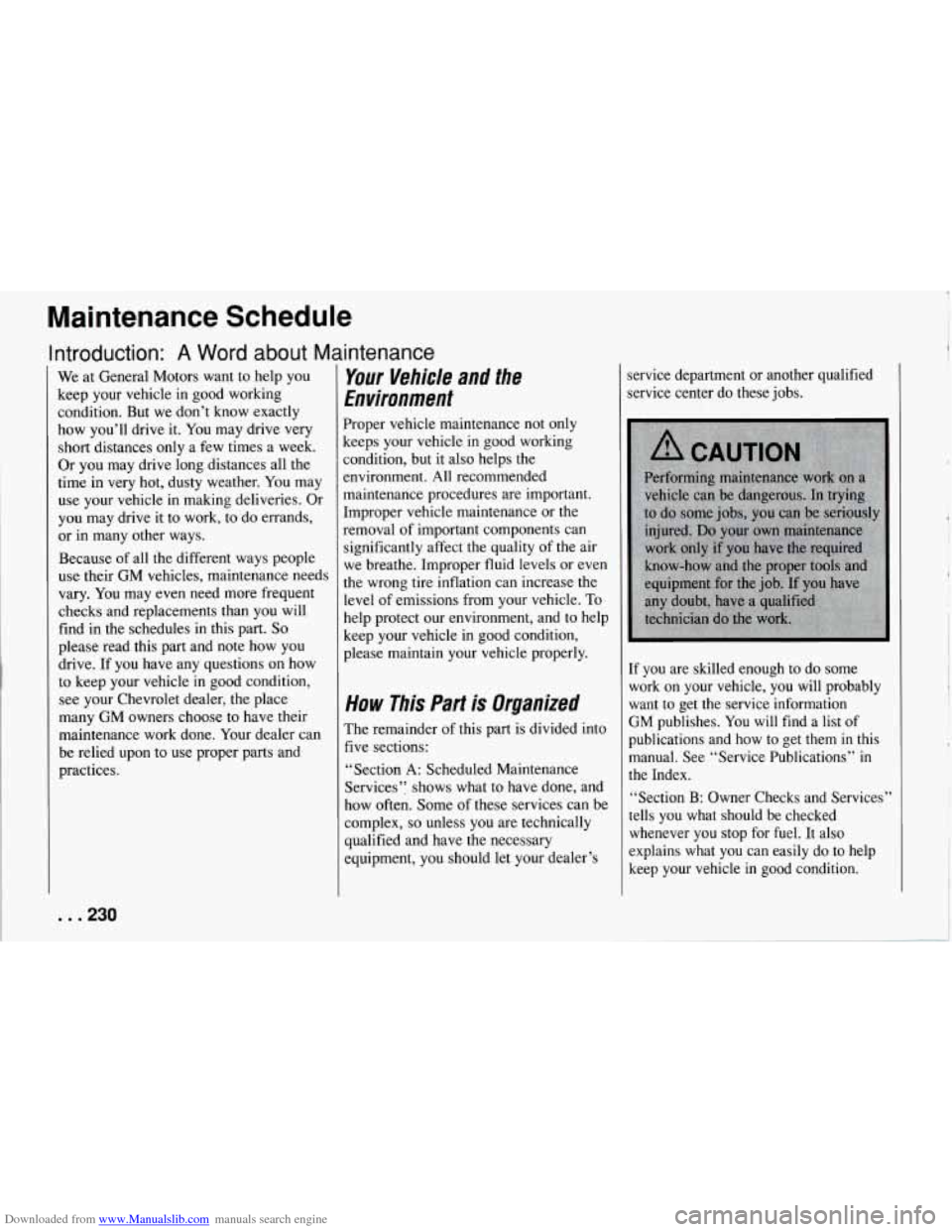

Introduction: A Word about Maintenance
We at General Motors want to help you
keep your vehicle in good working
condition. But we don’t know exactly
how you’ll drive it. You may drive very
short distances only a few times a week.
Or you may drive long distances all the
time in very hot, dusty weather.
You may
use your vehicle in making deliveries. Or
you may drive it to work, to do errands,
or
in many other ways.
Because of all the different ways people
use their GM vehicles, maintenance needs
vary. You may even need more frequent
checks and replacements than you will
find in the schedules in this part.
So
please read this part and note how you
drive. If you have any questions on how
to keep your vehicle in good condition,
see your Chevrolet dealer, the place
many GM owners choose to have their
maintenance work done. Your dealer can
be relied upon to use proper parts and
practices.
Your Vehicle and I
Environment the
Proper vehicle maintenance not only
keeps your vehicle in good working
condition,
but it also helps the
environment. All recommended
maintenance procedures are important.
Improper vehicle maintenance or the
removal of important components can
significantly affect the quality of the air
we breathe. Improper fluid levels or even
the wrong tire inflation can increase the
level of emissions from your vehicle. To
help protect our environment, and to help
keep your vehicle in good condition,
please maintain your vehicle properly.
How This Part is Organized
The remainder of this part is divided into
five sections:
“Section
A: Scheduled Maintenance
Services’: shows what to have done, and
how often. Some of these services can be
complex,
so unless you are technically
qualified and have the necessary
equipment, you should let your dealer’s lified
service department or another
qua
service center do these jobs.
If you are skilled enough to do some
work on your vehicle, you will probably
want to get the service information
GM publishes. You will find a list of
publications and how to get them in this
manual. See “Service Publications”
in
the Index.
“Section B: Owner Checks and Services’’
tells you what should be checked whenever you stop for fuel. It also
explains what you can easily do to help
keep your vehicle in good condition.
1
. . .230

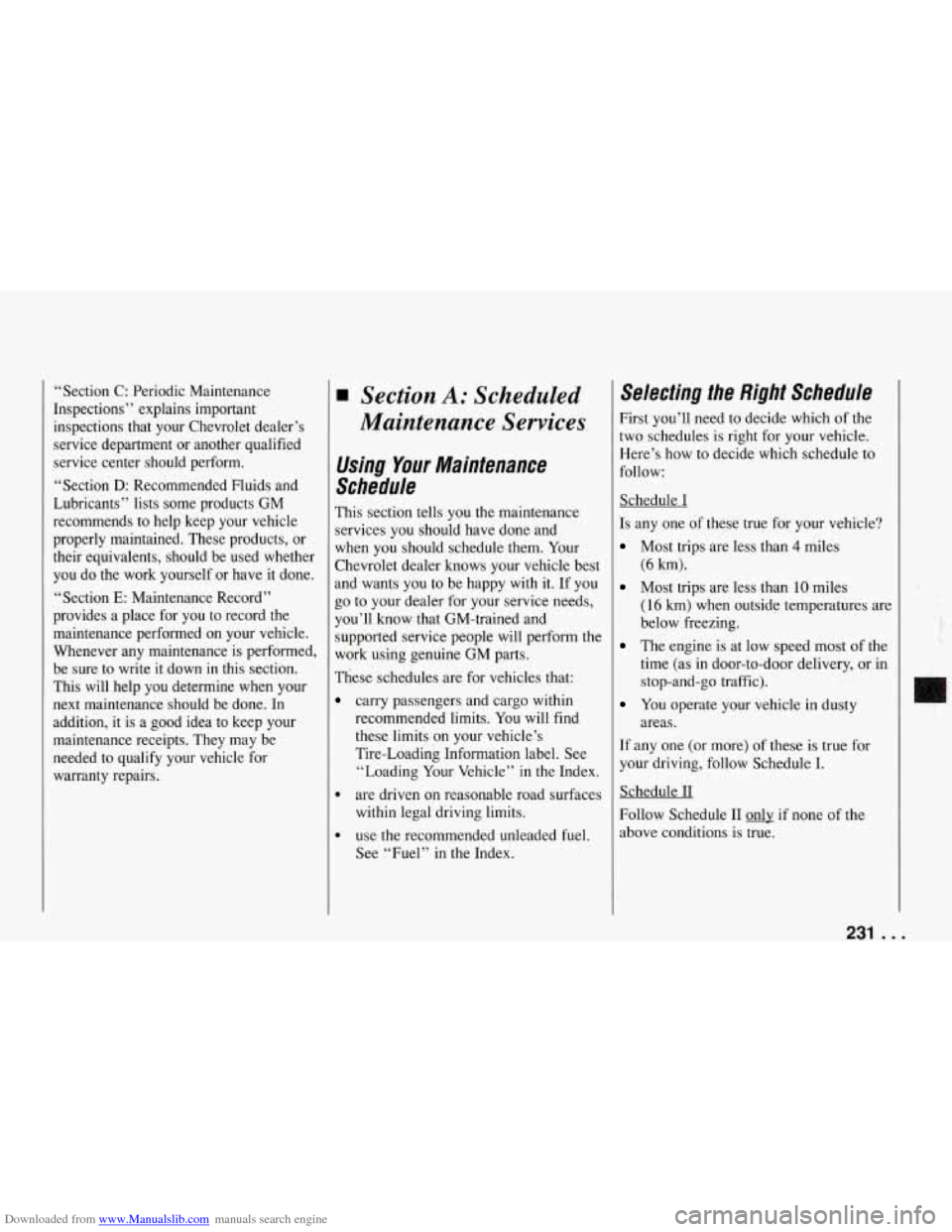

Downloaded from www.Manualslib.com manuals search engine “Section C: Periodic Maintenance
Inspections” explains important inspections that your Chevrolet dealer’s
service department or another qualified
service center should perform.
“Section
D: Recommended Fluids and
Lubricants” lists some products GM
recommends to help keep your vehicle
properly maintained. These products, or
their equivalents, should be used whether
you do the work yourself or have it done.
“Section
E: Maintenance Record”
provides a place for you to record the
maintenance performed on your vehicle.
Whenever any maintenance
is performed,
be sure to write it down in this section.
This will help you determine when your next maintenance should be done. In
addition,
it is a good idea to keep your
maintenance receipts. They may be
needed to qualify your vehicle for
warranty repairs.
Section A: Scheduled
Maintenance Services
Using Your Maintenance
Schedule
This section tells you the maintenance
services you should have done and
when you should schedule them. Your
Chevrolet dealer knows your vehicle best
and wants you to be happy with
it. If you
go to your dealer for your service needs,
you’ll know that GM-trained and
supported service people will perform the
work using genuine GM parts.
These schedules are for vehicles that:
carry passengers and cargo within
recommended limits. You will find
these limits on your vehicle’s
Tire-Loading Information label. See
“Loading Your Vehicle” in the Index.
are driven on reasonable road surfaces
within legal driving limits.
use the recommended unleaded fuel.
See “Fuel” in the Index.
Selecting the Right Schedule
First you’ll need to decide which of the
two schedules is right for your vehicle.
Here’s how to decide which schedule to
follow:
Schedule I
Is any one of these true for your vehicle?
Most trips are less than 4 miles
Most trips are less than 10 miles
(6 km).
(1 6 km) when outside temperatures are
below freezing.
The engine is at low speed most of the
time (as
in door-to-door delivery, or in
stop-and-go traffic).
You operate your vehicle in dusty
If any one (or more) of these is true for
your driving, follow Schedule I.
Schedule I1
Follow Schedule I1
o& if none of the
above conditions is true,
areas.
231 . . .
