Page 217 of 274

Downloaded from www.Manualslib.com manuals search engine Service and Appearance Care

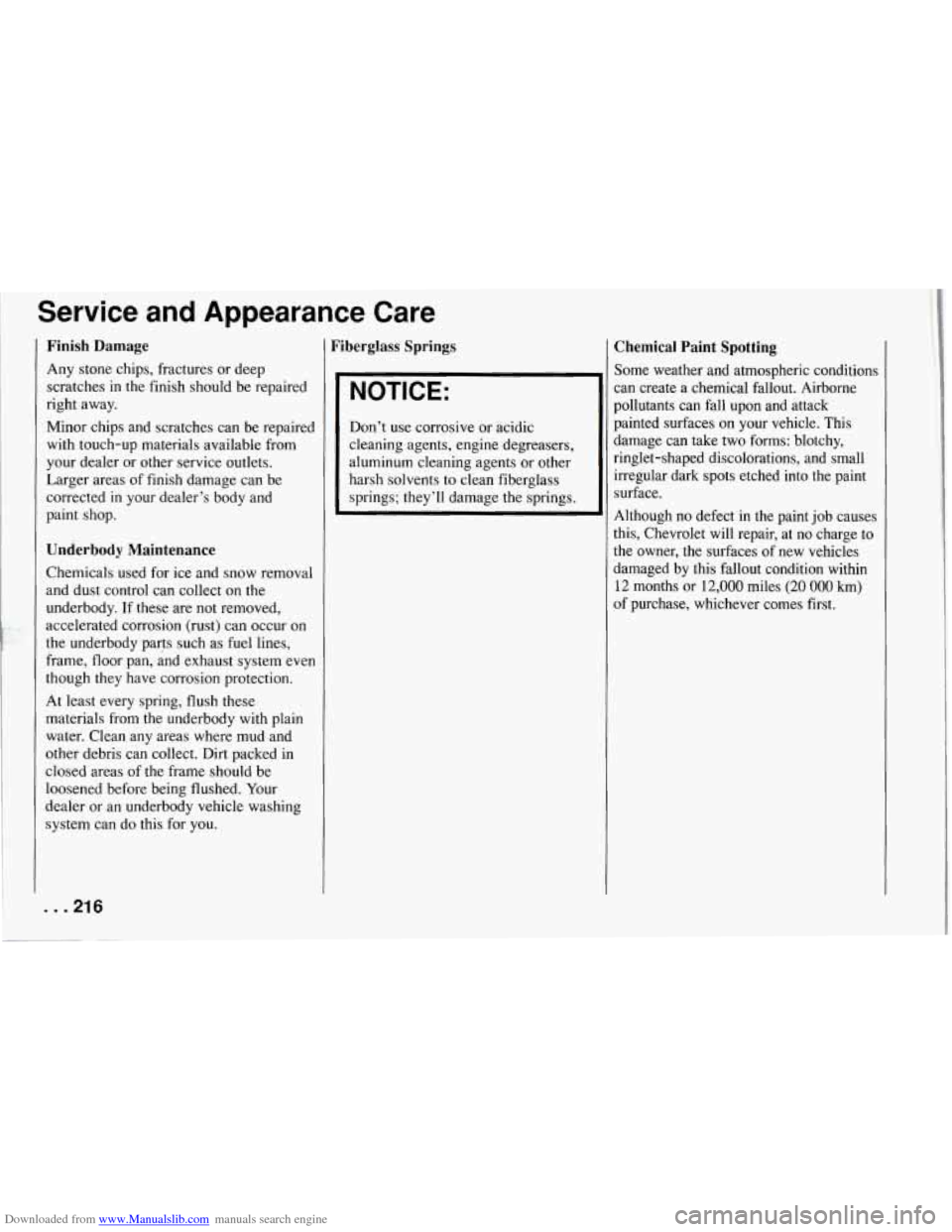

Finish Damage
Any stone chips, fractures or deep
scratches
in the finish should be repaired
right away.
Minor chips and scratches can be repaired
with touch-up materials available from
your dealer or other service outlets.
Larger areas of finish damage can be
corrected
in your dealer’s body and
paint shop.
Underbody Maintenance
Chemicals used for ice and snow removal
and dust control can collect on the
underbody. If these are not removed,
accelerated corrosion (rust) can occur on
the underbody parts such as fuel lines,
frame, floor pan, and exhaust system even
though they have corrosion protection.
At least every spring, flush these
materials from
the underbody with plain
water. Clean any areas where mud and
other debris can collect. Dirt packed in
closed areas of the frame should be
loosened before being flushed. Your
dealer or an underbody vehicle washing
system can do this for you.
. . .216
Fiberglass Springs
I NOTICE:
Don’t use corrosive or acidic
cleaning agents, engine degreasers,
aluminum cleaning agents or other
harsh solvents to clean fiberglass
springs; they’ll damage the springs.
Chemical Paint Spotting
Some weather and atmospheric conditions
can create a chemical fallout. Airborne
pollutants can fall upon and attack
painted surfaces on your vehicle. This damage can take two
forms: blotchy,
ringlet-shaped discolorations, and small
irregular dark spots etched into the paint
surface.
Although no defect in the paint job causes
this, Chevrolet will repair, at no charge to
the owner,
the surfaces of new vehicles
damaged by this fallout condition within
12 months or 12,000 miles (20 000 km)
Df purchase, whichever comes first.
Page 218 of 274
Downloaded from www.Manualslib.com manuals search engine Appearance Care Materials Chart

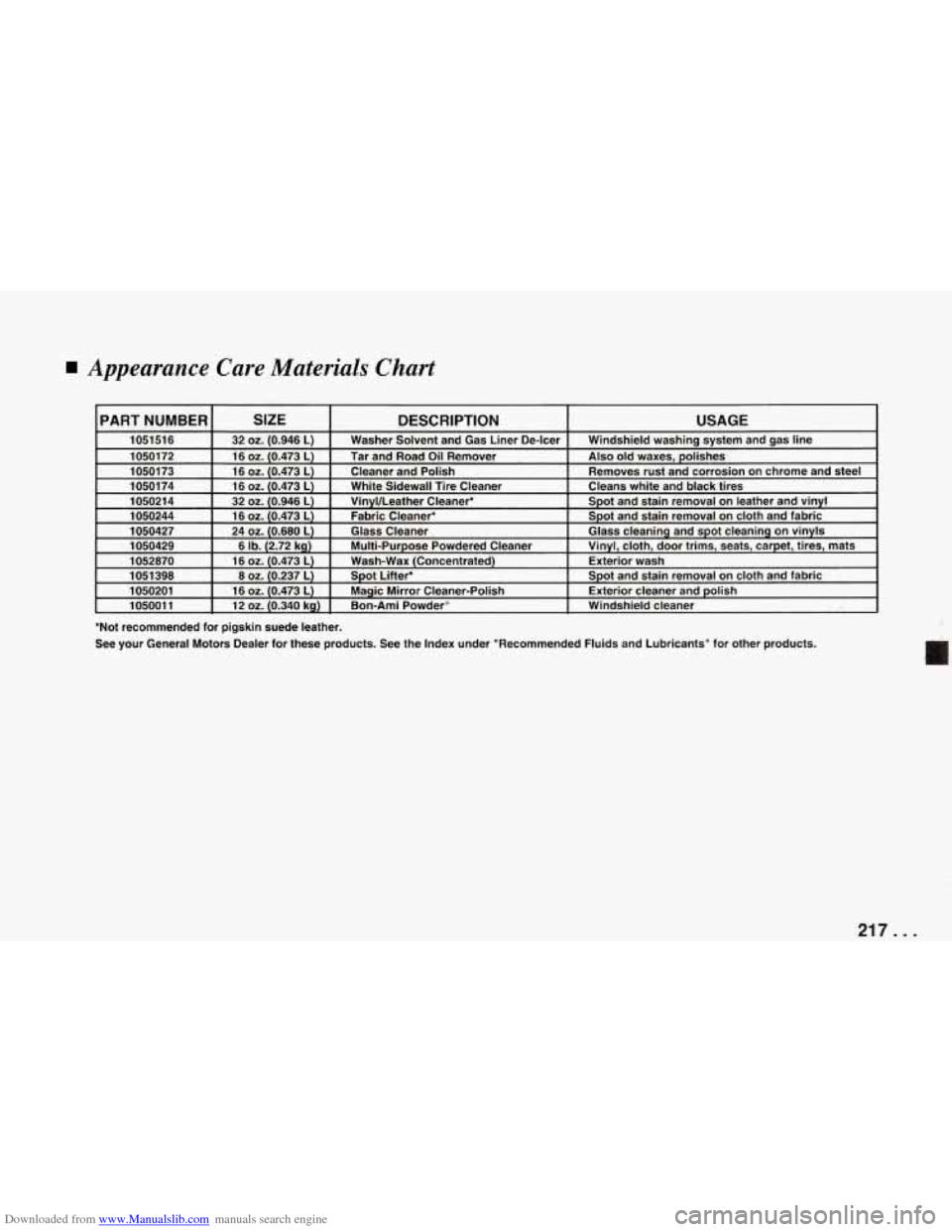

I 105001 1 I 12 oz.10.340 ka) I Bon-Ami Powder" I Windshield cleaner I
'Not recommended for pigskin suede leather.
See your General Motors Dealer for these products. See the Index under "Recommended Fluids and Lubricants" for other products.
217 ...
Page 219 of 274

Downloaded from www.Manualslib.com manuals search engine I Service and Appearance Care
c r
-
I
1
c
d
tl
1
r
1
1
i
r
C
V
e
I Vehicle Identification
Number (VIN)
:his is the legal identifier for your
lorvette. It appears on a plate in the front
orner of the instrument panel, on the
.river’s side. You can see it if you look
hrough the windshield from outside your
.chicle. The VIN also appears on the
rehicle Certification and Service Parts
abels and the certificates of title and
,egistration.
hgine Identification
The eighth character in your VIN is the
mgine code. This code will help you
dentify your engine, specifications, and
meplacement parts.
. .218
Service Parts
Identification Label
You’ll find this label on the underside of
your console storage compartment. It’s
very helpful if you ever need to order
parts. On this label is:
0 your VIN,
.* the model designation,
paint information, and
a list of all production options and
special equipment.
Be sure that this label is not removed
from the vehicle.
Add-on Electrical
Equipment
NOTICE:
Don’t add anything electrical to
your Corvette unless you check with
your dealer first. Some electrical
equipment can damage your vehicle
and the damage wouldn’t be covered
by your warranty. Some add-on
electrical equipment can keep other
components from working as they should.
Your vehicle has an air bag system.
Before attempting to add anything
electrical to your Corvette, see “Servicing
Your Air Bag-Equipped Corvette” in the
Index.
Page 220 of 274

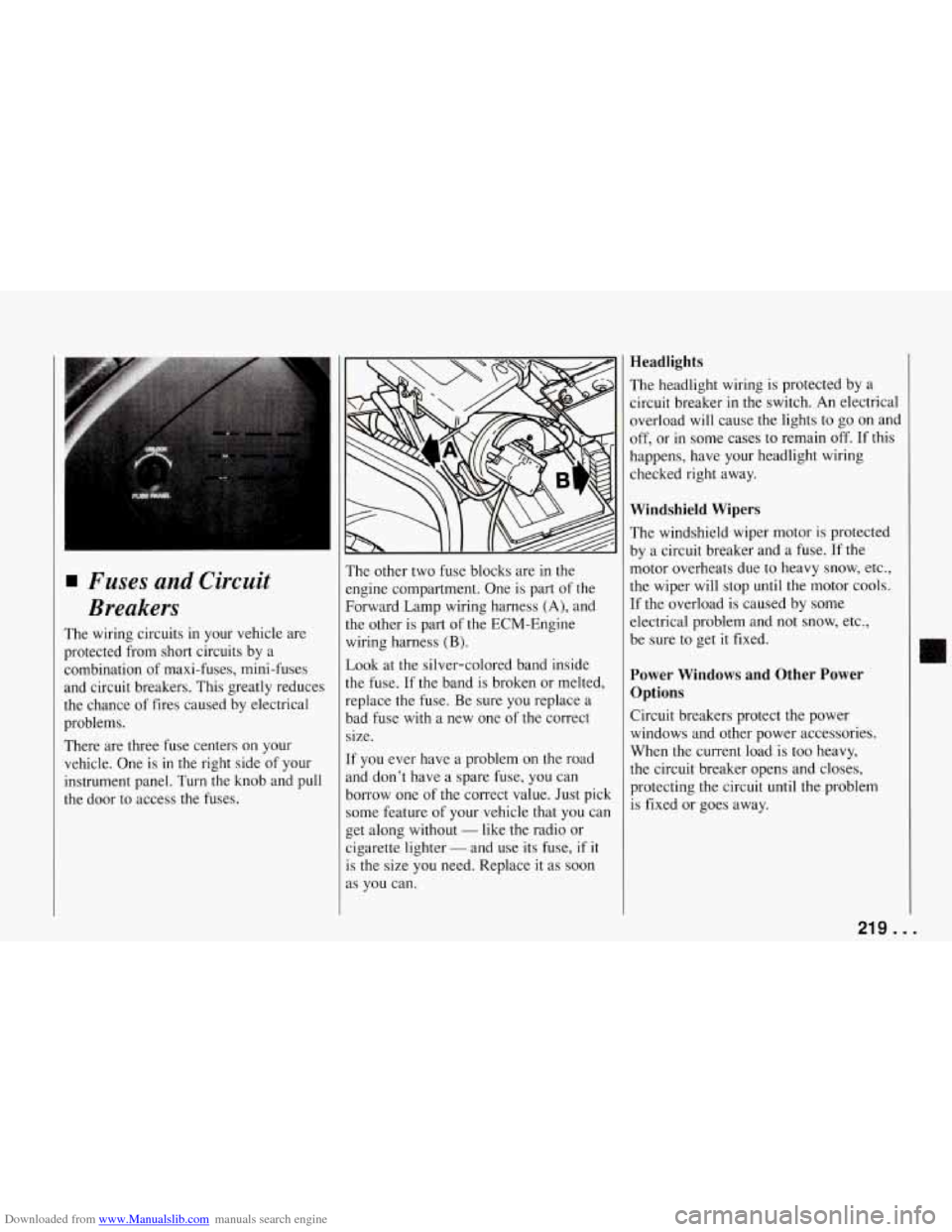

Downloaded from www.Manualslib.com manuals search engine Fuses and Circuit
Breakers
The wiring circuits in your vehicle are
protected from short circuits by a
combination of maxi-fuses, mini-fuses
and circuit breakers. This greatly reduces
the chance of fires caused by electrical
problems.
There are three fuse centers on your
vehicle. One
is in the right side of your
instrument panel. Turn the knob and pull
the door to access the fuses. The other
two fuse blocks are in the
engine compartment. One is part of the
Forward Lamp wiring harness
(A), and
the other is part of the ECM-Engine
wiring harness
(B).
Look at the silver-colored band inside
the fuse. If the band is broken or melted,
replace the fuse. Be sure you replace a
bad fuse with a new one of the correct
size.
If you ever have a problem on the road
and don’t have a spare fuse, you can
borrow one of the correct value. Just pick
some feature of your vehicle that you can
get along without
- like the radio or
cigarette lighter
- and use its fuse, if it
is the size you need. Replace it as soon
as you can.
Headlights
The headlight wiring is protected by a
circuit breaker
in the switch. An electrical
overload will cause the lights to go on and
off, or in some cases to remain
off. If this
happens, have your headlight wiring
checked right away.
Windshield Wipers
The windshield wiper motor is protected
by a circuit breaker and a fuse. If the
motor overheats due to heavy snow, etc.,
the wiper will stop until the motor cools.
If the overload is caused by some
electrical problem and not snow, etc.,
be sure to get
it fixed.
Power Windows and Other Power
Options
Circuit breakers protect the power
windows and other power accessories.
When the current load is too heavy,
the circuit breaker opens and closes,
protecting the circuit until the problem
is fixed or goes away.
II
219 ...
Page 221 of 274

Downloaded from www.Manualslib.com manuals search engine Service and Appearance Care
I EoA7 I
POWER WINDOW
lu
D
.
Instrument Panel Fuse Block
1 - A/C Module (5 Amp)
2 - Blank
3 - Windshield WiperNVasher Switch
4 - Radio Receiver Box (Ignition)
5 - Heated Mirrors (5 Amp.)
6 - Taillight, Daytime Running Lights
Module (15 Amp.)
Assembly
(30 Amp.)
(5 Amp.)
7 - Horn Relay
(15 Amp.)
*Export Horn
(20 Amp.)
8 - Hazard Flashers; Brake Switch
(20 Amp.)
9 - Crank-Air Bag (5 Amp.)
10 - Crank-Parmeutral Shitch
(Automatic); Clutch (Manual)
(5 Amp.)
11 - RH Illumination (5 Amp.)
12 - LH Illumination (5 Amp.)
13 - Console Illumination (5 Amp.)
14 - Fuel Pump 1 (10 Amp.)
15 - Fuel Pump 2 (LT5) (IO Amp.)
16 - Central Control Module; Daytime
Running Lights Module
(5 Amp.)
17 - Generator; Vacuum Pump (LT5);
Valet Mode (LT5); EGR Circuit
(LT5); Oxygen Sensors (LT5)
(10 Amp.)
and A/C Control Head; Heater and
A/C Programmer; Rear Defog
Relay
(10 Amp.)
19 - Utility Plug (15 Amp.)
20 - Heated Oxygen Sensors (LT1)
(15 Amp.)
21 - Fuel Pump Relay Coil #2 (LT5);
Selective Ride Control Module;
ABS Module; Transmission Clutch
Control Switch (Automatic);
Air Pump Relay; Diverter Valve;
Secondary Bypass Valve (LT5)
(10 Amp.)
22 - Injectors #1,4,6,7 (LT1); Primary
Injectors #1-8 (LT5); Ignition Coil
Module (LT5); Ignition Coil Plate
Connector (LT5) (10 Amp.)
18 - A/C Compressor Clutch; Heater
. . .220
Page 222 of 274

Downloaded from www.Manualslib.com manuals search engine 23 - Injectors #2, 3, 5, 8 (LTI);
Secondary Injector Relays (#1,2
(LT5); Secondary SF1 Control
Modules (LT5)
(10 Amp.)
24 - Turn Signal Flashers (10 Amp.)
25 - Ignition Coil and Ignition Coil
26 - Passive Keyless Entry Module
27 - Instrument Cluster; Driver Module (10 Amp.)
(5 Amp.)
Information Center; Air Bag Derm; Acceleration Slip Regulation
Switch
(15 Amp.)
Transmission Position Switch; One
to Four Shift Solenoid
(10 Amp.)
29 - Primary Cooling Fan Relay Coil;
Secondary Cooling Fan Relay Coil
28 - Backup Lights Switch;
(5 Amp.)
30 - Direct Ignition Module; Camshaft Sensor; Canister Purge Solenoid;
Throttle Position Sensor Buffer
Module; EGR Circuit (LT1);
31
32
Secondary Air Inlet Solenoid
(LT5); Electronic Ignition Control
Module (LT5); One to Four Shift
Relay
( 10 Amp.)
Power Mirror Adjuster Control;
Lighted Rearview Mirror; Visor
Vanity Mirrors
(5 Amp.)
Cruise Control Engage Switch;
Daytime Running Lights Module;
Low Tire Pressure Warning
Module
(5 Amp.)
33 - Engine Control Module (5 Amp.)
34 - Air Bag System (15 Amp.)
35 - Central Control Module (5 Amp.)
36 - Footwell Courtesy Lights; Door
Courtesy Lights; Glove
Compartment Lights; Lighted
Rearview Mirror
(5 Amp.)
37 - Bose Amplifier Relay; Power
Antenna Relay; Cargo
Compartment Lights
(20 Amp.)
Relay
(5 Amp.)
38 - LCD; Tone Generator; Dome Light
39 - Central Control Module (5 Amp.)
40 - Radio Receiver Box (Battery);
Radio Control Head; Passive
Keyless Entry Module
(5 Amp.)
41 - Sport Seat (10 Amp.)
42 - Power Door Lock Switches; Driver
Information Center; Passive
Keyless Entry Module
(20 Amp.)
43 - A/C Programmer (5 Amp.)
44 - Cigar Lighter; Accessory Plug
45 - Hatch or Deck Lid Release Relay
K - Power Seats (30 Amp. Circuit
L - Blank
M - Power Windows (30 Amp: Circuit
N - Blank
P - Blank
(15 Amp.)
(25 Amp.)
Breaker)
Breaker)
221 . I
Page 223 of 274
Downloaded from www.Manualslib.com manuals search engine Service and Appearance Care
. . .222
1 I INTERIOR LIGHTING
20A I
I RH HDLP 30A I I I
h 3 5 I SECONDARY COOLING FAN
40A I
6 I EXTERIOR LIGHTING
60A
I
7 piiiFiAAccsy
I
AIR PUMP
20A I

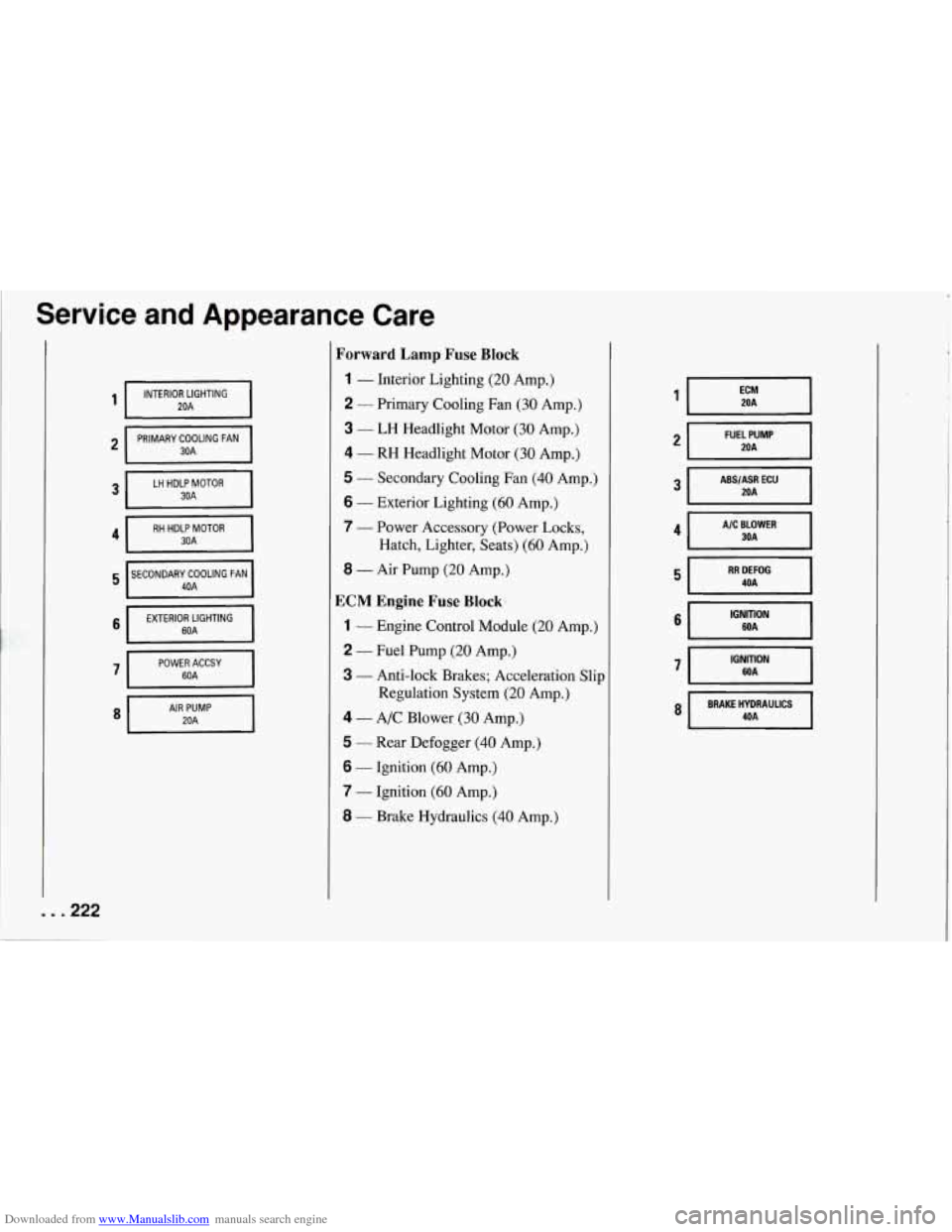

Forward Lamp Fuse Block
1 - Interior Lighting (20 Amp.)
2 - Primary Cooling Fan (30 Amp.)
3 - LH Headlight Motor (30 Amp.)
4 - RH Headlight Motor (30 Amp.)
5 - Secondary Cooling Fan (40 Amp.)
6 - Exterior Lighting (60 Amp.)
7
- Power Accessory (Power Locks, Hatch, Lighter, Seats)
(60 Amp.)
8 - Air Pump (20 Amp.)
ECM Engine Fuse Block.
1 - Engine Control Module (20 Amp.)
2 - Fuel Pump (20 Amp.)
3 - Anti-lock Brakes; Acceleration Slip
Regulation System
(20 Amp.)
4 - A/C Blower (30 Amp.)
5 - Rear Defogger (40 Amp.)
6 - Ignition (60 Amp.)
7 - Ignition (60 Amp.)
8 - Brake Hydraulics (40 Amp.)
FUEL PUMP
ABS/ASR ECU
A/C BLOWER
IGNITION WA I
8 I BRAKE HYDRAULICS 4OA I
Page 224 of 274

Downloaded from www.Manualslib.com manuals search engine Replacement Bulbs
Air Conditioningmeater Control ....................................... 37
Automatic Transmission Indicator
.................................. 194NA
Backup
......................................................... 1 156
Center High-Mounted Stoplight (except ZR-1)
.......................... 1156
Center High-Mounted Stoplight (ZR-
1) ................................. 891
Console
......................................................... 564
Cornering
....................................................... 1156
DoorCourtesy
.................................................. 212-2
Door Flood
........................................................ 73
Driver Information Center
Floorcourtesy
.................................................... 562
Fog
.............................................................. 896
* .............................................
Front Parking/Turn Signal ....................................... 2057NA
Headlight
..................................................... HP6054
Instrument Cluster
License
........................................................... 24
MirrorFlood
....................................................... 74
MirrorReading
.................................................... 168
Radio
* ...................................................
* .............................................................
Rear Courtesy (Convertible) ......................................... 562
Rear Courtesy (except Convertible)
.................................... 906
Sidemarker
........................................................ 24
Tail/Stop/Turn
................................................... 2057
Underhood
..................................................... 212-2
Visor Vanity Mirror
................................................. 74
"These bulbs are not owner.serviceab1e . See your dealer .
. h . .
223 ...
