1994 CADILLAC FLEETWOOD Owners Manual

NOTICE:
Raising your vehicle with the jack improperly positioned will
damage the vehicle or may allow the vehicle to fall
off the jack.
Be sure to fit the jack lift head into the proper location before
raising your vehicle.
Raise the vehicle by rotating the wheel wrench clockwise. Raise the
vehicle far enough off the ground
so there is enough room for the spare
tire to fit.
Remove the wheel nuts
.and take off the flat tire.
236
-1
I

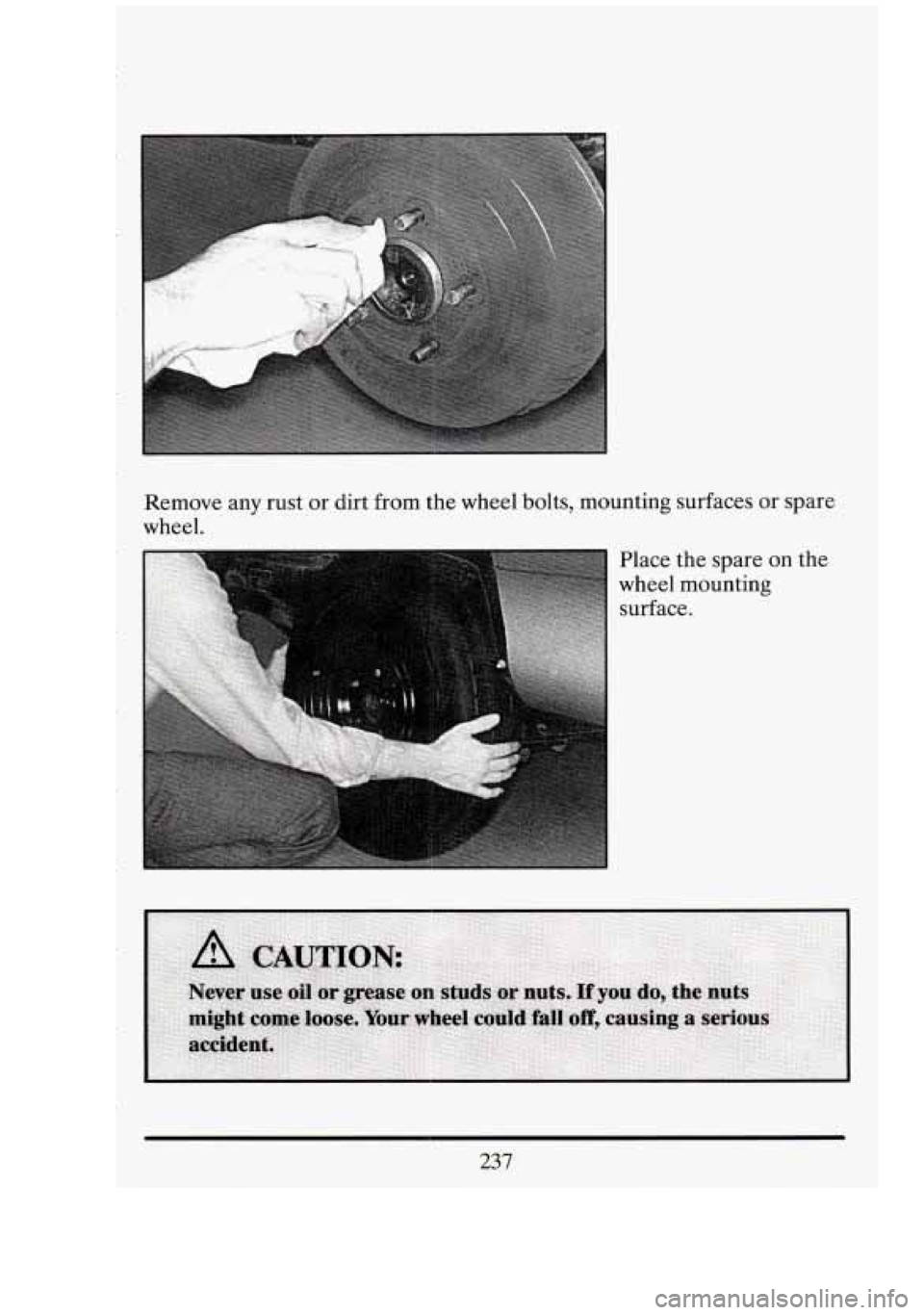

Remove any rust or dirt from the wheel bolts, mounting surfaces or spare
wheel.
Place the spare
on the
wheel mounting surface.
237

, .... .
I
Replace the wheel nuts
with the rounded end
of the nuts toward the
wheel. Tighten each
nut by hand until the
wheel
is held against
the hub.
Lower the vehicle
rotating the wheel
wrench
counterclockwise.
Lower the vehicle
completely.
il
'I'
L
-1
v'
238

I-

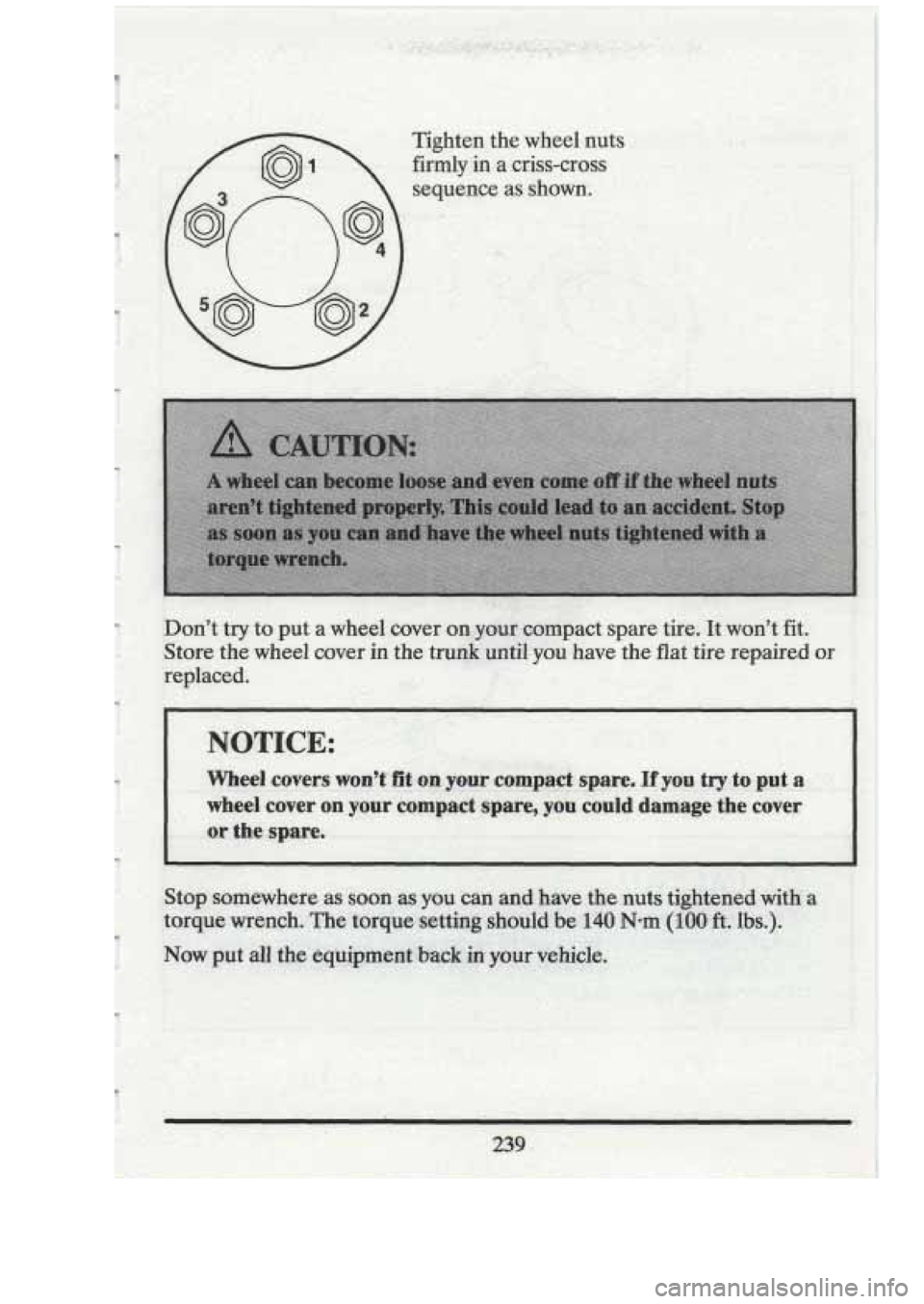

Tighten the wheel nuts
firmly
in a criss-cross
sequence
as shown. kj
Don’t try to put .a wheel cover on.yom,Gampact spare tire. It won’t fit.
Store the wheel coverin the trunk untibyou have the flat tire repaired or
replaced.
..
NOTICE:
Wheel covers wsa’tfit on your compact spare.. If you try40 put a
wheel cover on your comp&t - spare, you .could damsme the cover
or the spare.
239

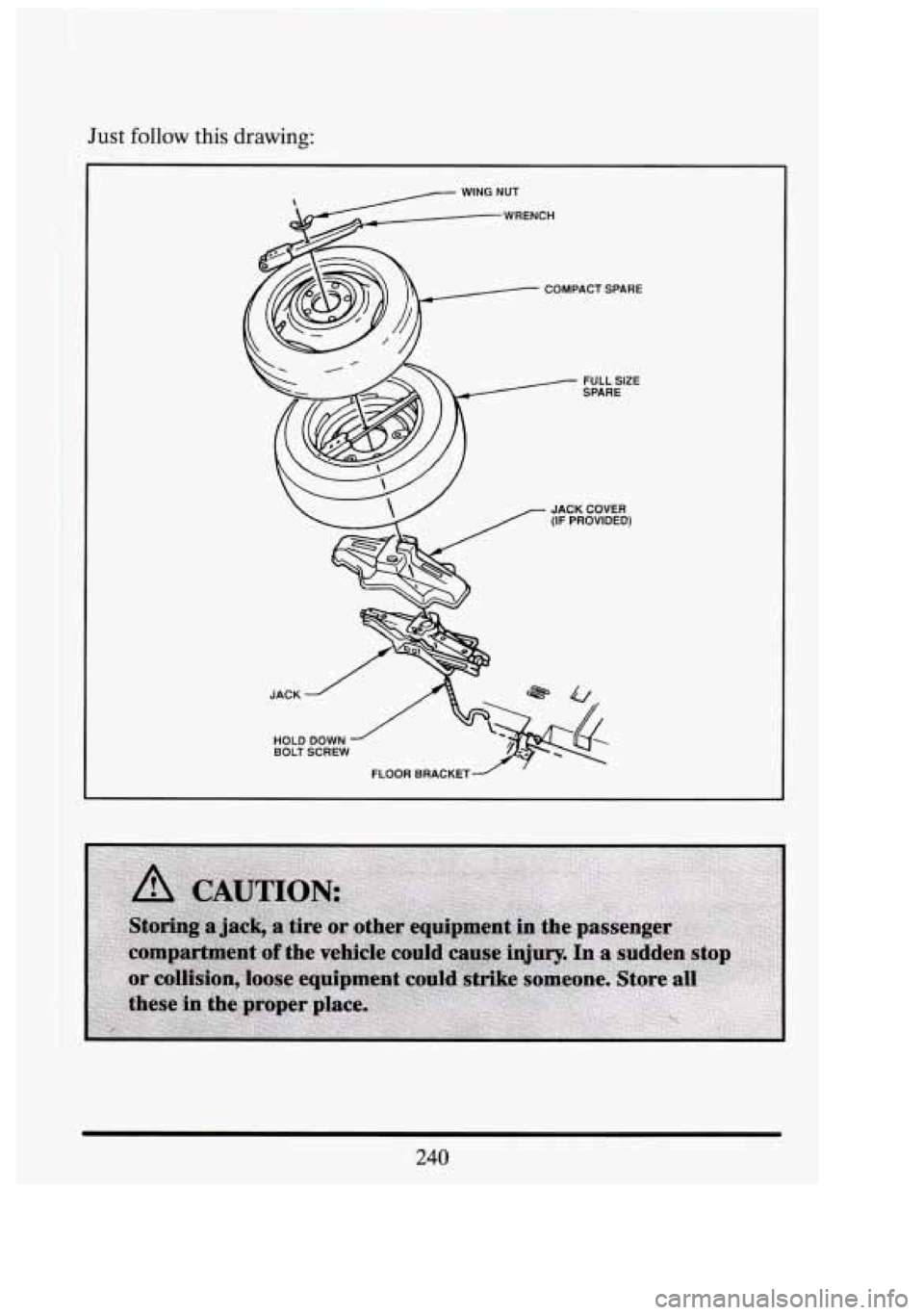

Just follow this drawing:
I WING NUT COMPACT SPARE
BOLT SCREW
I
FLOOR BRACKET
~ ~
240
u
t]

241

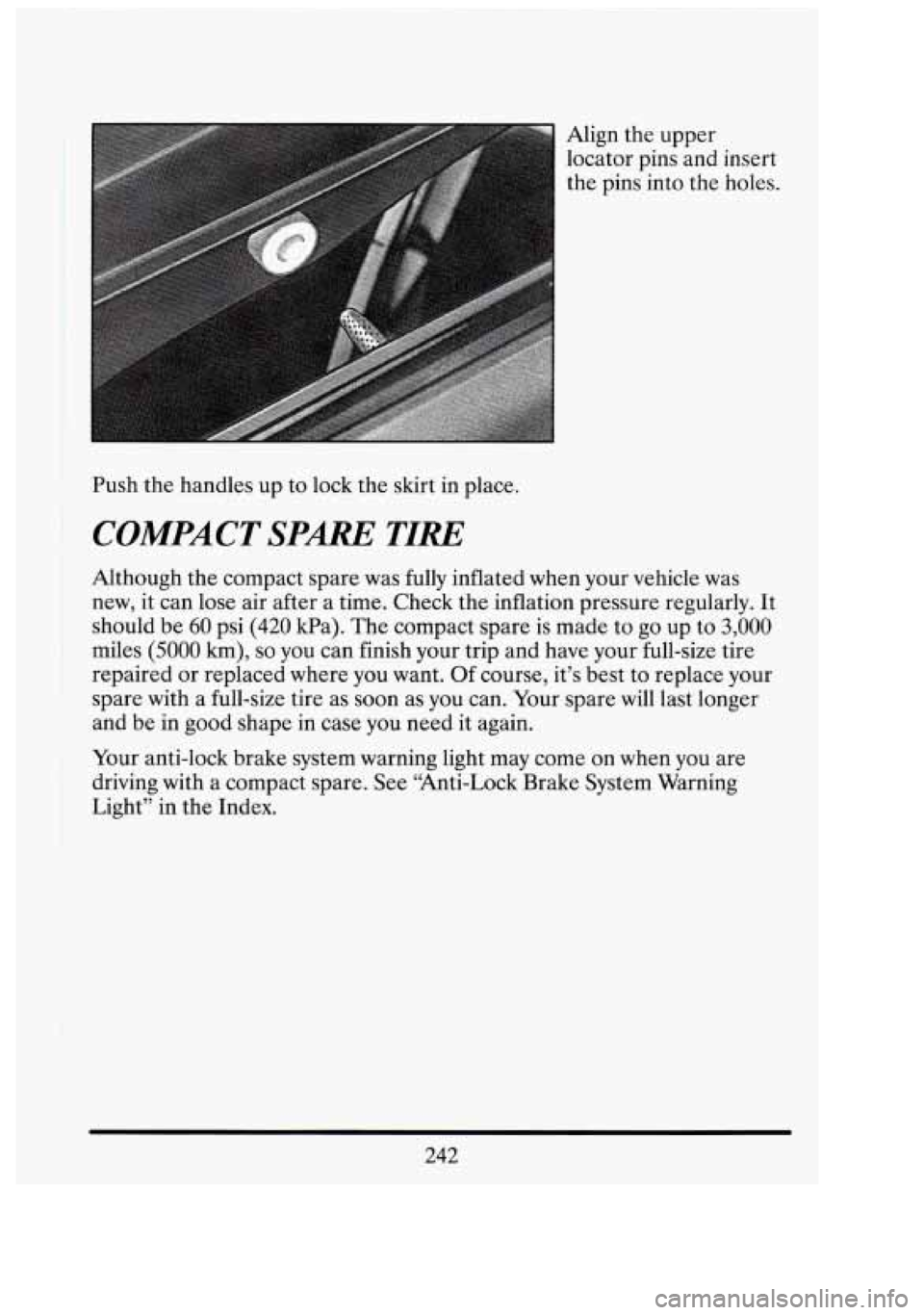

Align the upper
locator pins and insert
the pins into the holes. I
i-1 1;l
Push the handles up to lock the skirt in place.
I COMPACT SPARE TIRE
Although the compact spare was fully inflated when your vehicle was
new, it can lose air after a time. Check the inflation pressure regularly. It
should be
60 psi (420 Pa). The compact spare is made to go up to 3,000
miles (5000 km), so you can finish your trip and have your full-size tire
repaired or replaced where you want.
Of course, it’s best to replace your
spare with a full-size tire as soon
as you can. Your spare will last longer
and be in good shape in case you need it again.
Your anti-lock brake system warning light may come on when you are
driving with
a compact spare. See “Anti-Lock Brake System Warning
Light” in the Index.
242 I
CII
i

r

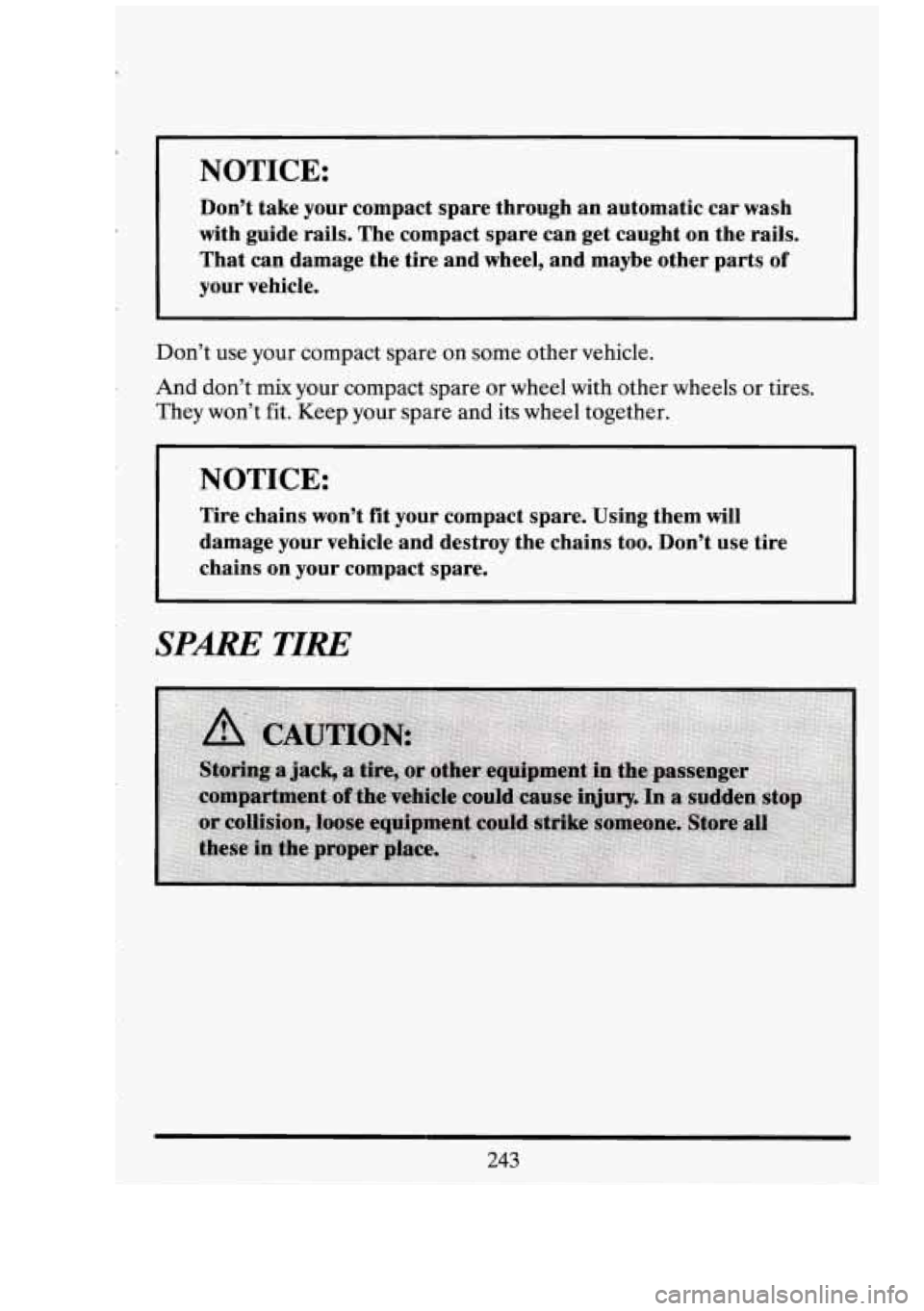

NOTICE:
Don’t take your compact spare through an automatic car wash
with guide rails. The compact spare can get caught on the rails.
That can damage the tire and wheel, and maybe other parts
of
your vehicle.
Don’t use your compact spare on some other vehicle.
And don’t mix your compact spare or wheel with other wheels or tires.
They won’t fit. Keep your spare
and its wheel together.
Tire chains won’t fit your compact spare. Using them will
damage your vehicle and destroy the chains too. Don’t use tire
chains on your compact spare.
SPARE TIRE
243
