1994 CADILLAC FLEETWOOD Owners Manual

Clean and dry the key. If the starter still won’t work, and the key appears
to be clean and dry, wait about three minutes and try the other ignition
key. At this time, you may also want to check the (see “Fuses and Circuit
Breakers” in the Index). If the starter won’t work with the other key, your
vehicle needs service. If your vehicle does start, the first ignition key may
be faulty. See your Cadillac dealer or a locksmith who can service the
PASS-Key@II.
If you accidentally use a
key that has a damaged or missing resistor pellet,
the starter won’t work But you don’t have to wait three minutes before
trying one of the other ignition keys.
See your Cadillac dealer or a locksmith who can service the PASS-Key@II
to have
a new key made.
If you’re ever driving and the “PASS KEY FAULT” light comes on and
stays on, you will be able to restart your engine if you turn it off. Your
PASS-Key@II system, however, is not working properly and must be
serviced by your Cadillac dealer. Your vehicle is not protected by the
PASS-Key@II system.
If you lose or damage a PASS-Key@II ignition ke
, see your Cadillac
dealer or a locksmith who can service PASS-Key I1 to have a new key
made. J
o/
‘U I
84

NOTICE:
Your modern Cadillac doesn’t need .an elaborate “break-in.” But
it will perform better in the long run if you follow these
guidelines:
Keep your speed at 55 mph (88 km/h) or less for the first
1000 miles (160 km).
Don’t drive at any one speed -- fast.or slow -- for the first
1000 miles (160 km). Don’t make full-throttle starts.
Avoid making hard stops for the first 200 miles (322 km) or
so. During this time your new brake linings aren’t yet broken
in. Hard stops with new linings can mean premature wear
and earlier replacement. Follow this “breaking-in’’ guideline
every time
you get new brake linings.
IGNITIQN KEY POSITIONS
This lock
different : gives you
positions. five
‘Before you put the-key in, your ignition will
be in the Lock position. This
position locks your ignition, steering wheel and transmission. It’s an
anti-:theft ,feature.

I
The other positions let you perform these functions:
ACC: Accessory lets you use things like the radio and the windshield
wipers when the engine is
off. To get into “ACC”, push in the key and turn
it toward
you. Yoursteeringwheel will remain locked, just as it was
before you inserted the key.
OFF: This position lets you turn off the engine but still turn the steering
wheel. It doesn’t lock the steering wheel like “Lock.” Use “Off”
if you
must have your car in motion while the engine is
off (for example, if your
car is being pushed).
RUN This is the position for driving.
START This starts your engine.
NOTICE:
If your key seems stuck in “Lock” and you can’t turn it, be sure
it
is all the way in. If it is, then turn the steering wheel left and
right while. you turn the key hard. But turn the key only with
your hand. Using
a tool to force it could break the key or the
ignition switch.
If none of this works, then your vehicle needs
service.
STARTING YOUR ENGINE
Move your shift lever to “P” (Park) or “N” (Neutral). Your,,engine won’t
start in
any other position -- that’s a safety feature. To restart when you’re
already moving, use “N” (Neutral) only.
NOTICE:
Don’t try to shift to “P” (Park).. if your Cadillae is moving. If you
do, you could .damage the transmission. Shift to “P” (Park) only
when your vehicle
is stopped. ”. .
1
W I
D
I
I
-

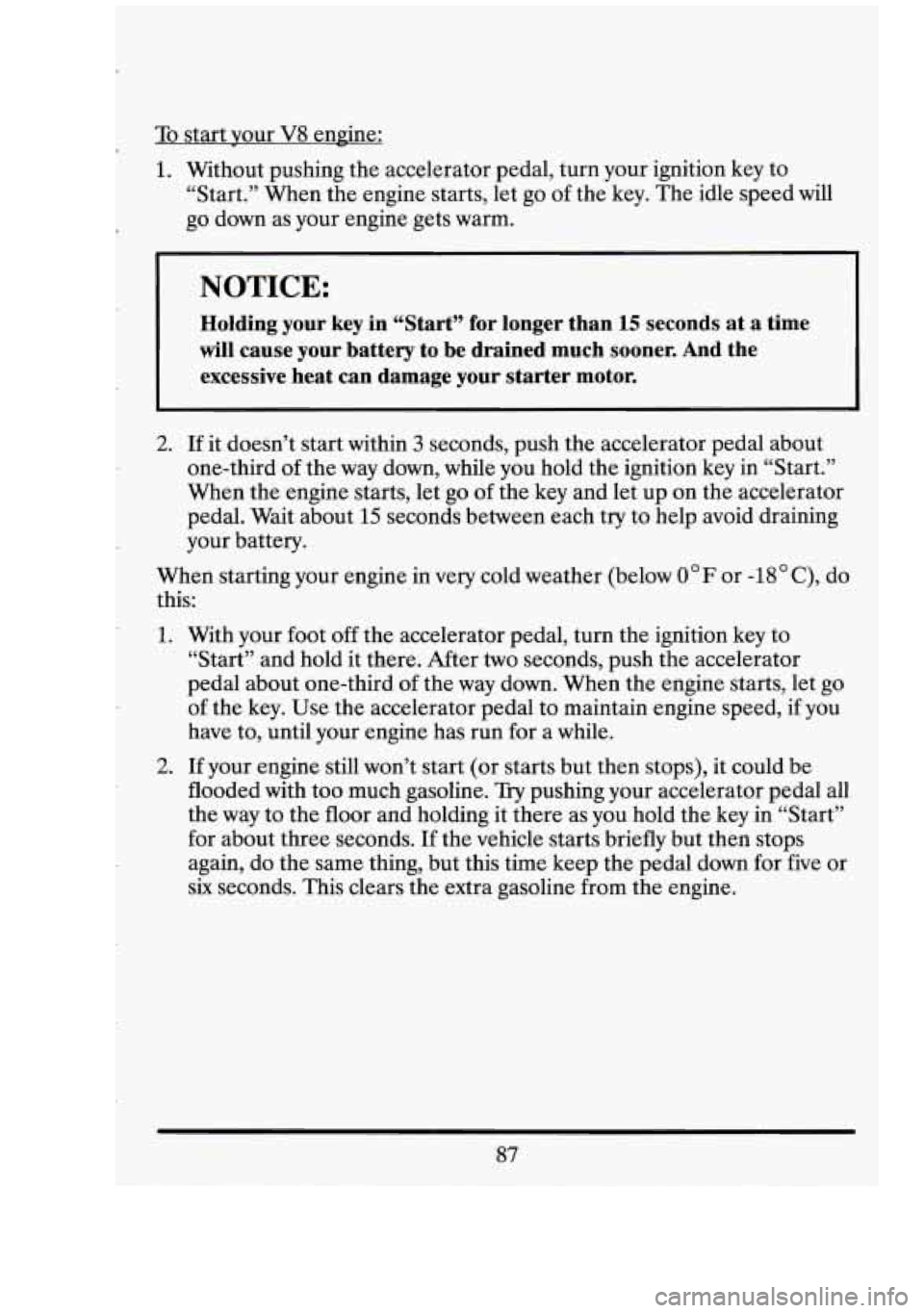

To start vour V8 engine:
1. Without pushing the accelerator pedal, turn your ignition key to
“Start.” When the engine starts, let
go of the key. The idle speed will
go down as your engine gets warm.
NOTICE:
Holding your key in “Start” for longer than 15 seconds at a time
will cause your battery to be drained much sooner.
And the
excessive heat can damage your starter motor.
2. If it doesn’t start within 3 seconds, push the accelerator pedal about
one-third of the way down, while you hold the ignition key
in “Start.”
When the engine starts, let go of the
key and let up on the accelerator
pedal. Wait about
15 seconds between each try to help avoid draining
your battery.
When starting your engine in very cold weather (below
O°F or -18 C), do
this:
1. With your foot off the accelerator pedal, turn the ignition key to
“Start” and hold it there. After two seconds, push the accelerator
pedal about one-third of the way down. When the engine starts, let go
of the key. Use the accelerator pedal to maintain engine speed, if you
have to, until your engine has run for a while.
2. If your engine still won’t start (or starts but then stops), it could be
flooded with too much gasoline. Try pushing your a,ccelerator pedal all
the way to the floor and holding it there as you hold the key in “Start”
for about three seconds.
If the vehicle starts briefly but then stops
again, do the same thing, but this time keep the pedal down for five or
six seconds. This clears the extra gasoline from the engine.
87

NOTICE:
Your engine is designed to work with the electronics in your
vehicle.
If you add electrical parts or accessories, you could
change the
way the fuel injection system operates. Before
adding electrical equipment, check with your dealer.
If you
don’t, your engine might not perform properly.
If you ever have to have your vehicle towed, see the part
of this
manual that tells how to do it without damaging your vehicle.
See “Towing Your Vehicle’’ in the Index.
I
L
DmNG THROUGH DEEP STMDING
WATER
NOTICE:
If you drive too quickly through deep puddles or standing water,
water can come in through your engine’s
air intake and badly
damage your engine.
If you can’t avoid deep puddles or standing
water, drive through them very slowly.

ENGINE COOLANT HEATER
(ENGINE BLOCK HEATER) (OPTION)
(CANADA ONLY)
In very cold weather, 0°F (-18O C) or colder, the engine coolant heater
can help. You’ll get easier starting and better fuel economy during engine
warm-up. Usually, the coolant heater should be plugged in a minimum of
four hours prior to starting your vehicle.
To use the coolant heater:
1. Turn off the engine.
2. Open the hood and unwrap the electrical cord.
3. Plug it into a normal, grounded 110-volt outlet.
NOTICE:
After you’ve used the coolant heater, be sure to store the cord as
it
was before to keep it away from moving engine parts. If you
don’t, it could be damaged.
How long should you keep the coolant heater plugged in? The answer
depends on the weather, the kind
of oil you have, and some other things.
Instead
of trying to list everything here, we ask that you contact a Cadillac
dealer in the area where you’ll be parking your vehicle. The dealer can
give you the best advice
for that particular area.
89

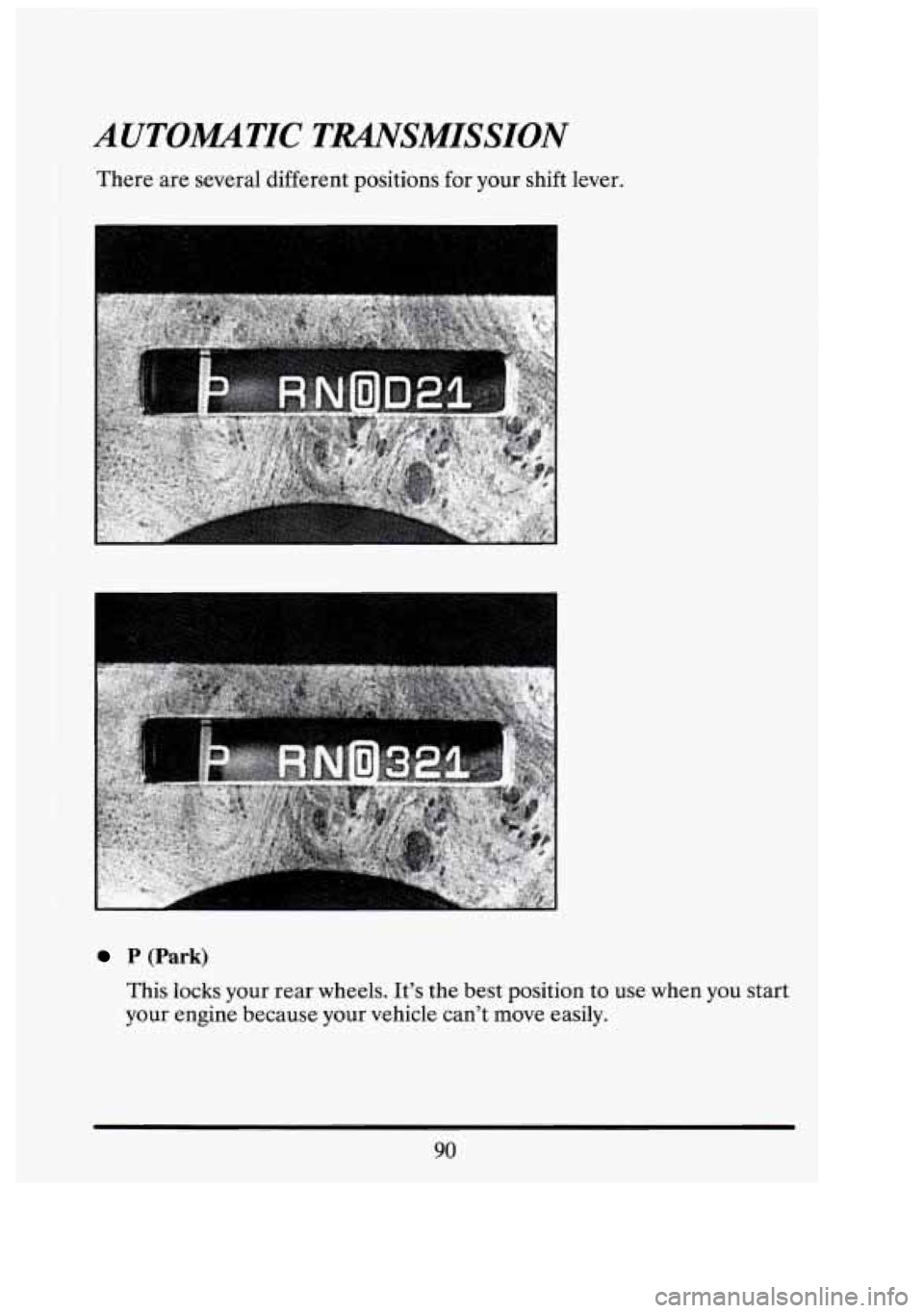

AUTOMTIC TRANSIMIISSION
There are several different positions for your shift lever.
P (Park)
This locks your rear wheels. It’s the best position to use when you start
your engine because your vehicle can’t move easily.
90
1;
-1
-7 i
r_

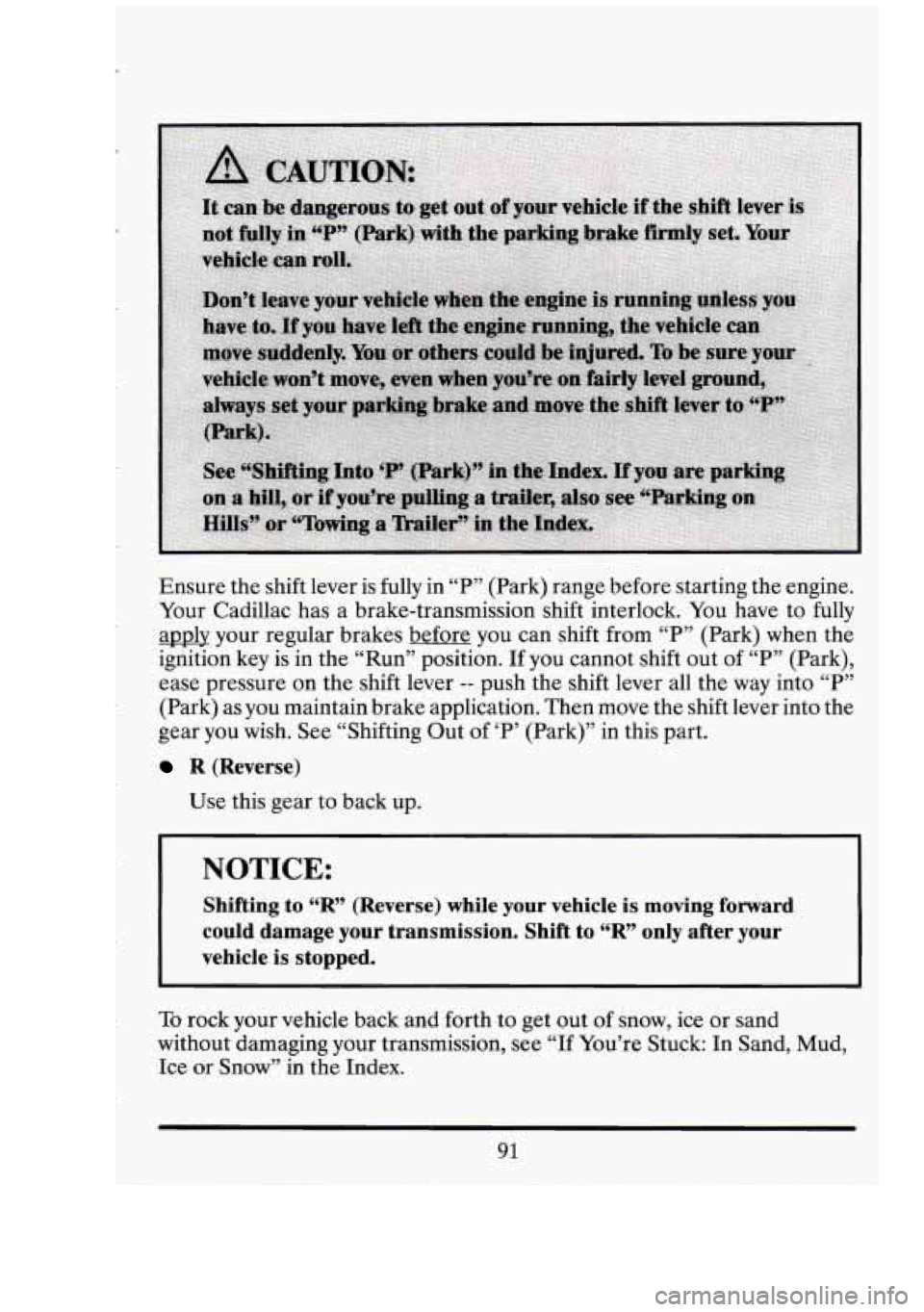

Ensure the shift lever is fully in “P” (Park) range before starting the engine.
Your Cadillac has a brake-transmission shift interlock. You have to fully
apply your regular brakes before you can shift from “P” (Park) when the
ignition key is in the “Run” position.
If you cannot shift out of “P” (Park),
ease pressure on the shift lever
-- push the shift lever all the way into “P77
(Park) as you maintain brake application. Then move the shift lever into the
gear you wish. See “Shifting Out of ‘P’ (Park)” in this part.
R (Reverse)
Use this gear to back up.
NOTICE:
Shifting to “R” (Reverse) while your vehicle is moving forward
could damage your transmission. Shift to “R” only after your
vehicle
is stopped.
To rock your vehicle back and forth to get out of snow, ice or sand
without damaging your transmission, see
“If You’re Stuck: In Sand, Mud,
Ice
or Snow” in the Index.
91
