1994 CADILLAC FLEETWOOD Owners Manual

Headlights
The headlight wiring is protected by a circuit breaker in the light switch.
An electrical overload will cause the lights to go on and off, or in some
cases to remain
off. If this happens, have your headlight wiring checked
right away.
Windshield Wipers
The windshield wiper motor is protected by a circuit breaker and a fuse.
If the motor overheats due to heavy snow, etc., the wiper will stop until
the motor cools. If the overload is caused by some electrical problem and
not snow, etc., be sure to get it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power windows and other
power accessories. When the current load is too heavy, the circuit breaker
opens and closes, protecting the circuit until the problem is fixed or goes
away.
316
fll

.
BULB. CILL4RT .
.
.
.
.
.
.
.
You can get these from your Cadillac dealer .
DESCRIPTION BULB NO .
Ash Tray Illumination .................................. 1445
Center High Mounted Stop Light
........................ 1141
Cornering Light
....................................... 2057
BackupLights
......................................... 2057
Courtesy Light
. Front Door ............................ S214-2
Courtesy Light
. Rear Door ............................ S214-2
CourtesyMap Light
..................................... 192
Front Parking
& Directional Signal .................... 2057NA
Front Side Marker Light
................................. 194
Glove Box
............................................. 194
Headlight High Beam
...................... 906/HB4 (H2990 4)
Headlight Low Beam
....................... 905/HB3 (K1790 3)
License Plate Light ..................................... 194
Side Marker Lights
..................................... 194
Stop, Tail.
& Directional Signal Light ..................... 2057
TrunkLight
......................................... 5 92081
Vanity Mirror Light
..................................... 194
Parking
Light
.......................................... 2057
Underhood Light
........................................ -93
317

NOR", 2MAINTENNf'E REPUCEMENT
PARTS
Air Cleaner Element
..................
Battery ............
Fuel Filter Element .
..................
Engine Oil Filter ...
..................
PCV Valve ........
..................
......................... AC Type A1096C
...............................
................................
........................ ACType
...............................
25096932
. 78A-72
GF-624K
25121976
........................... AC Type PF51
............................... 25012760
........................ AC Type CV895C
............................... 25095452
Spark Plugs (Gap .035)
........................ AC Type 41-906
.................................................. 5614244
Serpentine Drive Belt
.............................. 10186120
Upper Radiator Hose
.............................. 10237347
Lower Radiator Hose
.............................. 10237353
Lower Radiator Hose (H.D.)
........................ 10237349
SurgeTankCap
................................... 10244485
Thermostat
....................................... 10128336
318
Qi
n
I
31
I

EMISSION CONTROL SYSTEMS
Air Injection ................ Air Injection Reaction Pump (AIR)
Exhaust Gas Recirculation
......................... EGR Valve
Catalytic Converter
........... Dual Bed, Oxidizing and Reducing
Crankcase Emission
.............. Positive Crankcase Ventilation
Evaporative
Emission Control
................ Charcoal Canister
Electronic System
.............................. Closed Loop
EmUST SYSTEM
Type ............................... Single with Crossover Pipe
Muffler
.................................. One-Reverse Flow
Resonator
............................. One-Straight Through
Exhaust Pipe
.................................. Stainless Steel
Intermediate Pipe
........................... Aluminized Steel
Tail Pipe
................................... Aluminized Steel
ELECTIUCAL SYSTEM
Voltage ................................................ 12
Ground ........................................... Negative
Generator
......................................... 140Amp
Regulator
................................ Integral Solid State
AIR CONDITIONING SYSTEM
Refrigerant-R-134a ........................... 3.125 lb (1.4 kg)
Not all air conditioning refrigerants are the same. If the air
conditioning system in your vehicle needs refrigerant, be sure the
proper refrigerant is used.
If you’re not sure, ask your Cadillac
dealership.
321

FLUID CAPACITIES
Auto Trans (4L60) Pan Removal ................... 5 qts. (4.7 L)
Auto Trans (4L60) Overhaul (245mm Torque Conv.)
. . 8 qts. (7.9 L)
Auto Trans (4L60) Overhaul (298mm Torque Conv.) 11 qts. (10.6 L)
Engine Oil
& Filter Change ..................... 5.0 qts. (4.7 L)
Engine Cooling ............................. 17.6 qts. (16.6 L)
Fuel Tank
................................ .23 gallons (87.4 L)
Power Steering
.................................. 2 qts. (1.9 L)
Rear Axle .................................... 4.3 pts. (2.0 L)
Washer Solvent.
............................... 2.5 qts. (2.4 L)
TIGHTEN TORQUE
Spark Plug ................................ 15 Nom (11 lb. ft.)
Oil Filter
.................................. 19 Nom (14 lb. ft.)
Wheel Lug Nut.
.......................... 135 Nom (100 lb. ft.)
Rear Axle Filler Plug
........................ 35 Nom (26 lb. ft.)
Oil
Pan Drain Plug
.......................... 41 Nom (30 lb. ft.)
VEHICLE DIMENSIONS
Shipping Weight .......................... 4410 Ibs. (1999.9 kg)
Wheel Base
............................... 121.5 in (3085 mm)
Length
.................................... .224 in (5696 mm)
Height
..................................... .57 in (145 1 mm)
Width
...................................... .77 in (1952 mm)
Front Tread
................................ 61.7 in (1568 mm)
Rear Tread
................................ 60.7 in (1542 mm)
ti
t
-1
I
322

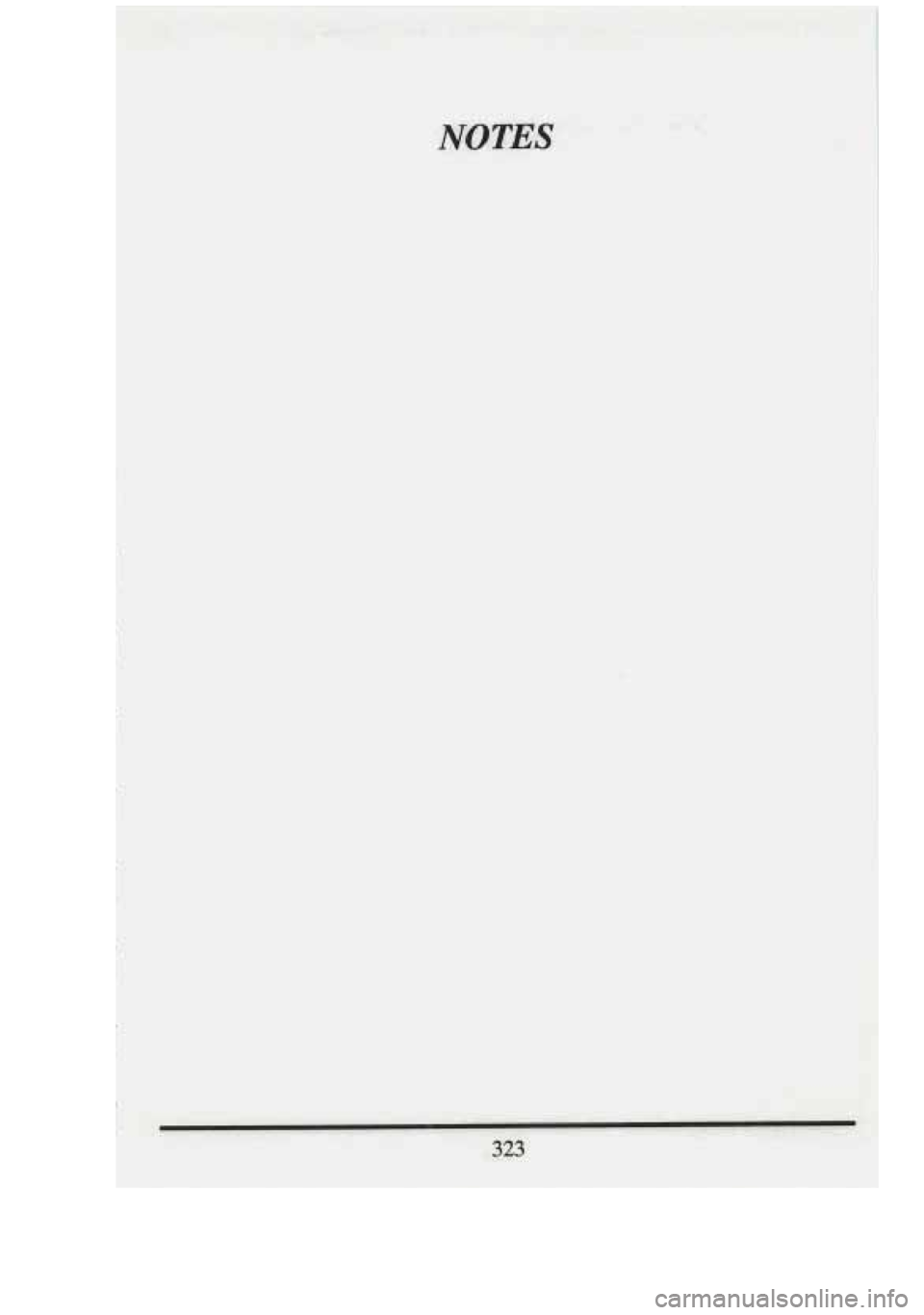

NOTES
