1994 CADILLAC FLEETWOOD Owners Manual

0
Gently tilt the top
portion
of taillight
housing out first,
and then gently
remove it.
Press the bulb
socket housing
lever and rotate the
socket housing
counterclockwise to
remove it. f U

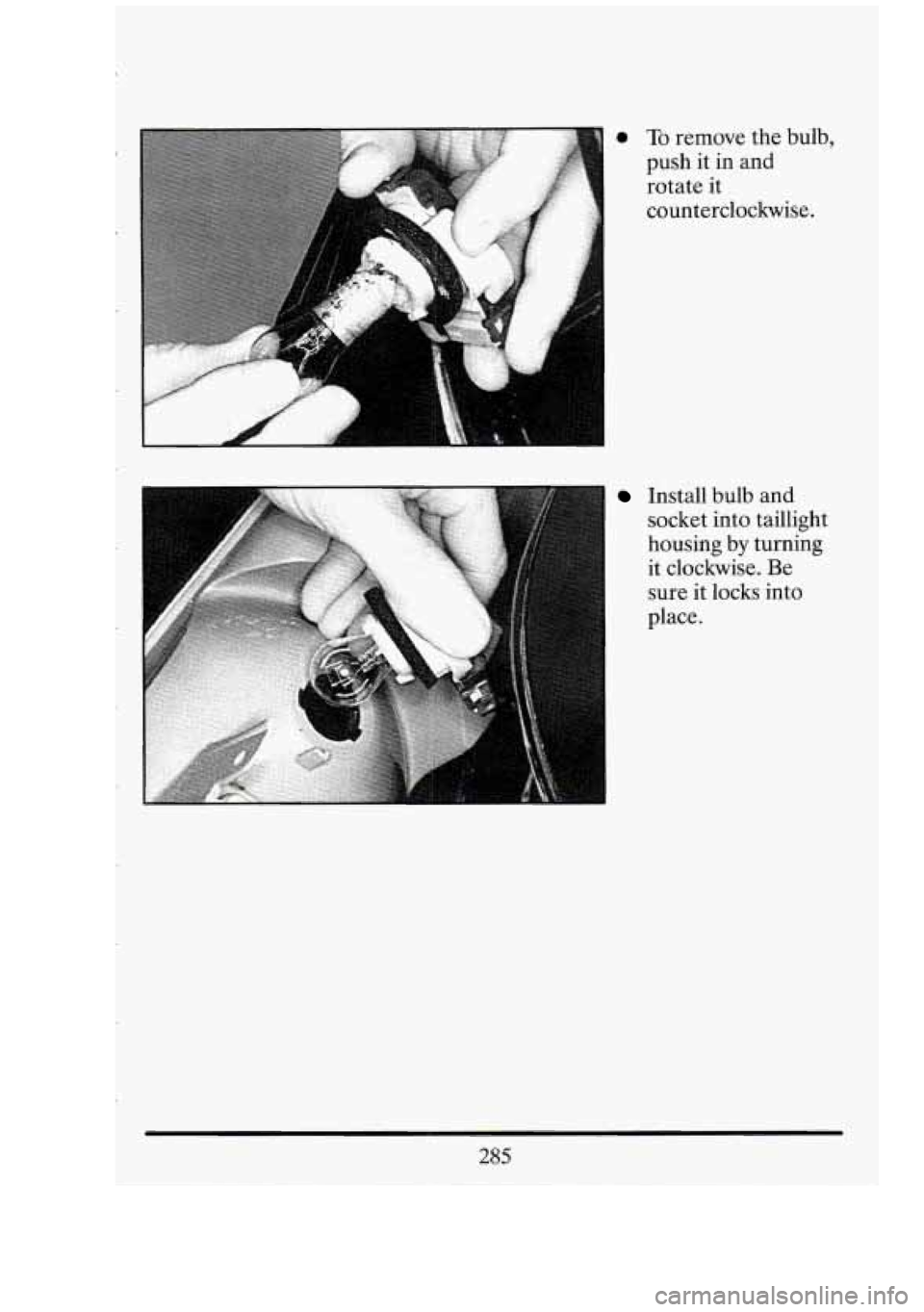

0 To remove the bulb,
push it in and
rotate it
counterclockwise.
Install bulb and
socket into taillight
housing
by turning
it clockwise. Be
sure it locks into
place.
285

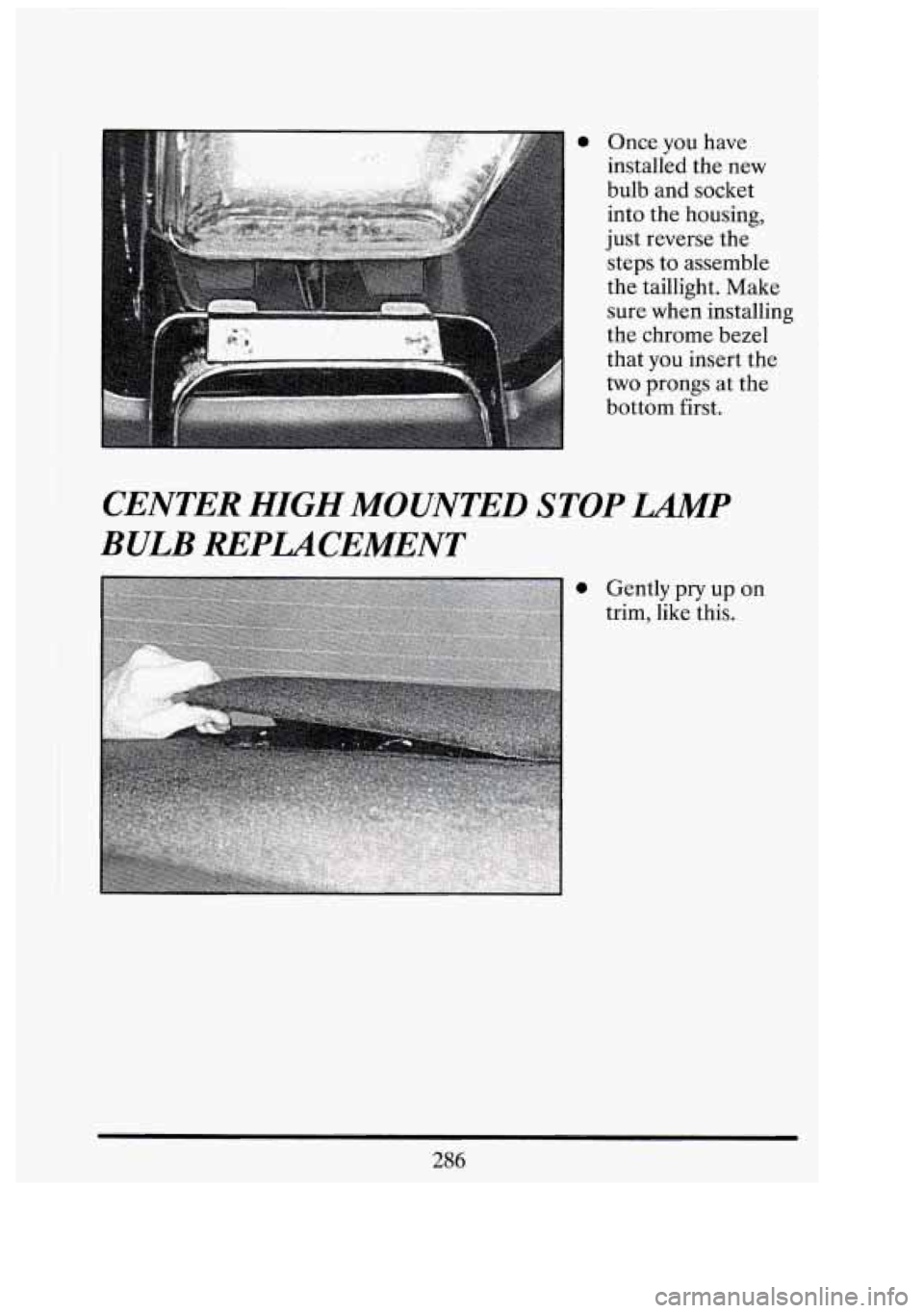

0 Once you have
installed the new
bulb and socket
into the housing,
just reverse the
steps to assemble
the taillight. Make
sure when installing
the chrome bezel
that
you insert the
two prongs at the
bottom first.
CENTER HIGH MOUNTED STOP LAMP
BULB REPLACEMENT
286
3
Ipi
I
I
-
i

r

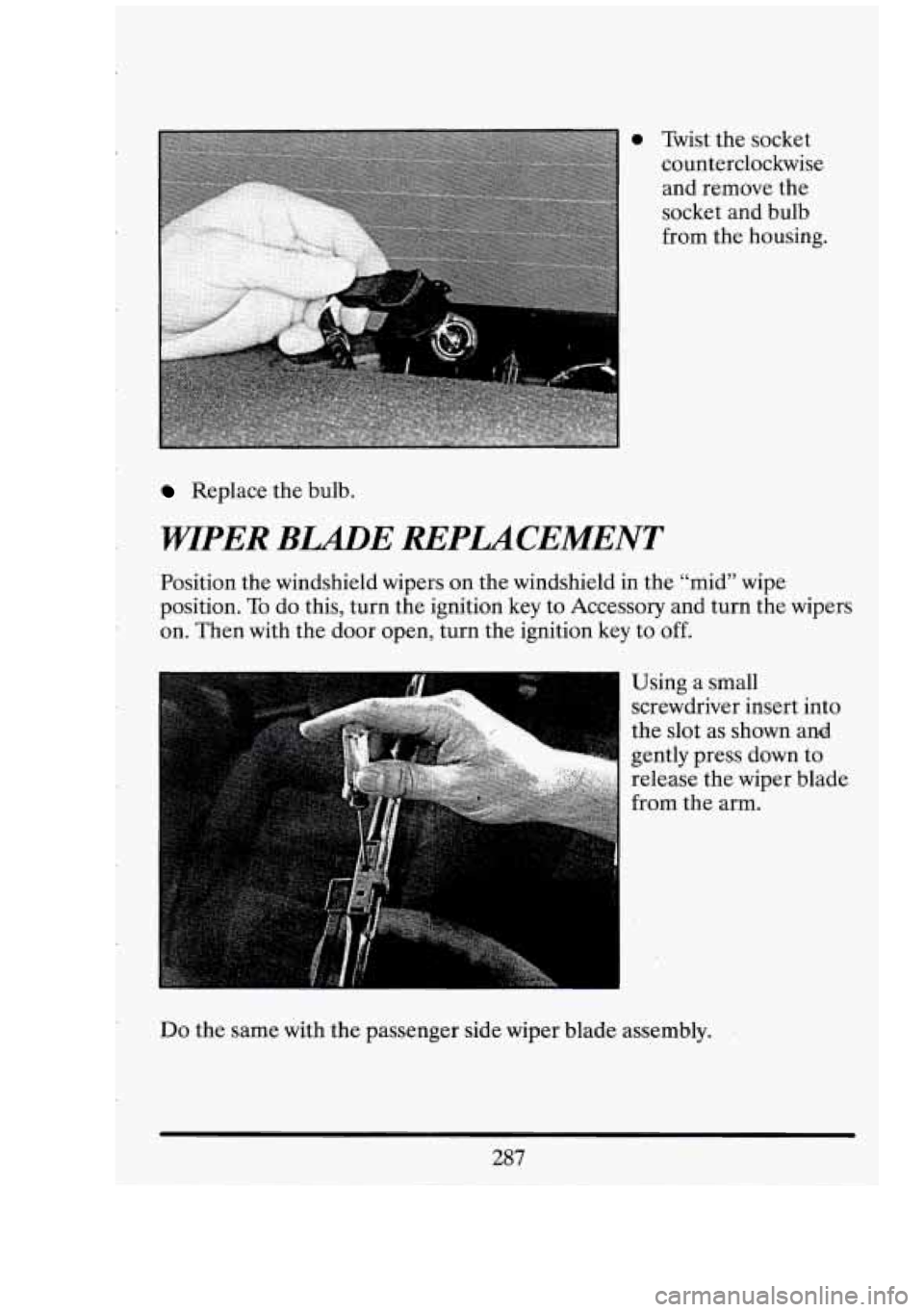

Replace the bulb.
WIPER BLADE REPLACEMENT
Position the windshield wipers on the windshield in the “mid” wipe
position. To do this, turn the ignition
key to Accessory and turn the wipers
on. Then with the door open, turn the ignition key to off.
I Using a small
screwdriver insert into
the slot as shown and
gently press down to
release the wiper blade
from the arm.
Do the same with the passenger side wiper blade assembly.
287

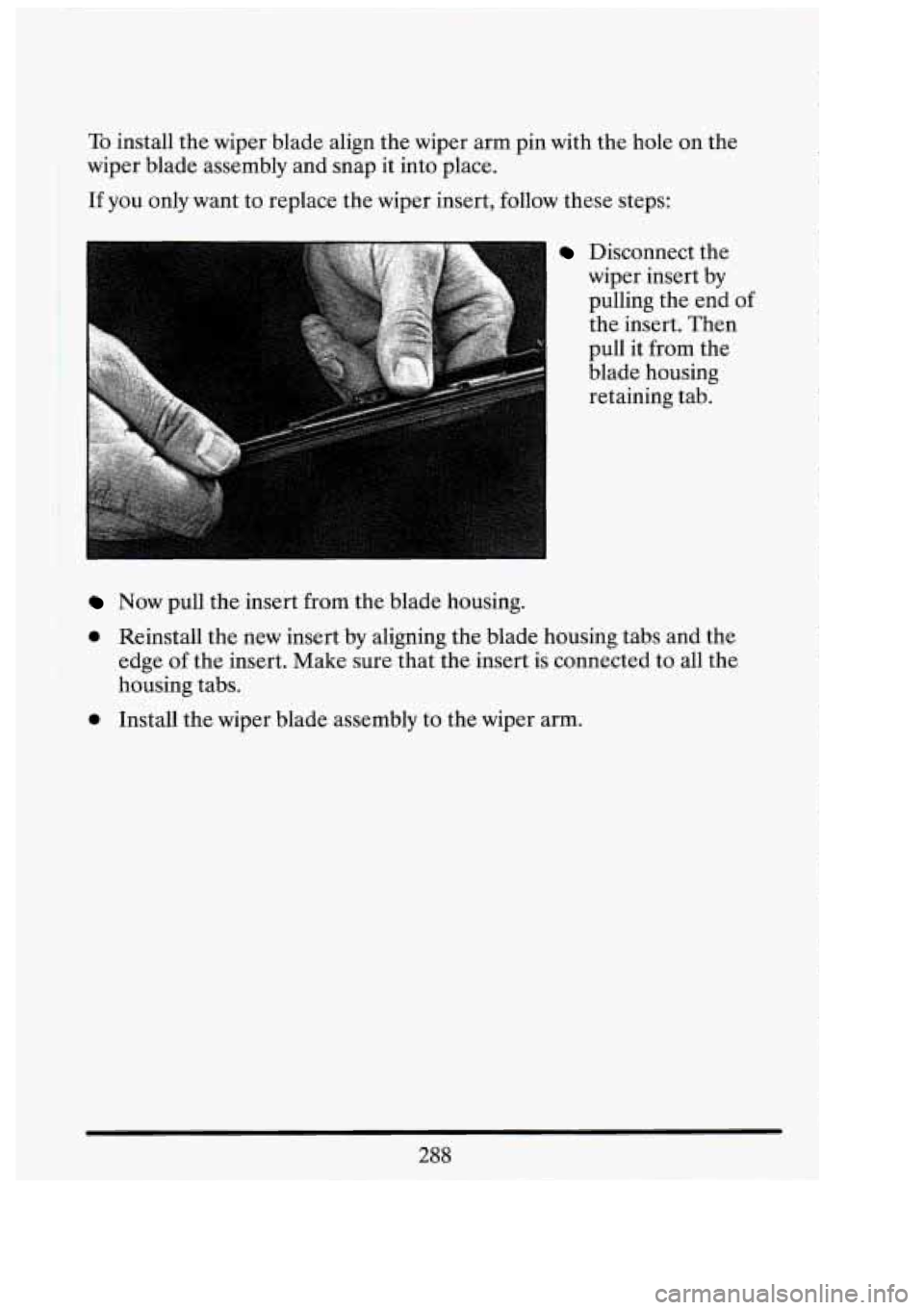

To install the wiper blade align the wiper arm pin with the hole on the
wiper blade assembly and snap it into place.
If you only want to replace the wiper insert, follow these steps:
I
Disconnect the
wiper insert by
pulling the end of
the insert. Then
pull it from the
blade housing
retaining tab.
Now pull the insert from the blade housing.
0 Reinstall the new insert by aligning the blade housing tabs and the
edge of the insert. Make sure that the insert is connected to all the
housing tabs.
0 Install the wiper blade assembly to the wiper arm.
288
UI
-1 I
n

- LOADING YOUR VEHICLE
OCCUPANTS VEHICLE CAP.
WT.
TIRE-LOADING INFORMATION
FRT. CTR.
RR. TOTAL LBS. KG
MAX. LOADING
& GVWR SAME AS VEHICLE
CAPACITY WEIGHT XXX COLD
TIRE
TIRE SIZE SPEED PRESSURE RTG PSVKPa
F
RT.
RR.
SPA.
IF TIRES ARE HOT. ADD 4PSV28KPa SEE
OWNER'S MANUAL FOR ADDITIONAL
INFORMATION
GEN GME I
IWO labels oflybuf vehicle show how much weight it may properly carry.
The Tire-Loading Information label found
on the driver's door tells you
the proper size, speed rating and recommended inflation pressures for
the tires on your vehicle. It also gives you important information about
the number
of people that can be in your vehicle and the total weight that
you can carry. This weight is called the Vehicle Capacity Weight and
includes the weight
of all occupants, cargo, and all nonfactory-installed
options.
289

MFD BY GENERAL MOTORS CORP
DATE GVWR GAWR FRT GAWR
RR
THIS VEHICLE CONFORMS TO ALL APPLI-
CABLE
U.S. FEDERAL MOTOR VEHICLE
TION STANDARDS IN EFFECT ON THE
DATE
OF MANUFACTURE SHOWN ABOVE.
SAFETY,
BUMPER, AND THEFT PREVEN-
GEN GME
The other label is the Certification label, found on the rear edge of the
driver's door. It tells you the gross weight capacity of your vehicle, called
the GVWR (Gross Vehicle Weight Rating). The GVWR includes the
weight
of the vehicle, all occupants, fuel and cargo. Never exceed the
GVWR for your vehicle, or the Gross Axle Weight Rating (GAWR) for
either the front or rear
axle.
And, if you do have a heavy load, you should spread it out. Don't carry
more than
200 pounds (90 kg) in your trunk
r'tr
ni
L.
290

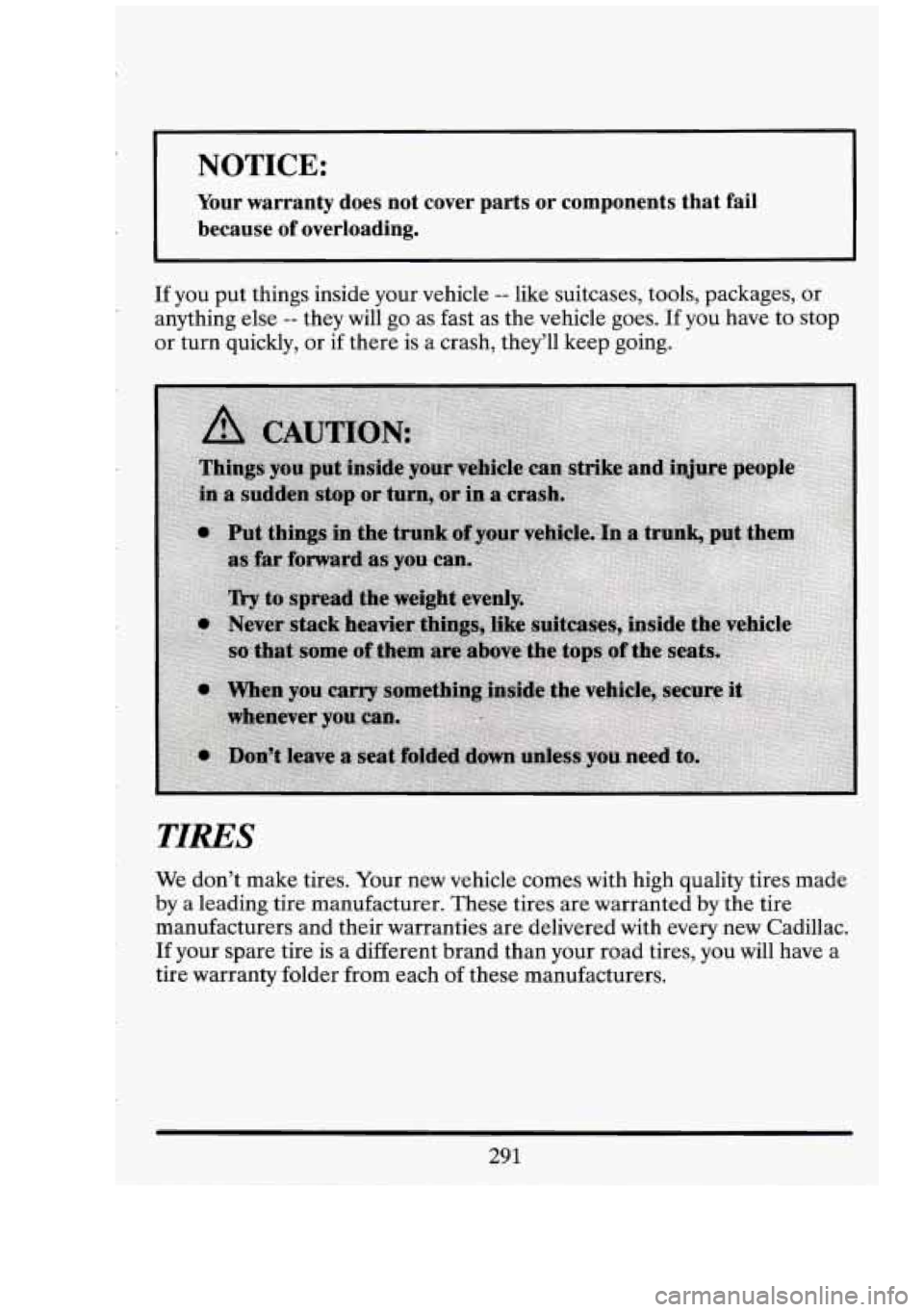

NOTICE:
Your warranty does not cover parts or components that fail
because of overloading.
If you put things inside your vehicle -- like suitcases, tools, packages, or
anything else
-- they will go as fast as the vehicle goes. If you have to stop
or turn quickly, or
if there is a crash, they’ll keep going.
TIRES
We don’t make tires. Your new vehicle comes with high quality tires made
by a leading tire manufacturer. These tires are. warranted by the tire
manufacturers and their warranties are delivered with every new Cadillac.
If your spare tire is a different brand than your road tires, you will have a
tire warranty folder from each of these manufacturers.
