1993 CHEVROLET CAVALIER Owners Manual

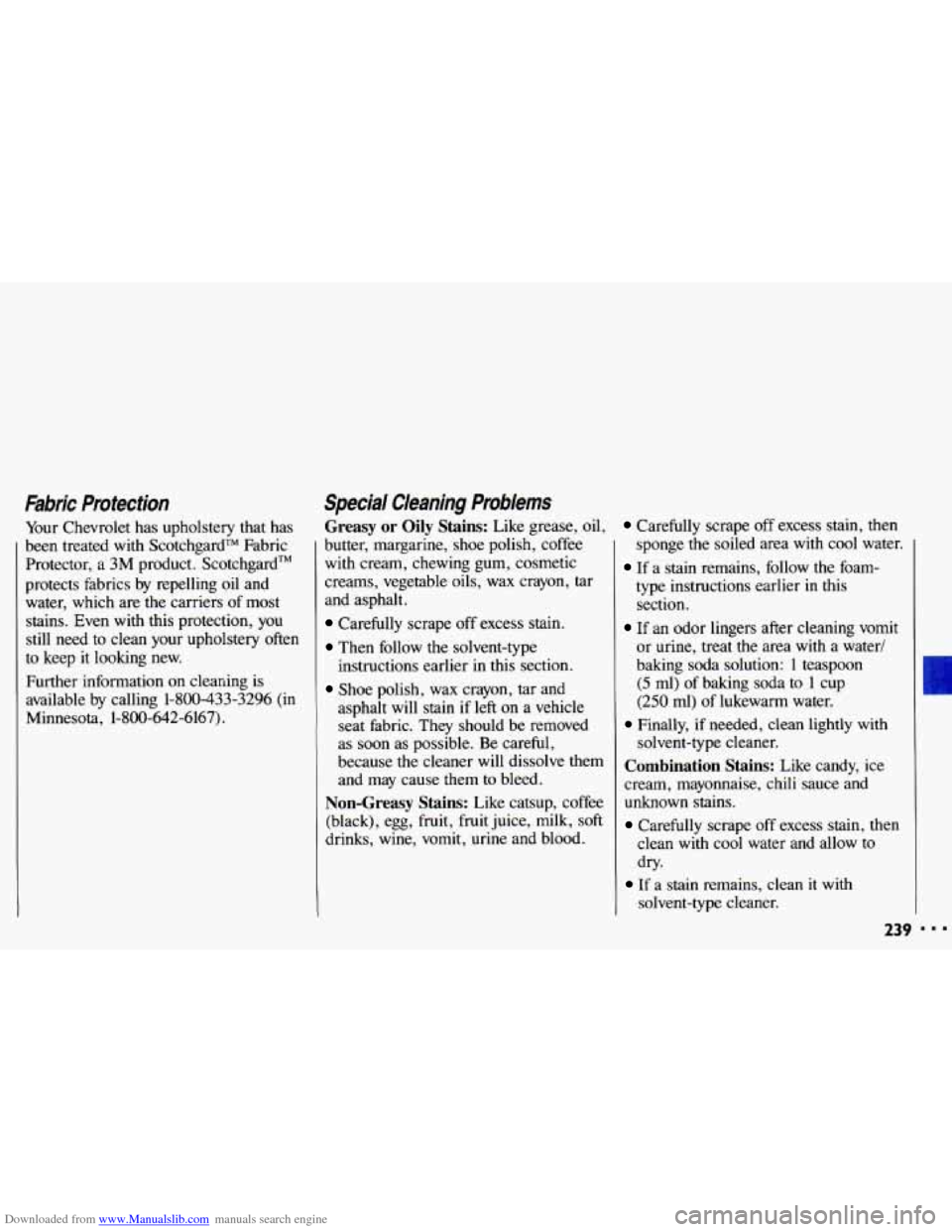

Downloaded from www.Manualslib.com manuals search engine Fabric Protection
Your Chevrolet has upholstery that has
been treated with ScotchgardTM Fabric Protector, a 3M product. Scotchgard”
protects fabrics by repelling
oil and
water, which are the carriers of most
stains. Even with this protection,
you
still need to clean your upholstery often
to keep it looking new.
Further information
on cleaning is
available by calling 1-800-433-3296 (in
Minnesota,
1-800-642-6167).
Special Cleaning Problems
Greasy or Oily Stains: Like grease, oil,
butter, margarine, shoe polish, coffee
with cream, chewing gum, cosmetic
creams, vegetable oils, wax crayon, tar
and asphalt.
Carefully scrape off excess stain.
Then follow the solvent-type
Shoe polish, wax crayon, tar and
instructions earlier
in this section.
asphalt will stain if
left on a vehicle
seat fabric. They should be removed
as soon as possible. Be careful,
because the cleaner will dissolve them
and may cause them
to bleed.
Non-Greasy Stains: Like catsup, coffee
(black), egg, fruit, fruit juice, milk,
soft
drinks, wine, vomit, urine and blood.
Carefully scrape off excess stain, then
sponge the soiled area with cool water.
If a stain remains, follow the foam-
type instructions earlier in this
section.
If an odor lingers after cleaning vomit
or urine, treat the area with a water/
baking soda solution:
1 teaspoon
(5 ml) of baking soda to 1 cup
(250 ml) of lukewarm water.
solvent-type cleaner.
Finally, if needed, clean lightly with
Combination Stains: Like candy, ice
cream, mayonnaise, chili sauce and
unknown stains.
Carefully scrape off excess stain, then
clean with cool water and allow to
dry.
If a stain remains, clean it with
solvent-type cleaner.
239

Downloaded from www.Manualslib.com manuals search engine Service & Appearance Care

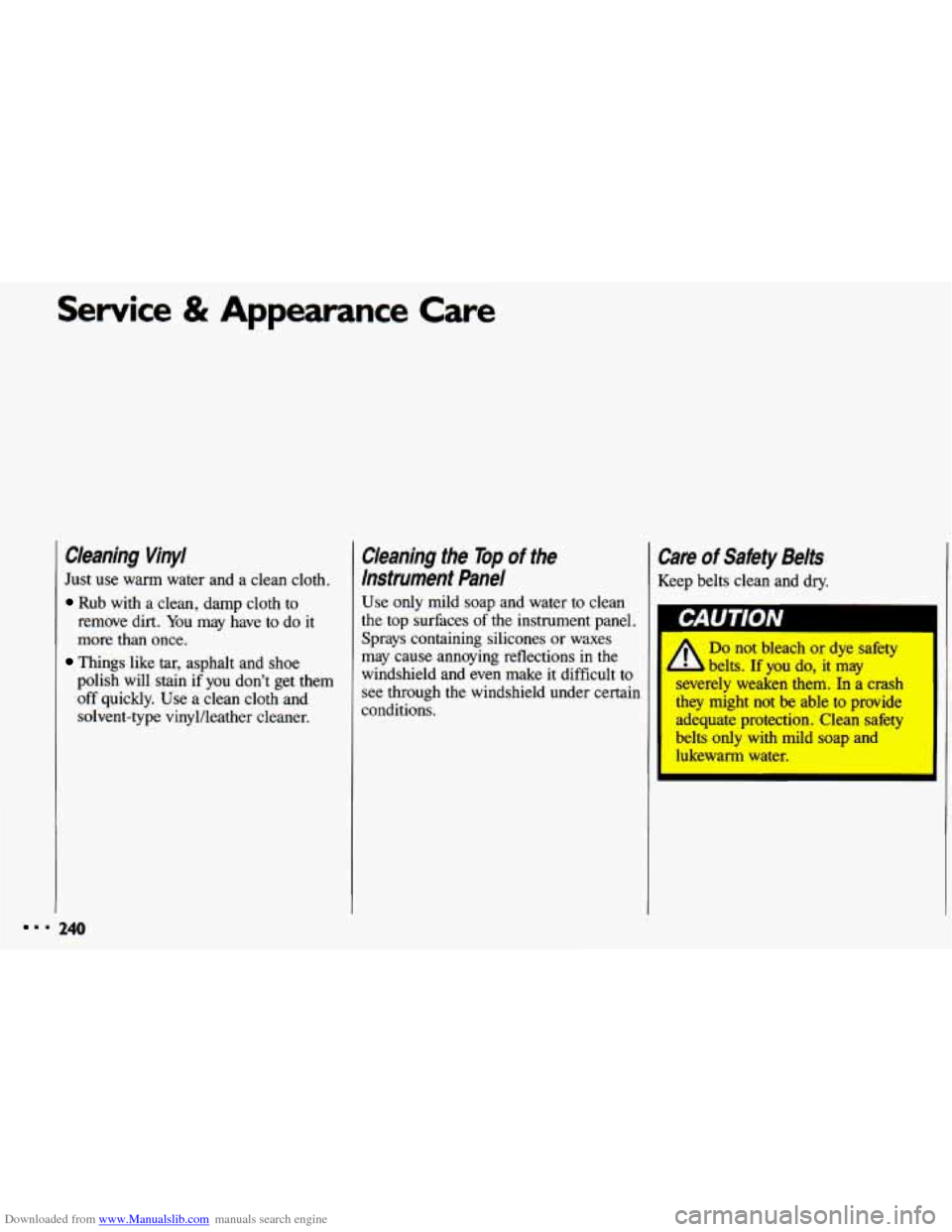

Cleaning Vinyl
Just use warm water and a clean cloth.
Rub with a clean, damp cloth to
remove dirt.
You may have to do it
more than once.
polish will stain if you don’t get them
off quickly. Use a clean cloth and
solvent-type vinyl/leather cleaner.
Things like tar, asphalt and shoe
Cleaning the Top of the
instrument Panel
Use only mild soap and water to clean
the top surfaces of the instrument panel.
Sprays containing silicones or waxes
may cause annoying reflections
in the
windshield and even make it difficult to
see through the windshield under certain
conditions.
Care of Safety Belts
Keep belts clean and dry.
CAUTION
Do not bleach or dye s&ty
severely weaken them. h a crash
they might not be able to provide
adequate protection. Clean safety
belts only with mild soap and
lukewarm water.
- belts. If you do, it may
. . 240

Downloaded from www.Manualslib.com manuals search engine Glass
Glass should be cleaned often. GM
Glass Cleaner (GM
Part No. 1050427)
or a liquid household glass cleaner will
remove normal tobacco smoke and dust
films.
Don’t use abrasive cleaners on glass,
because they may cause scratches. Avoid
placing decals on the inside rear window, since they may have to be
scraped off later.
If abrasive cleaners are used on the
inside of the rear window, an electric
defogger element may be damaged. Any
temporary license should not be
attached across the defogger grid.
Cleaning the Outside of the
Windshield and Wiper Blades
If the windshield is not clear after using
the windshield washer, or if the wiper
blade chatters when running, wax or
other material may be on the blade or
windshield.
Clean the outside
of the windshield with
GM Windshield Cleaner, Bon-Ami
Powder@
(GM Part No. 1050011). The
windshield is clean if beads do not form
when you rinse it with water.
Clean the blade by wiping vigorously
with a cloth soaked in full strength
windshield washer solvent. Then rinse
the blade with water.
Wiper blades should be checked
on a
regular basis and replaced when worn.
Cleaning the Outside of Your
Chevrolet
The paint finish on your vehicle
provides beauty, depth of color, gloss
retention and durability.
I

Downloaded from www.Manualslib.com manuals search engine ...
Service & Appearance Care
Cleaning the Outside of Your
Chevrolet (CONT)
Washing Your Vehicle
The best way to preserve your vehicle’s
finish is to keep it clean by washing it
often with lukewarm or cold water.
Don’t wash your vehicle in the direct
rays of the sun. Don’t use strong soaps
or chemical detergents. Use liquid hand,
dish
or car washing (non-detergent)
soaps. Don’t use cleaning agents that
contain acid or abrasives. All cleaning
agents should be flushed promptly and not allowed to dry on the surface, or
they could stain.
Dry the finish with a
soft, clean chamois or a 100% cotton
towel to avoid surface scratches and water spotting.
High pressure vehicle washes may cause
water
to enter your vehicle.
242
Textured-Surface Bumper Covers
(VL and RS MODELS)
Cleaning with a brush, a soft terry cloth
or a commercial car wash is
recommended for normal dirt. Never
use a wire brush or abrasives.
Avoid applying wax
or polish to the
textured-surface bumper covers. To
remove wax, a commercially available
wax solvent should be used. Tar and Oil
Remover (GM Part
No. 1050172) is also
recommended. It’s also recommended
for cleaning difficult soils like road tar
and oil. Also recommended are solvent-
type fabric cleaners such as GM Part
No. 1050244.
To clean white bumper covers, first use
Tar and Oil Remover. If the dark areas
are still visible, whiten with White
Sidewall Tire Cleaner, such as GM Part
No. 1050174.
Finish Care of Textured-Surface
Bumper Covers
To touch up any small spots after
regular washing, use a solvent-type
fabric cleaner such as GM Part No.
1050244 and a clean, dry cloth.
To help maintain bumper covers, after
washing use a cleaner/protectant like
GM/Armor AllTM Part No. 1052919.

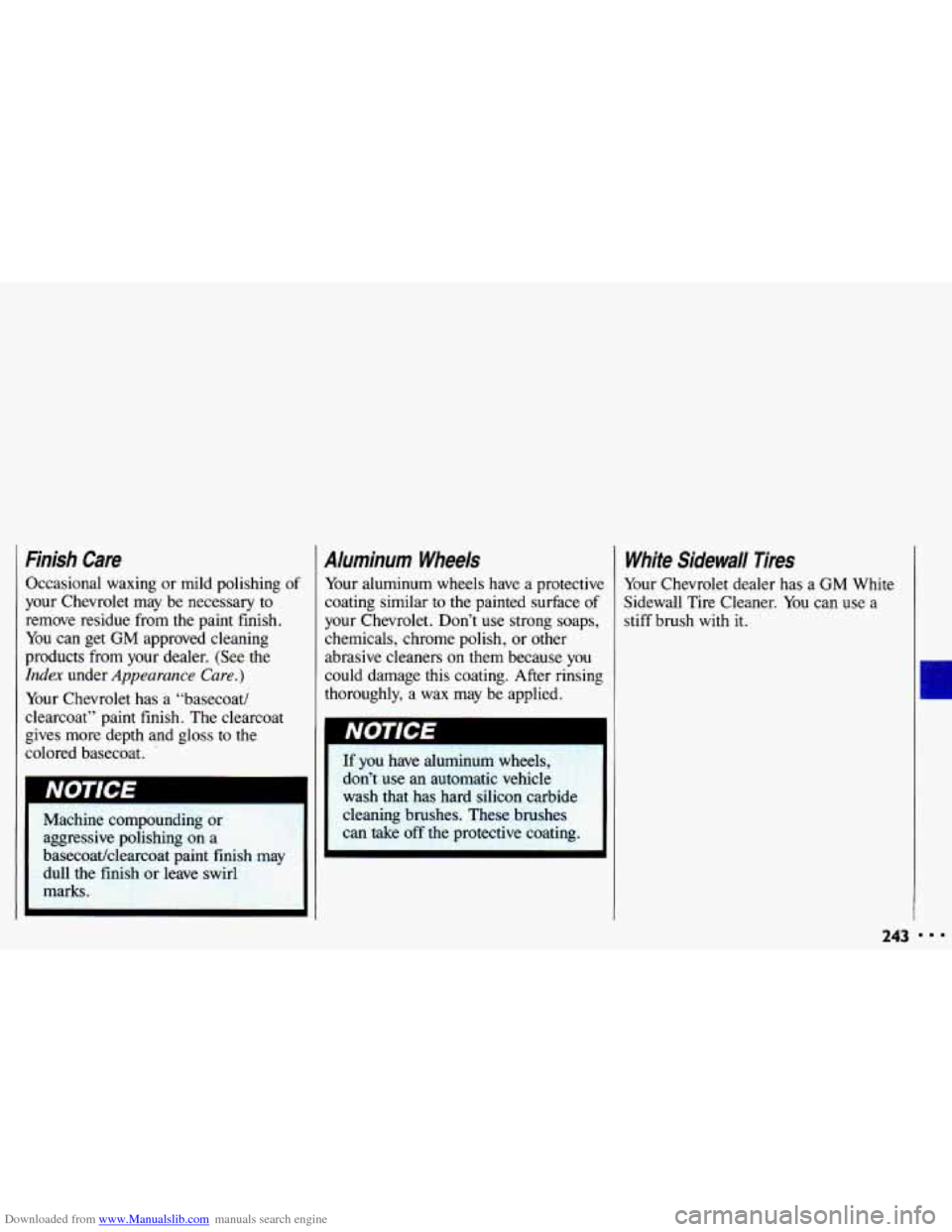

Downloaded from www.Manualslib.com manuals search engine Finish Care
Occasional waxing or mild polishing of
your Chevrolet may be necessary to
remove residue from the paint finish.
You can get
GM approved cleaning
products from your dealer. (See the
Index under Appearance Care.)
Your Chevrolet has a “basecoatl
clearcoat” paint finish. The clearcoat
gives more depth and gloss
to the
colored basecoat,
Machine compounding or
aggressive polishing on a
basecoatklearcoat paint finish may
dull the finish or leave swirl
marks.
Aluminum Wheels
Your aluminum wheels have a protectivt
coating similar to the painted surface
of
your Chevrolet. Don’t use strong soaps,
chemicals, chrome polish, or other
abrasive cleaners on them because you
could damage this coating. After rinsing
thoroughly, a wax may be applied.
I NUTICE
m- If you have aluminum wheels,
don’t use an automatic vehicle
wash that has hard silicon carbide
cleaning brushes. These brushes
can take off the protective coating.
White Sidewall Tires
Your Chevrolet dealer has a GM White
Sidewall Tire Cleaner. You can use a
stiff brush with
it.
243

Downloaded from www.Manualslib.com manuals search engine DDD
Service & Appearance Care

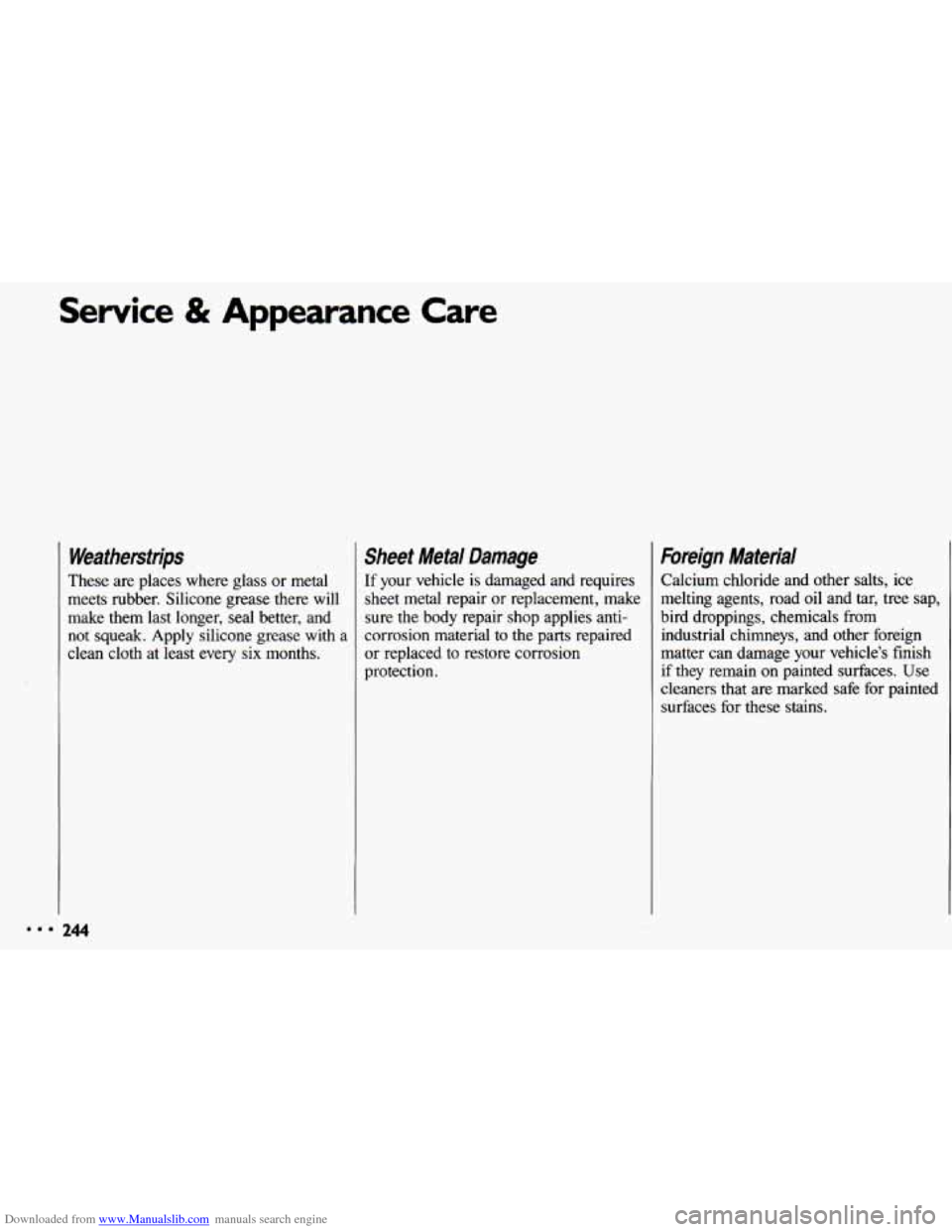

Weatherstrips
These are places where glass or metal
meets rubber. Silicone grease there will
make them last longer, seal better, and
not squeak. Apply silicone grease with a
clean cloth at least every six months.
244
Sheet Metal Damage
If your vehicle is damaged and requires
sheet metal repair or replacement, make
sure the body repair
shop applies anti-
corrosion material to the parts repaired
or replaced to restore corrosion
protection.
breign Material
Calcium chloride and other salts, ice
melting agents, road oil and tar, tree sap,
bird droppings, chemicals from industrial chimneys, and other foreign
matter can damage your vehicle’s finish
if they remain
on painted surfaces. Use
cleaners that are marked safe for painted
surfaces for these stains.

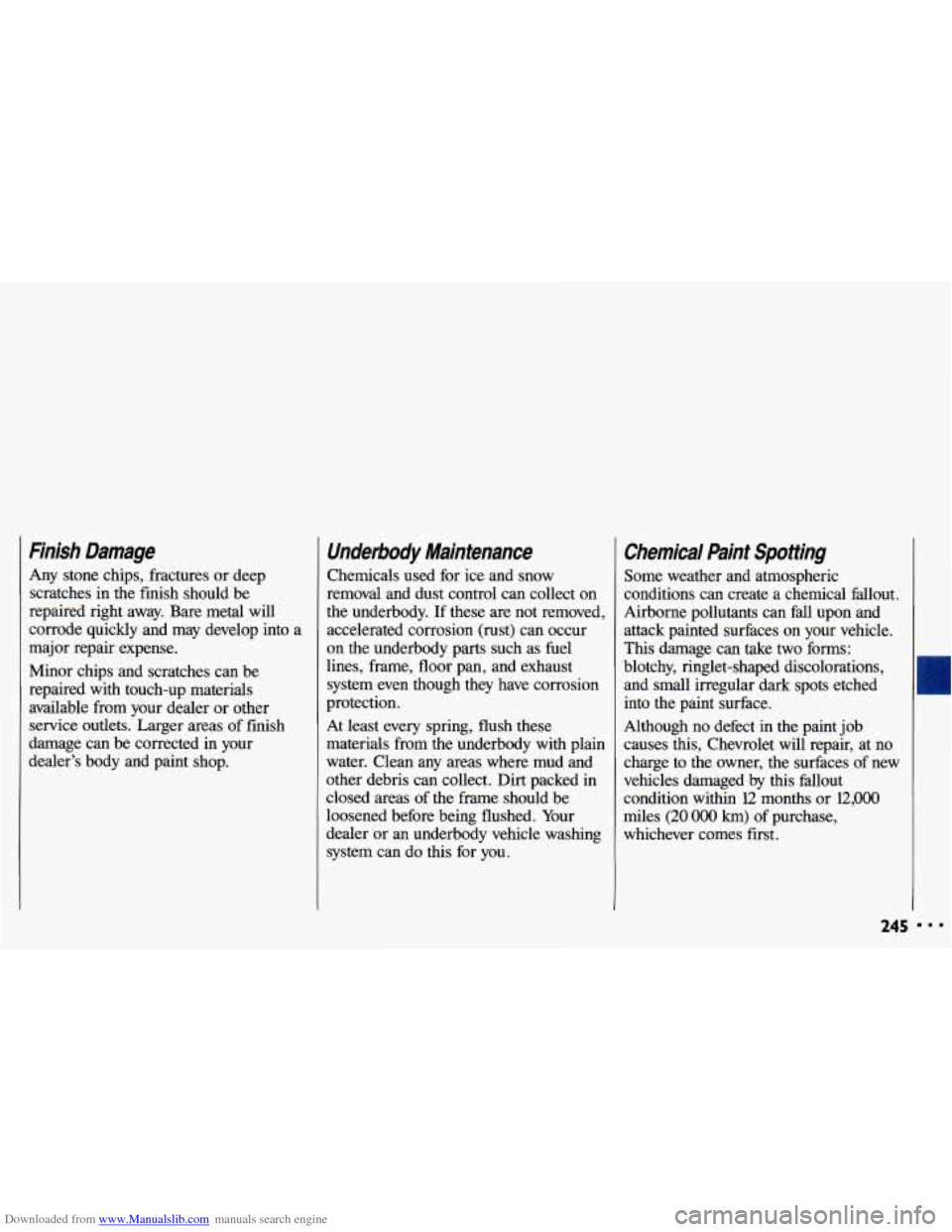

Downloaded from www.Manualslib.com manuals search engine Finish Damage
Any stone chips, fractures or deep
scratches
in the finish should be
repaired right away. Bare metal will
corrode quickly and may develop into a
major repair expense.
Minor chips and scratches can be
repaired with touch-up materials
available from your dealer or other
service outlets. Larger areas of finish
damage can be corrected in your
dealer’s body and paint shop.
Underbody Maintenance
Chemicals used for ice and snow
removal and dust control can collect on
the underbody. If these are not removed,
accelerated corrosion (rust) can occur
on the underbody parts such as fuel
lines, frame, floor pan, and exhaust
system even though they have corrosion
protection.
At least every spring, flush these
materials from the underbody with plain
water. Clean any areas where mud and
other debris can collect. Dirt packed in
closed areas
of the frame should be
loosened before being flushed. Your
dealer or an underbody vehicle washing
system can do this for you.
Chemical Paint Spotting
Some weather and atmospheric
conditions can create a chemical fallout.
Airborne pollutants can fall upon and
attack painted surfaces on your vehicle.
This damage can take two forms:
blotchy, ringlet-shaped discolorations, and small irregular dark spots etched
into the paint surface.
Although no defect in the paint job
causes this, Chevrolet will repair, at no
charge to the owner, the surfaces of new
vehicles damaged by this fallout
condition within
l2 months or l2,OOO
miles (20 000 km) of purchase,
whichever comes first.
245 I

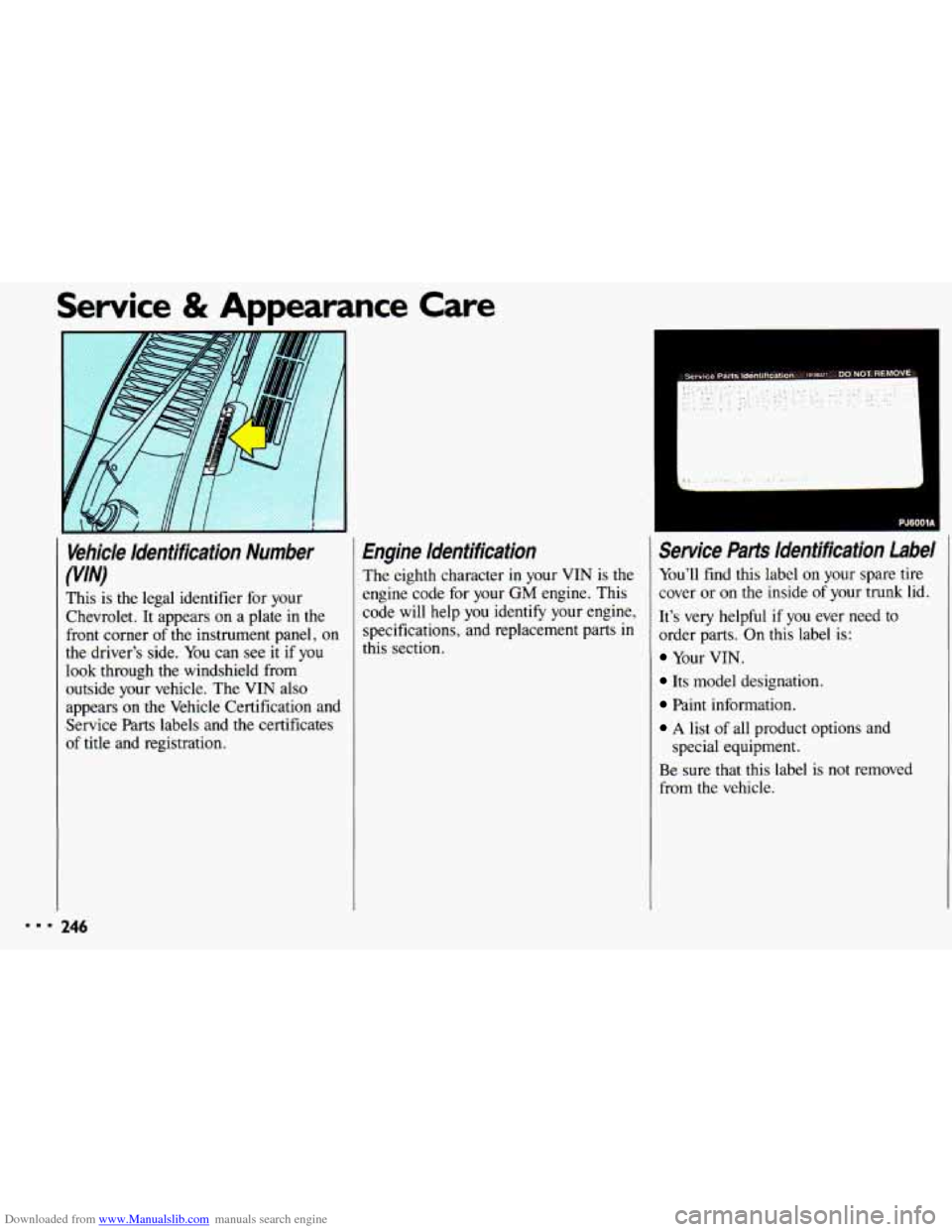

Downloaded from www.Manualslib.com manuals search engine Service & Appearance Care
WIN)
Vehicle ldentification Number
This is the legal identifier for your
Chevrolet. It appears on a plate in the
front corner
of the instrument panel, on
the driver’s side. You can see it
if you
look through the windshield from
outside your vehicle. The VIN also
appears
on the Vehicle Certification and
Service Parts labels and the certificates
of title and registration.
Engine ldentification
The eighth character in your VIN is the
engine code for your
GM engine. This
code will help
you identify your engine,
specifications, and replacement parts
in
this section.
Service Parts Identification Label
You’ll find this label on your spare tire
cover or on the inside
of your trunk lid.
It’s very helpfbl
if you ever need to
order parts. On this label is:
Your VIN.
Its model designation.
Paint information.
A list of all product options and
special equipment.
Be sure that this label is not removed
from the vehicle.
