1993 CHEVROLET CAVALIER Owners Manual

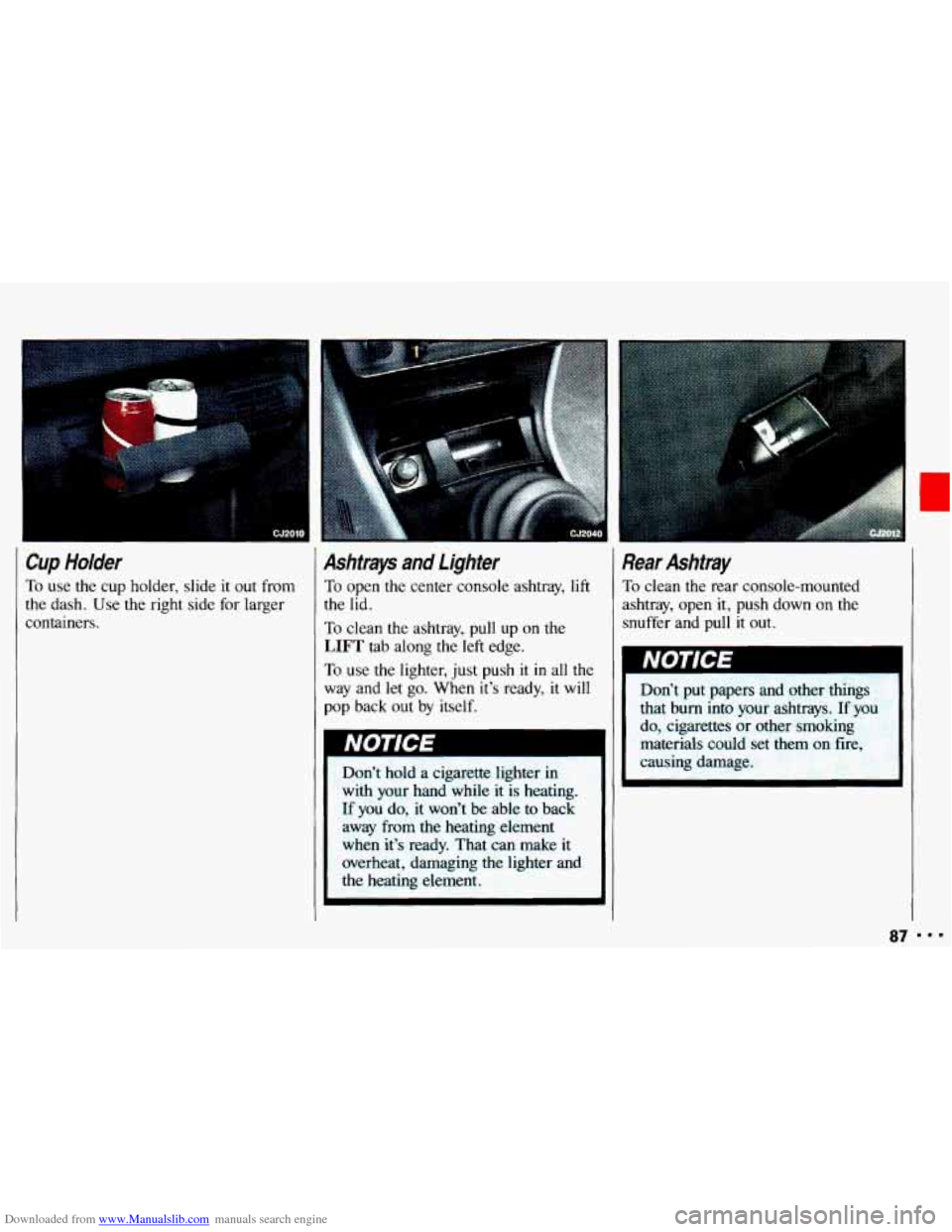

Downloaded from www.Manualslib.com manuals search engine Cup Holder
To use the cup holder, slide it out from
the dash. Use the right side for larger
containers.
3
Ashtrays and Lighter
To open the center console ashtray, lift
the lid.
To clean the ashtray, pull up on the
LIFT tab along the left edge.
To use the lighter, just push it in all the
way and let go. When it's ready,
it will
pop back out
by itself.
~ Don't hold a cigarette lighter in
with your hand while it is heating.
If you do, it won't be able to back
away from the heating element
when it's ready. That can make it
overheat, damaging the lighter and
the heating element.
Rear Ashtray
To clean the rear console-mounted
ashtray, open it, push down
on the
snuffer and pull it out.
I
Don't put papers and other things
that bum into your ashtrays. If you
do, cigarettes
or other smoking
materials could set them
on fire,
causing damage.
87 ...

Downloaded from www.Manualslib.com manuals search engine I,

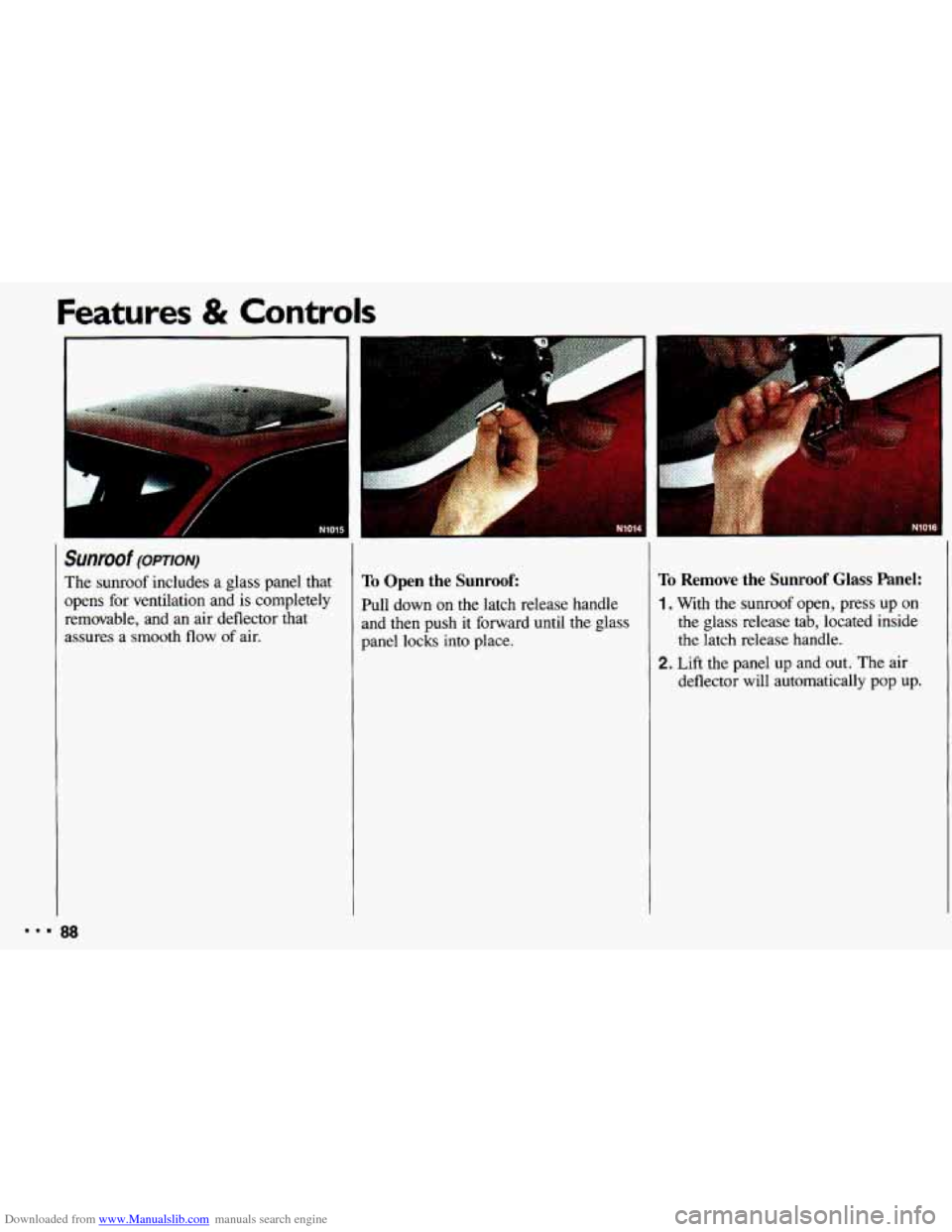

Sunroof (omoN)
The sunroof includes a glass panel that
opens for ventilation and is completely
removable, and an air deflector that
assures a smooth flow of air. To Open the Sunroof:
Pull down on the latch release handle
and then push
it forward until the glass
panel locks into place.
To Remove the Sunroof Glass Panel:
1. With the sunroof open, press up on
the glass release tab, located inside
the latch release handle.
deflector will automatically pop up.
2. Lift the panel up and out. The air

Downloaded from www.Manualslib.com manuals search engine .
. . .. ...
4. If you have the optional fold-down
rear seat,
you can secure the storage
bag containing the glass panel to the
trunk anchors using the straps
provided.
To Install the Sunroof Glass Panel:
1. Center the glass panel upright on the
weatherstrip. Then line
up the hinges
on the panel with the slots in the roof
opening.
3. Store the glass panel in the special
storage bag in
the trunk.
CAllTlbN
I Don't try to remove the
m sunroofpanel while the
whicle is
moving. Trying to
remove the sunroof panel while the
vehicle is moving could cause an
. accident. The panel could a1 into
the vehicle and cause you to lose
control,
or it could fly off and
strike another vehicle. You or
others could be injured. Remove
the sunroof panel only when the
vehicle is parked. I
89

Downloaded from www.Manualslib.com manuals search engine Features & Controls
90
030
Sunroof (CONT.)
2. Push forward on the rear edge of the
glass while lowering the panel.
Do
not force a hinge if it binds in a slot.
Reposition
the glass panel and start
again. Finally, push the glass release
tab, engage the latch with the striker
and close the panel.
LAU I IUN
An improperly installed
sunroof panel may fall into or I
fly off the vehicle. You or others
could be injured. After installing
the sunroof panel, alwqs check
that it is firmly attached by pushing
up on the underside of the panel. I
A
If the sunroof panel is not
stored properly, it could be
thrown about the vehicle
in a crash
or sudden maneuver. People in the
vehicle could be injured. Whenever
you store
the sunroof panel in the
vehicle, always be sure that
it is
stored securely
in the special
storage bag in the trunk.
I

Downloaded from www.Manualslib.com manuals search engine CJ2081 I
Roof Luggage Carrier
(WAGON, OPTION)
If you have the optional luggage carrier,
you can load things on top of your
vehicle.
The luggage carrier has slats attached to
the roof, side rails, and tiedowns. Don't exceed the maximum vehicle
capacity when loading your Chevrolet.
For more information on vehicle
capacity and loading, see the
Index
under Loading Your Ehicle.
To prevent damage or loss of cargo as
you're driving, check now and then to
make sure the luggage carrier and cargo
are still securely fastened.
91

Downloaded from www.Manualslib.com manuals search engine Features & Controls
P
a2104

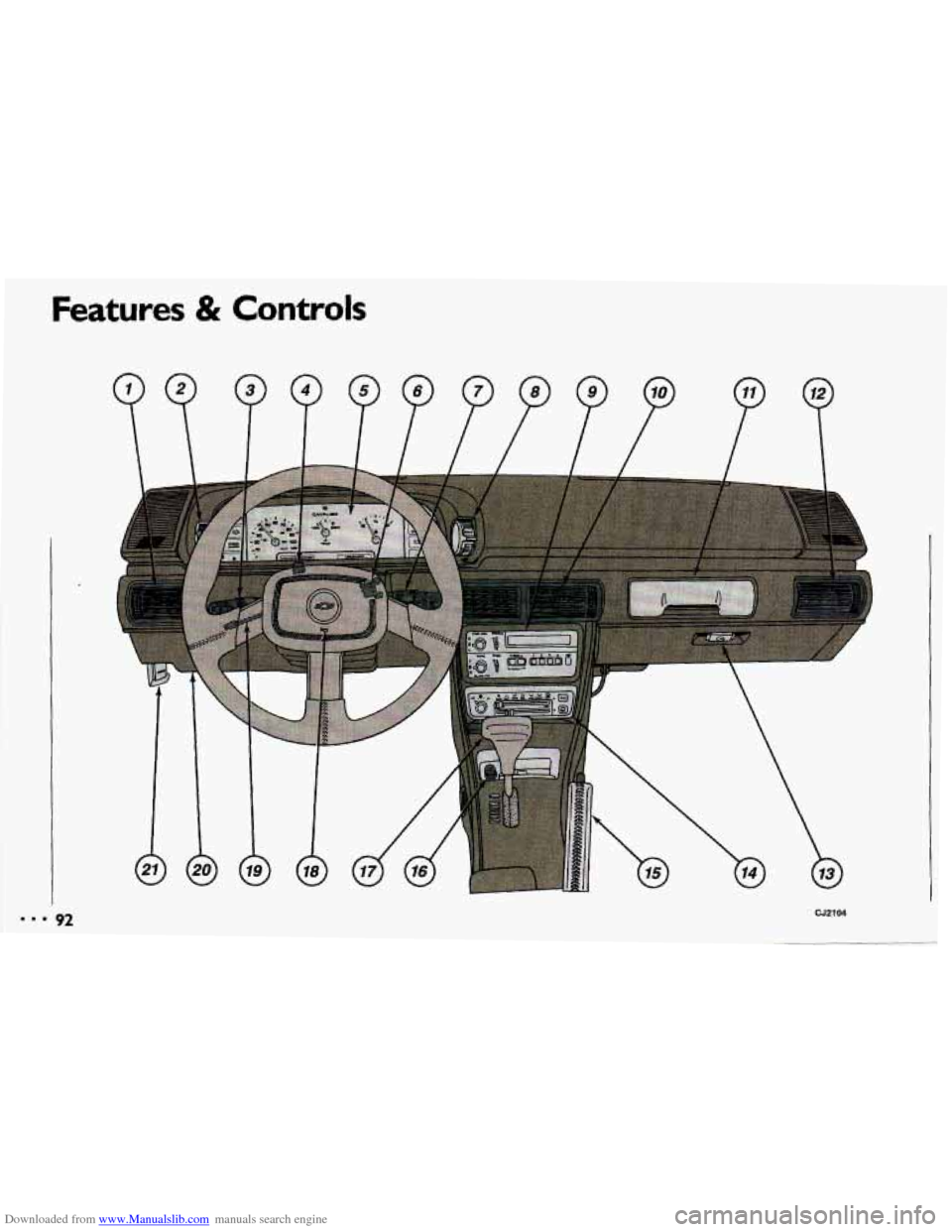

Downloaded from www.Manualslib.com manuals search engine The lnstrument Panel-
Your information System
Your instrument panel is designed to let
you know at a glance how your vehicle
is running. You’ll know how fast you’re
going, how much fuel you’re using, and
many other things you’ll need to drive
safely and economically.
The main components
of your
instrument panel are:
1. Side Vents
2. Instrument Panel Intensity Control
3. Turn SignaVHeadlight Beam Lever
4. Hazard Warning Flashers Switch
5. Instrument Cluster
6. Ignition Switch
7. Windshield Wiper/Washer Controls
8. Interior Light Control
9. Audio System
1 0. Center Vents
1 1. Cup Holder
12. Side Vents
1 3. Glove Box
14. Climate Controls and Rear Window
1 5. Parking Brake Lever
16. Ashtray/Lighter
17. Gearshift Lever
18. Horn
19. Tilt Steering Wheel Lever
20. Fuse Panel
21 . Hood Release Lever Defogger
93 I..

Downloaded from www.Manualslib.com manuals search engine Features & Controls

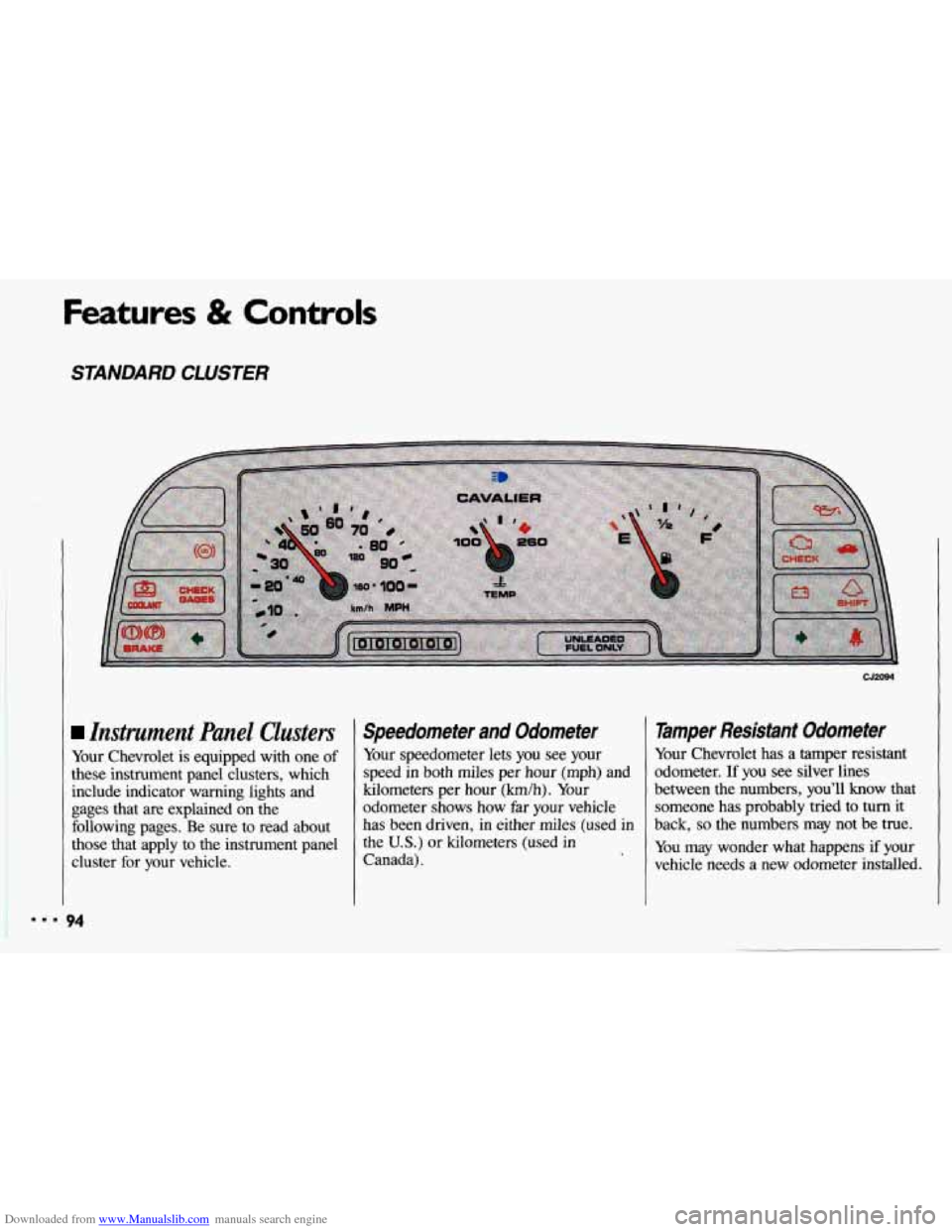

STANDARD CLUSTER
Instrument Panel Clusters
Your Chevrolet is equipped with one of
these instrument panel clusters, which
include indicator warning lights and
gages that are explained on the
following pages. Be sure to read about
those that apply to the instrument panel
cluster for your vehicle.
Speedometer and Odometer
Your speedometer lets you see your
speed in both miles per hour (mph) and
kilometers per hour (km/h). Your
odometer shows how far your vehicle
has been driven, in either miles (used in
the
U.S.) or kilometers (used in
Canada).
Tamper Resistant Odometer
Your Chevrolet has a tamper resistant
odometer. If
you see silver lines
between the numbers, you’ll
know that
someone has probably tried to
turn it
back,
so the numbers may not be true.
You may wonder what happens if your
vehicle needs a new odometer installed.
=.* 94
