1993 CHEVROLET CAVALIER Owners Manual

Downloaded from www.Manualslib.com manuals search engine Vehicles First Sold in Canada

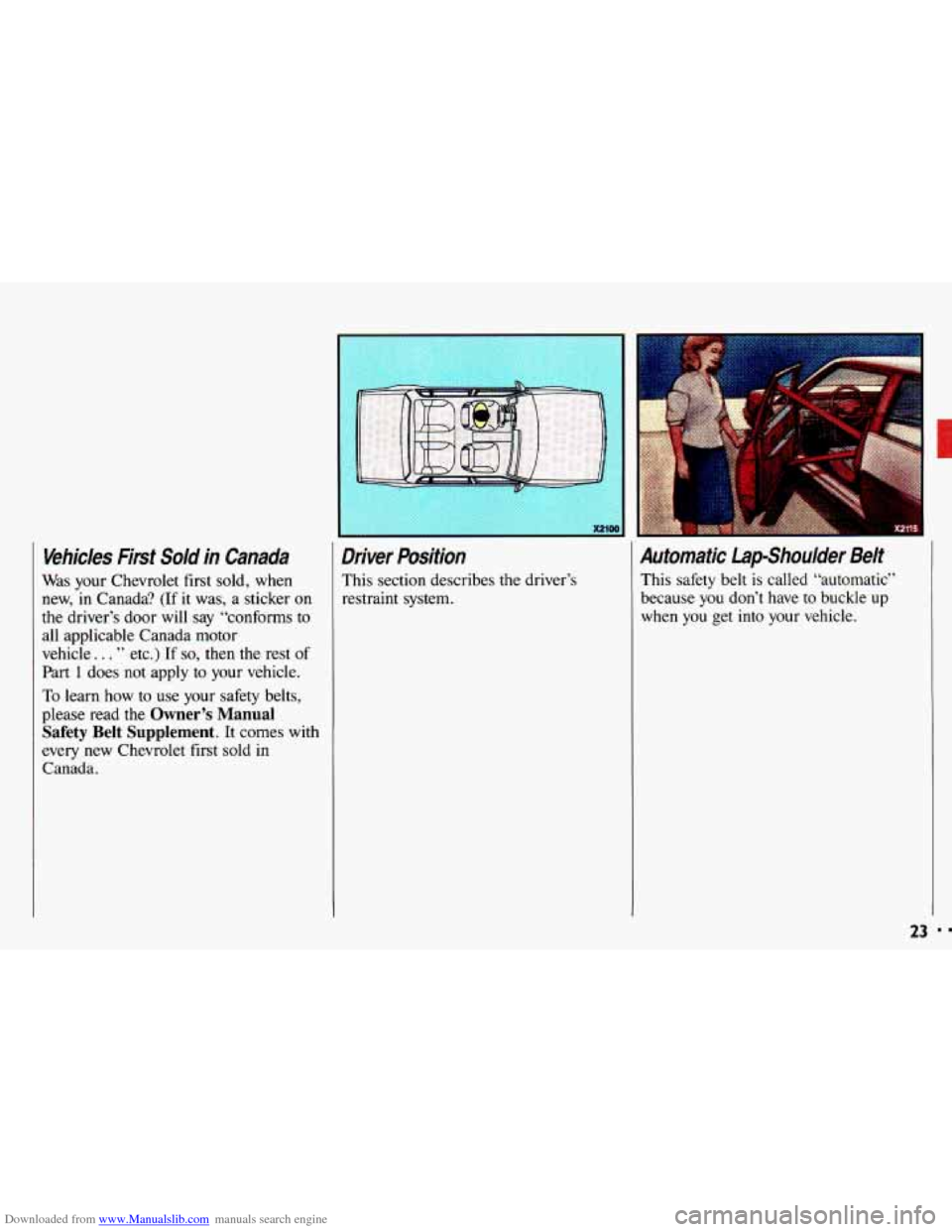

Was your Chevrolet first sold, when
new,
in Canada? (If it was, a sticker on
the driver’s door will say “conforms to
all applicable Canada motor
vehicle.
. . ” etc.) If so, then the rest of
Part 1 does not apply to your vehicle.
To learn how to use your safety belts,
please read
the Owner’s Manual
Safety Belt Supplement.
It comes with
every new Chevrolet first sold
in
Canada.
Driver Position
This section describes the driver’s
restraint system.
Automatic Lap-Shoulder Belt
This safety belt is called “automatic”
because you don’t have to buckle
up
when you get into your vehicle.
23

Downloaded from www.Manualslib.com manuals search engine Seats & Safety Belts

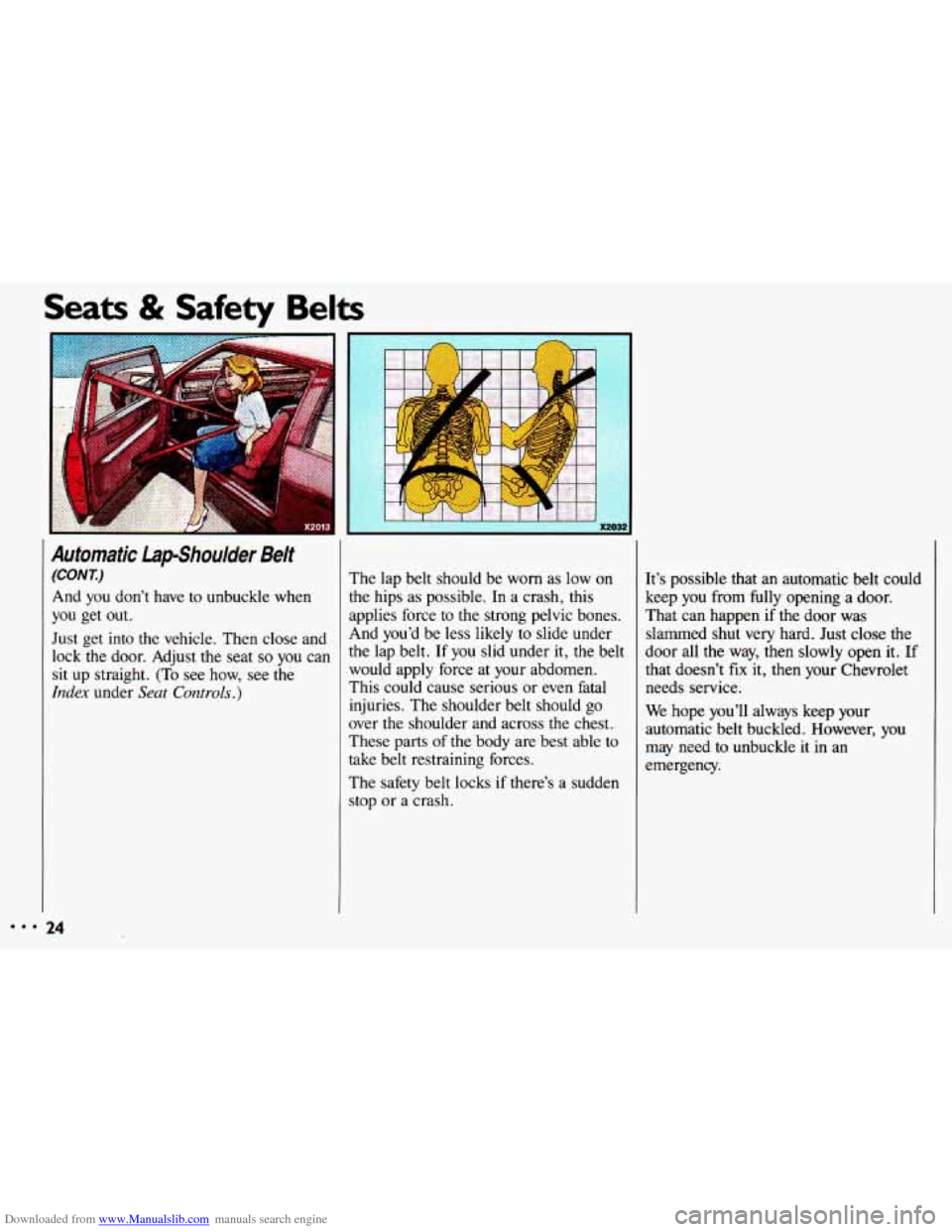

Automatic Lap-Shoulder Belt
(CON 1)
And you don't have to unbuckle when
you get out.
Just get into the vehicle. Then close and
lock the door. Adjust the seat
so you can
sit
up straight. (To see how, see the
Index under Seat Controls.)
The lap belt should be worn as low on
the hips as possible. In a crash, this
applies force to
the strong pelvic bones.
And you'd be less likely to slide under
the lap belt. If you slid under
it, the belt
would apply force at your abdomen.
This could cause serious or even fatal
injuries. The shoulder belt should go
over
the shoulder and across the chest.
These parts of the body are best able to
take belt restraining forces.
The safety belt locks
if there's a sudden
stop or a crash. It's possible that
an automatic belt could
keep you from fully opening a door.
That can happen if the door was
slammed shut very hard. Just close the
door all the way, then slowly open it.
If
that doesn't fix it, then your Chevrolet
needs service.
We hope you'll always keep your
automatic belt buckled. However, you
may need to unbuckle it in an
emergency.

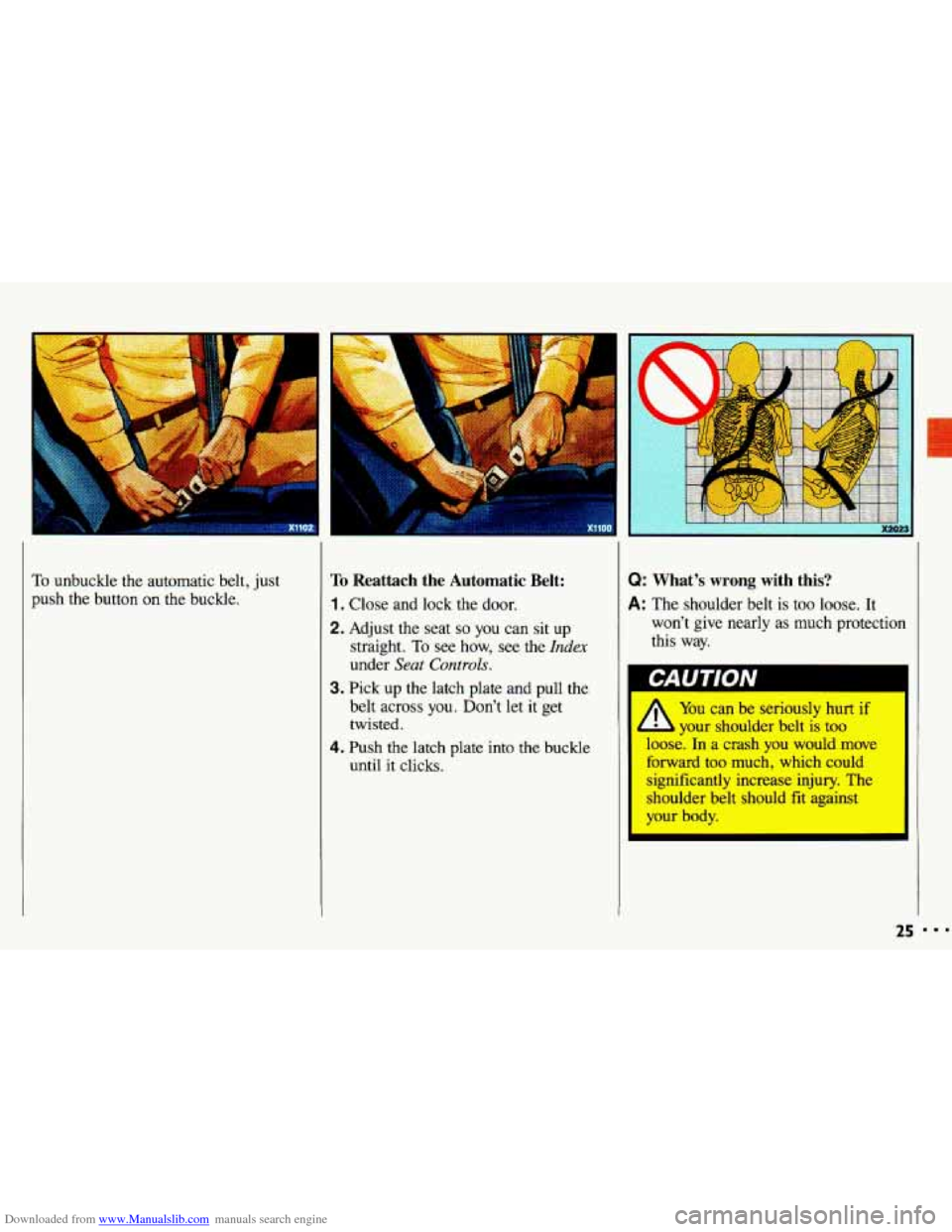

Downloaded from www.Manualslib.com manuals search engine To unbuckle the automatic belt, just
push the button
on the buckle.
To Reattach the Automatic Belt:
1. Close and lock the door.
2. Adjust the seat so you can sit up
straight. To see how, see the
Index
under Seat Controls.
3. Pick up the latch plate and pull the
belt across
you. Don’t let it get
twisted.
4. Push the latch plate into the buckle
until it clicks.
Q: What’s wrong with this?
A: The shoulder belt is too loose. It
won’t give nearly as much protection
this way.
A
You can be seriously hurt if
your shoulder belt is too
loose. In a crash
you would move
forward too much, which could
significantly increase injury. The
shoulder belt should fit against
your body.
I
25

Downloaded from www.Manualslib.com manuals search engine Seats & Safety Belts
Automatic lapshoulder Belt
(CONr.)
Q: What’s wrong with this?
A: The belt is buckled in the wrong
place.
CAUTION I
A
You can be seriously injured if
your belt is buckled
in the
wrong place like this. In a crash,
the belt would
go up over your
abdomen. The belt forces would
be there,
not at the pelvic bones.
This could cause serious internal
injuries. Always buckle your belt
into the buckle nearest
you.
Q: What’s wrong with this?
A: The shoulder belt is worn under the
arm.
It should be worn over the
shoulder at all times.
A
You can be seriously injured if
you wear the shoulder belt
under your arm. In a crash, your
body would move too far forward,
which would increase the chance
of head and neck injury. Also, the
belt would apply too much force to
the ribs, which
aren’t as strong as
shoulder bones. You could alSQ
severely injure internal organs like
your liver or spleen.
Q: What’s wrong with this?
A: The belt is twisted across the body.
‘Ab
You can be seriously injured
a twisted belt.
In a crash,
you wouldn’t have the full width of
the belt to take impact forces. If a
belt
is twisted, make it straight so
it can work properly, or ask your
dealer to
fix it.

Downloaded from www.Manualslib.com manuals search engine -

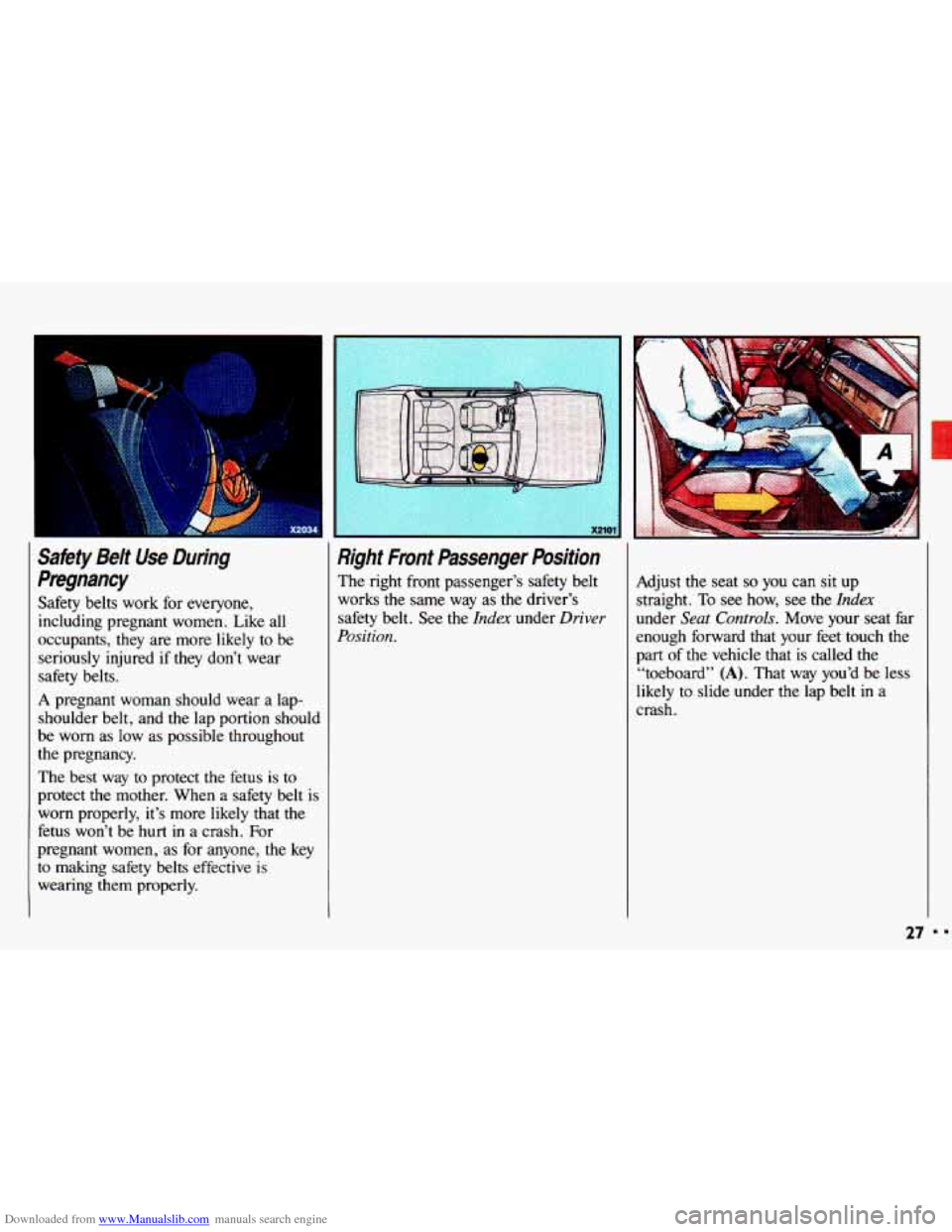

Safety Belt Use During
Pregnancy
Safety belts work for everyone,
including pregnant women. Like all
occupants, they are more likely to be
seriously injured if they don’t wear
safety belts.
A pregnant woman should wear a lap-
shoulder belt, and the lap portion should
be worn as low as possible throughout
the pregnancy.
The best way to protect the fetus is to
protect the mother. When a safety belt
is
worn properly, it’s more likely that the
fetus won’t be hurt in a crash. For
pregnant women, as for anyone, the key
to making safety belts effective is
wearing them properly.
Right Front Passenger Position
The right front passenger’s safety belt
works
the same way as the driver’s
safety belt. See the
Index under Driver
Position.
Adjust the seat so you can sit up
straight. To see how, see the
Index
under Seat Controls. Move your seat far
enough forward that your feet touch the
part
of the vehicle that is called the
“toeboard”
(A). That way you’d be less
likely to slide under the lap belt
in a
crash.
27 88

Downloaded from www.Manualslib.com manuals search engine Seats & Safety Belts

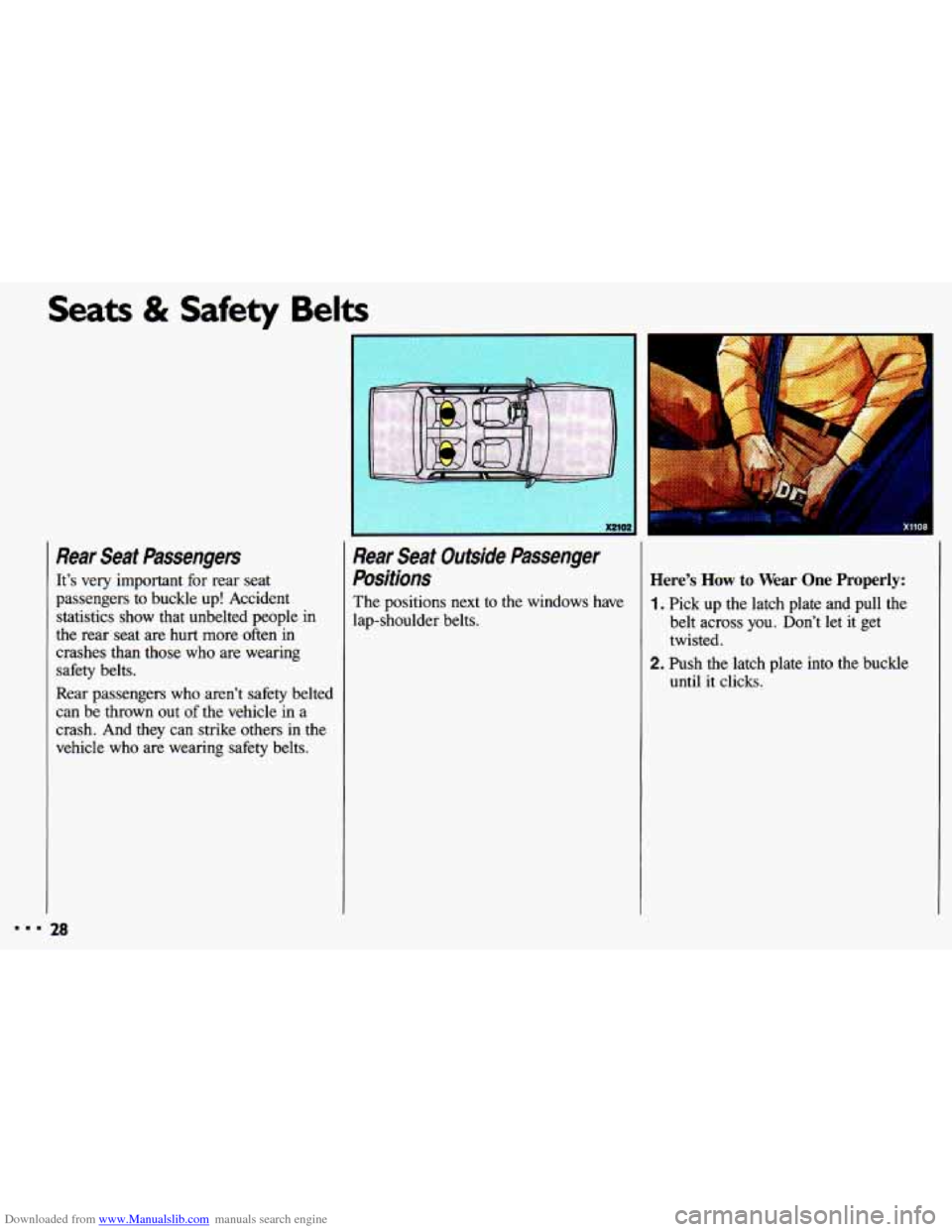

Rear Seat Passengers
It’s very important for rear seat
passengers to buckle up! Accident
statistics show that unbelted people in
the rear seat are hurt more often in
crashes than those who are wearing
safety belts.
Rear passengers who aren’t safety belted
can be thrown out of the vehicle in a
crash. And they can strike others in the
vehicle who are wearing safety belts.
Rear Seat Outside Passenger
Positions
The positions next to the windows have
lap-shoulder belts.
Here’s How to Wear One Properly:
1 . Pick up the latch plate and pull the
belt across
you. Don’t let it get
twisted.
2. Push the latch plate into the buckle
until it clicks.

Downloaded from www.Manualslib.com manuals search engine Ib
If the belt stops before it reaches the
buckle, tilt the latch plate and keep
pulling until you can buckle it.
If the belt is not long enough, see the
Index under Safety Belt Extender.
Make sure the release button on the
buckle faces upward or outward
so you
would be able
to unbuckle it quickly if
you ever had to.
3. To make the lap part tight, pull down
on the buckle end of the belt as you
pull up on the shoulder part.
e
The lap part of the belt should be worn
low and snug on the hips, just touching
the thighs. In a crash,
this applies force
to the strong pelvic bones. And you’d be
less likely to slide under the lap belt. If
you slid under it, the belt would apply
force at your abdomen. This could cause
serious
or even fatal injuries. The
shoulder belt should
go over the
shoulder and across the chest. These
parts
of the body are best able to take
belt restraining forces.

Downloaded from www.Manualslib.com manuals search engine ..I
Seats & Safety Belts

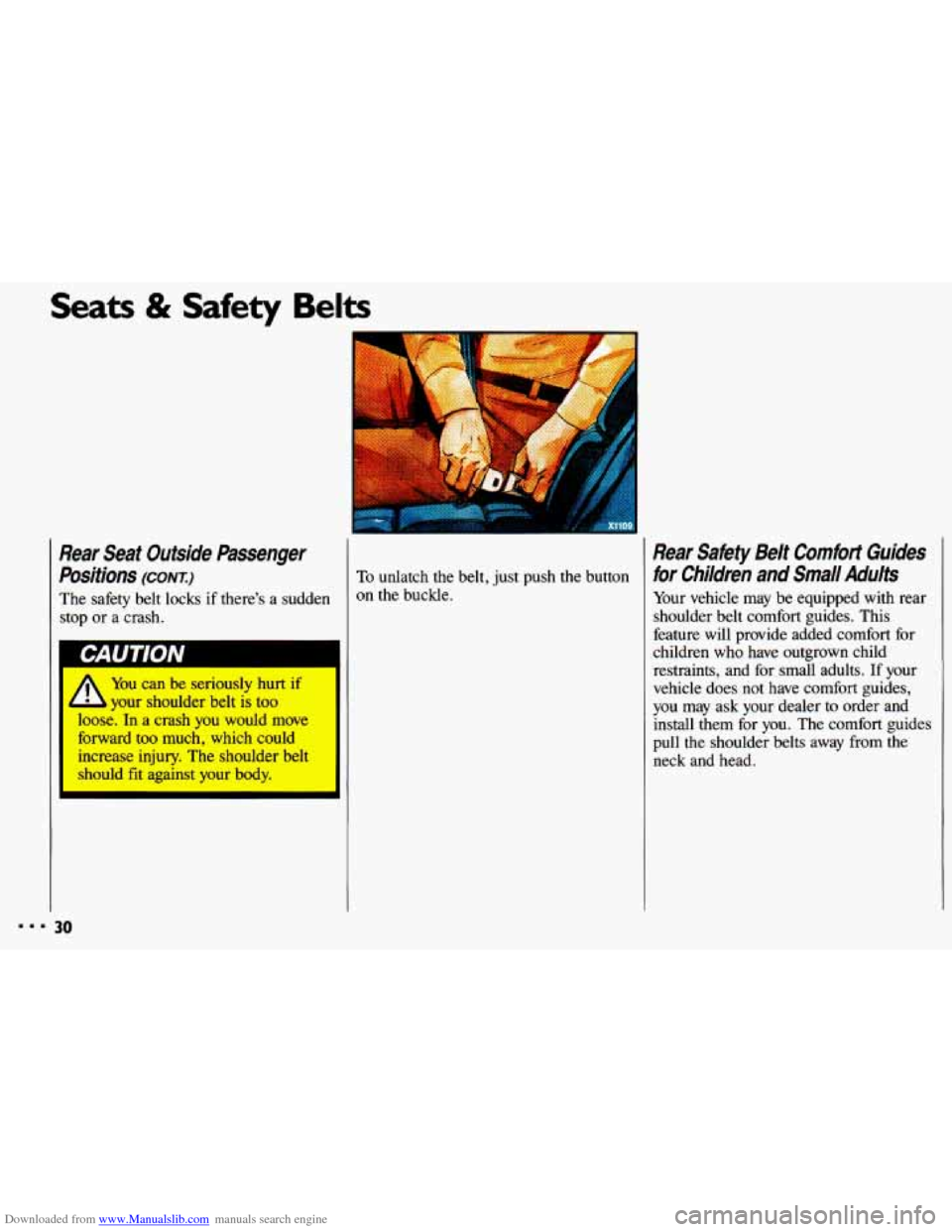

?ear Seat Outside Passenger
Dositions
(CONT.)
The safety belt locks if there's a sudden
'top or a crash.
CAUTION I
A
You can be seriously hurt if
your shoulder belt
is too
loose. In
a crash you would move
forward too much, which could
increase injury. The shoulder belt
should fit against
your body.
D
To unlatch the belt, just push the button
on the buckle.
Rear Safety Belt Comfort Guides
for Children and Small Adults
Your vehicle may be equipped with rear
shoulder belt comfort guides. This
feature will provide added comfort for
children who have outgrown child
restraints, and for small adults. If your
vehicle does not have comfort guides,
you may ask your dealer
to order and
install them for you. The comfort guides
pull the shoulder belts away from the
neck and head.
