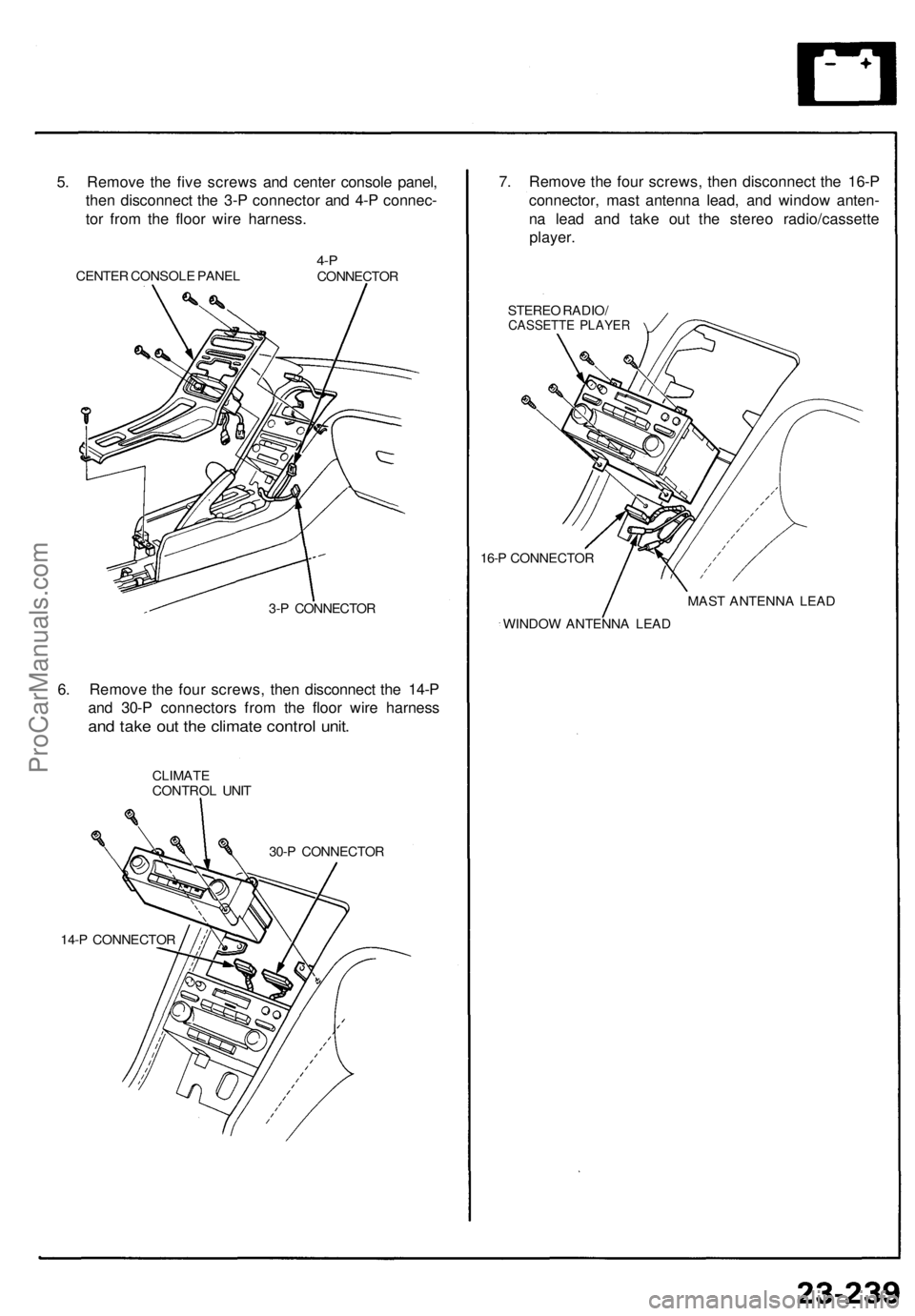

5. Remove the five screws and center console panel,

then disconnect the 3-P connector and 4-P connec-

tor from the floor wire harness.

CENTER CONSOLE PANEL
4-P

CONNECTOR

3-P CONNECTOR

6. Remove the four screws, then disconnect the 14-P

and 30-P connectors from the floor wire harness

and take out the climate control unit.

CLIMATE

CONTROL UNIT

30-P CONNECTOR

14-P CONNECTOR
7. Remove the four screws, then disconnect the 16-P

connector, mast antenna lead, and window anten-

na lead and take out the stereo radio/cassette

player.

STEREO RADIO/

CASSETTE PLAYER

16-P CONNECTOR

WINDOW ANTENNA LEAD
MAST ANTENNA LEADProCarManuals.com

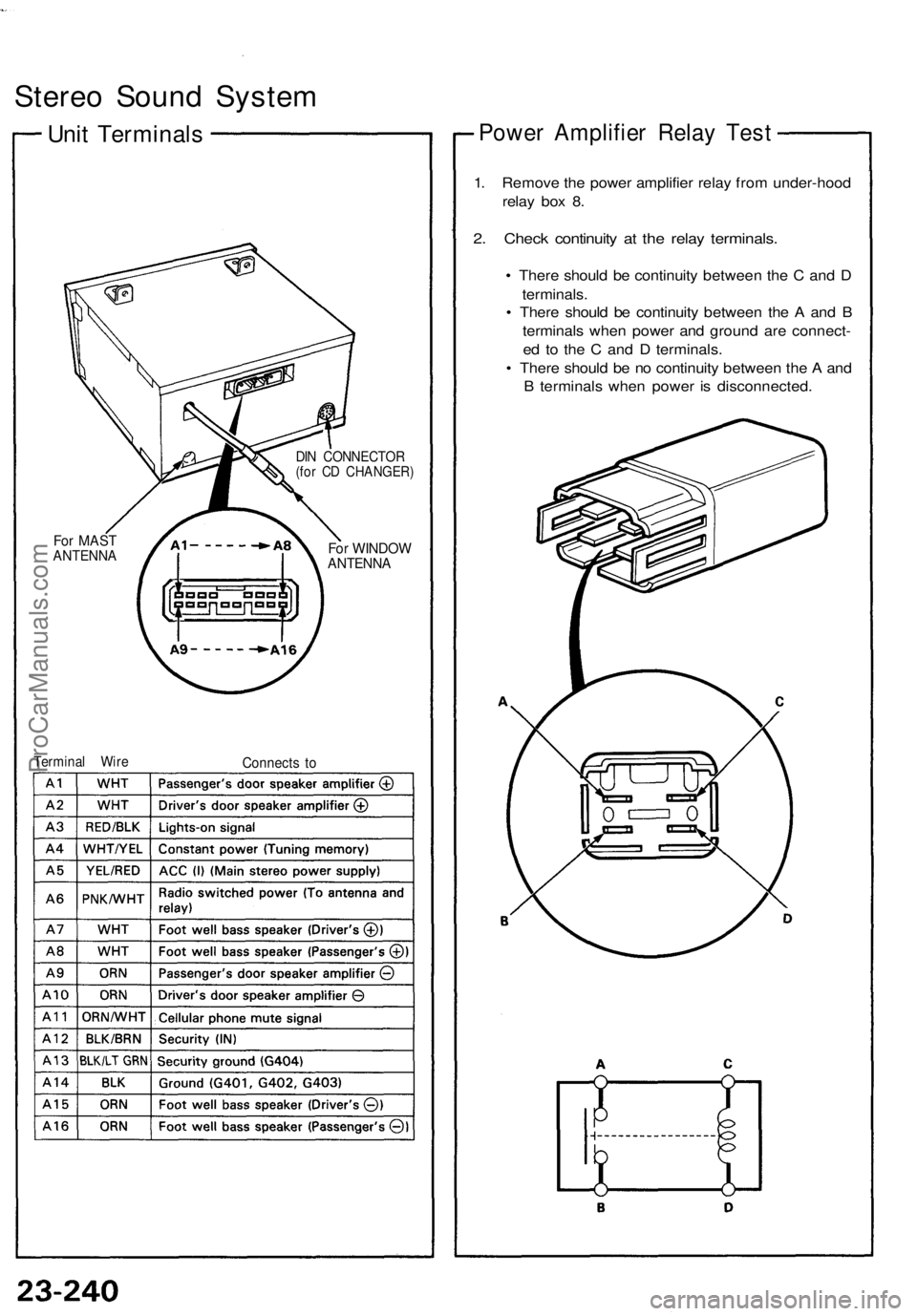

Stereo Sound System

Unit Terminals

For MAST

ANTENNA
DIN CONNECTOR

(for CD CHANGER)

For WINDOW

ANTENNA

Terminal Wire

Connects to
Power Amplifier Relay Test

1. Remove the power amplifier relay from under-hood

relay box 8.

2. Check continuity at the relay terminals.

• There should be continuity between the C and D

terminals.

• There should be continuity between the A and B

terminals when power and ground are connect-

ed to the C and D terminals.

• There should be no continuity between the A and

B terminals when power is disconnected.ProCarManuals.com

Power Windows
Component Location Index
POWER WINDOW

RELAY
Test
,
page 23-277
('94-'96) ('91-'93)
PASSENGER'S SWITCH

Test, page 23-274('94-'96)

Replacement, page
23-275
PASSENGER'S DOOR SWITCH

Test, page 23-204
PASSENGER'S MOTOR

Test, page 23-276('94-'96) ('91-'93)

Replacement, section 20
DRIVER'S DOOR SWITCH
Test, page 23-204
DRIVER'S MOTORTest, page 23-276('94-'96) ('91-'93)
Replacement,
section 20
MASTER SWITCH

Test, page 23-273 ('94-'96) ('91-'93)
Replacement, page 23-274
('94-'96) ('91-'93)

POWER WINDOW
CONTROL UNIT
Input test, page 23-272
('94-'96) ('91-'93)
KEY-OFF TIMER CIRCUIT
(In the integrated control unit)
Input test, page 23-168
('94-'96) ('91-'93)
UNDER-DASH FUSE BOX

UNDER-HOOD FUSE/RELAY

BOX

Description

Power Window Key-off Timer Operation:
The power windows can still be operated for about ten minutes after the ignition switch is turned from the "II" to the "I"
or "O" position as long as neither of the doors has been opened. This provides a convenience to parked occupants while
offering a degree of security against unwanted or accidental window operation.ProCarManuals.com

Power Windows

Control Unit Input Test

NOTE: The control unit only controls the driver's door

window.

Remove the driver's door panel and disconnect the 4-P

and 6-P connectors from the control unit.

Inspect the connector and socket terminals to be sure

they are all making good contact.

• If the terminals are bent, loose, or corroded, repair

them as necessary, and recheck the system.

• If the terminals look OK, make the following input

tests at the connector.

— If any test indicates a problem, find and correct

the cause, then recheck the system.

— If all the input tests prove OK, the control unit

must be faulty; replace it.
POWER WINDOW

MASTER SWITCH
POWER WINDOW

CONTROL UNIT

No. Wire

Test condition

Test: Desired result
View from wire side

*Not used

Possible cause if result is not obtainedProCarManuals.com

Power Window s
Passenger' s Switc h Tes t
1. Remov e th e doo r pane l (se e sectio n 20 ).
2 . Disconnec t th e 8- P connector .
View fro m wir e sid e
3. Chec k fo r continuit y betwee n th e terminal s i n eac h
switc h positio n accordin g t o th e table.
Maste r Switc h Replacemen t
1. Remov e th e doo r pane l (se e sectio n 20 ).
2 . Remov e th e fou r screws , the n remov e th e powe r
windo w maste r switc h fro m th e doo r panel .
DOOR PANE L
MASTE RSWITCH
ProCarManuals.com

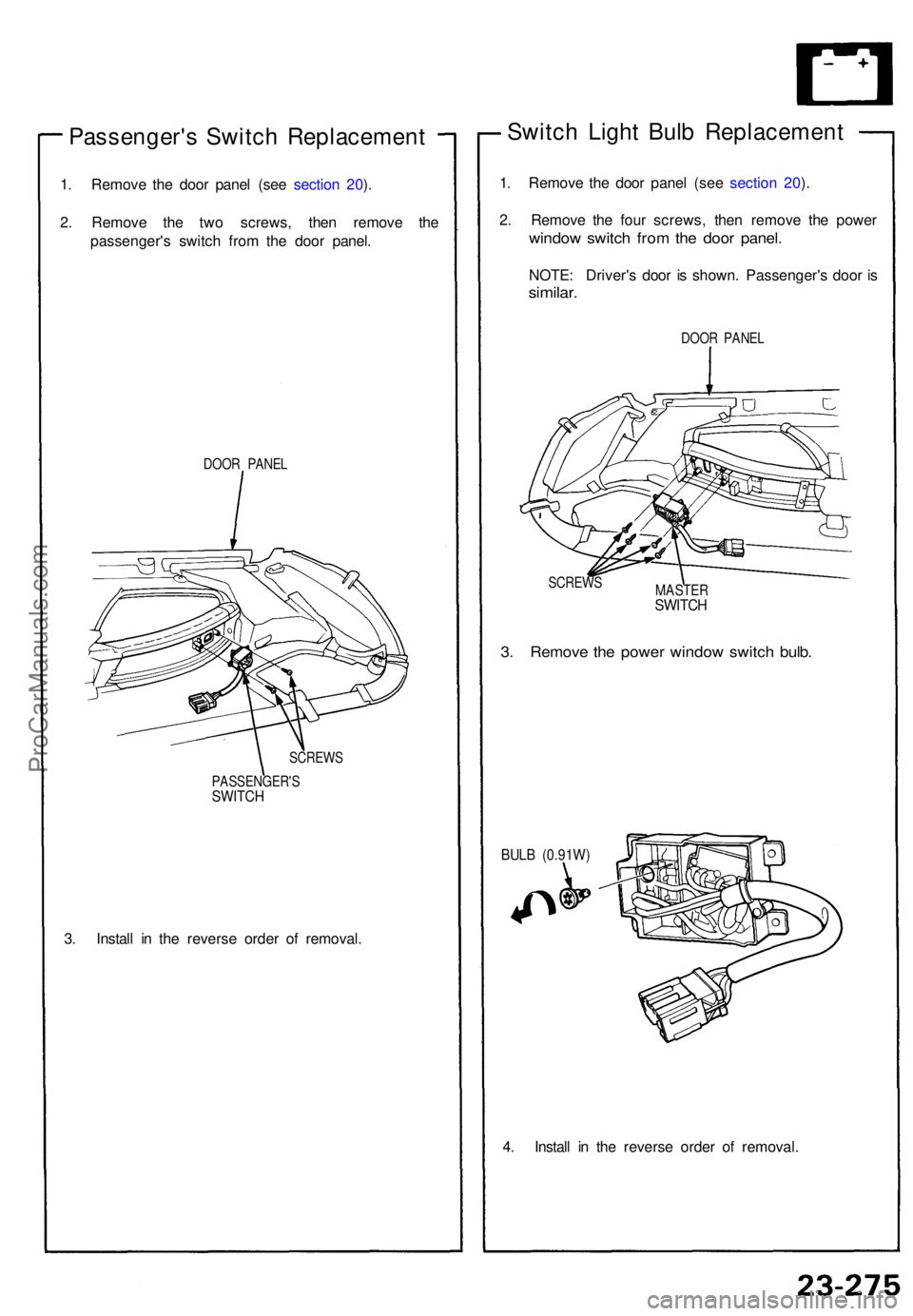

Passenger's Switc h Replacemen t
1. Remov e th e doo r pane l (se e sectio n 20 ).
2 . Remov e th e tw o screws , the n remov e th e
passenger' s switc h fro m th e doo r panel .
DOOR PANE L
SCREW S
PASSENGER' S
SWITCH
3. Instal l i n th e revers e orde r o f removal .
Switch Ligh t Bul b Replacemen t
1. Remov e th e doo r pane l (se e sectio n 20 ).
2 . Remov e th e fou r screws , the n remov e th e powe r
window switc h fro m th e doo r panel .
NOTE: Driver' s doo r i s shown . Passenger' s doo r i s
similar .
DOOR PANE L
SCREW S
MASTERSWITCH
3. Remov e th e powe r windo w switc h bulb .
BULB (0.91W )
4. Instal l i n th e revers e orde r o f removal .
ProCarManuals.com

Power Window s

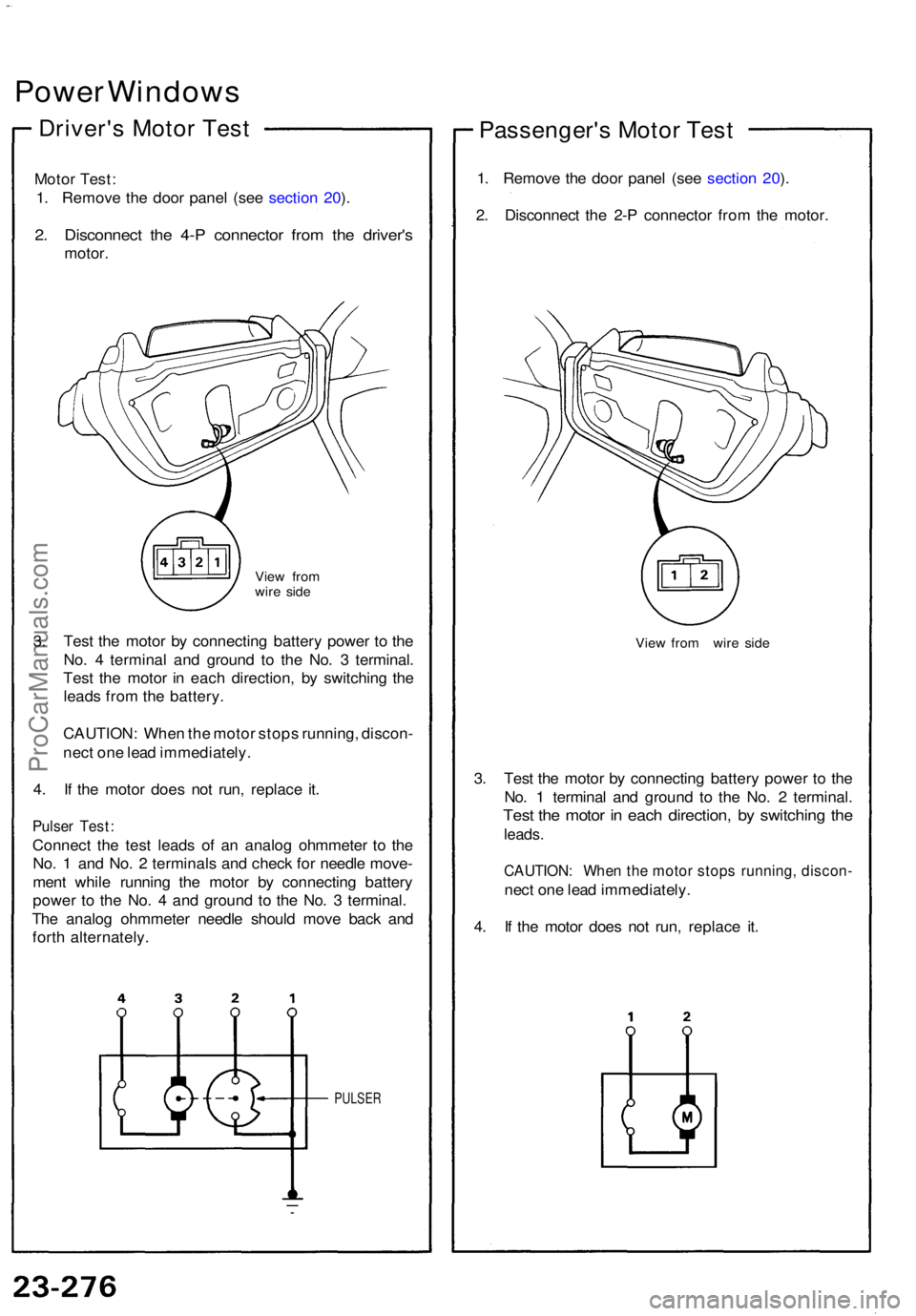

Driver's Moto r Tes t
Moto r Test :
1 . Remov e th e doo r pane l (se e sectio n 20 ).
2 . Disconnec t th e 4- P connecto r fro m th e driver' s
motor.
View fro m
wir e sid e
3. Tes t th e moto r b y connectin g batter y powe r t o th e
No . 4 termina l an d groun d t o th e No . 3 terminal .
Tes t th e moto r i n eac h direction , b y switchin g th e
lead s fro m th e battery .
CAUTION : Whe n th e moto r stop s running , discon -
nec t on e lea d immediately .
4 . I f th e moto r doe s no t run , replac e it .
Pulse r Test :
Connec t th e tes t lead s of an analo g ohmmete r t o th e
No . 1 an d No . 2 terminal s an d chec k fo r needl e move -
men t whil e runnin g th e moto r b y connectin g batter y
powe r t o th e No . 4 an d groun d t o th e No . 3 terminal .
Th e analo g ohmmete r needl e shoul d mov e bac k an d
fort h alternately .
PULSER
Passenger' s Moto r Tes t
1. Remov e th e doo r pane l (se e sectio n 20 ).
2 . Disconnec t th e 2- P connecto r fro m th e motor .
View fro m wir e sid e
3. Tes t th e moto r b y connectin g batter y powe r t o th e
No . 1 termina l an d groun d t o th e No . 2 terminal .
Test th e moto r i n eac h direction , b y switchin g th e
leads .
CAUTION : Whe n th e moto r stop s running , discon -
nect on e lea d immediately .
4 . I f th e moto r doe s no t run , replac e it .
ProCarManuals.com

Relay Test

1. Remove the power window relay in the under-hood

fuse/relay box.

2. Check continuity at the relay terminals.

• There should be continuity between the C and D

terminals.

• There should be continuity between the A and B

terminals when power and ground are connect-

ed to the C and D terminals.

• There should be no continuity between the A and
