1990 VOLKSWAGEN CORRADO Repair Manual

METRIC CONVERSIONS
Article Text (p. 3)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:49PM³Cubic Inches ³Cubic Centimeters ³ 16.38703 ³
³Liters
³Cubic Inches ³ 61.025 ³
³Cubic Inches
³Liters ³ .01639 ³
³Liters
³Quarts ³ 1.05672 ³
³Quarts
³Liters ³ .94633 ³
³Liters
³Pints ³ 2.11344 ³
³Pints
³Liters ³ .47317 ³
³Liters
³Ounces ³ 33.81497 ³
³Ounces
³Liters ³ .02957 ³
ÃÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÅÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÅÄÄÄÄÄÄÄÄÄÄÄÄÄÄ´
³WEIGHT
³ ³ ³
³Grams
³Ounces ³ .03527 ³
³Ounces
³Grams ³ 28.34953 ³
³Kilograms
³Pounds ³ 2.20462 ³
³Pounds
³Kilograms ³ .45359 ³
ÃÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÅÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÅÄÄÄÄÄÄÄÄÄÄÄÄÄÄ´
³WORK
³ ³ ³
³Centimeter Kilograms
³Inch Pounds ³ .8676 ³
³Pounds/Sq. Inch
³Kilograms/Sq.Centimeter³ .07031 ³
³Bar
³Pounds/Sq. Inch ³ 14.504 ³
³Pounds/Sq. Inch
³Bar ³ .06895 ³
³Atmosphere
³Pounds/Sq. Inch ³ 14.696 ³
³Pounds/Sq. Inch
³Atmosphere ³ .06805 ³
ÃÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÅÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÅÄÄÄÄÄÄÄÄÄÄÄÄÄÄ´
³TEMPERATURE
³ ³ ³
³Centigrade Degrees
³Fahrenheit Degrees ³(øCx(9)/5)+32 ³
³Fahrenheit Degrees
³Centigrade Degrees ³(øF-32)x(5)/9 ³
ÀÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÁÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÁÄÄÄÄÄÄÄÄÄÄÄÄÄÄÙCONVERSION FACTORS (Cont.)
ÚÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ¿
³INCHES DECIMALS mm
³
ÃÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ´
³
³
³1/64 ...................... .016 ........................ .397
³
³1/32 ...................... .031 ........................ .794
³
³3/64 ...................... .047 ....................... 1.191
³
³1/16 ...................... .063 ....................... 1.588
³
³5/64 ...................... .078 ....................... 1.984
³
³3/32 ...................... .094 ....................... 2.381
³
³7/64 ...................... .109 ....................... 2.778
³
³1/8 ....................... .125 ....................... 3.175
³
³9/64 ...................... .141 ....................... 3.572
³
³5/32 ...................... .156 ....................... 3.969
³
³11/64 ..................... .172 ....................... 4.366
³
³3/16 ...................... .188 ....................... 4.763
³
³13/64 ..................... .203 ....................... 5.159
³
³7/32 ...................... .219 ....................... 5.556
³
³15/64 ..................... .234 ....................... 5.953
³
³1/4 ....................... .250 ....................... 6.350
³
³17/64 ..................... .266 ....................... 6.747
³
³9/32 ...................... .281 ....................... 7.144
³

METRIC CONVERSIONS
Article Text (p. 4)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:49PM³19/64 ..................... .297 ....................... 7.541 ³
³5/16 ...................... .313 ....................... 7.938
³
³21/64 ..................... .328 ....................... 8.334
³
³11/32 ..................... .344 ....................... 8.731
³
³23/64 ..................... .359 ....................... 9.128
³
³3/8 ....................... .375 ....................... 9.525
³
³25/64 ..................... .391 ....................... 9.992
³
³13/32 ..................... .406 ...................... 10.319
³
³27/64 ..................... .422 ...................... 10.716
³
³7/16 ...................... .438 ...................... 11.113
³
³29/64 ..................... .453 ...................... 11.509
³
³15/32 ..................... .469 ...................... 11.906
³
³31/64 ..................... .484 ...................... 12.303
³
³1/2 ....................... .500 ...................... 12.700
³
³33/64 ..................... .516 ...................... 13.097
³
³17/32 ..................... .531 ...................... 13.494
³
³35/64 ..................... .547 ...................... 13.891
³
³9/16 ...................... .563 ...................... 14.288
³
³37/64 ..................... .578 ...................... 14.684
³
³19/32 ..................... .594 ...................... 15.081
³
³39/64 ..................... .609 ...................... 15.478
³
³5/8 ....................... .625 ...................... 15.875
³
³41/64 ..................... .641 ...................... 16.272
³
³21/32 ..................... .656 ...................... 16.669
³
³43/64 ..................... .672 ...................... 17.066
³
³11/16 ..................... .687 ...................... 17.463
³
³45/64 ..................... .703 ...................... 17.859
³
³23/32 ..................... .719 ...................... 18.256
³
³47/64 ..................... .734 ...................... 18.653
³
³3/4 ....................... .750 ...................... 19.050
³
³49/64 ..................... .766 ...................... 19.447
³
³25/32 ..................... .781 ...................... 19.844
³
³51/64 ..................... .797 ...................... 20.241
³
³13/16 ..................... .813 ...................... 20.638
³
³53/64 ..................... .828 ...................... 21.034
³
³27/32 ..................... .844 ...................... 21.431
³
³55/64 ..................... .859 ...................... 21.828
³
³7/8 ....................... .875 ...................... 22.225
³
³57/64 ..................... .891 ...................... 22.622
³
³29/32 ..................... .906 ...................... 23.019
³
³59/64 ..................... .922 ...................... 23.416
³
³15/16 ..................... .938 ...................... 23.813
³
³61/64 ..................... .953 ...................... 24.209
³
³31/32 ..................... .969 ...................... 24.606
³
³63/64 ..................... .984 ...................... 25.003
³
³1 ......................... 1.000 ..................... 25.400
³
ÀÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÙEND OF ARTICLE

MIRRORS - POWER
Article Text
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:49PM
ARTICLE BEGINNING
1990-92 SAFETY EQUIPMENT
Power Mirrors
1990-92 Passat
1991-92 Corrado, Golf, GTI, Jetta, Vanagon
DESCRIPTION & OPERATION

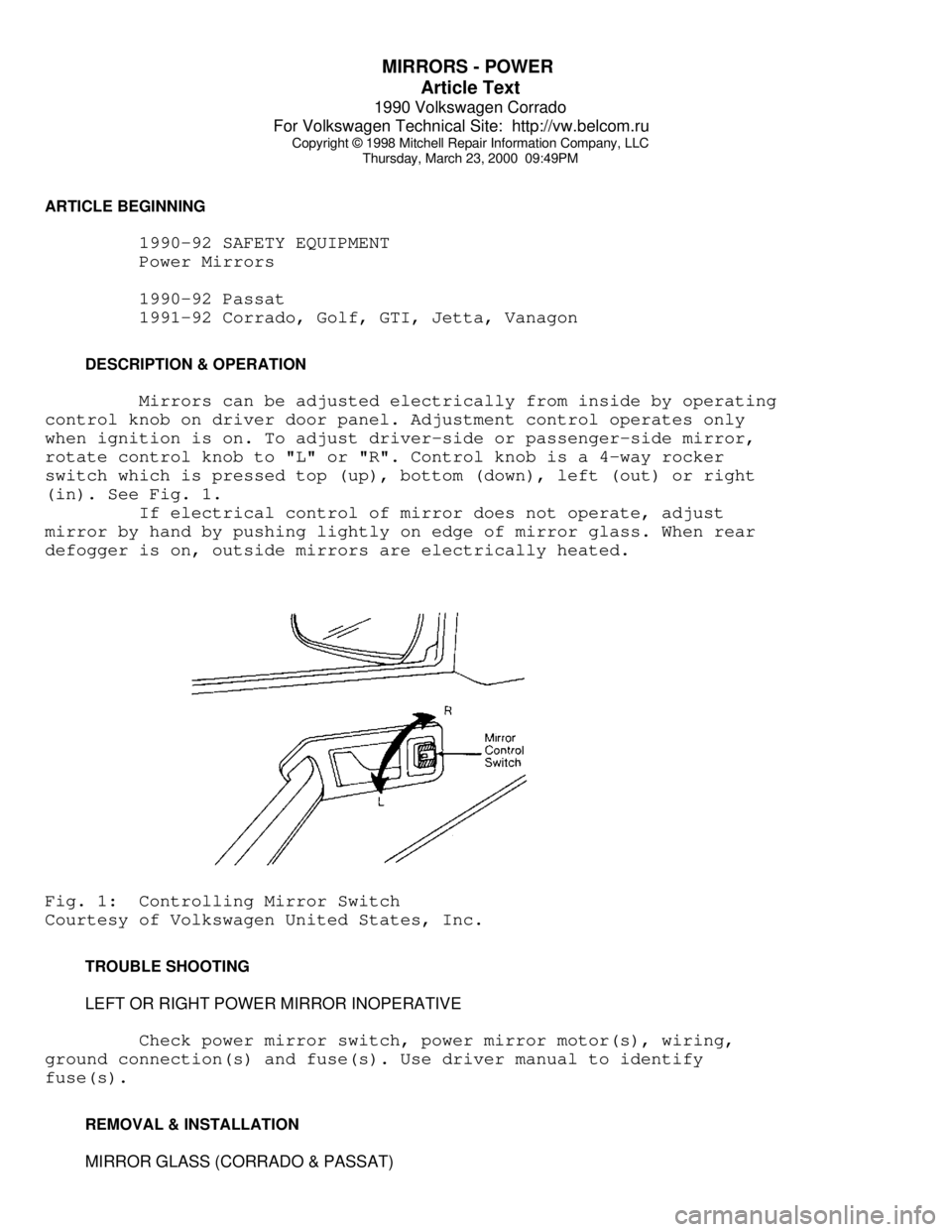

Mirrors can be adjusted electrically from inside by operating
control knob on driver door panel. Adjustment control operates only
when ignition is on. To adjust driver-side or passenger-side mirror,
rotate control knob to "L" or "R". Control knob is a 4-way rocker
switch which is pressed top (up), bottom (down), left (out) or right
(in). See Fig. 1.
If electrical control of mirror does not operate, adjust
mirror by hand by pushing lightly on edge of mirror glass. When rear
defogger is on, outside mirrors are electrically heated.Fig. 1: Controlling Mirror Switch
Courtesy of Volkswagen United States, Inc.
TROUBLE SHOOTING
LEFT OR RIGHT POWER MIRROR INOPERATIVE
Check power mirror switch, power mirror motor(s), wiring,
ground connection(s) and fuse(s). Use driver manual to identify
fuse(s).
REMOVAL & INSTALLATION
MIRROR GLASS (CORRADO & PASSAT)

MIRRORS - POWER
Article Text (p. 2)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:49PM
CAUTION: Press only on center of glass. Always wear protective
gloves while handling mirror glass in case of accidental
breakage.
Removal & Installation

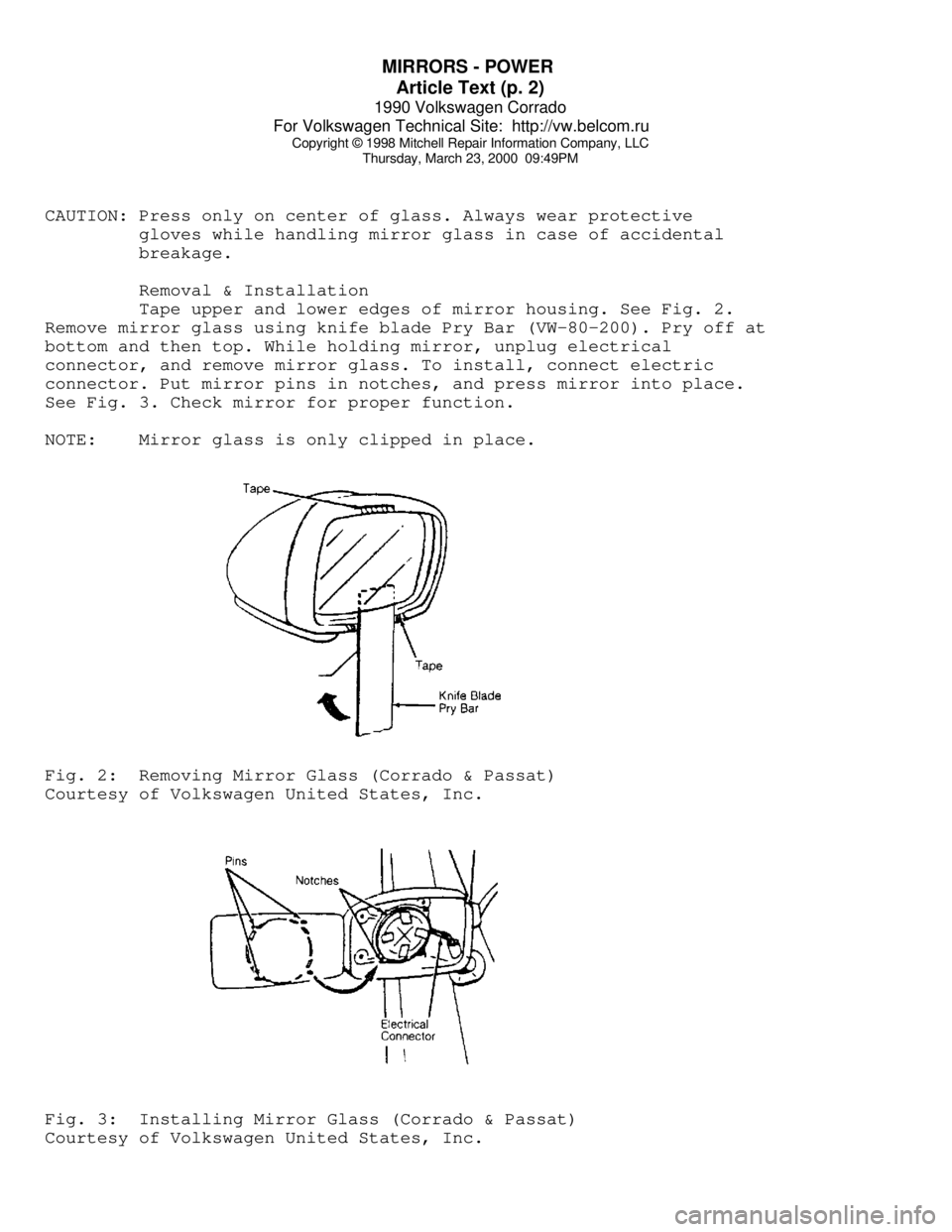

Tape upper and lower edges of mirror housing. See Fig. 2.
Remove mirror glass using knife blade Pry Bar (VW-80-200). Pry off at
bottom and then top. While holding mirror, unplug electrical
connector, and remove mirror glass. To install, connect electric
connector. Put mirror pins in notches, and press mirror into place.
See Fig. 3. Check mirror for proper function.
NOTE: Mirror glass is only clipped in place.Fig. 2: Removing Mirror Glass (Corrado & Passat)
Courtesy of Volkswagen United States, Inc.Fig. 3: Installing Mirror Glass (Corrado & Passat)
Courtesy of Volkswagen United States, Inc.

MIRRORS - POWER
Article Text (p. 3)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:49PM
MIRROR GLASS (GOLF GL, GTI, JETTA & JETTA GLI)
CAUTION: Press only on center of glass. Always wear protective
gloves while handling mirror glass in case of accidental
breakage.
Removal & Installation

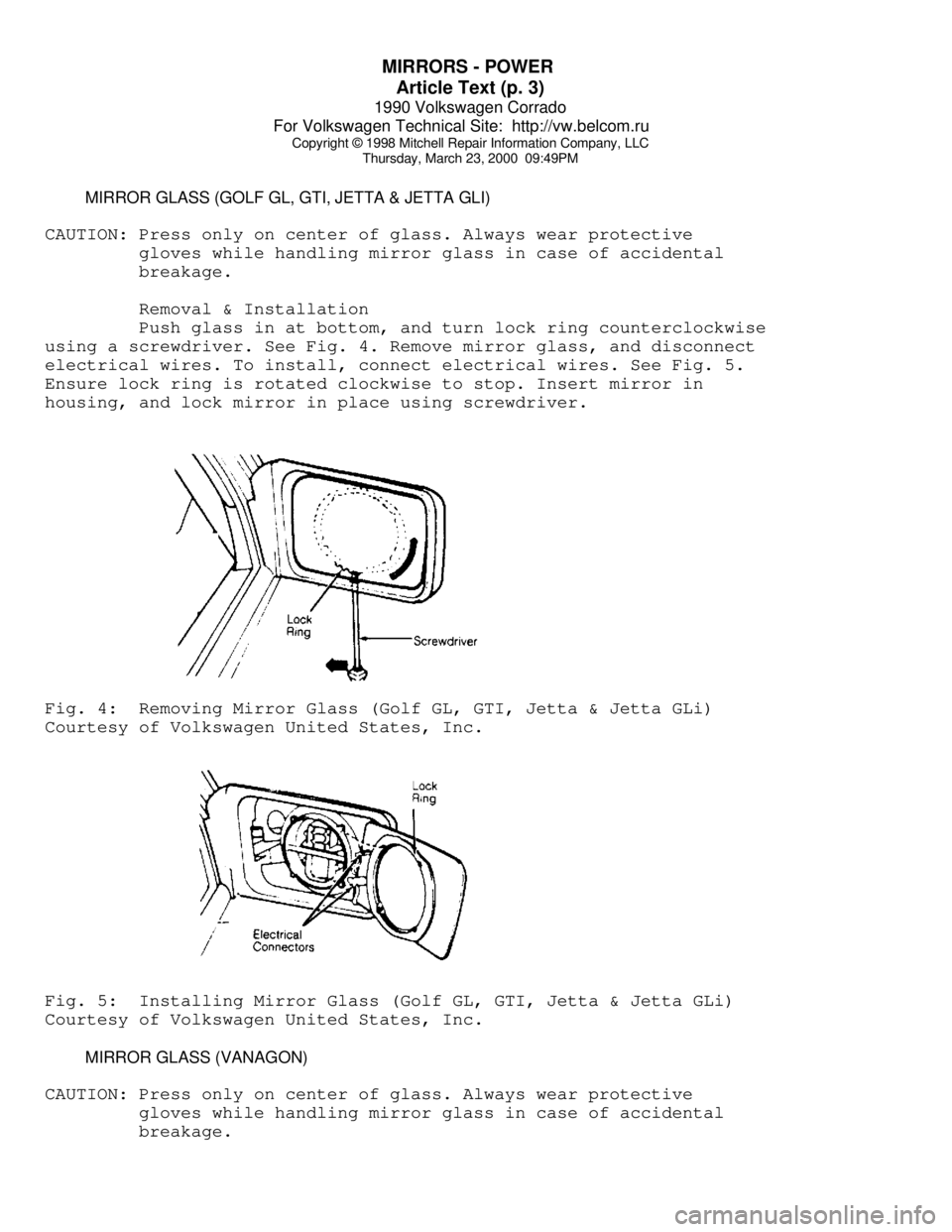

Push glass in at bottom, and turn lock ring counterclockwise
using a screwdriver. See Fig. 4. Remove mirror glass, and disconnect
electrical wires. To install, connect electrical wires. See Fig. 5.
Ensure lock ring is rotated clockwise to stop. Insert mirror in
housing, and lock mirror in place using screwdriver.Fig. 4: Removing Mirror Glass (Golf GL, GTI, Jetta & Jetta GLi)
Courtesy of Volkswagen United States, Inc.Fig. 5: Installing Mirror Glass (Golf GL, GTI, Jetta & Jetta GLi)
Courtesy of Volkswagen United States, Inc.
MIRROR GLASS (VANAGON)
CAUTION: Press only on center of glass. Always wear protective
gloves while handling mirror glass in case of accidental
breakage.

MIRRORS - POWER
Article Text (p. 4)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:49PM
Removal & Installation
Push mirror glass at outer edge until locking lever is
accessible. See Fig. 6. Push locking lever counterclockwise to unlock
mirror assembly. Tilt and remove mirror glass. Disconnect electric
heater element. To install, reverse removal procedure. Ensure dust
boot is properly seated and locking pins are engaged in lock ring. See
Fig. 7. Check mirror for proper function.Fig. 6: Removing Mirror Glass (Vanagon)
Courtesy of Volkswagen United States, Inc.Fig. 7: Installing Mirror Glass (Vanagon)
Courtesy of Volkswagen United States, Inc.
POWER MIRROR ASSEMBLY (CORRADO & PASSAT)
CAUTION: Always wear protective gloves while handling mirror glass
in case of accidental breakage. Hold glass to prevent it

MIRRORS - POWER
Article Text (p. 5)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:49PM
from falling out.
Removal & Installation

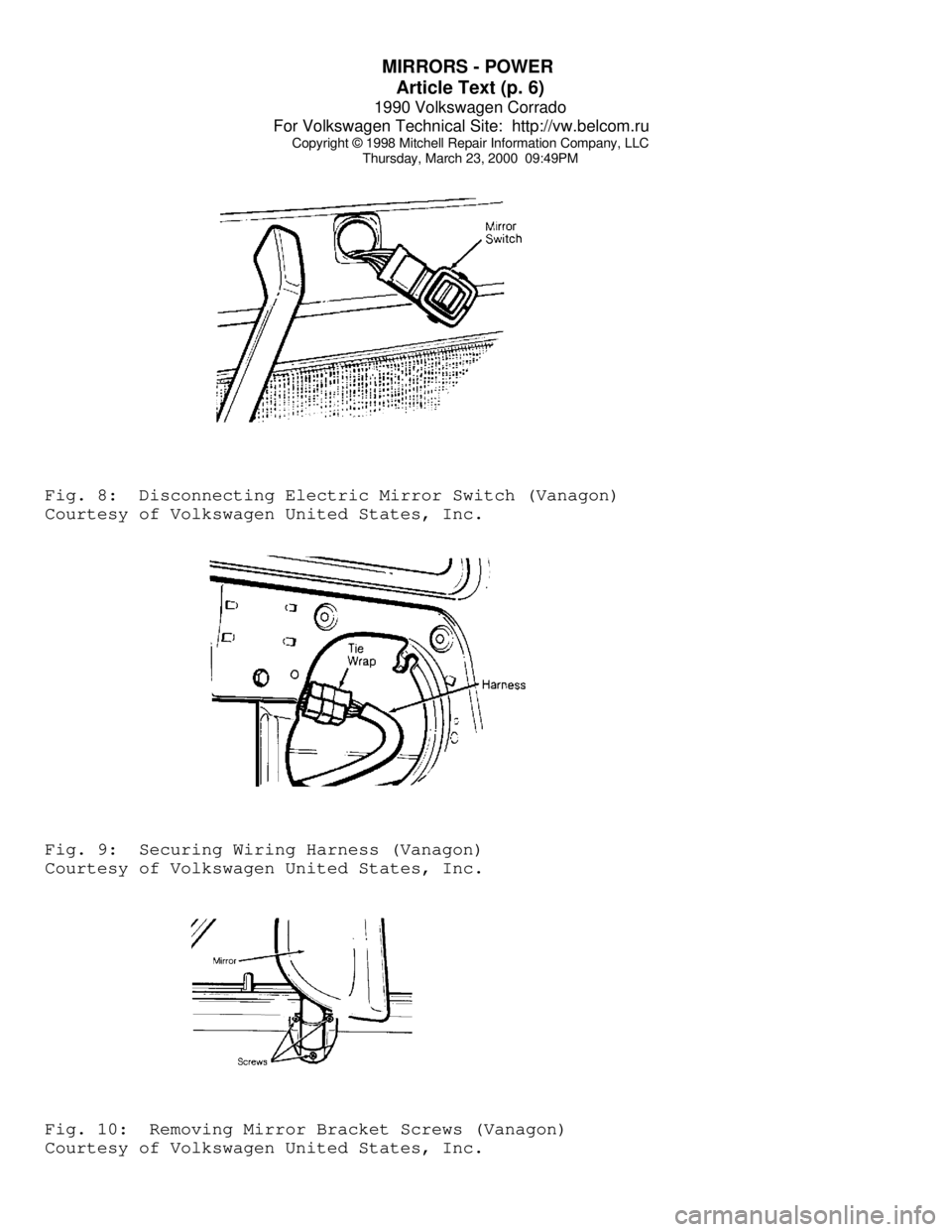

1) Disconnect battery ground cable. Lower window. Remove
control knob and boot. Remove door trim, and loosen moisture barrier
in area of rearview mirror control. Remove lock nut. Unplug electrical
connector.
2) Pivot mirror inward, and remove mounting screw. Pivot
mirror outward, and remove second mounting screw. Remove mirror with
base and control. To install, reverse removal procedure.
POWER MIRROR ASSEMBLY (GOLF GL, GTI, JETTA & JETTA GLI)
CAUTION: Always wear protective gloves while handling mirror glass
in case of accidental breakage. Hold glass to prevent it
from falling out.
Removal & Installation
1) Disconnect battery ground cable. Remove mirror glass and
electrical wires. See MIRROR GLASS under REMOVAL & INSTALLATION.
Remove mirror adjustment motor securing screws and motor. Disconnect
electrical wires. Carefully pry mirror adjustment switch from door
panel. Unplug electrical connector.
2) Remove door trim panel and protective cover from door near
mirror wire connectors. Disconnect terminals. To install, connect
adjustment motor wires according to marked color identification.
Reverse removal procedure to complete installation.
POWER MIRROR ASSEMBLY (VANAGON)
CAUTION: Always wear protective gloves while handling mirror glass
in case of accidental breakage. Hold glass to prevent it
from falling out.
Removal & Installation
1) Disconnect battery ground strap. Pry out and disconnect
electric mirror switch from door trim panel. See Fig. 8. Remove door
trim panel, and carefully pull back plastic moisture barrier. Cut tie
wraps securing wiring harness to door. See Fig. 9. Open harness far
enough to expose and label individual wires. Remove labeled wires from
plug connector.
2) Pry off plastic cap at base of mirror bracket, and remove
3 bracket securing screws. See Fig. 10. Remove mirror assembly with
wiring harness. To install, reverse removal procedure, ensuring seal
is positioned for proper fit and wire harness is secured to door frame
with tie wraps. See Fig. 11. Check mirror for proper function.

MIRRORS - POWER
Article Text (p. 6)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:49PMFig. 8: Disconnecting Electric Mirror Switch (Vanagon)
Courtesy of Volkswagen United States, Inc.Fig. 9: Securing Wiring Harness (Vanagon)
Courtesy of Volkswagen United States, Inc.Fig. 10: Removing Mirror Bracket Screws (Vanagon)
Courtesy of Volkswagen United States, Inc.
