1990 VOLKSWAGEN CORRADO Repair Manual

L - WIRING DIAGRAMS
Article Text (p. 3)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC

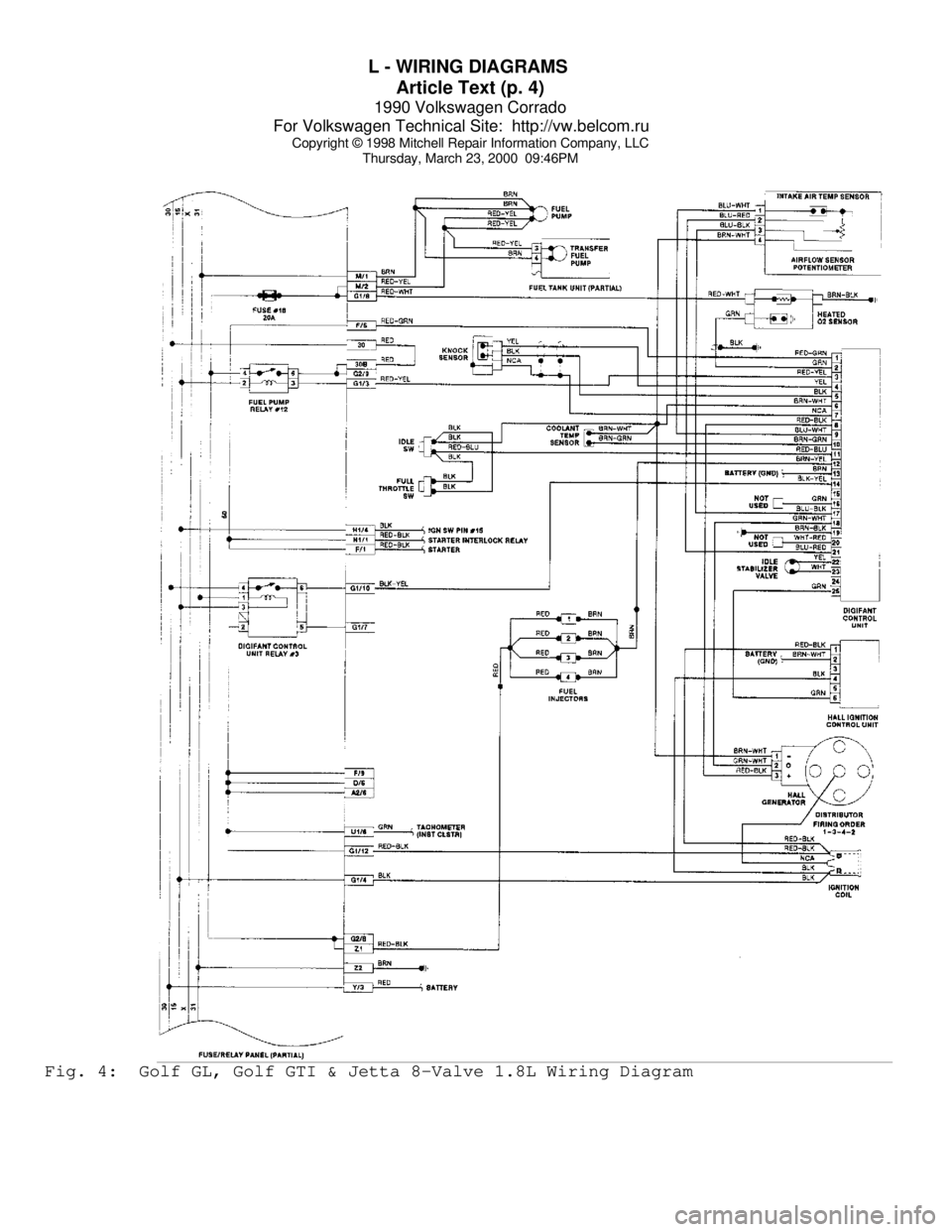

Thursday, March 23, 2000 09:46PMFig. 3: Fox 1.8L Wiring Diagram

L - WIRING DIAGRAMS
Article Text (p. 4)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC

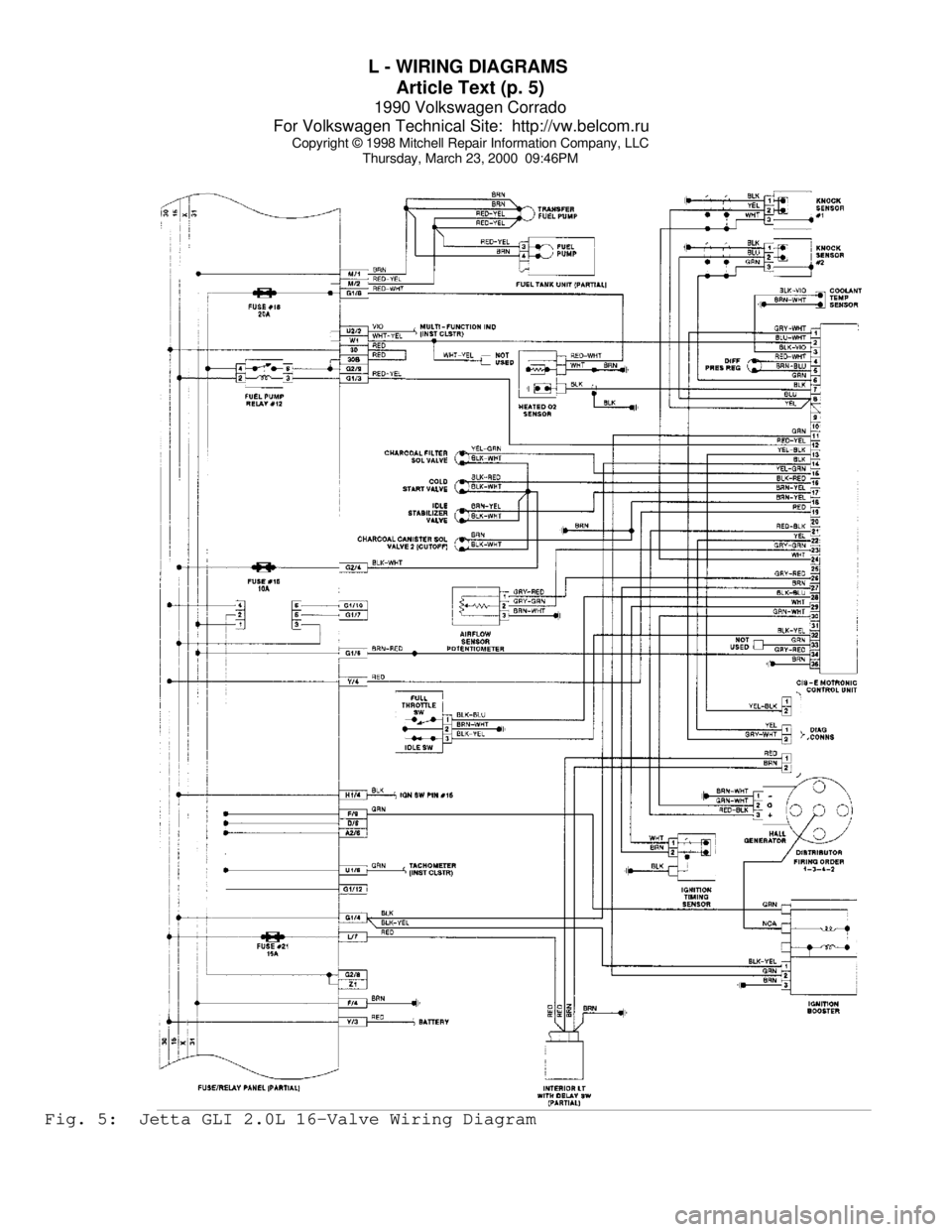

Thursday, March 23, 2000 09:46PMFig. 4: Golf GL, Golf GTI & Jetta 8-Valve 1.8L Wiring Diagram

L - WIRING DIAGRAMS
Article Text (p. 5)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC

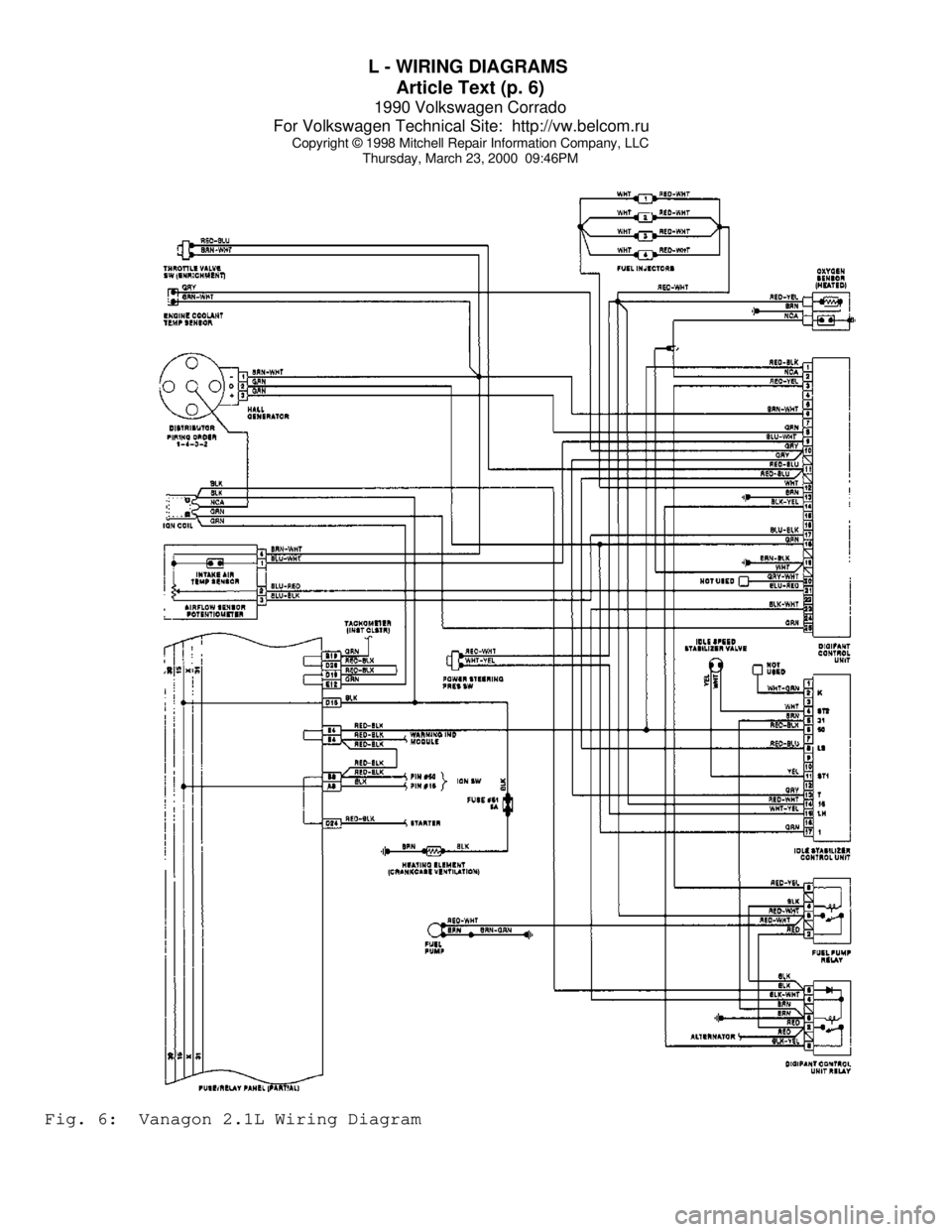

Thursday, March 23, 2000 09:46PMFig. 5: Jetta GLI 2.0L 16-Valve Wiring Diagram

L - WIRING DIAGRAMS
Article Text (p. 6)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC

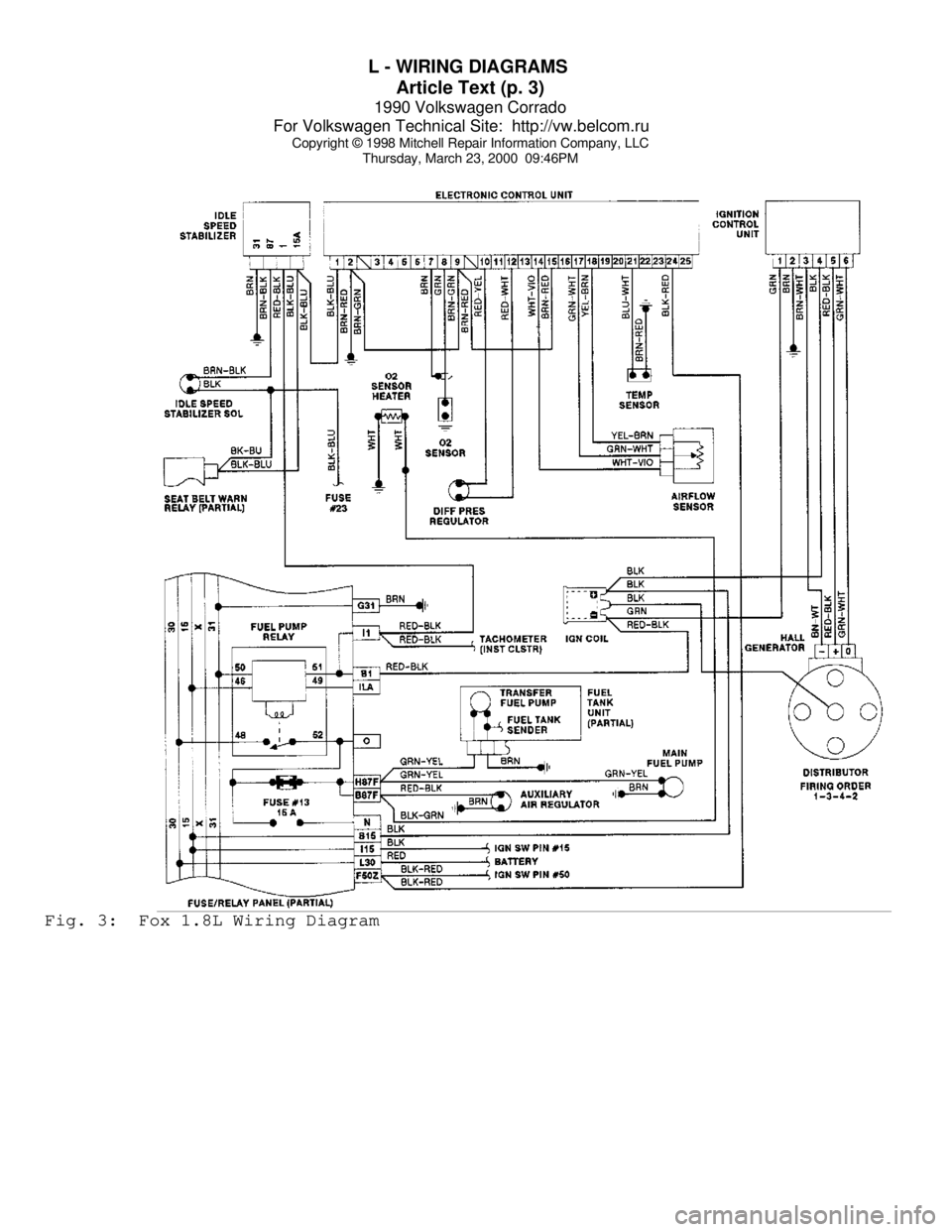

Thursday, March 23, 2000 09:46PMFig. 6: Vanagon 2.1L Wiring Diagram

L - WIRING DIAGRAMS
Article Text (p. 7)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:46PM
END OF ARTICLE

M - VACUUM DIAGRAMS
Article Text
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:48PM
ARTICLE BEGINNING
1990-91 ENGINE PERFORMANCE
Volkswagen Vacuum Diagrams
Cabriolet, Corrado, Fox, Golf GL/GTI,
Jetta, Passat, Vanagon
INTRODUCTION
This article contains underhood views of vacuum hose routing.
Use these vacuum diagrams during the visual inspection of F - BASIC
TESTING article. This will assist in identifying improperly routed
vacuum hoses which cause driveability and/or computer-indicated
malfunctions.Fig. 1: Fox Vacuum Diagram
Courtesy of Volkswagen United States, Inc.

M - VACUUM DIAGRAMS
Article Text (p. 2)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:48PMFig. 2: Golf, Golf GTI & Jetta Vacuum Diagram

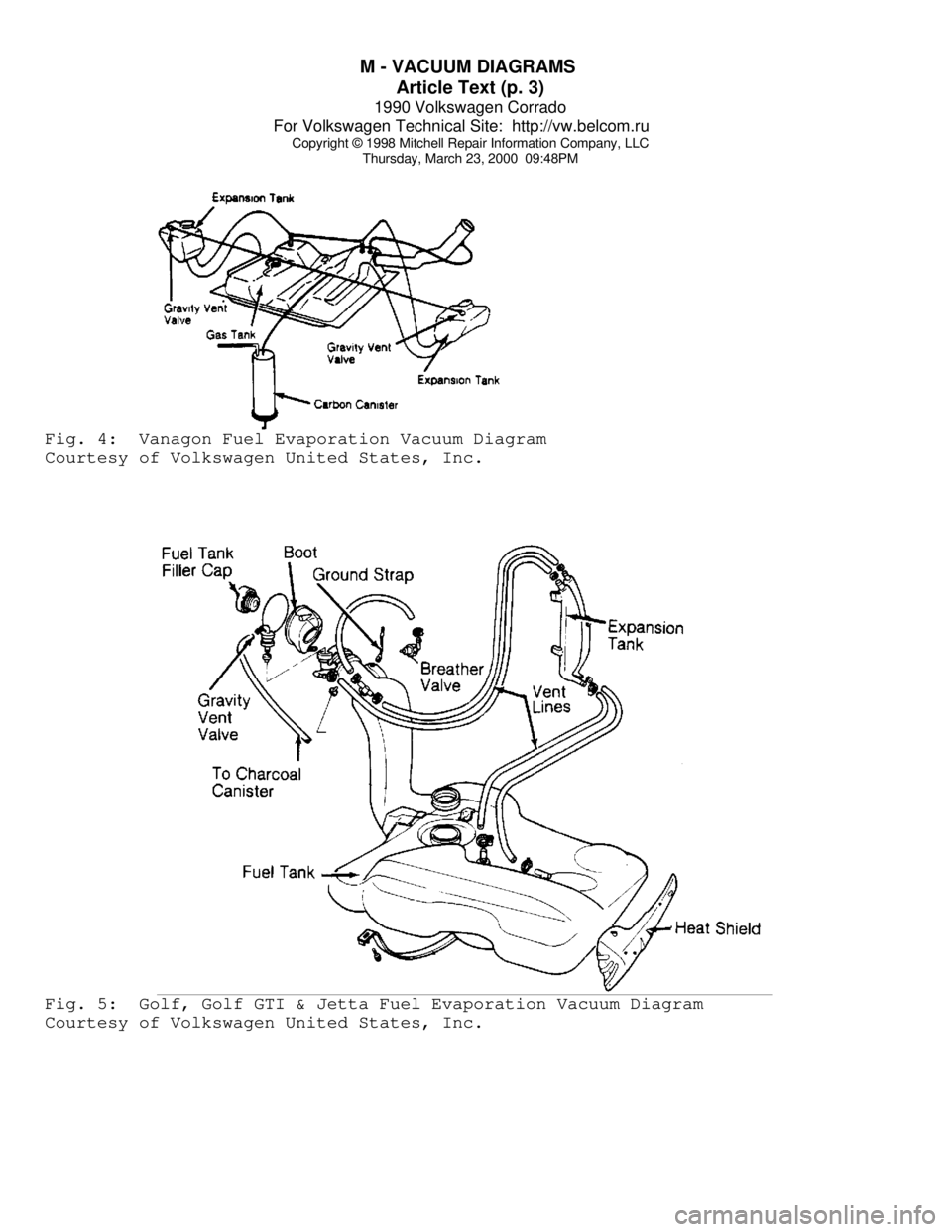

Courtesy of Volkswagen United States, Inc.Fig. 3: Fox, Golf, Golf GTI & Jetta Fuel Evaporation Vacuum Diagram
Courtesy of Volkswagen United States, Inc.

M - VACUUM DIAGRAMS
Article Text (p. 3)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC

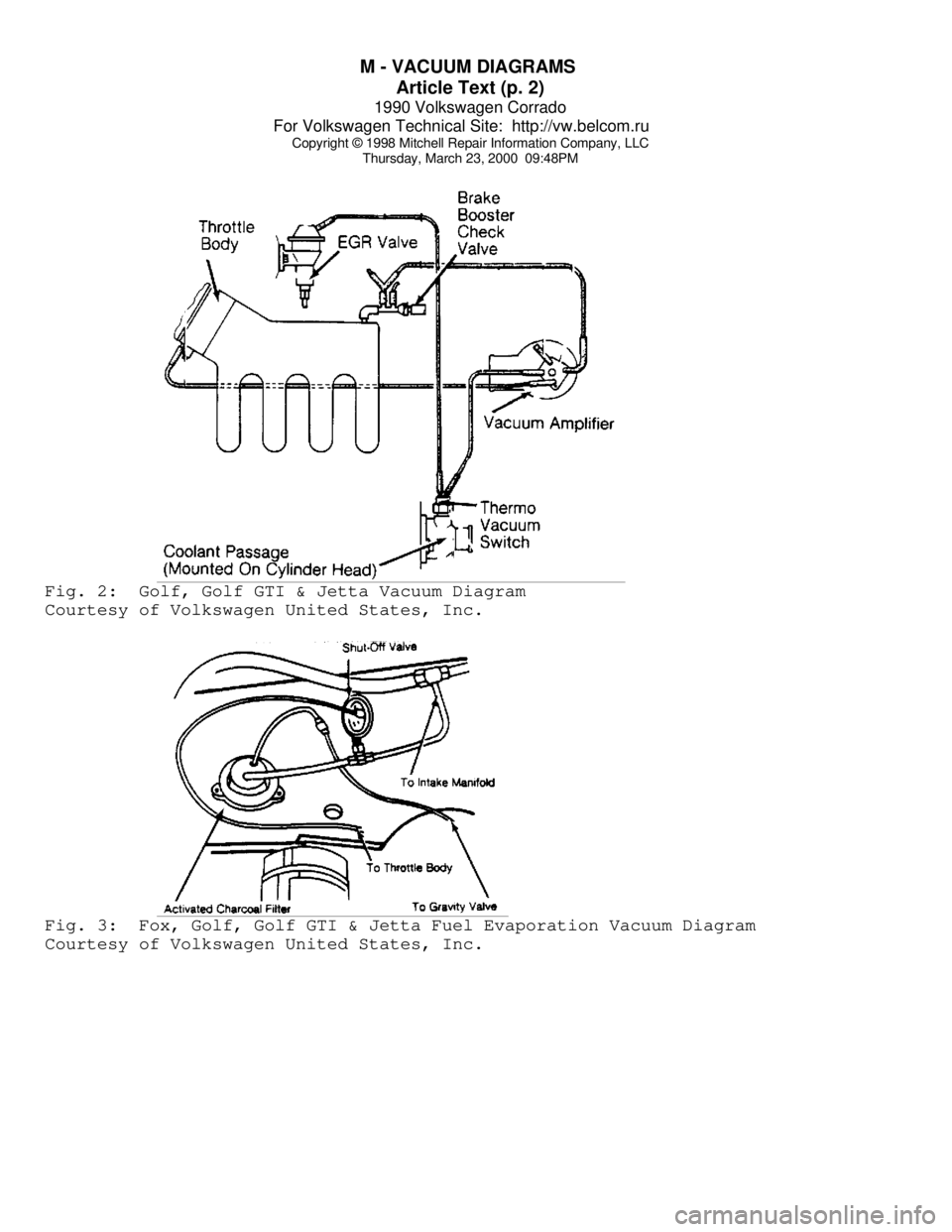

Thursday, March 23, 2000 09:48PMFig. 4: Vanagon Fuel Evaporation Vacuum Diagram
Courtesy of Volkswagen United States, Inc.Fig. 5: Golf, Golf GTI & Jetta Fuel Evaporation Vacuum Diagram
Courtesy of Volkswagen United States, Inc.
