17-5. FRONT FREE WHEELING HUB (OPTIONAL)
General Description
This section describes operation, installation and maintenance of free wheeling hub. Be sure to refer to
this section carefully for proper service.
Operation
A free wheeling hub should be fitted onto each of the right and left front wheel hubs. The free wheeling
hub has a knob and two embossed marks,“FREE” and “LOCK”. When the knob is set to the “FREE”
position, the axle shaft and wheel are disconnected and the revolution of the front wheels becomes free.
When it is set to the “LOCK” position, the axle shaft and wheel are connected.
“FREE” positionWasher 6od/ Cover hs’Y
-/ /Ass’y/
Snap ring
B
iAxle shaft
Fig. 17-5-1 Hub
“LOCK” position
Fig. 17-5-2
For their usage, refer to Owner’s Manual supplied with the car.
CAUTION :
Both of the right and left wheeling hub knobs must be set to the same position (either FREE or
LOCK). Don’t set one to ‘FREE” and the other to “LOCK” positions.
17-27

Installation Instruction
After removing front axle shaft drive flange,
install parts (shown in below figure) in accor-
dance with the following procedure.
Cone washerGasket “A”Cover
\
Clutch
II
Fig. 17-5-3
1) After aligning ” v” mark on the knob of
free wheeling hub cover with “FREE” posi-
tion, separate free wheeling cover ass’y from
body ass’y .
2) To facilitate installation, apply sealing com-
pound 366E (99000-31090) thin.
Fig. 17-5-4
3) Install gasket “A” and free wheeling hub
body ass’y on front wheel hub.
I
N.mkg-mlb-ftTighteningtorque.20-302.0-3.014.5-21.5
Fig. 17-5-5
4) Put bolt @ into front axle shaft and pull out
the shaft and fit snap ring in the groove of
axle shaft.
Remove bolt @from axle shaft.
3. Bolt (a)
Fig. 17-5-6
5) Install cover ass’y to body ass’y so that
follower stopper nail is fitted into groove of
body ass’y.
NOTE:
Before installing cover ass’y, make sure of
following points.
l “V” mark on knob is at “FREE” position.
l Clutch is lifted to the cover side, if not
(shown in below figure) it may cause malfunc-
tion.
l Gasket is set justly.
, Cover
Fig. 17-5-717-28
@

There are two follower stopper nails and two
grooves which can be fitted freely.
Fig. 17-5-8
6) Fix cover ass’y to body ass’y with cover
bolts.
Tightening torque
[ Cover [ N.m 1kg-mlb-ft
Fig. 17-5-9

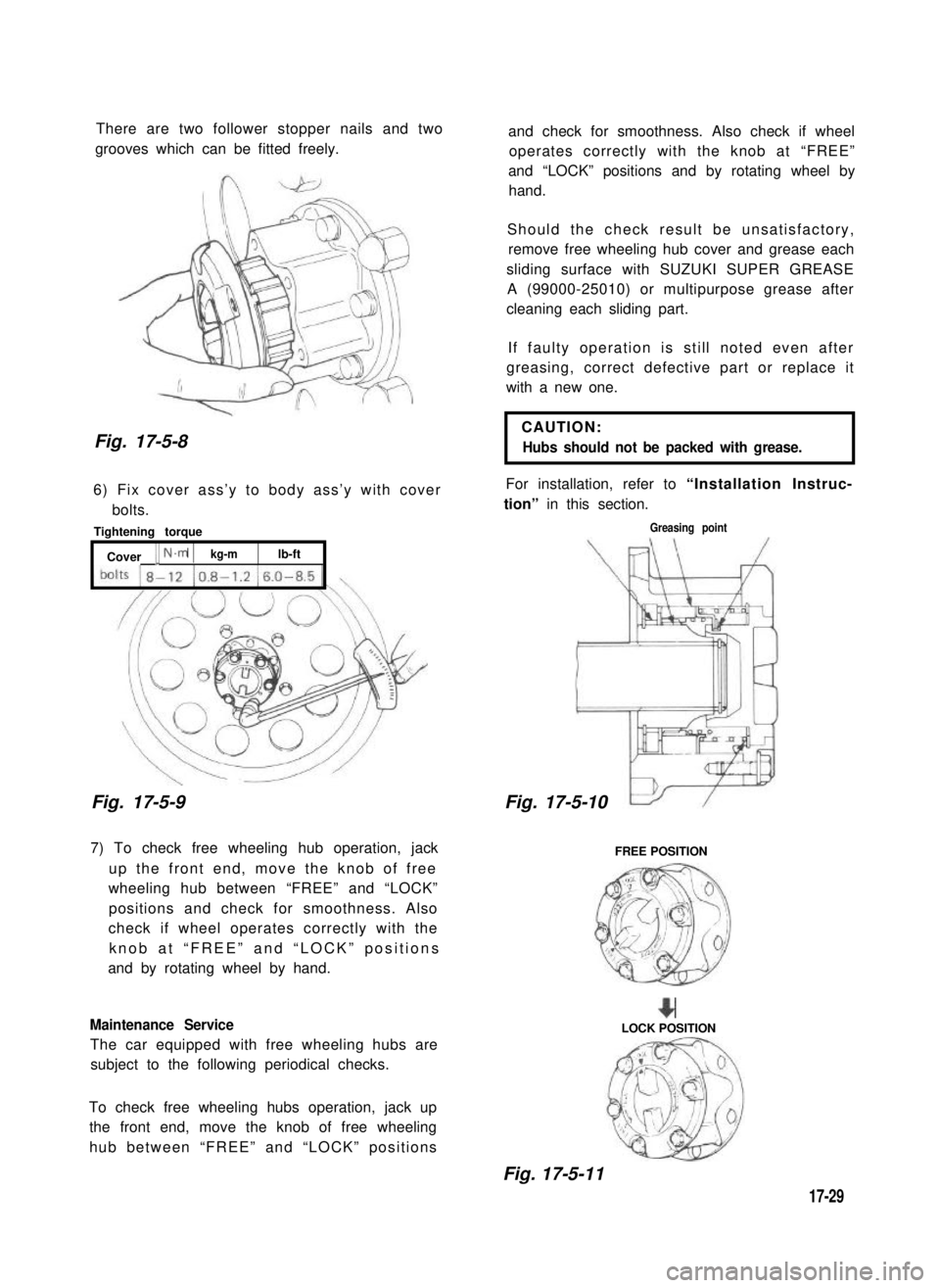

7) To check free wheeling hub operation, jack
up the front end, move the knob of free
wheeling hub between “FREE” and “LOCK”
positions and check for smoothness. Also
check if wheel operates correctly with the
knob at “FREE” and “LOCK” positions
and by rotating wheel by hand.
Maintenance Service
The car equipped with free wheeling hubs are
subject to the following periodical checks.
To check free wheeling hubs operation, jack up
the front end, move the knob of free wheeling
hub between “FREE” and “LOCK” positions
and check for smoothness. Also check if wheel
operates correctly with the knob at “FREE”
and “LOCK” positions and by rotating wheel by
hand.
Should the check result be unsatisfactory,
remove free wheeling hub cover and grease each
sliding surface with SUZUKI SUPER GREASE
A (99000-25010) or multipurpose grease after
cleaning each sliding part.
If faulty operation is still noted even after
greasing, correct defective part or replace it
with a new one.
CAUTION:
Hubs should not be packed with grease.
For installation, refer to “Installation Instruc-
tion” in this section.
Greasing point
17-5-
FREE POSITION
+LOCK POSITION
Fig. 17-5-11
17-29
Fig. 17-5-10

SECTION 18
STEERING SYSTEM
CONTENTS
18-1.GENERAL DESCRIPTION............................... 18-4
18-2.SPECIFICATIONS AND DATA............................18-4
STEERING GEAR BOX CONSTRUCTION AND OPERATION...18-5
18-4.REMOVAL...........................................18-6
18-5.INSPECTION OF COMPONENTS..........................
CHECKING STEERING COLUMN FOR ACCIDENT DAMAGE.
18-7.IMPORTANT STEPS IN REINSTALLATION..................
18-8.WHEEL ALIGNMENT..................................
18-9.MAINTENANCE SERVICES.............................
18-10. RECOMMENDED TORQUE SPECIFICATIONS..............
NOTE:
All steering system fasteners are important parts in that they could affect the performance
of vital parts and systems, and/or could result in major repair expense. They must be
replaced with one of the same part number or with an equivalent part if replacement
becomes necessary. Do not use a replacement part of lesser quality or substitute design.
Torque values must be used as specified during reassembly to assure proper retention of
this part.
18-1
18-3.
18-9
18-12
18-11
18-16
18-18
18-22
18-6.

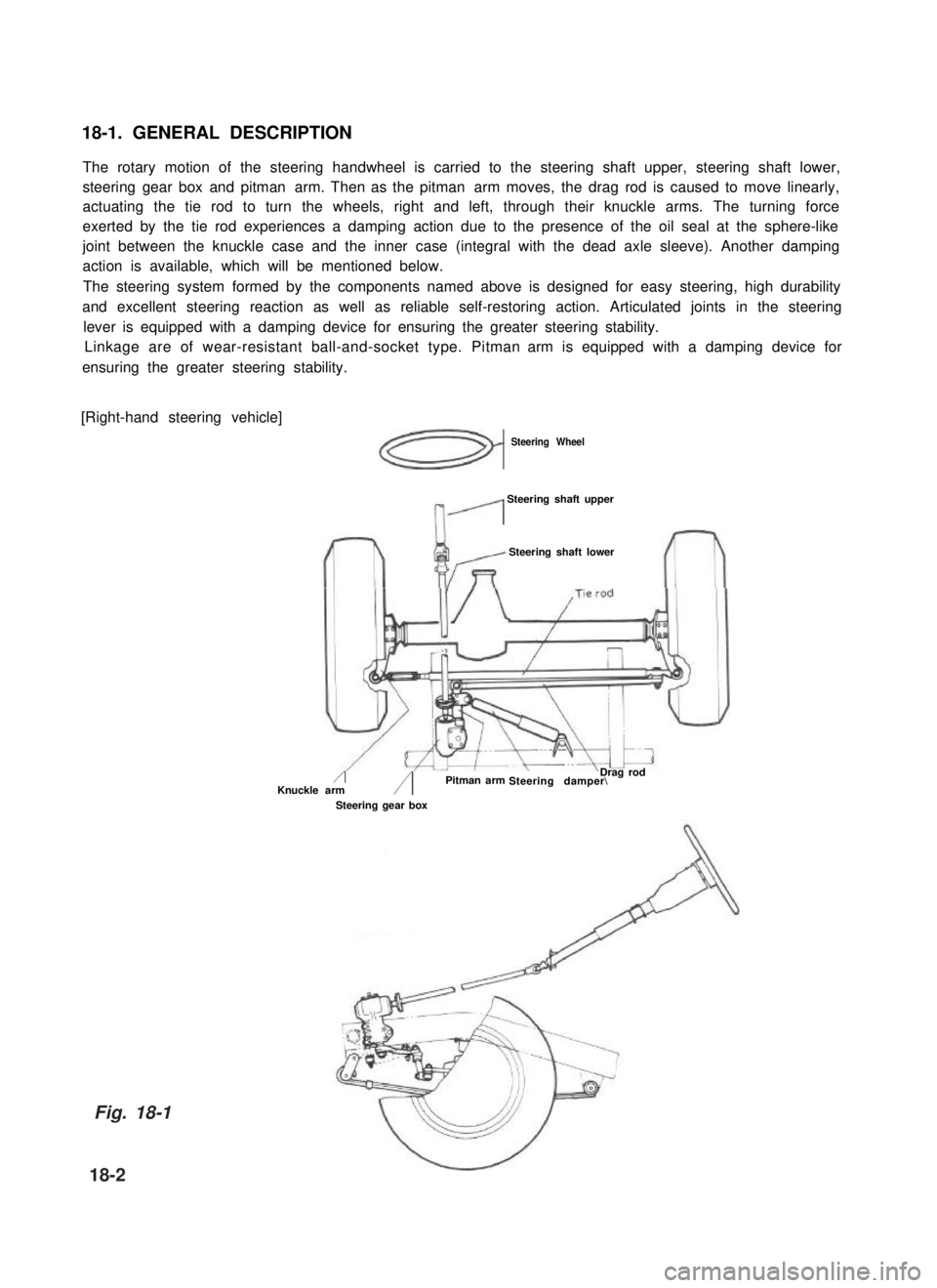

18-1. GENERAL DESCRIPTION
The rotary motion of the steering handwheel is carried to the steering shaft upper, steering shaft lower,
steering gear box and pitman arm. Then as the pitman arm moves, the drag rod is caused to move linearly,
actuating the tie rod to turn the wheels, right and left, through their knuckle arms. The turning force
exerted by the tie rod experiences a damping action due to the presence of the oil seal at the sphere-like
joint between the knuckle case and the inner case (integral with the dead axle sleeve). Another damping
action is available, which will be mentioned below.
The steering system formed by the components named above is designed for easy steering, high durability
and excellent steering reaction as well as reliable self-restoring action. Articulated joints in the steering
lever is equipped with a damping device for ensuring the greater steering stability.
Linkage are of wear-resistant ball-and-socket type. Pitman arm is equipped with a damping device for
ensuring the greater steering stability.

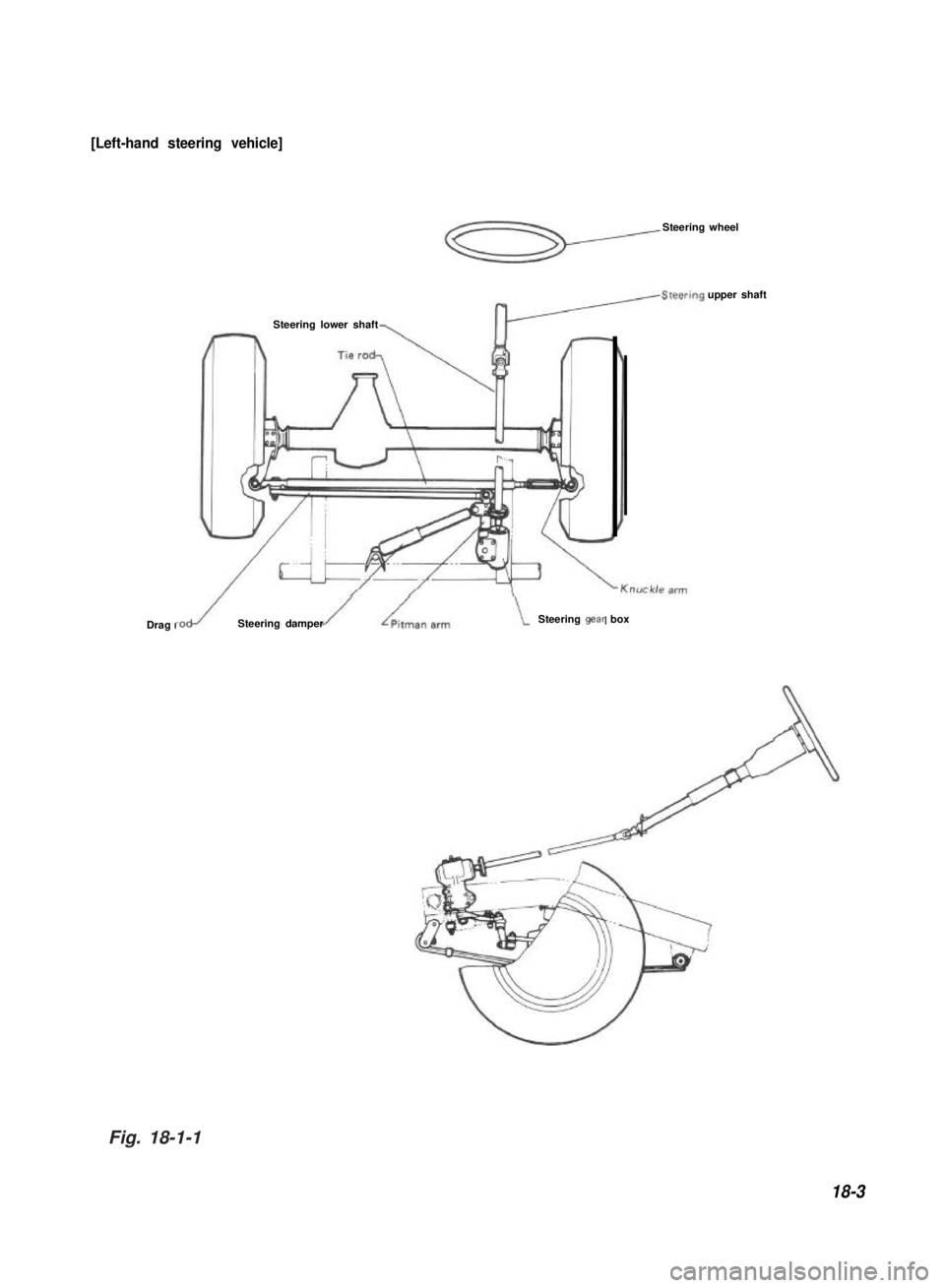

[Right-hand steering vehicle]
Steering Wheel
n’
Steering shaft upper
Steering shaft lower
/Knuckle arm/Steering damper\ Pitman arm
Steering gear box
Drag rod

Fig. 18-1
18-2

[Left-hand steering vehicle]
Drag I
Steering wheel
Steering lower shaft
*odSteering damperSteering gaar box
upper shaft
18-3
Fig. 18-1-1

18-2. SPECIFICATIONS AND DATA
Steering gear boxRecirculating ball-and-nut type
Gear ratio15.6 - 18.1
Steering angle, inside29” + 3”
Steering angle, outside26” + 3”
Steering wheel diameter400 mm (15.74 in.)
Minimum turning radius5.1 m (16.73 ft.)
5
Toe-in2 - 6 mm (0.079 - 0.236 in.)
igCamber1 degree (1”) + 45’
%=Kingpin inclination9 degree (9”) + 2“
SC3_Caster3 degree 30 minutes (3” 30’) + 1”
Side slip0-in3m/km
18-5
AL

18-4. REMOVAL
NOTE:
When removing the column assembly from the
car, special care must be taken in handling it
Use of a steering wheel puller other than the
steering wheel remover recommended in this
manual or a sharp blow on the end of the
steering shaft, leaning on the assembly, or
dropping the assembly is prohibited. Any of
such actions could shear the plastic shear pins
which maintain column length especially.

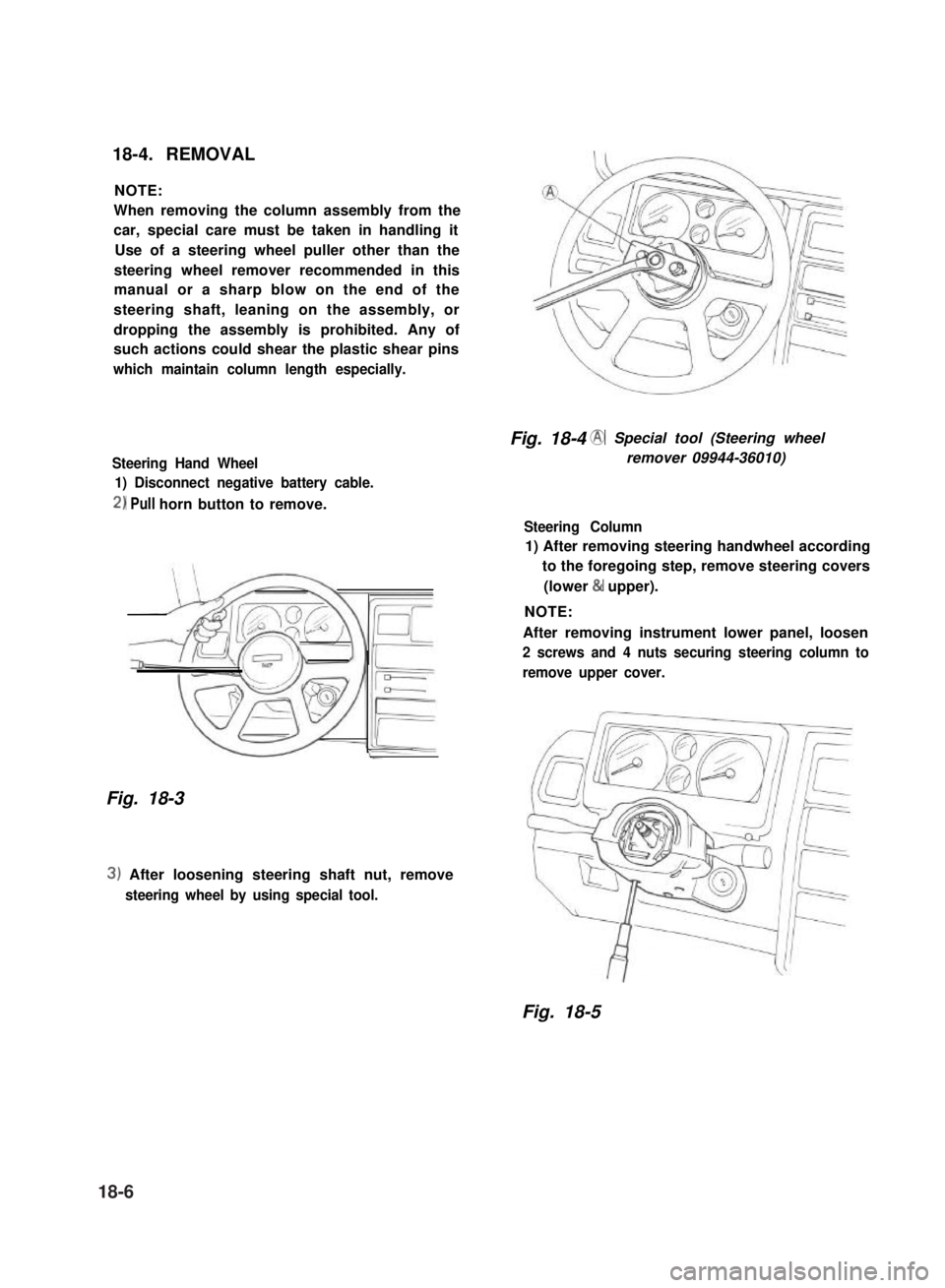

Steering Hand Wheel
1) Disconnect negative battery cable.
2) Pull horn button to remove.
Fig. 18-3
3) After loosening steering shaft nut, remove
steering wheel by using special tool.
Fig. 18-4 @ Special tool (Steering wheel
remover 09944-36010)
Steering Column
1) After removing steering handwheel according
to the foregoing step, remove steering covers
(lower & upper).
NOTE:
After removing instrument lower panel, loosen
2 screws and 4 nuts securing steering column to
