1 1 ANTI-LOCK BRAKE SYSTEM (ABS)
INSTALLATION
1. Install in the reverse order of removal.
Before installing the air cleaner assembly, igniter, and fuel filter:
(1) Add brake fluid and bleed air. (Refer to page 11—9.)
(2) Check each part for fluid leakage.
(3) Check the brake fluid level of both the master cylinder reservoir and hydraulic unit reservoir.
2. Tighten all bolts and nuts to the specified torque, referring to torque specifications.
3. After installation:
(1) The sealing reservoir cap (red) is installed on the new hydraulic unit to prevent the brake fluid
from leaking while shipping. Replace it with an original cap (black) after replacing the hydraulic unit.
(2) Check that the hydraulic unit operates properly by testing the pressure reduction. (Refer to page
11-95.)
Torque specifications
11-98

WHEELS AND TIRES 1 2
WHEEL BALANCE
If a wheel becomes unbalanced or if a tire is replaced
or repaired, the wheel must once again be balanced
to within specification.
Maximum unbalance (at rim edge): g (oz)

13 inch-wheel 11 (0.39)
14 inch-wheel 10 (0.35)
15 inch-wheel 9 (0.32)

76G12X-005
Balance
weight
Outside
Balance
weight
86U12X-011
Caution
a) Do not use more than two balance weights
on the inner or outer side of the wheel, if
the total weight exceeds 100 g (3.5 oz), re-
balance after moving the tire around on the
rim.
b) Attach the balance weights tightly so that
they do not protrude more than 3 mm (0.12
in) beyond the wheel edge.
c) Select suitable balance weights for steel or
aluminum alloy wheels.
d)Do not use an on-car balancer on ATX
models. Use of this type of balancer may
cause clutch damage.
WHEEL MOUNTING
Tighten the lug nuts to the specified torque in a criss-
cross fashion.
Tightening torque:
88—118 N-m (9—12 m-kg, 65—87 ft-lb)
Caution
a) The wheel-to-hub contact surfaces must be
clean.
b) Never apply oil to the nuts, bolts, or wheels;
doing so might cause looseness or seizure
of the lug nuts.
86U12X-012
SPECIAL NOTE
Regarding wheels and tires:
1. Do not use wheels or tires other than the specified types.
2. Aluminum wheels are easily scratched. When washing them, use a soft cloth, never a wire brush.
If the vehicle is steam cleaned, do not allow boiling water to contact the wheels.
3. If alkaline compounds (such as salt water or road salts), get on aluminum wheels, wash them as
soon as possible to prevent damage. Use only a neutral detergent.
86U12X-013
12-5

FRONT SHOCK ABSORBER AND SPRING 1 3
FRONT SHOCK ABSORBER AND SPRING
REMOVAL AND INSTALLATION
1. Jack up the front of the vehicle and support it with safety stands.
2. Remove in the sequence shown in the figure, referring to the removal note for specially marked parts.
3. Install in the reverse order of removal, referring to the installation note for specially marked parts.
4. Tighten all nuts and bolts to the specified torque, referring to the figure.
.CD
46—63 N m (4.7—6.4 m-kg, 34—46 ft-lb)
8—11 Nm (80—110 cm-kg, 69—95 In-lb)
93-117 N-m . (9.5-11.9 m-kg, 69—86 ft-lb)
88—118 N-m (9—12 m-kg, 65—87 ft-lb)
11—25 N-m (1.1—2.6 m-kg, 8.0—19 ft-lb)
1. Lug nut
2. Wheel and tire
3. Clip
4. Harness and bracket bolt
(ABS)
5. Rubber cap
6. Actuator (AAS)
7. Nuts and bolts (Ignition coil
bracket)
76G13X-012
8. Bolt and nut
9. Nut
10. Shock absorber assembly
11. Seat
86U13X-010
Removal Note
ABS Harness bracket
Remove the ABS harness and bracket.
13—13

1 3 FRONT SHOCK ABSORBER AND SPRING
AAS actuator
1. Disconnect the AAS actuator connector.
2. Remove the AAS actuator.
86U13X-011
Shock absorber clinch bolts and nuts
1. Remove the shock absorber clinch bolts and nuts.
2. Remove the shock absorber upper mounting nuts.
76G13X-013
Installation Note
Mounting block
Install the mounting block to the suspension tower
with the white mark facing the front-inside direction.
Tightening torque: 46—63 N-m
(4.7—6.4 m-kg, 34—46 ft-lb)
86U13X-013
Shock absorber clinch bolts and nuts
Install the clinch bolts and nuts.
Tightening torque: 93—117
N
m
(9.5—11.9 m-kg, 69—86 ft-lb)
86U13X-014
13—14

FRONT SHOCK ABSORBER AND SPRING 1 3
DISASSEMBLY AND ASSEMBLY
1. Disassemble in the sequence shown in the figure, referring to the disassembly note for specially
marked parts.
2. Inspect all components and parts, referring to inspection note.
3. Assemble in the reverse order of disassembly, referring to the assembly note for specially marked
parts.
4. Tighten all nuts and bolts to the specified torque, referring to the figure.
76G13X-014
1. Nut
2. Actuator bracket
3. Mounting block
4. Bearing
5. Spring upper seat
6. Spring seat
7. Dust boot
8. Bound stopper
9. Coil spring
10. Shock absorber
13—15

FRONT SHOCK ABSORBER AND SPRING 1 3
Assembly Note
1. Set the SST in a vise
2. Secure the shock absorber in the SST.
3. Install the bound stopper and dust boot to the
shock absorber.
4. Install the compressed coil spring (compressed
with SST).
5. Install the rubber seat, spring upper seat, bearing
and mounting block.
86U13X-021
6. Remove the SST.
7. Secure the mounting block in a vise.
Caution
Use copper or aluminum plates in the jaws of
a vice.
8. Tighten the piston rod upper nut.
Tightening torque:
64—84 Nm (6.5—8.2 m-kg, 47—59 ft-lb)
Caution
Check that the spring is well seated in the up-
per seats.
13—17

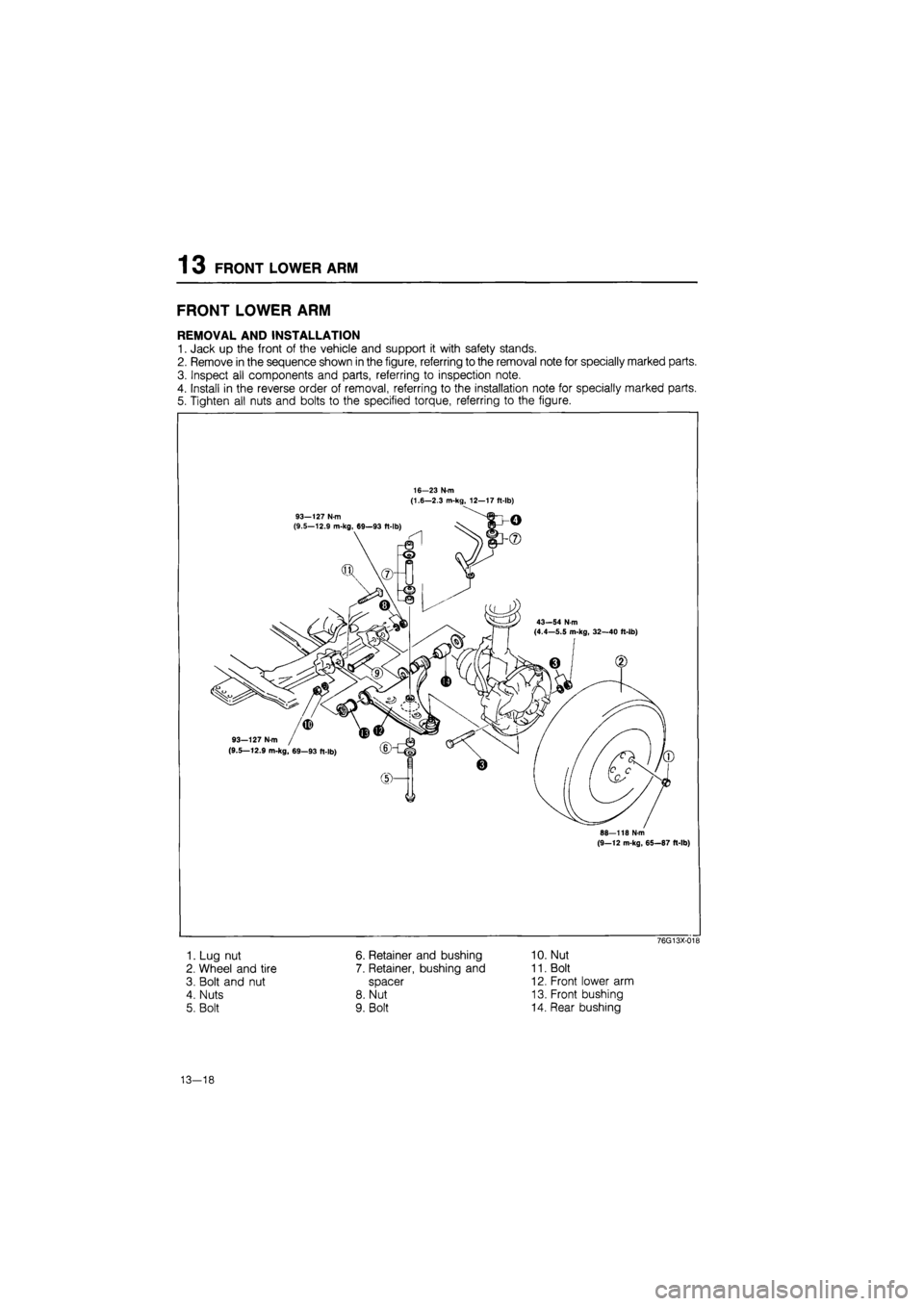

1 3 FRONT LOWER ARM
FRONT LOWER ARM
REMOVAL AND INSTALLATION
1. Jack up the front of the vehicle and support it with safety stands.
2. Remove in the sequence shown in the figure, referring to the removal note for specially marked parts.
3. Inspect all components and parts, referring to inspection note.
4. Install in the reverse order of removal, referring to the installation note for specially marked parts.
5. Tighten all nuts and bolts to the specified torque, referring to the figure.
16—23 N m (1.6—2.3 m-kg, 12—17 ft-lb)
(9—12 m-kg, 65—87 ft-lb)
76G13X-018
1. Lug nut 6. Retainer and bushing 10. Nut
2. Wheel and tire 7. Retainer, bushing and 11. Bolt
3. Bolt and nut spacer 12. Front lower arm
4. Nuts 8. Nut 13. Front bushing
5. Bolt 9. Bolt 14. Rear bushing
13—18

13 FRONT LOWER ARM
76G13X-019
86U13X-036
86U13X-037
Installation Note
Stabilizer control link
Tighten the link nut so that there is 20.1 mm (0.79
in) of thread (A) exposed.
Lower arm
1. Install the lower arm spindle to the lower arm, and
loosely tighten the nut.
2. Install the lower arm ball joint to the knuckle arm.
Tightening torque: 43—54 N-m
(4.4—5.5 m-kg, 32—40 ft-lb)
Caution
Lower the vehicle and check the torque with
the vehicle unloaded.
3. Lower the vehicle from the jack. Torque the lower
arm spindle nut which was loosely tightened in step
(1)-
Tightening torque:
Front and rear lower arm spindle nut
93—127 N-m (9.5—12.9 m-kg, 69—93 ft-lb)
Caution
Lower the vehicle and check the torque with
the vehicle unloaded.
86U13X-038
