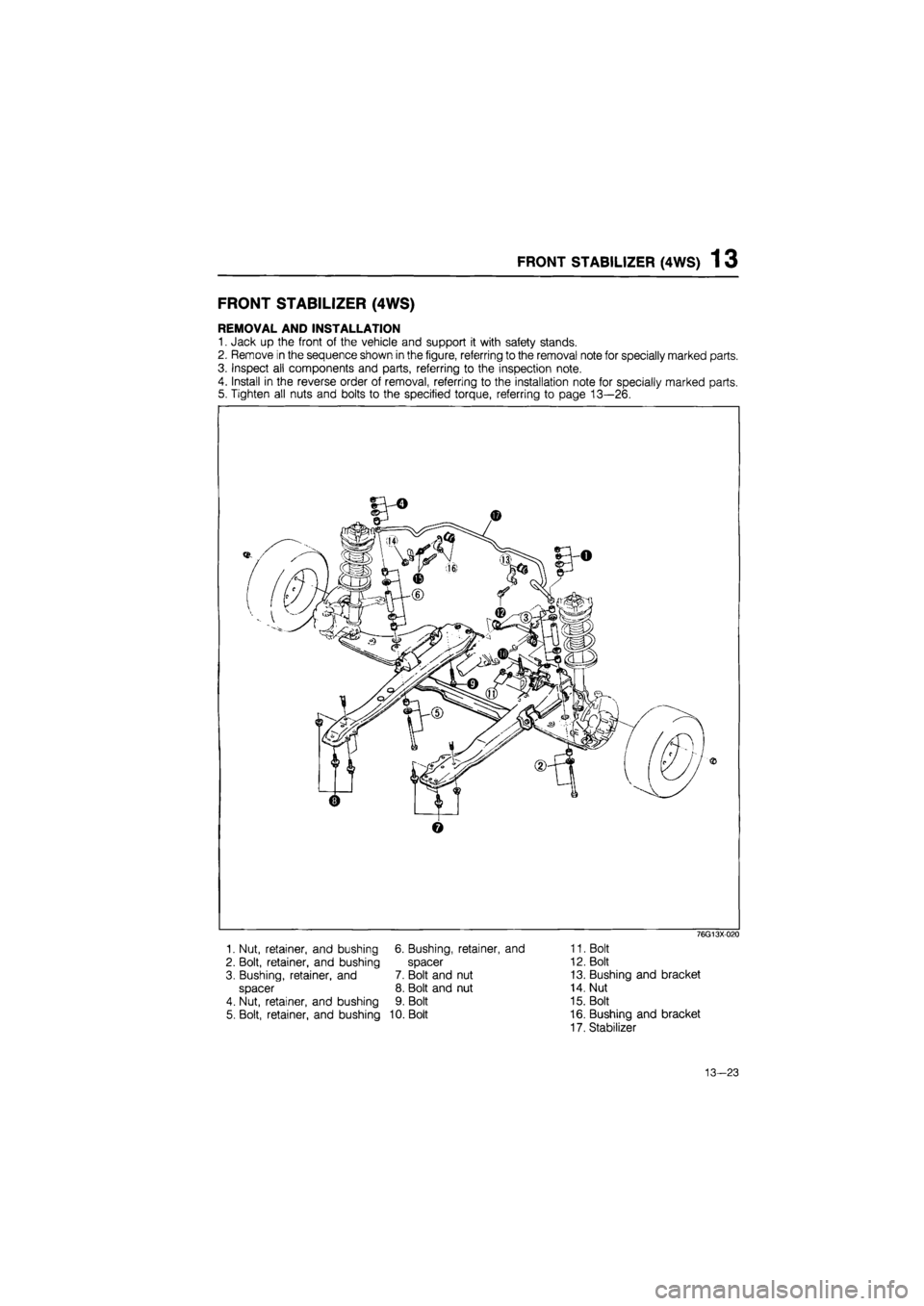

FRONT STABILIZER (4WS) 1 3
FRONT STABILIZER (4WS)
REMOVAL AND INSTALLATION
1. Jack up the front of the vehicle and support it with safety stands.
2. Remove in the sequence shown in the figure, referring to the removal note for specially marked parts.
3. Inspect all components and parts, referring to the inspection note.
4. Install in the reverse order of removal, referring to the installation note for specially marked parts.
5. Tighten all nuts and bolts to the specified torque, referring to page 13—26.
O
1. Nut, retainer, and bushing
2. Bolt, retainer, and bushing
3. Bushing, retainer, and
spacer
4. Nut, retainer, and bushing
6. Bushing, retainer, and
spacer
7. Bolt and nut
8. Bolt and nut
9. Bolt
5. Bolt, retainer, and bushing 10. Bolt
76G13X-020
11. Bolt
12. Bolt
13. Bushing and bracket
14. Nut
15. Bolt
16. Bushing and bracket
17. Stabilizer
13—23

FRONT STABILIZER (4WS) 1 3
1 c
i i
V
Inspection Note
Check the following and repair or replace any faulty
parts.
1. Stabilizer for bending or damage
2. Stabilizer bushings for deterioration or wear
86U13X-044
3. Retainers and spacers for bending or damage
4. Bushings for deterioration or wear
5. Bolts for bending or damage
69G13X-029
86U13X-045
Installation Note
Stabilizer bushing and control link
Align the bushing with the installation position line on
the stabilizer, mount it so that the notch faces the rear
of the chassis.
Caution
Mount the brackets of the stabilizer first and
loosely tighten them. After mounting the con-
trol links, tighten the bracket to the specified
torque with the vehicle on the ground and un-
loaded.
Tightening torque: 36—54 N-m
(3.7—5.5 m-kg, 27—40 ft-lb)
Tighten the link nut so that there is 20.1mm (0.79
in) of thread (A) exposed beyond it.
86U13X-046
13-25

1 3 FRONT STABILIZER (4WS)
Tightening torques
16—23 N m (1.6—2.3 m-kg, 12—17 ft-lb)
^>16—23 N-m (1.6—2.3 m-kg, 12—17 ft-lb)
36—54 N-m (3.7—5.5 m-kg, 27—40 ft-lb) 68—118 N-m (9—12 m-kg, 65—87 ft-lb)
76G13X-034
13—26

FRONT STABILIZER 13
FRONT STABILIZER
REMOVAL AND INSTALLATION
1. Jack up the front of the vehicle and support it with safety stands.
2. Remove in the sequence shown in the figure.
3. Inspect all components and parts, referring to the inspection note.
4. Install in the reverse order of removal, referring to the installation note for specially marked parts.
5. Tighten all nuts and bolts to the specified torque, referring to the figure.
76G13X-021
1. Nuts 4. Bushing, retainer, and 6. Bushing and bracket
2. Retainer and bushing spacer 7. Stabilizer
3. Bolt, retainer, and bushing 5. Bolt
13—27

1 3 FRONT STABILIZER
Inspection Note
Check the following and repair or replace any faulty
parts.
1. Stabilizer for bending or damage
2. Stabilizer bushings for deterioration or wear.
3. Retainers and spacers for bending or damage.
4. Mounting bushings for deterioration or wear.
5. Bolts for bending or damage.
86U13X-049
86U13X-050
Installation Note
Stabilizer bushing
Align the bushing with the installation position line on
the stabilizer, and mount it so that the notch faces
the rear of the chassis.
Caution
Mount the brackets of the stabilizer first and
loosely tighten them. After mounting the con-
trol links, tighten the brackets to the specified
torque with the vehicle on the ground and un-
loaded.
Tightening torque: 36—54 N-m
(3.7—5.5 m-kg, 27—40 ft-lb)
Tighten the link nut so that there is 20.1 mm (0.79
in) of thread (A) exposed beyond it.
86U13X-051
13-28

REAR SHOCK ABSORBER AND SPRING 1 3
REAR SHOCK ABSORBER AND SPRING
REMOVAL AND INSTALLATION
1. Jack up the front of the vehicle and support it with safety stands.
2. Remove in the sequence shown in the figure, referring to the removal note for specially marked parts.
3. Install in the reverse order of removal, referring to the installation note for specially marked parts.
4. Tighten all nuts and bolts to the specified torque, referring to the figure.
1. Trim 4. Clip 7. Bolt and nut
2. Lug nut 5. Harness and bracket (ABS) 8. Nut
3. Wheel and tire 6. Actuator (AAS) 9. Shock absorber assembly
13-29

REAR SHOCK ABSORBER AND SPRING 1 3
/
/ ijfi
/ ^ / / if
'J {'A V Ji )
86U13X-057
86U13X-058
Shock absorber clinch bolts and nuts
Remove the clinch bolts.
Shock absorber upper nuts
Remove the upper mounting shock absorber nuts.
Installation Note
Shock absorber
Tighten the shock absorber mounting bolts and nuts.
Tightening torque:
Upper nuts 46—64 N-m
(4.7—6.5 m-kg, 34—47 ft-lb)
Clinch bolts 93—117 N m
(9.5—11.9 m-kg, 69—86 ft-lb)
86U13X-059
13-31

1 3 REAR SHOCK ABSORBER AND SPRING
DISASSEMBLY AND ASSEMBLY
1. Disassemble in the sequence shown in the figure the referring to the disassembly note for specially
marked parts.
2. Inspect all components and parts, referring to inspection note.
3. Assemble in the reverse order of disassembly, referring to the assembly note for specially marked
parts.
4. Tighten all nuts and bolts to the specified torque, referring to the figure.
76G13X022
1. Nut
2. Seat
3. Mounting block
4. Spring seat 7. Coil spring
5. Dust boot 8. Shock absorber
6. Bound stopper
Disassembly Note
1. Loosen the piston rod upper nut several turns, but
do not remove.
Caution
a) Do not remove the nut.
b) Use copper or aluminum plates in the jaws
of the vise.
2. Set the SST in a vise.
3. Secure the shock absorber in the SST.
4. Compress the coil spring with the SST, then re-
move the nut.
5. Remove the coil spring. 86U13X-061
