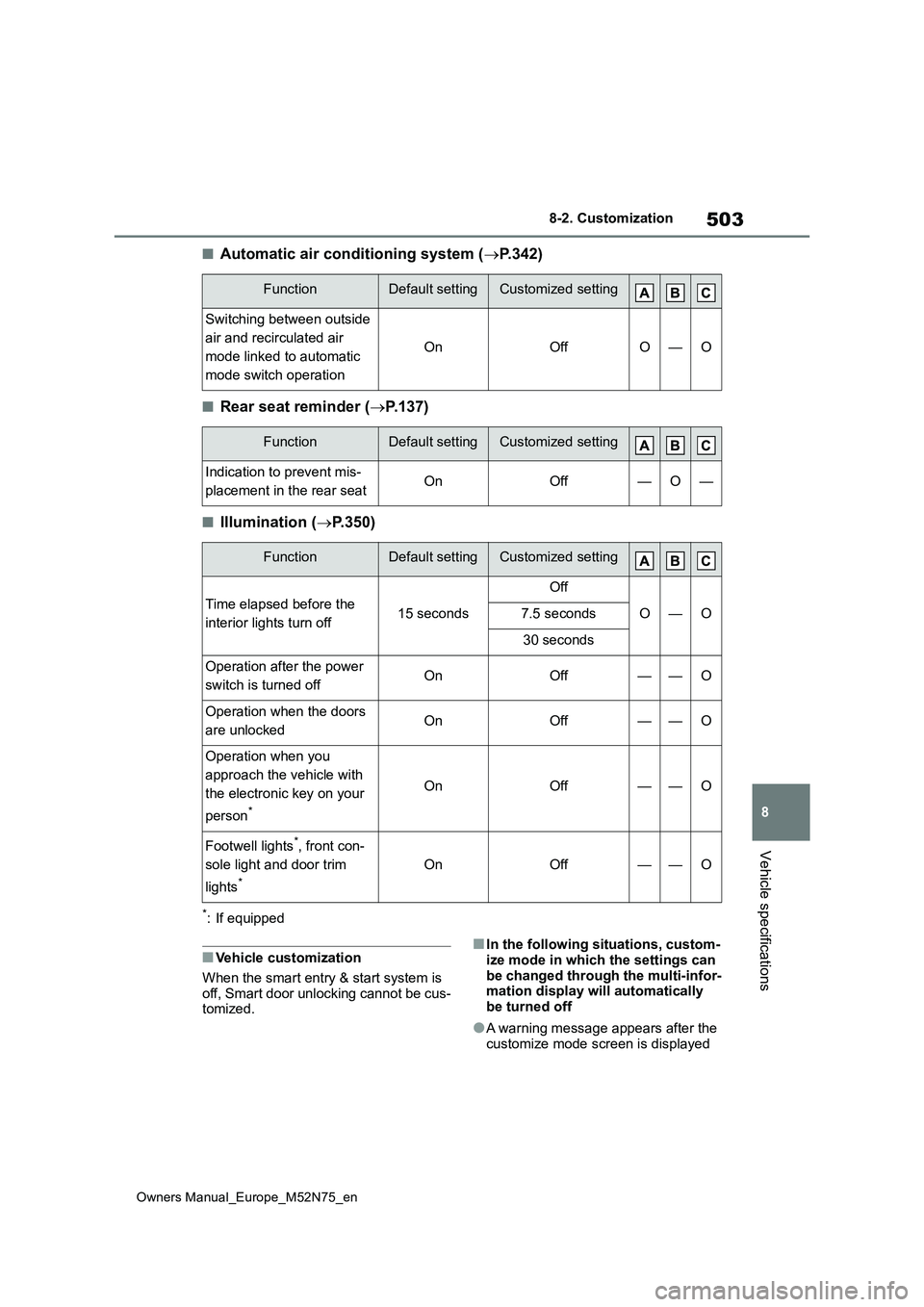

2023 TOYOTA YARIS CROSS Owners Manual

503
8
Owners Manual_Europe_M52N75_en
8-2. Customization
Vehicle specifications
■Automatic air conditioning system (P.342)
■Rear seat reminder (P.137)
■Illumination (P.350)
*: If equipped
■Vehicle customization
When the smart entry & start system is off, Smart door unlocking cannot be cus-tomized.
■In the following situations, custom-
ize mode in which the settings can be changed through the multi-infor-mation display will automatically
be turned off
●A warning message appears after the
customize mode screen is displayed
FunctionDefault settingCustomized setting
Switching between outside
air and recirculated air
mode linked to automatic
mode switch operation
OnOffO—O
FunctionDefault settingCustomized setting
Indication to prevent mis-
placement in the rear seatOnOff—O—
FunctionDefault settingCustomized setting
Time elapsed before the
interior lights turn off15 seconds
Off
O—O7.5 seconds
30 seconds
Operation after the power
switch is turned offOnOff——O
Operation when the doors
are unlockedOnOff——O
Operation when you
approach the vehicle with
the electronic key on your
person*
OnOff——O
Footwell lights*, front con-
sole light and door trim
lights*
OnOff——O

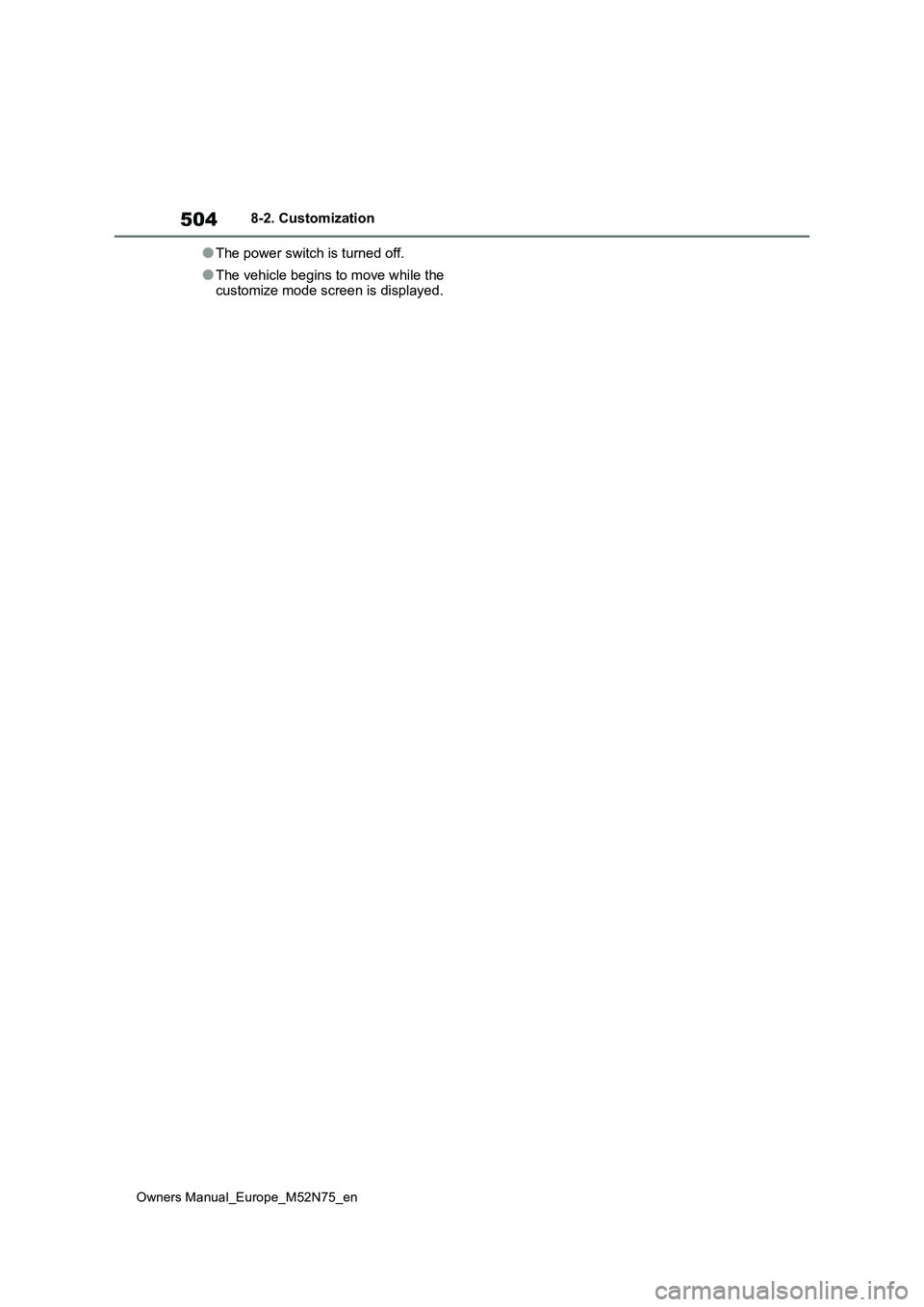

504
Owners Manual_Europe_M52N75_en
8-2. Customization
●The power switch is turned off.
●The vehicle begins to move while the customize mode screen is displayed.

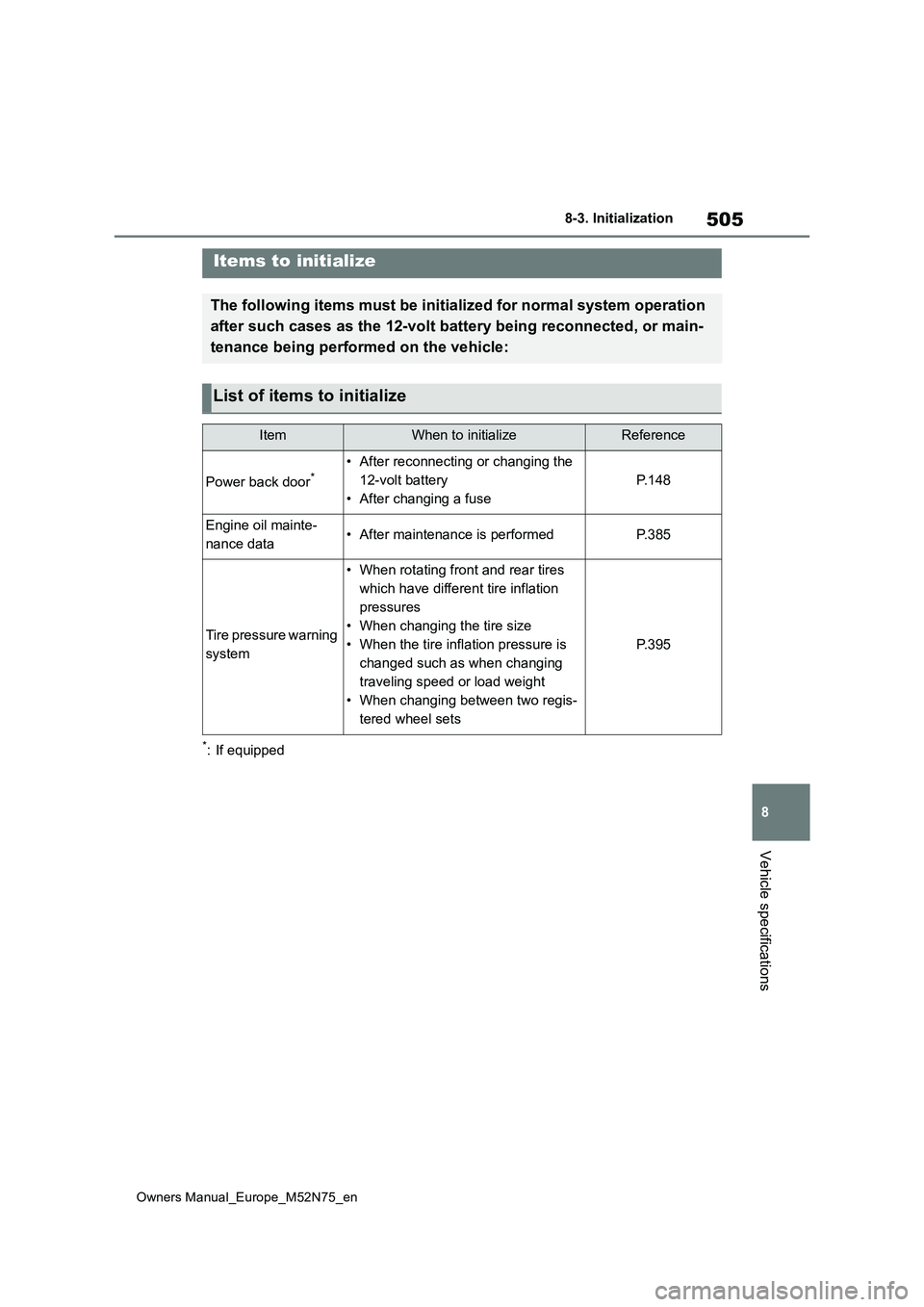

505
8
Owners Manual_Europe_M52N75_en
8-3. Initialization
Vehicle specifications
8- 3. In it ia li za ti on
*: If equipped
Items to initialize
The following items must be initialized for normal system operation
after such cases as the 12-volt battery being reconnected, or m ain-
tenance being performed on the vehicle:
List of items to initialize
ItemWhen to initializeReference
Power back door*• After reconnecting or changing the
12-volt battery
• After changing a fuse
P. 1 4 8
Engine oil mainte-
nance data• After maintenance is performedP. 3 8 5
Tire pressure warning
system
• When rotating front and rear tires
which have different tire inflation
pressures
• When changing the tire size
• When the tire inflation pressure is
changed such as when changing
traveling speed or load weight
• When changing between two regis-
tered wheel sets
P. 3 9 5

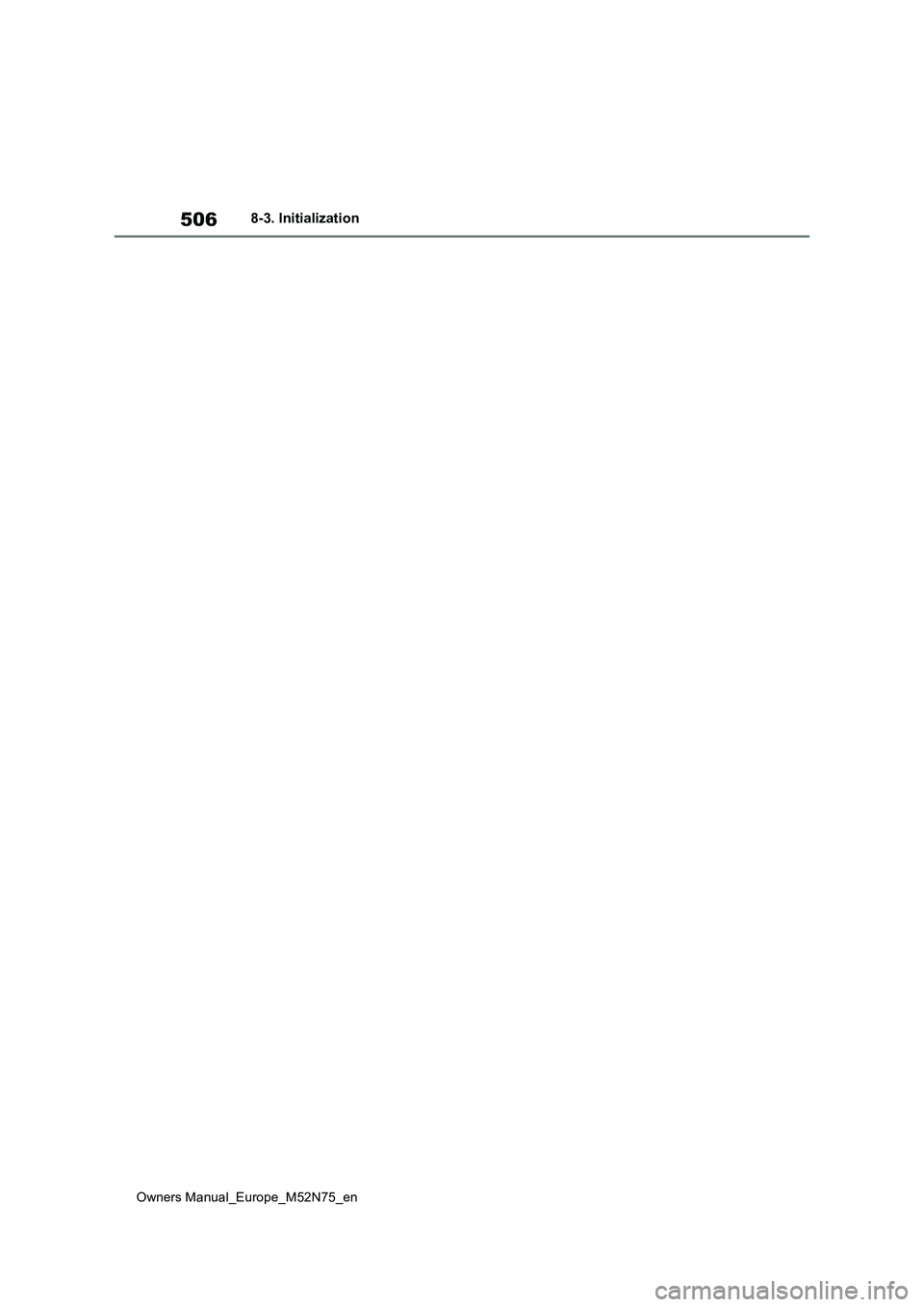

506
Owners Manual_Europe_M52N75_en
8-3. Initialization

507
Owners Manual_Europe_M52N75_en
Index
What to do if... (Troubleshoot-
ing) ................................. 508
Alphabetical Index ............ 511

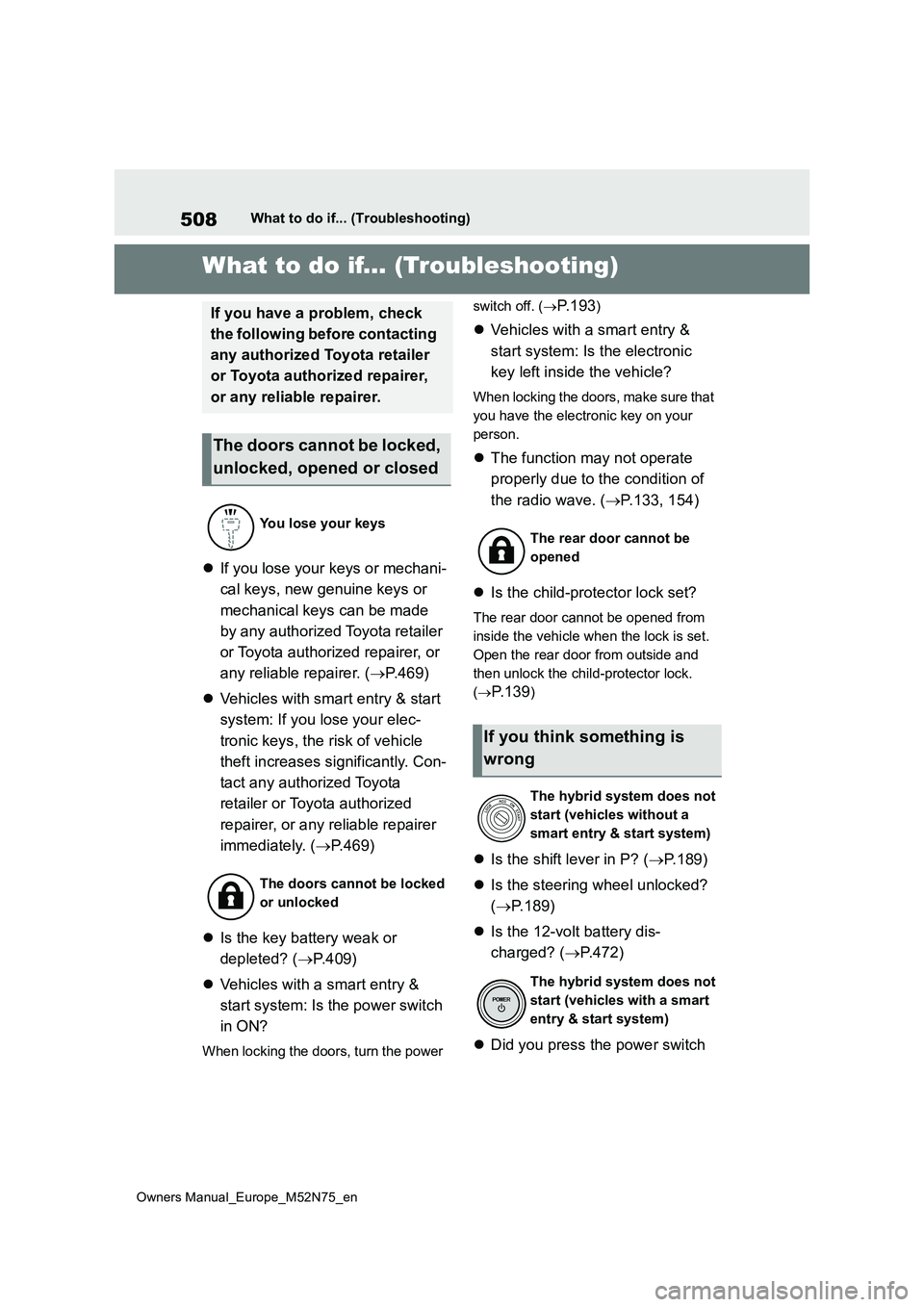

508
Owners Manual_Europe_M52N75_en
What to do if... (Troubleshooting)
1-1.What to d o if... (Tro ublesho oting)What to do if... (Troubleshooting)
If you lose your keys or mechani-
cal keys, new genuine keys or
mechanical keys can be made
by any authorized Toyota retailer
or Toyota authorized repairer, or
any reliable repairer. ( P.469)
 Vehicles with smart entry & start
system: If you lose your elec-
tronic keys, the risk of vehicle
theft increases significantly. Con-
tact any authorized Toyota
retailer or Toyota authorized
repairer, or any reliable repairer
immediately. ( P.469)
 Is the key battery weak or
depleted? ( P.409)
 Vehicles with a smart entry &
start system: Is the power switch
in ON?
When locking the doors, turn the power
switch off. ( P. 1 9 3)
Vehicles with a smart entry &
start system: Is the electronic
key left inside the vehicle?
When locking the doors, make sure that
you have the electronic key on your
person.
 The function may not operate
properly due to the condition of
the radio wave. ( P.133, 154)
 Is the child-protector lock set?
The rear door cannot be opened from
inside the vehicle when the lock is set.
Open the rear door from outside and
then unlock the child-protector lock.
( P.139)
Is the shift lever in P? (P.189)
 Is the steering wheel unlocked?
( P.189)
 Is the 12-volt battery dis-
charged? ( P.472)
 Did you press the power switch
If you have a problem, check
the following before contacting
any authorized Toyota retailer
or Toyota authorized repairer,
or any reliable repairer.
The doors cannot be locked,
unlocked, opened or closed
You lose your keys
The doors cannot be locked
or unlocked
The rear door cannot be
opened
If you think something is
wrong
The hybrid system does not
start (vehicles without a
smart entry & start system)
The hybrid system does not
start (vehicles with a smart
entry & start system)

509
Owners Manual_Europe_M52N75_en
What to do if... (Troubleshooting)
while firmly depressing the brake
pedal? ( P.191)
 Is the shift lever in P? (P.191)
 Is the electronic key anywhere
detectable inside the vehicle?
( P.153)
 Is the steering wheel unlocked?
( P.192)
 Is the electronic key battery
weak or depleted?
In this case, the hybrid system can be
started in a temporary way. ( P. 4 7 1)
Is the 12-volt battery dis-
charged? ( P.472)
 Is the power switch in ON?
If you cannot release the shift lever by
depressing the brake pedal with the
power switch in ON. ( P.198)
Vehicles without a smart entry &
start system: It is locked to pre-
vent theft of the vehicle if the key
is pulled from the power switch.
( P.189)
 Vehicles with a smart entry &
start system: It is locked auto-
matically to prevent theft of the
vehicle. ( P.192)
 Is the window lock switch
pressed?
The power window except for the one
at the driver’s seat cannot be operated
if the window lock switch is pressed.
( P.171)
The auto power off function will
be operated if the vehicle is left
in ACC or ON (the hybrid system
is not operating) for a period of
time. ( P.194)
 The seat belt reminder light is
flashing
Are the driver and the passenger wear-
ing the seat belts? ( P. 4 3 8)
The parking brake indicator is on
Is the parking brake released?
( P.200)
Depending on the situation, other
types of warning buzzer may also
sound. ( P.435, 445)
 Did anyone inside the vehicle
The shift lever cannot be
shifted from P even if you
depress the brake pedal
The steering wheel cannot
be turned after the hybrid
system is stopped
The windows do not open or
close by operating the
power window switches
The power switch is turned
off automatically (vehicles
with a smart entry & start
system)
A warning buzzer sounds
during driving
An alarm is activated and the
horn sounds (vehicles with
an alarm)

510
Owners Manual_Europe_M52N75_en
What to do if... (Troubleshooting)
open a door or anything move
inside the vehicle during setting
the alarm?
The sensor detects it and the alarm
sounds. ( P. 8 6)
Do one of the following to deacti-
vate or stop the alarms:
 Unlock the doors using the entry
function (if equipped) or wireless
remote control.
 Starting the hybrid system. (The
alarm will be deactivated or
stopped after a few seconds.)
 Is the electronic key left inside
the vehicle?
Check the message on the multi-infor-
mation display. ( P.445)
When a warning light turns on or
a warning message is displayed,
refer to P.435, 445.
 Vehicles with an emergency tire
puncture repair kit: Stop the vehi-
cle in a safe place and repair the
flat tire temporarily with the
emergency tire puncture repair
kit. ( P.448)
 Vehicles with spare tire: Stop the
vehicle in a safe place and
replace the flat tire with the spare
tire. ( P.459)
 Try the procedure for when the
vehicle becomes stuck in mud,
dirt, or snow. ( P.480)A warning buzzer sounds
when leaving the vehicle
(vehicles with a smart entry
& start system)
A warning light turns on or a
warning message is dis-
played
When a problem has
occurred
If you have a flat tire
The vehicle becomes stuck
