7-2. Steps to take in an emergency
When trouble arises
“F” line
“L” line
5 Add coolant if necessary.
If water was added in an emergency, have the vehicle inspected at any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer as soon as possible.
6 After stopping the hybrid system
and waiting for 5 minutes or
more, start the hybrid system
again and check for the multi-
information display.
If the message does not disap-
pear: Stop the hybrid system
and contact any authorized
Toyota retailer or Toyota autho-
rized repairer, or any reliable
repairer.
If the message is not displayed:
The hybrid system temperature
has dropped and the vehicle
may be driven normally.
However, if the message appears again
frequently, contact any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
WARNING
■When inspecting under the hood of your vehicle
Observe the following precautions. Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the hood, do not open the hood
until the steam has subsided. The engine compartment may be very hot.
●After the hybrid system has been turned off, check that the “READY”
indicator is off. When the hybrid system is operating, the gasoline engine may automatically start, or
the cooling fan may suddenly oper- ate even if the gasoline engine stops. Do not touch or approach
rotating parts such as the fan, which may lead to fingers or cloth-ing (especially a tie, a scarf or a
muffler) getting caught, resulting in serious injury.
●Do not loosen the coolant reservoir caps while the hybrid system and radiator are hot.
High temperature steam or coolant could spray out.
NOTICE
■When adding engine/power con-trol unit coolant
Add coolant slowly after the hybrid system has cooled down sufficiently. Adding cool coolant to a hot hybrid
system too quickly can cause dam- age to the hybrid system.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or
dust etc.).

480
Owners Manual_Europe_M52N75_en
7-2. Steps to take in an emergency

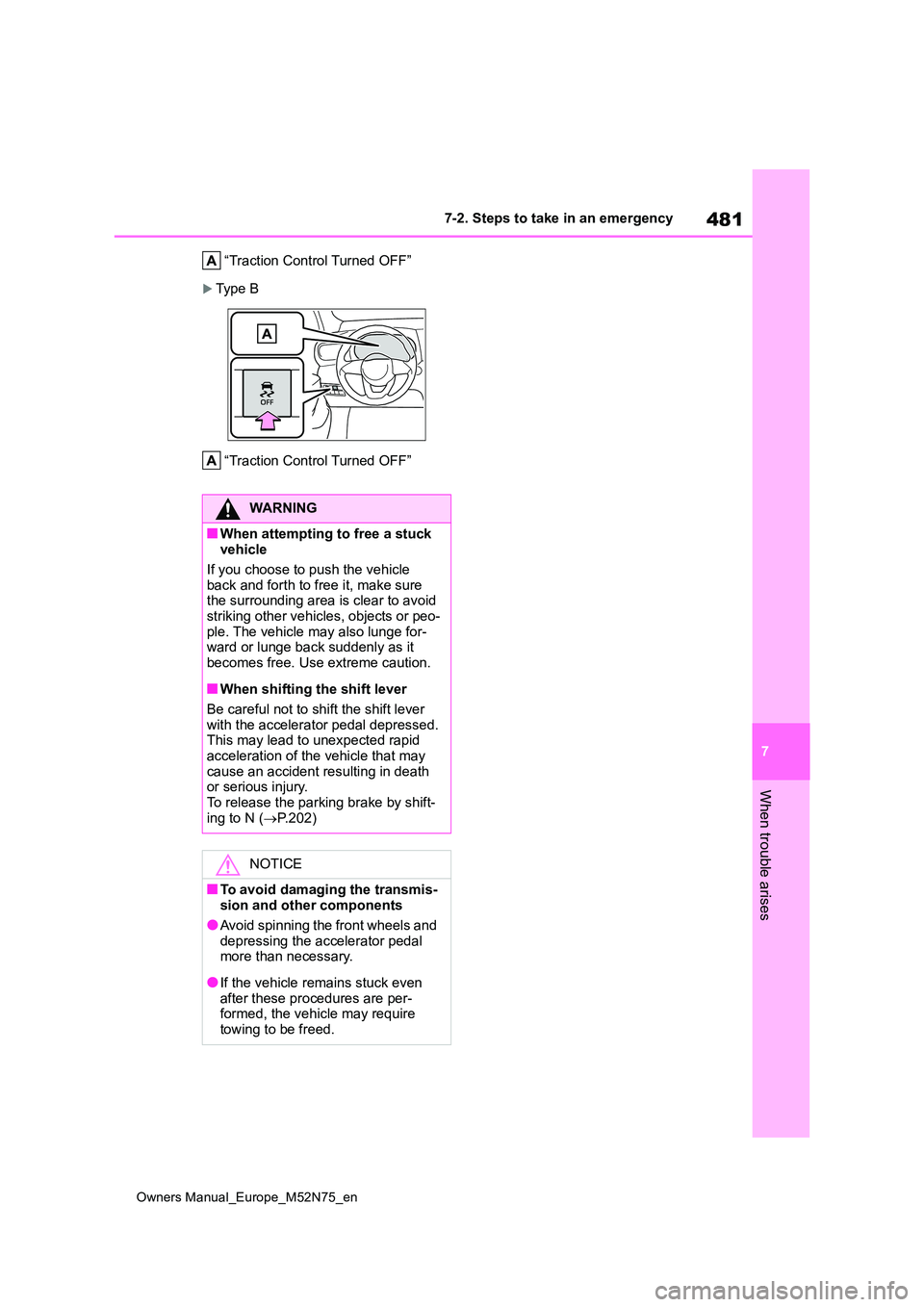

1Stop the hybrid system. Set the
parking brake and shift the shift
lever to P.
2 Remove the mud, snow or sand
from around the front wheels.
3 Place wood, stones or some
other material under the front
wheels to help provide traction.
4 Restart the hybrid system.
5 Shift the shift lever to D or R and
release the parking brake. Then,
while exercising caution,
depress the accelerator pedal.
■When it is difficult to free the vehi-
cle
Press the switch to turn off TRC.
A message will be shown on the multi-
information display.
Ty p e A
NOTICE
●Do not use any coolant additive.
If the vehicle becomes
stuck
Carry out the following proce-
dures if the tires spin or the
vehicle becomes stuck in mud,
dirt or snow:
Recovering procedure

481
7
Owners Manual_Europe_M52N75_en
7-2. Steps to take in an emergency
When trouble arises
“Traction Control Turned OFF”
Typ e B
“Traction Control Turned OFF”
WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle
back and forth to free it, make sure the surrounding area is clear to avoid striking other vehicles, objects or peo-
ple. The vehicle may also lunge for- ward or lunge back suddenly as it becomes free. Use extreme caution.
■When shifting the shift lever
Be careful not to shift the shift lever
with the accelerator pedal depressed. This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.To release the parking brake by shift-
ing to N ( P.202)
NOTICE
■To avoid damaging the transmis- sion and other components
●Avoid spinning the front wheels and
depressing the accelerator pedal more than necessary.
●If the vehicle remains stuck even after these procedures are per-formed, the vehicle may require
towing to be freed.

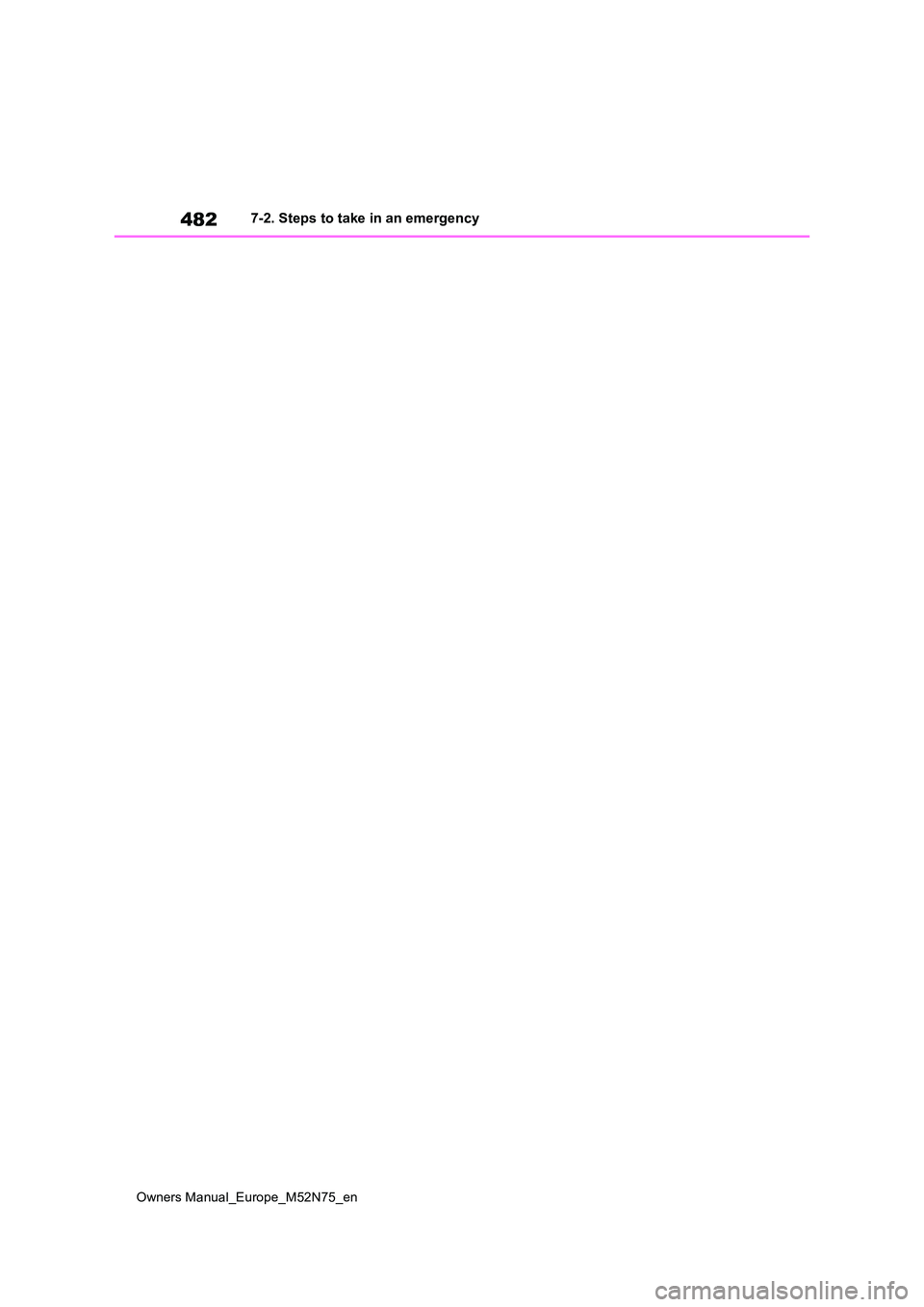

482
Owners Manual_Europe_M52N75_en
7-2. Steps to take in an emergency

8

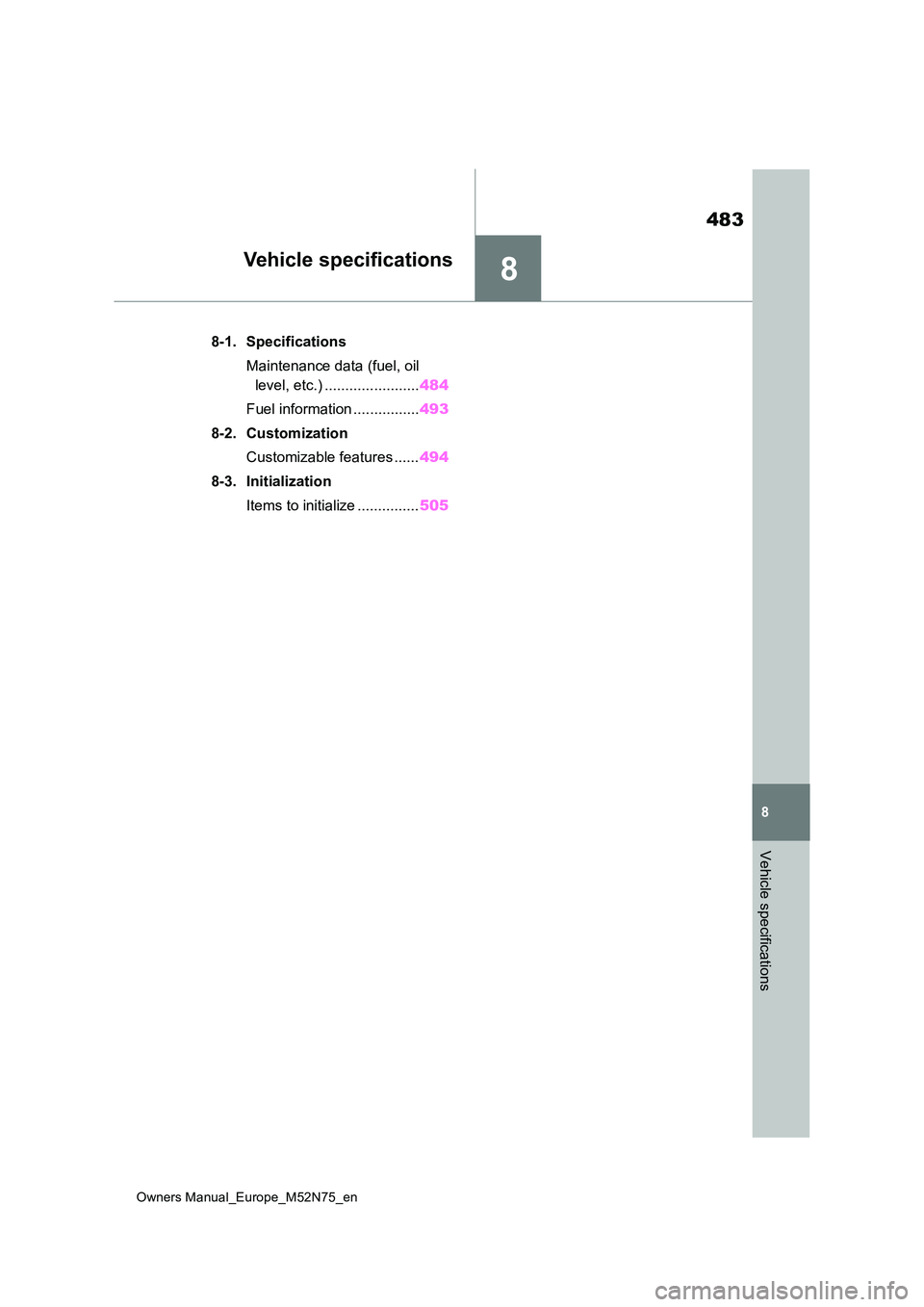

483
Owners Manual_Europe_M52N75_en
8
Vehicle specifications
Vehicle specifications
8-1. Specifications
Maintenance data (fuel, oil
level, etc.) ....................... 484
Fuel information ................ 493
8-2. Customization
Customizable features ...... 494
8-3. Initialization
Items to initialize ............... 505

484
Owners Manual_Europe_M52N75_en
8-1. Specifications
8-1.Spec ific ations
*1: With front bumper type A (P.431)
*2: With front bumper type B (P.431)
*3: 17-inch tires or 18-inch tires
*4: 16-inch tires
*5: 17-inch tires or 18-inch tires and AWD models
*6: 16-inch tires and AWD models
*7: 17-inch tires or 18-inch tires and 2WD models
*8: 16-inch tires and 2WD models
*9: 2WD models
*10: AWD models
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length4180 mm (164.6 in.)*1
4200 mm (165.4 in.)*2
Overall width1765 mm (69.5 in.)
Overall height (unladen vehicles)1595 mm (62.8 in.)
Wheelbase2560 mm (100.8 in.)
Tread
Front1517 mm (59.7 in.)*3
1527 mm (60.1 in.)*4
Rear
1504 mm (59.2 in.)*5
1514 mm (59.6 in.)*6
1517 mm (59.7 in.)*7
1527 mm (60.1 in.)*8
Gross vehicle mass1690 kg (3726.4 lb.)*9
1775 kg (3913.8 lb.)*10
Maximum permissible axle
capacity
Front965 kg (2127.8 lb.)
Rear925 kg (2039.6 lb.)
Drawbar load (vehicles with towing packages)75 kg (165.3 lb.)
Towing capacity (vehicles with
towing packages)
Without brake550 kg (1212.7 lb.)
With brake750 kg (1653.7 lb.)

485
8
Owners Manual_Europe_M52N75_en
8-1. Specifications
Vehicle specifications
■Vehicle identification number
The vehicle identification number
(VIN) is the legal identifier for your
vehicle. This is the primary identifi-
cation number for your Toyota. It is
used in registering the ownership of
your vehicle.
This number is stamped under the
right-hand front seat.
This number is also stamped on the
top left of the instrument panel.
This number is also on the manu-
facturer’s label.
■Engine number
The engine number is stamped on
the engine block as shown.
Vehicle identification
Engine
ModelM15A-FXE
Ty p e3-cylinder in line, 4-cycle, gasoline
Bore and stroke80.5  97.6 mm (3.16  3.84 in.)
Displacement1490 cm3 (90.9 cu. in.)
Valve clearanceAutomatic adjustment

486
Owners Manual_Europe_M52N75_en
8-1. Specifications
■Oil capacity (Drain and refill
[Reference*])*: The engine oil capacity is a reference
quantity to be used when changing
Fuel
Fuel type
When you find these types of fuel label at
the gas station, use only the fuel with one
of the following labels.
EU area:
Unleaded gasoline conforming to Euro-
pean standard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane Number95 or higher
Fuel tank capacity
(Reference)36.0 L (9.5 gal., 7.9 Imp. gal.)
Electric motor (traction motor)
Typ ePermanent magnet synchronous motor
Maximum output59 kW
Maximum torque141 N•m (14.4 kgf•m, 104 ft•lbf)
Hybrid battery (traction battery)
Ty p eLithium-ion battery
Vol t ag e3.7 V/cell
Capacity4.3 Ah
Quantity48 cells
Nominal voltage177.6 V
Lubrication systemWith filter3.6 L (3.8 qt., 3.2 Imp. qt.)
Without fil-
ter3.3 L (3.5 qt., 2.9 Imp. qt.)
