2023 TOYOTA YARIS CROSS Owners Manual

495
8
Owners Manual_Europe_M52N75_en
8-2. Customization
Vehicle specifications
Some function settings are changed simultaneously with other functions
being customized. Contact any authorized Toyota retailer or Toy ota autho-
rized repairer, or any reliable repairer for further details.
Settings that can be changed using the 7-inch/8-inch display m ultimedia
system
Settings that can be changed using the multi-information displ ay
Settings that can be changed by any authorized Toyota retailer or Toy ota
authorized repairer, or any reliable repairer
Definition of symbols: O = Available, — = Not available
■Alarm* ( P.86)
*: If equipped
■Gauges, meters and multi-information display (P.95, 100, 106, 112)
Customizable features
FunctionDefault settingCustomized setting
Deactivates the alarm
when the doors are
unlocked using the key or
mechanical key
OffOn——O
Function*1Default settingCustomized setting
Language*2EnglishExcept English*3—O—
Units*2L/100 kmkm/L—O—miles (MPG)*4
Speedometer display*5AnalogDigital—O—
EV indicatorOnOff—O—
Eco Accelerator GuidanceOnOff—O—
Fuel economy display
Total average
(Average fuel
consumption
[after reset])
Trip average (Aver-
age fuel consump-
tion [after start])—O—Tank average (Aver-
age fuel consump-
tion [after refuel])

496
Owners Manual_Europe_M52N75_en
8-2. Customization
*1: For details about each function: P.110, 117
*2: The default setting varies according to country.
*3: Available languages may differ depending on the target region.
*4: If equipped
*5: Vehicles with 7-inch display only
■Head-up display* (P.119)
Audio system linked dis-
play*4OnOff—O—
Energy monitorOnOff—O—
Drive information typeTrip (after start)Total (after reset)—O—
Drive information items
(First item)Distance
Average vehicle
speed—O—
Elapsed time
Drive information items
(Second item)Elapsed time
Average vehicle
speed—O—
Distance
Current trip result displayDrive informa-
tionEco score—O—
Pop-up displayOnOff—O—
FunctionDefault settingCustomized setting
Head-up displayOnOff—O—
Gauge informationTachometer
Hybrid System Indi-
cator—O—
No content
Route guidance to destina-
tion/street name*OnOff—O—
Driving support system dis-
play*OnOff—O—
Compass*OnOff—O—
Audio system operation
status*OnOff—O—
Function*1Default settingCustomized setting

497
8
Owners Manual_Europe_M52N75_en
8-2. Customization
Vehicle specifications
*: If equipped
■Smart entry & start system* and wireless remote control (P.135,
152)
*: If equipped
■Smart entry & start system* ( P.135, 141, 152)
*: If equipped
■Wireless remote control (P.132, 135)
■Power back door* (P.142)
FunctionDefault settingCustomized setting
Operation signal (Emer-
gency flashers)OnOffO—O
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked
30 seconds
60 seconds
——O120 seconds
Open door warning buzzerOnOff——O
FunctionDefault settingCustomized setting
Smart entry & start systemOnOffO—O
Number of consecutive
door lock operations2 timesAs many as desired——O
FunctionDefault settingCustomized setting
Wireless remote controlOnOff——O
FunctionDefault settingCustomized setting
Power back doorOnOff—O—
Power back door opening
position51 to 4—O—
User optional setting—O—
Buzzer volumeLevel 3Level 1—O—Level 2
Kick sensorOnOff—O—

498
Owners Manual_Europe_M52N75_en
8-2. Customization
*: If equipped
■Outside rear view mirrors (P.166)
*: If equipped
■Power windows (P.169)
*: If equipped
■Automatic light control system (P.206)
■Lights (P.207)
Kick sensor sensitivity+2+0——O+1
FunctionDefault settingCustomized setting
Automatic mirror folding
and extending operation*
Linked to the
locking/ unlock-
ing of the doors
Off
——OLinked to operation of
the power switch
FunctionDefault settingCustomized setting
Key (include mechanical
key*) linked operationOffOn——O
Wireless remote control
linked operationOffOn——O
Wireless remote control
linked operation signal
(buzzer)
OnOff——O
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard-2 to 2O—O
Extended headlight light-
ing function (Time elapsed
before headlights automati-
cally turn off)
30 seconds
60 seconds
——O90 seconds
120 seconds
FunctionDefault settingCustomized setting
Welcome lampOnOff——O
FunctionDefault settingCustomized setting

499
8
Owners Manual_Europe_M52N75_en
8-2. Customization
Vehicle specifications
■AHS (Adaptive High-beam System)*1 (P.211)
*1: If equipped
*2: The headlights will operate under Automatic High Beam control. (P.215)
■Rear window wiper (P.222)
FunctionDefault settingCustomized setting
Adaptive High-beam Sys-
temOnOff*2——O
Vehicle speed at which the
brightness and illuminated
area adjustment of the high
beams changes mode
Approximately
15 km/h (10
mph) or more
Approximately 30
km/h (18 mph) or
more——OApproximately 60
km/h (37 mph) or
more
Intensity adjustment of the
high beams when driving
around a curve (illuminates
the area in the direction
vehicle is turning more
brightly)
OnOff——O
Projection distance adjust-
ment of the low beams
according to the distance to
a preceding vehicle
OnOff——O
FunctionDefault settingCustomized setting
Rear window wiper opera-
tion when the back door is
opened
OffOn——O
Washer linked rear window
wiper operationOnOff——O
Shift position linked rear
window wiper operationOnceOff——OContinuous

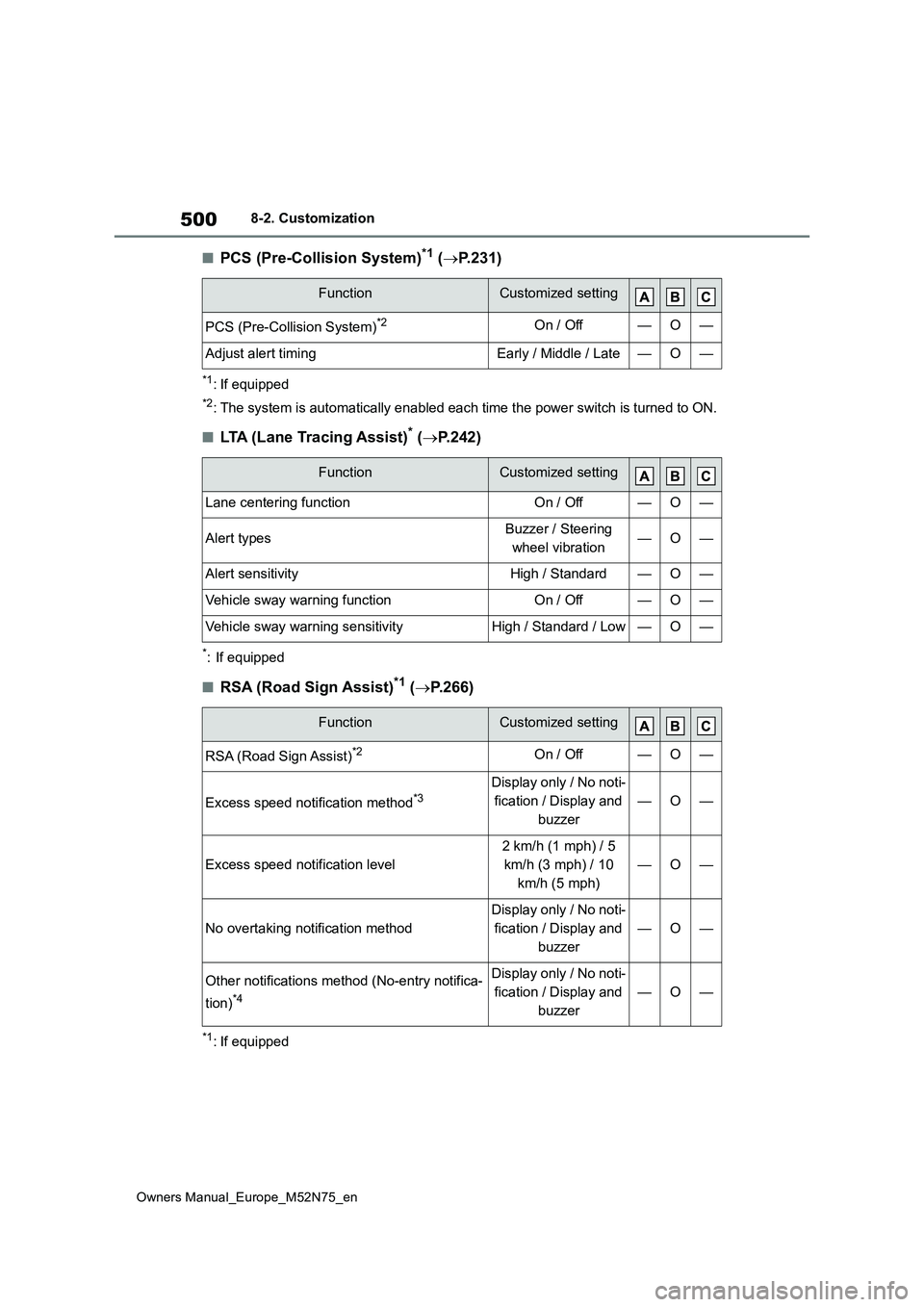

500
Owners Manual_Europe_M52N75_en
8-2. Customization
■PCS (Pre-Collision System)*1 (P.231)
*1: If equipped
*2: The system is automatically enabled each time the power switch is turned to ON.
■LTA (Lane Tracing Assist)* (P.242)
*: If equipped
■RSA (Road Sign Assist)*1 (P.266)
*1: If equipped
FunctionCustomized setting
PCS (Pre-Collision System)*2On / Off—O—
Adjust alert timingEarly / Middle / Late—O—
FunctionCustomized setting
Lane centering functionOn / Off—O—
Alert typesBuzzer / Steering
wheel vibration—O—
Alert sensitivityHigh / Standard—O—
Vehicle sway warning functionOn / Off—O—
Vehicle sway warning sensitivityHigh / Standard / Low—O—
FunctionCustomized setting
RSA (Road Sign Assist)*2On / Off—O—
Excess speed notification method*3Display only / No noti-
fication / Display and
buzzer
—O—
Excess speed notification level
2 km/h (1 mph) / 5
km/h (3 mph) / 10
km/h (5 mph)
—O—
No overtaking notification method
Display only / No noti-
fication / Display and
buzzer
—O—
Other notifications method (No-entry notifica-
tion)*4
Display only / No noti-
fication / Display and
buzzer
—O—

501
8
Owners Manual_Europe_M52N75_en
8-2. Customization
Vehicle specifications
*2: RSA function becomes On when the power switch is turned to ON.
*3: If a speed limit with supplemental mark is exceeded, the notification buzzer does
not operate.
*4: Vehicles with 7-inch/8-inch display navigation system
■Dynamic radar cruise control with full-speed range* ( P. 2 5 2 )
*: If equipped
■BSM (Blind Spot Monitor)* (P.270)
*: If equipped
■Toyota parking assist-sensor* (P.275)
FunctionCustomized setting
Radar Cruise Control with Road Sign AssistOff / On—O—
FunctionDefault settingCustomized setting
BSM (Blind Spot Monitor)
functionOnOff—O—
Outside rear view mirror
indicator brightnessBrightDim—O—
Alert timing for presence of
approaching vehicle (sensi-
tivity)
Intermediate
Early
—O—Late
Only when vehicle
detected in blind spot
FunctionDefault settingCustomized setting
Toyota parking assist-sen-
sorOnOff—O—
Buzzer volumeLevel 2Level 1—O—Level 3
Detection distance of the
front center sensorFarNear—OO
Detection distance of the
rear center sensorFarNear—OO
Detection distance of the
corner sensorFarNear——O

502
Owners Manual_Europe_M52N75_en
8-2. Customization
*: If equipped
■RCTA (Rear Crossing Traffic Alert)* (P.285)
*: If equipped
■PKSB (Parking Support Brake)* (P.291)
*: If equipped
■Toyota Teammate Advanced Park*1 (P.301)
*1: If equipped
*2: For details about changing the settings: P. 3 2 1
FunctionDefault settingCustomized setting
RCTA (Rear Crossing Traf-
fic Alert) functionOnOff—O—
Buzzer volumeLevel 2Level 1—O—Level 3
FunctionDefault settingCustomized setting
PKSB (Parking Support
Brake) functionOnOff—O—
Function*2Default settingCustomized setting
Vehicle speed during oper-
ationNormalSlowO——Fast
Distance to objectsNormalFarO——
Parking direction prefer-
encePerpendicularParallelO——
Parking course adjustment0 (Centered)-3 (Inward) to 3
(Outward)O——
Road width adjustmentNormalSlightly narrowO——
NarrowO——
