2023 NISSAN LEAF Owners Manual

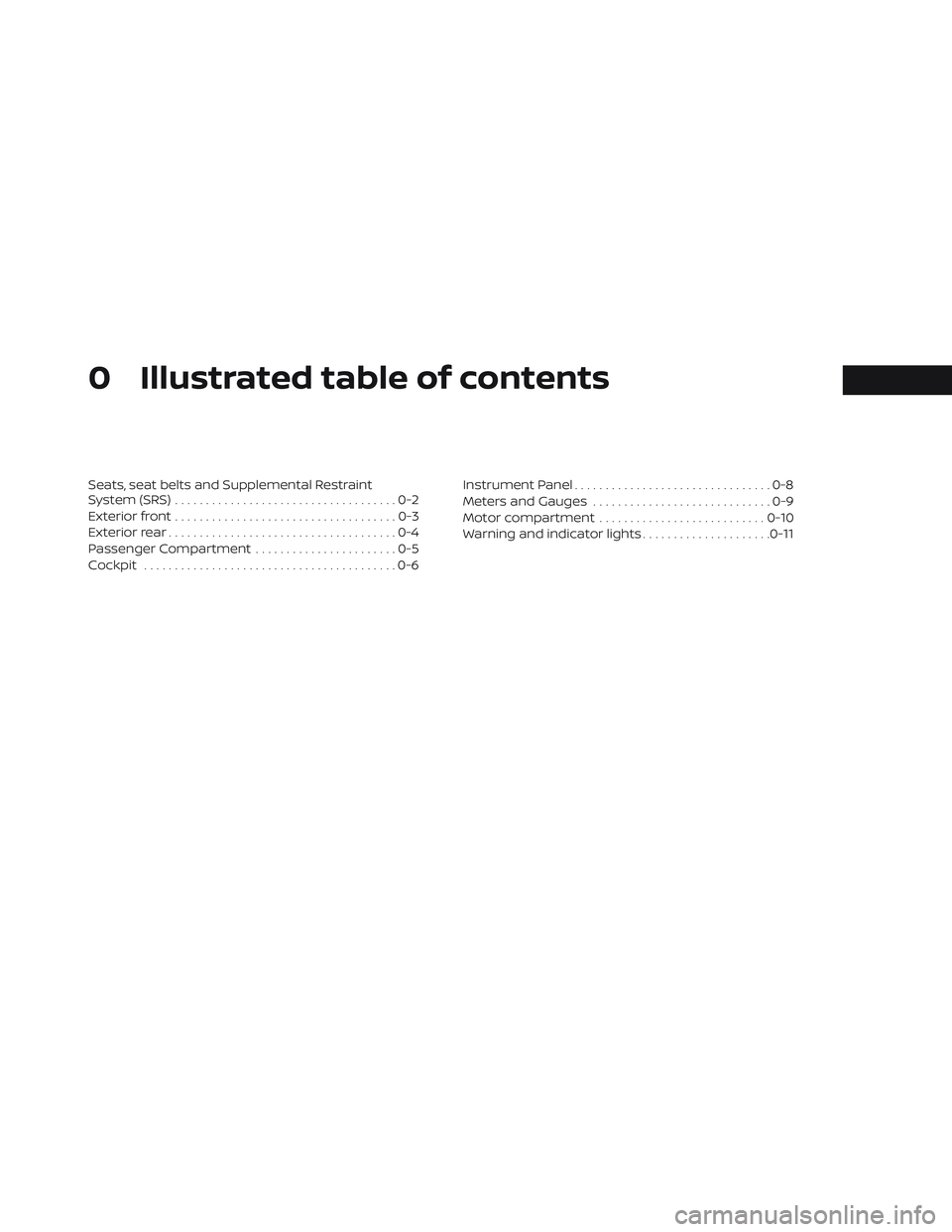

0 Illustrated table of contents
Seats, seat belts and Supplemental Restraint
System (SRS)....................................0-2
Exterior front ....................................0-3
Exterior rear .....................................0-4
Passenger Compartment .......................0-5
Cockpit .........................................0-6 Instrument Panel
................................0-8
Meters and Gauges .............................0-9
Motor compartment ...........................0-10
Warning and indicator lights .....................0-11

1. Rear head restraints/headrests (P. 1-7)
2. Child restraint anchor points (for toptether strap child restraint) (P. 1-35) 3. Roof-mounted curtain side-impact and
rollover air bags (P. 1-61) 4. Rear-outboard seat belt with
pretensioner(s) (right side similar)
(P. 1-64)
5. Rear-outboard seat-mounted side-
impact supplemental air bags (P. 1-61)
6. Front head restraints/headrests (P. 1-7)
7. Front seat belt with pretensioner(s) and
shoulder height adjuster (front passen-
ger side similar) (P. 1-18, 1-64)
8. Front seats (P. 1-2)
9. Supplemental front-impact air bags
(P. 1-44)
10. Driver and front passenger supplemen-
tal knee airbags (P. 1-63)
11. Occupant classification sensor
(weight sensor) (P. 1-44)
12. Front seat-mounted side-impact
supplemental air bags (P. 1-61)
13. LATCH (Lower Anchors and Tethers for
CHildren) system (P. 1-24)
LIC4623
SEATS, SEAT BELTS AND
SUPPLEMENTAL RESTRAINT SYSTEM
(SRS)
0-2Illustrated table of contents

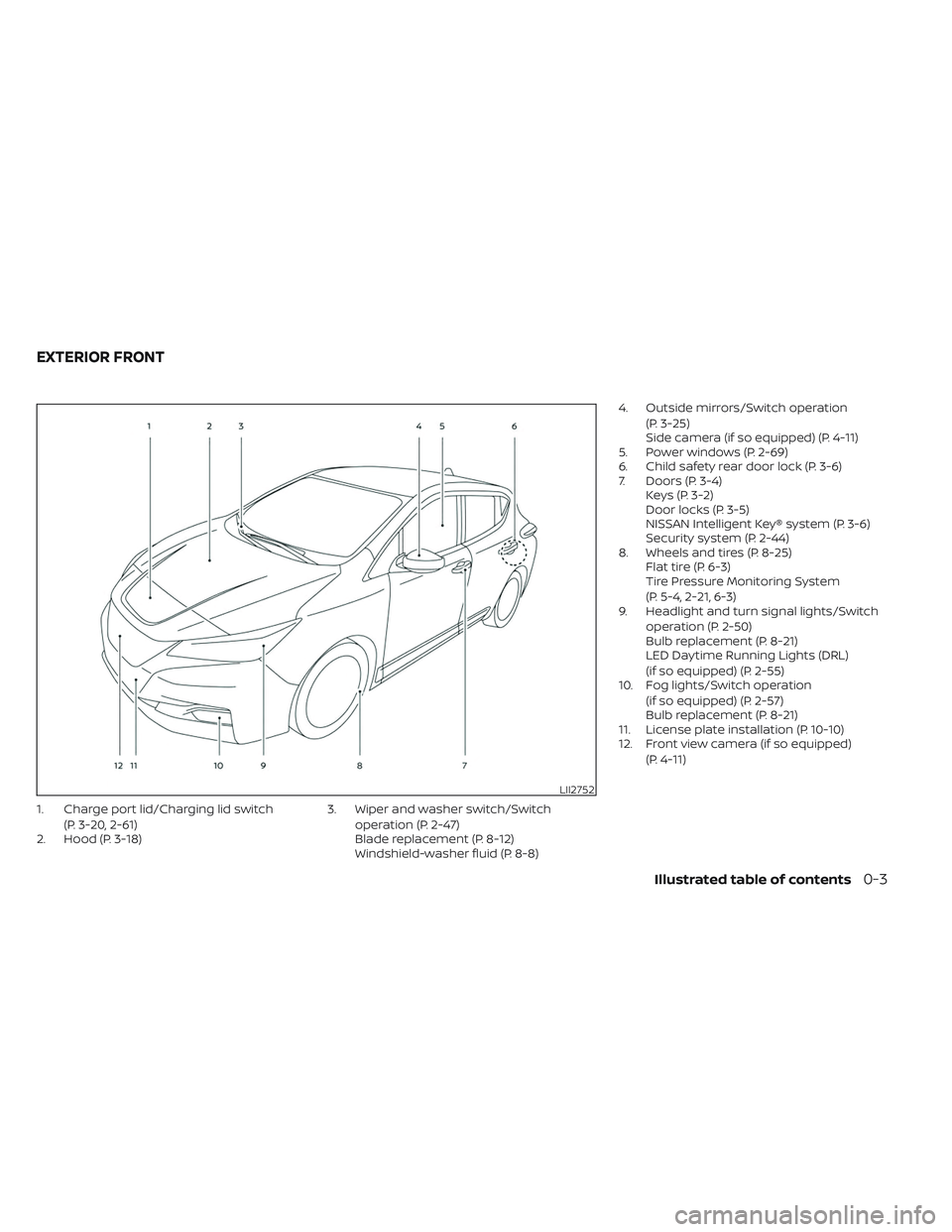

1. Charge port lid/Charging lid switch(P. 3-20, 2-61)
2. Hood (P. 3-18) 3. Wiper and washer switch/Switch
operation (P. 2-47)
Blade replacement (P. 8-12)
Windshield-washer fluid (P. 8-8) 4. Outside mirrors/Switch operation
(P. 3-25)
Side camera (if so equipped) (P. 4-11)
5. Power windows (P. 2-69)
6. Child safety rear door lock (P. 3-6)
7. Doors (P. 3-4) Keys (P. 3-2)
Door locks (P. 3-5)
NISSAN Intelligent Key® system (P. 3-6)
Security system (P. 2-44)
8. Wheels and tires (P. 8-25) Flat tire (P. 6-3)
Tire Pressure Monitoring System
(P. 5-4, 2-21, 6-3)
9. Headlight and turn signal lights/Switch
operation (P. 2-50)
Bulb replacement (P. 8-21)
LED Daytime Running Lights (DRL)
(if so equipped) (P. 2-55)
10. Fog lights/Switch operation
(if so equipped) (P. 2-57)
Bulb replacement (P. 8-21)
11. License plate installation (P. 10-10)
12. Front view camera (if so equipped)
(P. 4-11)
LII2752
EXTERIOR FRONT
Illustrated table of contents0-3

1. Rear wiper and washer switch (P. 2-48)Windshield-washer fluid (P. 8-8)
2. High-mounted stop light (P. 8-21)
3. Rear window defroster (P. 2-49) 4. Rear combination lights (P. 8-21)
Bulb replacement (P. 8-21)
5. Rear sonar sensors (P. 2-42, 5-169)
6. Rear reflex reflector 7. Rear hatch (P. 3-19)
Rear view camera (P. 4-3, 4-11)
LII2622
EXTERIOR REAR
0-4Illustrated table of contents

1. Emergency tire puncture repair kit(P. 6-4)
2. Map lights (P. 2-73) Switch operation (P. 2-72) Bluetooth® Hands-Free Phone System
microphone*
Sunglasses holder (P. 2-66)
3. Sun visors (P. 3-23) 4. Inside rearview mirror (P. 3-24)
5. Front cup holders (P. 2-67)
6. Console box (P. 2-66)
USB/iPod® charging port (P. 2-64)
7. Cargo area (P. 2-65) Tonneau cover (if so equipped) (P. 2-68)
EVSE (Electric Vehicle Supply
Equipment) (P. CH-5)
*For additional information, refer to the
NissanConnect® Manual
LII2623
PASSENGER COMPARTMENT
Illustrated table of contents0-5

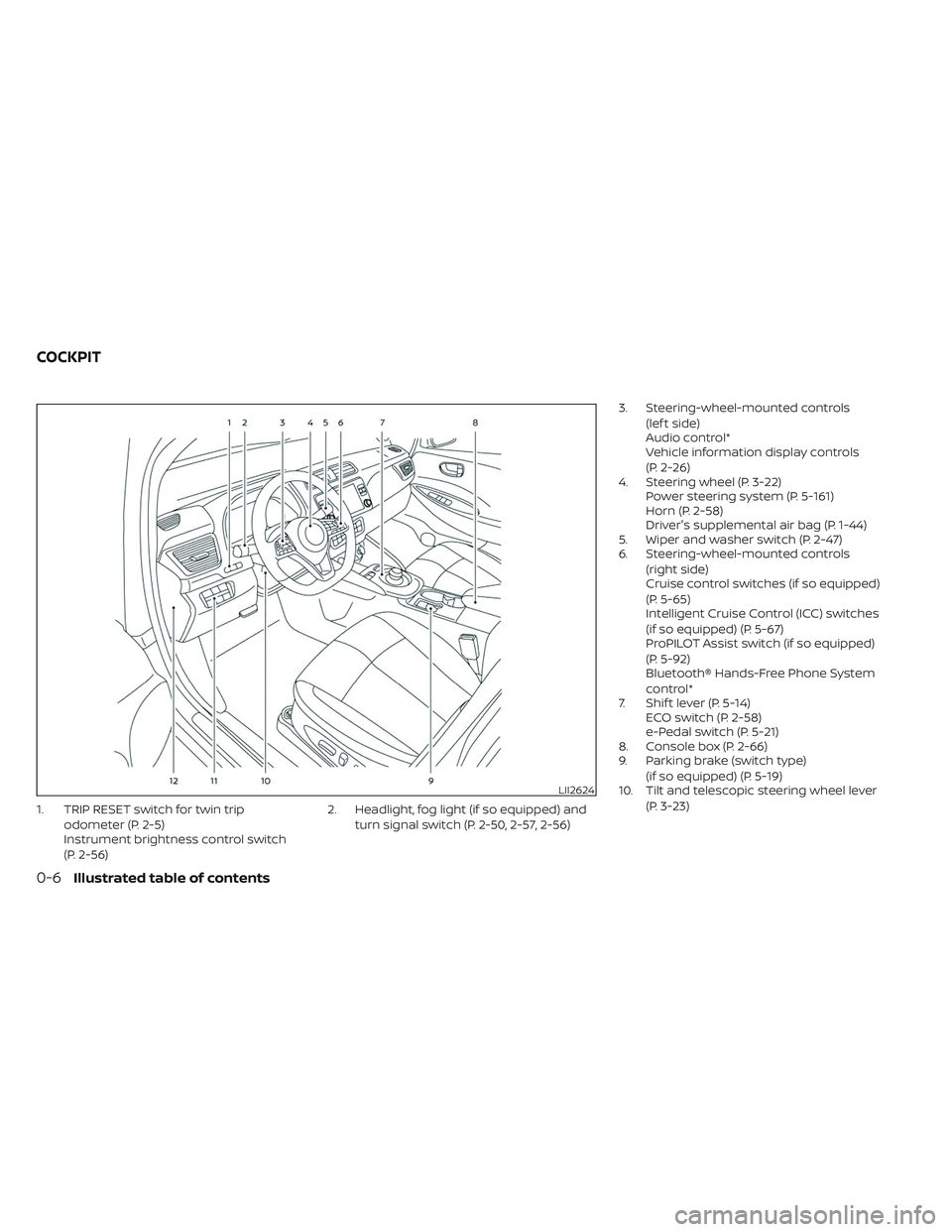

1. TRIP RESET switch for twin tripodometer (P. 2-5)
Instrument brightness control switch
(P. 2-56) 2. Headlight, fog light (if so equipped) and
turn signal switch (P. 2-50, 2-57, 2-56) 3. Steering-wheel-mounted controls
(lef t side)
Audio control*
Vehicle information display controls
(P. 2-26)
4. Steering wheel (P. 3-22) Power steering system (P. 5-161)
Horn (P. 2-58)
Driver's supplemental air bag (P. 1-44)
5. Wiper and washer switch (P. 2-47)
6. Steering-wheel-mounted controls
(right side)
Cruise control switches (if so equipped)
(P. 5-65)
Intelligent Cruise Control (ICC) switches
(if so equipped) (P. 5-67)
ProPILOT Assist switch (if so equipped)
(P. 5-92)
Bluetooth® Hands-Free Phone System
control*
7. Shif t lever (P. 5-14) ECO switch (P. 2-58)
e-Pedal switch (P. 5-21)
8. Console box (P. 2-66)
9. Parking brake (switch type)
(if so equipped) (P. 5-19)
10. Tilt and telescopic steering wheel lever
(P. 3-23)
LII2624
COCKPIT
0-6Illustrated table of contents

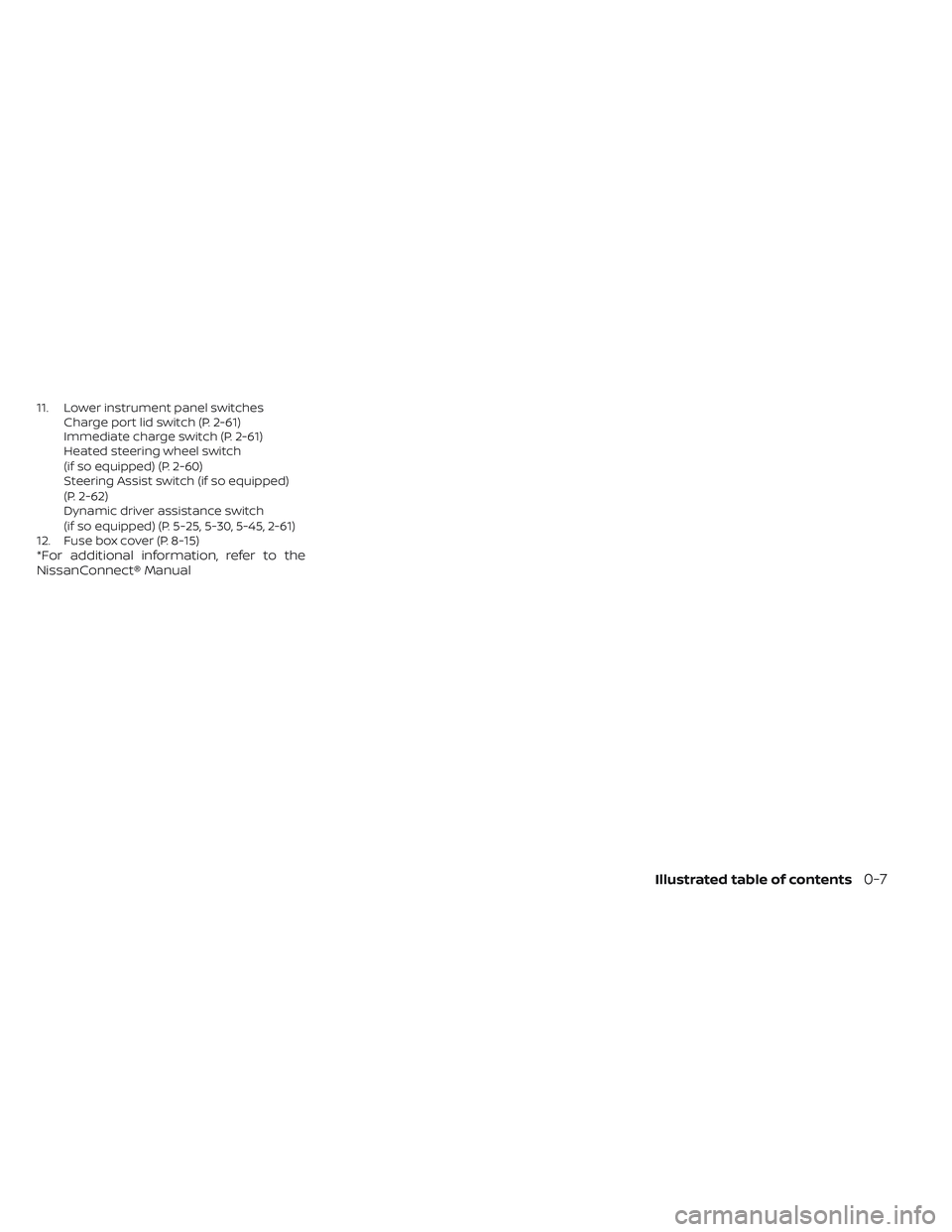

11. Lower instrument panel switchesCharge port lid switch (P. 2-61)
Immediate charge switch (P. 2-61)
Heated steering wheel switch
(if so equipped) (P. 2-60)
Steering Assist switch (if so equipped)
(P. 2-62)
Dynamic driver assistance switch
(if so equipped) (P. 5-25, 5-30, 5-45, 2-61)
12. Fuse box cover (P. 8-15)
*For additional information, refer to the
NissanConnect® Manual
Illustrated table of contents0-7
