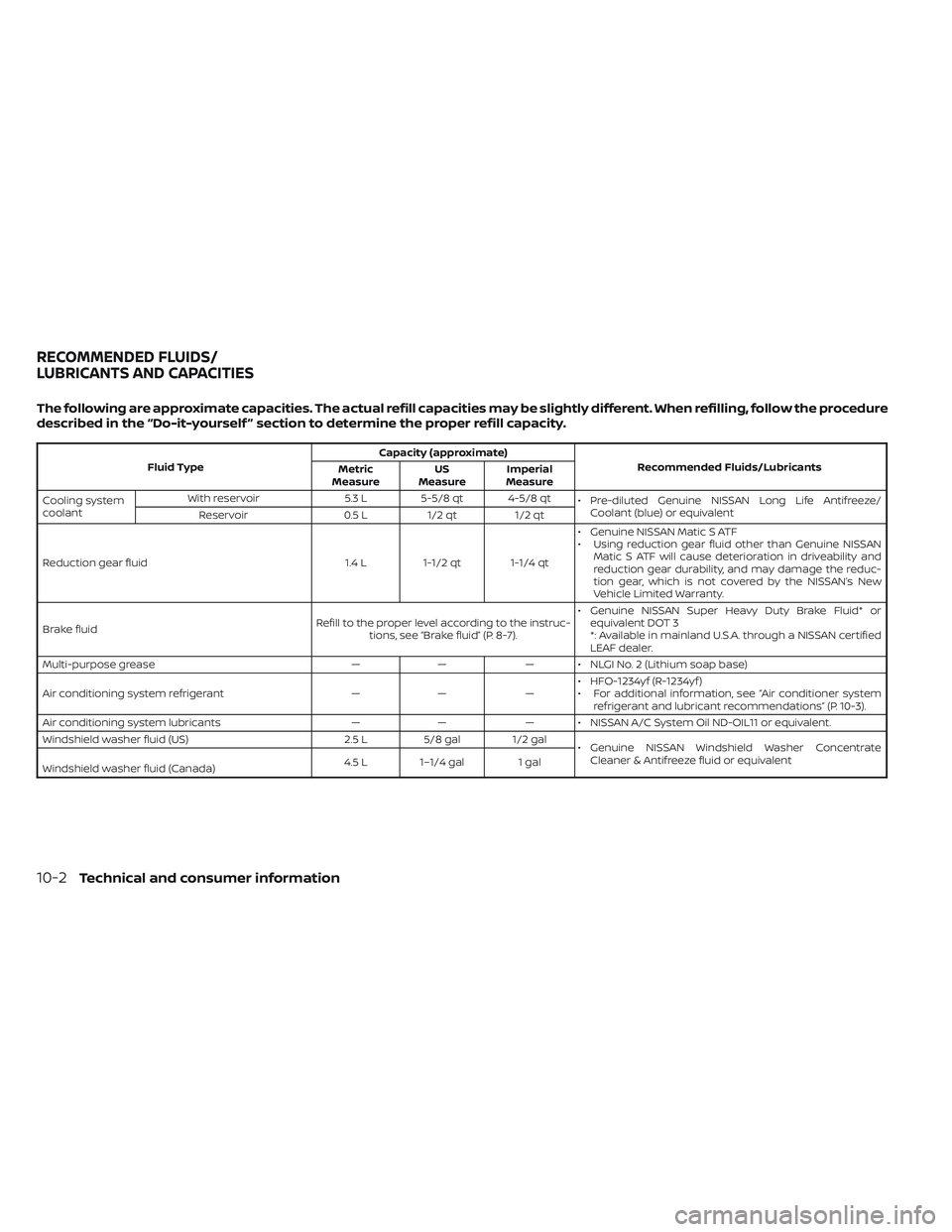

The following are approximate capacities. The actual refill capacities may be slightly different. When refilling, follow the procedure
described in the “Do-it-yourself ” section to determine the proper refill capacity.
Fluid TypeCapacity (approximate)
Recommended Fluids/Lubricants
Metric
Measure US
Measure Imperial
Measure
Cooling system
coolant With reservoir
5.3 L 5-5/8 qt 4-5/8 qt
• Pre-diluted Genuine NISSAN Long Life Antifreeze/
Coolant (blue) or equivalent
Reservoir 0.5 L1/2 qt 1/2 qt
Reduction gear fluid 1.4 L1-1/2 qt 1-1/4 qt • Genuine NISSAN Matic S ATF
• Using reduction gear fluid other than Genuine NISSAN
Matic S ATF will cause deterioration in driveability and
reduction gear durability, and may damage the reduc-
tion gear, which is not covered by the NISSAN’s New
Vehicle Limited Warranty.
Brake fluid Refill to the proper level according to the instruc-
tions, see “Brake fluid” (P. 8-7). • Genuine NISSAN Super Heavy Duty Brake Fluid* or
equivalent DOT 3
*: Available in mainland U.S.A. through a NISSAN certified
LEAF dealer.
Multi-purpose grease —— — • NLGI No. 2 (Lithium soap base)
Air conditioning system refrigerant —— —• HFO-1234yf (R-1234yf )
• For additional information, see “Air conditioner system
refrigerant and lubricant recommendations” (P. 10-3).
Air conditioning system lubricants —— — • NISSAN A/C System Oil ND-OIL11 or equivalent.
Windshield washer fluid (US) 2.5 L5/8 gal 1/2 gal
• Genuine NISSAN Windshield Washer Concentrate
Cleaner & Antifreeze fluid or equivalent
Windshield washer fluid (Canada) 4.5 L 1–1/4 gal 1 gal
RECOMMENDED FLUIDS/
LUBRICANTS AND CAPACITIES
10-2Technical and consumer information

AIR CONDITIONING SYSTEM
REFRIGERANT AND LUBRICANT
RECOMMENDATIONS

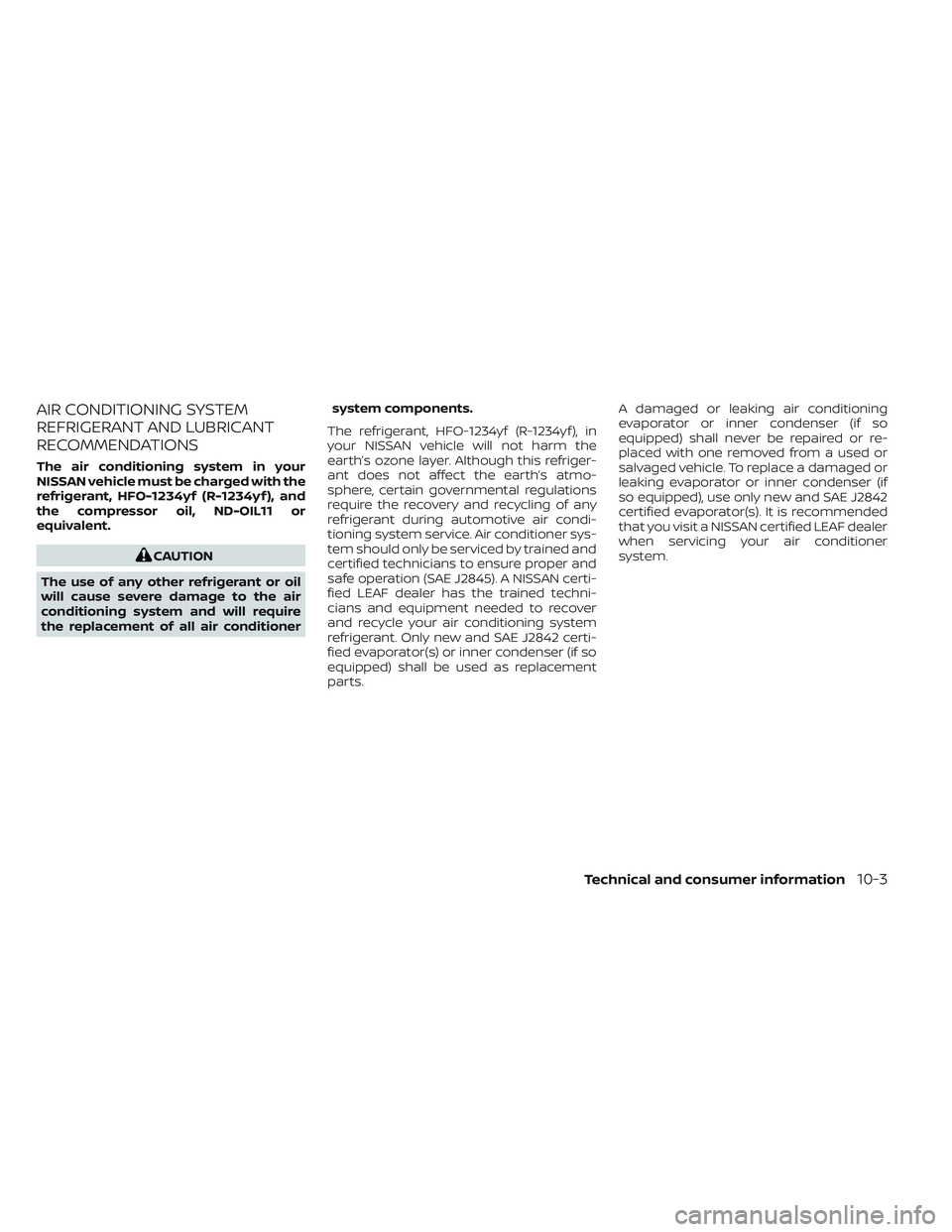

The air conditioning system in your
NISSAN vehicle must be charged with the
refrigerant, HFO-1234yf (R-1234yf ), and
the compressor oil, ND-OIL11 or
equivalent.
CAUTION
The use of any other refrigerant or oil
will cause severe damage to the air
conditioning system and will require
the replacement of all air conditioner system components.
The refrigerant, HFO-1234yf (R-1234yf ), in
your NISSAN vehicle will not harm the
earth’s ozone layer. Although this refriger-
ant does not affect the earth’s atmo-
sphere, certain governmental regulations
require the recovery and recycling of any
refrigerant during automotive air condi-
tioning system service. Air conditioner sys-
tem should only be serviced by trained and
certified technicians to ensure proper and
safe operation (SAE J2845). A NISSAN certi-
fied LEAF dealer has the trained techni-
cians and equipment needed to recover
and recycle your air conditioning system
refrigerant. Only new and SAE J2842 certi-
fied evaporator(s) or inner condenser (if so
equipped) shall be used as replacement
parts. A damaged or leaking air conditioning
evaporator or inner condenser (if so
equipped) shall never be repaired or re-
placed with one removed from a used or
salvaged vehicle. To replace a damaged or
leaking evaporator or inner condenser (if
so equipped), use only new and SAE J2842
certified evaporator(s). It is recommended
that you visit a NISSAN certified LEAF dealer
when servicing your air conditioner
system.
Technical and consumer information10-3

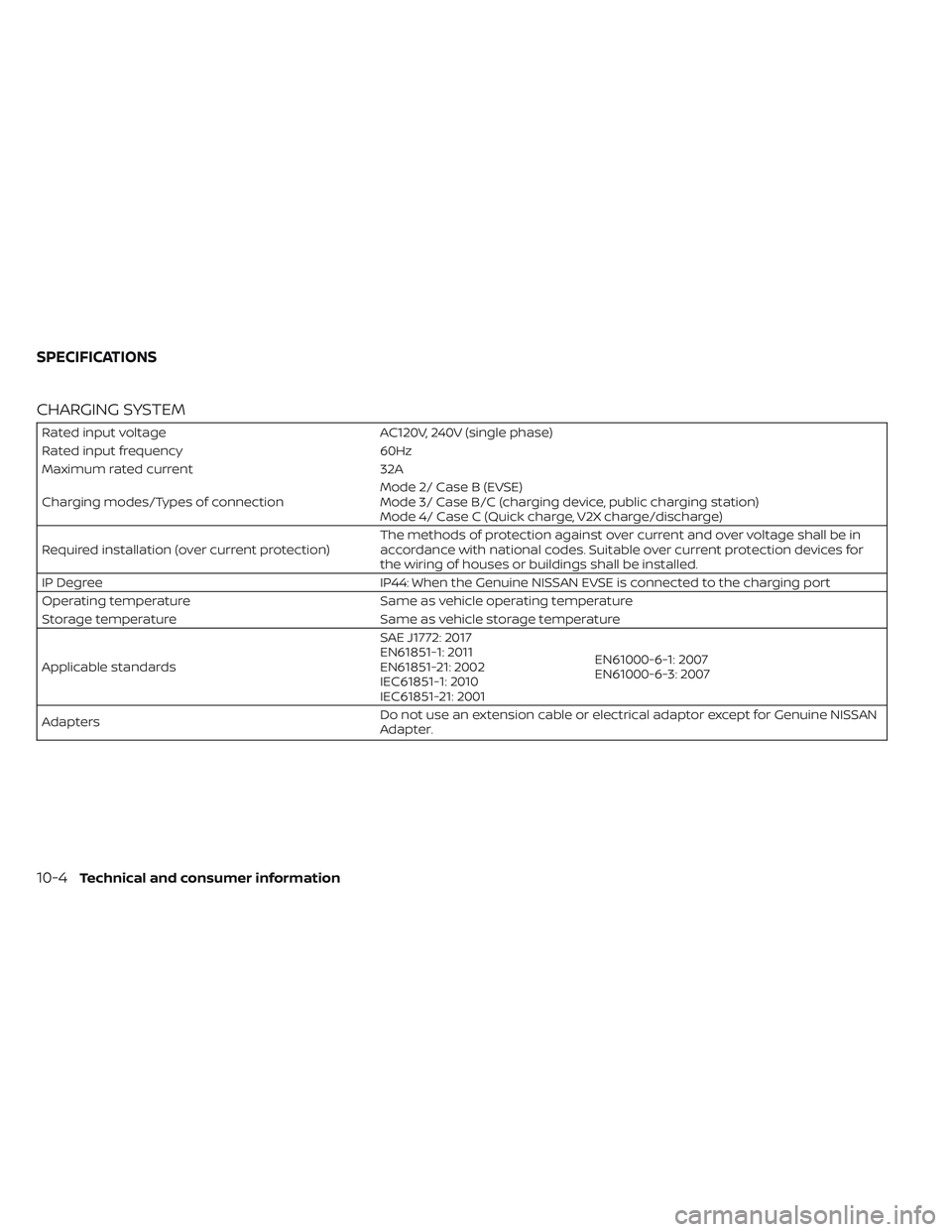

CHARGING SYSTEM
Rated input voltageAC120V, 240V (single phase)
Rated input frequency 60Hz
Maximum rated current 32A
Charging modes/Types of connection Mode 2/ Case B (EVSE)
Mode 3/ Case B/C (charging device, public charging station)
Mode 4/ Case C (Quick charge, V2X charge/discharge)
Required installation (over current protection) The methods of protection against over current and over voltage shall be in
accordance with national codes. Suitable over current protection devices for
the wiring of houses or buildings shall be installed.
IP Degree IP44: When the Genuine NISSAN EVSE is connected to the charging port
Operating temperature Same as vehicle operating temperature
Storage temperature Same as vehicle storage temperature
Applicable standards SAE J1772: 2017
EN61851-1: 2011
EN61851-21: 2002
IEC61851-1: 2010
IEC61851-21: 2001EN61000-6-1: 2007
EN61000-6-3: 2007
Adapters Do not use an extension cable or electrical adaptor except for Genuine NISSAN
Adapter.
SPECIFICATIONS
10-4Technical and consumer information

MOTOR
ModelEM57
WHEELS AND TIRES
Road wheel
TypeOffset
Metric
Measure Offset
US
Measure
Size
Steel 40 mm 1.57 in 16×6
1/2JJ
Alumi-
num 40 mm 1.57 in 16×6
1/2J
Alumi-
num 45 mm 1.77 in 17×6
1/2J
Tire
Tire
Size
All season P205/55R16 89H
All season P215/50R17 90V
Spare with emergency
tire puncture repair
kit
Technical and consumer information10-5

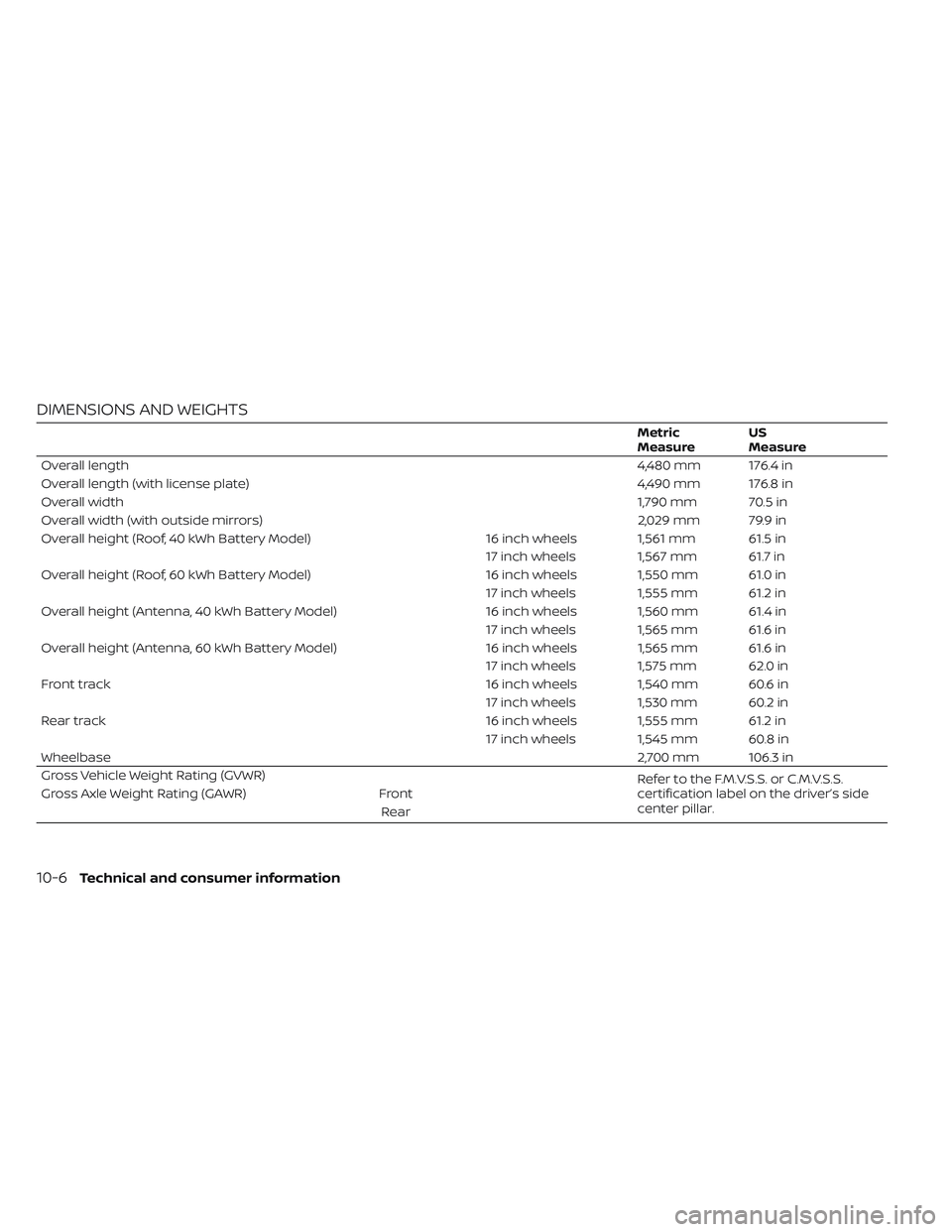

DIMENSIONS AND WEIGHTS
Metric
MeasureUS
Measure
Overall length 4,480 mm 176.4 in
Overall length (with license plate) 4,490 mm 176.8 in
Overall width 1,790 mm 70.5 in
Overall width (with outside mirrors) 2,029 mm 79.9 in
Overall height (Roof, 40 kWh Battery Model) 16 inch wheels 1,561 mm 61.5 in
17 inch wheels 1,567 mm 61.7 in
Overall height (Roof, 60 kWh Battery Model) 16 inch wheels 1,550 mm 61.0 in
17 inch wheels 1,555 mm 61.2 in
Overall height (Antenna, 40 kWh Battery Model) 16 inch wheels 1,560 mm 61.4 in
17 inch wheels 1,565 mm 61.6 in
Overall height (Antenna, 60 kWh Battery Model) 16 inch wheels 1,565 mm 61.6 in
17 inch wheels 1,575 mm 62.0 in
Front track 16 inch wheels 1,540 mm 60.6 in
17 inch wheels 1,530 mm 60.2 in
Rear track 16 inch wheels 1,555 mm 61.2 in
17 inch wheels 1,545 mm 60.8 in
Wheelbase 2,700 mm 106.3 in
Gross Vehicle Weight Rating (GVWR) Refer to the F.M.V.S.S. or C.M.V.S.S.
certification label on the driver’s side
center pillar.
Gross Axle Weight Rating (GAWR)
Front
Rear
10-6Technical and consumer information

When planning to travel in another coun-
try,you should first find out if the charging
equipment is compatible with that coun-
try's electrical system.
When transferring the registration of
your vehicle to another country, state,
province or district, it may be necessary
to modif y the vehicle to meet local laws
and regulations.
The laws and regulations for motor vehicle
safety standards vary according to the
country, state, province or district; there-
fore, vehicle specifications may differ.
When any vehicle is to be taken into an-
other country, state, province or district
and registered, its modifications, trans-
portation, and registration are the re-
sponsibility of the user. NISSAN is not re-
sponsible for any inconvenience that
may result.

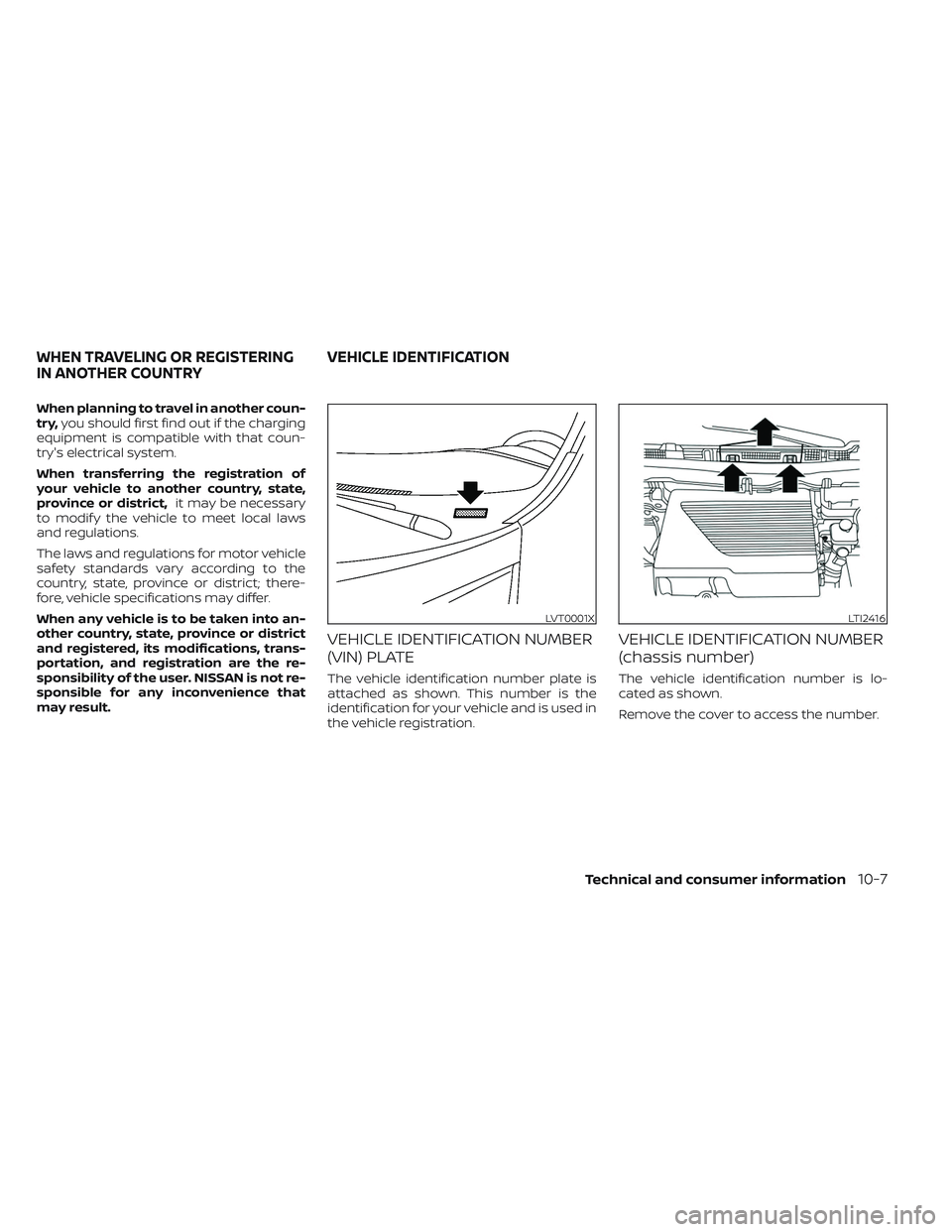

VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
The vehicle identification number plate is
attached as shown. This number is the
identification for your vehicle and is used in
the vehicle registration.
VEHICLE IDENTIFICATION NUMBER
(chassis number)
The vehicle identification number is lo-
cated as shown.
Remove the cover to access the number.
LVT0001XLTI2416
WHEN TRAVELING OR REGISTERING
IN ANOTHER COUNTRY VEHICLE IDENTIFICATION
Technical and consumer information10-7
