2023 NISSAN LEAF Owners Manual

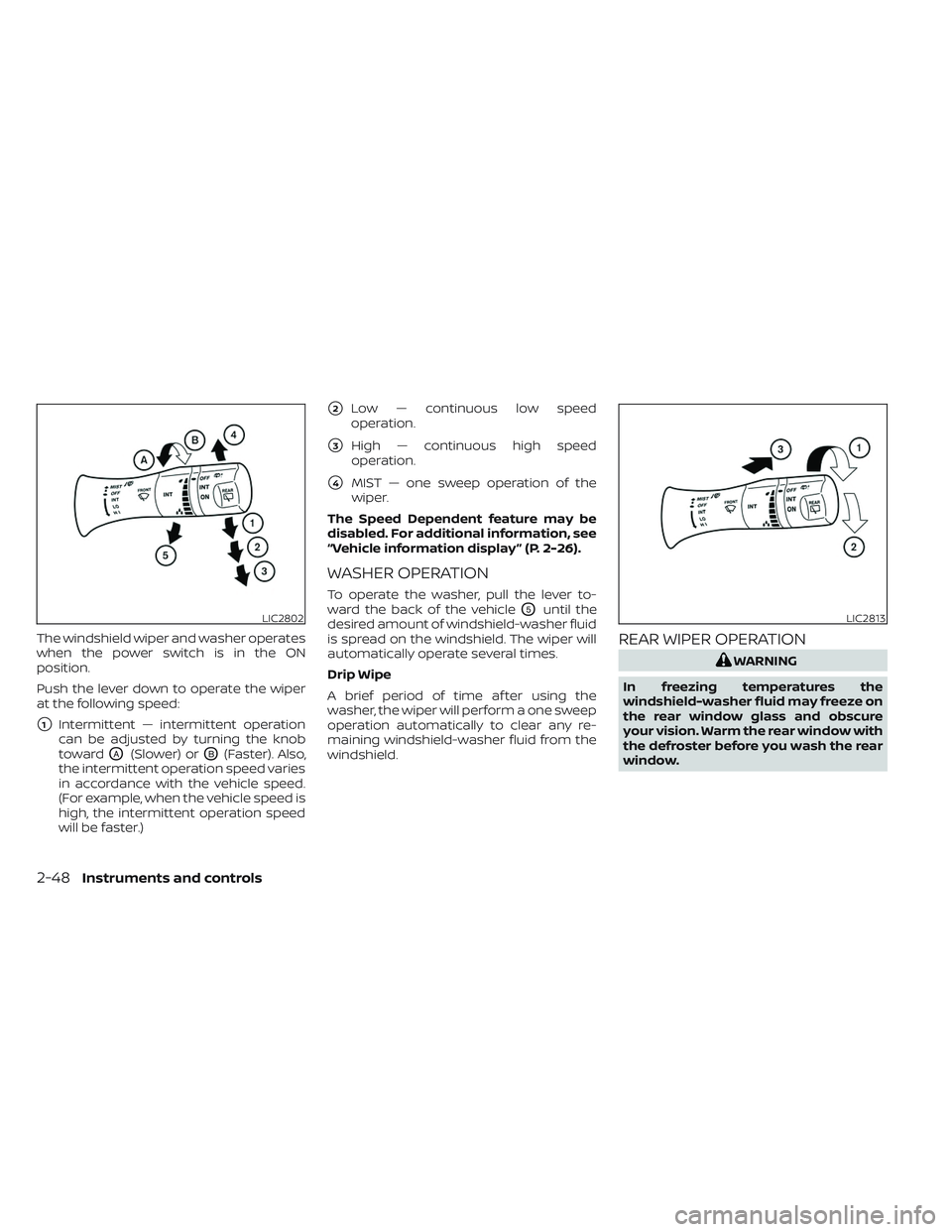

The windshield wiper and washer operates
when the power switch is in the ON
position.
Push the lever down to operate the wiper
at the following speed:
1Intermittent — intermittent operation
can be adjusted by turning the knob
toward
OA(Slower) orOB(Faster). Also,
the intermittent operation speed varies
in accordance with the vehicle speed.
(For example, when the vehicle speed is
high, the intermittent operation speed
will be faster.)
2Low — continuous low speed
operation.
3High — continuous high speed
operation.
4MIST — one sweep operation of the
wiper.
The Speed Dependent feature may be
disabled. For additional information, see
“Vehicle information display ” (P. 2-26).
WASHER OPERATION
To operate the washer, pull the lever to-
ward the back of the vehicle
O5until the
desired amount of windshield-washer fluid
is spread on the windshield. The wiper will
automatically operate several times.
Drip Wipe
A brief period of time af ter using the
washer, the wiper will perform a one sweep
operation automatically to clear any re-
maining windshield-washer fluid from the
windshield.
REAR WIPER OPERATION
WARNING
In freezing temperatures the
windshield-washer fluid may freeze on
the rear window glass and obscure
your vision. Warm the rear window with
the defroster before you wash the rear
window.
LIC2802LIC2813
2-48Instruments and controls

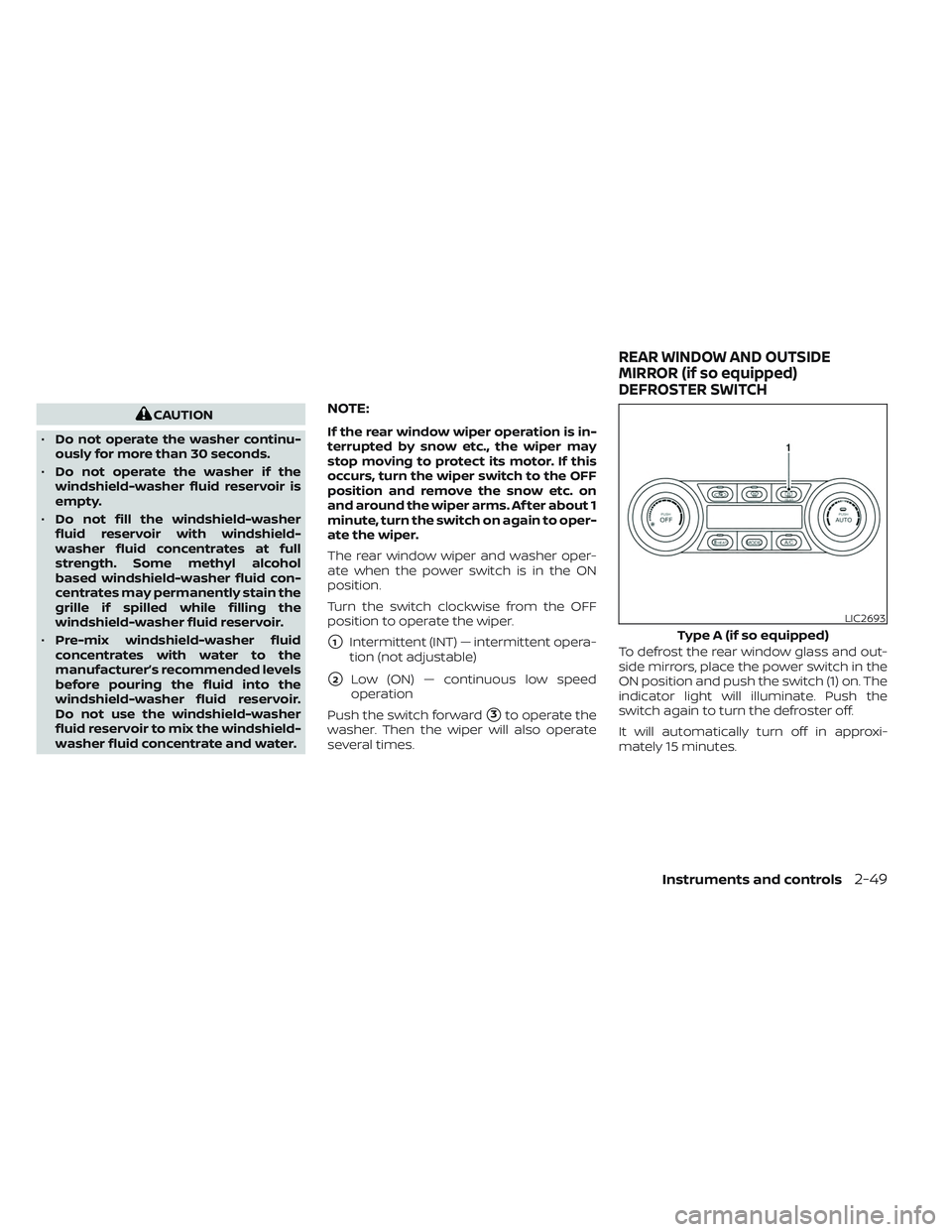

CAUTION
• Do not operate the washer continu-
ously for more than 30 seconds.
• Do not operate the washer if the
windshield-washer fluid reservoir is
empty.
• Do not fill the windshield-washer
fluid reservoir with windshield-
washer fluid concentrates at full
strength. Some methyl alcohol
based windshield-washer fluid con-
centrates may permanently stain the
grille if spilled while filling the
windshield-washer fluid reservoir.
• Pre-mix windshield-washer fluid
concentrates with water to the
manufacturer’s recommended levels
before pouring the fluid into the
windshield-washer fluid reservoir.
Do not use the windshield-washer
fluid reservoir to mix the windshield-
washer fluid concentrate and water.NOTE:
If the rear window wiper operation is in-
terrupted by snow etc., the wiper may
stop moving to protect its motor. If this
occurs, turn the wiper switch to the OFF
position and remove the snow etc. on
and around the wiper arms. Af ter about 1
minute, turn the switch on again to oper-
ate the wiper.
The rear window wiper and washer oper-
ate when the power switch is in the ON
position.
Turn the switch clockwise from the OFF
position to operate the wiper.
1Intermittent (INT) — intermittent opera-
tion (not adjustable)
2Low (ON) — continuous low speed
operation
Push the switch forward
3to operate the
washer. Then the wiper will also operate
several times. To defrost the rear window glass and out-
side mirrors, place the power switch in the
ON position and push the switch (1) on. The
indicator light will illuminate. Push the
switch again to turn the defroster off.
It will automatically turn off in approxi-
mately 15 minutes.
LIC2693
Type A (if so equipped)
REAR WINDOW AND OUTSIDE
MIRROR (if so equipped)
DEFROSTER SWITCH
Instruments and controls2-49

CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or

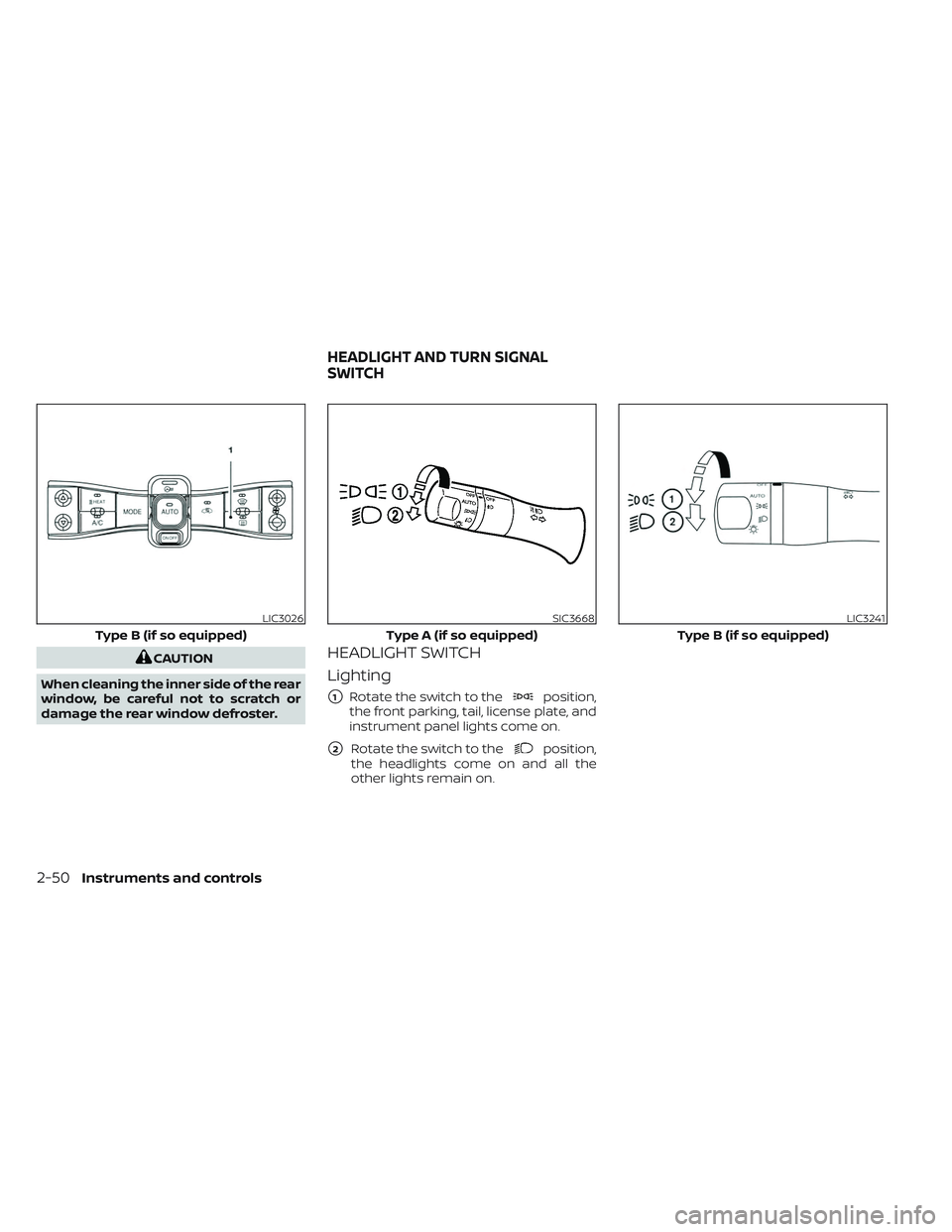

damage the rear window defroster.HEADLIGHT SWITCH
Lighting
1Rotate the switch to theposition,
the front parking, tail, license plate, and
instrument panel lights come on.
2Rotate the switch to theposition,
the headlights come on and all the
other lights remain on.
LIC3026
Type B (if so equipped)
SIC3668
Type A (if so equipped)
LIC3241
Type B (if so equipped)
HEADLIGHT AND TURN SIGNAL
SWITCH
2-50Instruments and controls

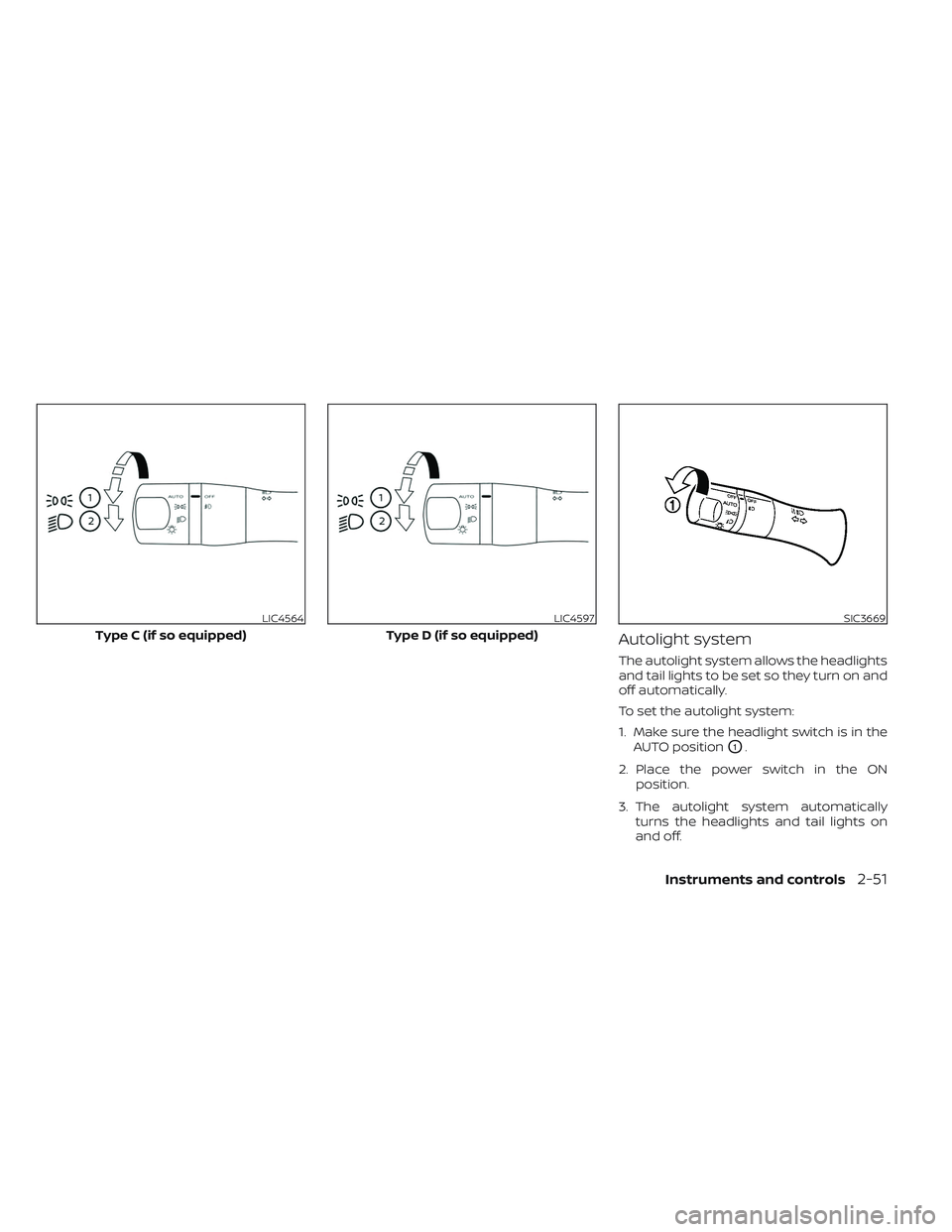

Autolight system
The autolight system allows the headlights
and tail lights to be set so they turn on and
off automatically.
To set the autolight system:
1. Make sure the headlight switch is in theAUTO position
O1.
2. Place the power switch in the ON position.
3. The autolight system automatically turns the headlights and tail lights on
and off.
LIC4564
Type C (if so equipped)
LIC4597
Type D (if so equipped)
SIC3669
Instruments and controls2-51

To turn the autolight system off, turn the
switch to the OFF,orposition.
The autolight system can turn on the
headlights and tail lights automatically
when it is dark and turn off the headlights
when it is light.
For US models: The headlights and tail
lights will also be turned on automatically
at twilight or in rainy weather (when the
windshield wiper is operated continuously).
If the power switch is placed in the OFF
position and one of the doors is opened
and this condition continues, the head-
lights remain on for 45 seconds.
Automatic headlights off delay
You can keep the headlights on for up to
180 seconds af ter you push the power
switch to OFF and open any door then
close all the doors.
You can adjust the period of the automatic
headlights off delay from 0 seconds (OFF)
to 180 seconds. The factory default setting
is 45 seconds.
NOTE:
For additional information on adjust-
ing the automatic headlights off de-
lay, see “Vehicle information display ”
(P. 2-26).
Be sure not to put anything on top of the
photo sensor
O1located on the top of
the instrument panel. The photo sensor
controls the autolight; if it is covered, the
photo sensor reacts as if it is dark and
the headlights will illuminate.Headlight beam select
1To select the low beam, have the lever
in the neutral position as shown and
rotate the switch to the desired posi-
tion. For additional information, see
“Headlight switch” (P. 2-50).
2To select the high beam, push the lever
forward while the switch is in the
position. The high beams will come on
and the high beam indicator (blue)
will illuminate. Pull it back to return to
the low beam.
SAA1232SIC3670
2-52Instruments and controls

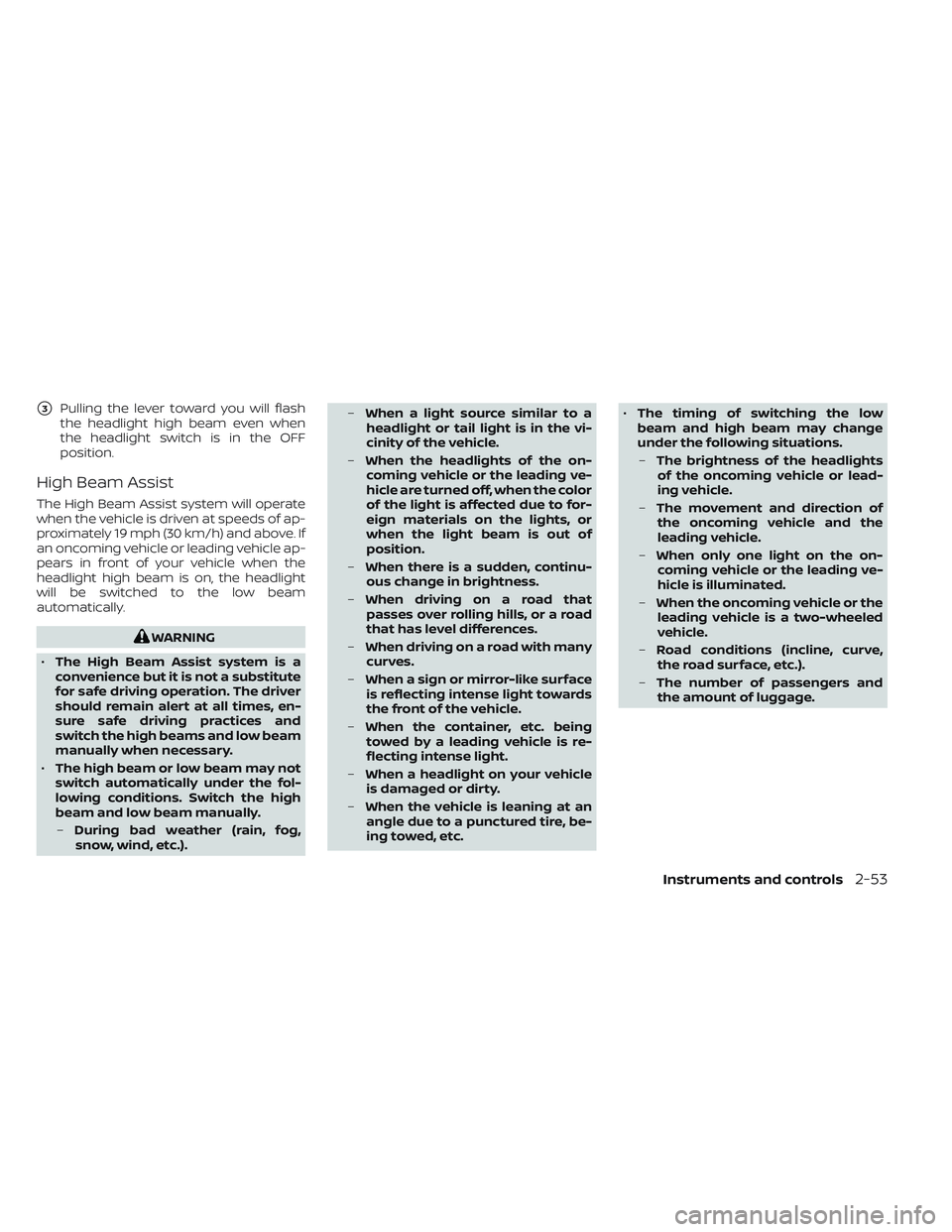

3Pulling the lever toward you will flash
the headlight high beam even when
the headlight switch is in the OFF
position.
High Beam Assist
The High Beam Assist system will operate
when the vehicle is driven at speeds of ap-
proximately 19 mph (30 km/h) and above. If
an oncoming vehicle or leading vehicle ap-
pears in front of your vehicle when the
headlight high beam is on, the headlight
will be switched to the low beam
automatically.
WARNING
• The High Beam Assist system is a
convenience but it is not a substitute
for safe driving operation. The driver
should remain alert at all times, en-
sure safe driving practices and
switch the high beams and low beam
manually when necessary.
• The high beam or low beam may not
switch automatically under the fol-
lowing conditions. Switch the high
beam and low beam manually.
– During bad weather (rain, fog,
snow, wind, etc.). –
When a light source similar to a
headlight or tail light is in the vi-
cinity of the vehicle.
– When the headlights of the on-
coming vehicle or the leading ve-
hicle are turned off, when the color
of the light is affected due to for-
eign materials on the lights, or
when the light beam is out of
position.
– When there is a sudden, continu-
ous change in brightness.
– When driving on a road that
passes over rolling hills, or a road
that has level differences.
– When driving on a road with many
curves.
– When a sign or mirror-like surface
is reflecting intense light towards
the front of the vehicle.
– When the container, etc. being
towed by a leading vehicle is re-
flecting intense light.
– When a headlight on your vehicle
is damaged or dirty.
– When the vehicle is leaning at an
angle due to a punctured tire, be-
ing towed, etc. •
The timing of switching the low
beam and high beam may change
under the following situations.
– The brightness of the headlights
of the oncoming vehicle or lead-
ing vehicle.
– The movement and direction of
the oncoming vehicle and the
leading vehicle.
– When only one light on the on-
coming vehicle or the leading ve-
hicle is illuminated.
– When the oncoming vehicle or the
leading vehicle is a two-wheeled
vehicle.
– Road conditions (incline, curve,
the road surface, etc.).
– The number of passengers and
the amount of luggage.
Instruments and controls2-53

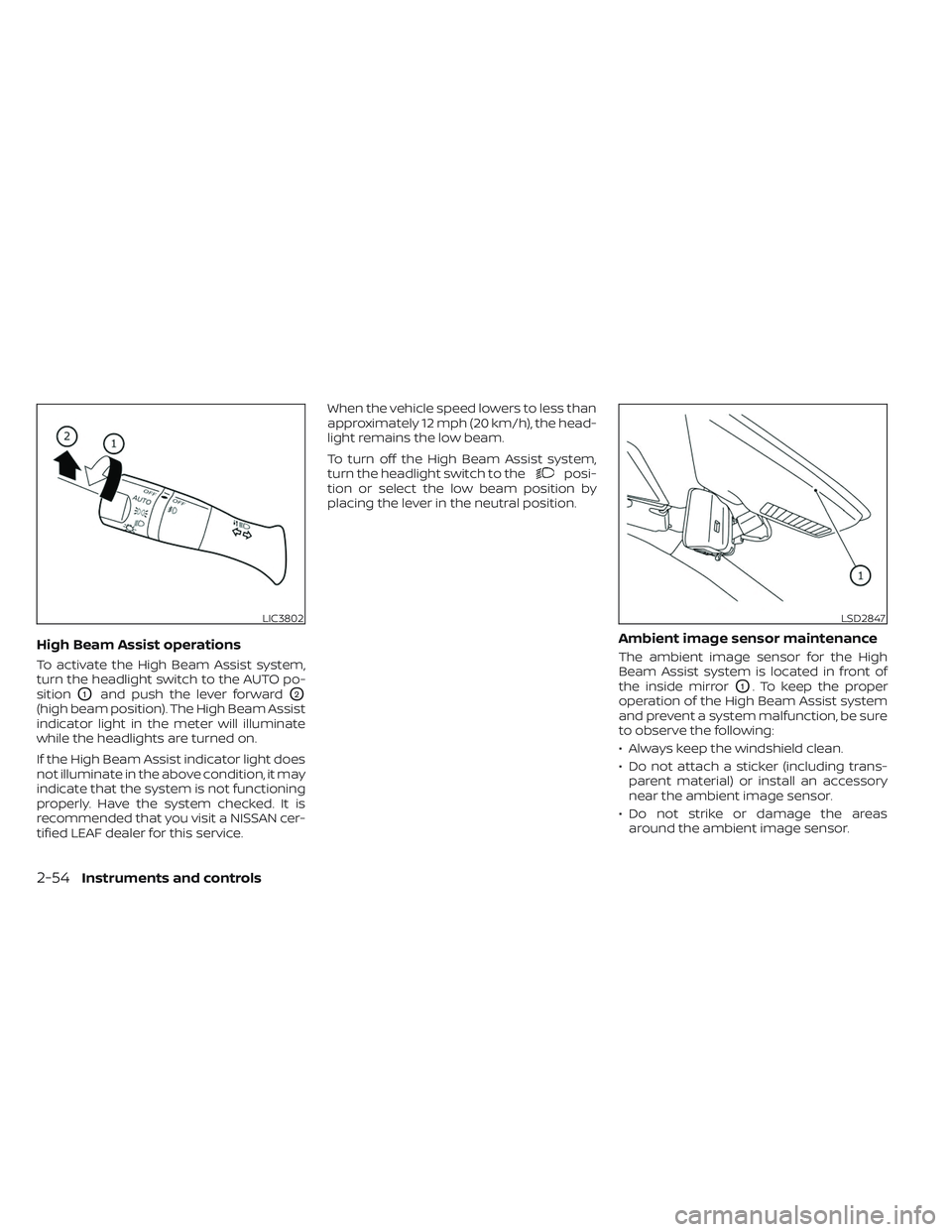

High Beam Assist operations
To activate the High Beam Assist system,
turn the headlight switch to the AUTO po-
sition
O1and push the lever forwardO2
(high beam position). The High Beam Assist
indicator light in the meter will illuminate
while the headlights are turned on.
If the High Beam Assist indicator light does
not illuminate in the above condition, it may
indicate that the system is not functioning
properly. Have the system checked. It is
recommended that you visit a NISSAN cer-
tified LEAF dealer for this service.When the vehicle speed lowers to less than
approximately 12 mph (20 km/h), the head-
light remains the low beam.
To turn off the High Beam Assist system,
turn the headlight switch to the
posi-
tion or select the low beam position by
placing the lever in the neutral position.
Ambient image sensor maintenance
The ambient image sensor for the High
Beam Assist system is located in front of
the inside mirror
O1. To keep the proper
operation of the High Beam Assist system
and prevent a system malfunction, be sure
to observe the following:
• Always keep the windshield clean.
• Do not attach a sticker (including trans- parent material) or install an accessory
near the ambient image sensor.
• Do not strike or damage the areas around the ambient image sensor.
LIC3802LSD2847
2-54Instruments and controls

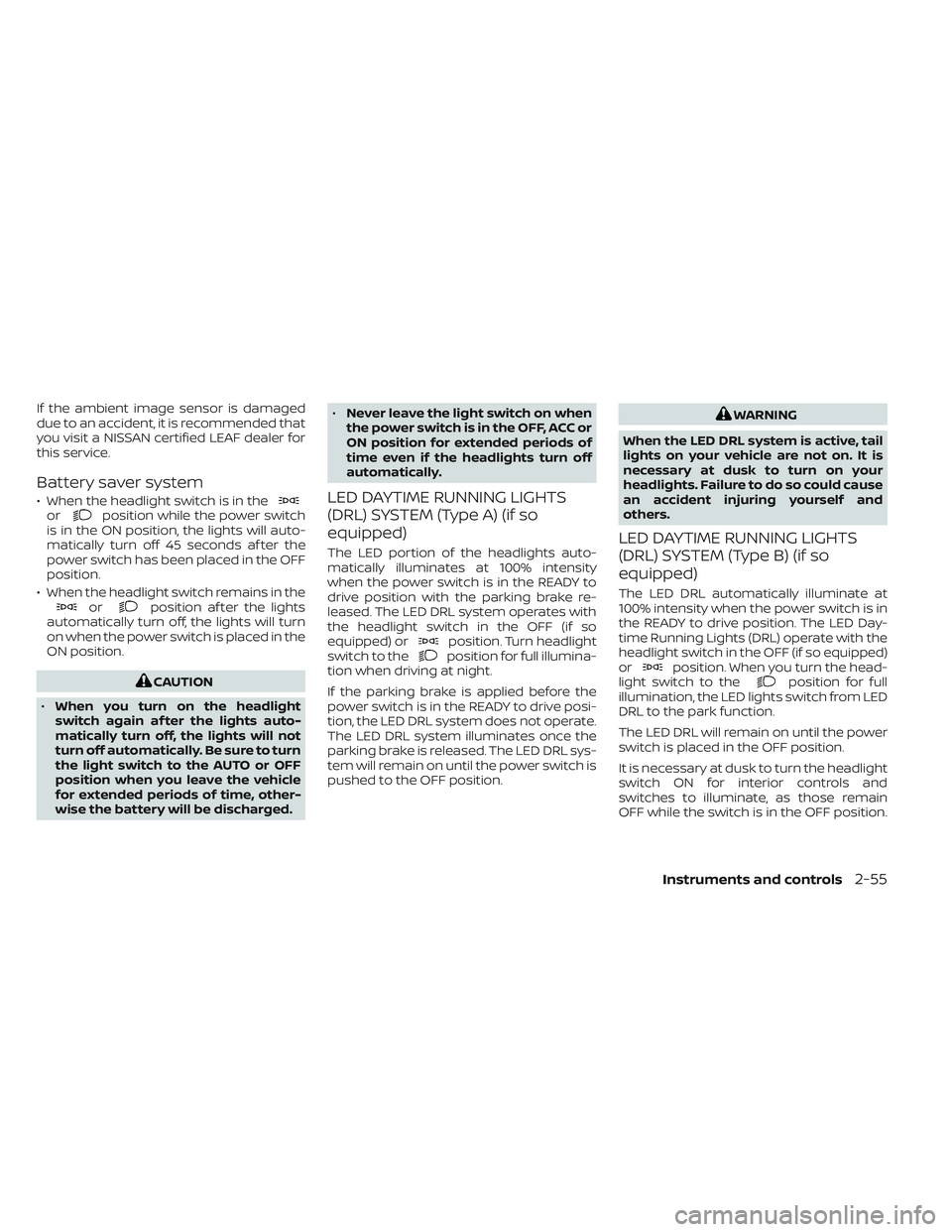

If the ambient image sensor is damaged
due to an accident, it is recommended that
you visit a NISSAN certified LEAF dealer for
this service.
Battery saver system
• When the headlight switch is in theorposition while the power switch
is in the ON position, the lights will auto-
matically turn off 45 seconds af ter the
power switch has been placed in the OFF
position.
• When the headlight switch remains in the
orposition af ter the lights
automatically turn off, the lights will turn
on when the power switch is placed in the
ON position.
CAUTION
• When you turn on the headlight
switch again af ter the lights auto-
matically turn off, the lights will not
turn off automatically. Be sure to turn
the light switch to the AUTO or OFF
position when you leave the vehicle
for extended periods of time, other-
wise the battery will be discharged. •
Never leave the light switch on when
the power switch is in the OFF, ACC or
ON position for extended periods of
time even if the headlights turn off
automatically.
LED DAYTIME RUNNING LIGHTS
(DRL) SYSTEM (Type A) (if so
equipped)
The LED portion of the headlights auto-
matically illuminates at 100% intensity
when the power switch is in the READY to
drive position with the parking brake re-
leased. The LED DRL system operates with
the headlight switch in the OFF (if so
equipped) or
position. Turn headlight
switch to theposition for full illumina-
tion when driving at night.
If the parking brake is applied before the
power switch is in the READY to drive posi-
tion, the LED DRL system does not operate.
The LED DRL system illuminates once the
parking brake is released. The LED DRL sys-
tem will remain on until the power switch is
pushed to the OFF position.
WARNING
When the LED DRL system is active, tail
lights on your vehicle are not on. It is
necessary at dusk to turn on your
headlights. Failure to do so could cause
an accident injuring yourself and
others.
LED DAYTIME RUNNING LIGHTS
(DRL) SYSTEM (Type B) (if so
equipped)
The LED DRL automatically illuminate at
100% intensity when the power switch is in
the READY to drive position. The LED Day-
time Running Lights (DRL) operate with the
headlight switch in the OFF (if so equipped)
or
position. When you turn the head-
light switch to theposition for full
illumination, the LED lights switch from LED
DRL to the park function.
The LED DRL will remain on until the power
switch is placed in the OFF position.
It is necessary at dusk to turn the headlight
switch ON for interior controls and
switches to illuminate, as those remain
OFF while the switch is in the OFF position.
Instruments and controls2-55
