2023 HYUNDAI PALISADE Section 5

Driving Your Vehicle6-62
Information
The ESC system must be turned OFF
before rocking the vehicle.
NOTICE
If you are still stuck after rocking the
vehicle a few times, have the vehicle
pulled out by a tow vehicle to avoid
engine overheating, possible damage to
the transmission, and tire damage. See
“Towing” section in chapter 8.
Smooth Cornering
Avoid braking or gear changing in
corners, especially when roads are wet.
Ideally, corners should always be taken
under gentle acceleration.
Driving at Night
Night driving presents more hazards than
driving in the daylight. Here are some
important tips to remember:

[ Slow down and keep more distance
between you and other vehicles, as it
may be more difficult to see at night,
especially in areas where there may
not be any street lights.

[ Adjust your mirrors to reduce the glare
from other drivers’ headlights.

[ Keep your headlights clean and
properly aimed. Dirty or improperly
aimed headlights will make it much
more difficult to see at night.

[ Avoid staring directly at the headlights
of oncoming vehicles. You could be
temporarily blinded, and it will take
several seconds for your eyes to
readjust to the darkness.

06
6-63
Driving in the Rain
Rain and wet roads can make driving
dangerous. Here are a few things to
consider when driving in the rain or on
slick pavement:

[Slow down and allow extra following
distance. A heavy rainfall makes
it harder to see and increases the
distance needed to stop your vehicle.

[ Turn OFF your Cruise Control. (if
equipped)

[ Replace your windshield wiper blades
when they show signs of streaking or
missing areas on the windshield.

[ Be sure your tires have enough tread.
If your tires do not have enough tread,
making a quick stop on wet pavement
can cause a skid and possibly lead to
an accident. See “Tire Tread” section
in chapter 9.

[ Turn on your headlights to make it
easier for others to see you.

[ Driving too fast through large puddles
can affect your brakes. If you must go
through puddles, try to drive through
them slowly.

[ If you believe your brakes may be wet,
apply them lightly while driving until
normal braking operation returns.
Hydroplaning
If the road is wet enough and you are
going fast enough, your vehicle may
have little or no contact with the road
surface and actually ride on the water.
The best advice is SLOW DOWN when
the road is wet.
The risk of hydroplaning increases as the
depth of tire tread decreases, refer to
“Tire Tread” section in chapter 9.
Driving in Flooded Areas
Avoid driving through flooded areas
unless you are sure the water is no
higher than the bottom of the wheel hub.
Drive through any water slowly. Allow
adequate stopping distance because
brake performance may be reduced.
After driving through water, dry the
brakes by gently applying them several
times while the vehicle is moving slowly.
Highway Driving
Tires
Adjust the tire inflation, as specified.
Under-inflation may overheat or damage
the tires.
Do not install worn-out or damaged tires,
which may reduce traction or fail the
braking operation.
Information
Never over-inflate your tires above the
maximum inflation pressure, as specified
on your tires.
Fuel, engine coolant and engine oil
Driving at higher speeds on the highway
consumes more fuel and is less efficient
than driving at a slower, more moderate
speed. Maintain a moderate speed in
order to conserve fuel when driving on
the highway.
Be sure to check both the engine coolant
level and the engine oil before driving.
Drive belt
A loose or damaged drive belt may
overheat the engine.

Driving Your Vehicle6-70
If you are considering towing with your
vehicle, be sure to take extra precautions
while driving. Only experienced drivers
should consider towing. Plan your trip
accordingly as vehicle speed limits for
vehicles towing trailers may be different.
Always follow posted speed limits for
vehicles towing with trailers.
Remember that trailering is different
than just driving your vehicle by
itself. Trailering means changes in
handling, durability, and fuel economy.
Successful, safe trailering requires
correct equipment, and it has to be used
properly. Damage to your vehicle caused
by improper trailer towing is not covered
by your vehicle manufacturer’s warranty.
This section contains time-tested,
important trailering tips and safety
rules. Many of these are important for
your safety and that of your passengers.
Please read this section carefully before
you pull a trailer.
WARNING
Take the following precautions:

[ If you don’t use the correct
equipment and/or drive improperly,
you can lose control of the vehicle
when you are pulling a trailer. For
example, if the trailer is too heavy,
the braking performance may be
reduced. You and your passengers
could be seriously or fatally injured.
Pull a trailer only if you have followed
all the steps in this section.

[ Before towing, make sure the
total trailer weight, GCW (Gross
Combination Weight), GVW (Gross
Vehicle Weight), GAW (Gross Axle
Weight) and trailer tongue load are
all within the limits.

[ When you tow a trailer, make sure to
turn off the Idle Stop and Go system.
If You Decide to Pull a Trailer?
Here are some important points if you
decide to pull a trailer:

[Consider using a sway control. You
can ask a trailer hitch dealer about
sway control.

[ Do not do any towing with your
vehicle during its first 1,200 miles
(2,000 km) in order to allow the
engine to properly break in. Failure to
heed this caution may result in serious
engine or transmission damage.

[ When towing a trailer, consult an
authorized HYUNDAI dealer for
further information on additional
requirements such as a towing kit, etc.

[ Always drive your vehicle at posted
towing speed limit.

[ Carefully observe the weight and load
limits provided in the following pages.

[ When towing a trailer, be sure to
disable Reverse Parking Collision-
Avoidance Assist. If towing and going
in reverse the system will activate as it
detects the trailer. Also, before towing
a trailer disable all Driving Assistance
systems as precaution such as
Forward Collision–Avoidance Assist,
Lane Keeping Assist, Smart Cruise
Control and others.
TRAILER TOWING

Driver Assistance System7-2
Basic function
B0311KO01
Forward Collision-Avoidance Assist is
designed to help detect and monitor the
vehicle ahead or help detect a pedestrian
or cyclist in the roadway and warn the
driver that a collision is imminent with
a warning message and warning and
application of emergency braking.
In addition, when driving at high speeds,
Forward Collision-Avoidance Assist
will help detect vehicles in front and
adjacent lanes. If a collision is imminent
when changing lanes, Forward Collision-
Avoidance Assist will apply emergency
braking to help prevent a collision. (if
equipped) Junction Turning function
B0311KO02
Junction Turning function helps avoid
a collision with an oncoming vehicle in
an adjacent lane when turning left at
a crossroad with the turn signal on by
applying emergency braking.
Junction Crossing function (if
equipped)
B0311KO03
Junction Crossing function helps avoid
a collision with oncoming vehicles on
the left or right side when crossing an
intersection by applying emergency
braking.
)25:$5'&2//,6,21

07
7-21

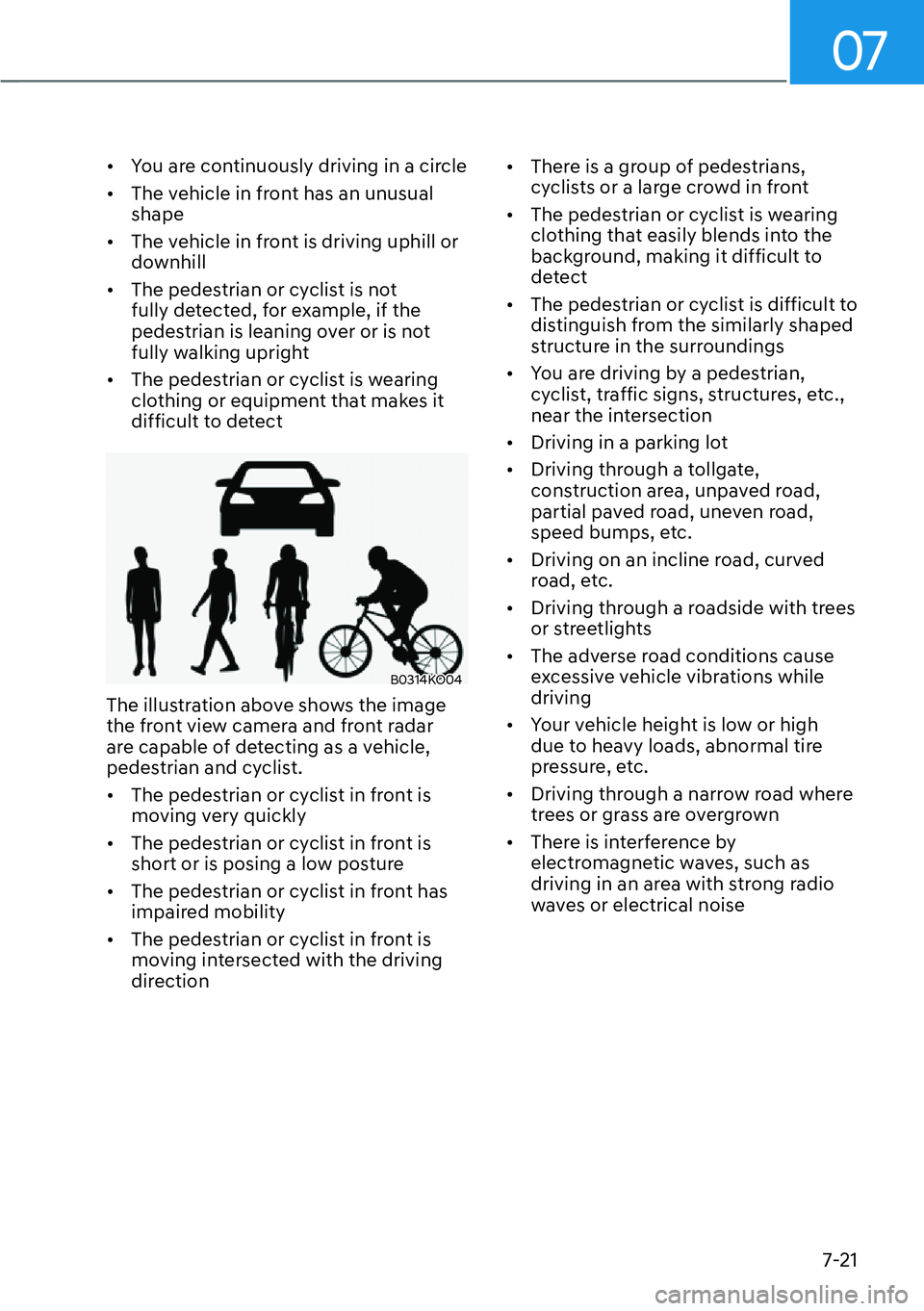

[You are continuously driving in a circle

[ The vehicle in front has an unusual
shape

[ The vehicle in front is driving uphill or
downhill

[ The pedestrian or cyclist is not
fully detected, for example, if the
pedestrian is leaning over or is not
fully walking upright

[ The pedestrian or cyclist is wearing
clothing or equipment that makes it
difficult to detect
B0314KO04
The illustration above shows the image
the front view camera and front radar
are capable of detecting as a vehicle,
pedestrian and cyclist.

[The pedestrian or cyclist in front is
moving very quickly

[ The pedestrian or cyclist in front is
short or is posing a low posture

[ The pedestrian or cyclist in front has
impaired mobility

[ The pedestrian or cyclist in front is
moving intersected with the driving
direction
[
There is a group of pedestrians,
cyclists or a large crowd in front

[ The pedestrian or cyclist is wearing
clothing that easily blends into the
background, making it difficult to
detect

[ The pedestrian or cyclist is difficult to
distinguish from the similarly shaped
structure in the surroundings

[ You are driving by a pedestrian,
cyclist, traffic signs, structures, etc.,
near the intersection

[ Driving in a parking lot

[ Driving through a tollgate,
construction area, unpaved road,
partial paved road, uneven road,
speed bumps, etc.

[ Driving on an incline road, curved
road, etc.

[ Driving through a roadside with trees
or streetlights

[ The adverse road conditions cause
excessive vehicle vibrations while
driving

[ Your vehicle height is low or high
due to heavy loads, abnormal tire
pressure, etc.

[ Driving through a narrow road where
trees or grass are overgrown

[ There is interference by
electromagnetic waves, such as
driving in an area with strong radio
waves or electrical noise

Driver Assistance System7-22

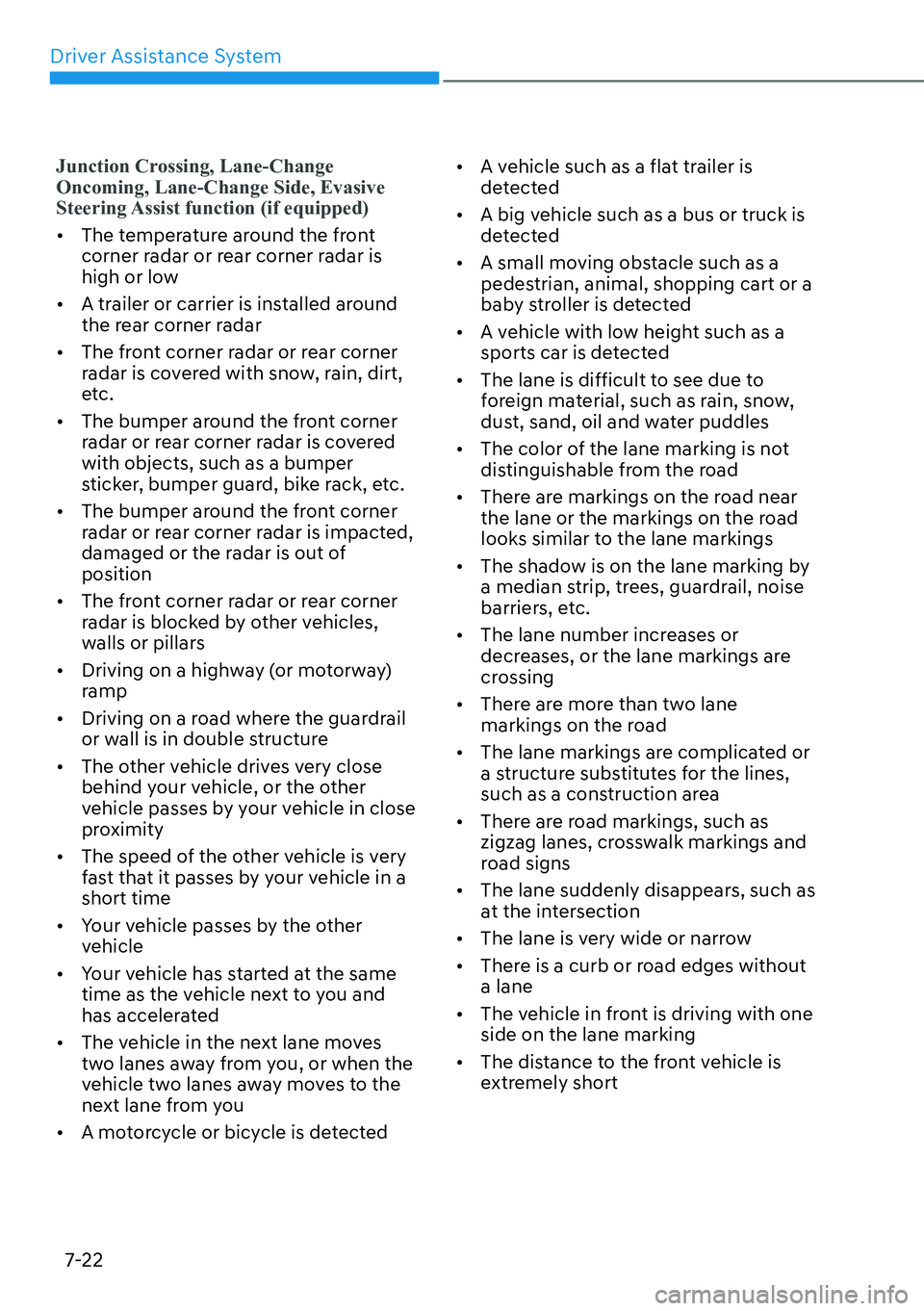

Junction Crossing, Lane-Change
Oncoming, Lane-Change Side, Evasive
Steering Assist function (if equipped)

[ The t
emperature around the front
corner radar or rear corner radar is
high or low

[ A trailer or carrier is installed around
the rear corner radar

[ The front corner radar or rear corner
radar is covered with snow, rain, dirt,
etc.

[ The bumper around the front corner
radar or rear corner radar is covered
with objects, such as a bumper
sticker, bumper guard, bike rack, etc.

[ The bumper around the front corner
radar or rear corner radar is impacted,
damaged or the radar is out of
position

[ The front corner radar or rear corner
radar is blocked by other vehicles,
walls or pillars

[ Driving on a highway (or motorway)
ramp

[ Driving on a road where the guardrail
or wall is in double structure

[ The other vehicle drives very close
behind your vehicle, or the other
vehicle passes by your vehicle in close
proximity

[ The speed of the other vehicle is very
fast that it passes by your vehicle in a
short time

[ Your vehicle passes by the other
vehicle

[ Your vehicle has started at the same
time as the vehicle next to you and
has accelerated

[ The vehicle in the next lane moves
two lanes away from you, or when the
vehicle two lanes away moves to the
next lane from you

[ A motorcycle or bicycle is detected
[
A vehicle such as a flat trailer is
detected

[ A big vehicle such as a bus or truck is
detected

[ A small moving obstacle such as a
pedestrian, animal, shopping cart or a
baby stroller is detected

[ A vehicle with low height such as a
sports car is detected

[ The lane is difficult to see due to
foreign material, such as rain, snow,
dust, sand, oil and water puddles

[ The color of the lane marking is not
distinguishable from the road

[ There are markings on the road near
the lane or the markings on the road
looks similar to the lane markings

[ The shadow is on the lane marking by
a median strip, trees, guardrail, noise
barriers, etc.

[ The lane number increases or
decreases, or the lane markings are
crossing

[ There are more than two lane
markings on the road

[ The lane markings are complicated or
a structure substitutes for the lines,
such as a construction area

[ There are road markings, such as
zigzag lanes, crosswalk markings and
road signs

[ The lane suddenly disappears, such as
at the intersection

[ The lane is very wide or narrow

[ There is a curb or road edges without
a lane

[ The vehicle in front is driving with one
side on the lane marking

[ The distance to the front vehicle is
extremely short

Driver Assistance System7-30
WARNING

[ The steering wheel may not be
assisted if the steering wheel is held
very tight or the steering wheel is
steered over a certain degree.

[ Lane Keeping Assist does not operate
at all times. It is the responsibility of
the driver to safely steer the vehicle
and to maintain the vehicle in its
lane.

[ The hands–off warning message
may appear late depending on road
conditions. Always have your hands
on the steering wheel while driving.

[ If the steering wheel is held very
lightly, the hands–off warning
message may appear because Lane
Keeping Assist may not recognize
that the driver has their hands on the
steering wheel.

[ If you attach objects to the steering
wheel, the hands-off warning may
not work properly.
Information

[For more details on instrument cluster
settings, refer to “LCD display control”
section in chapter 4.

[ When lane markings (or road edges)
are detected, the lane lines on the
cluster will change from grey to white
and the green
indicator light will
illuminate.

[ When the lane markings (or road
edges) are detected and Highway Lane
Change Assist is on, the lane lines on
the cluster may change to green.
B0317KO04
A: Lane undetected,
B: Lane detected

[The images and colors in the cluster
may differ depending on the cluster
type or theme selected from the cluster.

[ Even though the steering is assisted by
Lane Keeping Assist, the driver may
control the steering wheel.

[ The steering wheel may feel heavier
or lighter when the steering wheel is
assisted by Lane Keeping Assist than
when it is not.

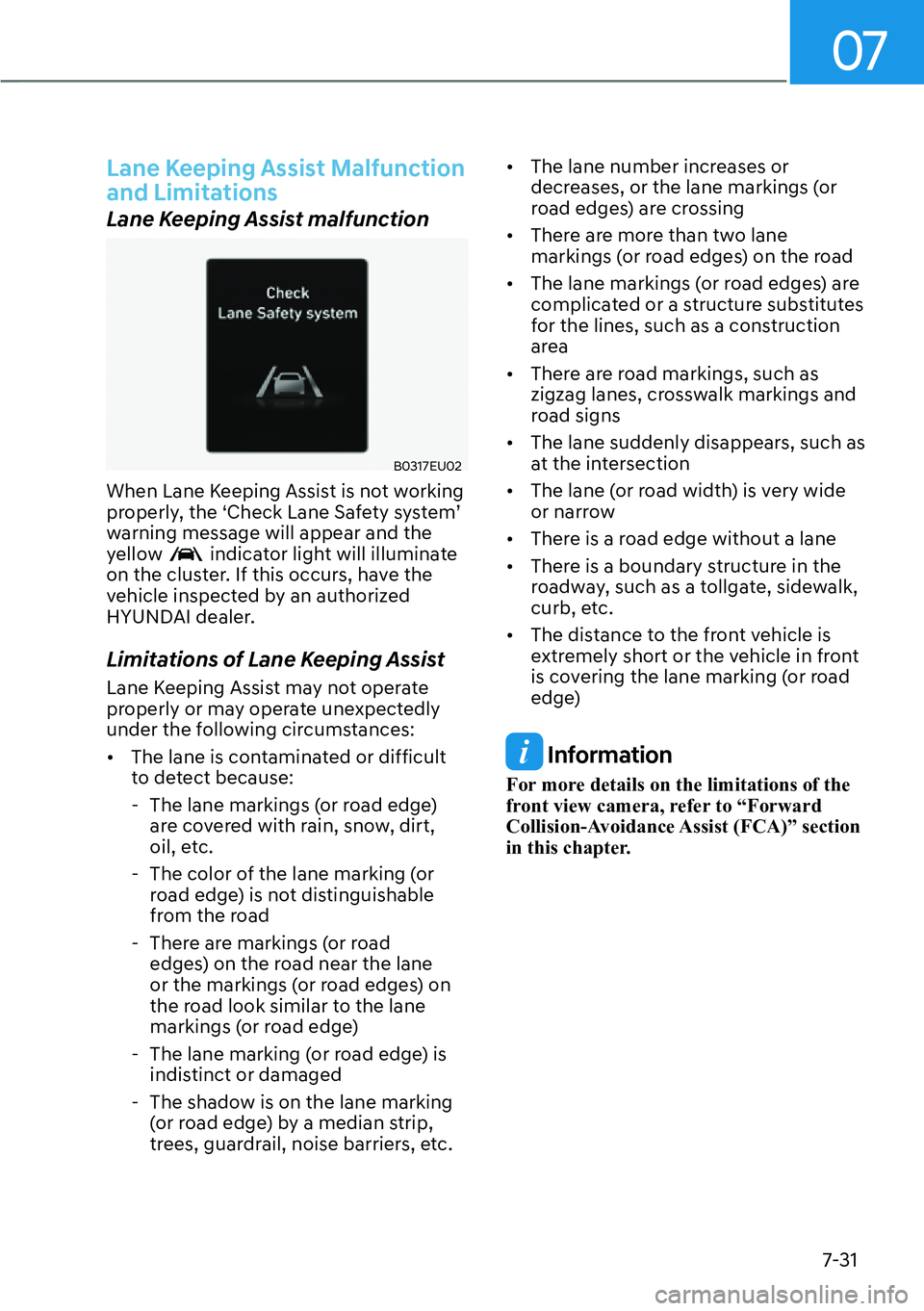

07
7-31
Lane Keeping Assist Malfunction
and Limitations
Lane Keeping Assist malfunction
B0317EU02
When Lane Keeping Assist is not working
properly, the ‘Check Lane Safety system’
warning message will appear and the
yellow
indicator light will illuminate
on the cluster. If this occurs, have the
vehicle inspected by an authorized
HYUNDAI dealer.
Limitations of Lane Keeping Assist
Lane Keeping Assist may not operate
properly or may operate unexpectedly
under the following circumstances:

[ The lane is contaminated or difficult
to detect because:
- The lane markings (or road edge) are covered with rain, snow, dirt,
oil, etc.
- The color of the lane marking (or road edge) is not distinguishable
from the road
- There are markings (or road edges) on the road near the lane
or the markings (or road edges) on
the road look similar to the lane
markings (or road edge)
- The lane marking (or road edge) is indistinct or damaged
- The shadow is on the lane marking (or road edge) by a median strip,
trees, guardrail, noise barriers, etc.
[
The lane number increases or
decreases, or the lane markings (or
road edges) are crossing

[ There are more than two lane
markings (or road edges) on the road

[ The lane markings (or road edges) are
complicated or a structure substitutes
for the lines, such as a construction
area

[ There are road markings, such as
zigzag lanes, crosswalk markings and
road signs

[ The lane suddenly disappears, such as
at the intersection

[ The lane (or road width) is very wide
or narrow

[ There is a road edge without a lane

[ There is a boundary structure in the
roadway, such as a tollgate, sidewalk,
curb, etc.

[ The distance to the front vehicle is
extremely short or the vehicle in front
is covering the lane marking (or road
edge)
Information
For more details on the limitations of the
front view camera, refer to “Forward
Collision-Avoidance Assist (FCA)” section
in this chapter.
