2023 HYUNDAI PALISADE Section 5

04
4-11

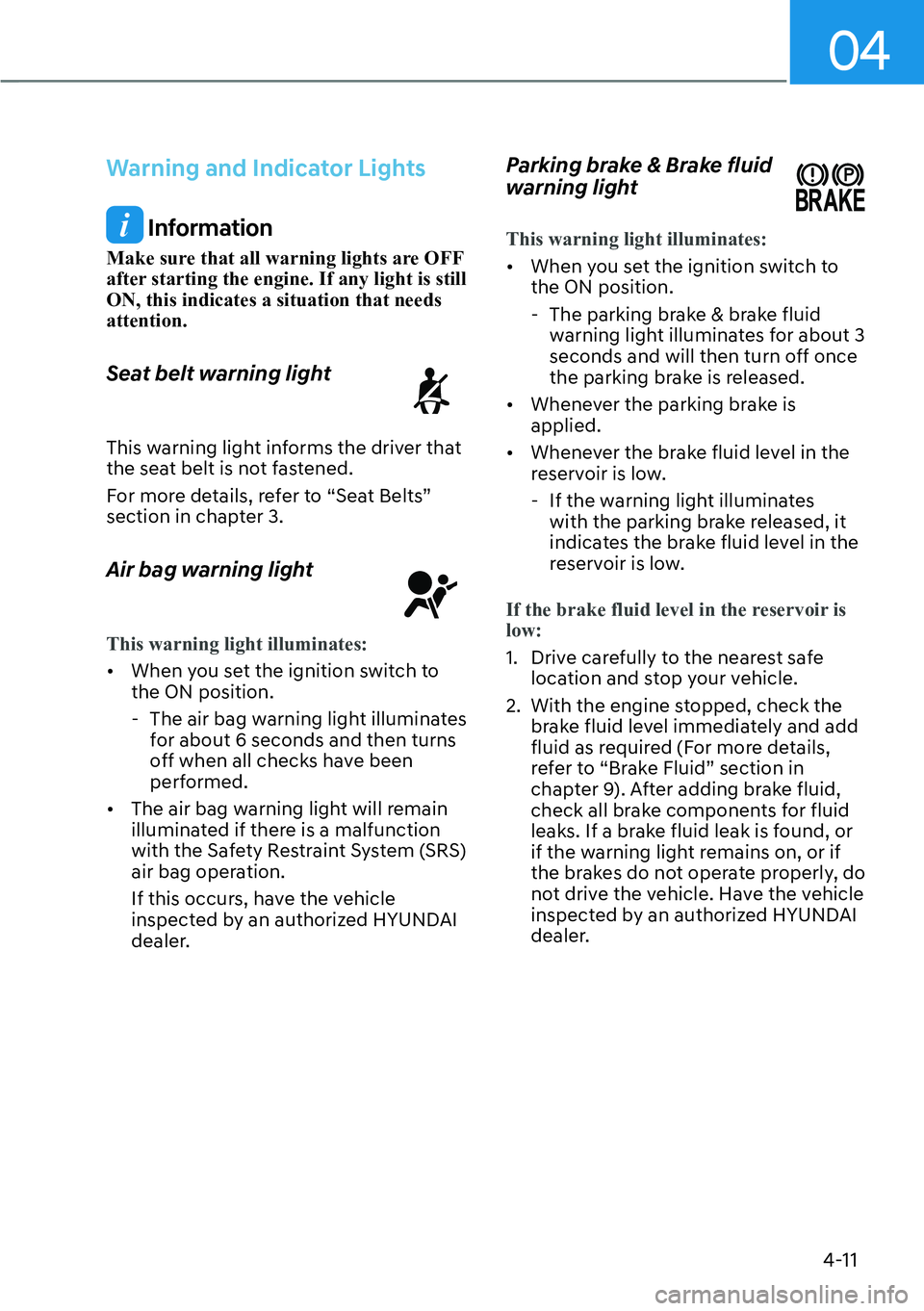

Warning and Indicator Lights
Information
Make sure that all warning lights are OFF
after starting the engine. If any light is still
ON, this indicates a situation that needs
attention.
Seat belt warning light
This warning light informs the driver that
the seat belt is not fastened.
For more details, refer to “Seat Belts”
section in chapter 3.
Air bag warning light
This warning light illuminates:

[When y
ou set the ignition switch to
the ON position.
- The air bag warning light illuminates for about 6 seconds and then turns
off when all checks have been
performed.

[ The air bag warning light will remain
illuminated if there is a malfunction
with the Safety Restraint System (SRS)
air bag operation.
If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer.
Parking brake & Brake fluid
warning light
This warning light illuminates:

[When y
ou set the ignition switch to
the ON position.
- The parking brake & brake fluid warning light illuminates for about 3
seconds and will then turn off once
the parking brake is released.

[ Whenever the parking brake is
applied.

[ Whenever the brake fluid level in the
reservoir is low.
- If the warning light illuminates with the parking brake released, it
indicates the brake fluid level in the
reservoir is low.
If the brake fluid level in the reservoir is
low:
1. Drive carefully to the nearest safe loca
tion and stop your vehicle.
2. With the engine stopped, check the brake fluid level immediately and add
fluid as required (For more details,
refer to “Brake Fluid” section in
chapter 9). After adding brake fluid,
check all brake components for fluid
leaks. If a brake fluid leak is found, or
if the warning light remains on, or if
the brakes do not operate properly, do
not drive the vehicle. Have the vehicle
inspected by an authorized HYUNDAI
dealer.

Instrument Cluster4-14
Engine Oil Pressure Warning
Light
This warning light illuminates:
When the engine oil pressure is low.
If the engine oil pressure is low:
1. Drive carefully to the nearest safe loca
tion and stop your vehicle.
2. Turn the engine off and check the engine oil level (For more information,
refer to "Engine Oil" in chapter 9). If
the level is low, add oil as required.
If the warning light remains on after
adding oil or if oil is not available, have
the vehicle inspected by an authorized
HYUNDAI dealer as soon as possible.
Continued driving with the warning
light on may cause engine failure.
NOTICE
If the engine is not stopped
immediately after the Engine Oil
Pressure warning light is illuminated,
severe damage could result.
Engine coolant temperature
warning light (if equipped)
The warning light illuminates:
When the temperature of the engine
coolant is e
xtremely high.
Do not continue driving with an
overheated engine. If your vehicle
overheats, refer to “Overheating” section
in chapter 8.
NOTICE
If the Engine Coolant Temperature
warning light illuminates, it indicates
overheating that may damage the
engine.
Low fuel level warning light
This warning light illuminates:
When the fuel tank is nearly empty.
A

dd fuel as soon as possible.
NOTICE
Driving with the Low Fuel Level warning
light on or with the fuel level below
“E (Empty)” can cause the engine
to misfire and damage the catalytic
converter.

Instrument Cluster4-16

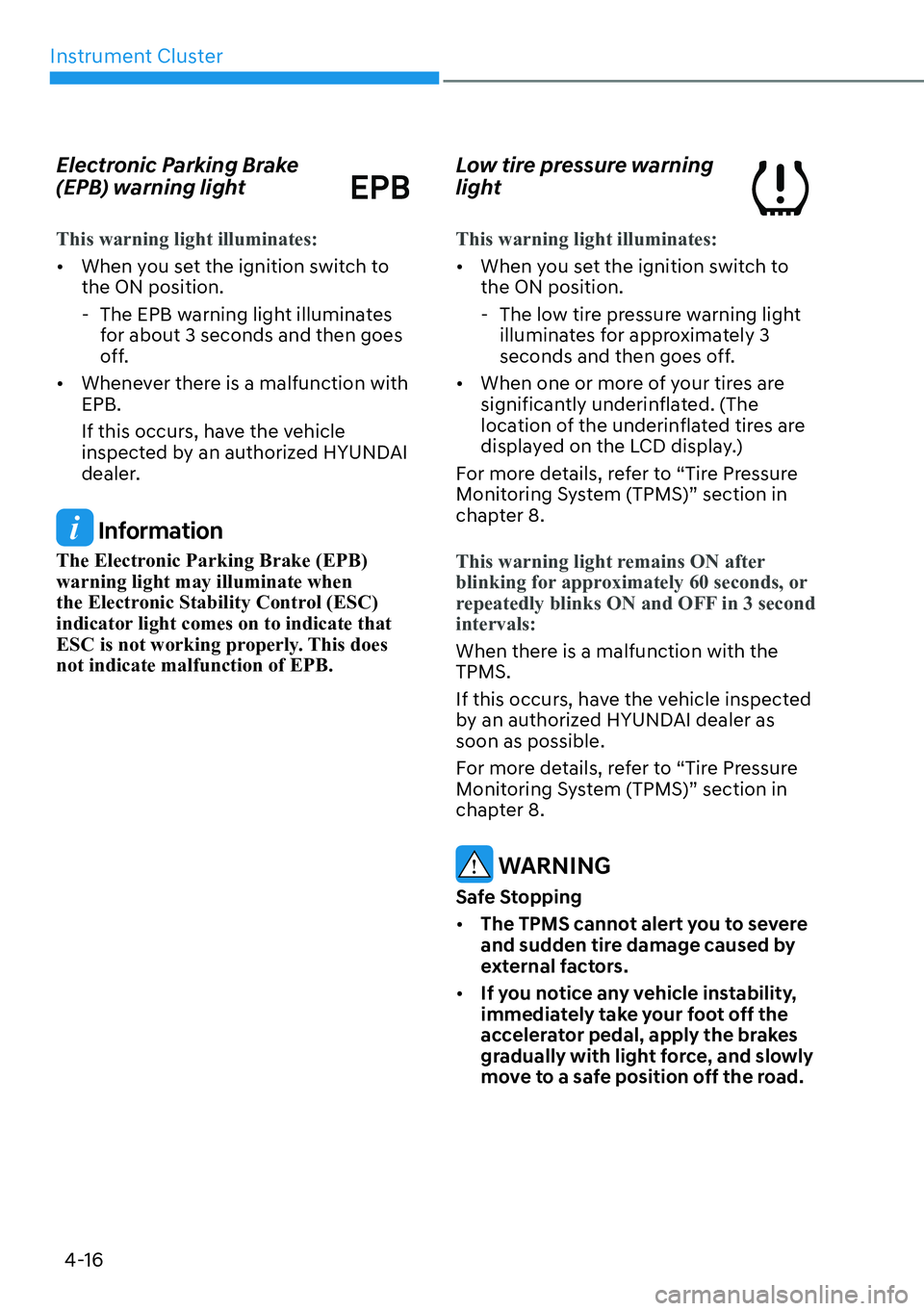

Electronic Parking Brake
(EPB) warning light
This warning light illuminates:

[ When y
ou set the ignition switch to
the ON position.
- The EPB warning light illuminates for about 3 seconds and then goes
off.

[ Whenever there is a malfunction with
EPB.
If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer.
Information
The Electronic Parking Brake (EPB)
warning light may illuminate when
the Electronic Stability Control (ESC)
indicator light comes on to indicate that
ESC is not working properly. This does
not indicate malfunction of EPB.
Low tire pressure warning
light
This warning light illuminates:

[When y
ou set the ignition switch to
the ON position.
- The low tire pressure warning light illuminates for approximately 3
seconds and then goes off.

[ When one or more of your tires are
significantly underinflated. (The
location of the underinflated tires are
displayed on the LCD display.)
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.
This warning light remains ON after
blinking for
approximately 60 seconds, or
repeatedly blinks ON and OFF in 3 second
intervals:
When there is a malfunction with the
TPMS.
If this occur

s, have the vehicle inspected
by an authorized HYUNDAI dealer as
soon as possible.
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.
WARNING
Safe Stopping

[ The TPMS cannot alert you to severe
and sudden tire damage caused by
external factors.

[ If you notice any vehicle instability,
immediately take your foot off the
accelerator pedal, apply the brakes
gradually with light force, and slowly
move to a safe position off the road.

04
4-17

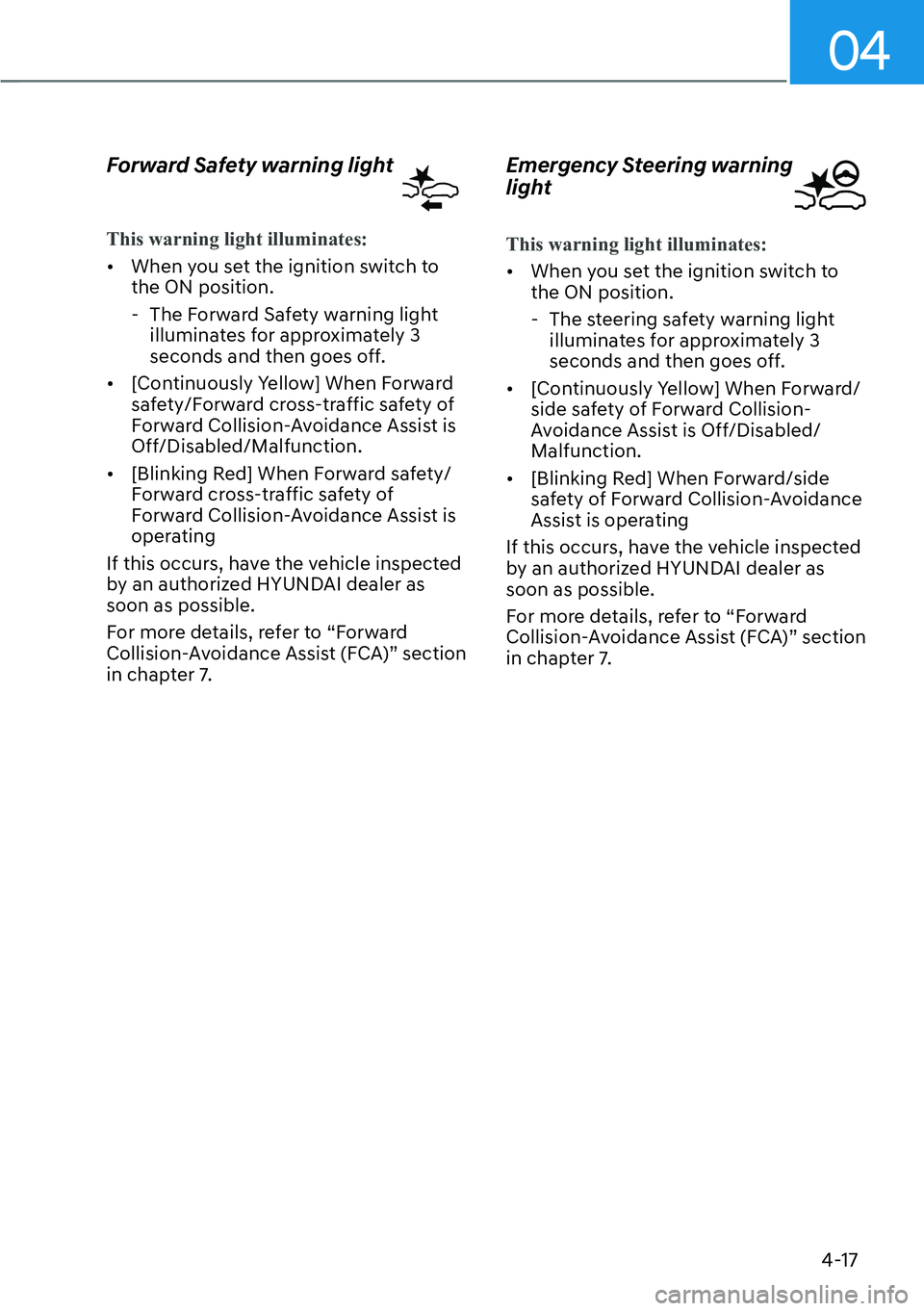

Forward Safety warning light
This warning light illuminates:

[When y
ou set the ignition switch to
the ON position.
- The Forward Safety warning light illuminates for approximately 3
seconds and then goes off.

[ [Continuously Yellow] When Forward
safety/Forward cross-traffic safety of
Forward Collision-Avoidance Assist is
Off/Disabled/Malfunction.

[ [Blinking Red] When Forward safety/
Forward cross-traffic safety of
Forward Collision-Avoidance Assist is
operating
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer as
soon as possible.
For more details, refer to “Forward
Collision-Avoidance Assist (FCA)” section
in chapter 7.
Emergency Steering warning
light
This warning light illuminates:

[ When y
ou set the ignition switch to
the ON position.
- The steering safety warning light illuminates for approximately 3
seconds and then goes off.

[ [Continuously Yellow] When Forward/
side safety of Forward Collision-
Avoidance Assist is Off/Disabled/
Malfunction.

[ [Blinking Red] When Forward/side
safety of Forward Collision-Avoidance
Assist is operating
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer as
soon as possible.
For more details, refer to “Forward
Collision-Avoidance Assist (FCA)” section
in chapter 7.

Instrument Cluster4-18

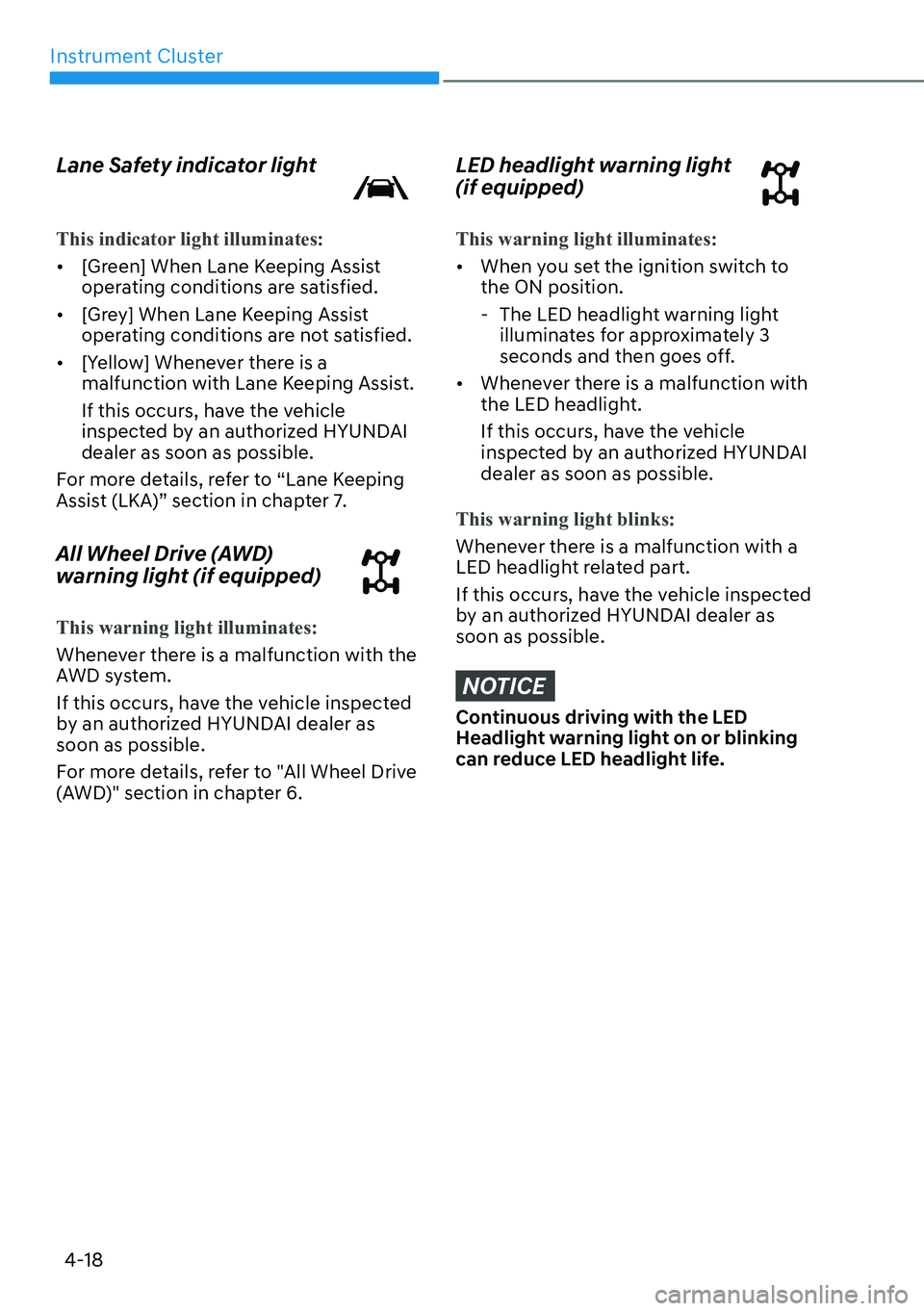

Lane Safety indicator light
This indicator light illuminates:

[ [Gr
een] When Lane Keeping Assist
operating conditions are satisfied.

[ [Grey] When Lane Keeping Assist
operating conditions are not satisfied.

[ [Yellow] Whenever there is a
malfunction with Lane Keeping Assist.
If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer as soon as possible.
For more details, refer to “Lane Keeping
Assist (LKA)” section in chapter 7.
All Wheel Drive (AWD)
warning light (if equipped)
This warning light illuminates:
Whenever there is a malfunction with the
A
WD system.
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer as
soon as possible.
For more details, refer to "All Wheel Drive
(AWD)" section in chapter 6.
LED headlight warning light
(if equipped)
This warning light illuminates:

[ When y
ou set the ignition switch to
the ON position.
- The LED headlight warning light illuminates for approximately 3
seconds and then goes off.

[ Whenever there is a malfunction with
the LED headlight.
If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer as soon as possible.
This warning light blinks:
Whenever there is a malfunction with a
LED headligh
t related part.
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer as
soon as possible.
NOTICE
Continuous driving with the LED
Headlight warning light on or blinking
can reduce LED headlight life.

Instrument Cluster4-20

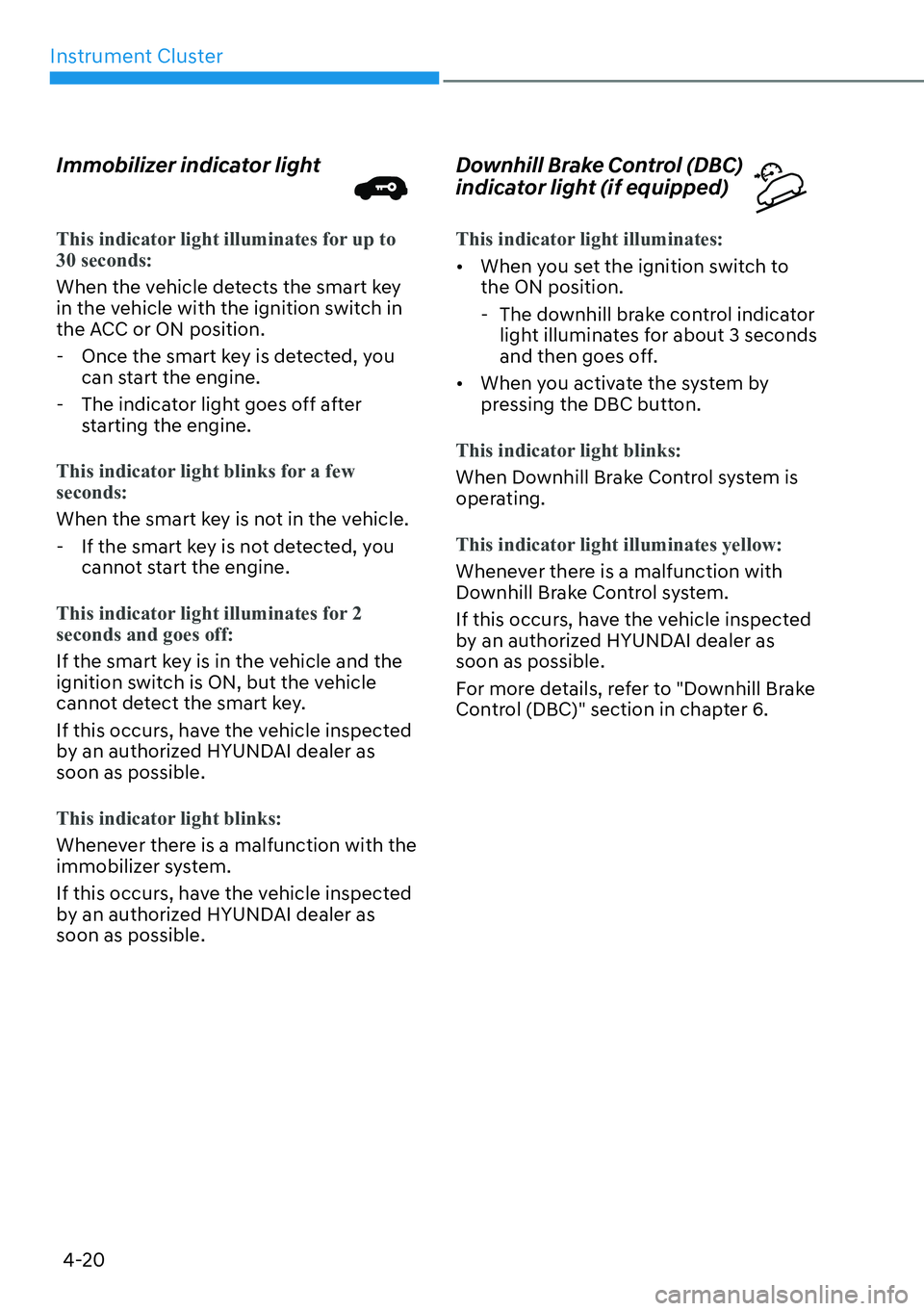

Immobilizer indicator light
This indicator light illuminates for up to
30 seconds:
When the vehicle detects the smart key
in the v
ehicle with the ignition switch in
the ACC or ON position.
- Once the smart key is detected, you can start the engine.

- The indicator light goes off after
starting the engine.
This indicator light blinks for a few
seconds:
When the smart key is not in the vehicle. -
If the smart key is not detected, you
cannot start the engine.
This indicator light illuminates for 2
seconds and goes off:
If the smart key is in the vehicle and the
ignition s
witch is ON, but the vehicle
cannot detect the smart key.
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer as
soon as possible.
This indicator light blinks:
Whenever there is a malfunction with the
immobiliz
er system.
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer as
soon as possible.
Downhill Brake Control (DBC)
indicator light (if equipped)
This indicator light illuminates:

[ When y
ou set the ignition switch to
the ON position.

- The downhill brake control indicator
light illuminates for about 3 seconds
and then goes off.

[ When you activate the system by
pressing the DBC button.
This indicator light blinks:
When Downhill Brake Control system is
oper
ating.
This indicator light illuminates yellow:
Whenever there is a malfunction with
Do
wnhill Brake Control system.
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer as
soon as possible.
For more details, refer to "Downhill Brake
Control (DBC)" section in chapter 6.

04
4-21
AUTO STOP indicator light
(if equipped)
This indicator light illuminates:

[[Whit
e] When the system operating
conditions are satisfied.

[ [Green] When the ISG system is
activated.

[ [Yellow] Whenever there is a
malfunction with the ISG function.
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer as
soon as possible.
For more details, refer to "ISG (Idle Stop
and Go) system" section in chapter 6.
Information
When the engine automatically starts
by the ISG system, some warning lights
(ABS, ESC, ESC OFF, EPS or Parking
brake warning light) may turn on for a
few seconds. This happens because of
low battery voltage. It does not mean the
system has malfunctioned.
Turn signal indicator light
This indicator light blinks:
When you operate the turn signal
indica
tor stalk.
If any of the following occur, there may
be a malfunction with the turn signal
system.
- The turn signal indicator light
illuminates but does not blink

- The turn signal indicator light blinks
rapidly

- The turn signal indicator light does not
illuminate at all
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer as
soon as possible.
High beam indicator light
This indicator light illuminates:

[ When the headligh
ts are on and in the
high beam position

[ When the turn signal lever is pulled
into the Flash-to-Pass position.
Low beam indicator light
This indicator light illuminates:
When the headlights are on.
Light ON indicator light
This indicator light illuminates:
When the position lamps or headlights
ar

e on.

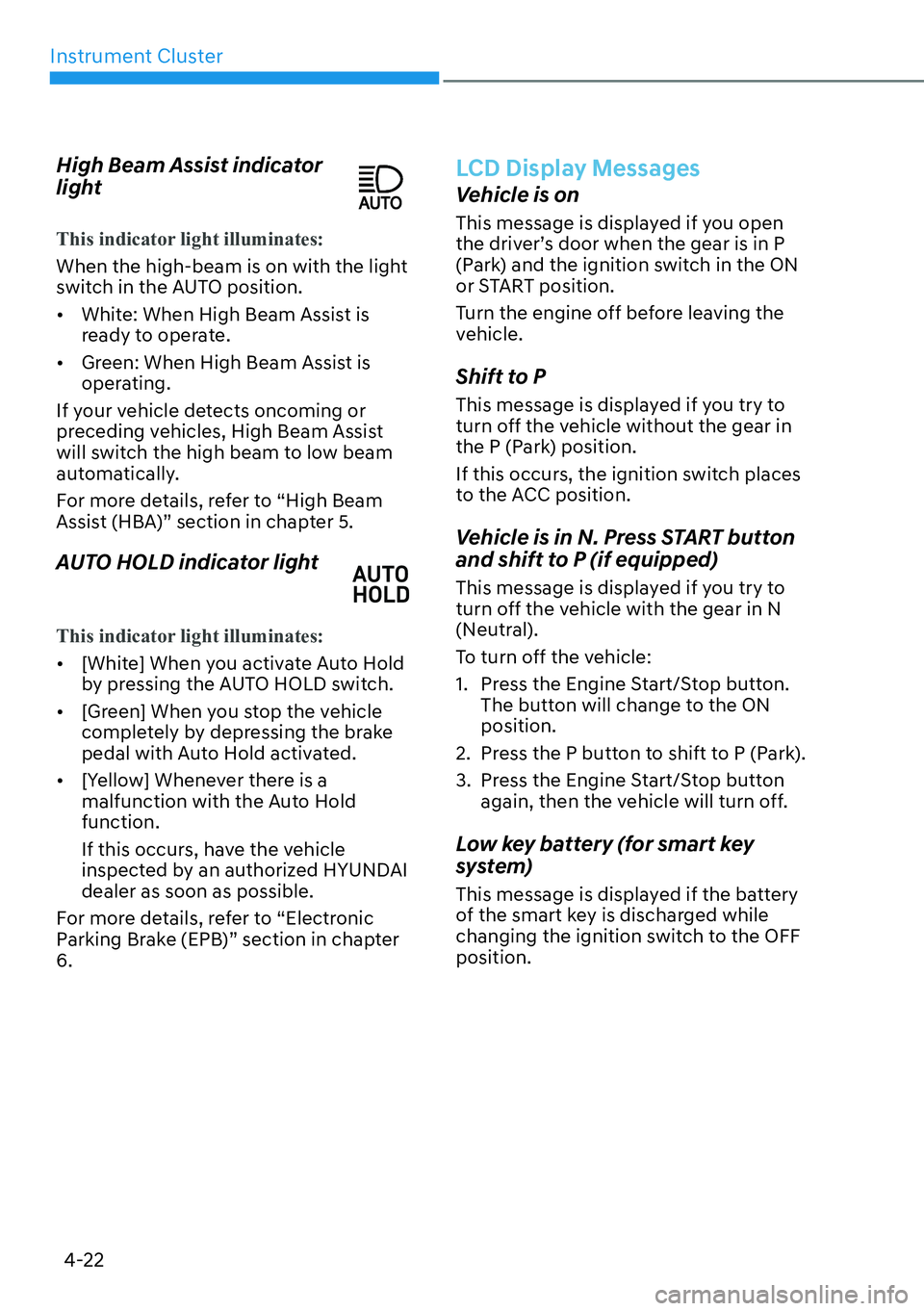

Instrument Cluster4-22
High Beam Assist indicator
light
This indicator light illuminates:
When the high-beam is on with the light
s
witch in the AUTO position.

[ White: When High Beam Assist is
ready to operate.

[ Green: When High Beam Assist is
operating.
If your vehicle detects oncoming or
preceding vehicles, High Beam Assist
will switch the high beam to low beam
automatically.
For more details, refer to “High Beam
Assist (HBA)” section in chapter 5.
AUTO HOLD indicator light
This indicator light illuminates:

[ [Whit
e] When you activate Auto Hold
by pressing the AUTO HOLD switch.

[ [Green] When you stop the vehicle
completely by depressing the brake
pedal with Auto Hold activated.

[ [Yellow] Whenever there is a
malfunction with the Auto Hold
function.
If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer as soon as possible.
For more details, refer to “Electronic
Parking Brake (EPB)” section in chapter
6.
LCD Display Messages
Vehicle is on
This message is displayed if you open
the driver’s door when the gear is in P
(Park) and the ignition switch in the ON
or START position.
Turn the engine off before leaving the
vehicle.
Shift to P
This message is displayed if you try to
turn off the vehicle without the gear in
the P (Park) position.
If this occurs, the ignition switch places
to the ACC position.
Vehicle is in N. Press START button
and shift to P (if equipped)
This message is displayed if you try to
turn off the vehicle with the gear in N
(Neutral).
To turn off the vehicle:
1. Press the Engine Start/Stop button. The button will change to the ON
position.
2. Press the P button to shift to P (Park).
3. Press the Engine Start/Stop button again, then the vehicle will turn off.
Low key battery (for smart key
system)
This message is displayed if the battery
of the smart key is discharged while
changing the ignition switch to the OFF
position.
