2023 HYUNDAI PALISADE Section 5

Convenience Features5-36
Electronic Child Safety Lock (if
equipped)
B0115KO01
When the electronic child safety lock
button is pressed and the indicator
light on the button illuminates, the rear
doors cannot be opened from inside the
vehicle.

[ The rear door window cannot be
opened or closed while the electronic
child safety lock button is in the LOCK
position (indicator light ON).
For more details, refer to “Windows”
section in this chapter.

[ Electronic child safety lock does not
automatically turn on unless the driver
presses the electronic child safety
lock button.
[
If 3 minutes passes after the ignition
switch or Engine Start/Stop button is
pressed to the LOCK/OFF or ACC, the
indicator on the button turns off, and
the driver cannot turn off electronic
child safety lock by pressing the
button. To turn off the function, press
the Engine Start/Stop button to the
ON position, and then press the
electronic child safety lock button.

[ If the power is supplied again after
removing the battery or battery is
discharged while the electronic child
safety lock button is in the LOCK
position, press the button once more
to match the state of the indicator on
the electronic child safety lock button
and actual status of the electronic
child safety lock function.

[ If the airbag is activated while the
electronic child safety lock button
is in the LOCK position (indicator
light ON), the rear doors will unlock
automatically.

[ Vehicles equipped with the electronic
child safety lock feature is not
provided with a manual child safety
lock.
WARNING
If children accidentally opens the rear
door while the vehicle is in motion, they
could fall out of the vehicle. Electronic
child safety lock should always be used
whenever children are in the vehicle.

05

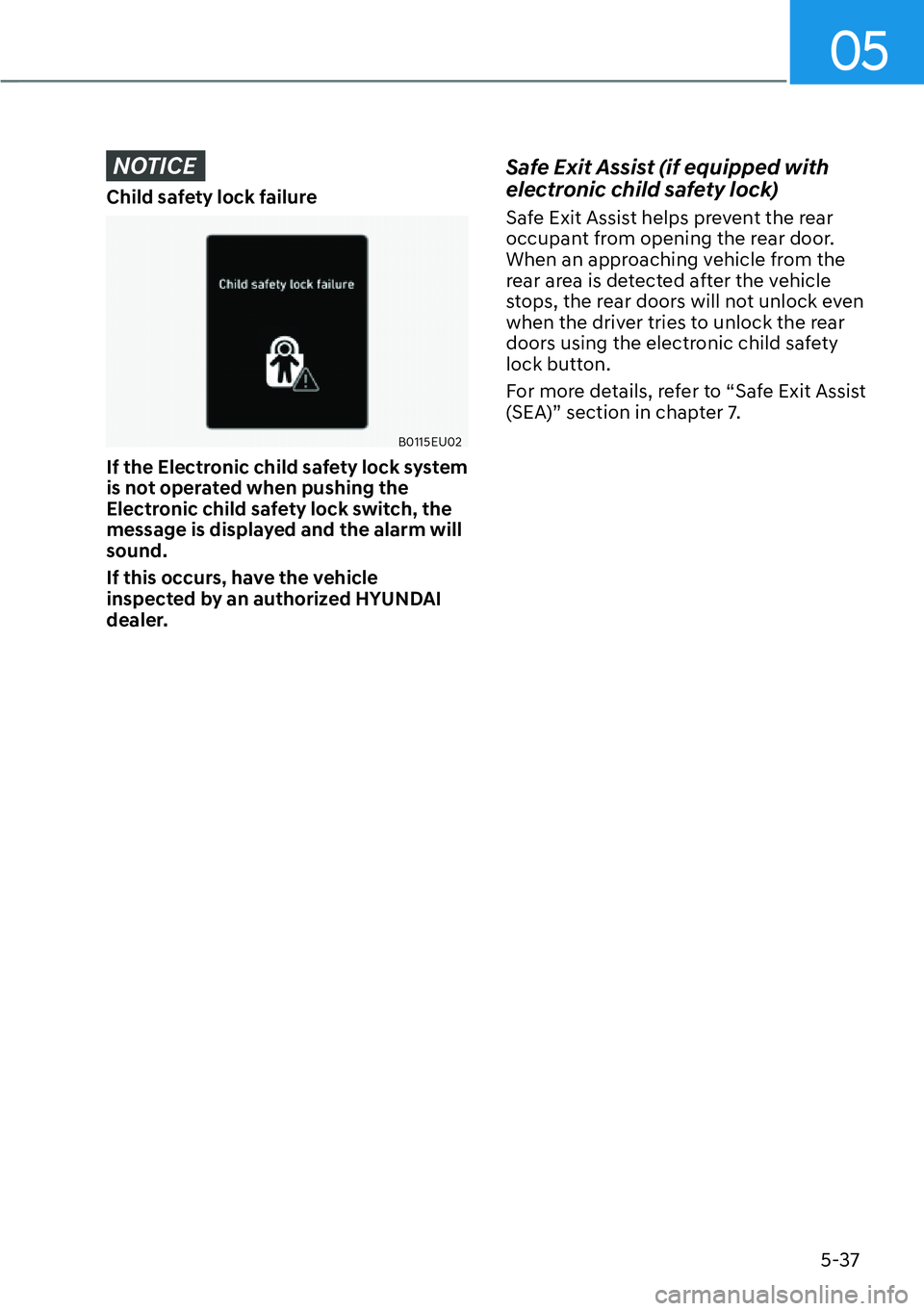

5-37
NOTICE
Child safety lock failure
B0115EU02
If the Electronic child safety lock system
is not operated when pushing the
Electronic child safety lock switch, the
message is displayed and the alarm will
sound.
If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer.
Safe Exit Assist (if equipped with
electronic child safety lock)
Safe Exit Assist helps prevent the rear
occupant from opening the rear door.
When an approaching vehicle from the
rear area is detected after the vehicle
stops, the rear doors will not unlock even
when the driver tries to unlock the rear
doors using the electronic child safety
lock button.
For more details, refer to “Safe Exit Assist
(SEA)” section in chapter 7.

Convenience Features5-50

[ Visit the HomeLink website at: www.
homelink.com. Then at the top of the
page, choose your vehicle make. Then
watch the You Tube video, and/or
access additional website information.

[ If you choose to access the website
via your cell phone, scan the QR code.

[Or, call HomeLink customer support
at 1-800-355-3515 (Please have the
vehicle make/model AND the opener
device make/model readily available.)
1) Programming Preparation
B0135EU04
1. When programming a garage door
opener, it is advised to park the
vehicle outside of the garage. 2. It is recommended that a new battery
be placed in the handheld transmitter
of the device being programmed to
HomeLink for quicker training and
accurate transmission of the radio-
frequency signal.
3. Place the ignition switch to the ACC (Accessory) position for programming
of HomeLink.
 3URJUDPPLQJD1HZ+RPH/LQNp
B0135EU05
1. Press and release the HomeLink button (1), (2) or (3), you would like
to program. The HomeLink indicator
light (7) will flash orange slowly (if
not, perform the steps of “Erasing
HomeLink Buttons” section, and start
over).
B0135EU06
2. Position the garage door opener remote 1–3 inches (2–8 cm) away from
the HoleLink buttons.

Convenience Features5-54

[ If the indicator P flashes in Orange,
it indicates that the garage door is
“Closing”.

[ The indicator P turns solid green once
the garage door has closed.

[ If the indicator R flashes in Orange,
it indicates that the garage door is
“Opening”.

[ The indicator R turns solid green once
the garage door has fully opened.

[ If the indicator P or R does not
turn to green, it indicates that the
last status of garage door was not
received properly. The HomeLink
mirror tries to receive the last known
status of the garage door for a few
seconds.
3) Recalling Garage Door Status
HomeLink mirror with Two-Way
Communication provides a way to view
the last stored message from the garage
door opener. In order to recall the last
known status of the last activated device,
press the buttons “1 and 2” OR “2 and 3”
simultaneously.

[If the indicator P appears solid Green,
it indicates that the last activated
device was “closed” properly.

[ If the indicator R appears solid Green,
it indicates that the last activated
device was “open” properly. 3. Erasing HomeLink® Buttons
1) Erasing and Reprogramming a Single
HomeLink® Button:
1. Press and hold the desired HomeLink button you want to re-program. DO
NOT release the button.
2. The HomeLink indicator light S will illuminate solid green. Release the
button as soon as the HomeLink
indicator light S begins to flash
orange, usually about 20 seconds.
3. Proceed with the steps in the “Programming a New HomeLink
Button” section.
Information
If you do not complete the re-
programming of a new device to the
button, it will revert to the previously
stored programming.
2) The following instructions will erase
$//+RPH/LQNpSURJUDPPLQJIURP
ALL buttons:
B0135EU09
1. Press and hold the buttons M and O simultaneously.
2. The HomeLink indicator light S will illuminate solid Orange for about 10
seconds.
3. Release the buttons once the HomeLink indicator light S changes
to Green and flashes rapidly.
4. Now all three HomeLink buttons M, N and O are cleared of any
programming.

05

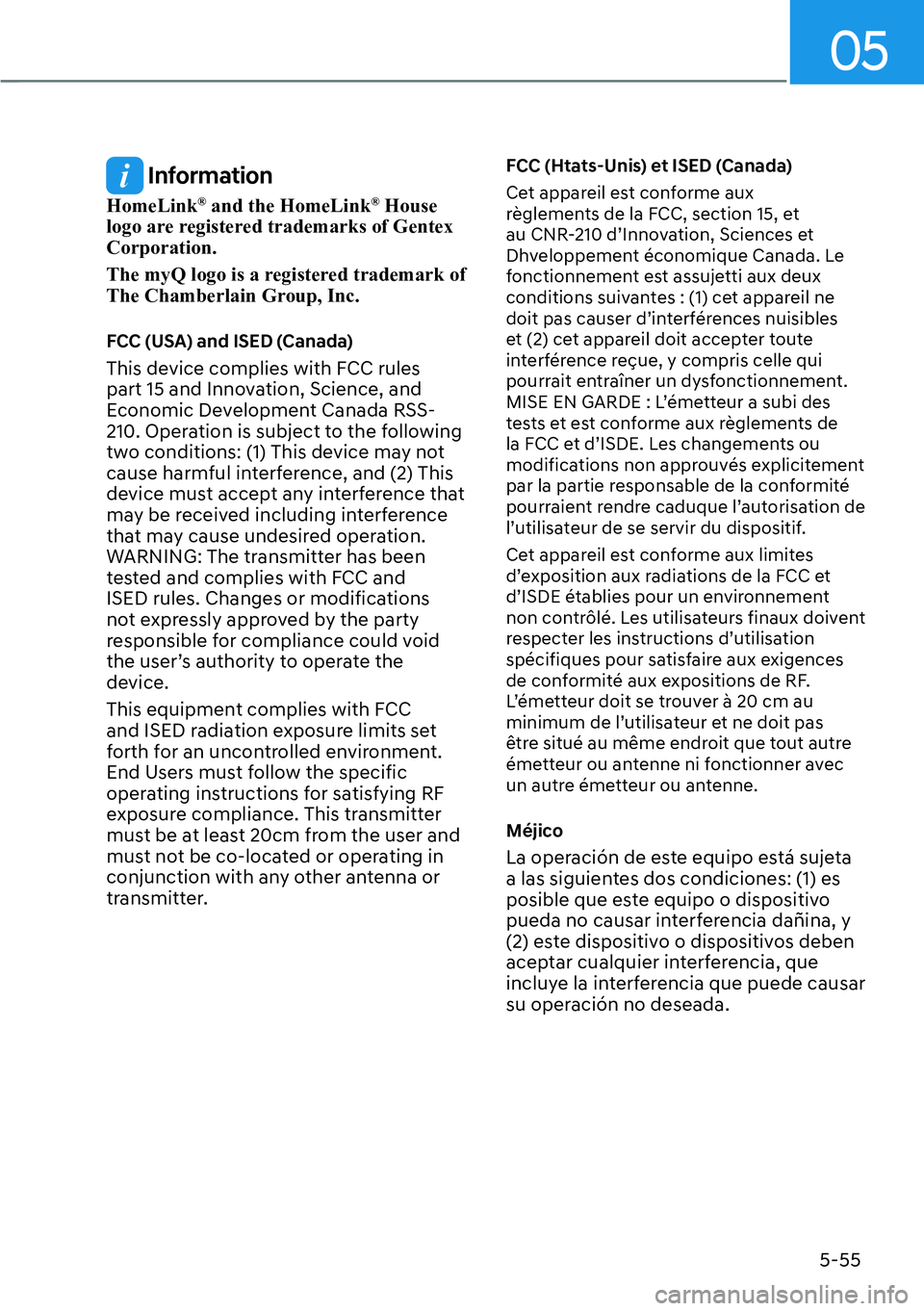

5-55
Information
HomeLink® and the HomeLink® House
logo are registered trademarks of Gentex
Corporation.
The myQ logo is a registered trademark of
The Chamberlain Group, Inc.
)&&86$DQG,6('&DQDGD
This device complies with FCC rules
part 15 and Innovation, Science, and
Economic Development Canada RSS-
210. Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference, and (2) This
device must accept any interference that
may be received including interference
that may cause undesired operation.
WARNING: The transmitter has been
tested and complies with FCC and
ISED rules. Changes or modifications
not expressly approved by the party
responsible for compliance could void
the user’s authority to operate the
device.
This equipment complies with FCC
and ISED radiation exposure limits set
forth for an uncontrolled environment.
End Users must follow the specific
operating instructions for satisfying RF
exposure compliance. This transmitter
must be at least 20cm from the user and
must not be co-located or operating in
conjunction with any other antenna or
transmitter.
FCC (Htats-Unis) et ISED (Canada)
Cet appareil est conforme aux
règlements de la FCC, section 15, et
au CNR-210 d’Innovation, Sciences et
Dhveloppement économique Canada. Le
fonctionnement est assujetti aux deux
conditions suivantes : (1) cet appareil ne
doit pas causer d’interférences nuisibles
et (2) cet appareil doit accepter toute
interférence reçue, y compris celle qui
pourrait entraîner un dysfonctionnement.
MISE EN GARDE : L’émetteur a subi des
tests et est conforme aux règlements de
la FCC et d’ISDE. Les changements ou
modifications non approuvés explicitement
par la partie responsable de la conformité
pourraient rendre caduque l’autorisation de
l’utilisateur de se servir du dispositif.
Cet appareil est conforme aux limites
d’exposition aux radiations de la FCC et
d’ISDE établies pour un environnement
non contrôlé. Les utilisateurs finaux doivent
respecter les instructions d’utilisation
spécifiques pour satisfaire aux exigences
de conformité aux expositions de RF.
L’émetteur doit se trouver à 20 cm au
minimum de l’utilisateur et ne doit pas
être situé au même endroit que tout autre
émetteur ou antenne ni fonctionner avec
un autre émetteur ou antenne.
Méjico
La operación de este equipo está sujeta
a las siguientes dos condiciones: (1) es
posible que este equipo o dispositivo
pueda no causar interferencia dañina, y
(2) este dispositivo o dispositivos deben
aceptar cualquier interferencia, que
incluye la interferencia que puede causar
su operación no deseada.

Convenience Features5-94

[ Do not get back into a vehicle
once you have begun refueling.
You can generate a buildup of
static electricity by touching,
rubbing or sliding against any item
or fabric capable of producing
static electricity. Static electricity
discharge can ignite fuel vapors
causing a fire. If you must re-enter
the vehicle, you should once again
eliminate potentially dangerous
static electricity discharge by
touching a metal part of the vehicle,
away from the fuel filler neck, nozzle
or other gasoline source, with your
bare hand.

[ When using an approved portable
fuel container, be sure to place the
container on the ground prior to
refueling. Static electricity discharge
from the container can ignite fuel
vapors causing a fire.
Once refueling has begun, contact
between your bare hand and the
vehicle should be maintained until
the filling is complete.

[ Use only approved portable plastic
fuel containers designed to carry and
store gasoline.

[ When refueling, always shift the
gear to the P (Park) position, set the
parking brake, and place the ignition
VZLWFKWRWKH/2&.2))SRVLWLRQ
Sparks produced by electrical
components related to the engine
can ignite fuel vapors causing a fire.

[ Do not use matches or a lighter and
do not smoke or leave a lit cigarette
in your vehicle while at a gas station,
especially during refueling.

[ Do not over-fill or top-off your
vehicle tank, which can cause
gasoline spillage.
[If a fire breaks out during refueling,
leave the vicinity of the vehicle, and
immediately contact the manager
of the gas station and then contact
WKHORFDOILUHGHSDUWPHQW)ROORZDQ\
safety instructions they provide.

[ If pressurized fuel sprays out, it can
cover your clothes or skin and thus
subject you to the risk of fire and
burns. Always remove the fuel cap
carefully and slowly. If the cap is
venting fuel or if you hear a hissing
sound, wait until the condition stops
before completely removing the cap.

[ Always check that the fuel cap is
installed securely to prevent fuel
spillage in the event of an accident.
Information
Make sure to refuel your vehicle according
to the “Fuel Requirements” section in
suggested in chapter 1.
NOTICE

[Do not spill fuel on the exterior
surfaces of the vehicle. Any type of
fuel spilled on painted surfaces may
damage the paint.

[ If the fuel filler cap requires
replacement, use only a genuine
HYUNDAI cap or the equivalent
specified for your vehicle. An
incorrect fuel filler cap can result
in a serious malfunction of the fuel
system or emission control system.

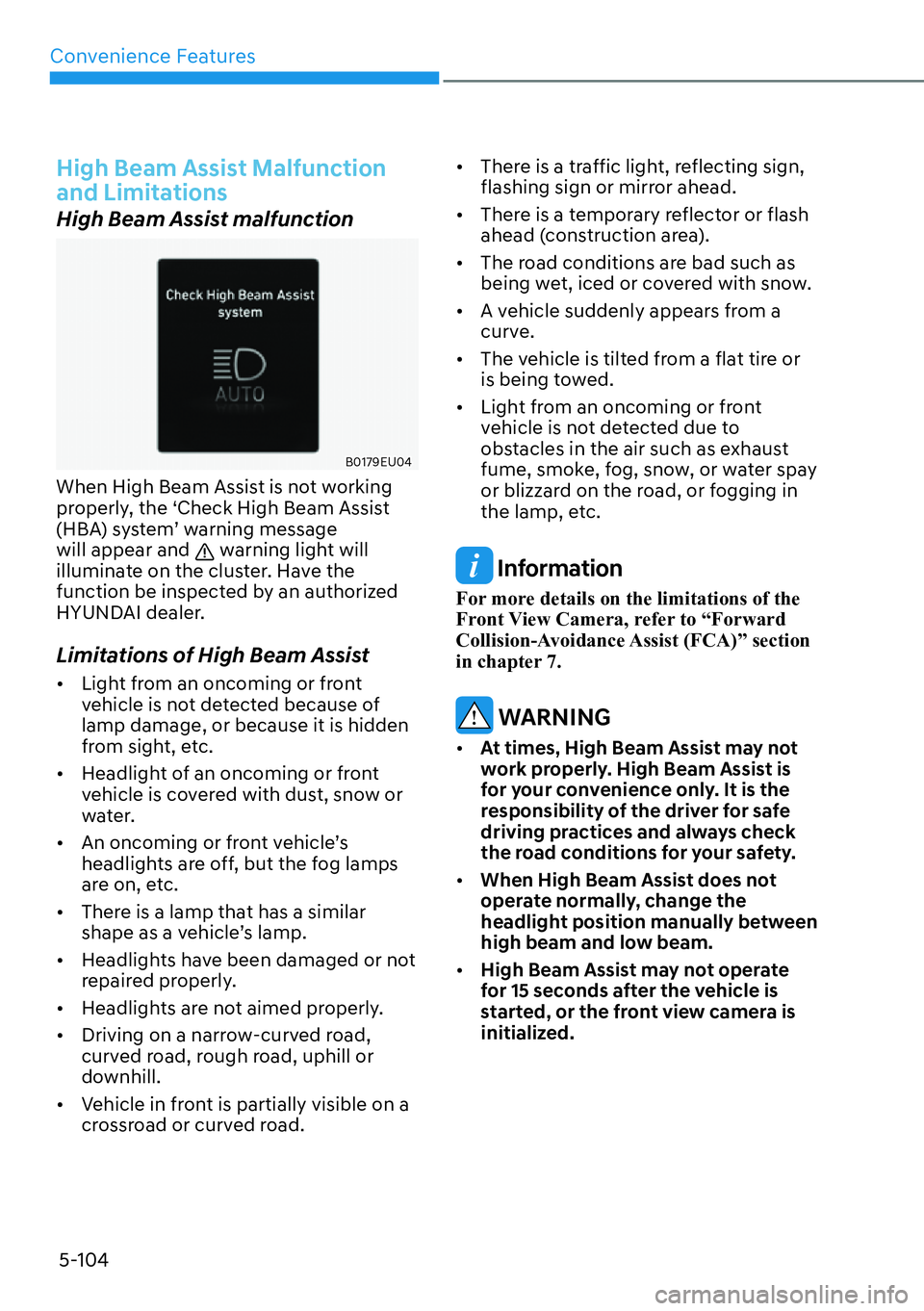

Convenience Features5-104
High Beam Assist Malfunction
and Limitations
High Beam Assist malfunction
B0179EU04
When High Beam Assist is not working
properly, the ‘Check High Beam Assist
(HBA) system’ warning message
will appear and
warning light will
illuminate on the cluster. Have the
function be inspected by an authorized
HYUNDAI dealer.
Limitations of High Beam Assist

[ Light from an oncoming or front
vehicle is not detected because of
lamp damage, or because it is hidden
from sight, etc.

[ Headlight of an oncoming or front
vehicle is covered with dust, snow or
water.

[ An oncoming or front vehicle’s
headlights are off, but the fog lamps
are on, etc.

[ There is a lamp that has a similar
shape as a vehicle’s lamp.

[ Headlights have been damaged or not
repaired properly.

[ Headlights are not aimed properly.

[ Driving on a narrow-curved road,
curved road, rough road, uphill or
downhill.

[ Vehicle in front is partially visible on a
crossroad or curved road.
[
There is a traffic light, reflecting sign,
flashing sign or mirror ahead.

[ There is a temporary reflector or flash
ahead (construction area).

[ The road conditions are bad such as
being wet, iced or covered with snow.

[ A vehicle suddenly appears from a
curve.

[ The vehicle is tilted from a flat tire or
is being towed.

[ Light from an oncoming or front
vehicle is not detected due to
obstacles in the air such as exhaust
fume, smoke, fog, snow, or water spay
or blizzard on the road, or fogging in
the lamp, etc.
Information
For more details on the limitations of the
Front View Camera, refer to “Forward
Collision-Avoidance Assist (FCA)” section
in chapter 7.
WARNING

[At times, High Beam Assist may not
work properly. High Beam Assist is
for your convenience only. It is the
responsibility of the driver for safe
driving practices and always check
the road conditions for your safety.

[ When High Beam Assist does not
operate normally, change the
headlight position manually between
high beam and low beam.

[ High Beam Assist may not operate
for 15 seconds after the vehicle is
started, or the front view camera is
initialized.

Convenience Features5-112
Recirculating air when washer
fluidis used
When washer fluid is used, in order
to reduce any objectionable scent
of the washer fluid from entering
the cabin,recirculation mode and air
conditioningare automatically activated
dependingon the outside temperature.

[ When the air intake control button
ispressed while fresh mode is
selected,air intake control will switch
torecirculation mode.

[ When windshield lever is used
whilerecirculation mode is selected,
airintake control will switch to
freshmode

[ The function may not work in
someconditions such as cold weather
orengine off.
For more details, refer to “ClimateControl
Additional Features” section inthis
chapter.
WARNING
When the outside temperature is below
freezing, ALWAYS warm the windshield
using the defroster to help prevent
the washer fluid from freezing on the
windshield and obscuring your vision
which could result in an accident and
serious injury or death.
NOTICE

[ To prevent possible damage to the
washer pump, do not operate the
washer when the fluid reservoir is
empty.

[ To prevent possible damage to the
wipers or windshield, do not operate
the wipers when the windshield is
dry.

[ To prevent damage to the wiper
arms and other components, do
not attempt to move the wipers
manually.

[ To prevent possible damage to the
wipers and washer system, use anti-
freezing washer fluids in the winter
season or cold weather.
