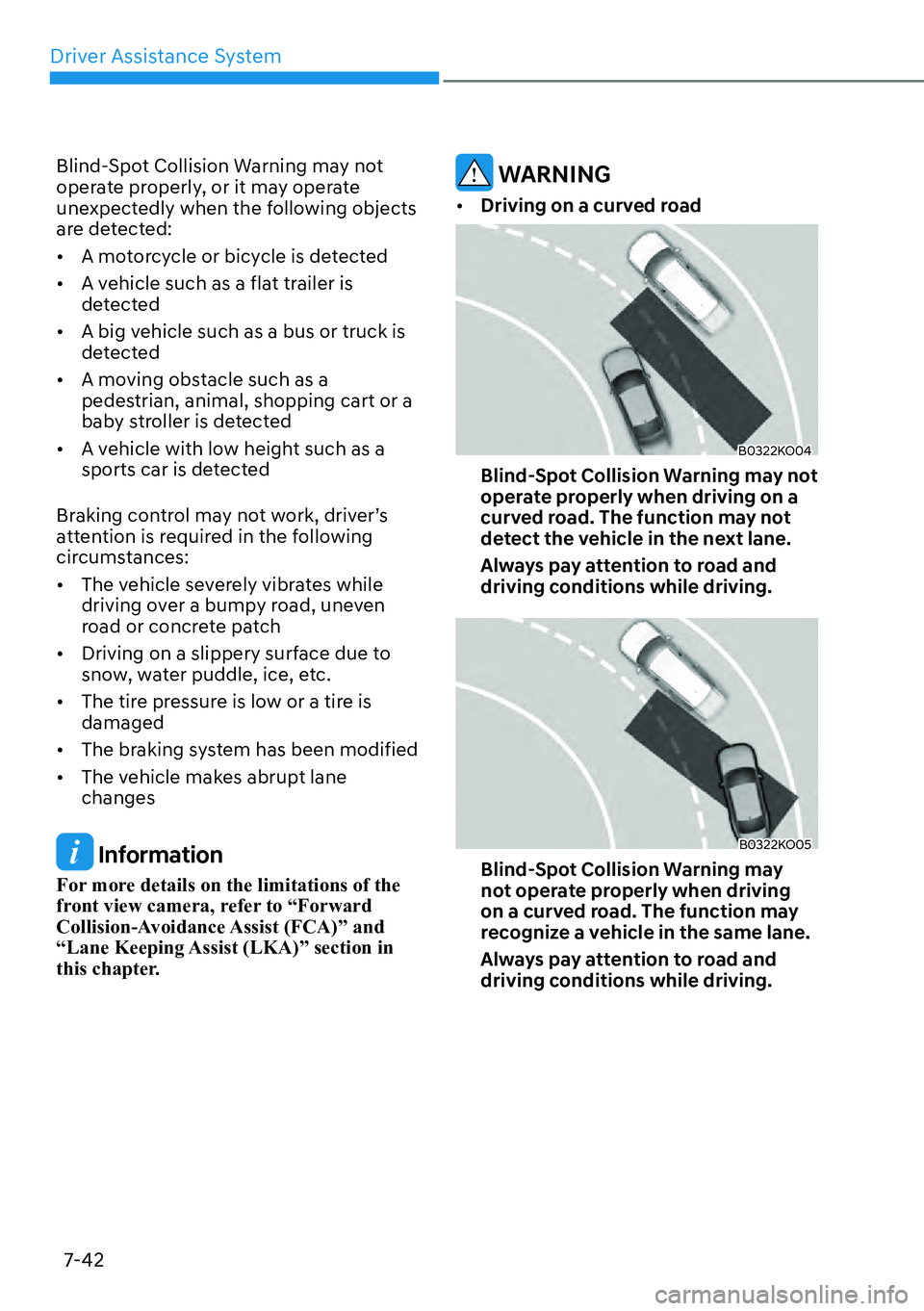

2023 HYUNDAI PALISADE Section 5

Driver Assistance System7-42
Blind-Spot Collision Warning may not
operate properly, or it may operate
unexpectedly when the following objects
are detected:

[ A motorcycle or bicycle is detected

[ A vehicle such as a flat trailer is
detected

[ A big vehicle such as a bus or truck is
detected

[ A moving obstacle such as a
pedestrian, animal, shopping cart or a
baby stroller is detected

[ A vehicle with low height such as a
sports car is detected
Braking control may not work, driver’s
attention is required in the following
circumstances:

[ The vehicle severely vibrates while
driving over a bumpy road, uneven
road or concrete patch

[ Driving on a slippery surface due to
snow, water puddle, ice, etc.

[ The tire pressure is low or a tire is
damaged

[ The braking system has been modified

[ The vehicle makes abrupt lane
changes
Information
For more details on the limitations of the
front view camera, refer to “Forward
Collision-Avoidance Assist (FCA)” and
“Lane Keeping Assist (LKA)” section in
this chapter.
WARNING

[Driving on a curved road
B0322KO04
Blind-Spot Collision Warning may not
operate properly when driving on a
curved road. The function may not
detect the vehicle in the next lane.
Always pay attention to road and
driving conditions while driving.
B0322KO05
Blind-Spot Collision Warning may
not operate properly when driving
on a curved road. The function may
recognize a vehicle in the same lane.
Always pay attention to road and
driving conditions while driving.

07
7-43

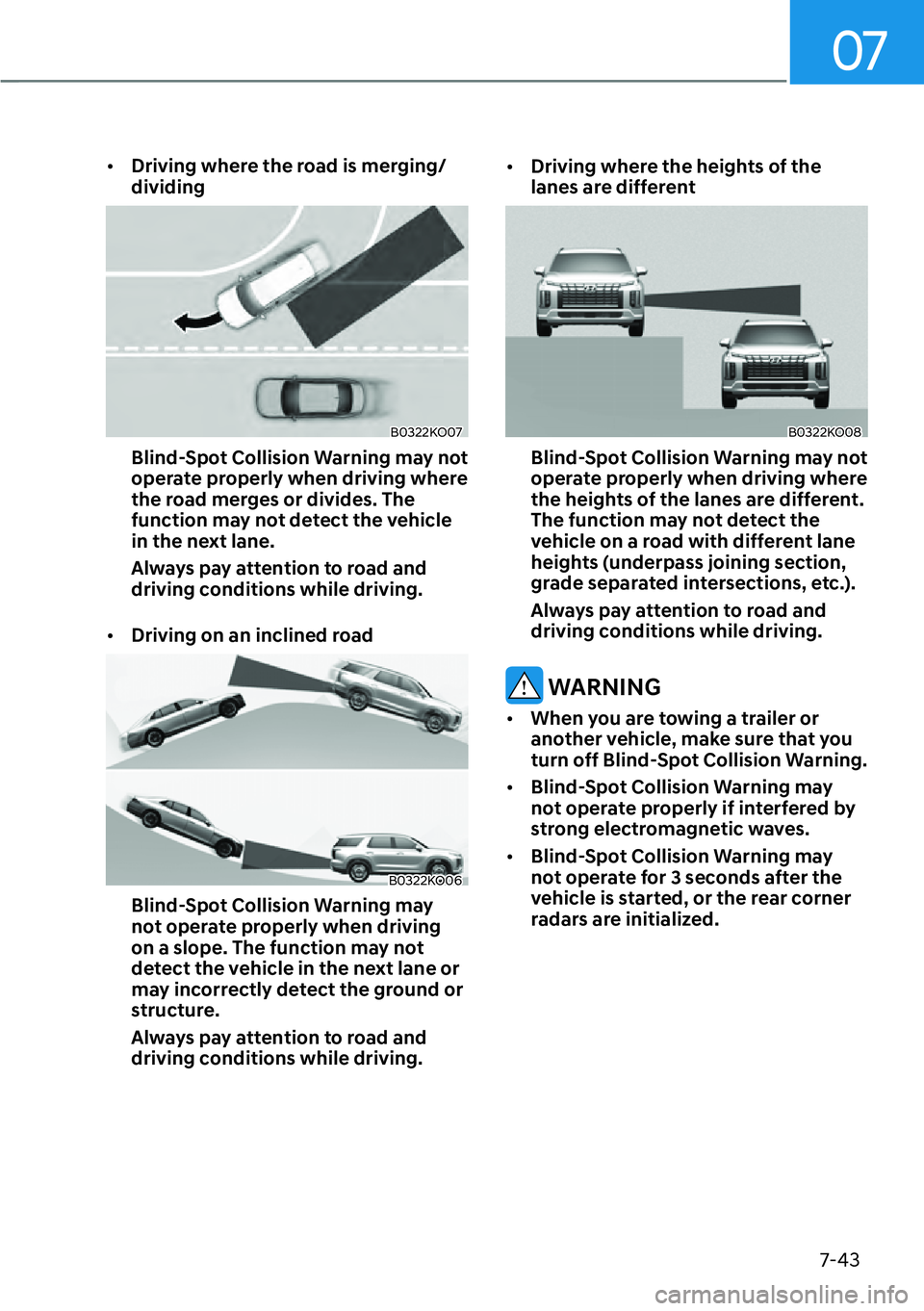

[Driving where the road is merging/
dividing
B0322KO07
Blind-Spot Collision Warning may not
operate properly when driving where
the road merges or divides. The
function may not detect the vehicle
in the next lane.
Always pay attention to road and
driving conditions while driving.

[ Driving on an inclined road
B0322KO06
Blind-Spot Collision Warning may
not operate properly when driving
on a slope. The function may not
detect the vehicle in the next lane or
may incorrectly detect the ground or
structure.
Always pay attention to road and
driving conditions while driving.
[
Driving where the heights of the
lanes are different
B0322KO08
Blind-Spot Collision Warning may not
operate properly when driving where
the heights of the lanes are different.
The function may not detect the
vehicle on a road with different lane
heights (underpass joining section,
grade separated intersections, etc.).
Always pay attention to road and
driving conditions while driving.
WARNING

[When you are towing a trailer or
another vehicle, make sure that you
turn off Blind-Spot Collision Warning.

[ Blind-Spot Collision Warning may
not operate properly if interfered by
strong electromagnetic waves.

[ Blind-Spot Collision Warning may
not operate for 3 seconds after the
vehicle is started, or the rear corner
radars are initialized.

07
7-47
Safe Exit Assist Operation
Safe Exit Assist will warn and control
the vehicle with Collision warning when
exiting vehicle and Safe Exit Assist linked
with Electronic child safety lock.
Warning and control
B0321KO02
B0325EU01Collision warning when exiting vehicle

[When an appr
oaching vehicle from
the rear is detected at the moment a
door is opened, the ‘Collision Warning’
warning message will appear on the
cluster, and an audible warning will
sound.

[ Safe Exit Assist will warn the driver
when your vehicle speed is below
2 mph (3 km/h), and the speed of the
approaching vehicle from the rear is
above 4 mph (6 km/h).
B0325EU02
Safe Exit Assist linked with Electronic
child safety lock

[When Electric child sa
fety lock is
operating and an approaching vehicle
from the rear area is detected, the rear
doors cannot be unlocked even if the
driver tries to unlock the rear doors
using the electronic child safety lock
button. The warning light on the side
view mirror will blink and the ‘Check
traffic in the blind spot, then try again’
warning message will appear on the
cluster.

[ Safe Exit Assist will warn the driver
when vehicle speed is below 2
mph (3 km/h) and the speed of the
approaching vehicle from the rear is
above 4 mph (6 km/h).
Information
For more details on electric child safety
lock button, refer to “Electronic Child
Safety Lock” section in chapter 5.

Driver Assistance System7-50
WARNING

[ Even though the warning message
does not appear on the cluster, Safe
Exit Assist may not properly operate.

[ Safe Exit Assist may not properly
operate in an area (for example,
open terrain) where any objects are
not detected right after the engine
is turned on, or when the detecting
sensor is blocked with foreign
material right after the engine is
turned on.
CAUTION
Turn off Safe Exit Assist to install or
remove a trailer, carrier, or another
attachment. Turn on Safe Exit Assist
when finished.
Limitations of Safe Exit Assist
Safe Exit Assist may not operate properly,
or it may operate unexpectedly under the
following circumstances:

[Getting out of the vehicle where trees
or grass are overgrown

[ Getting out of the vehicle where the
road is wet

[ The approaching vehicle is very fast or
very slow
Information
For more details on the limitations of the
rear corner radar, refer to “Blind-Spot
Collision Warning (BCW)” section in this
chapter.
WARNING

[Safe Exit Assist may not operate
properly if interfered by strong
electromagnetic waves.

[ Safe Exit Assist may not operate
for 3 seconds after the vehicle is
started, or the rear corner radars are
initialized.

07
7-57

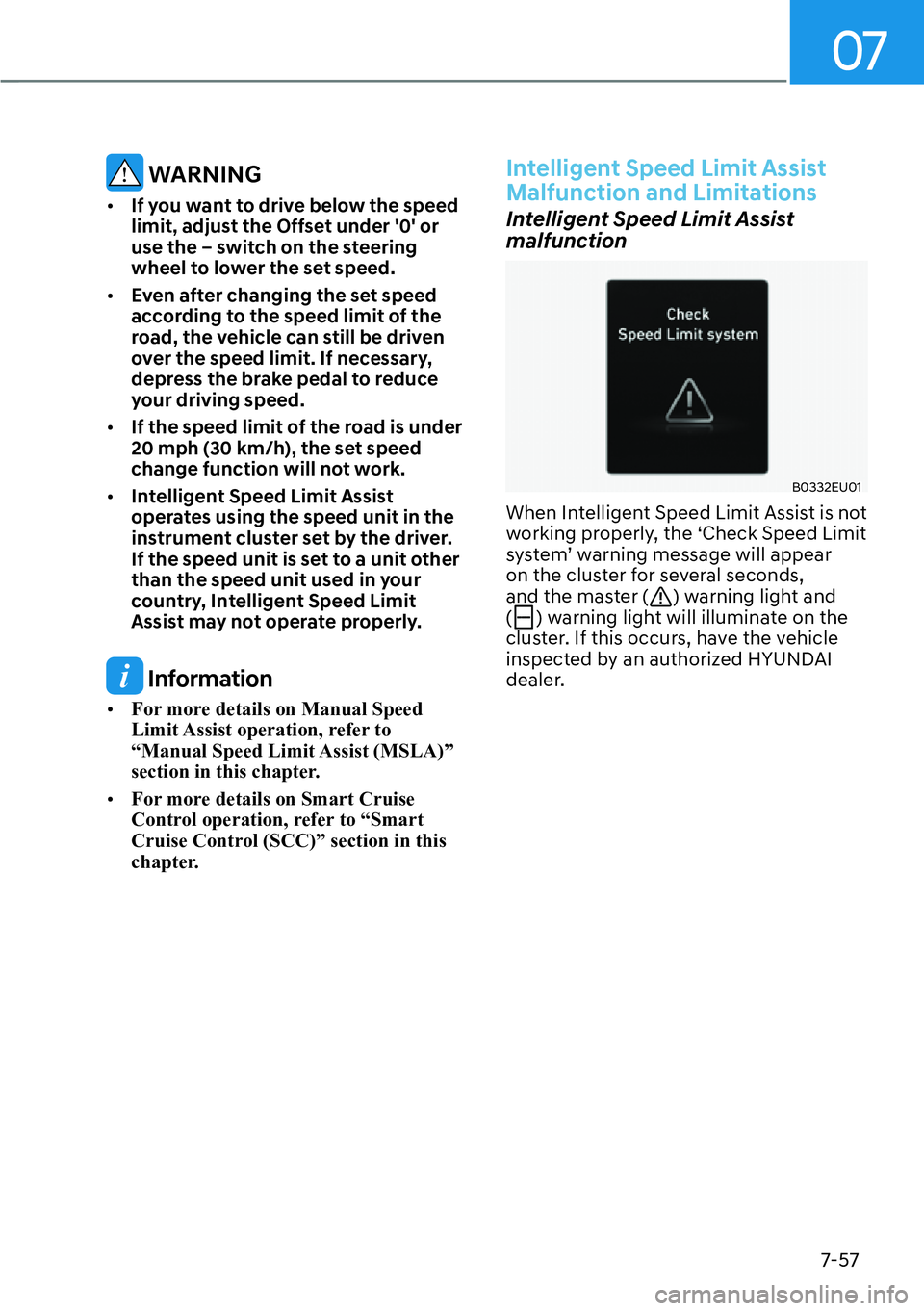

WARNING

[If you want to drive below the speed
limit, adjust the Offset under '0' or
use the – switch on the steering
wheel to lower the set speed.

[ Even after changing the set speed
according to the speed limit of the
road, the vehicle can still be driven
over the speed limit. If necessary,
depress the brake pedal to reduce
your driving speed.

[ If the speed limit of the road is under
20 mph (30 km/h), the set speed
change function will not work.

[ Intelligent Speed Limit Assist
operates using the speed unit in the
instrument cluster set by the driver.
If the speed unit is set to a unit other
than the speed unit used in your
country, Intelligent Speed Limit
Assist may not operate properly.
Information

[For more details on Manual Speed
Limit Assist operation, refer to
“Manual Speed Limit Assist (MSLA)”
section in this chapter.

[ For more details on Smart Cruise
Control operation, refer to “Smart
Cruise Control (SCC)” section in this
chapter.
Intelligent Speed Limit Assist
Malfunction and Limitations
Intelligent Speed Limit Assist
malfunction
B0332EU01
When Intelligent Speed Limit Assist is not
working properly, the ‘Check Speed Limit
system’ warning message will appear
on the cluster for several seconds,
and the master (
) warning light and
() warning light will illuminate on the
cluster. If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer.

07
7-59

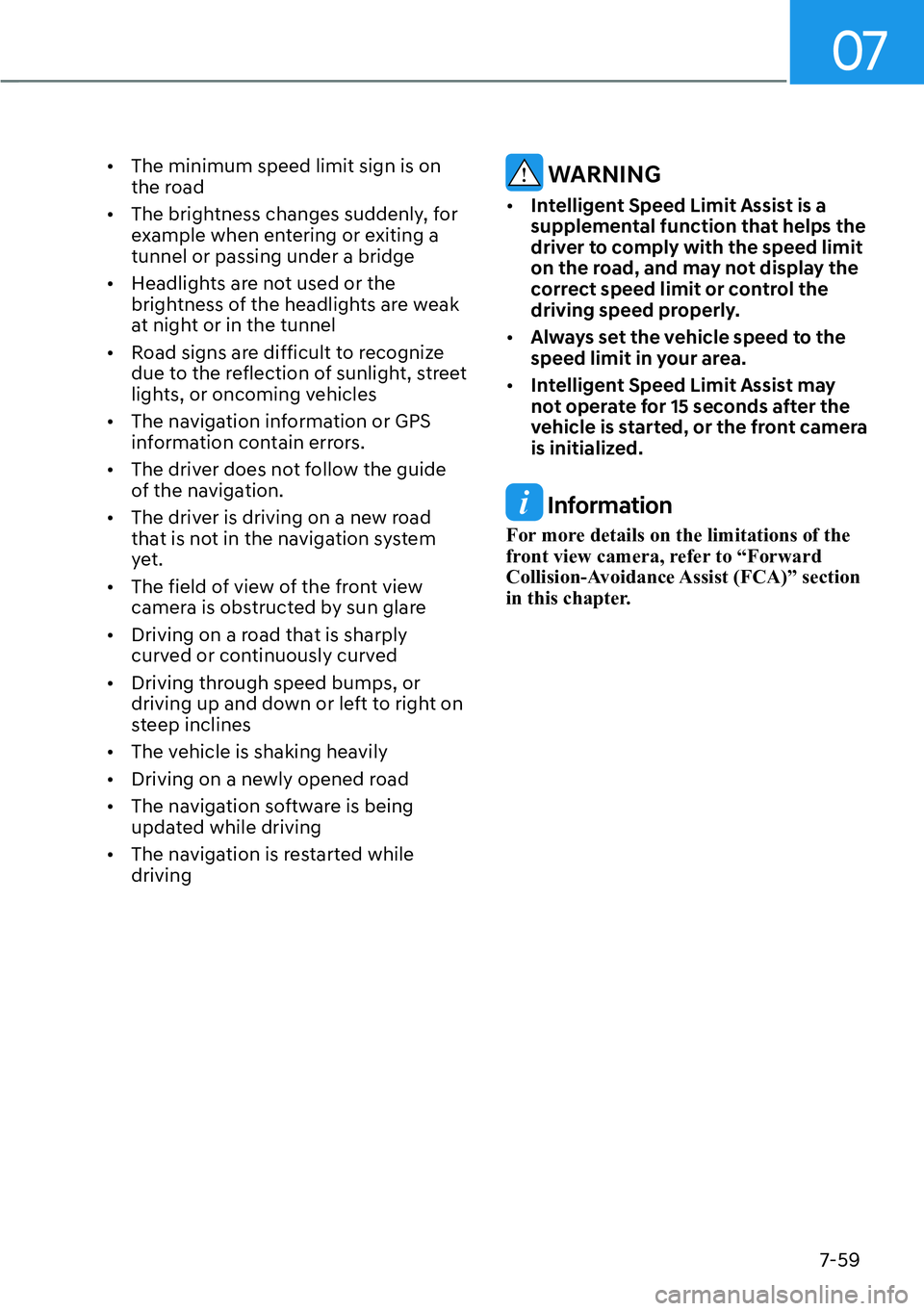

[The minimum speed limit sign is on
the road

[ The brightness changes suddenly, for
example when entering or exiting a
tunnel or passing under a bridge

[ Headlights are not used or the
brightness of the headlights are weak
at night or in the tunnel

[ Road signs are difficult to recognize
due to the reflection of sunlight, street
lights, or oncoming vehicles

[ The navigation information or GPS
information contain errors.

[ The driver does not follow the guide
of the navigation.

[ The driver is driving on a new road
that is not in the navigation system
yet.

[ The field of view of the front view
camera is obstructed by sun glare

[ Driving on a road that is sharply
curved or continuously curved

[ Driving through speed bumps, or
driving up and down or left to right on
steep inclines

[ The vehicle is shaking heavily

[ Driving on a newly opened road

[ The navigation software is being
updated while driving

[ The navigation is restarted while
driving WARNING

[Intelligent Speed Limit Assist is a
supplemental function that helps the
driver to comply with the speed limit
on the road, and may not display the
correct speed limit or control the
driving speed properly.

[ Always set the vehicle speed to the
speed limit in your area.

[ Intelligent Speed Limit Assist may
not operate for 15 seconds after the
vehicle is started, or the front camera
is initialized.
Information
For more details on the limitations of the
front view camera, refer to “Forward
Collision-Avoidance Assist (FCA)” section
in this chapter.

Driver Assistance System7-60
Basic function
Driver Attention Warning can help
determine the driver's attention level
by analyzing driving pattern and driving
time while the vehicle is driven. Driver
Attention Warning will recommend a
break when the driver’s attention level
falls below a certain level.
Leading vehicle departure alert
function
Leading Vehicle Departure Alert function
will inform the driver when a detected
vehicle in front departs.
Detecting sensor
B0311KO07A: Front view camera
The front view camera is used as a
detecting sensor to help detect driving
patterns and front vehicle departure
while vehicle is being driven.
Refer to the picture above for the
detailed location of the detecting sensor.
CAUTION

[ Always keep the front view camera in
good condition to maintain optimal
performance of Driver Attention
Warning.

[ For more details on the precautions
of the front view camera, refer to
“Forward Collision-Avoidance Assist
(FCA)” section in this chapter.
Driver Attention Warning Settings
Leading Vehicle Departure Alert
With the engine on, select or deselect

S'ULYHU$VVLVWDQFH

07
7-61

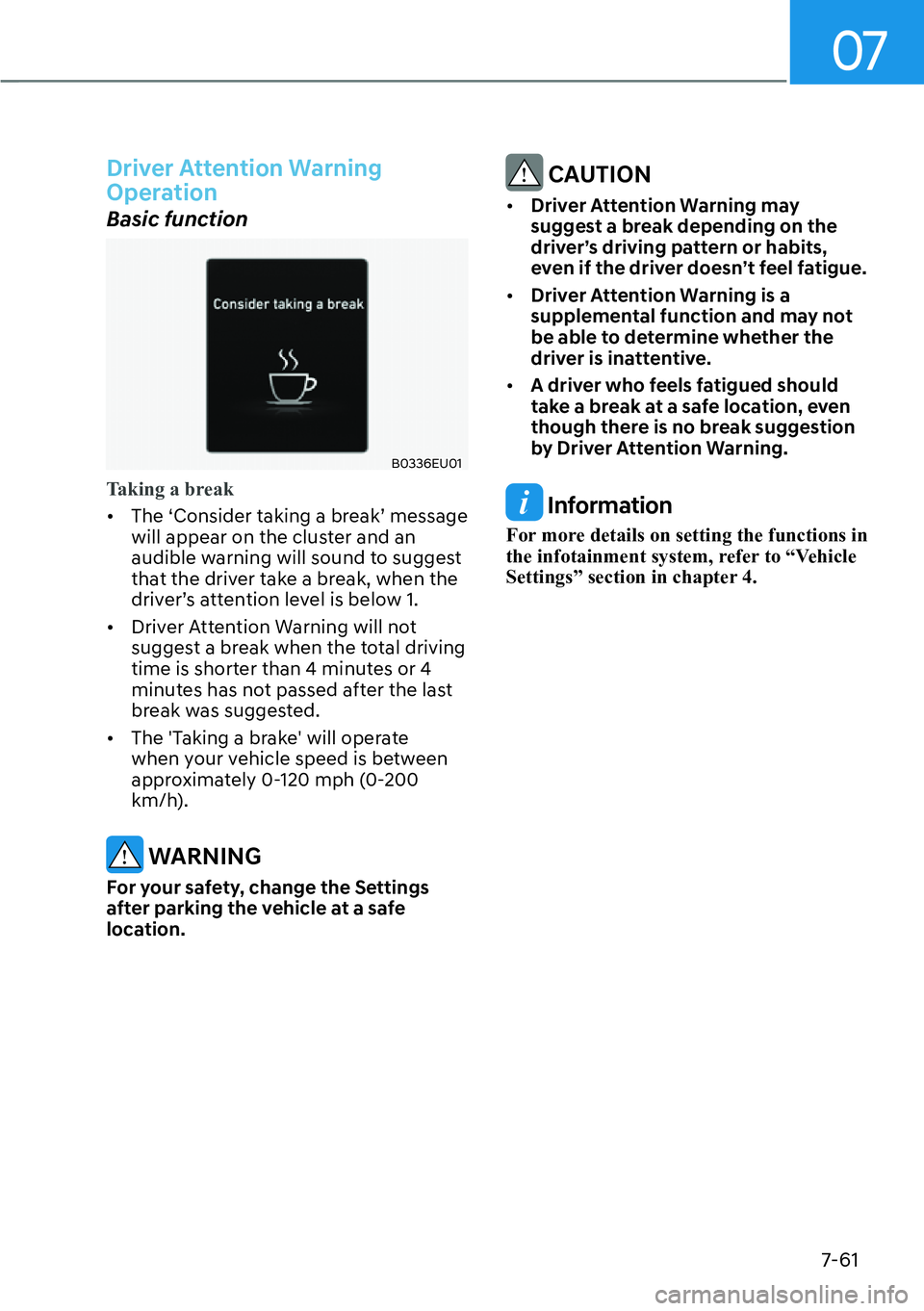

Driver Attention Warning
Operation
Basic function
B0336EU01
Taking a break

[The ‘Consider taking a br
eak’ message
will appear on the cluster and an
audible warning will sound to suggest
that the driver take a break, when the
driver’s attention level is below 1.

[ Driver Attention Warning will not
suggest a break when the total driving
time is shorter than 4 minutes or 4
minutes has not passed after the last
break was suggested.

[ The 'Taking a brake' will operate
when your vehicle speed is between
approximately 0-120 mph (0-200
km/h).
WARNING
For your safety, change the Settings
after parking the vehicle at a safe
location.
CAUTION

[Driver Attention Warning may
suggest a break depending on the
driver’s driving pattern or habits,
even if the driver doesn’t feel fatigue.

[ Driver Attention Warning is a
supplemental function and may not
be able to determine whether the
driver is inattentive.

[ A driver who feels fatigued should
take a break at a safe location, even
though there is no break suggestion
by Driver Attention Warning.
Information
For more details on setting the functions in
the infotainment system, refer to “Vehicle
Settings” section in chapter 4.
