2023 HYUNDAI PALISADE Section 5

Driver Assistance System7-96

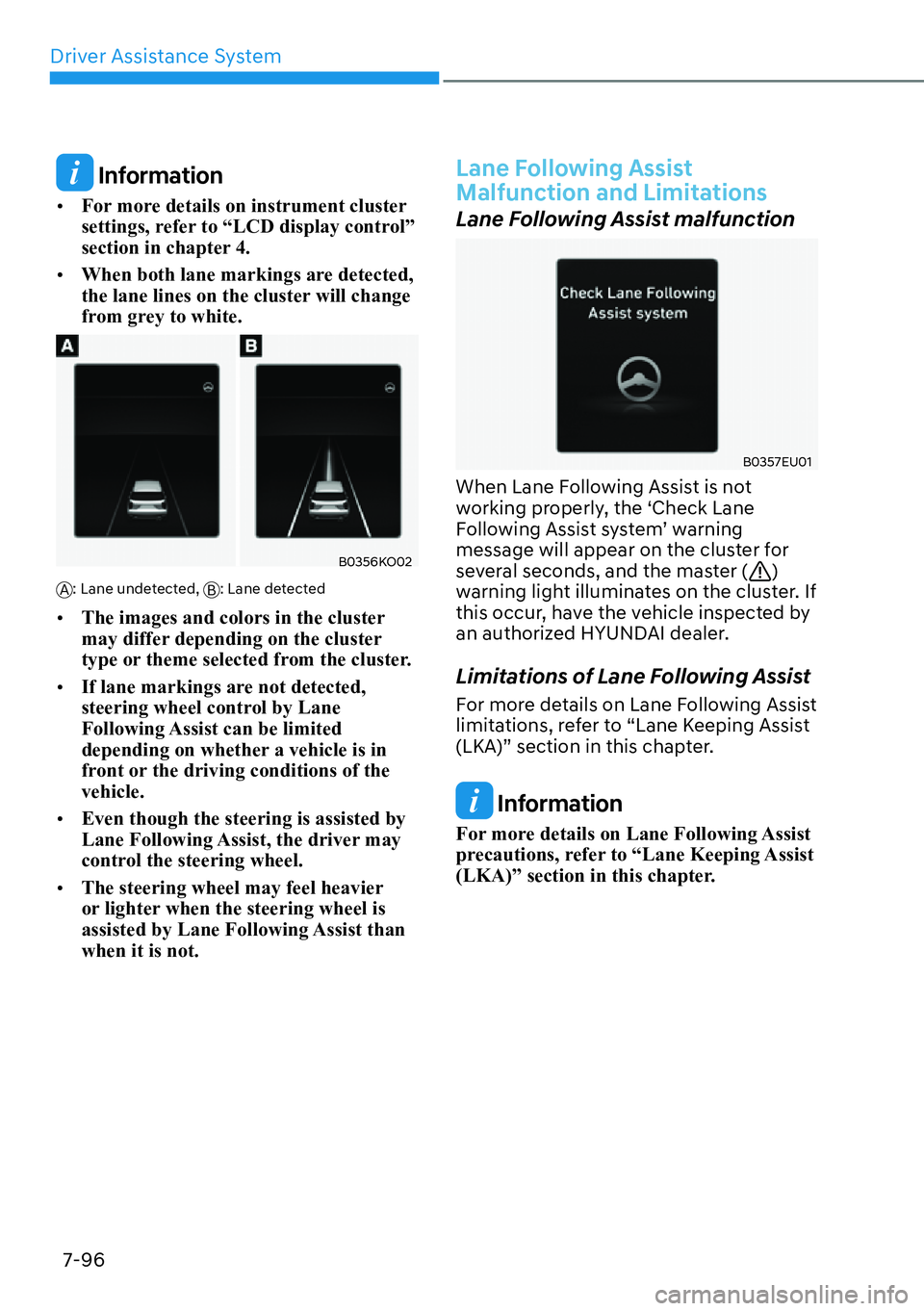

Information

[ For more details on instrument cluster
settings, refer to “LCD display control”
section in chapter 4.

[ When both lane markings are detected,
the lane lines on the cluster will change
from grey to white.
B0356KO02
A: Lane undetected,
B: Lane detected

[The images and colors in the cluster
may differ depending on the cluster
type or theme selected from the cluster.

[ If lane markings are not detected,
steering wheel control by Lane
Following Assist can be limited
depending on whether a vehicle is in
front or the driving conditions of the
vehicle.

[ Even though the steering is assisted by
Lane Following Assist, the driver may
control the steering wheel.

[ The steering wheel may feel heavier
or lighter when the steering wheel is
assisted by Lane Following Assist than
when it is not.
Lane Following Assist
Malfunction and Limitations
Lane Following Assist malfunction
B0357EU01
When Lane Following Assist is not
working properly, the ‘Check Lane
Following Assist system’ warning
message will appear on the cluster for
several seconds, and the master (
)
warning light illuminates on the cluster. If
this occur, have the vehicle inspected by
an authorized HYUNDAI dealer.
Limitations of Lane Following Assist
For more details on Lane Following Assist
limitations, refer to “Lane Keeping Assist
(LKA)” section in this chapter.
Information
For more details on Lane Following Assist
precautions, refer to “Lane Keeping Assist
(LKA)” section in this chapter.

Driver Assistance System7-98
Detecting sensor (if equipped)
B0311KO07
B0311KO08
B0311KO09
A: Front view camera, B: Front radar,
C: Front corner radar (if equipped),
D: Rear corner radar (if equipped)
Refer to the picture above for the
detailed location of the detecting
sensors.
CAUTION
For more details on the precautions of
the detecting sensors, refer to “Forward
Collision-Avoidance Assist (FCA)”
section in this chapter.
Highway Driving Assist Settings
B0359EU01
With the engine on, select or
GHVHOHFW
S'ULYHU$VVLVWDQFH

Driver Assistance System7-100

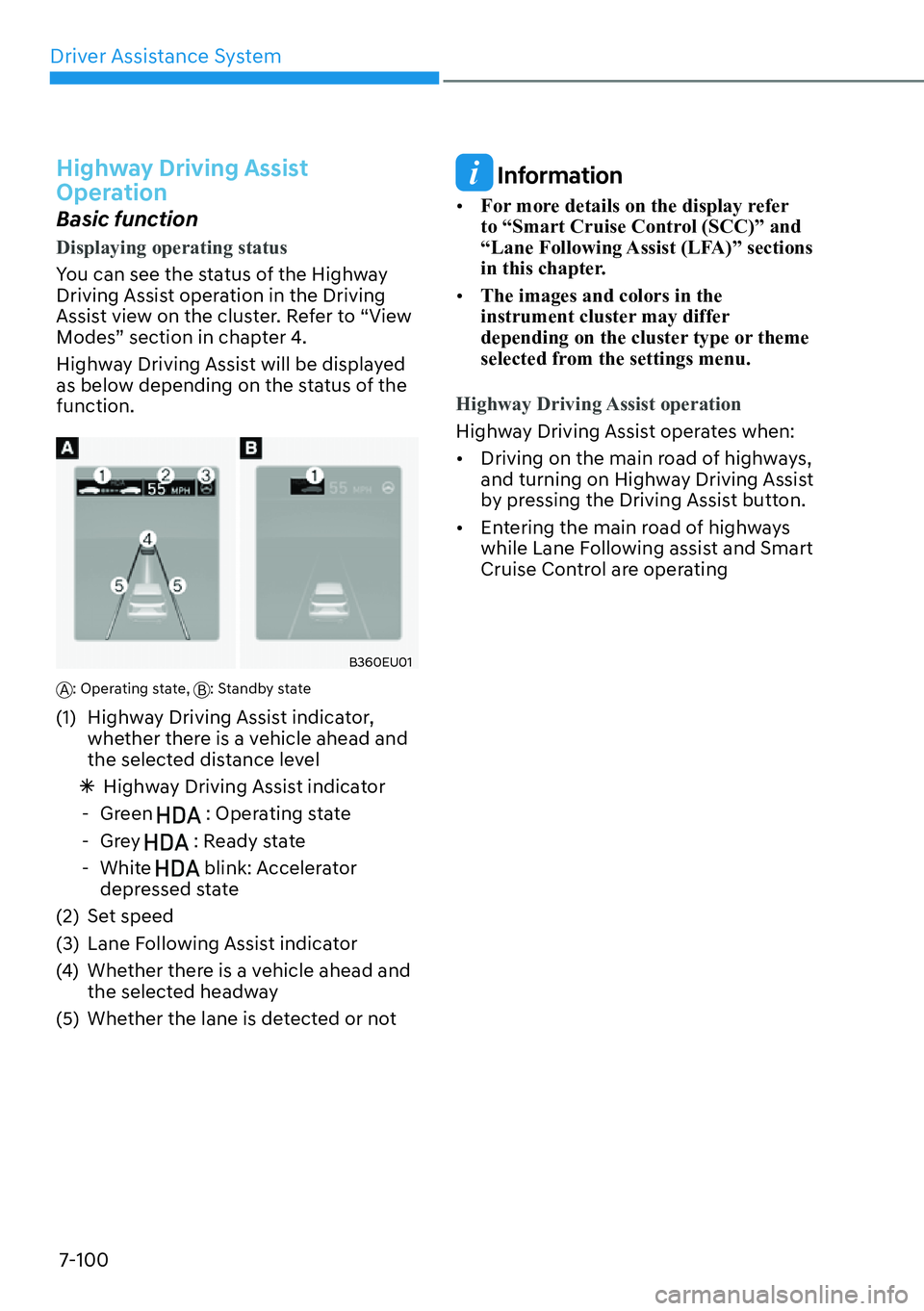

Highway Driving Assist
Operation
Basic function
Displaying operating status
You can see the status of the Highway
Driving Assis
t operation in the Driving
Assist view on the cluster. Refer to “View
Modes” section in chapter 4.
Highway Driving Assist will be displayed
as below depending on the status of the
function.
B360EU01
A: Operating state, B: Standby state
(1) Highway Driving Assist indicator,
whether there is a vehicle ahead and
the selected distance level

à Highway Driving Assist indicator
- Green
: Operating state

-Grey
: Ready state
- White blink: Accelerator
depressed state
(2) Set speed
(3) Lane Following Assist indicator
(4) Whether there is a vehicle ahead and the selected headway
(5) Whether the lane is detected or not
Information

[ For more details on the display refer
to “Smart Cruise Control (SCC)” and
“Lane Following Assist (LFA)” sections
in this chapter.

[ The images and colors in the
instrument cluster may differ
depending on the cluster type or theme
selected from the settings menu.
Highway Driving Assist operation
Highway Driving Assist operates when:

[ Driving on the main r

oad of highways,
and turning on Highway Driving Assist
by pressing the Driving Assist button.

[ Entering the main road of highways
while Lane Following assist and Smart
Cruise Control are operating

07
7-103

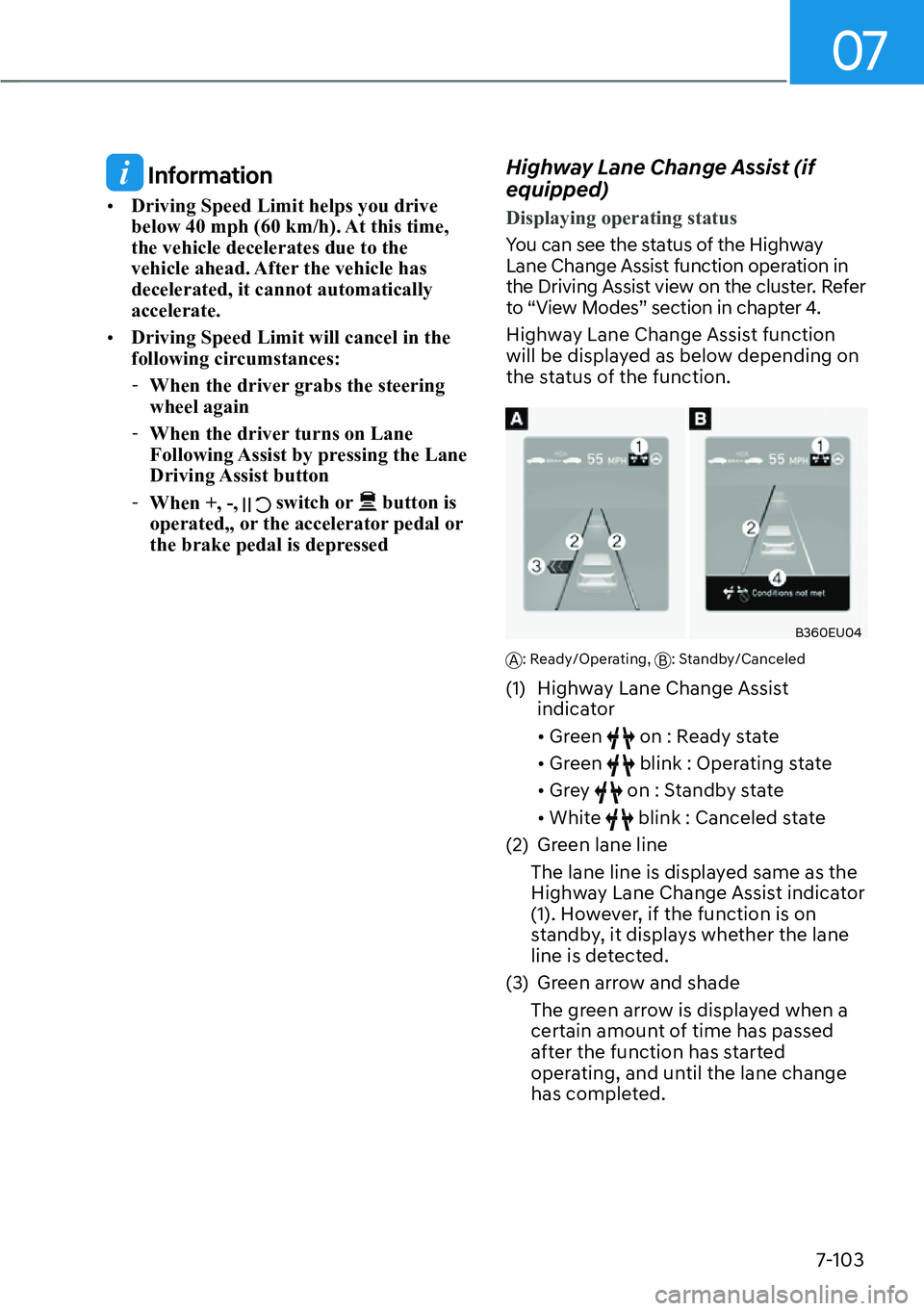

Information

[Driving Speed Limit helps you drive
below 40 mph (60 km/h). At this time,
the vehicle decelerates due to the
vehicle ahead. After the vehicle has
decelerated, it cannot automatically
accelerate.

[ Driving Speed Limit will cancel in the
following circumstances:
- When the driver grabs the steering
wheel again
- When the driver turns on Lane
Following Assist by pressing the Lane
Driving Assist button
- When +, -,
switch or button is
operated,, or the accelerator pedal or
the brake pedal is depressed
Highway Lane Change Assist (if
equipped)
Displaying operating status
You can see the status of the Highway
Lane Change Assis
t function operation in
the Driving Assist view on the cluster. Refer
to “View Modes” section in chapter 4.
Highway Lane Change Assist function
will be displayed as below depending on
the status of the function.
B360EU04
A: Ready/Operating, B: Standby/Canceled
(1) Highway Lane Change Assist
indicator

[Green
on : Ready state

[ Green
blink : Operating state

[ Grey
on : Standby state

[ White
blink : Canceled state
(2) Green lane line
The lane line is displayed same as the
Highway Lane Change Assist indicator
(1). However, if the function is on
standby, it displays whether the lane
line is detected.
(3) Green arrow and shade The green arrow is displayed when a
certain amount of time has passed
after the function has started
operating, and until the lane change
has completed.

Driver Assistance System7-104

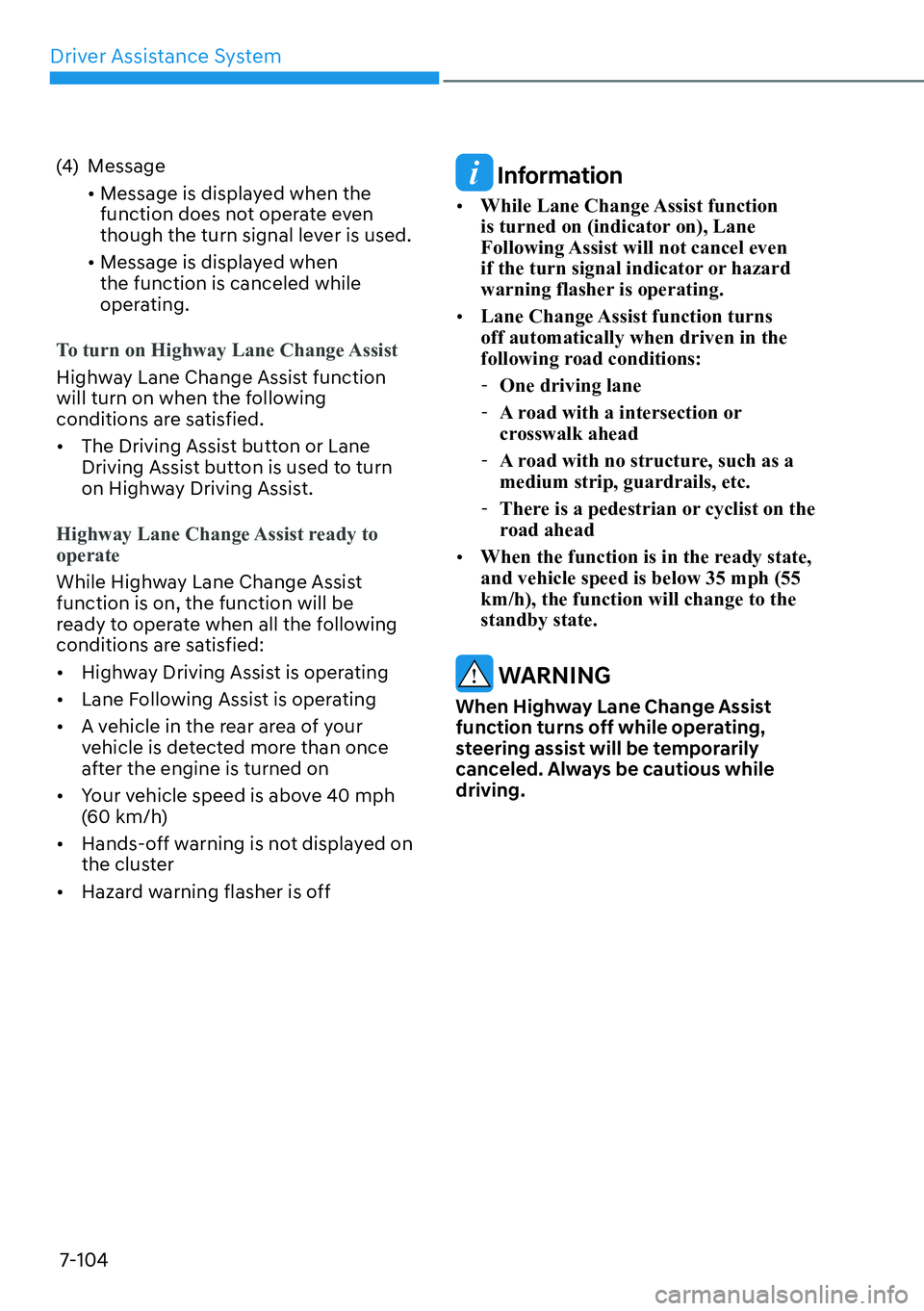

(4) Message
[Message is displayed when the
function does not operate even
though the turn signal lever is used.

[ Message is displayed when
the function is canceled while
operating.
To turn on Highway Lane Change Assist
Highway Lane Change Assist function
will turn on when the f
ollowing
conditions are satisfied.

[ The Driving Assist button or Lane
Driving Assist button is used to turn
on Highway Driving Assist.
Highway Lane Change Assist ready to
operate
While Highway Lane Change Assist
function is on, the function will be
r
eady to operate when all the following
conditions are satisfied:

[ Highway Driving Assist is operating

[ Lane Following Assist is operating

[ A vehicle in the rear area of your
vehicle is detected more than once
after the engine is turned on

[ Your vehicle speed is above 40 mph
(60 km/h)

[ Hands-off warning is not displayed on
the cluster

[ Hazard warning flasher is off
Information

[While Lane Change Assist function
is turned on (indicator on), Lane
Following Assist will not cancel even
if the turn signal indicator or hazard
warning flasher is operating.

[ Lane Change Assist function turns
off automatically when driven in the
following road conditions:
- One driving lane
- A road with a intersection or
crosswalk ahead
- A road with no structure, such as a
medium strip, guardrails, etc.
- There is a pedestrian or cyclist on the
road ahead

[ When the function is in the ready state,
and vehicle speed is below 35 mph (55
km/h), the function will change to the
standby state.
WARNING
When Highway Lane Change Assist
function turns off while operating,
steering assist will be temporarily
canceled. Always be cautious while
driving.

Driver Assistance System7-106

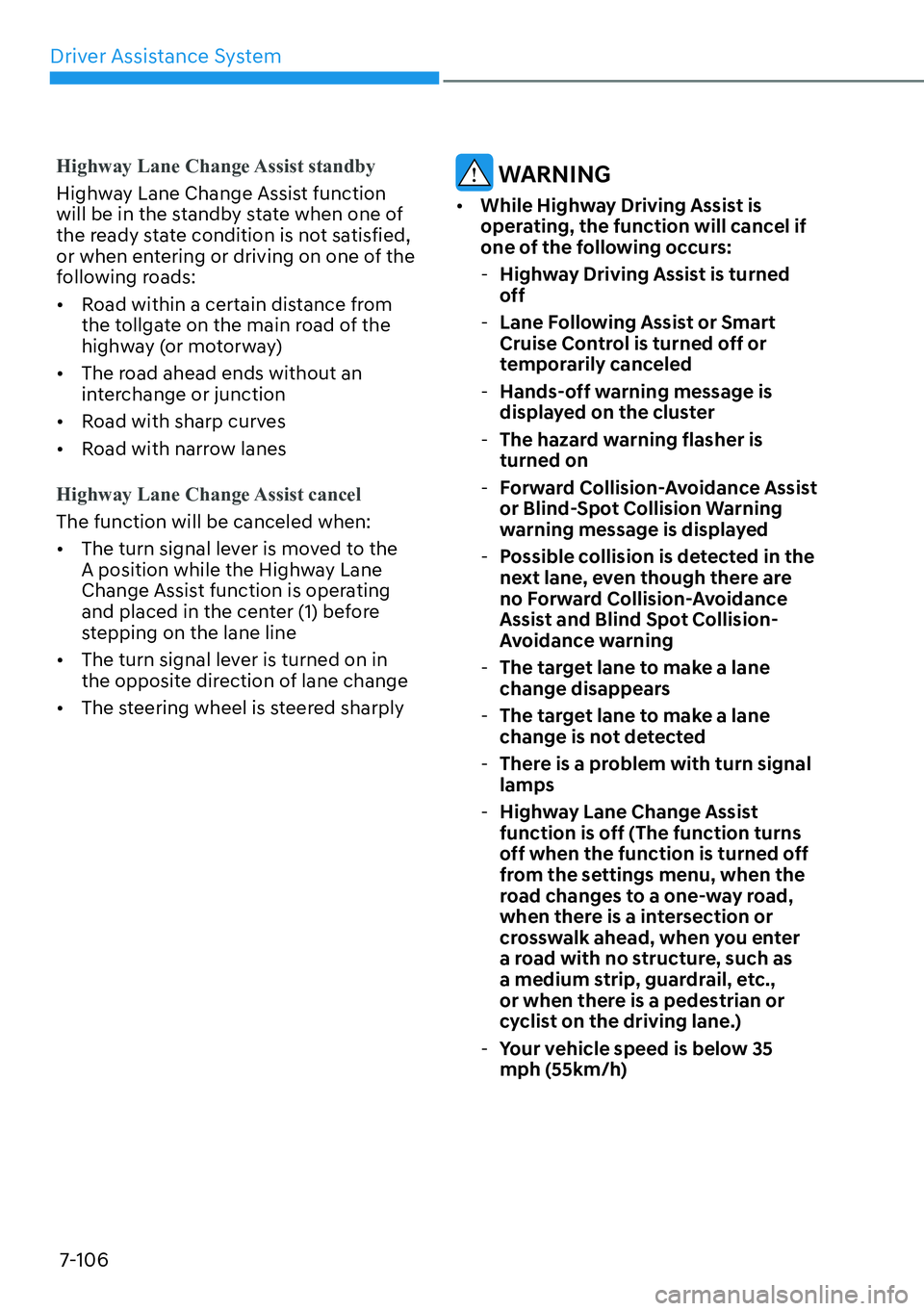

Highway Lane Change Assist standby
Highway Lane Change Assist function
will be in the s
tandby state when one of
the ready state condition is not satisfied,
or when entering or driving on one of the
following roads:

[ Road within a certain distance from
the tollgate on the main road of the
highway (or motorway)

[ The road ahead ends without an
interchange or junction

[ Road with sharp curves

[ Road with narrow lanes
Highway Lane Change Assist cancel
The function will be canceled when:

[ The turn signal le

ver is moved to the
A position while the Highway Lane
Change Assist function is operating
and placed in the center (1) before
stepping on the lane line

[ The turn signal lever is turned on in
the opposite direction of lane change

[ The steering wheel is steered sharply
WARNING

[While Highway Driving Assist is
operating, the function will cancel if
one of the following occurs:
- Highway Driving Assist is turned
off
- Lane Following Assist or Smart
Cruise Control is turned off or
temporarily canceled
- Hands-off warning message is
displayed on the cluster
- The hazard warning flasher is
turned on
- Forward Collision-Avoidance Assist
or Blind-Spot Collision Warning
warning message is displayed
- Possible collision is detected in the
next lane, even though there are
no Forward Collision-Avoidance
Assist and Blind Spot Collision-
Avoidance warning
- The target lane to make a lane
change disappears
- The target lane to make a lane
change is not detected
- There is a problem with turn signal
lamps
- Highway Lane Change Assist
function is off (The function turns
off when the function is turned off
from the settings menu, when the
road changes to a one-way road,
when there is a intersection or
crosswalk ahead, when you enter
a road with no structure, such as
a medium strip, guardrail, etc.,
or when there is a pedestrian or
cyclist on the driving lane.)
- Your vehicle speed is below 35
mph (55km/h)

07
7-107

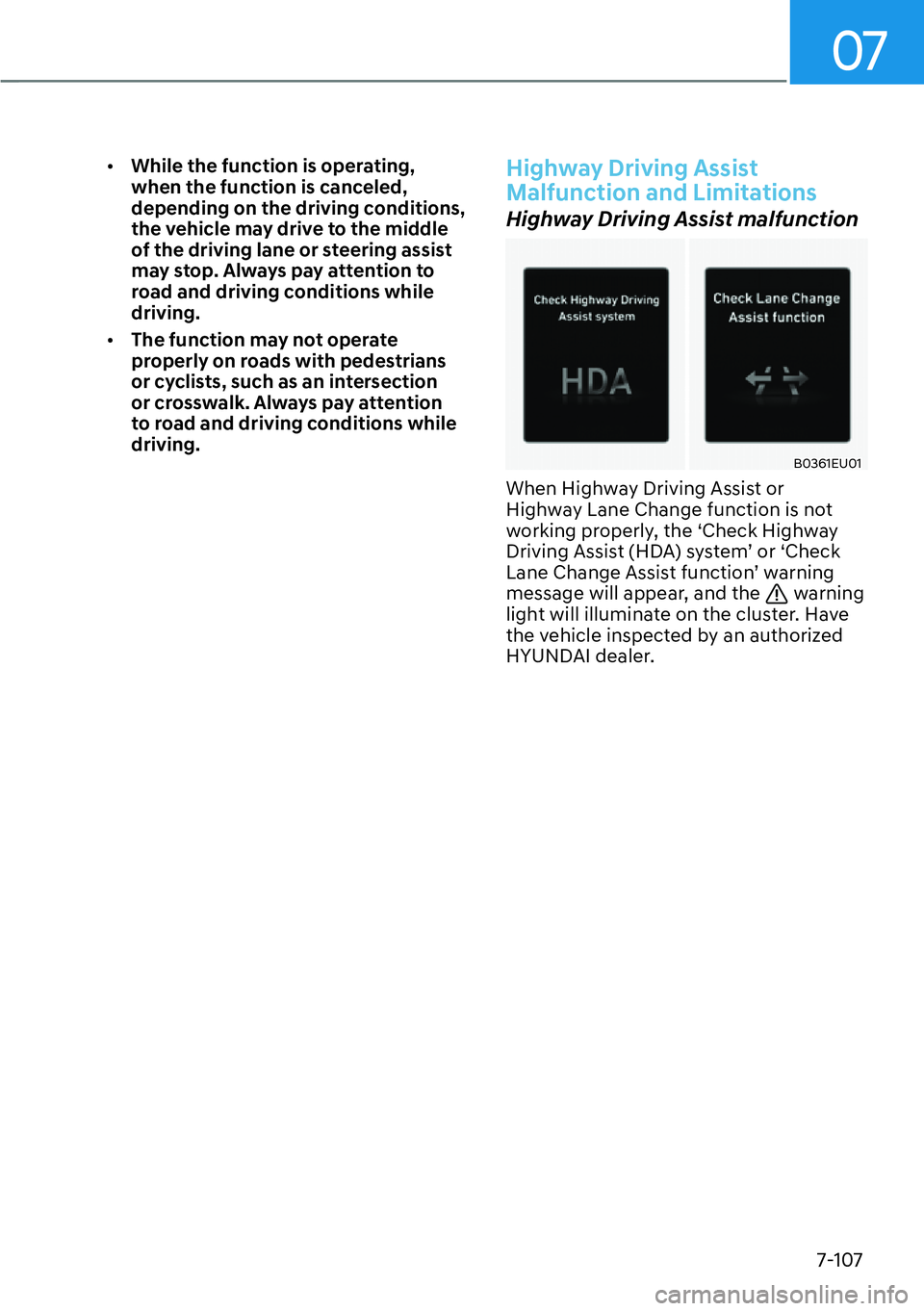

[While the function is operating,
when the function is canceled,
depending on the driving conditions,
the vehicle may drive to the middle
of the driving lane or steering assist
may stop. Always pay attention to
road and driving conditions while
driving.

[ The function may not operate
properly on roads with pedestrians
or cyclists, such as an intersection
or crosswalk. Always pay attention
to road and driving conditions while
driving.Highway Driving Assist
Malfunction and Limitations
Highway Driving Assist malfunction
B0361EU01
When Highway Driving Assist or
Highway Lane Change function is not
working properly, the ‘Check Highway
Driving Assist (HDA) system’ or ‘Check
Lane Change Assist function’ warning
message will appear, and the
warning
light will illuminate on the cluster. Have
the vehicle inspected by an authorized
HYUNDAI dealer.

Driver Assistance System7-108
WARNING

[ The driver is responsible for
controlling the vehicle for safe
driving.

[ Always have your hands on the
steering wheel while driving.

[ Highway Driving Assist is a
supplemental function that assists
the driver in driving the vehicle
and is not a complete autonomous
driving system. Always check road
conditions, and if necessary, take
appropriate actions to drive safely.

[ Always have your eyes on the road,
and it is the responsibility of the
driver to avoid violating traffic laws.
The vehicle manufacturer is not
responsible for any traffic violation
or accidents caused by the driver.

[ Highway Driving Assist may not
be able to recognize all traffic
situations. Highway Driving Assist
may not detect possible collisions
due to limitations of the function.
Always be aware of the limitations
of the function. Obstacles such as
vehicles, motorcycles, bicycles,
pedestrians, or unspecified objects
or structures such as guardrails,
tollgate, etc., that may collide with
the vehicle may not be detected.

[ Highway Driving Assist will turn off
automatically under the following
situations:
- Driving on roads that Highway
Driving Assist does not operate,
such as a rest area, intersection,
junction, etc.
- The navigation does not operate
properly such as when the
navigation is being updated or
restarted
[
Highway Driving Assist may
inadvertently operate or turn off
depending on road conditions
(navigation information) and
surroundings.

[ Lane Following Assist function may
be temporarily disabled when the
front view camera cannot detect
lanes properly or the hands-off
warning is on.

[ You may not hear the warning sound
of Highway Driving Assist if the
surrounding is noisy.

[ If the vehicle is driven at high speed
above a certain speed at a curve,
your vehicle may drive to one side or
may depart from the driving lane.

[ When you are towing a trailer or
another vehicle, turn off Highway
Driving Assist for safety reasons.

[ The hands–off warning message
may appear early or late depending
on how the steering wheel is held or
road conditions. Always have your
hands on the steering wheel while
driving.

[ For your safety, please read the
owner's manual before using the
Highway Driving Assist.

[ Highway Driving Assist will not
operate when the engine is started,
or when the detecting sensors or
navigation is being initialized.
