2023 HYUNDAI PALISADE Section 5

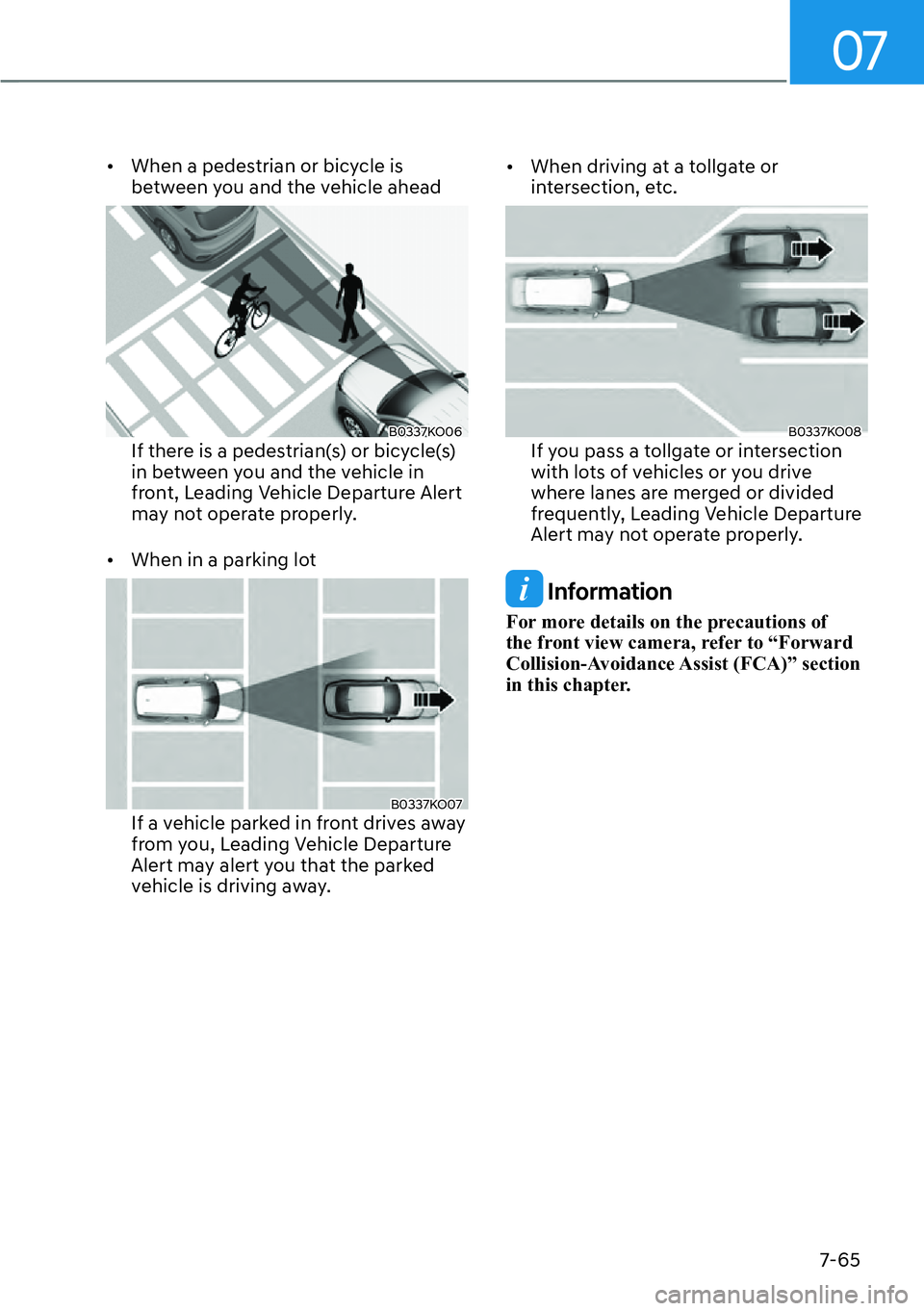

07
7-65

[When a pedestrian or bicycle is
between you and the vehicle ahead
B0337KO06If there is a pedestrian(s) or bicycle(s)
in between you and the vehicle in
front, Leading Vehicle Departure Alert
may not operate properly.

[ When in a parking lot
B0337KO07If a vehicle parked in front drives away
from you, Leading Vehicle Departure
Alert may alert you that the parked
vehicle is driving away.
[
When driving at a tollgate or
intersection, etc.
B0337KO08If you pass a tollgate or intersection
with lots of vehicles or you drive
where lanes are merged or divided
frequently, Leading Vehicle Departure
Alert may not operate properly.
Information
For more details on the precautions of
the front view camera, refer to “Forward
Collision-Avoidance Assist (FCA)” section
in this chapter.

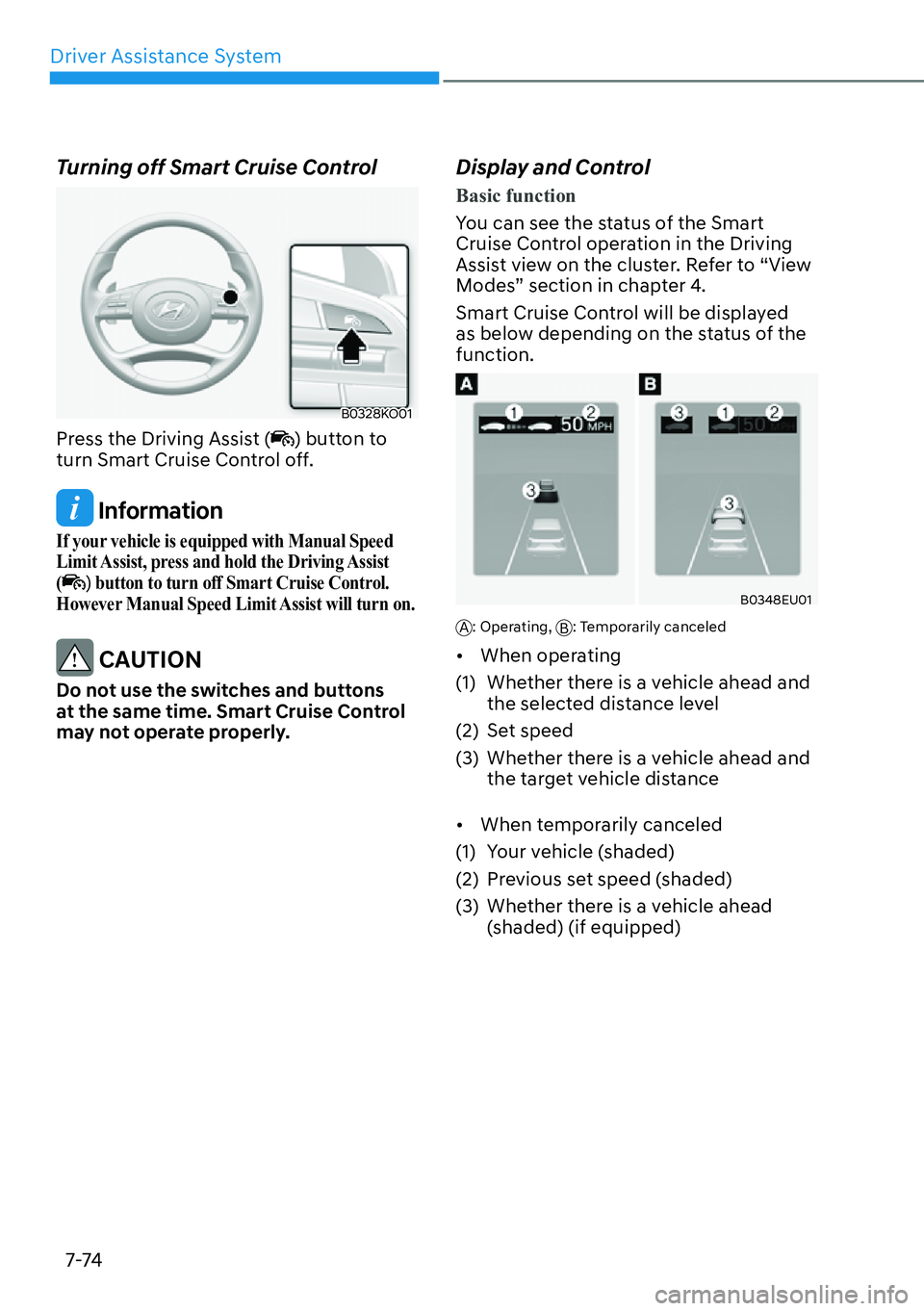

Driver Assistance System7-74
Turning off Smart Cruise Control
B0328KO01
Press the Driving Assist () button to
turn Smart Cruise Control off.
Information
If your vehicle is equipped with Manual Speed
Limit Assist, press and hold the Driving Assist
(
) button to turn off Smart Cruise Control.
However Manual Speed Limit Assist will turn on.
CAUTION
Do not use the switches and buttons
at the same time. Smart Cruise Control
may not operate properly.
Display and Control
Basic function
You can see the status of the Smart
Cruise Con
trol operation in the Driving
Assist view on the cluster. Refer to “View
Modes” section in chapter 4.
Smart Cruise Control will be displayed
as below depending on the status of the
function.
B0348EU01
A: Operating, B: Temporarily canceled

[When operating
(1) Whether there is a vehicle ahead and the selected distance level
(2) Set speed
(3) Whether there is a vehicle ahead and the target vehicle distance

[ When temporarily canceled
(1) Your vehicle (shaded)
(2) Previous set speed (shaded)
(3) Whether there is a vehicle ahead (shaded) (if equipped)

Driver Assistance System7-84
Adjust your vehicle speed by
depressing the brake pedal according
to the road and driving conditions
ahead.
In the following cases, the vehicle
in front cannot be detected by the
sensor: - You are steering your vehicle
- Driving on narrow or sharply curved roads
Adjust your vehicle speed by
depressing the brake pedal according
to the road and driving conditions
ahead.
B0349KO04

[ When a vehicle ahead disappears
at an intersection, your vehicle may
accelerate.
Always pay attention to road and
driving conditions while driving.
B0349KO05

[When a vehicle in front of you merges
out of the lane, Smart Cruise Control
may not immediately detect the new
vehicle that is now in front of you.
Always pay attention to road and
driving conditions while driving.
B0349KO06

[Always look out for pedestrians when
your vehicle is maintaining a distance
with the vehicle ahead.

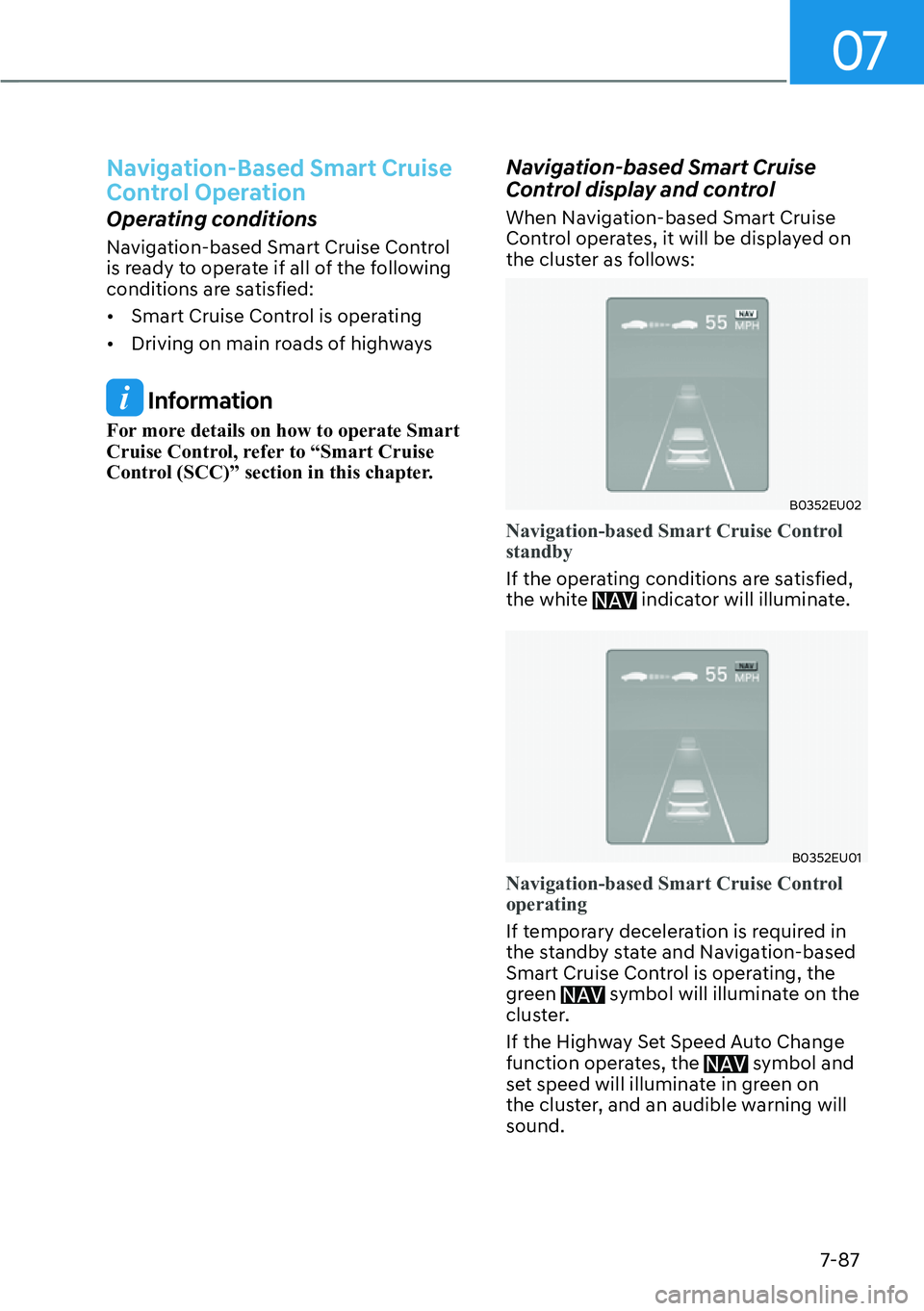

07
7-87
Navigation-Based Smart Cruise
Control Operation
Operating conditions
Navigation-based Smart Cruise Control
is ready to operate if all of the following
conditions are satisfied:

[Smart Cruise Control is operating

[ Driving on main roads of highways
Information
For more details on how to operate Smart
Cruise Control, refer to “Smart Cruise
Control (SCC)” section in this chapter.
Navigation-based Smart Cruise
Control display and control
When Navigation-based Smart Cruise
Control operates, it will be displayed on
the cluster as follows:
B0352EU02
Navigation-based Smart Cruise Control
standby
If the operating conditions are satisfied,
the whit

e indicator will illuminate.
B0352EU01
Navigation-based Smart Cruise Control
operating
If temporary deceleration is required in
the s
tandby state and Navigation-based
Smart Cruise Control is operating, the
green
symbol will illuminate on the
cluster.
If the Highway Set Speed Auto Change
function operates, the
symbol and
set speed will illuminate in green on
the cluster, and an audible warning will
sound.

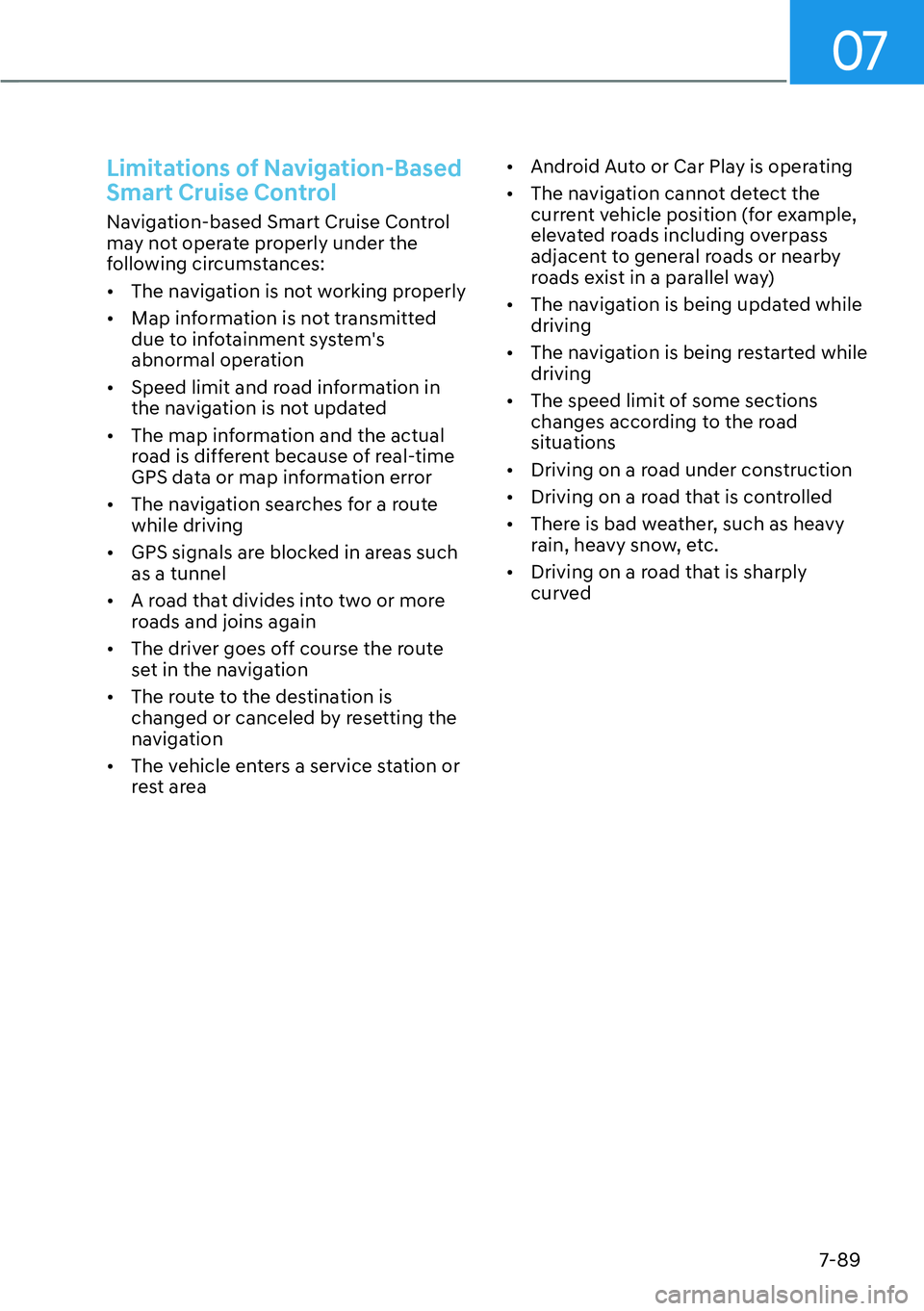

07
7-89
Limitations of Navigation-Based
Smart Cruise Control
Navigation-based Smart Cruise Control
may not operate properly under the
following circumstances:

[The navigation is not working properly

[ Map information is not transmitted
due to infotainment system's
abnormal operation

[ Speed limit and road information in
the navigation is not updated

[ The map information and the actual
road is different because of real-time
GPS data or map information error

[ The navigation searches for a route
while driving

[ GPS signals are blocked in areas such
as a tunnel

[ A road that divides into two or more
roads and joins again

[ The driver goes off course the route
set in the navigation

[ The route to the destination is
changed or canceled by resetting the
navigation

[ The vehicle enters a service station or
rest area
[
Android Auto or Car Play is operating

[ The navigation cannot detect the
current vehicle position (for example,
elevated roads including overpass
adjacent to general roads or nearby
roads exist in a parallel way)

[ The navigation is being updated while
driving

[ The navigation is being restarted while
driving

[ The speed limit of some sections
changes according to the road
situations

[ Driving on a road under construction

[ Driving on a road that is controlled

[ There is bad weather, such as heavy
rain, heavy snow, etc.

[ Driving on a road that is sharply
curved

Driver Assistance System7-90
B0353EU01
M: Set route, N: Branch line, O: Driving route,
P: Main road, Q: Curved road section

[ When there is a difference between
the navigation set route (branch line)
and the driving route (main road),
Highway Curve Zone Auto Slowdown
function may not operate until the
driving route is recognized as the
main road.

[ When the vehicle's driving route
is recognized as the main road by
maintaining the main road instead
of the navigation set route, Highway
Curve Zone Auto Slowdown function
will operate. Depending on the
distance to the curve and the current
vehicle speed, vehicle deceleration
may not be sufficient or may
decelerate rapidly.
B0353EU02
M: Set route, N: Branch line, O: Driving route,
P: Main road, Q: Curved road section

[ When there is a difference between
the navigation route (main road)
and the driving route (branch line),
Highway Curve Zone Auto Slowdown
function will operate based on the
curve information on the main road.

[ When it is judged that you are driving
out of the route by entering the
highway interchange or junction,
Highway Curve Zone Auto Slowdown
function will not operate.

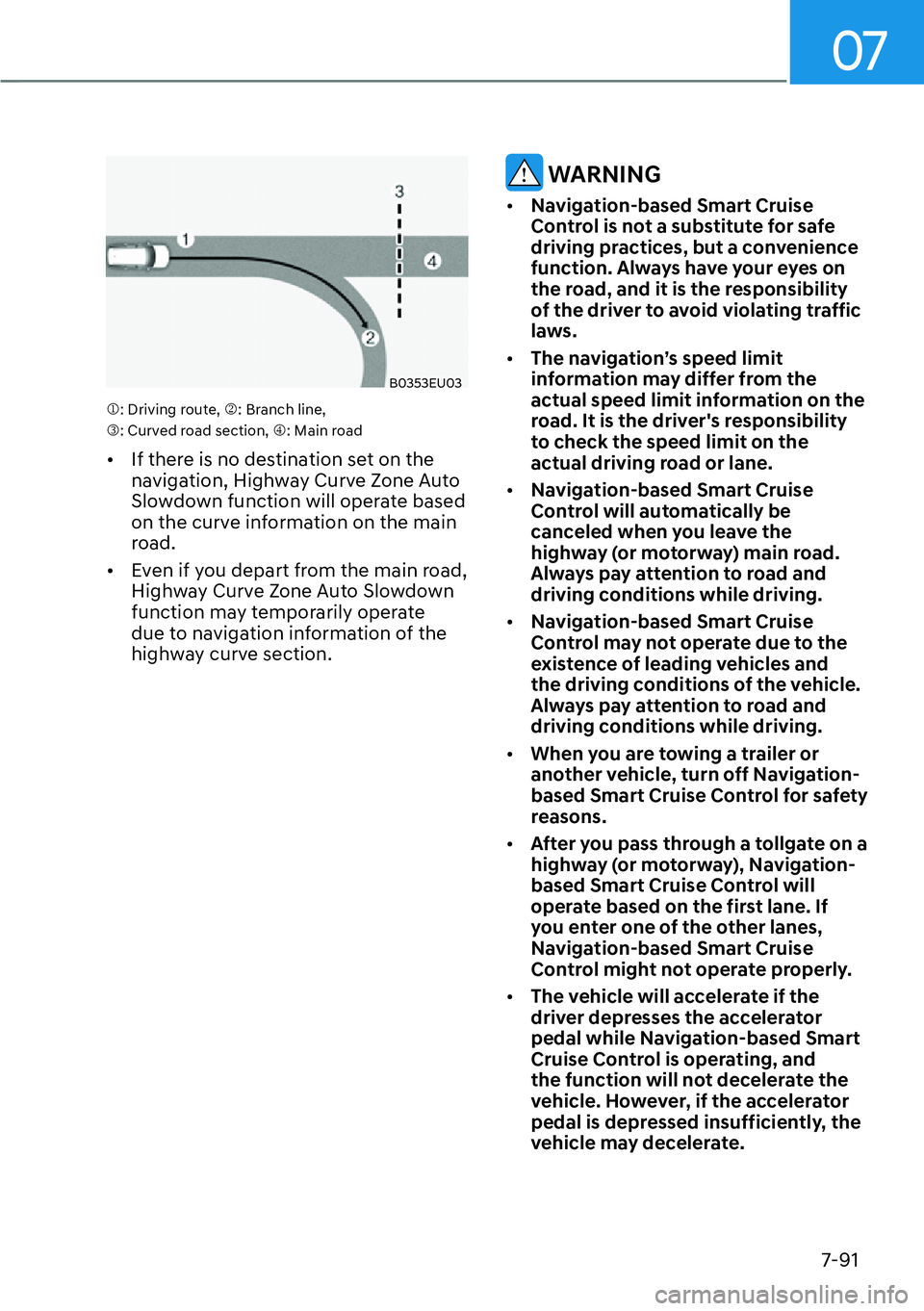

07
7-91
B0353EU03
M: Driving route, N: Branch line,
O: Curved road section, P: Main road

[If there is no destination set on the
navigation, Highway Curve Zone Auto
Slowdown function will operate based
on the curve information on the main
road.

[ Even if you depart from the main road,
Highway Curve Zone Auto Slowdown
function may temporarily operate
due to navigation information of the
highway curve section.
WARNING

[Navigation-based Smart Cruise
Control is not a substitute for safe
driving practices, but a convenience
function. Always have your eyes on
the road, and it is the responsibility
of the driver to avoid violating traffic
laws.

[ The navigation’s speed limit
information may differ from the
actual speed limit information on the
road. It is the driver's responsibility
to check the speed limit on the
actual driving road or lane.

[ Navigation-based Smart Cruise
Control will automatically be
canceled when you leave the
highway (or motorway) main road.
Always pay attention to road and
driving conditions while driving.

[ Navigation-based Smart Cruise
Control may not operate due to the
existence of leading vehicles and
the driving conditions of the vehicle.
Always pay attention to road and
driving conditions while driving.

[ When you are towing a trailer or
another vehicle, turn off Navigation-
based Smart Cruise Control for safety
reasons.

[ After you pass through a tollgate on a
highway (or motorway), Navigation-
based Smart Cruise Control will
operate based on the first lane. If
you enter one of the other lanes,
Navigation-based Smart Cruise
Control might not operate properly.

[ The vehicle will accelerate if the
driver depresses the accelerator
pedal while Navigation-based Smart
Cruise Control is operating, and
the function will not decelerate the
vehicle. However, if the accelerator
pedal is depressed insufficiently, the
vehicle may decelerate.

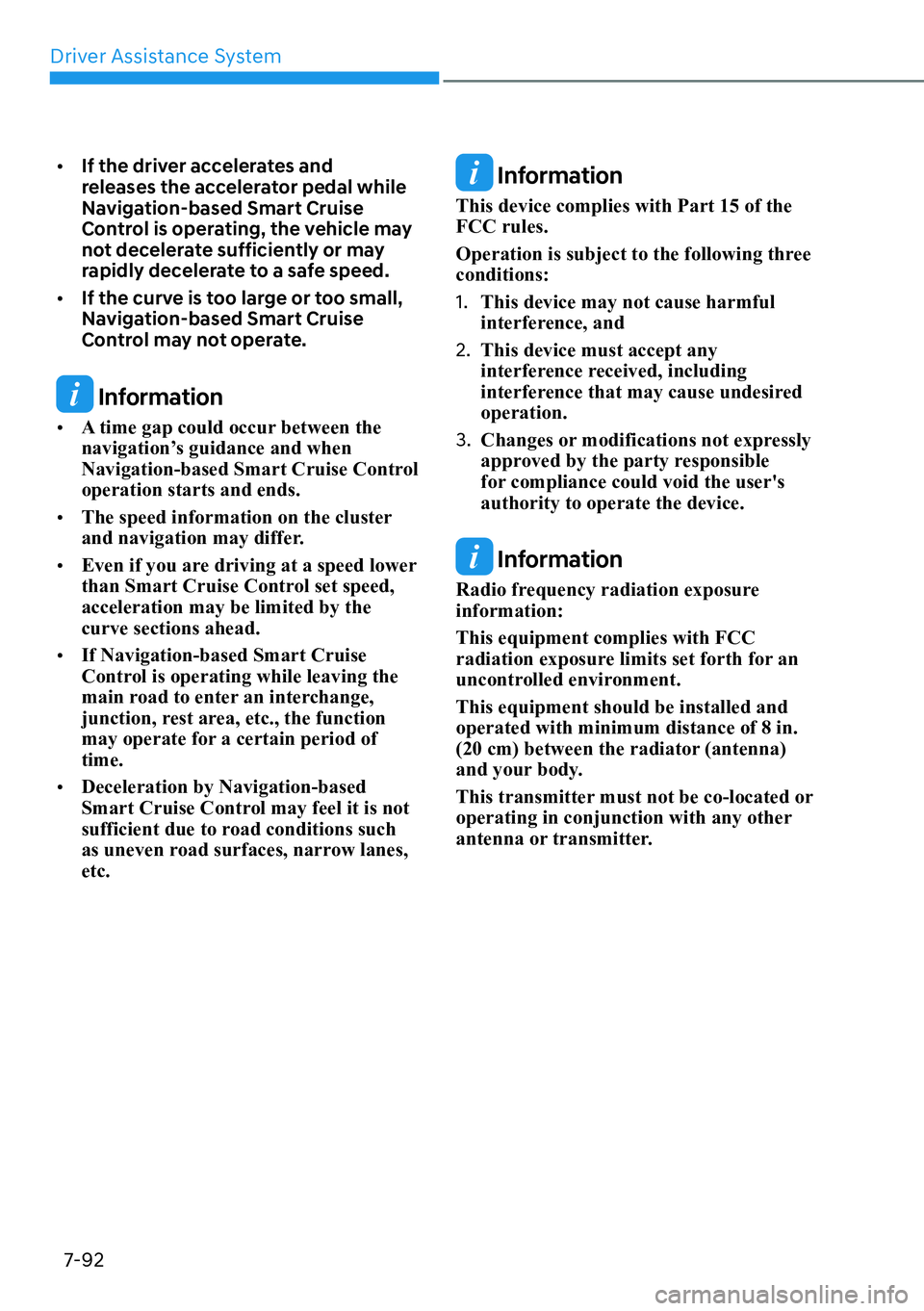

Driver Assistance System7-92

[ If the driver accelerates and
releases the accelerator pedal while
Navigation-based Smart Cruise
Control is operating, the vehicle may
not decelerate sufficiently or may
rapidly decelerate to a safe speed.

[ If the curve is too large or too small,
Navigation-based Smart Cruise
Control may not operate.
Information

[A time gap could occur between the
navigation’s guidance and when
Navigation-based Smart Cruise Control
operation starts and ends.

[ The speed information on the cluster
and navigation may differ.

[ Even if you are driving at a speed lower
than Smart Cruise Control set speed,
acceleration may be limited by the
curve sections ahead.

[ If Navigation-based Smart Cruise
Control is operating while leaving the
main road to enter an interchange,
junction, rest area, etc., the function
may operate for a certain period of
time.

[ Deceleration by Navigation-based
Smart Cruise Control may feel it is not
sufficient due to road conditions such
as uneven road surfaces, narrow lanes,
etc.
Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the device.
Information
Radio frequency radiation exposure
information:
This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment.
This equipment should be installed and
operated with minimum distance of 8 in.
(20 cm) between the radiator (antenna)
and your body.
This transmitter must not be co-located or
operating in conjunction with any other
antenna or transmitter.
