2023 HYUNDAI PALISADE Section 5

05
5-149

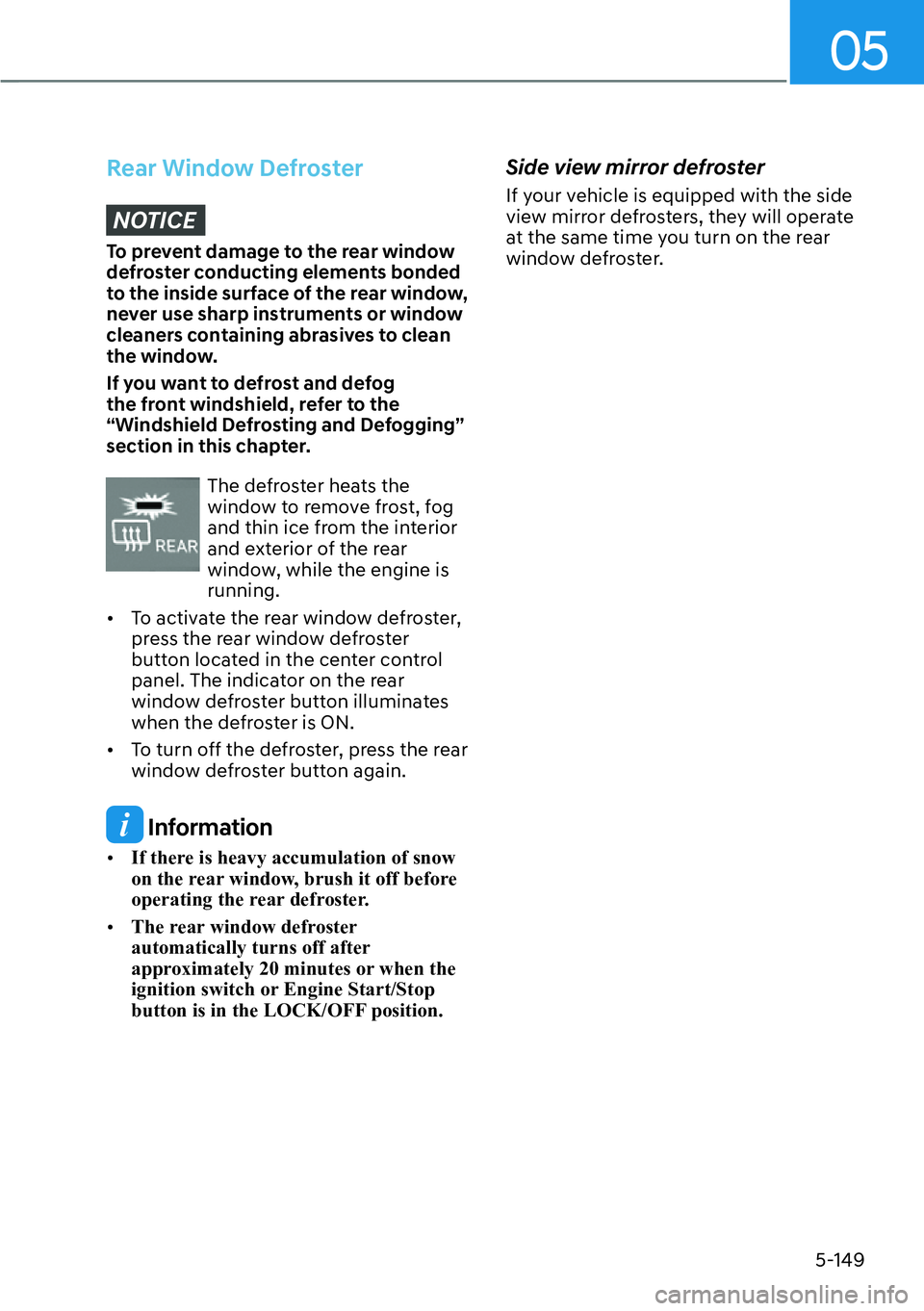

Rear Window DefrosterNOTICE
To prevent damage to the rear window
defroster conducting elements bonded
to the inside surface of the rear window,
never use sharp instruments or window
cleaners containing abrasives to clean
the window.
If you want to defrost and defog
the front windshield, refer to the

U:LQGVKLHOG'HIURVWLQJDQG'HIRJJLQJ
V
section in this chapter.
The defroster heats the
window to remove frost, fog
and thin ice from the interior
and exterior of the rear
window, while the engine is
running.

[ To activate the rear window defroster,
press the rear window defroster
button located in the center control
panel. The indicator on the rear
window defroster button illuminates
when the defroster is ON.

[ To turn off the defroster, press the rear
window defroster button again.
Information

[If there is heavy accumulation of snow
on the rear window, brush it off before
operating the rear defroster.

[ The rear window defroster
automatically turns off after
approximately 20 minutes or when the
ignition switch or Engine Start/Stop
button is in the LOCK/OFF position.
Side view mirror defroster
If your vehicle is equipped with the side
view mirror defrosters, they will operate
at the same time you turn on the rear
window defroster.

Driving Your Vehicle6-4
Before Entering the Vehicle

[ Be sure all windows, side view
mirror(s), and outside lights are clean
and unobstructed.

[ Remove frost, snow, or ice.

[ Visually check the tires for uneven
wear and damage.

[ Check under the vehicle for any sign
of leaks.

[ Be sure there are no obstacles behind
you if you intend to back up.
Before Starting

[Make sure the hood, the liftgate, and
the doors are securely closed and
locked.

[ Adjust the position of the seat and
steering wheel.

[ Adjust the inside and outer side view
mirrors.

[ Verify all the lights work.

[ Fasten your seat belt. Check that all
passengers have fastened their seat
belts.

[ Check the gauges and indicators
in the instrument panel and the
messages on the instrument display
when ignition switch or Engine Start/
Stop button is in the ON position.

[ Check that any items you are carrying
are stored properly or fastened down
securely.
WARNING
To reduce the risk of SERIOUS INJURY or
DEATH, take the following precautions:

[ALWAYS wear your seat belt. All
passengers must be properly belted
whenever the vehicle is moving.
For more information, refer to “Seat
Belts” section in chapter 3.

[ Always drive defensively. Assume
other drivers or pedestrians may be
careless and make mistakes.

[ Stay focused on the task of driving.
Driver distraction can cause
accidents.

[ Leave plenty of space between you
and the vehicle in front of you.
WARNING
NEVER drink or take drugs and drive.
Drinking or taking drugs and driving
is dangerous and may result in an
accident and SERIOUS INJURY or
DEATH.
Drunk driving is the number one
contributor to the highway death
toll each year. Even a small amount
of alcohol will affect your reflexes,
perceptions and judgment. Just
one drink can reduce your ability to
respond to changing conditions and
emergencies and your reaction time
gets worse with each additional drink.
Driving while under the influence
of drugs is as dangerous or more
dangerous than driving under the
influence of alcohol.
You are much more likely to have a
serious accident if you drink or take
drugs and drive. If you are drinking or
taking drugs, don’t drive. Do not ride
with a driver who has been drinking
or taking drugs. Choose a designated
driver or call a taxi.
BEFORE DRIVING

06
6-19
When the battery is discharged
You cannot shift gears, when the battery
is discharged.
In emergencies, do the following to shift
the gear to N (Neutral) on a level ground.
1. Connect the battery cables from another vehicle or from a another
battery to the jump-starting terminals
inside the engine compartment.
For more details, refer to "Jump
Starting" section in chapter 8.
2. Release the Electronic Parking Brake with the ignition switch or Engine
Start/Stop button in the ON position.
3. Shift the gear to the N (Neutral) position. Refer to the “To stay in N
(Neutral) when vehicle is Off" in this
chapter.
Information
In situations when the gear needs to be
shifted from P (Park) to N (Neutral) when
the ignition switch or Engine Start/Stop
button is in the OFF position, refer to the
“To stay in N (Neutral) when vehicle is
OFF” in this chapter.
Shift-lock system
For your safety, the automatic
transmission has a shift-lock system
which prevents shifting the transmission
from P (Park) into R (Reverse) or D (Drive)
unless the brake pedal is depressed.
To shift from P (Park) or N (Neutral) into R
(Reverse) or D (Drive):
1. Depress and hold the brake pedal.
2. Start the engine.
3. Shift gear while depressing the brake pedal.
Ignition key interlock system (if
equipped)
The ignition key cannot be removed
unless the shift button is in the P (Park)
position.

06
6-47

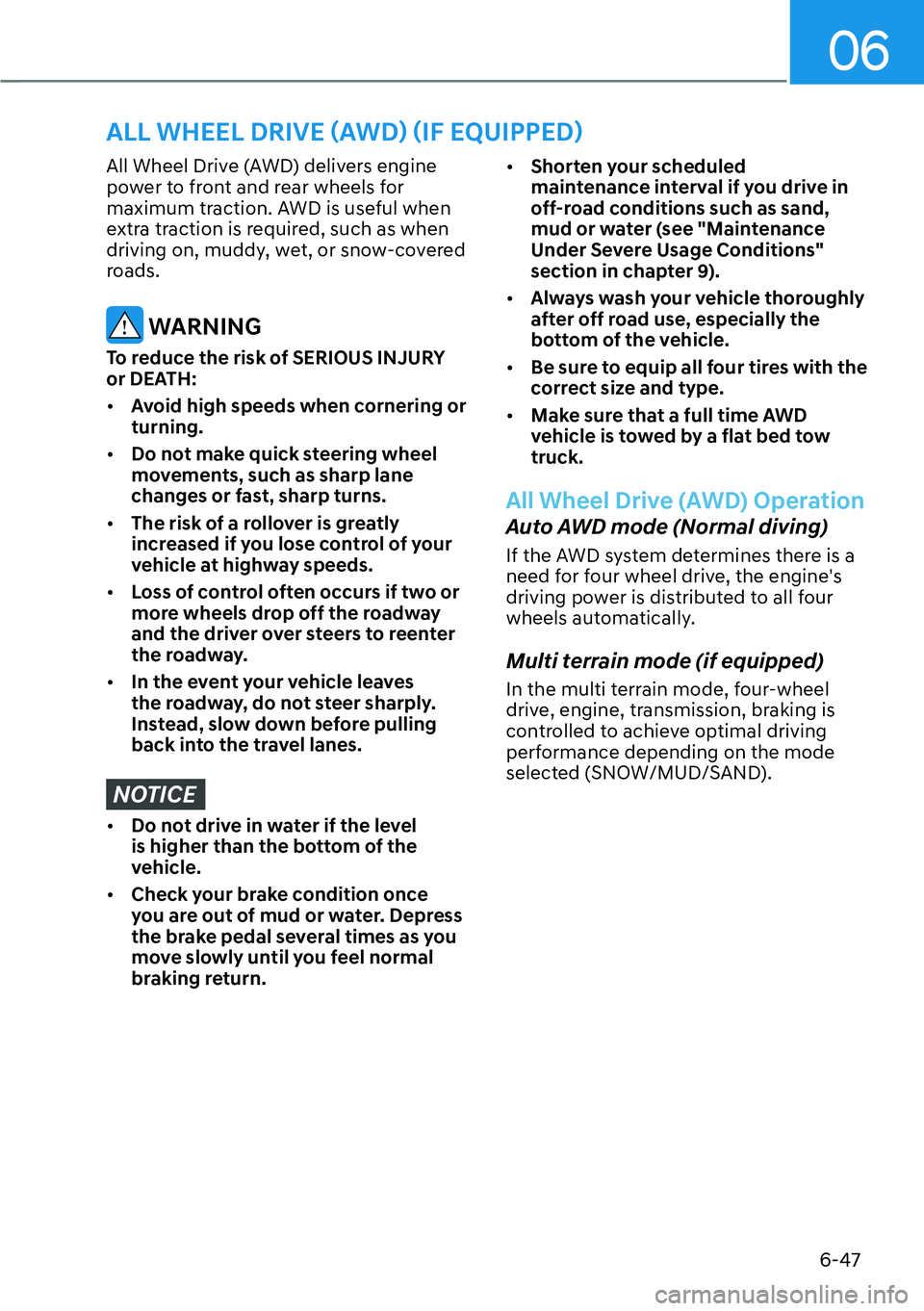

All Wheel Drive (AWD) delivers engine
power to front and rear wheels for
maximum traction. AWD is useful when
extra traction is required, such as when
driving on, muddy, wet, or snow-covered
roads.
WARNING
To reduce the risk of SERIOUS INJURY
or DEATH:

[Avoid high speeds when cornering or
turning.

[ Do not make quick steering wheel
movements, such as sharp lane
changes or fast, sharp turns.

[ The risk of a rollover is greatly
increased if you lose control of your
vehicle at highway speeds.

[ Loss of control often occurs if two or
more wheels drop off the roadway
and the driver over steers to reenter
the roadway.

[ In the event your vehicle leaves
the roadway, do not steer sharply.
Instead, slow down before pulling
back into the t ravel lanes.
NOTICE

[Do not drive in water if the level
is higher than the bottom of the
vehicle.

[ Check your brake condition once
you are out of mud or water. Depress
the brake pedal several times as you
move slowly until you feel normal
braking return.
[
Shorten your scheduled
maintenance interval if you drive in
off-road conditions such as sand,
mud or water (see "Maintenance
Under Severe Usage Conditions"
section in chapter 9).

[ Always wash your vehicle thoroughly
after off road use, especially the
bottom of the vehicle.

[ Be sure to equip all four tires with the
correct size and type.

[ Make sure that a full time AWD
vehicle is towed by a flat bed tow
truck.
All Wheel Drive (AWD) Operation
Auto AWD mode (Normal diving)
If the AWD system determines there is a
need for four wheel drive, the engine's
driving power is distributed to all four
wheels automatically.
Multi terrain mode (if equipped)
In the multi terrain mode, four-wheel
drive, engine, transmission, braking is
controlled to achieve optimal driving
performance depending on the mode
selected (SNOW/MUD/SAND).
$//:+((/'5,9(
í$:'
î
í,)(48,33('
î

06
6-49
For safe AWD operation
Before driving

[Mak
e sure all passengers are wearing
seat belts.

[ Sit upright and closer to the steering
wheel than usual. Adjust the steering
wheel to a position comfortable for
you to drive.
Driving on snow-covered or icy roads

[ S
tart off slowly by applying the
accelerator pedal gently.

[ Use snow tires or tire chains.

[ Keep sufficient distance between your
vehicle and the vehicle in front of you.

[ Apply engine braking during
deceleration by using the paddle
shifter (manual shift mode) and
manually selecting a lower gear.

[ Avoid speeding, rapid acceleration,
sudden brake applications, and sharp
turns to prevent skids.
Information
When using Snow Tires, mount them on
all four wheels.
When using tire chains, install them on the
rear tires. However, driving speed must
be below 20 mph (30 km/h) and minimize
the driving distance. High-speed or long-
term driving with tire chains installed may
malfunction or damage the AWD system.
For more details on Snow Tires and Tire
Chains, refer to "Winter Driving" section
later in this chapter.
Driving in sand or mud

[Maintain slo
w and constant speed.

[ Use tire chains driving in mud if
necessary.

[ Keep sufficient distance between your
vehicle and the vehicle in front of you.

[ Reduce vehicle speed and always
check the road condition.

[ Avoid speeding, rapid acceleration,
sudden brake applications, and sharp
turns to prevent getting stuck.
NOTICE
When the vehicle is stuck in snow, sand
or mud, place a nonslip material under
the drive wheels to provide traction
OR slowly spin the wheels in forward
and reverse directions which causes
a rocking motion that may free the
vehicle.
However, avoid running the engine
continuously at high RPM, doing so may
damage the AWD system.
Driving up or down hills

[Driving uphill

- Be

fore starting off, check if it is
possible to drive uphill.

- Drive as straight as possible.

[ Driving downhill

- Do not change gear while driving
downhill. Select gear before driving
downhill.

- Drive slowly using engine braking
while driving downhill.

- Drive straight as possible.
WARNING
Exercise extreme caution driving up or
down steep hills. The vehicle may flip
over depending on the grade, terrain,
water and mud conditions.

06
6-51
WARNING
B0271EU01
Never start or run the engine while
an AWD vehicle is raised on a jack.
The vehicle can slip or roll off of a jack
causing serious injury or death to you or
those nearby.
Towing
AWD vehicles must be towed with
a wheel lift and dollies or flatbed
equipment with all the wheels off
the ground. For more details, refer to
"Towing" section in chapter 8.
Vehicle inspection

[If the vehicle needs to be operated on
a vehicle lift do not attempt to stop
any of the four wheels from turning.
This could damage the AWD system.

[ Never engage the parking brake while
running the engine on vehicle lift. This
may damage the AWD system.
Dynamometer testing
An AWD vehicle must be tested on a
special four wheel chassis dynamometer.
B0274EU01
A: Roll tester (Speedometer),
B: Temporary free roller
An AWD vehicle should not be tested
on a 2WD roll tester. If a 2WD roll tester
must be used, perform the following
procedure:
1. Check the tire pressures recommended for your vehicle.
2. Place the rear wheels on the roll tester for a speedometer test as shown in
the illustration.
3. Release the parking brake.
4. Place the front wheels on the temporary free roller as shown in the
illustration.
WARNING
Keep away from the front of the vehicle
while the vehicle is in gear on the
dynamometer. The vehicle can jump
forward and cause serious injury or
death.
AWD malfunction
If the AWD () warning light stays on
the instrument cluster, your vehicle
may have a malfunction with the AWD
system. When the AWD warning light
(
) illuminates, have the vehicle be
checked by an authorized HYUNDAI
dealer as soon as possible.

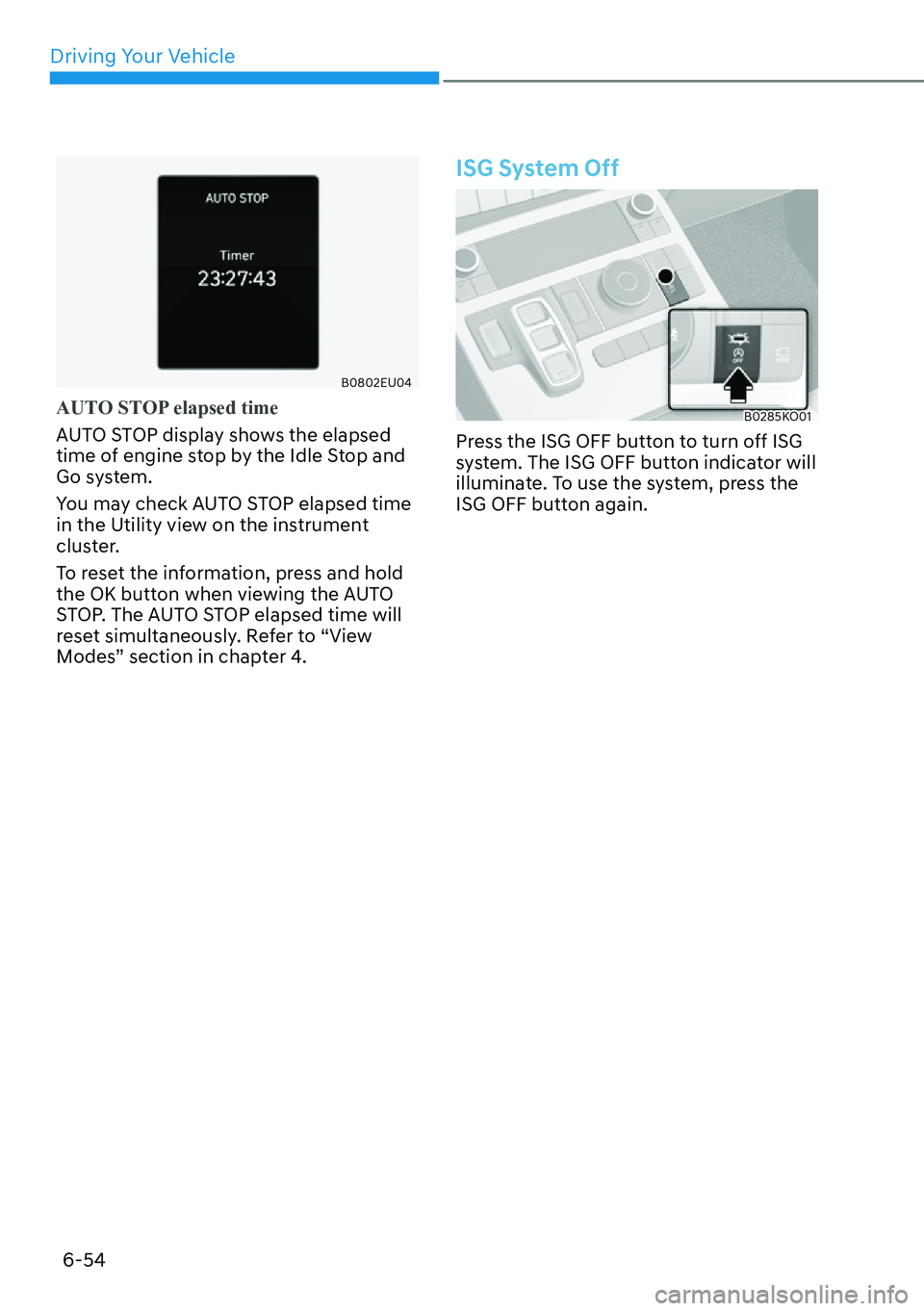

Driving Your Vehicle6-54
B0802EU04
AUTO STOP elapsed time
AUTO STOP display shows the elapsed
time o
f engine stop by the Idle Stop and
Go system.
You may check AUTO STOP elapsed time
in the Utility view on the instrument
cluster.
To reset the information, press and hold
the OK button when viewing the AUTO
STOP. The AUTO STOP elapsed time will
reset simultaneously. Refer to “View
Modes” section in chapter 4.
ISG System Off
B0285KO01
Press the ISG OFF button to turn off ISG
system. The ISG OFF button indicator will
illuminate. To use the system, press the
ISG OFF button again.

06
6-59

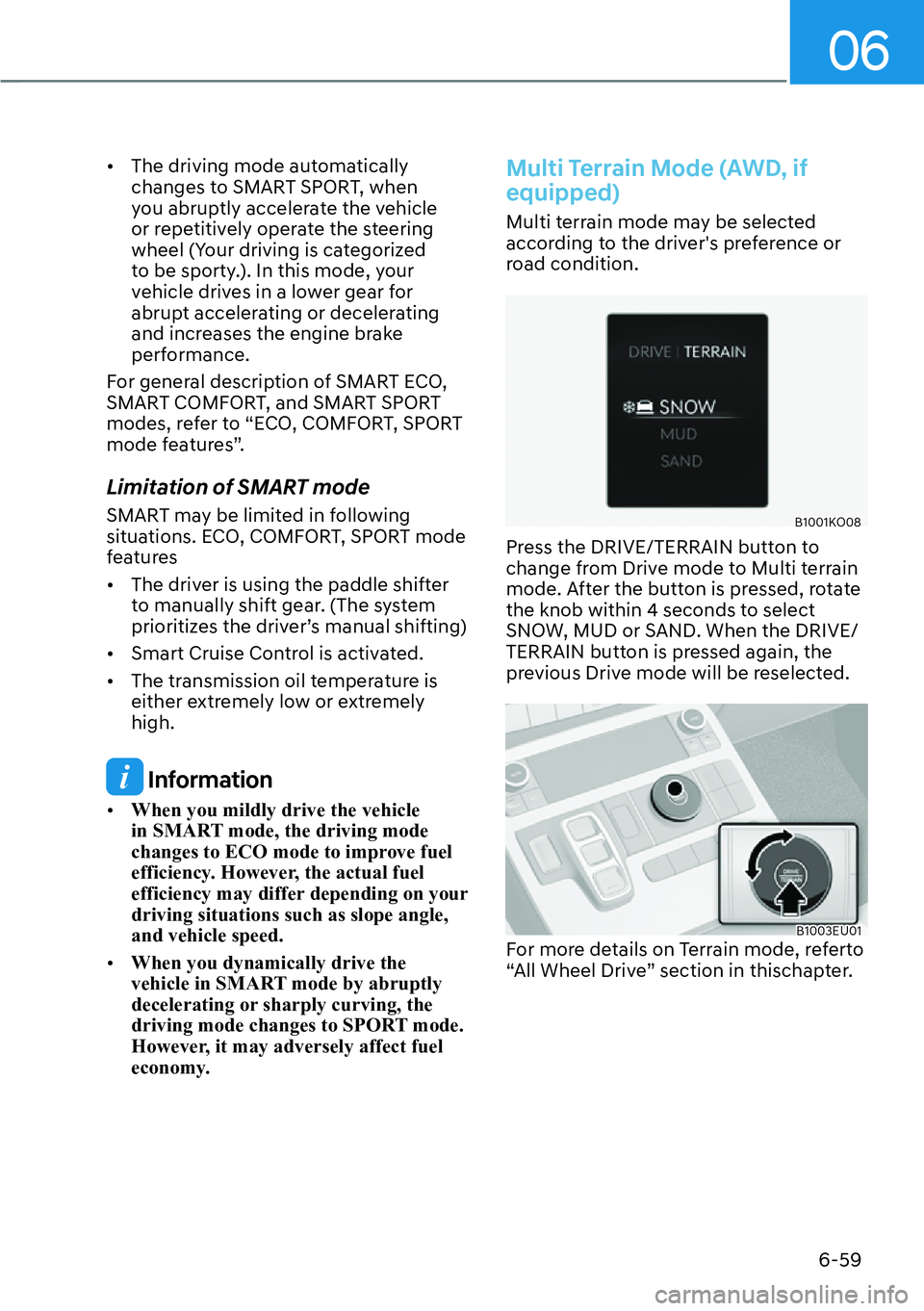

[The driving mode automatically
changes to SMART SPORT, when
you abruptly accelerate the vehicle
or repetitively operate the steering
wheel (Your driving is categorized
to be sporty.). In this mode, your
vehicle drives in a lower gear for
abrupt accelerating or decelerating
and increases the engine brake
performance.
For general description of SMART ECO,
SMART COMFORT, and SMART SPORT
modes, refer to “ECO, COMFORT, SPORT
mode features”.
Limitation of SMART mode
SMART may be limited in following
situations. ECO, COMFORT, SPORT mode
features

[ The driver is using the paddle shifter
to manually shift gear. (The system
prioritizes the driver’s manual shifting)

[ Smart Cruise Control is activated.

[ The transmission oil temperature is
either extremely low or extremely
high.
Information

[When you mildly drive the vehicle
in SMART mode, the driving mode
changes to ECO mode to improve fuel
efficiency. However, the actual fuel
efficiency may differ depending on your
driving situations such as slope angle,
and vehicle speed.

[ When you dynamically drive the
vehicle in SMART mode by abruptly
decelerating or sharply curving, the
driving mode changes to SPORT mode.
However, it may adversely affect fuel
economy.
Multi Terrain Mode (AWD, if
equipped)
Multi terrain mode may be selected
according to the driver's preference or
road condition.
B1001KO08
Press the DRIVE/TERRAIN button to
change from Drive mode to Multi terrain
mode. After the button is pressed, rotate
the knob within 4 seconds to select
SNOW, MUD or SAND. When the DRIVE/
TERRAIN button is pressed again, the
previous Drive mode will be reselected.
B1003EU01For more details on Terrain mode, referto
“All Wheel Drive” section in thischapter.
