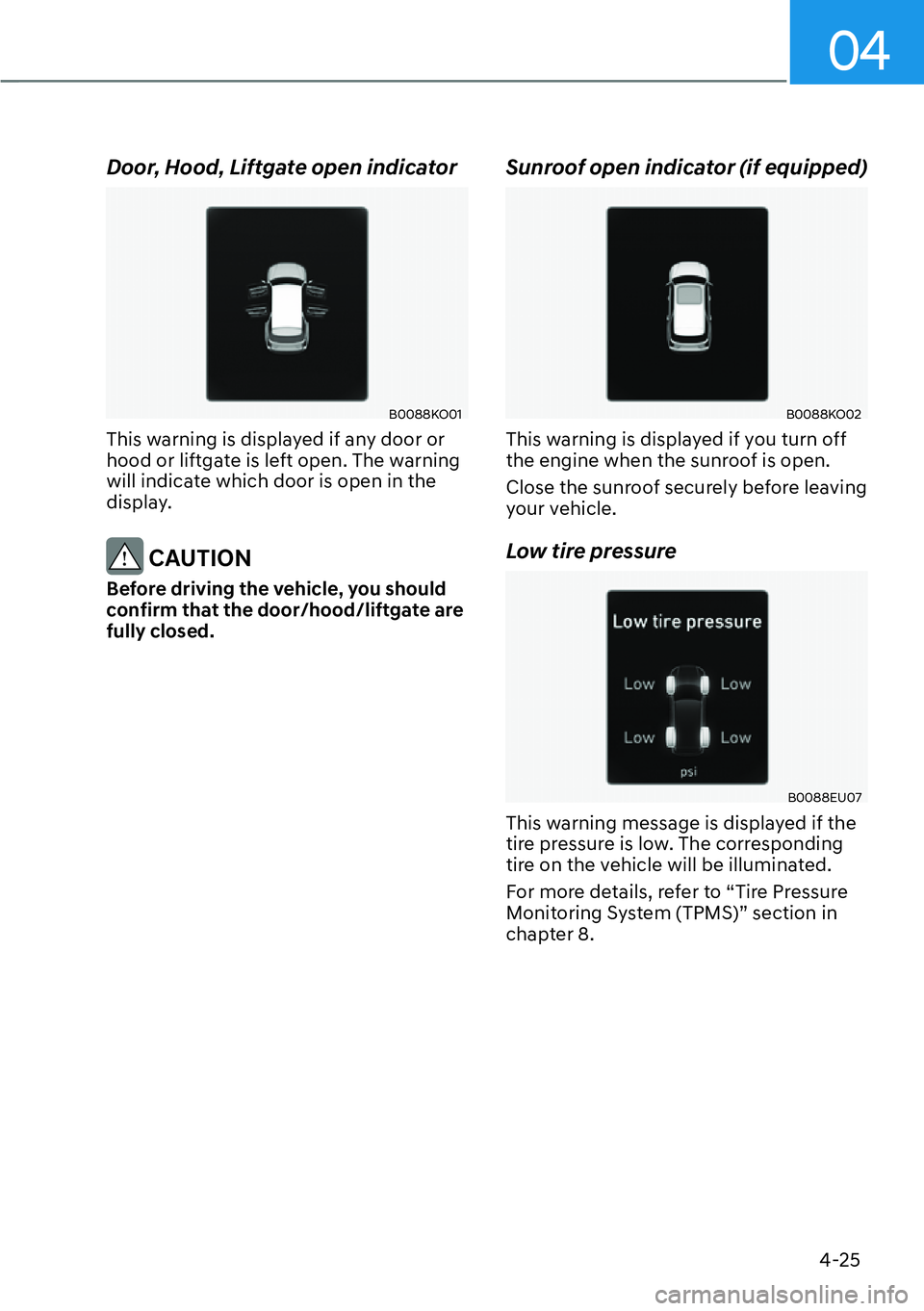

2023 HYUNDAI PALISADE Section 5

04
4-25
Door, Hood, Liftgate open indicator
B0088KO01
This warning is displayed if any door or
hood or liftgate is left open. The warning
will indicate which door is open in the
display.
CAUTION
Before driving the vehicle, you should
confirm that the door/hood/liftgate are
fully closed.
Sunroof open indicator (if equipped)
B0088KO02
This warning is displayed if you turn off
the engine when the sunroof is open.
Close the sunroof securely before leaving
your vehicle.
Low tire pressure
B0088EU07
This warning message is displayed if the
tire pressure is low. The corresponding
tire on the vehicle will be illuminated.
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.

04
4-27
Low washer fluid
This message is displayed if the washer
fluid level in the reservoir is nearly empty.
Have the washer fluid reservoir refilled.
Low fuel
This message is displayed if the fuel tank
is almost out of fuel.
When this message is displayed, the low
fuel level warning light in the cluster will
come on.
It is recommended to look for the nearest
fueling station and refuel as soon as
possible.
Low engine oil (if equipped)
This warning message is displayed when
the engine oil level should be checked.
If this warning message is displayed,
check the engine oil level as soon as
possible and add engine oil as required.
Slowly pour the recommended oil little
by little into a funnel.
Use only the specified engine oil. (Refer
to "Recommended Lubricants and
Capacities“ section in chapter 2.)
Do not overfill the engine oil. Make sure
the oil level is not above F (Full) mark on
the dipstick.
Information
After adding engine oil, if you travel
approximately 31~62 miles (50~100 km)
after the engine warms up, the warning
message should disappear.
If the warning message remains on, have
the vehicle inspected by an authorized
HYUNDAI dealer as soon as possible.
Engine overheated
This message is displayed when the
engine coolant temperature is above
approximately 248°F (120°C). This means
that the engine is overheated and may
be damaged.
If your vehicle is overheated, refer to
“Overheating” section in chapter 8.
Check haptic steering wheel system
This message is displayed if there is a
problem with the haptic steering wheel
system. Have the vehicle inspected by an
authorized HYUNDAI dealer.
Check headlight
This message is displayed if the
headlights are not operating properly. A
lamp may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check turn signal
This message is displayed if the turn
signal lamps are not operating properly.
A lamp may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check headlight LED (if equipped)
This message is displayed if there is a
problem with the LED headlight. Have
the vehicle inspected by an authorized
HYUNDAI dealer.

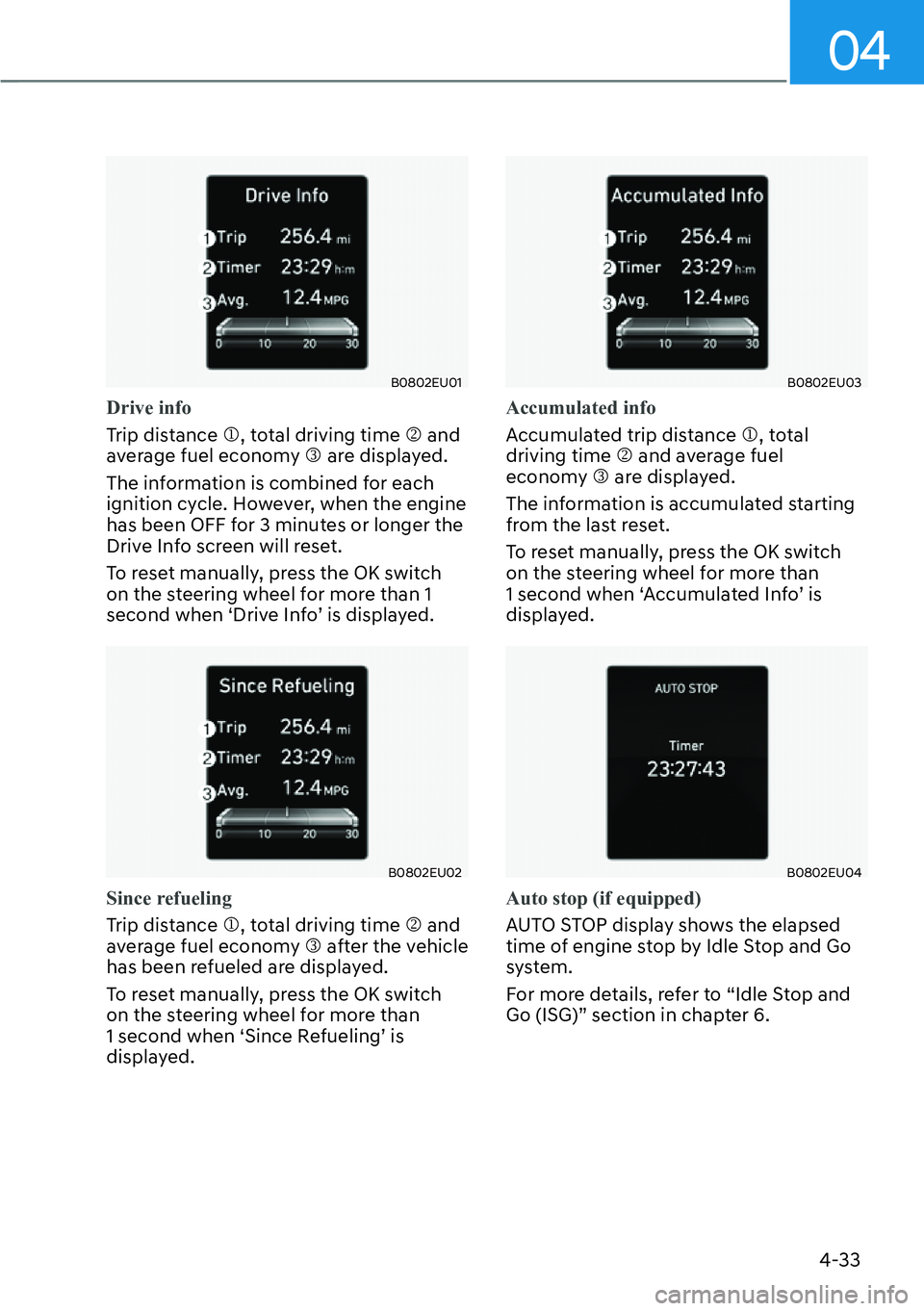

04
4-33
B0802EU01
Drive info
Trip distance M, t
otal driving time N and
average fuel economy O are displayed.
The information is combined for each
ignition cycle. However, when the engine
has been OFF for 3 minutes or longer the
Drive Info screen will reset.
To reset manually, press the OK switch
on the steering wheel for more than 1
second when ‘Drive Info’ is displayed.
B0802EU02
Since refueling
Trip distance M, t
otal driving time N and
average fuel economy O after the vehicle
has been refueled are displayed.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Since Refueling’ is
displayed.
B0802EU03
Accumulated info
Accumulated trip distance M, t
otal
driving time N and average fuel
economy O are displayed.
The information is accumulated starting
from the last reset.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Accumulated Info’ is
displayed.
B0802EU04
Auto stop (if equipped)
AUTO STOP display shows the elapsed
time o
f engine stop by Idle Stop and Go
system.
For more details, refer to “Idle Stop and
Go (ISG)” section in chapter 6.

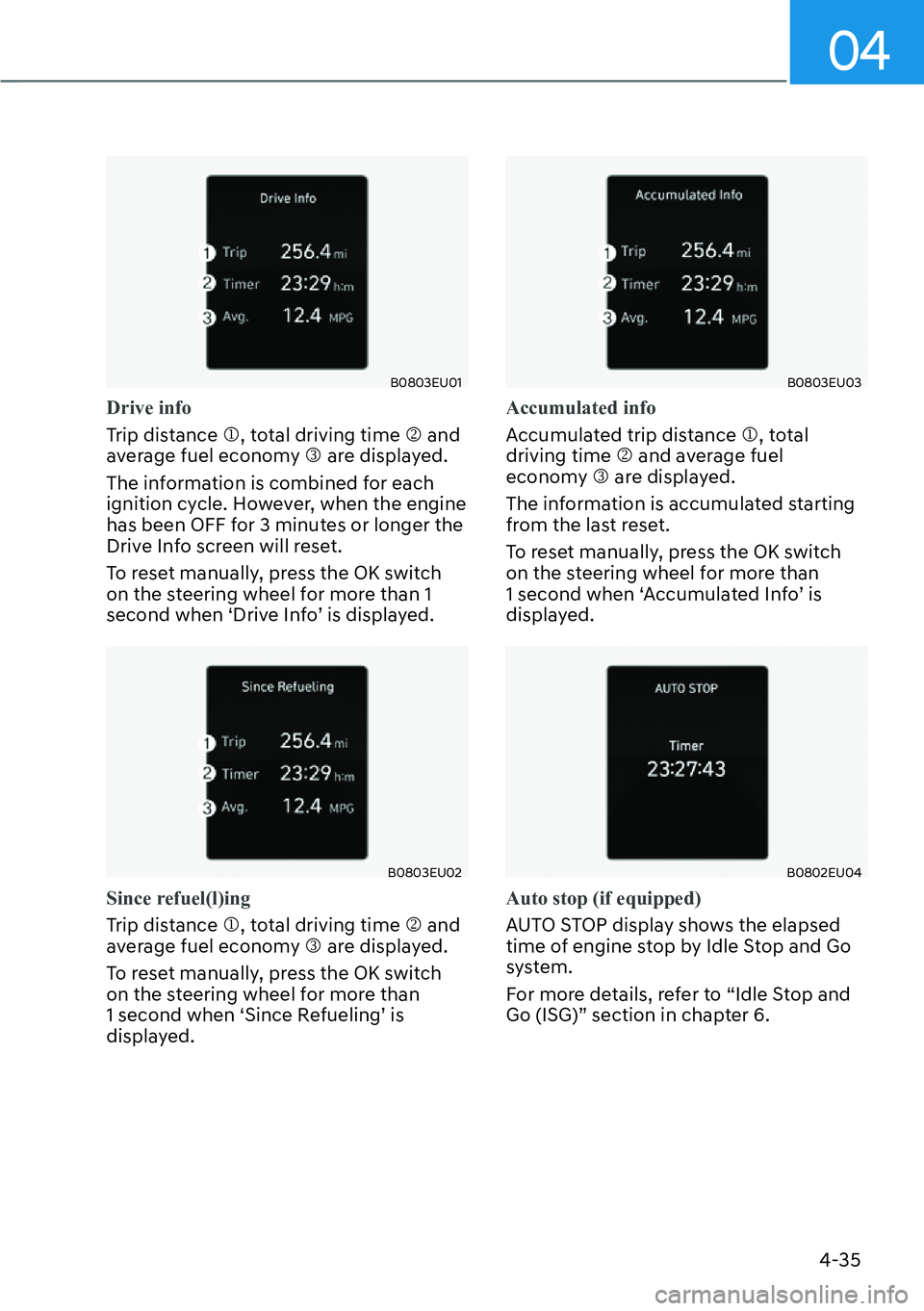

04
4-35
B0803EU01
Drive info
Trip distance M, t
otal driving time N and
average fuel economy O are displayed.
The information is combined for each
ignition cycle. However, when the engine
has been OFF for 3 minutes or longer the
Drive Info screen will reset.
To reset manually, press the OK switch
on the steering wheel for more than 1
second when ‘Drive Info’ is displayed.
B0803EU02
Since refuel(l)ing
Trip distance M, t
otal driving time N and
average fuel economy O are displayed.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Since Refueling’ is
displayed.
B0803EU03
Accumulated info
Accumulated trip distance M, t
otal
driving time N and average fuel
economy O are displayed.
The information is accumulated starting
from the last reset.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Accumulated Info’ is
displayed.
B0802EU04
Auto stop (if equipped)
AUTO STOP display shows the elapsed
time o
f engine stop by Idle Stop and Go
system.
For more details, refer to “Idle Stop and
Go (ISG)” section in chapter 6.

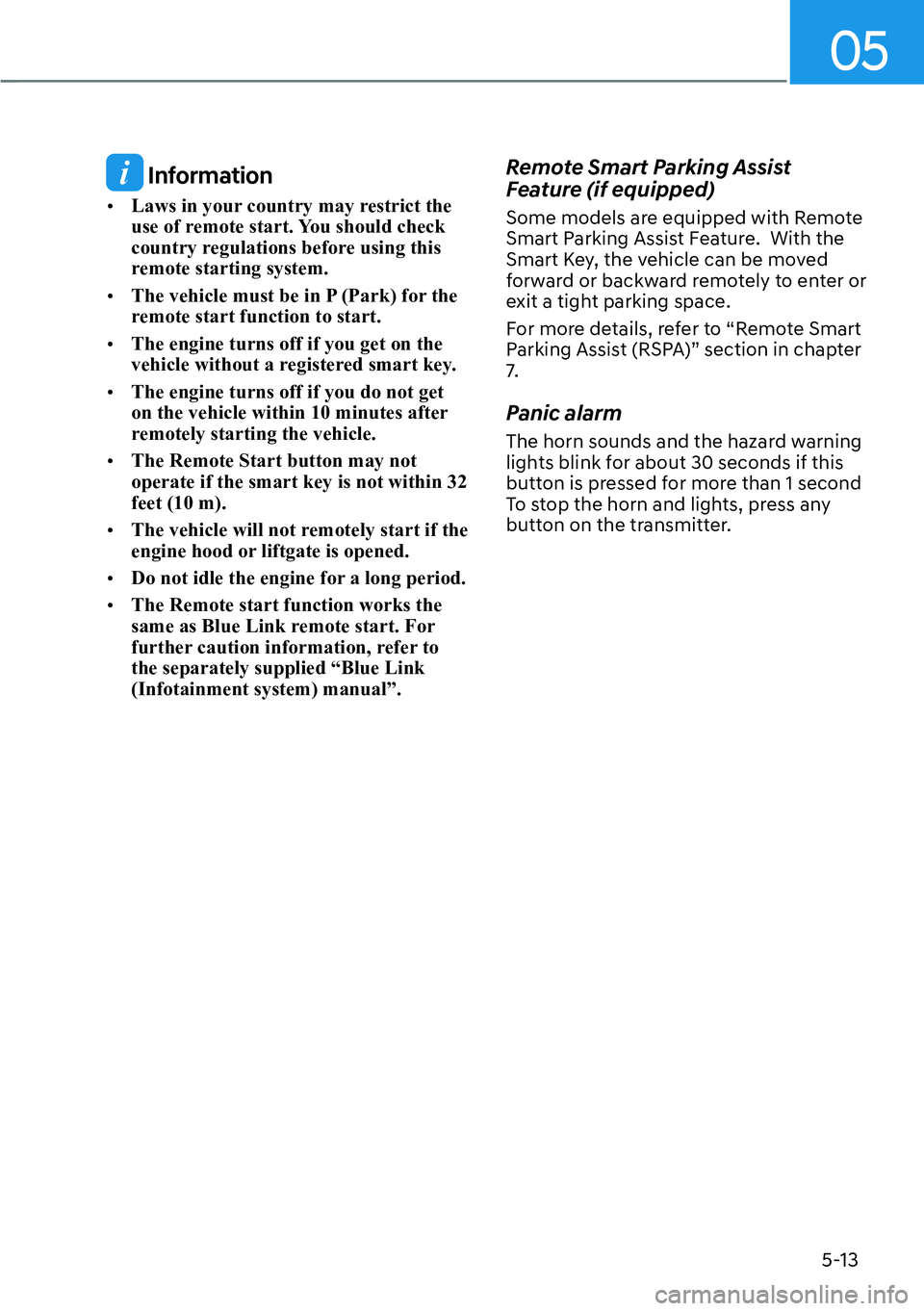

05
5-13
Information

[Laws in your country may restrict the
use of remote start. You should check
country regulations before using this
remote starting system.

[ The vehicle must be in P (Park) for the
remote start function to start.

[ The engine turns off if you get on the
vehicle without a registered smart key.

[ The engine turns off if you do not get
on the vehicle within 10 minutes after
remotely starting the vehicle.

[ The Remote Start button may not
operate if the smart key is not within 32
feet (10 m).

[ The vehicle will not remotely start if the
engine hood or liftgate is opened.

[ Do not idle the engine for a long period.

[ The Remote start function works the
same as Blue Link remote start. For
further caution information, refer to
the separately supplied “Blue Link
(Infotainment system) manual”.
Remote Smart Parking Assist
Feature (if equipped)
Some models are equipped with Remote
Smart Parking Assist Feature. With the
Smart Key, the vehicle can be moved
forward or backward remotely to enter or
exit a tight parking space.
For more details, refer to “Remote Smart
Parking Assist (RSPA)” section in chapter
7.
Panic alarm
The horn sounds and the hazard warning
lights blink for about 30 seconds if this
button is pressed for more than 1 second
To stop the horn and lights, press any
button on the transmitter.

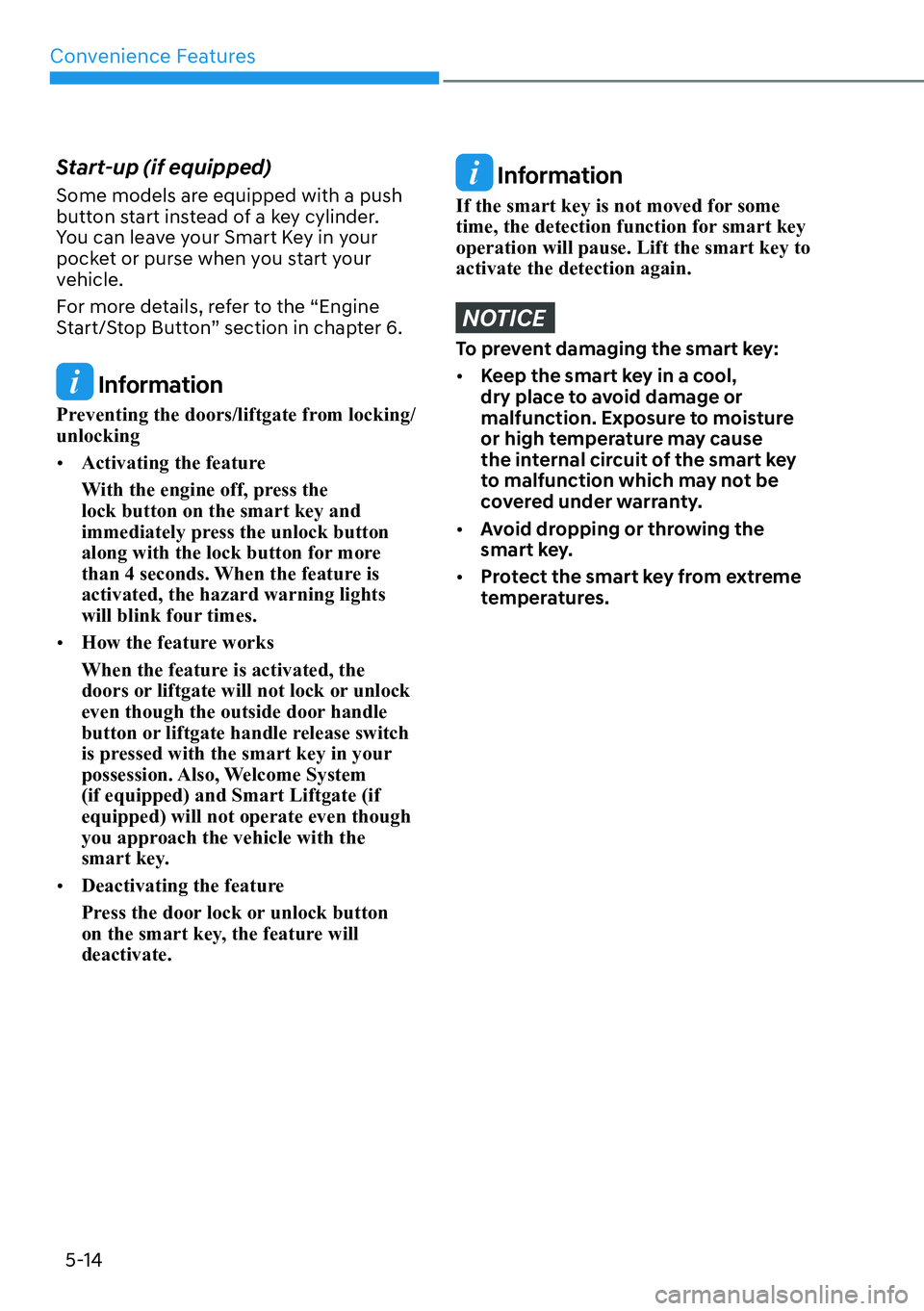

Convenience Features5-14
Start-up (if equipped)
Some models are equipped with a push
button start instead of a key cylinder.
You can leave your Smart Key in your
pocket or purse when you start your
vehicle.
For more details, refer to the “Engine
Start/Stop Button” section in chapter 6.
Information
Preventing the doors/liftgate from locking/
unlocking

[ Activating the feature
With the engine off, press the
lock button on the smart key and
immediately press the unlock button
along with the lock button for more
than 4 seconds. When the feature is
activated, the hazard warning lights
will blink four times.

[ How the feature works
When the feature is activated, the
doors or liftgate will not lock or unlock
even though the outside door handle
button or liftgate handle release switch
is pressed with the smart key in your
possession. Also, Welcome System
(if equipped) and Smart Liftgate (if
equipped) will not operate even though
you approach the vehicle with the
smart key.

[ Deactivating the feature
Press the door lock or unlock button
on the smart key, the feature will
deactivate.
Information
If the smart key is not moved for some
time, the detection function for smart key
operation will pause. Lift the smart key to
activate the detection again.
NOTICE
To prevent damaging the smart key:

[Keep the smart key in a cool,
dry place to avoid damage or
malfunction. Exposure to moisture
or high temperature may cause
the internal circuit of the smart key
to malfunction which may not be
covered under warranty.

[ Avoid dropping or throwing the
smart key.

[ Protect the smart key from extreme
temperatures.

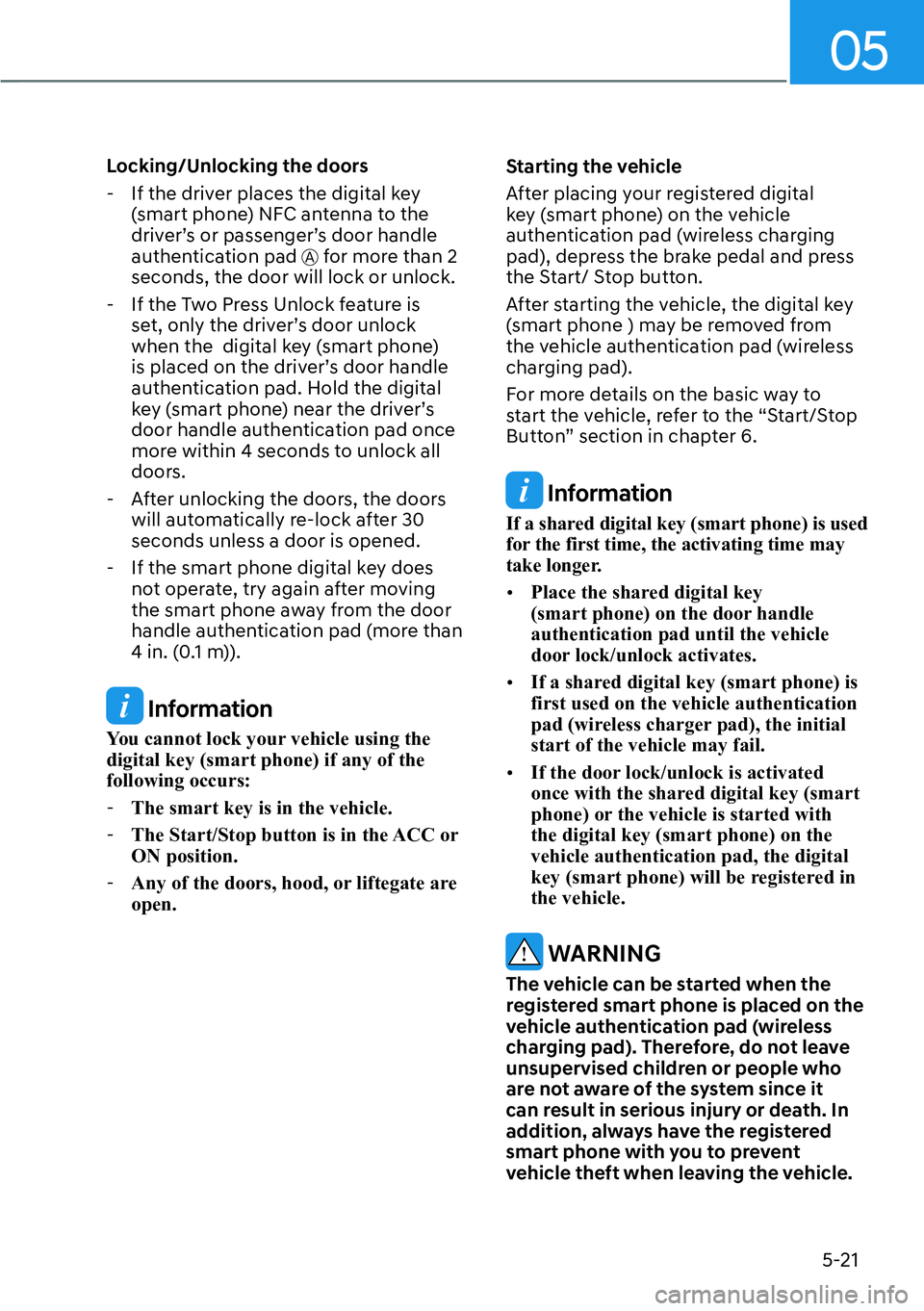

05
5-21
Locking/Unlocking the doors
- If the driver places the digital key
(smart phone) NFC antenna to the
driver’s or passenger’s door handle
authentication pad
A for more than 2
seconds, the door will lock or unlock.

- If the Two Press Unlock feature is
set, only the driver’s door unlock
when the digital key (smart phone)
is placed on the driver’s door handle
authentication pad. Hold the digital
key (smart phone) near the driver’s
door handle authentication pad once
more within 4 seconds to unlock all
doors.

- After unlocking the doors, the doors
will automatically re-lock after 30
seconds unless a door is opened.

- If the smart phone digital key does
not operate, try again after moving
the smart phone away from the door
handle authentication pad (more than
4 in. (0.1 m)).
Information
You cannot lock your vehicle using the
digital key (smart phone) if any of the
following occurs:

- The smart key is in the vehicle.

- The Start/Stop button is in the ACC or
ON position.

- Any of the doors, hood, or liftegate are
open. Starting the vehicle
After placing your registered digital
key (smart phone) on the vehicle
authentication pad (wireless charging
pad), depress the brake pedal and press
the Start/ Stop button.
After starting the vehicle, the digital key
(smart phone ) may be removed from
the vehicle authentication pad (wireless
charging pad).
For more details on the basic way to
start the vehicle, refer to the “Start/Stop
Button” section in chapter 6.
Information
If a shared digital key (smart phone) is used
for the first time, the activating time may
take longer.

[
Place the shared digital key
(smart phone) on the door handle
authentication pad until the vehicle
door lock/unlock activates.

[ If a shared digital key (smart phone) is
first used on the vehicle authentication
pad (wireless charger pad), the initial
start of the vehicle may fail.

[ If the door lock/unlock is activated
once with the shared digital key (smart
phone) or the vehicle is started with
the digital key (smart phone) on the
vehicle authentication pad, the digital
key (smart phone) will be registered in
the vehicle.
WARNING
The vehicle can be started when the
registered smart phone is placed on the
vehicle authentication pad (wireless
charging pad). Therefore, do not leave
unsupervised children or people who
are not aware of the system since it
can result in serious injury or death. In
addition, always have the registered
smart phone with you to prevent
vehicle theft when leaving the vehicle.

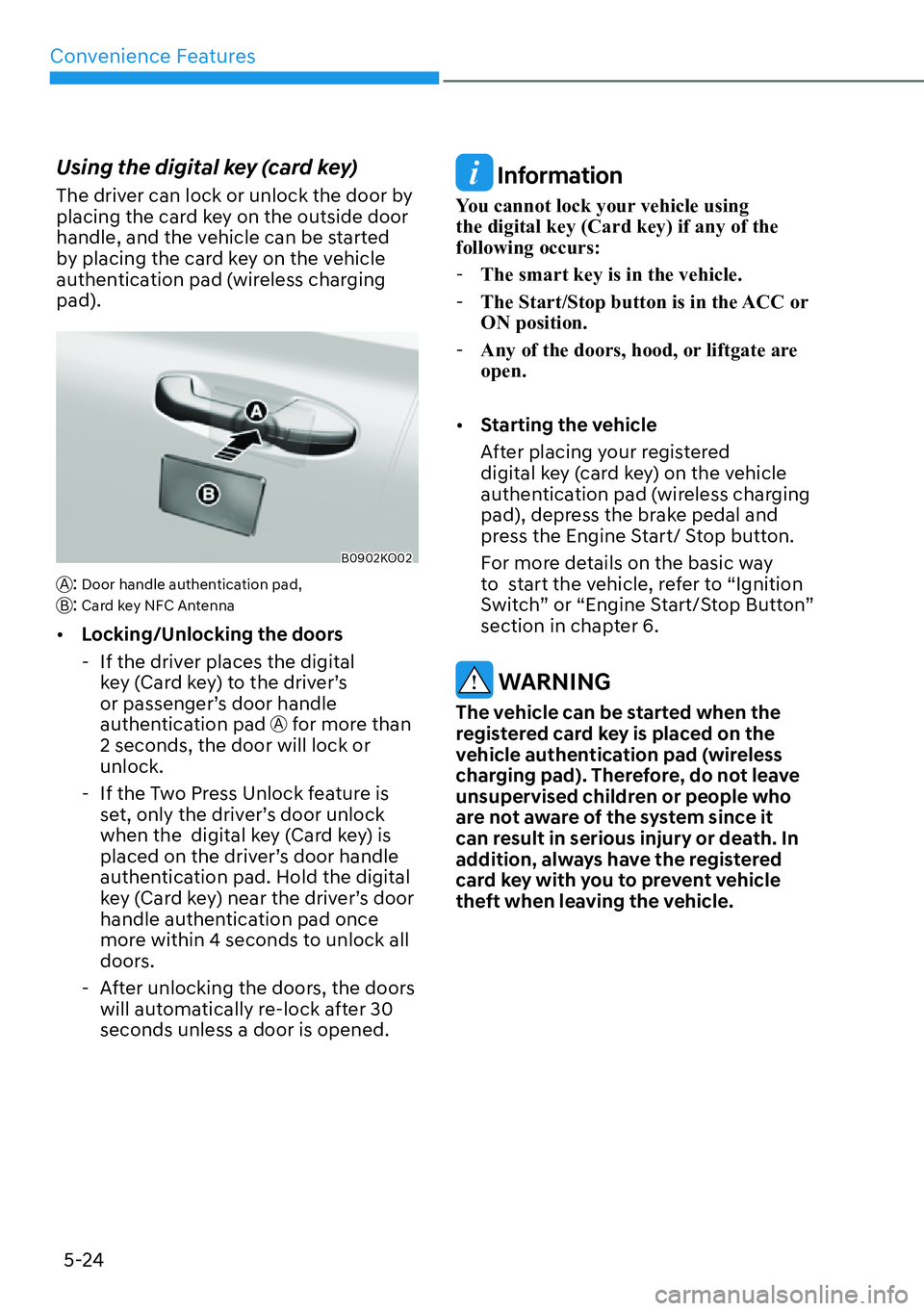

Convenience Features5-24
Using the digital key (card key)
The driver can lock or unlock the door by
placing the card key on the outside door
handle, and the vehicle can be started
by placing the card key on the vehicle
authentication pad (wireless charging
pad).
B0902KO02
A: Door handle authentication pad,
B: Card key NFC Antenna

[ Locking/Unlocking the doors

- If the driver places the digital
key (Card key) to the driver’s
or passenger’s door handle
authentication pad
A for more than
2 seconds, the door will lock or
unlock.

- If the Two Press Unlock feature is
set, only the driver’s door unlock
when the digital key (Card key) is
placed on the driver’s door handle
authentication pad. Hold the digital
key (Card key) near the driver’s door
handle authentication pad once
more within 4 seconds to unlock all
doors.

- After unlocking the doors, the doors
will automatically re-lock after 30
seconds unless a door is opened.
Information
You cannot lock your vehicle using
the digital key (Card key) if any of the
following occurs:

- The smart key is in the vehicle.

- The Start/Stop button is in the ACC or
ON position.

- Any of the doors, hood, or liftgate are
open.

[ Starting the vehicle
After placing your registered
digital key (card key) on the vehicle
authentication pad (wireless charging
pad), depress the brake pedal and
press the Engine Start/ Stop button.
For more details on the basic way
to start the vehicle, refer to “Ignition
Switch” or “Engine Start/Stop Button”
section in chapter 6.
WARNING
The vehicle can be started when the
registered card key is placed on the
vehicle authentication pad (wireless
charging pad). Therefore, do not leave
unsupervised children or people who
are not aware of the system since it
can result in serious injury or death. In
addition, always have the registered
card key with you to prevent vehicle
theft when leaving the vehicle.
