Driver Assistance System7-48

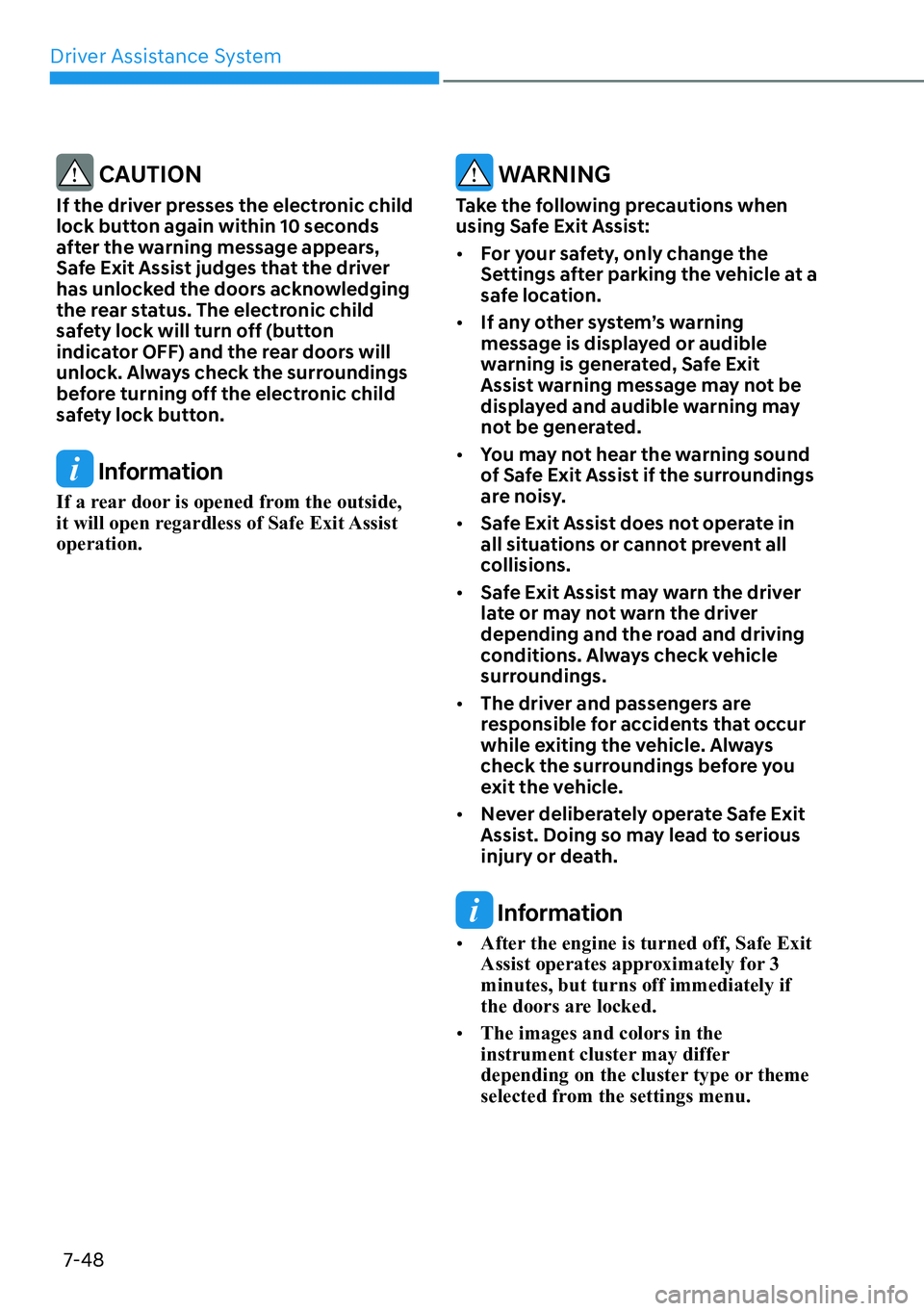

CAUTION
If the driver presses the electronic child
lock button again within 10 seconds
after the warning message appears,
Safe Exit Assist judges that the driver
has unlocked the doors acknowledging
the rear status. The electronic child
safety lock will turn off (button
indicator OFF) and the rear doors will
unlock. Always check the surroundings
before turning off the electronic child
safety lock button.
Information
If a rear door is opened from the outside,
it will open regardless of Safe Exit Assist
operation.
WARNING
Take the following precautions when
using Safe Exit Assist:

[ For your safety, only change the
Settings after parking the vehicle at a
safe location.

[ If any other system’s warning
message is displayed or audible
warning is generated, Safe Exit
Assist warning message may not be
displayed and audible warning may
not be generated.

[ You may not hear the warning sound
of Safe Exit Assist if the surroundings
are noisy.

[ Safe Exit Assist does not operate in
all situations or cannot prevent all
collisions.

[ Safe Exit Assist may warn the driver
late or may not warn the driver
depending and the road and driving
conditions. Always check vehicle
surroundings.

[ The driver and passengers are
responsible for accidents that occur
while exiting the vehicle. Always
check the surroundings before you
exit the vehicle.

[ Never deliberately operate Safe Exit
Assist. Doing so may lead to serious
injury or death.
Information

[After the engine is turned off, Safe Exit
Assist operates approximately for 3
minutes, but turns off immediately if
the doors are locked.

[ The images and colors in the
instrument cluster may differ
depending on the cluster type or theme
selected from the settings menu.

07
7-49
Safe Exit Assist Malfunction and
Limitations
Safe Exit Assist malfunction
B0322EU01
When Safe Exit Assist is not working
properly, the ‘Check Blind-Spot Safety
system’ warning message will appear on
the cluster for several seconds, and the
master (
) warning light will illuminate
on the cluster. If this occurs, have the
vehicle inspected by an authorized
HYUNDAI dealer.
B0322EU02
When the side view mirror warning
light is not working properly, the ‘Check
side view mirror warning light’ warning
message will appear on the cluster
for several seconds, and the master
(
) warning light will illuminate on the
cluster. If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer.
Safe Exit Assist disabled
B0322EU03
When the rear bumper around the rear
corner radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Safe Exit
Assist.
If this occurs, the ‘Blind-Spot Safety
system disabled. Radar blocked’ warning
message will appear on the cluster.
Safe Exit Assist will operate properly
when such foreign material or trailer,
etc., is removed, and then the engine is
restarted.
If Safe Exit Assist does not operate
properly after it is removed, have the
vehicle inspected by an authorized
HYUNDAI dealer.

Driver Assistance System7-50
WARNING

[ Even though the warning message
does not appear on the cluster, Safe
Exit Assist may not properly operate.

[ Safe Exit Assist may not properly
operate in an area (for example,
open terrain) where any objects are
not detected right after the engine
is turned on, or when the detecting
sensor is blocked with foreign
material right after the engine is
turned on.
CAUTION
Turn off Safe Exit Assist to install or
remove a trailer, carrier, or another
attachment. Turn on Safe Exit Assist
when finished.
Limitations of Safe Exit Assist
Safe Exit Assist may not operate properly,
or it may operate unexpectedly under the
following circumstances:

[Getting out of the vehicle where trees
or grass are overgrown

[ Getting out of the vehicle where the
road is wet

[ The approaching vehicle is very fast or
very slow
Information
For more details on the limitations of the
rear corner radar, refer to “Blind-Spot
Collision Warning (BCW)” section in this
chapter.
WARNING

[Safe Exit Assist may not operate
properly if interfered by strong
electromagnetic waves.

[ Safe Exit Assist may not operate
for 3 seconds after the vehicle is
started, or the rear corner radars are
initialized.

Driver Assistance System7-60
Basic function
Driver Attention Warning can help
determine the driver's attention level
by analyzing driving pattern and driving
time while the vehicle is driven. Driver
Attention Warning will recommend a
break when the driver’s attention level
falls below a certain level.
Leading vehicle departure alert
function
Leading Vehicle Departure Alert function
will inform the driver when a detected
vehicle in front departs.
Detecting sensor
B0311KO07A: Front view camera
The front view camera is used as a
detecting sensor to help detect driving
patterns and front vehicle departure
while vehicle is being driven.
Refer to the picture above for the
detailed location of the detecting sensor.
CAUTION

[ Always keep the front view camera in
good condition to maintain optimal
performance of Driver Attention
Warning.

[ For more details on the precautions
of the front view camera, refer to
“Forward Collision-Avoidance Assist
(FCA)” section in this chapter.
Driver Attention Warning Settings
Leading Vehicle Departure Alert
With the engine on, select or deselect

S'ULYHU$VVLVWDQFH

07
7-63

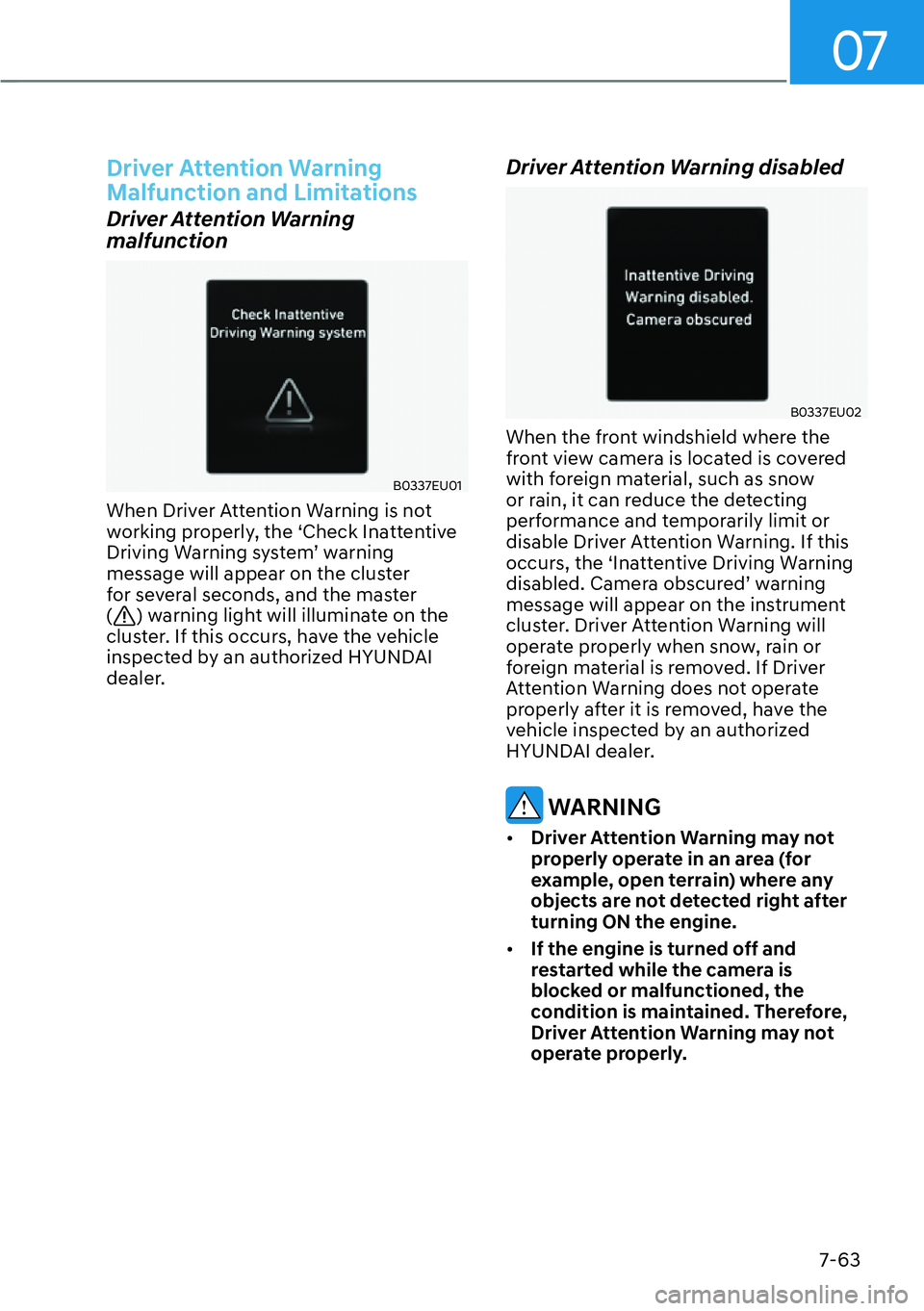

Driver Attention Warning
Malfunction and Limitations
Driver Attention Warning
malfunction
B0337EU01
When Driver Attention Warning is not
working properly, the ‘Check Inattentive
Driving Warning system’ warning
message will appear on the cluster
for several seconds, and the master
(
) warning light will illuminate on the
cluster. If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer.
Driver Attention Warning disabled
B0337EU02
When the front windshield where the
front view camera is located is covered
with foreign material, such as snow
or rain, it can reduce the detecting
performance and temporarily limit or
disable Driver Attention Warning. If this
occurs, the ‘Inattentive Driving Warning
disabled. Camera obscured’ warning
message will appear on the instrument
cluster. Driver Attention Warning will
operate properly when snow, rain or
foreign material is removed. If Driver
Attention Warning does not operate
properly after it is removed, have the
vehicle inspected by an authorized
HYUNDAI dealer.
WARNING

[ Driver Attention Warning may not
properly operate in an area (for
example, open terrain) where any
objects are not detected right after
turning ON the engine.

[ If the engine is turned off and
restarted while the camera is
blocked or malfunctioned, the
condition is maintained. Therefore,
Driver Attention Warning may not
operate properly.

07
7-69

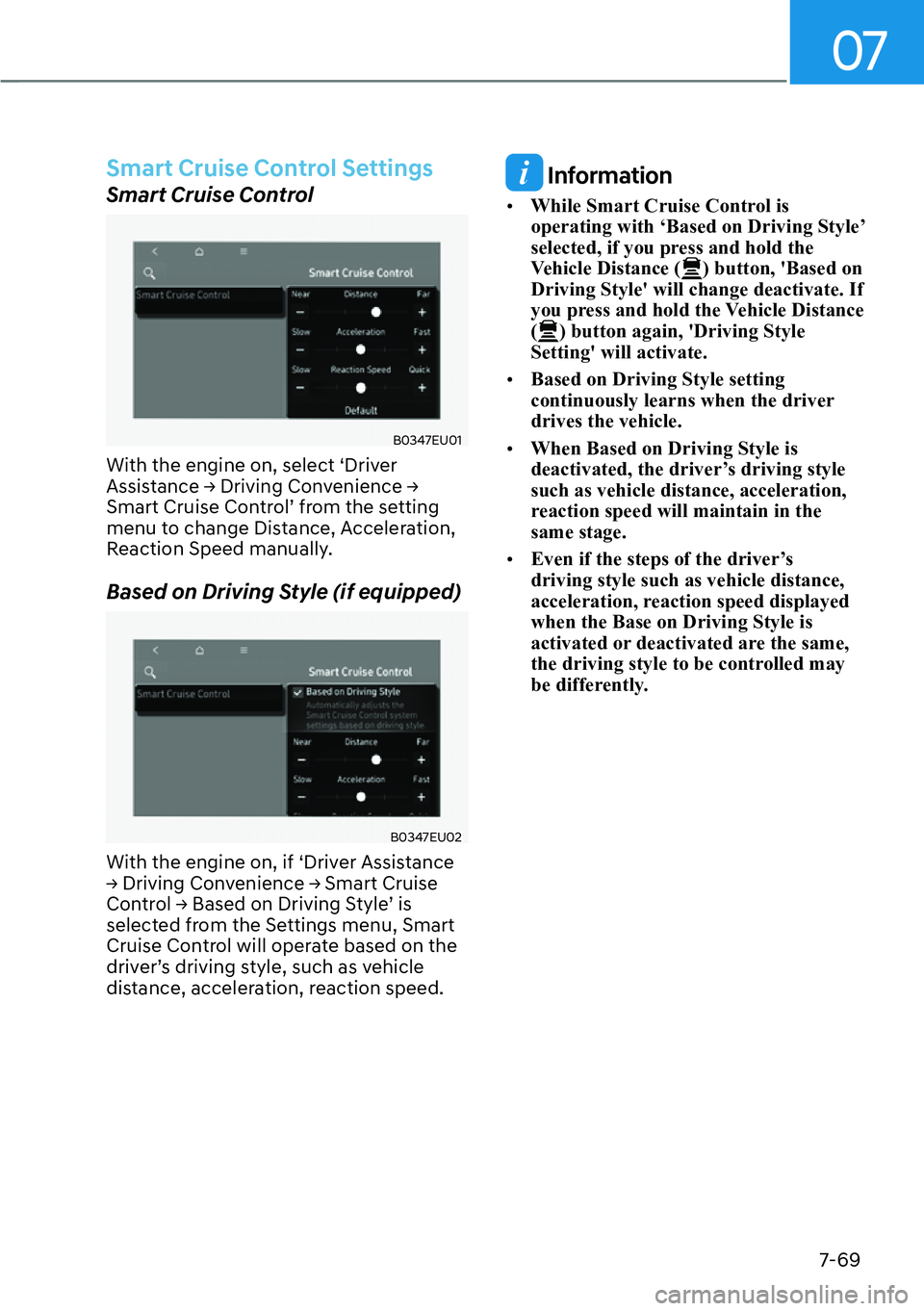

Smart Cruise Control Settings
Smart Cruise Control
B0347EU01
With the engine on, select ‘Driver
$VVLVWDQFH

Driver Assistance System7-70
B0312EU05

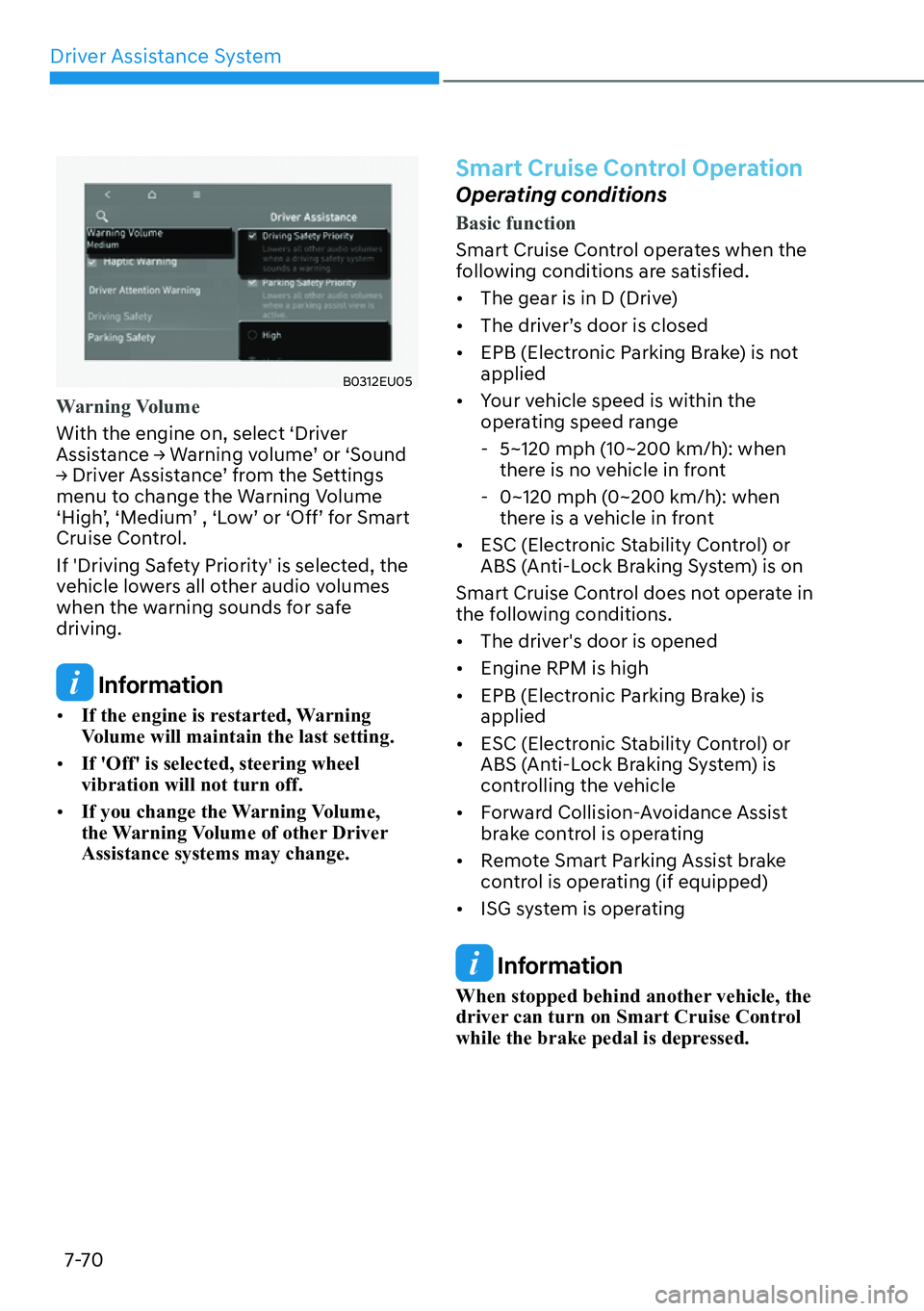

Warning Volume
With the engine on, select ‘Driver
$VVLV
WDQFH

Driver Assistance System7-72

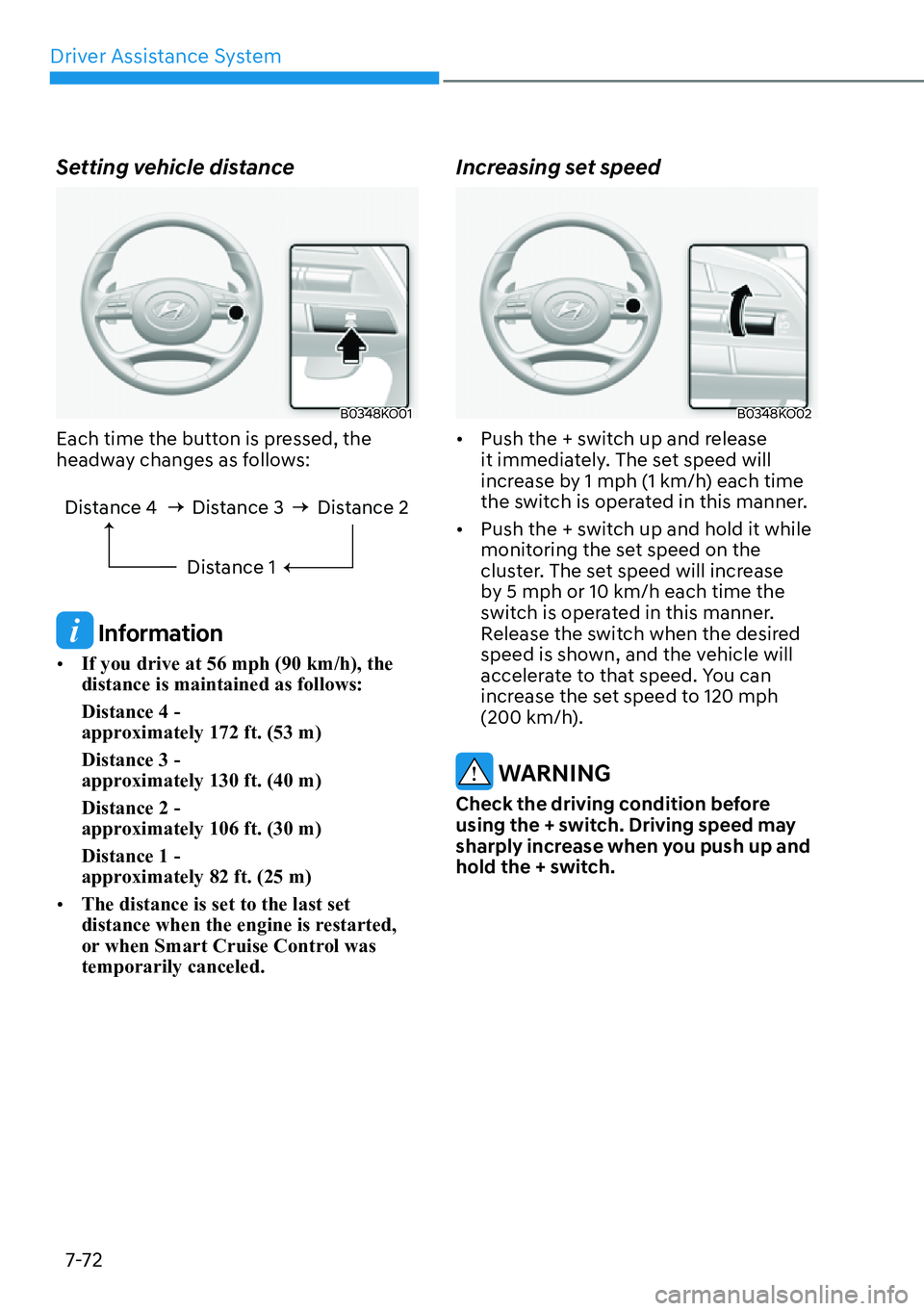

Setting vehicle distance
B0348KO01
Each time the button is pressed, the
headway changes as follows: Distance 4 Distance 3
Dis
tance 1Distance 2
Information

[If you drive at 56 mph (90 km/h), the
distance is maintained as follows:
Distance 4 -
approximately 172 ft. (53 m)
Distance 3 -
approximately 130 ft. (40 m)
Distance 2 -
approximately 106 ft. (30 m)
Distance 1 -
approximately 82 ft. (25 m)

[ The distance is set to the last set
distance when the engine is restarted,
or when Smart Cruise Control was
temporarily canceled.
Increasing set speed
B0348KO02

[Push the + switch up and release
it immediately. The set speed will
increase by 1 mph (1 km/h) each time
the switch is operated in this manner.

[ Push the + switch up and hold it while
monitoring the set speed on the
cluster. The set speed will increase
by 5 mph or 10 km/h each time the
switch is operated in this manner.
Release the switch when the desired
speed is shown, and the vehicle will
accelerate to that speed. You can
increase the set speed to 120 mph
(200 km/h).
WARNING
Check the driving condition before
using the + switch. Driving speed may
sharply increase when you push up and
hold the + switch.
