2023 HYUNDAI PALISADE engine

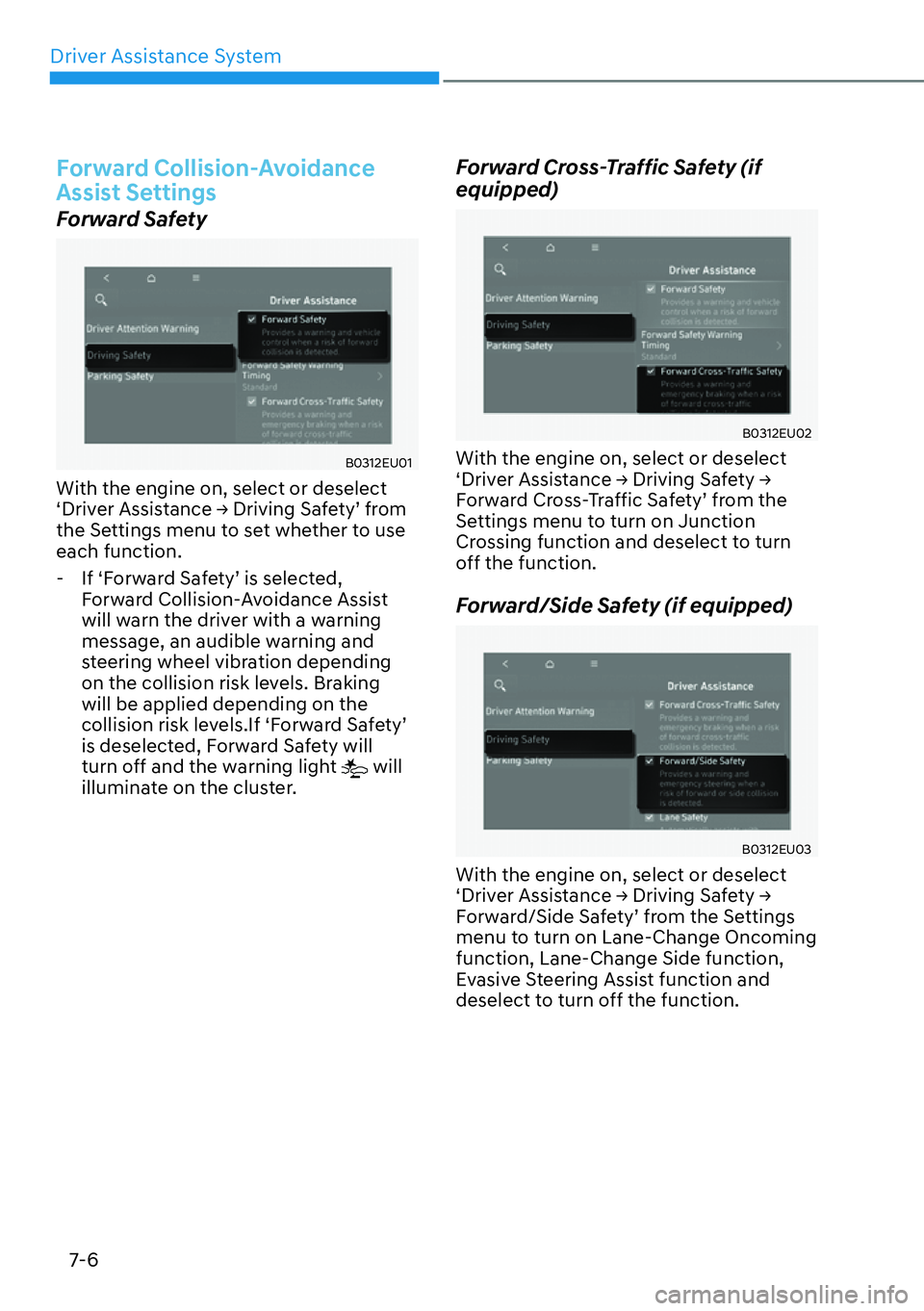

Driver Assistance System7-6
Forward Collision-Avoidance
Assist Settings
Forward Safety
B0312EU01
With the engine on, select or deselect

S'ULYHU$VVLVWDQFH

07

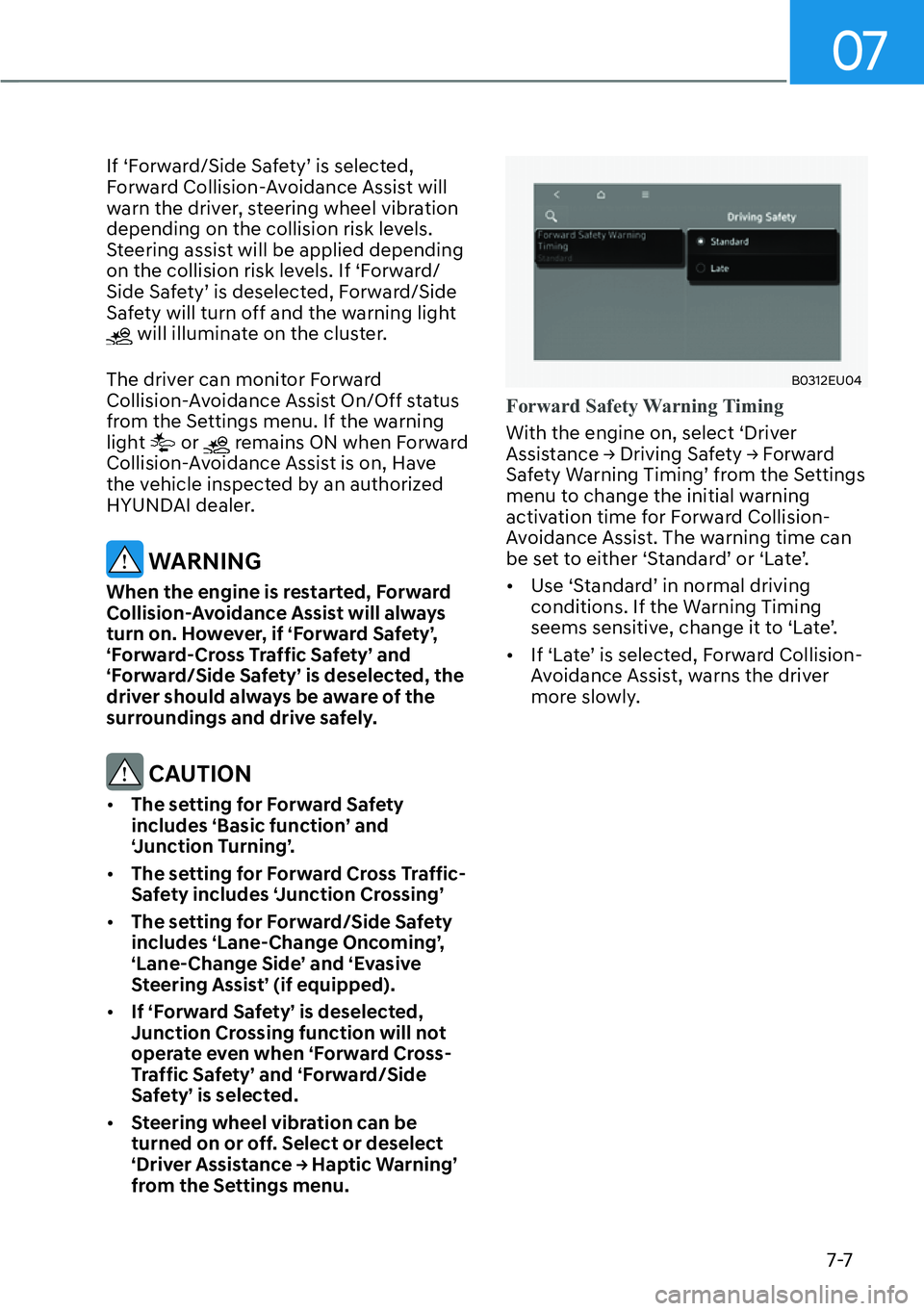

7-7
If ‘Forward/Side Safety’ is selected,
Forward Collision-Avoidance Assist will
warn the driver, steering wheel vibration
depending on the collision risk levels.
Steering assist will be applied depending
on the collision risk levels. If ‘Forward/
Side Safety’ is deselected, Forward/Side
Safety will turn off and the warning light
will illuminate on the cluster.
The driver can monitor Forward
Collision-Avoidance Assist On/Off status
from the Settings menu. If the warning
light
or remains ON when Forward
Collision-Avoidance Assist is on, Have
the vehicle inspected by an authorized
HYUNDAI dealer.
WARNING
When the engine is restarted, Forward
Collision-Avoidance Assist will always
turn on. However, if ‘Forward Safety’,
‘Forward-Cross Traffic Safety’ and
‘Forward/Side Safety’ is deselected, the
driver should always be aware of the
surroundings and drive safely.
CAUTION

[ The setting for Forward Safety
includes ‘Basic function’ and
‘Junction Turning’.

[ The setting for Forward Cross Traffic-
Safety includes ‘Junction Crossing’

[ The setting for Forward/Side Safety
includes ‘Lane-Change Oncoming’,
‘Lane-Change Side’ and ‘Evasive
Steering Assist’ (if equipped).

[ If ‘Forward Safety’ is deselected,
Junction Crossing function will not
operate even when ‘Forward Cross-
Traffic Safety’ and ‘Forward/Side
Safety’ is selected.

[ Steering wheel vibration can be
turned on or off. Select or deselect

S'ULYHU$VVLVWDQFH

07
7-19
Forward Collision-Avoidance Assist
disabled
B0314EU02
When the front windshield where the
front view camera is located, front radar
cover, bumper or sensor is covered with
foreign material, such as snow or rain, it
can reduce the detecting performance
and temporarily limit or disable Forward
Collision-Avoidance Assist.
If this occurs the ‘Forward Safety system
disabled. Camera obscured’ or the
‘Forward Safety system disabled. Radar
blocked’ warning message, and the
, and warning lights will illuminate
on the cluster.
Forward Collision-Avoidance Assist will
operate properly when snow, rain or
foreign material is removed.
If Forward Collision-Avoidance Assist
does not operate properly after
obstruction (snow, rain, or foreign
material) is removed (including trailer,
carrier, etc., from the rear bumper), have
the vehicle inspected by an authorized
HYUNDAI dealer.
WARNING

[ Even though the warning message or
warning light does not appear on the
cluster, Forward Collision-Avoidance
Assist may not properly operate.

[ Forward Collision-Avoidance Assist
may not properly operate in an area
(for example, open terrain), where
any objects are not detected after
turning ON the engine.
Limitations of Forward Collision-
Avoidance Assist
Forward Collision-Avoidance Assist may
not operate properly, or it may operate
unexpectedly under the following
circumstances:

[The detecting sensor or the
surroundings are contaminated or
damaged

[ The temperature around the front
view camera is high or low due to
surrounding environment

[ The camera lens is contaminated due
to tinted, filmed or coated windshield,
damaged glass, or sticky foreign
material (sticker, bug, etc.) on the
glass

[ Moisture is not removed or frozen on
the windshield

[ Washer fluid is continuously sprayed,
or the wiper is on

[ Driving in heavy rain or snow, or thick
fog

[ The field of view of the front view
camera is obstructed by sun glare

[ Street light or light from an oncoming
traffic is reflected on the wet road
surface, such as a puddle on the road

[ An object is placed on the dashboard

[ Your vehicle is being towed

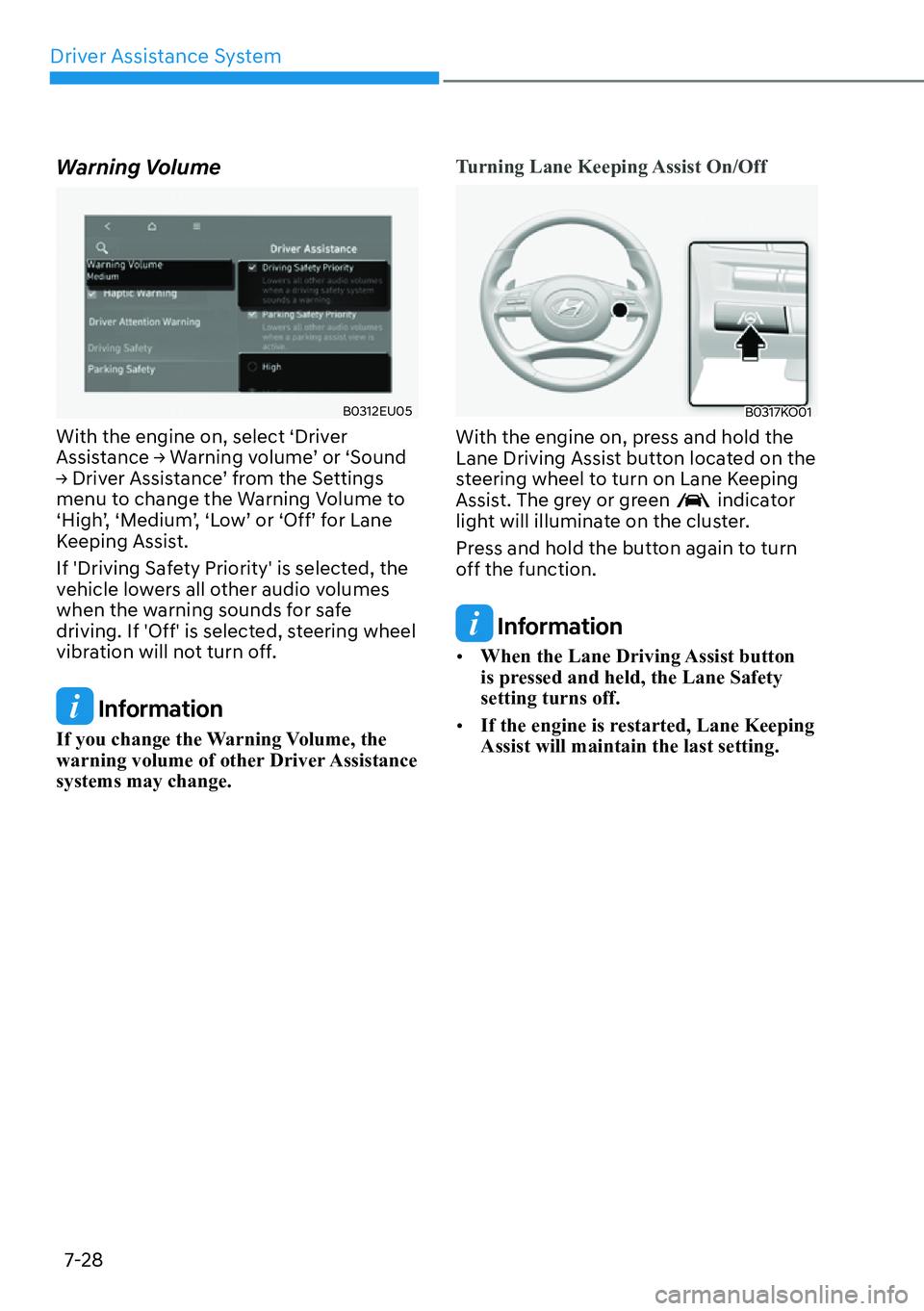

Driver Assistance System7-28
Warning Volume
B0312EU05
With the engine on, select ‘Driver
$VVLVWDQFH

07

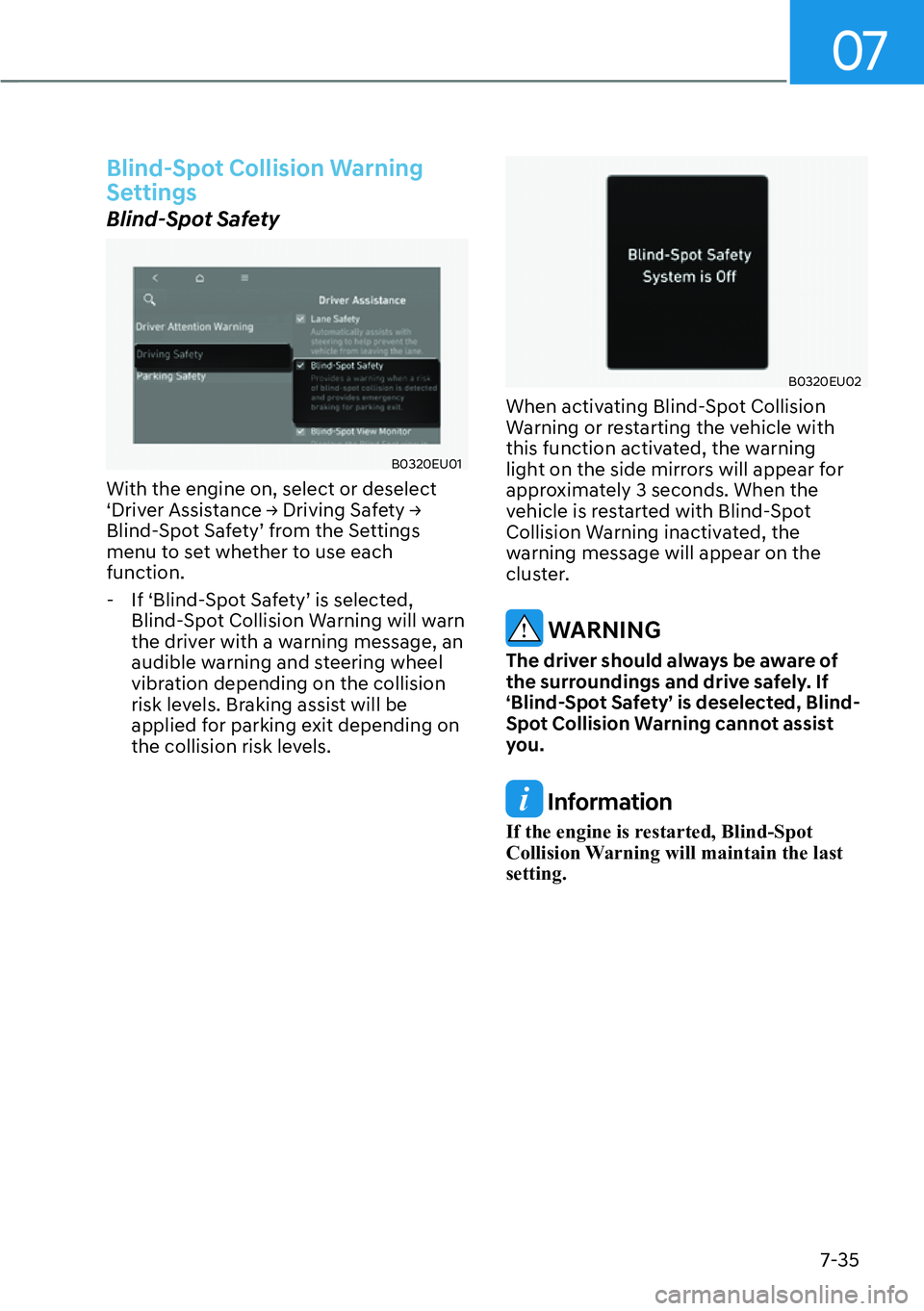

7-35
Blind-Spot Collision Warning
Settings
Blind-Spot Safety
B0320EU01
With the engine on, select or deselect

S'ULYHU$VVLVWDQFH

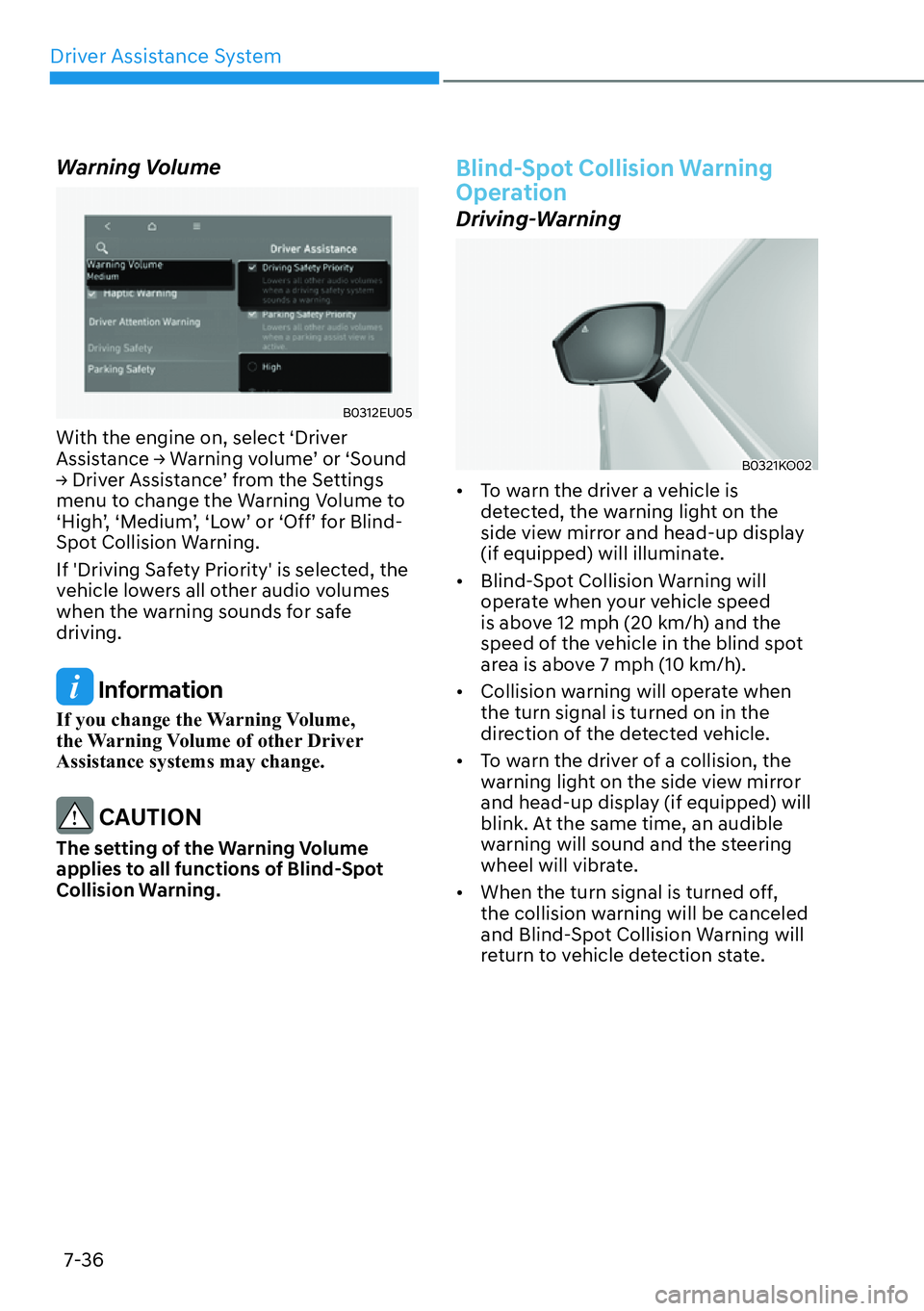

Driver Assistance System7-36
Warning Volume
B0312EU05
With the engine on, select ‘Driver
$VVLVWDQFH

Driver Assistance System7-40
Blind-Spot Collision Warning
disabled
B0322EU03
When the rear bumper around the rear
corner radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Blind-Spot
Collision Warning.
If this occurs, the ‘Blind-Spot Safety
system disabled. Radar blocked’ warning
message will appear on the cluster.
Blind-Spot Collision Warning will operate
properly when such foreign material or
trailer, etc., is removed, and then the
engine is restarted.
If Blind-Spot Collision Warning does not
operate properly after it is removed, have
the vehicle inspected by an authorized
HYUNDAI dealer.
WARNING

[ Even though the warning message
does not appear on the cluster,
Blind-Spot Collision Warning may not
properly operate.

[ Blind-Spot Collision Warning may
not properly operate in an area (for
example, open terrain) where any
objects are not detected right after
the engine is turned on, or when
the detecting sensor is blocked
with foreign material right after the
engine is turned on.
CAUTION
Turn off Blind-Spot Collision Warning
to install or remove a trailer, carrier, or
another attachment. Turn on Blind-Spot
Collision Warning when finished.

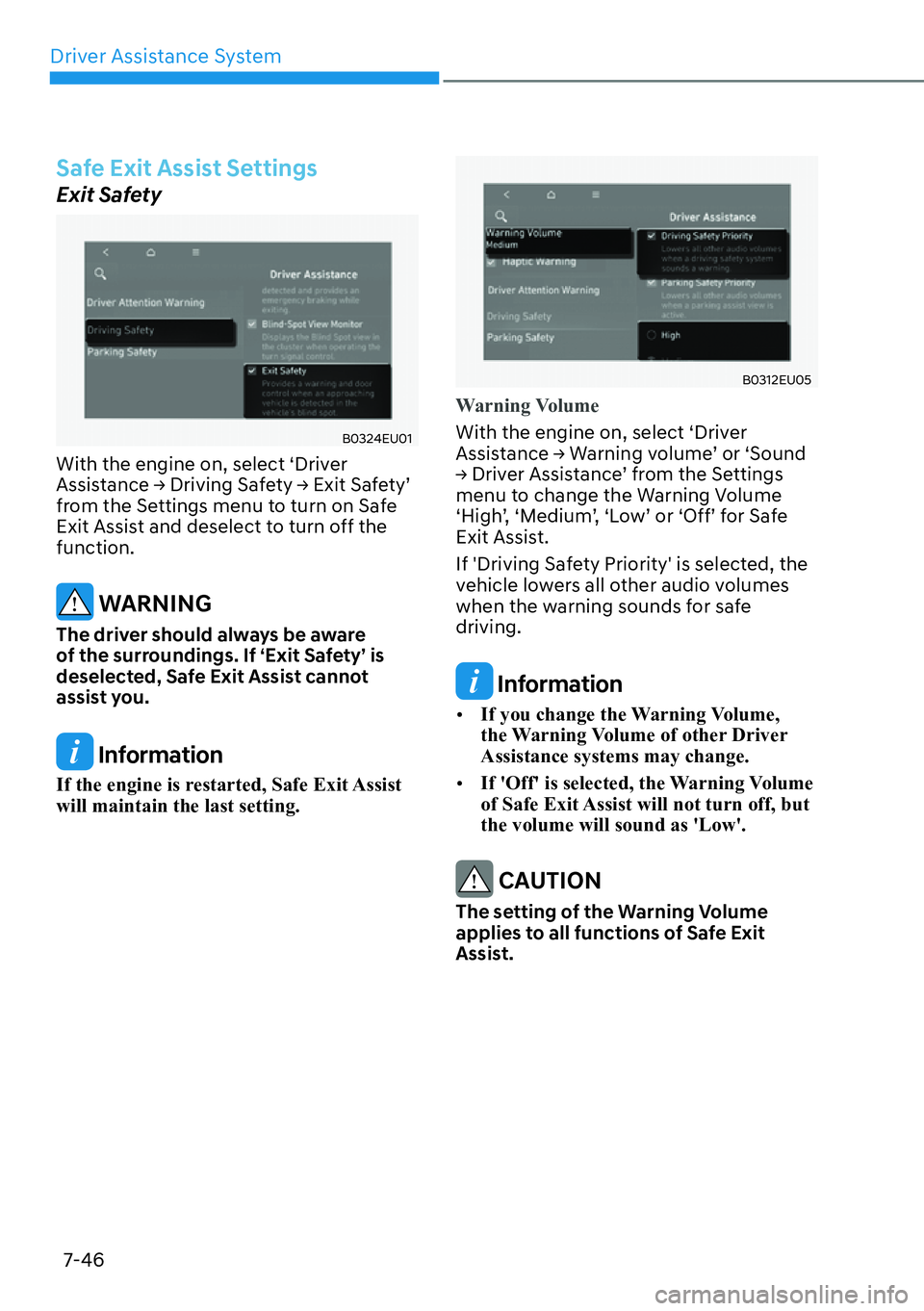

Driver Assistance System7-46
Safe Exit Assist Settings
Exit Safety
B0324EU01
With the engine on, select ‘Driver
$VVLVWDQFH
