Driving Your Vehicle6-54
B0802EU04
AUTO STOP elapsed time
AUTO STOP display shows the elapsed
time o
f engine stop by the Idle Stop and
Go system.
You may check AUTO STOP elapsed time
in the Utility view on the instrument
cluster.
To reset the information, press and hold
the OK button when viewing the AUTO
STOP. The AUTO STOP elapsed time will
reset simultaneously. Refer to “View
Modes” section in chapter 4.
ISG System Off
B0285KO01
Press the ISG OFF button to turn off ISG
system. The ISG OFF button indicator will
illuminate. To use the system, press the
ISG OFF button again.

06
6-55
Forced to Restart Engine
The engine is automatically restarted in
the following situations.

[The brake vacuum pressure is low

[ The engine has stopped for about 5
minutes

[ The air conditioning is ON with the fan
speed set to a certain high level

[ The front defroster is ON

[ The battery is weak

[ The cooling and heating performance
of the climate control system is
unsatisfactory

[ The vehicle is shifted to P (Park) or R
(Reverse)

[ The door is opened or the seatbelt is
unfastened

[ The EPB switch is pressed when Auto
Hold is activated
The Auto Stop (
) indicator blinks in
green for 5 seconds on the instrument
cluster when the engine is restarted.
WARNING
When the engine is in Idle Stop mode,
the engine may restart without the
driver taking any action. Before leaving
the vehicle or working on the engine
compartment, turn off the engine by
placing the ignition switch to the LOCK/
OFF position.
ISG Malfunction
ISG system may not operate when there
is a malfunction with the ISG sensors or
ISG system.
The following will occur, when there is a
malfunction with the ISG system:

[ The Auto Stop (
) indicator will
illuminate in yellow on the instrument
cluster.

[ The light on the ISG OFF button will
illuminate.
Contact an authorized HYUNDAI dealer.
Calibrating the Battery Sensor
If the AGM battery is reconnected or
replaced, ISG system will not operate
immediately. If you want to use the
system, the battery sensor needs to
be calibrated following the below
procedure.
B0288KO01
A: Battery sensor
1. Turn off the engine.
2. Disconnect all electronic devices that were additionally installed after
the vehicle was delivered, such as
navigation, dashcam, etc.
3. After 4 hours with the engine off, turn the engine on and off 3 to 4 times.

06
6-57

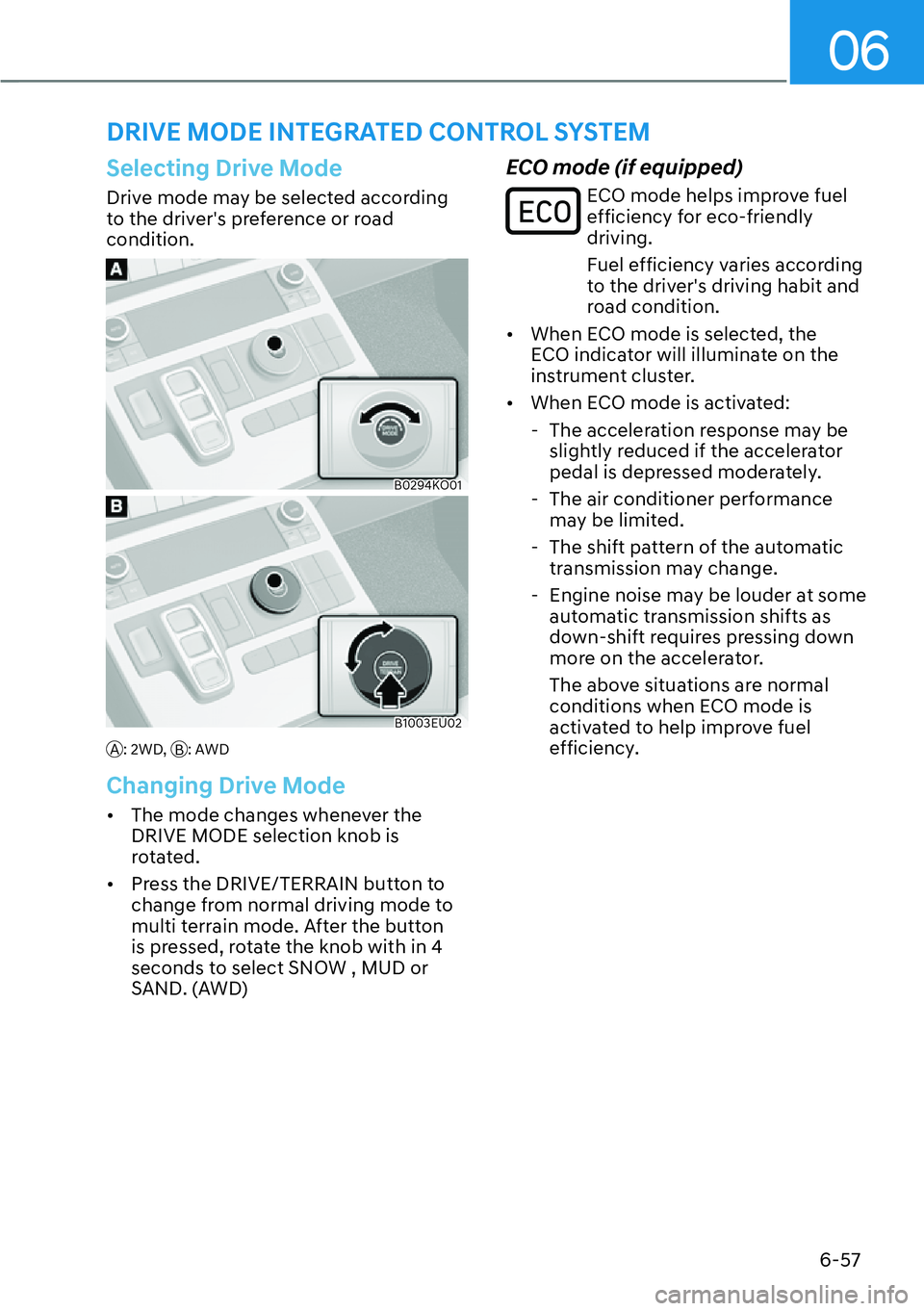

Selecting Drive Mode
Drive mode may be selected according
to the driver's preference or road
condition.
B0294KO01
B1003EU02
A: 2WD, B: AWD
Changing Drive Mode

[The mode changes whenever the
DRIVE MODE selection knob is
rotated.

[ Press the DRIVE/TERRAIN button to
change from normal driving mode to
multi terrain mode. After the button
is pressed, rotate the knob with in 4
seconds to select SNOW , MUD or
SAND. (AWD)
ECO mode (if equipped)
ECO mode helps improve fuel
efficiency for eco-friendly
driving.
Fuel efficiency varies according
to the driver's driving habit and
road condition.

[ When ECO mode is selected, the
ECO indicator will illuminate on the
instrument cluster.

[ When ECO mode is activated:

- The acceleration response may be
slightly reduced if the accelerator
pedal is depressed moderately.

- The air conditioner performance
may be limited.

- The shift pattern of the automatic
transmission may change.

- Engine noise may be louder at some
automatic transmission shifts as
down-shift requires pressing down
more on the accelerator.
The above situations are normal
conditions when ECO mode is
activated to help improve fuel
efficiency.
DRIVE MODE INTEGRATED CONTROL SYSTEM

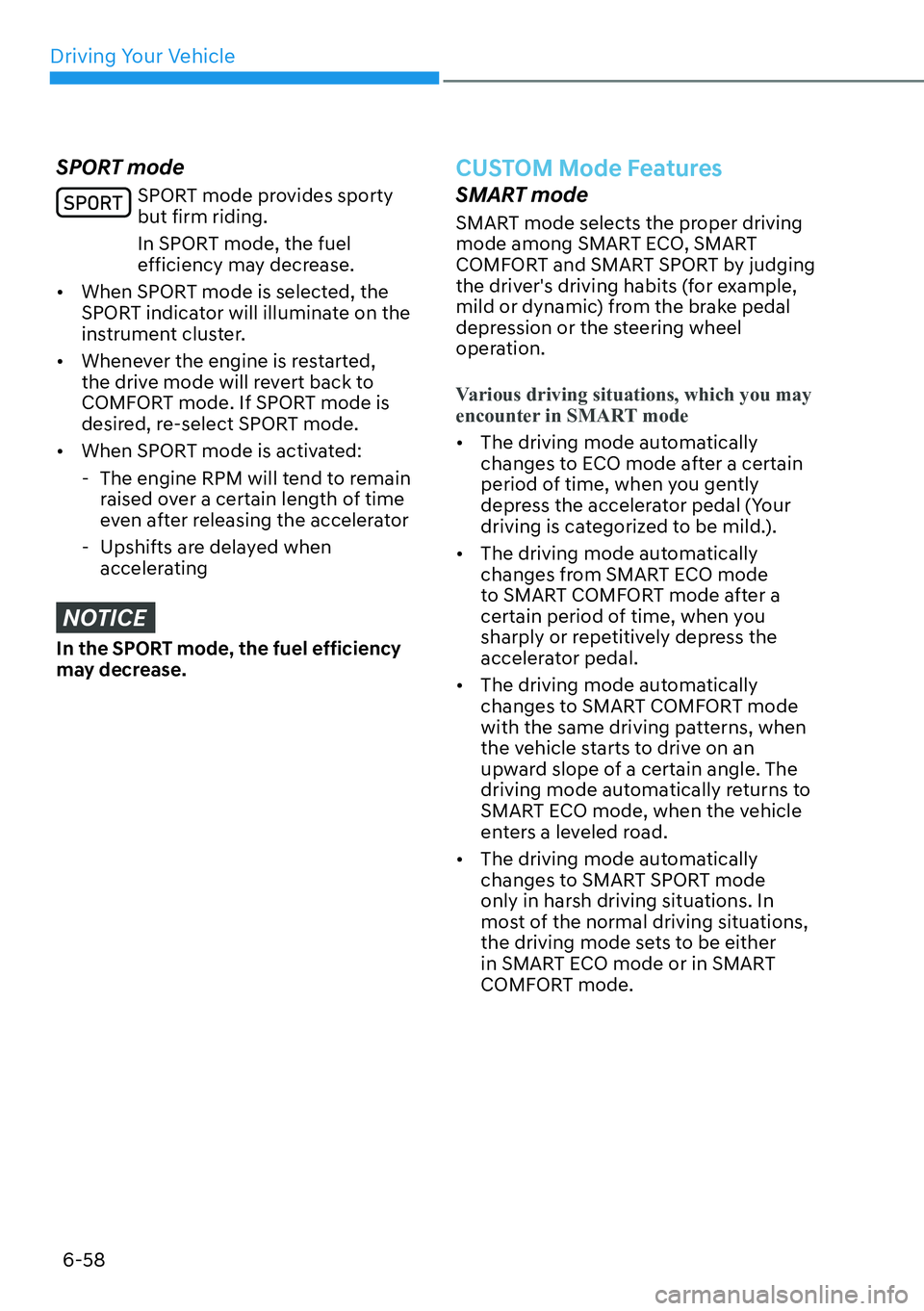

Driving Your Vehicle6-58
SPORT mode
SPORT mode provides sporty
but firm riding.
In SPORT mode, the fuel
efficiency may decrease.

[ When SPORT mode is selected, the
SPORT indicator will illuminate on the
instrument cluster.

[ Whenever the engine is restarted,
the drive mode will revert back to
COMFORT mode. If SPORT mode is
desired, re-select SPORT mode.

[ When SPORT mode is activated:

- The engine RPM will tend to remain
raised over a certain length of time
even after releasing the accelerator

- Upshifts are delayed when
accelerating
NOTICE
In the SPORT mode, the fuel efficiency
may decrease.
CUSTOM Mode Features
SMART mode
SMART mode selects the proper driving
mode among SMART ECO, SMART
COMFORT and SMART SPORT by judging
the driver's driving habits (for example,
mild or dynamic) from the brake pedal
depression or the steering wheel
operation.
Various driving situations, which you may
encounter

in SMART mode

[ The driving mode aut
omatically
changes to ECO mode after a certain
period of time, when you gently
depress the accelerator pedal (Your
driving is categorized to be mild.).

[ The driving mode automatically
changes from SMART ECO mode
to SMART COMFORT mode after a
certain period of time, when you
sharply or repetitively depress the
accelerator pedal.

[ The driving mode automatically
changes to SMART COMFORT mode
with the same driving patterns, when
the vehicle starts to drive on an
upward slope of a certain angle. The
driving mode automatically returns to
SMART ECO mode, when the vehicle
enters a leveled road.

[ The driving mode automatically
changes to SMART SPORT mode
only in harsh driving situations. In
most of the normal driving situations,
the driving mode sets to be either
in SMART ECO mode or in SMART
COMFORT mode.

06
6-59

[The driving mode automatically
changes to SMART SPORT, when
you abruptly accelerate the vehicle
or repetitively operate the steering
wheel (Your driving is categorized
to be sporty.). In this mode, your
vehicle drives in a lower gear for
abrupt accelerating or decelerating
and increases the engine brake
performance.
For general description of SMART ECO,
SMART COMFORT, and SMART SPORT
modes, refer to “ECO, COMFORT, SPORT
mode features”.
Limitation of SMART mode
SMART may be limited in following
situations. ECO, COMFORT, SPORT mode
features

[ The driver is using the paddle shifter
to manually shift gear. (The system
prioritizes the driver’s manual shifting)

[ Smart Cruise Control is activated.

[ The transmission oil temperature is
either extremely low or extremely
high.
Information

[When you mildly drive the vehicle
in SMART mode, the driving mode
changes to ECO mode to improve fuel
efficiency. However, the actual fuel
efficiency may differ depending on your
driving situations such as slope angle,
and vehicle speed.

[ When you dynamically drive the
vehicle in SMART mode by abruptly
decelerating or sharply curving, the
driving mode changes to SPORT mode.
However, it may adversely affect fuel
economy.
Multi Terrain Mode (AWD, if
equipped)
Multi terrain mode may be selected
according to the driver's preference or
road condition.
B1001KO08
Press the DRIVE/TERRAIN button to
change from Drive mode to Multi terrain
mode. After the button is pressed, rotate
the knob within 4 seconds to select
SNOW, MUD or SAND. When the DRIVE/
TERRAIN button is pressed again, the
previous Drive mode will be reselected.
B1003EU01For more details on Terrain mode, referto
“All Wheel Drive” section in thischapter.

06
6-61

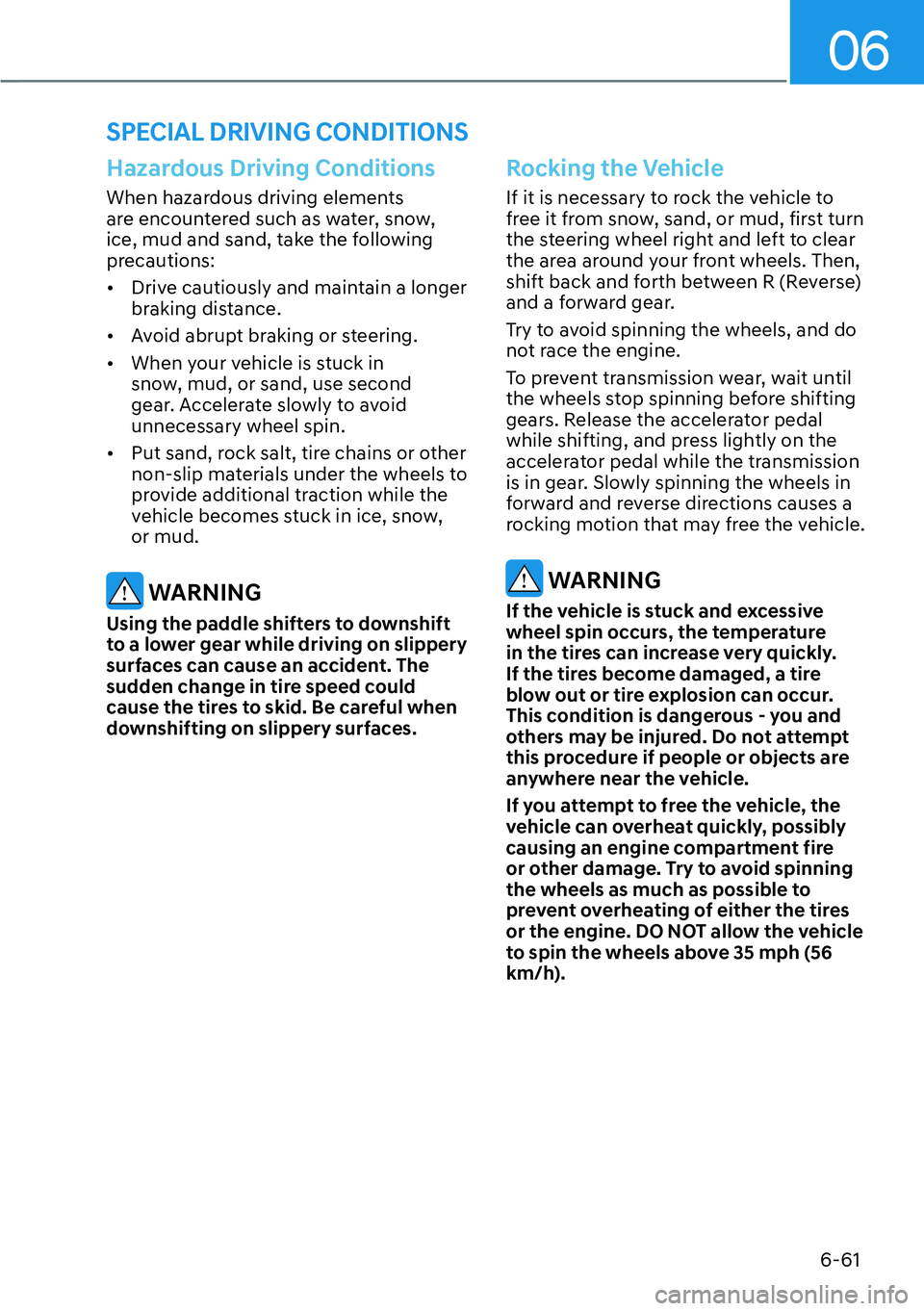

Hazardous Driving Conditions
When hazardous driving elements
are encountered such as water, snow,
ice, mud and sand, take the following
precautions:

[Drive cautiously and maintain a longer
braking distance.

[ Avoid abrupt braking or steering.

[ When your vehicle is stuck in
snow, mud, or sand, use second
gear. Accelerate slowly to avoid
unnecessary wheel spin.

[ Put sand, rock salt, tire chains or other
non-slip materials under the wheels to
provide additional traction while the
vehicle becomes stuck in ice, snow,
or mud.
WARNING
Using the paddle shifters to downshift
to a lower gear while driving on slippery
surfaces can cause an accident. The
sudden change in tire speed could
cause the tires to skid. Be careful when
downshifting on slippery surfaces.
Rocking the Vehicle
If it is necessary to rock the vehicle to
free it from snow, sand, or mud, first turn
the steering wheel right and left to clear
the area around your front wheels. Then,
shift back and forth between R (Reverse)
and a forward gear.
Try to avoid spinning the wheels, and do
not race the engine.
To prevent transmission wear, wait until
the wheels stop spinning before shifting
gears. Release the accelerator pedal
while shifting, and press lightly on the
accelerator pedal while the transmission
is in gear. Slowly spinning the wheels in
forward and reverse directions causes a
rocking motion that may free the vehicle.
WARNING
If the vehicle is stuck and excessive
wheel spin occurs, the temperature
in the tires can increase very quickly.
If the tires become damaged, a tire
blow out or tire explosion can occur.
This condition is dangerous - you and
others may be injured. Do not attempt
this procedure if people or objects are
anywhere near the vehicle.
If you attempt to free the vehicle, the
vehicle can overheat quickly, possibly
causing an engine compartment fire
or other damage. Try to avoid spinning
the wheels as much as possible to
prevent overheating of either the tires
or the engine. DO NOT allow the vehicle
to spin the wheels above 35 mph (56
km/h).
SPECIAL DRIVING CONDITIONS

Driving Your Vehicle6-62
Information
The ESC system must be turned OFF
before rocking the vehicle.
NOTICE
If you are still stuck after rocking the
vehicle a few times, have the vehicle
pulled out by a tow vehicle to avoid
engine overheating, possible damage to
the transmission, and tire damage. See
“Towing” section in chapter 8.
Smooth Cornering
Avoid braking or gear changing in
corners, especially when roads are wet.
Ideally, corners should always be taken
under gentle acceleration.
Driving at Night
Night driving presents more hazards than
driving in the daylight. Here are some
important tips to remember:

[ Slow down and keep more distance
between you and other vehicles, as it
may be more difficult to see at night,
especially in areas where there may
not be any street lights.

[ Adjust your mirrors to reduce the glare
from other drivers’ headlights.

[ Keep your headlights clean and
properly aimed. Dirty or improperly
aimed headlights will make it much
more difficult to see at night.

[ Avoid staring directly at the headlights
of oncoming vehicles. You could be
temporarily blinded, and it will take
several seconds for your eyes to
readjust to the darkness.

06
6-63
Driving in the Rain
Rain and wet roads can make driving
dangerous. Here are a few things to
consider when driving in the rain or on
slick pavement:

[Slow down and allow extra following
distance. A heavy rainfall makes
it harder to see and increases the
distance needed to stop your vehicle.

[ Turn OFF your Cruise Control. (if
equipped)

[ Replace your windshield wiper blades
when they show signs of streaking or
missing areas on the windshield.

[ Be sure your tires have enough tread.
If your tires do not have enough tread,
making a quick stop on wet pavement
can cause a skid and possibly lead to
an accident. See “Tire Tread” section
in chapter 9.

[ Turn on your headlights to make it
easier for others to see you.

[ Driving too fast through large puddles
can affect your brakes. If you must go
through puddles, try to drive through
them slowly.

[ If you believe your brakes may be wet,
apply them lightly while driving until
normal braking operation returns.
Hydroplaning
If the road is wet enough and you are
going fast enough, your vehicle may
have little or no contact with the road
surface and actually ride on the water.
The best advice is SLOW DOWN when
the road is wet.
The risk of hydroplaning increases as the
depth of tire tread decreases, refer to
“Tire Tread” section in chapter 9.
Driving in Flooded Areas
Avoid driving through flooded areas
unless you are sure the water is no
higher than the bottom of the wheel hub.
Drive through any water slowly. Allow
adequate stopping distance because
brake performance may be reduced.
After driving through water, dry the
brakes by gently applying them several
times while the vehicle is moving slowly.
Highway Driving
Tires
Adjust the tire inflation, as specified.
Under-inflation may overheat or damage
the tires.
Do not install worn-out or damaged tires,
which may reduce traction or fail the
braking operation.
Information
Never over-inflate your tires above the
maximum inflation pressure, as specified
on your tires.
Fuel, engine coolant and engine oil
Driving at higher speeds on the highway
consumes more fuel and is less efficient
than driving at a slower, more moderate
speed. Maintain a moderate speed in
order to conserve fuel when driving on
the highway.
Be sure to check both the engine coolant
level and the engine oil before driving.
Drive belt
A loose or damaged drive belt may
overheat the engine.
