2023 HYUNDAI PALISADE engine

8
Hazard Warning Flasher ........................................................................\
........... 8-2
In Case of an Emergency While Driving .......................................................... 8-2
If the Engine Stalls While Driving ........................................................................\
....... 8-2
If the Engine Stalls at a Crossroad or Crossing .......................................................... 8-2
If You Have a Flat Tire While Driving ........................................................................\
...8-3
If the Engine Will Not Start ........................................................................\
....... 8-3
Jump Starting ........................................................................\
........................... 8-4
If the Engine Overheats ........................................................................\
.............8-7
Tire Pressure Monitoring System (TPMS) ........................................................ 8-8
Check Tire Pressure ........................................................................\
............................. 8-9
Tire Pressure Monitoring System ........................................................................\
...... 8-9
Low Tire Pressure Indicator ........................................................................\
............... 8-10
TPMS (Tire Pressure Monitoring System) malfunction indicator ............................. 8-11
Changing a Tire with TPMS ........................................................................\
............... 8-12
If You Have a Flat Tire (With Spare Tire) ......................................................... 8-13Jack and Tools ........................................................................\
.................................... 8-14
Removing and Storing the Spare Tire ....................................................................... 8-14
Changing Tires ........................................................................\
.................................... 8-15
Jack Label ........................................................................\
.......................................... 8-20
Towing ...................................................................\
........................................... 8-21Towing Service ........................................................................\
................................... 8-21
Removable Towing Hook ........................................................................\
................... 8-23
Emergency Towing ........................................................................\
.............................8-24
8. Emergency Situations

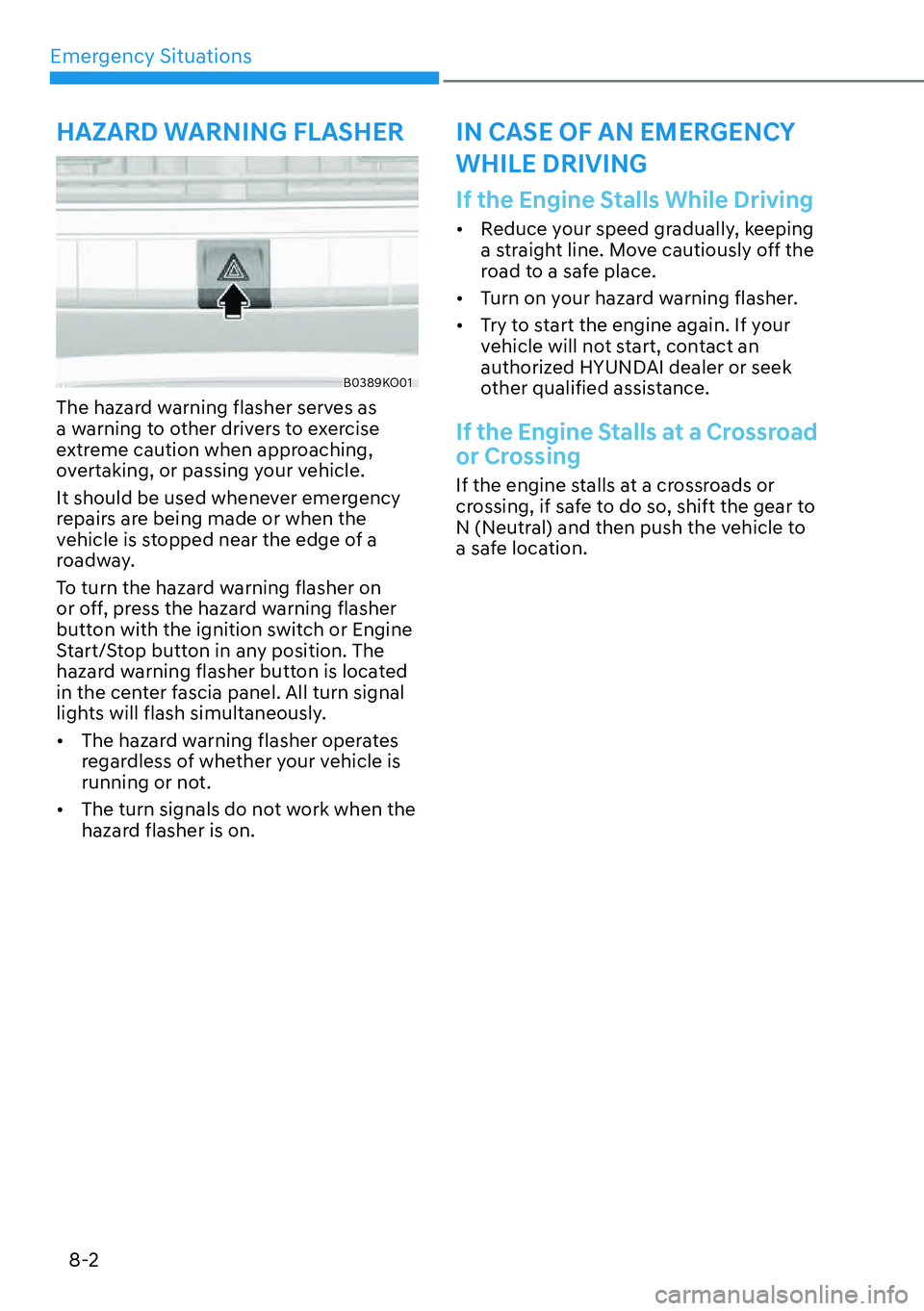

Emergency Situations8-2
B0389KO01
The hazard warning flasher serves as
a warning to other drivers to exercise
extreme caution when approaching,
overtaking, or passing your vehicle.
It should be used whenever emergency
repairs are being made or when the
vehicle is stopped near the edge of a
roadway.
To turn the hazard warning flasher on
or off, press the hazard warning flasher
button with the ignition switch or Engine
Start/Stop button in any position. The
hazard warning flasher button is located
in the center fascia panel. All turn signal
lights will flash simultaneously.

[ The hazard warning flasher operates
regardless of whether your vehicle is
running or not.

[ The turn signals do not work when the
hazard flasher is on.
If the Engine Stalls While Driving

[Reduce your speed gradually, keeping
a straight line. Move cautiously off the
road to a safe place.

[ Turn on your hazard warning flasher.

[ Try to start the engine again. If your
vehicle will not start, contact an
authorized HYUNDAI dealer or seek
other qualified assistance.
If the Engine Stalls at a Crossroad
or Crossing
If the engine stalls at a crossroads or
crossing, if safe to do so, shift the gear to
N (Neutral) and then push the vehicle to
a safe location.
HAZARD WARNING FLASHER IN CASE OF AN EMERGENCY
WHILE DRIVING

08
8-3
If You Have a Flat Tire While
Driving
If a tire goes flat while you are driving:

[Take your foot off the accelerator
pedal and let the vehicle slow down
while driving straight ahead. Do not
apply the brakes immediately or
attempt to pull off the road as this
may cause loss of vehicle control
resulting in an accident. When the
vehicle has slowed to such a speed
that it is safe to do so, brake carefully
and pull off the road. Drive off the
road as far as possible and park on
firm, level ground. If you are on a
divided highway, do not park in the
median area between the two traffic
lanes.

[ When the vehicle is stopped, press the
hazard warning flasher button, shift
the gear to P (Park), apply the parking
brake, and place ignition switch to the
LOCK/OFF position.

[ Have all passengers get out of the
vehicle. Be sure they all get out on the
side of the vehicle that is away from
traffic.

[ When changing a flat tire, follow the
instructions provided later in this
chapter.
IF THE ENGINE WILL NOT
START

[Be sure to shift the gear to N (Neutral)
or P (Park). The engine starts only
when the gear is in N (Neutral) or P
(Park).

[ Turn on the interior light. If the light
dims or goes out when you operate
the starter, the battery is drained.
See instructions for “Jump Starting”
provided in this chapter.

[ Check the fuel level and add fuel if
necessary.
If the vehicle still does not start, call
an authorized HYUNDAI dealer for
assistance.
NOTICE
Push or pull starting the vehicle may
cause the catalytic converter to
overload which can lead to damage to
the emission control system.

Emergency Situations8-4
Jump starting can be dangerous if done
incorrectly. Follow the jump starting
procedure in this section to avoid serious
injury or damage to your vehicle. If in
doubt about how to properly jump start
your vehicle, we strongly recommend
that you have a service technician or
towing service do it for you.
WARNING
To prevent SERIOUS INJURY or DEATH
to you or bystanders, always follow
these precautions when working near
or handling the battery:
Always read and follow
instructions carefully when
handling a battery.
Wear eye protection designed
to protect the eyes from acid
splashes.
Keep all flames, sparks, or
smoking materials away from
the battery.
Hydrogen is always present
in battery cells, is highly
combustible, and may explode
if ignited.
Keep batteries out of reach of
children.
Batteries contain sulfuric acid
which is highly corrosive. Do
not allow acid to contact your
eyes, skin or clothing. If acid gets into your eyes, flush your
eyes with clean water for at least 15
minutes and get immediate medical
attention. If acid gets on your skin,
thoroughly wash the area. If you feel
pain or a burning sensation, get medical
attention immediately.

[
When lifting a plastic-cased battery,
excessive pressure on the case may
cause battery acid to leak. Lift with a
battery carrier or with your hands on
opposite corners.

[ Do not attempt to jump start your
vehicle if your battery is frozen.

[ NEVER attempt to recharge the
battery when the vehicle’s battery
cables are connected to the battery.

[ The electrical ignition system works
with high voltage.
NEVER touch these components
with the engine running or when the
ignition switch or Engine Start/Stop
button is in the ON position.
JUMP STARTING

08
8-5
Jump starting procedure
1. Position the vehicles close enough that the jumper cables will reach, but
do not allow the vehicles to touch.
2. Avoid fans or any moving parts in the engine compartment at all times, even
when the vehicles are turned off.
3. Turn off all electrical devices such as radios, lights, air conditioning, etc.
Put the vehicles in P (Park) and set the
parking brake. Turn both vehicles OFF.
4. Open the engine hood.
5. Remove the engine compartment fuse box cover.
CAUTION
Before jump starting, make sure to
correctly identify the positive (+) and
negative (-) terminals to avoid reverse
polarity connections.
B0401KO01
6. Connect the jumper cables in the exact sequence shown in the
illustration. First connect one jumper
cable to the red, positive (+) jumper
terminal of your vehicle M.
7. Connect the other end of the jumper cable to the red, positive (+) battery/
jumper terminal of the assisting
vehicle N.
8. Connect the second jumper cable to the black, negative (-) battery/jumper
terminal of the assisting vehicle O.
9. Connect the other end of the second
jumper cable to the black, negative (-)
chassis ground of your vehicle P.
Do not allow the jumper cables to
contact anything except the correct
battery or jumper terminals or the
correct ground. Do not lean over the
battery when making connections.
WARNING
Do not connect the jumper cable to
the negative (-) jumper terminal of the
discharged battery. A spark could cause
the battery to explode and lead to a
personal injury or vehicle damage.

Emergency Situations8-6
10. Start the engine of the assisting
vehicle and let it run at approximately
2,000 RPM for a few minutes. Then
start your vehicle.
11. Keep your vehicle operating for at
least 30 minutes at idle or driving to
assure your battery receives enough
charge to be able to start on its
own after the vehicle is shut off. A
completely discharged battery may
require as long as 60 minutes runtime
to fully recharge it. If the vehicle
has run for less, the vehicle may not
restart.
If your vehicle will not start after a few
attempts, it probably requires service.
In this event please seek qualified
assistance. If the cause of your battery
discharging is not apparent, have your
vehicle checked by an authorized
HYUNDAI dealer.
Disconnect the jumper cables in the
exact reverse order you connected them:
1. Disconnect the jumper cable from the black, negative (-) chassis ground of
your vehicle P.
2. Disconnect the other end of the jumper cable from the black, negative
(-) battery/chassis ground of the
assisting vehicle O.
3. Disconnect the second jumper cable from the red, positive (+) battery/
jumper terminal of the assisting
vehicle N.
4. Disconnect the other end of the jumper cable from the red, positive (+)
jumper terminal of your vehicle M.
Information
An inappropriately disposed
battery can be harmful to
the environment and human
health. Dispose of the battery
according to your local law(s) or
regulations.
NOTICE
To prevent damage to your vehicle:

[Only use a 12-volt power supply
(battery or jumper system) to jump
start your vehicle.

[ Do not attempt to jump start your
vehicle by push-starting.
WARNING
While jump starting your vehicle, avoid
the positive (+) and negative (-) cables
to come in contact. A spark could cause
personal injury.

08

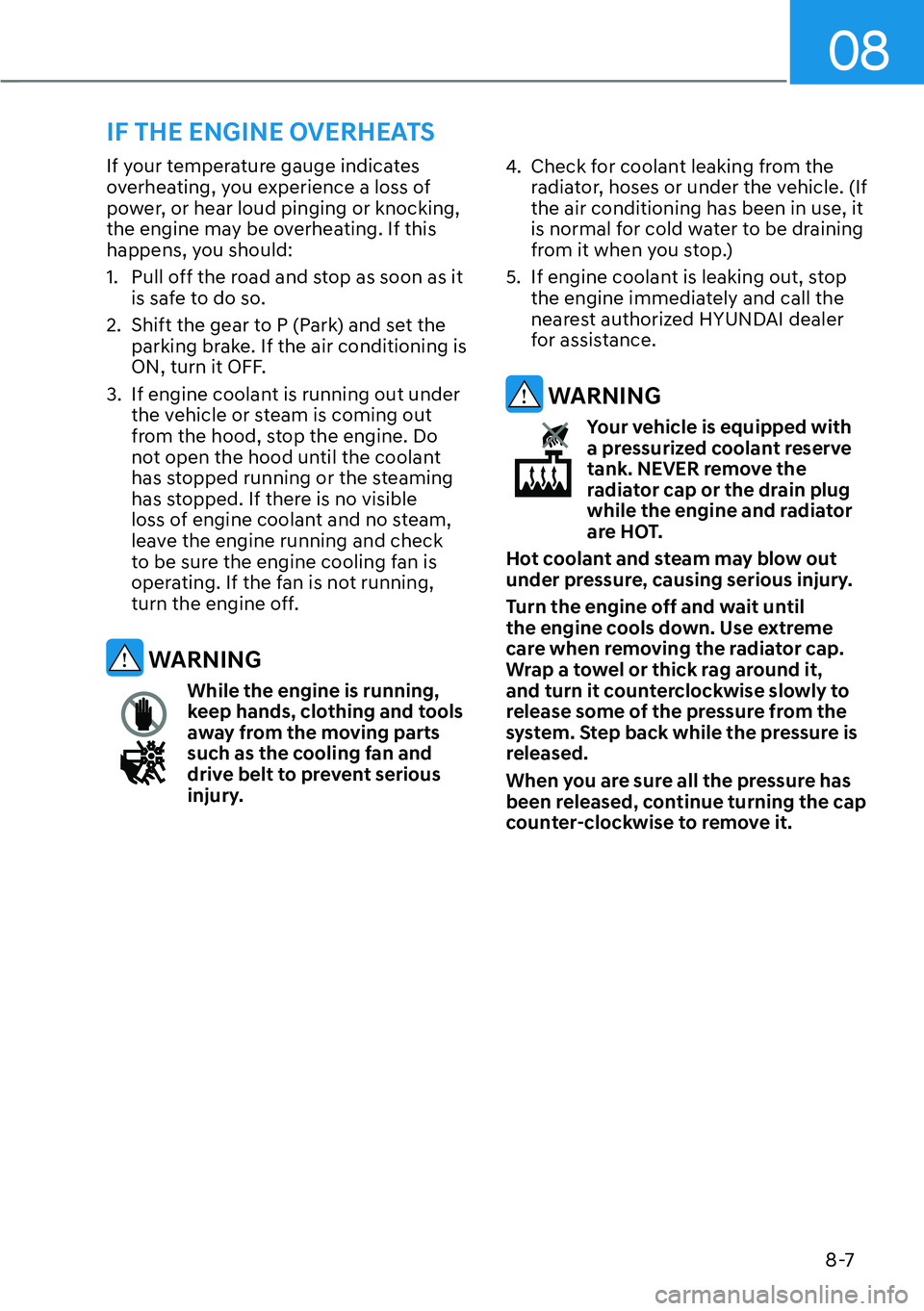

8-7
If your temperature gauge indicates
overheating, you experience a loss of
power, or hear loud pinging or knocking,
the engine may be overheating. If this
happens, you should:
1. Pull off the road and stop as soon as it is safe to do so.
2. Shift the gear to P (Park) and set the parking brake. If the air conditioning is
ON, turn it OFF.
3. If engine coolant is running out under the vehicle or steam is coming out
from the hood, stop the engine. Do
not open the hood until the coolant
has stopped running or the steaming
has stopped. If there is no visible
loss of engine coolant and no steam,
leave the engine running and check
to be sure the engine cooling fan is
operating. If the fan is not running,
turn the engine off.
WARNING
While the engine is running,
keep hands, clothing and tools
away from the moving parts
such as the cooling fan and
drive belt to prevent serious
injury. 4. Check for coolant leaking from the
radiator, hoses or under the vehicle. (If
the air conditioning has been in use, it
is normal for cold water to be draining
from it when you stop.)
5. If engine coolant is leaking out, stop the engine immediately and call the
nearest authorized HYUNDAI dealer
for assistance.
WARNING
Your vehicle is equipped with
a pressurized coolant reserve
tank. NEVER remove the
radiator cap or the drain plug
while the engine and radiator
are HOT.
Hot coolant and steam may blow out
under pressure, causing serious injury.
Turn the engine off and wait until
the engine cools down. Use extreme
care when removing the radiator cap.
Wrap a towel or thick rag around it,
and turn it counterclockwise slowly to
release some of the pressure from the
system. Step back while the pressure is
released.
When you are sure all the pressure has
been released, continue turning the cap
counter-clockwise to remove it.
IF THE ENGINE OVERHEATS

Emergency Situations8-10
Your vehicle has also been equipped with
a TPMS malfunction indicator to indicate
when the system is not operating
properly. The TPMS malfunction
indicator is combined with the Low
Tire Pressure Telltale. When the system
detects a malfunction, the telltale will
flash for approximately one minute and
then remain continuously illuminated.
This sequence will continue upon
subsequent vehicle start-ups as long as
the malfunction exists.
When the malfunction indicator is
illuminated, the system may not be able
to detect or signal low tire pressure as
intended. TPMS malfunctions may occur
for a variety of reasons, including the
installation of replacement or alternate
tires or wheels on the vehicle that
prevent the TPMS from functioning
properly.
Always check the TPMS malfunction
telltale after replacing one or more tires
or wheels on your vehicle to ensure that
the replacement or alternate tires and
wheels allow the TPMS to continue to
function properly.
NOTICE
If any of the below happens, have
the system checked by an authorized
HYUNDAI dealer.
1. The Low Tire Pressure Telltale/ TPMS Malfunction Indicator does not
illuminate for 3 seconds when the
ignition switch or Engine Start/Stop
button is placed to the ON position
or when the engine is running.
2. The TPMS Malfunction Indicator remains illuminated after blinking for
approximately 1 minute.
3. The Low Tire Pressure Position Telltale remains illuminated.
Low Tire Pressure Indicator
B0406KO01
B0404EU03
A: Low Tire Pressure Warning Light,
B: Low Tire Pressure Position and Tire Pressure Telltale
When the tire pressure monitoring
system warning indicators are
illuminated and a warning message
displayed on the cluster LCD display,
one or more of your tires is significantly
under-inflated. The Low Tire Pressure
Position Telltale will indicate which
tire is significantly underinflated by
illuminating the corresponding position
light.
If either telltale illuminates, immediately
reduce your speed, avoid hard cornering
and anticipate increased stopping
distances. You should stop and check
your tires as soon as possible. Inflate the
tires to the proper pressure as indicated
on the vehicle’s placard or tire inflation
pressure label located on the driver’s
side center pillar outer panel.
