2023 HYUNDAI PALISADE engine

09
9-5

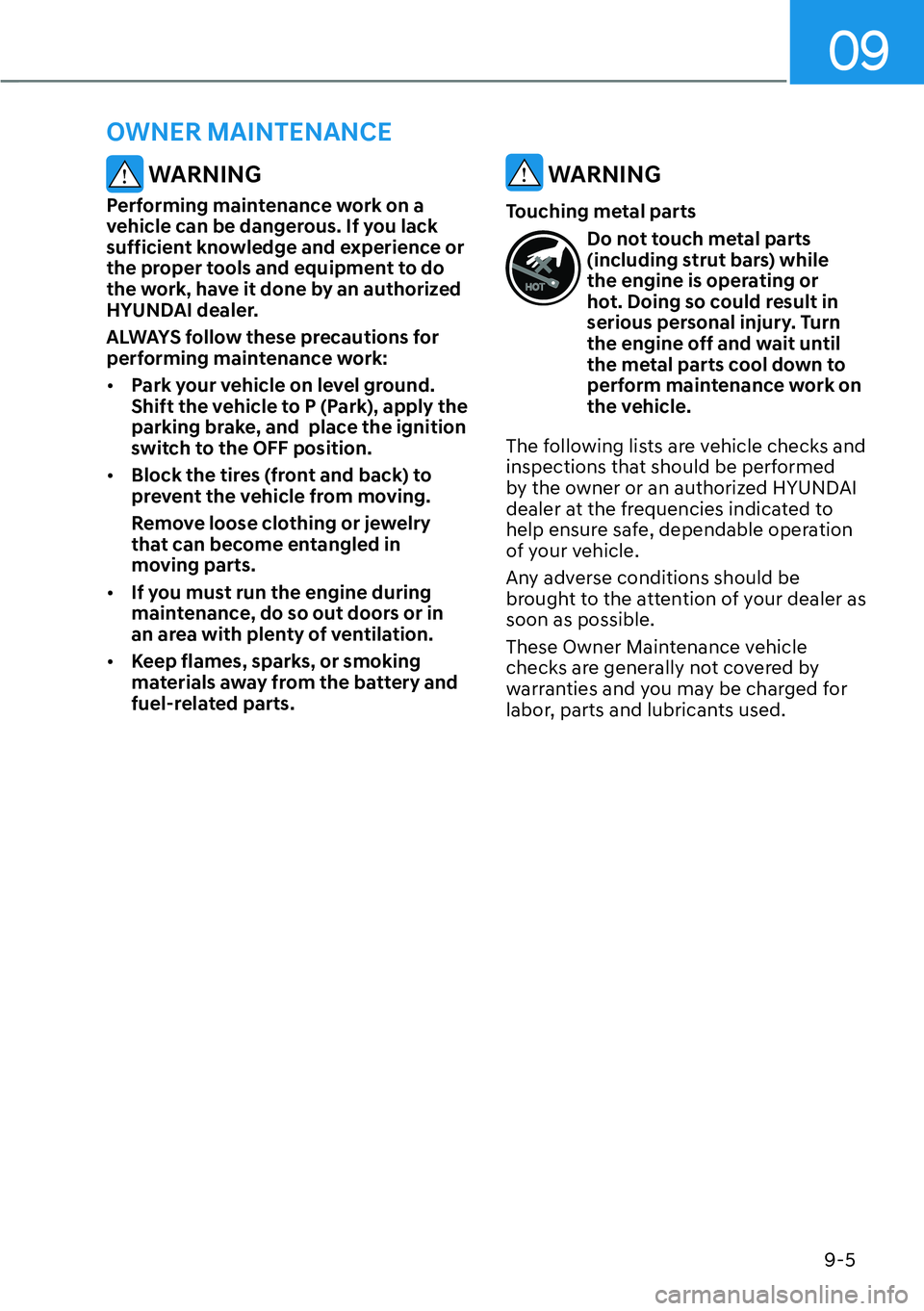

WARNING
Performing maintenance work on a
vehicle can be dangerous. If you lack
sufficient knowledge and experience or
the proper tools and equipment to do
the work, have it done by an authorized
HYUNDAI dealer.
ALWAYS follow these precautions for
performing maintenance work:

[Park your vehicle on level ground.
Shift the vehicle to P (Park), apply the
parking brake, and place the ignition
switch to the OFF position.

[ Block the tires (front and back) to
prevent the vehicle from moving.
Remove loose clothing or jewelry
that can become entangled in
moving parts.

[ If you must run the engine during
maintenance, do so out doors or in
an area with plenty of ventilation.

[ Keep flames, sparks, or smoking
materials away from the battery and
fuel-related parts.
WARNING
Touching metal parts
Do not touch metal parts
(including strut bars) while
the engine is operating or
hot. Doing so could result in
serious personal injury. Turn
the engine off and wait until
the metal parts cool down to
perform maintenance work on
the vehicle.
The following lists are vehicle checks and
inspections that should be performed
by the owner or an authorized HYUNDAI
dealer at the frequencies indicated to
help ensure safe, dependable operation
of your vehicle.
Any adverse conditions should be
brought to the attention of your dealer as
soon as possible.
These Owner Maintenance vehicle
checks are generally not covered by
warranties and you may be charged for
labor, parts and lubricants used.
OWNER MAINTENANCE

Maintenance9-6
Owner Maintenance Schedule
When you stop for fuel:

[ Check the coolant level in the engine
coolant reservoir.

[ Check the windshield washer fluid
level.

[ Check for low or under-inflated tires.
WARNING
Be careful when checking your coolant
level when the engine is hot. This may
result in coolant being blown out of the
opening and cause serious burns and
other injuries.
While operating your vehicle:

[Note any changes in the sound of the
exhaust or any smell of exhaust fumes
in the vehicle.

[ Check for vibrations in the steering
wheel. Notice if there is any increased
steering effort or looseness in the
steering wheel, or change in its
straight-ahead position.

[ Notice if your vehicle constantly turns
slightly or “pulls” to one side when
traveling on smooth, level road.

[ When stopping, listen and check for
unusual sounds, pulling to one side,
increased brake pedal travel or “hard-
to-push” brake pedal.

[ If any slipping or changes in the
operation of your transmission occurs,
check the transmission fluid level.

[ Check the automatic transmission P
(Park) function.

[ Check the parking brake.

[ Check for fluid leaks under your
vehicle (water dripping from the air
conditioning system during or after
use is normal).
At least monthly:

[Check coolant level in the engine
coolant reservoir.

[ Check the operation of all exterior
lights, including the stoplights, turn
signals and hazard warning flashers.

[ Check the inflation pressures of all
tires including the spare for tires that
are worn, show uneven wear, or are
damaged.

[ Check for loose wheel lug nuts.
At least twice a year: (for example,
every Spring and Autumn)

[Check radiator, heater and air
conditioning hoses for leaks or
damage.

[ Check windshield washer spray and
wiper operation. Clean wiper blades
with a clean cloth dampened with
washer fluid.

[ Check headlight alignment.

[ Check muffler, exhaust pipes, shields
and clamps.

[ Check the seat belts for wear and
function.
At least once a year:

[Clean body and door drain holes.

[ Lubricate door hinges and hood
hinges.

[ Lubricate door and hood locks and
latches.

[ Lubricate door rubber weather strips.

[ Check the air conditioning system.

[ Inspect and lubricate automatic
transmission linkage and controls.

[ Clean the battery and terminals.

[ Check the brake fluid level.

09
9-7

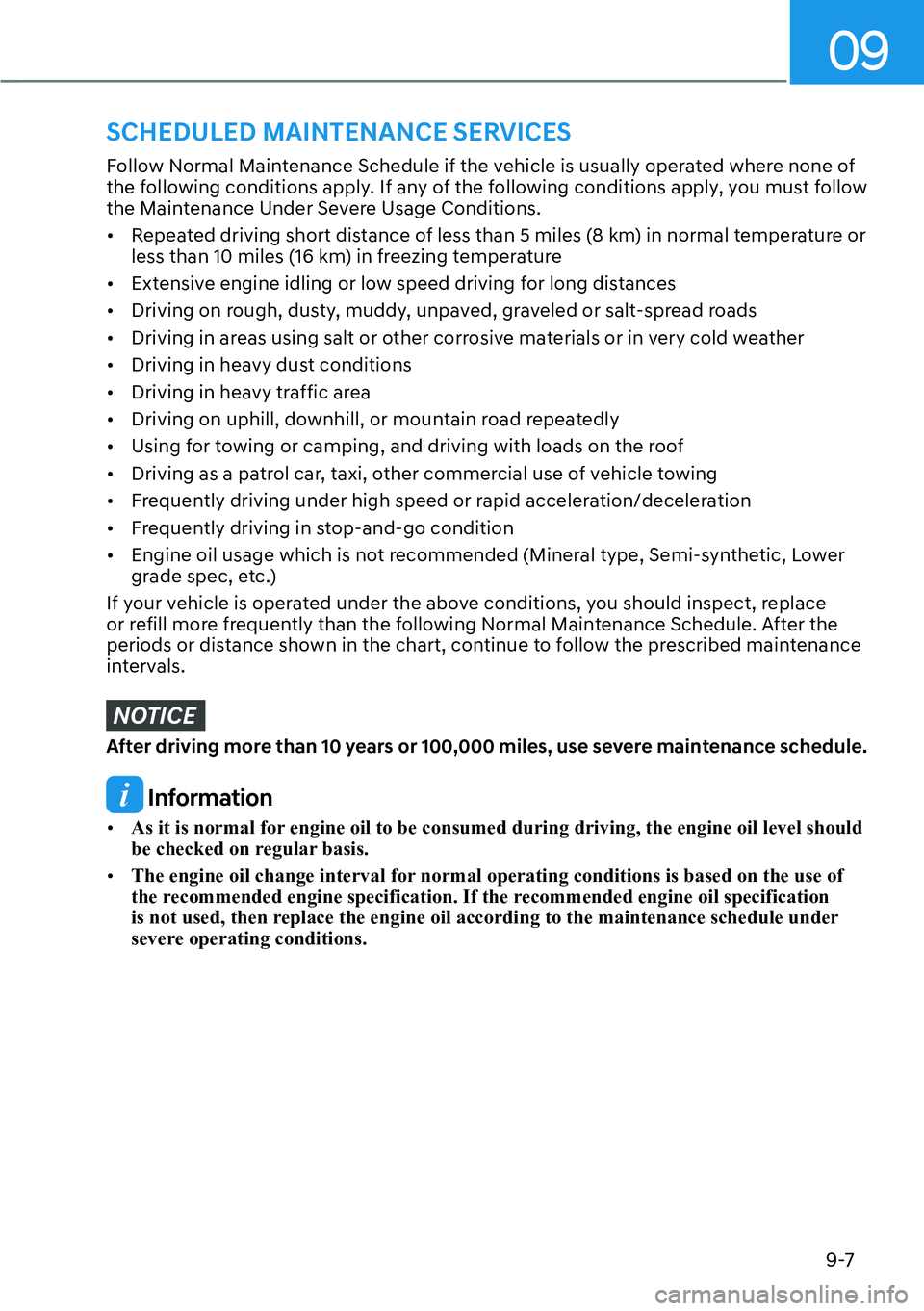

Follow Normal Maintenance Schedule if the vehicle is usually operated where none of
the following conditions apply. If any of the following conditions apply, you must follow
the Maintenance Under Severe Usage Conditions.

[Repeated driving short distance of less than 5 miles (8 km) in normal temperature or
less than 10 miles (16 km) in freezing temperature

[ Extensive engine idling or low speed driving for long distances

[ Driving on rough, dusty, muddy, unpaved, graveled or salt-spread roads

[ Driving in areas using salt or other corrosive materials or in very cold weather

[ Driving in heavy dust conditions

[ Driving in heavy traffic area

[ Driving on uphill, downhill, or mountain road repeatedly

[ Using for towing or camping, and driving with loads on the roof

[ Driving as a patrol car, taxi, other commercial use of vehicle towing

[ Frequently driving under high speed or rapid acceleration/deceleration

[ Frequently driving in stop-and-go condition

[ Engine oil usage which is not recommended (Mineral type, Semi-synthetic, Lower
grade spec, etc.)
If your vehicle is operated under the above conditions, you should inspect, replace
or refill more frequently than the following Normal Maintenance Schedule. After the
periods or distance shown in the chart, continue to follow the prescribed maintenance
intervals.
NOTICE
After driving more than 10 years or 100,000 miles, use severe maintenance schedule.
Information

[ As it is normal for engine oil to be consumed during driving, the engine oil level should
be checked on regular basis.

[ The engine oil change interval for normal operating conditions is based on the use of
the recommended engine specification. If the recommended engine oil specification
is not used, then replace the engine oil according to the maintenance schedule under
severe operating conditions.
SCHEDULED MAINTENANCE SERVICES

Maintenance9-8

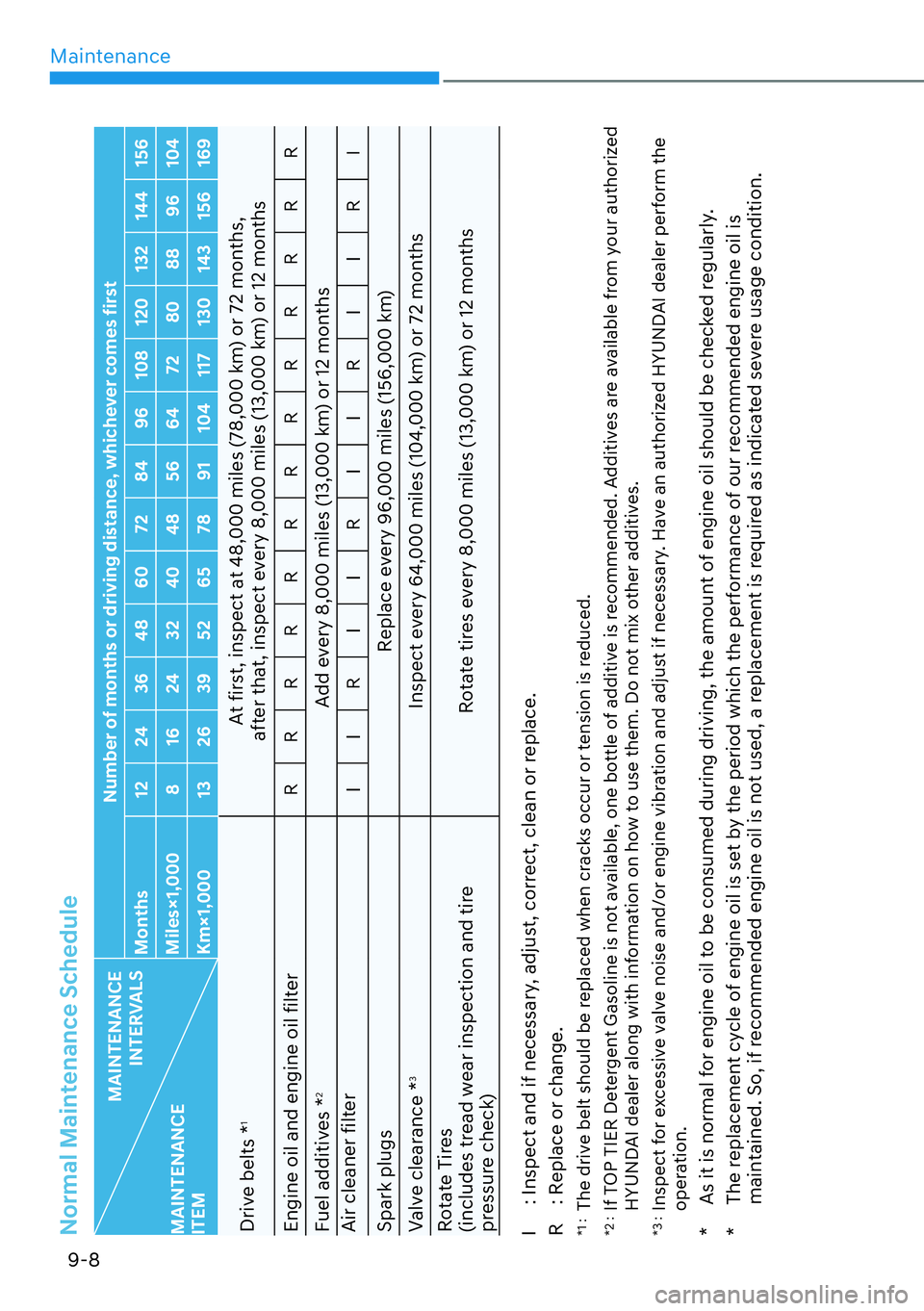

Normal Maintenance Schedule
MAINTENANCE INTERVALS
MAINTENANCE
ITEM Number of months or driving distance, whichever comes first
Months 12 24 36 48 60 72 84 96 108 120 132 144 156 Miles×1,000 8 16 24 32 40 48 56 64 72 80 88 96 104 Km×1,000 13 26 39 52 65 78 91 104 117 130 143 156 169
Drive belts *
1
At first, inspect at 48,000 miles (78,000 km) or 72 months,
after that, inspect every 8,000 miles (13,000 km) or 12 months
Engine oil and engine oil filter
RRRRRRRRRRRRR
Fuel additives *
2
Add every 8,000 miles (13,000 km) or 12 months
Air cleaner filter IIR
II
R
II
R
II
RI
Spark plugs Replace every 96,000 miles (156,000 km)
Valve clearance *
3
Inspect every 64,000 miles (104,000 km) or 72 months
Rotate Tires
(includes tread wear inspection and tire
pressure check) Rotate tires every 8,000 miles (13,000 km) or 12 months
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.
*1 :
The drive belt should be replaced when cracks occur or tension is reduced.
*2 :
If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended. Additives are available from your authorized
HYUNDAI dealer along with information on how to use them. Do not mix other additives.
*3 :
Inspect for excessive valve noise and/or engine vibration and adjust if necessary. Have an authorized HYUNDAI dealer perform the
operation.
* As it is normal for engine oil to be consumed during driving, the amount of engine oil should be checked regularly.
* The replacement cycle of engine oil is set by the period which the performance of our recommended engine oil is maintained. So, if recommended engine oil is not used, a replacement is required as indicated severe usage condition.

09
9-9

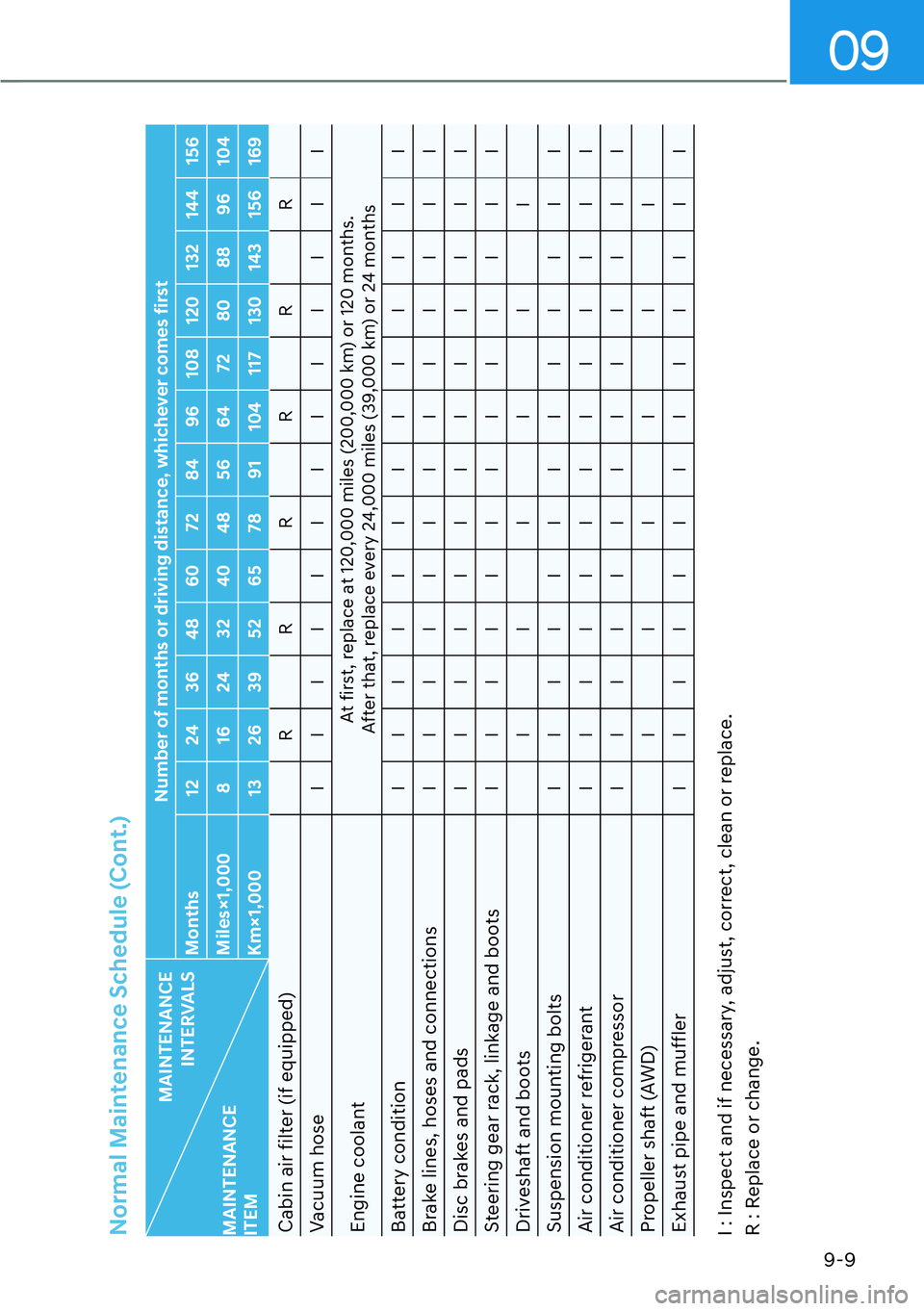

Normal Maintenance Schedule (Cont.)
MAINTENANCE INTERVALS
MAINTENANCE
ITEM Number of months or driving distance, whichever comes first
Months 12 24 36 48 60 72 84 96 108 120 132 144 156
Miles×1,000 8 16 24 32 40 48 56 64 72 80 88 96 104 Km×1,000 13 26 39 52 65 78 91 104 117 130 143 156 169
Cabin air filter (if equipped)
RRRRRR
Vacuum hose
IIIIIIIIIIIII
Engine coolant
At first, replace at 120,000 miles (200,000 km) or 120 months.
After that, replace every 24,000 miles (39,000 km) or 24 months
Battery condition
IIIIIIIIIIIII
Brake lines, hoses and connections
IIIIIIIIIIIII
Disc brakes and pads
IIIIIIIIIIIII
Steering gear rack, linkage and boots
IIIIIIIIIIIII
Driveshaft and boots
IIIIII
Suspension mounting bolts
IIIIIIIIIIIII
Air conditioner refrigerant
IIIIIIIIIIIII
Air conditioner compressor
IIIIIIIIIIIII
Propeller shaft (AWD)
IIIIII
Exhaust pipe and muffler
IIIIIIIIIIIII
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.

09
9-11

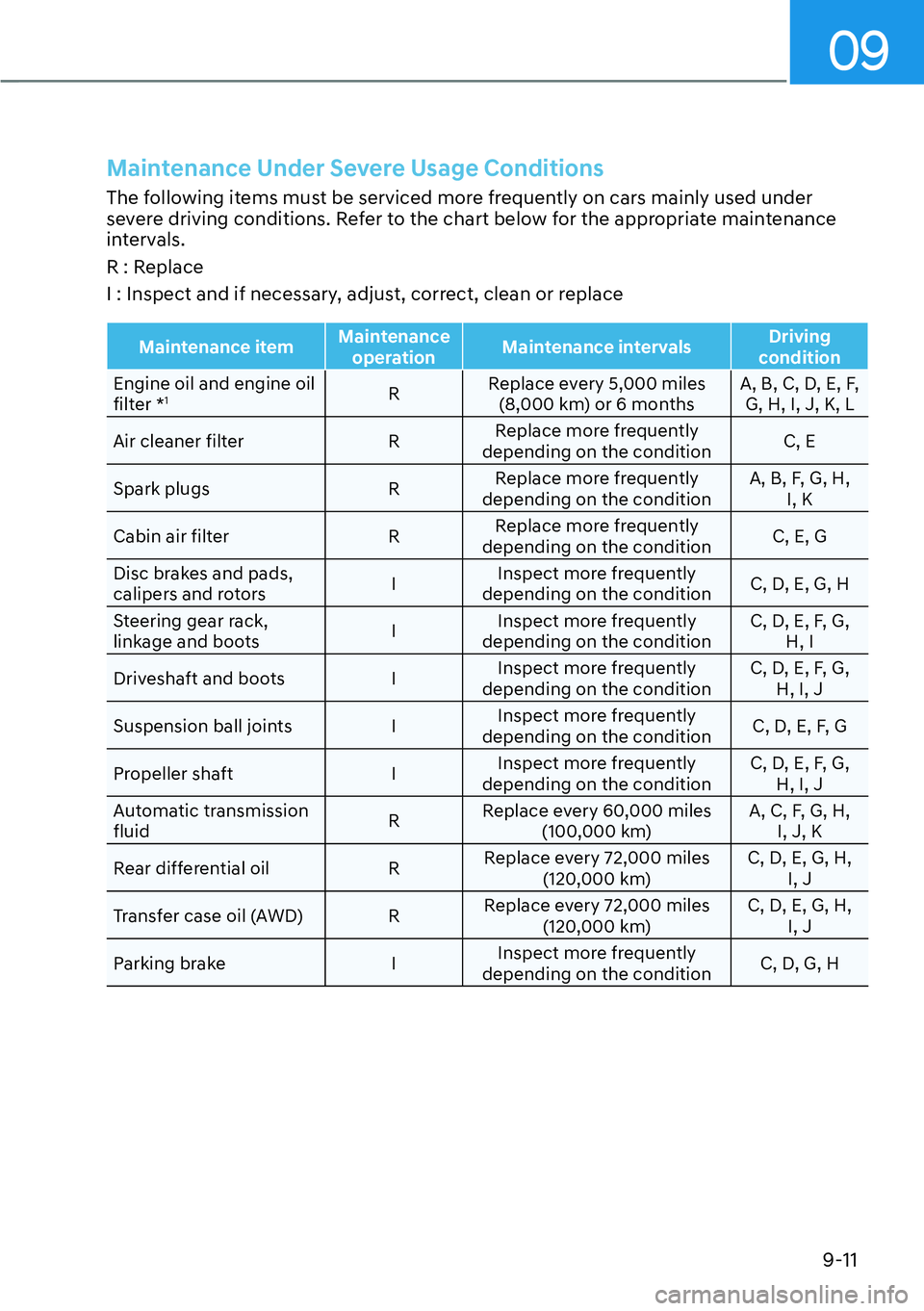

Maintenance Under Severe Usage Conditions
The following items must be serviced more frequently on cars mainly used under
severe driving conditions. Refer to the chart below for the appropriate maintenance
intervals.
R : Replace
I : Inspect and if necessary, adjust, correct, clean or replace
Maintenance itemMaintenance
operation Maintenance intervals Driving
condition
Engine oil and engine oil
filt
er *1R Replace every 5,000 miles
(8,000 km) or 6 months A, B, C, D, E, F,
G, H, I, J, K, L
Air cleaner filter R Replace more frequently
depending on the condition C, E
Spark plugs R Replace more frequently
depending on the condition A, B, F, G, H,
I, K
Cabin air filter R Replace more frequently
depending on the condition C, E, G
Disc brakes and pads,
calipers and rotors IInspect more frequently
depending on the condition C, D, E, G, H
Steering gear rack,
linkage and boots IInspect more frequently
depending on the condition C, D, E, F, G,
H, I
Driveshaft and boots I Inspect more frequently
depending on the condition C, D, E, F, G,
H, I, J
Suspension ball joints I Inspect more frequently
depending on the condition C, D, E, F, G
Propeller shaft I Inspect more frequently
depending on the condition C, D, E, F, G,
H, I, J
Automatic transmission
fluid RReplace every 60,000 miles
(100,000 km) A, C, F, G, H,
I, J, K
Rear differential oil R Replace every 72,000 miles
(120,000 km) C, D, E, G, H,
I, J
Transfer case oil (AWD) R Replace every 72,000 miles
(120,000 km) C, D, E, G, H,
I, J
Parking brake I Inspect more frequently
depending on the condition C, D, G, H

Maintenance9-12

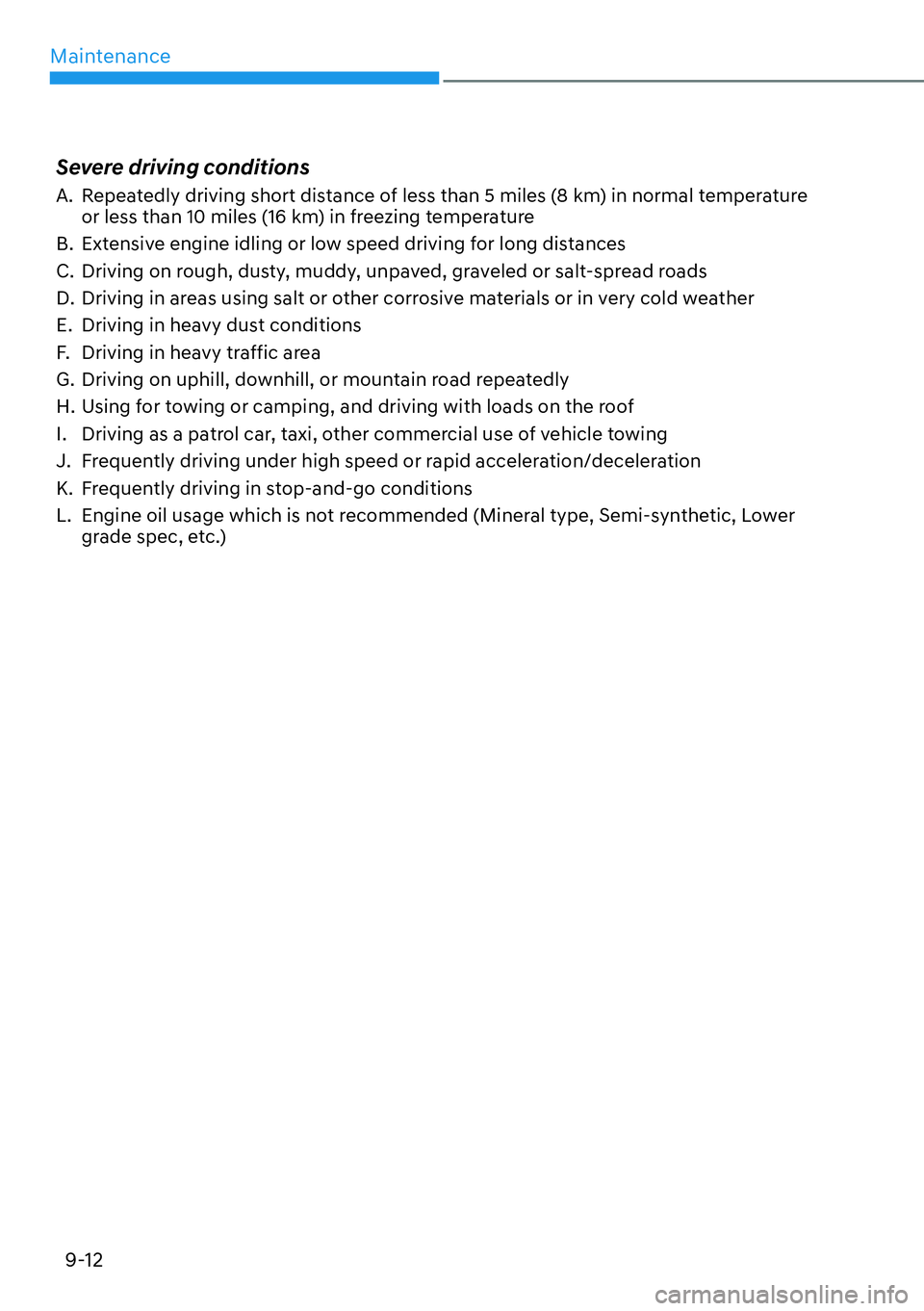

Severe driving conditions
A. Repeatedly driving short distance of less than 5 miles (8 km) in normal temperature or less than 10 miles (16 km) in freezing temperature
B. Extensive engine idling or low speed driving for long distances
C. Driving on rough, dusty, muddy, unpaved, graveled or salt-spread roads
D. Driving in areas using salt or other corrosive materials or in very cold weather
E. Driving in heavy dust conditions
F. Driving in heavy traffic area
G. Driving on uphill, downhill, or mountain road repeatedly
H. Using for towing or camping, and driving with loads on the roof
I. Driving as a patrol car, taxi, other commercial use of vehicle towing
J. Frequently driving under high speed or rapid acceleration/deceleration
K. Frequently driving in stop-and-go conditions
L. Engine oil usage which is not recommended (Mineral type, Semi-synthetic, Lower grade spec, etc.)

09
9-13
Engine Oil and Filter
The engine oil and filter should be
changed at the intervals specified in the
maintenance schedule. If the vehicle
is being driven in severe conditions,
more frequent oil and filter changes are
required.
Drive Belts
Inspect all drive belts for evidence
of cuts, cracks, excessive wear or oil
saturation and replace if necessary.
Drive belts should be checked
periodically for proper tension and
adjusted as necessary.
Information
When you are inspecting the belt, turn the
engine off.
Fuel Lines, Fuel Hoses and
Connections
Check the fuel lines, fuel hoses and
connections for leakage and damage.
Have an authorized HYUNDAI dealer
replace any damaged or leaking parts
immediately.
Vapor Hose and Fuel Filler Cap
The vapor hose and fuel filler cap should
be inspected at those intervals specified
in the maintenance schedule. Make sure
a new vapor hose or fuel filler cap is
correctly replaced.
Air Cleaner Filter
Have the air cleaner filter replaced by an
authorized HYUNDA dealer.
Spark Plugs
Make sure to install new spark plugs of
the correct heat range.
When assembling parts, be sure to
wipe out foreign substances inside
and outside of the boot bottom of the
ignition coil and the insulator of the
spark plug with a soft cloth to prevent
contamination of the spark plug
insulator.
Cooling System
Check cooling system components, such
as radiator, coolant reservoir, hoses and
connections for leakage and damage.
Replace any damaged parts.
Engine Coolant
The coolant should be changed at the
intervals specified in the maintenance
schedule.
Automatic Transmission Fluid
The automatic transmission fluid level
does not need to be checked under
normal usage conditions.
Have the automatic transmission fluid
changed by an authorized HYUNDAI
dealer according to the maintenance
schedule.
Information
Automatic transmission fluid color is red
when new.
As the vehicle is driven, the automatic
transmission fluid will begin to look
darker.
This is a normal condition. It does not
need to be replaced based on the color
change.
EXPLANATION OF SCHEDULED MAINTENANCE ITEMS
