2023 HYUNDAI ELANTRA HYBRID Owners Manual

07
7-49
Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the device.
Information
Radio frequency radiation exposure
information:
This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment.
This equipment should be installed and
operated with minimum distance of 8 in.
(20 cm) between the radiator (antenna)
and your body.
This transmitter must not be co-located or
operating in conjunction with any other
antenna or transmitter.

Driver Assistance System7-50
OCN7H070038
After the vehicle stops, when an
approaching vehicle from the rear area
is detected after a passenger opens the
door, Safe Exit Assist will warn the driver
with a warning message and an audible
warning to help prevent a collision.
CAUTION
Warning timing may vary depending on
the speed of the approaching vehicle.
This vehicle type only provides a
warning to get off safely. Please look
around for safety before getting off.

Detecting sensor
OCN7H071049L
Refer to the picture above for the
detailed location of the detecting
sensors.
NOTICE
For more details on the precautions of
the rear corner radars, refer to “Blind-
Spot Collision Warning (BCW)” or
“Blind-Spot Collision-Avoidance Assist
(BCA)” section in chapter 7.
6$)((;,7$66,67

07
7-51

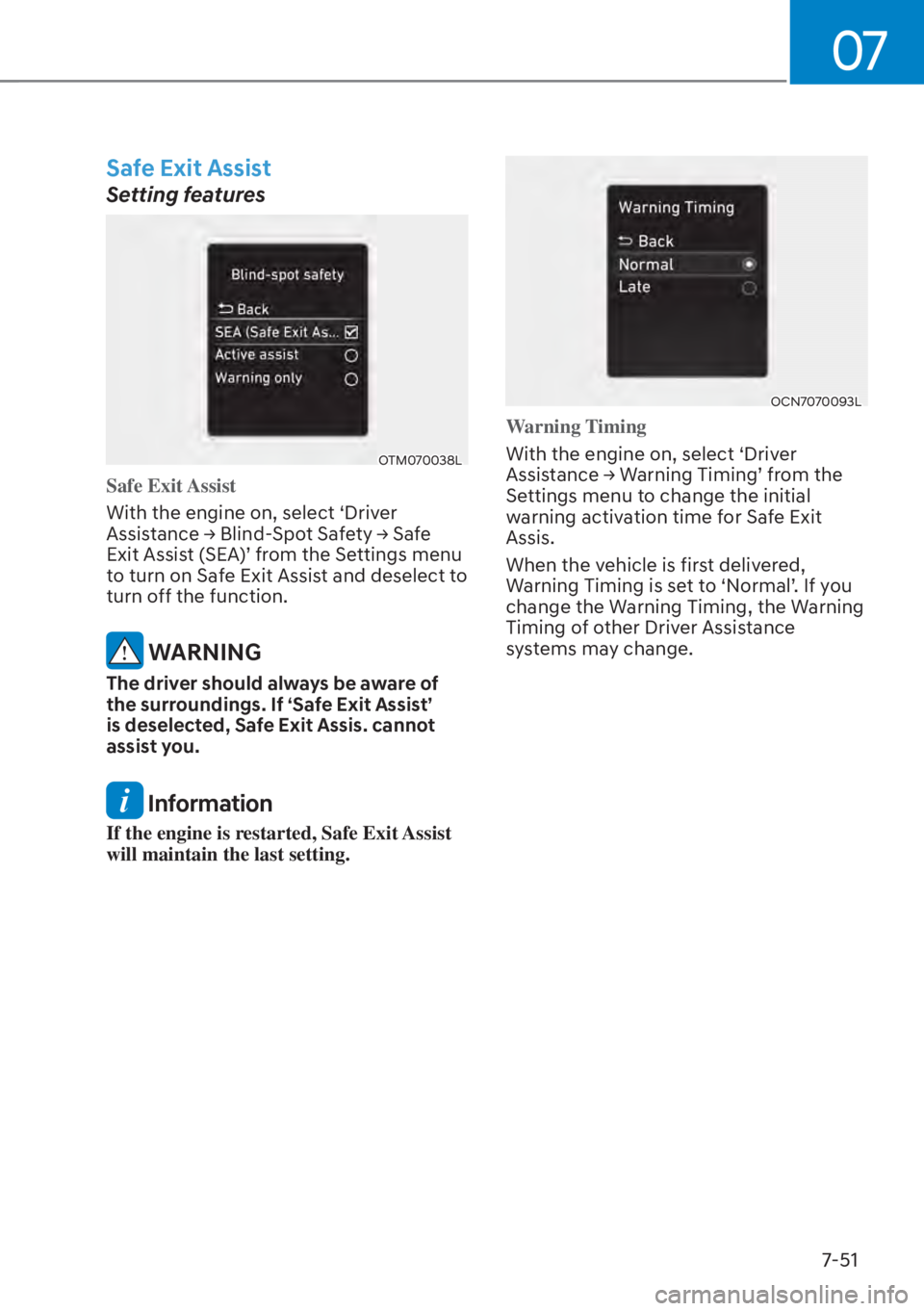

Safe Exit Assist
Setting features
OTM070038L
Safe Exit Assist
With the engine on, select ‘Driver
$VVLV
WDQFH

Driver Assistance System7-52

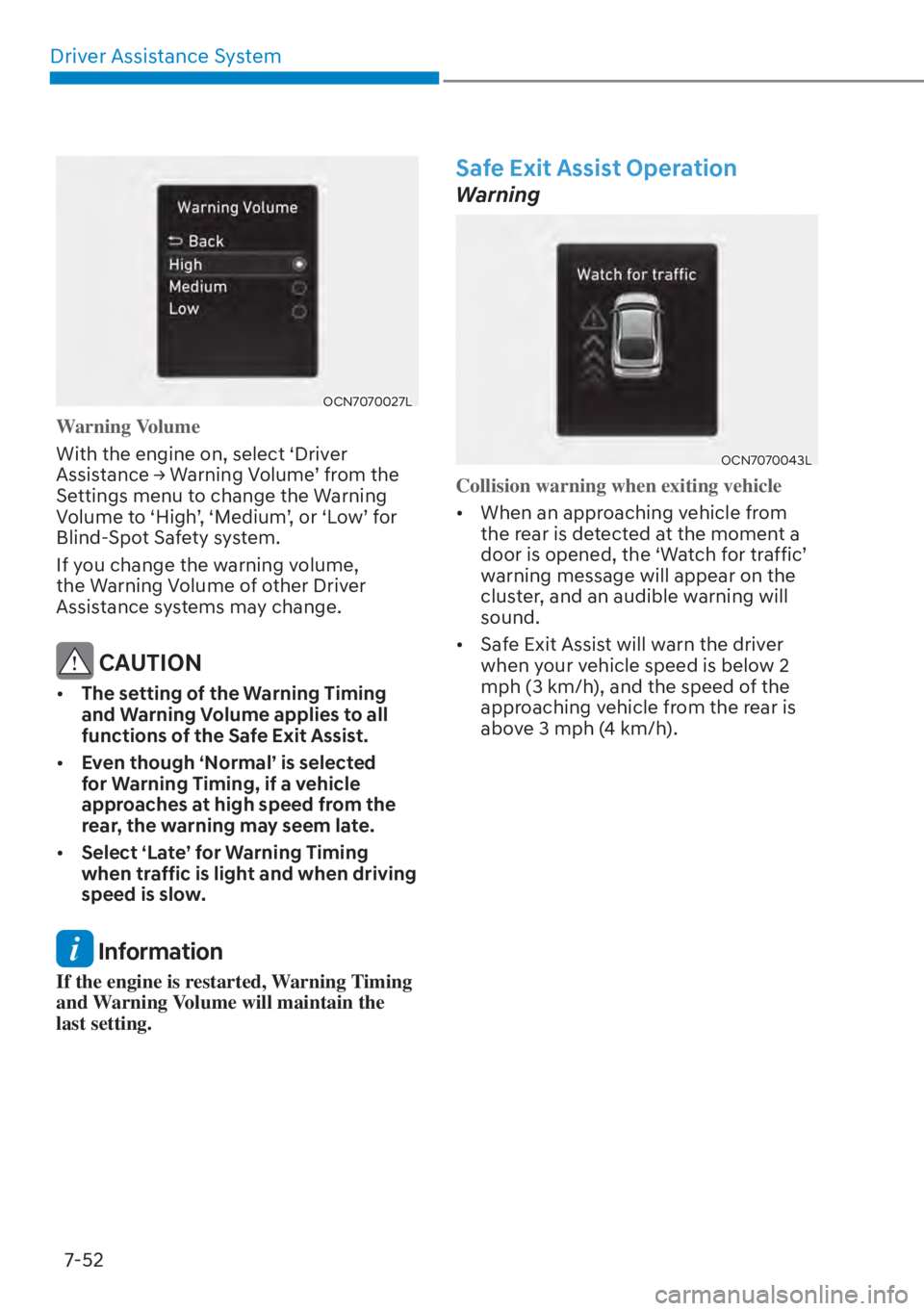

OCN7070027L
Warning Volume
With the engine on, select ‘Driver
$VVLV
WDQFH

07
7-53
WARNING
Take the following precautions when
using Safe Exit Assist:

[For your safety, change the Settings
after parking the vehicle at a safe
location.

[ If any other function’s warning
message is displayed or audible
warning is generated, Safe Exit
Assist warning message may not be
displayed and audible warning may
not be generated.

[ You may not hear the warning sound
of Safe Exit Assist if the surroundings
are noisy.

[ Safe Exit Assist does not operate in
all situations and cannot prevent all
collisions.

[ Safe Exit Assist may warn the driver
late or may not warn the driver
depending on the road and driving
conditions. Always check vehicle
surroundings.

[ The driver and passengers are
responsible for accidents that occur
while exiting the vehicle. Always
check the surroundings before you
exit the vehicle.

[ Never deliberately operate Safe Exit
Assist. Doing so may lead to serious
injury or death.

[ Safe Exit Assist does not operate if
there is a problem with Blind-Spot
Safety system. The warning message
of Blind-Spot Safety system will
appear when:
- Blind-Spot Safety system sensor or
the sensor surrounding is polluted
or covered
- Blind-Spot Safety system fails to
warn passengers or falsely warn
passengers
Information
After the engine is turned off, Safe Exit
Assist operates approximately for 10
minutes, but turns off immediately if the
doors are locked.
Safe Exit Assist Malfunction and
Limitations
Safe Exit Assist malfunction
OCN7070039L
When Safe Exit Assist is not working
properly, the ‘Check Blind-Spot Safety
V\VWHP
TZDUQLQJPHVVDJHZLOODSSHDU
on the cluster for several seconds, and
the master (WAE-211) warning light will
illuminate on the cluster. If the master
warning light illuminates, we recommend
that the vehicle be inspected by an
authorized HYUNDAI dealer.

Driver Assistance System7-54
Safe Exit Assist disabled
OCN7070041L
When the rear bumper around the rear
corner radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Safe Exit
Assist.
If this occurs, the ‘Blind-Spot Safety
IXQFWLRQGLVDEOHG5DGDUEORFNHG
T
warning message will appear on the
cluster.
Safe Exit Assist will operate properly
when such foreign material or trailer,
etc., is removed, and then the engine is
restarted.
If Safe Exit Assist does not operate
properly after it is removed, have the
vehicle inspected by an authorized
HYUNDAI dealer.
WARNING

[ Even though the warning message
does not appear on the cluster, Safe
Exit Assist may not properly operate.

[ Safe Exit Assist may not properly
operate in an area (for example, open
terrain) where any substance are
not detected right objects engine
is turned on, or when the detecting
sensor is blocked with foreign
material right after the engine is
turned on.
CAUTION
Turn off Safe Exit Assist to install or
remove a trailer, carrier, or another
attachment. Turn on Safe Exit Assist
when finished.
Limitations of Safe Exit Assist
Safe Exit Assist may not operate
properly, or Safe Exit Assist may operate
unexpectedly under the following
circumstances:

[Getting out of the vehicle where trees
or grass are overgrown

[ Getting out of the vehicle where the
road is wet

[ The approaching vehicle is very fast or
very slow
WARNING

[Safe Exit Assist may not operate
properly if interfered by strong
electromagnetic waves.

[ Safe Exit Assist may not operate for 3
seconds after the vehicle is started,
or rear corner radars are initialized.

07
7-55
Basic function
Driver Attention Warning can help
determine the driver's attention level
by analyzing driving pattern and driving
time while the vehicle is driven. The
system can recommend a break when
WKHGULYHU
TVDWWHQWLRQOHYHOIDOOVEHORZD
certain level.
Leading Vehicle Departure Alert
function
Leading Vehicle Departure Alert function
can inform the driver when a detected
vehicle in front departs from a stop.
Detecting sensor
OCN7061030L[1] : Front view camera
The front view camera is used to help
detect driving patterns and front vehicle
departure while vehicle is being driven.
Refer to the picture above for the
detailed location of the detecting sensor.
CAUTION
Always keep the front view camera in
good condition to maintain optimal
performance of Driver Attention
Warning.
For more details on the precautions
of the front view camera, refer to
“Forward Collision-Avoidance Assist
(FCA)” section in chapter 7.
Driver Attention Warning Setting
Setting features
OTM070188NDriver Attention Warning
With the engine on, select ‘Driver
$VVLV
WDQFH

Driver Assistance System7-56

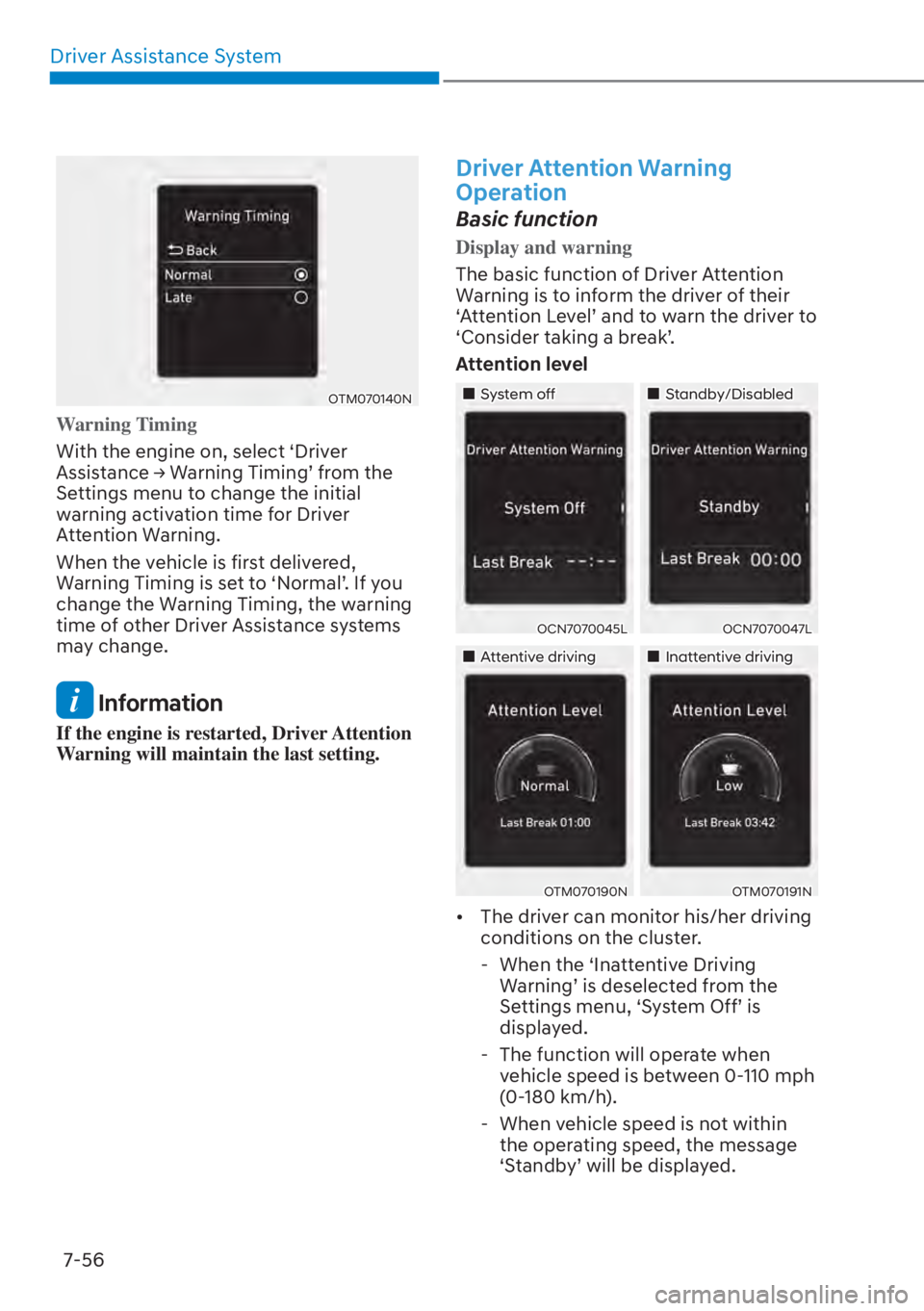

OTM070140N
Warning Timing
With the engine on, select ‘Driver
$VVLV
WDQFH
