2023 HYUNDAI ELANTRA HYBRID Owners Manual

05
5-105
CAUTION
To prevent damage to the Power
Outlets:

[Use the power outlet only when the
engine is running and remove the
accessory plug after use. Using the
accessory plug for prolonged periods
of time with the engine off could
cause the battery to discharge.

[ Only use 12V electric accessories
which are less than 15 A in electric
capacity.

[ Adjust the air-conditioner or heater
to the lowest operating level when
using the power outlet.

[ Close the cover when not in use.

[ Some electronic devices can
cause electronic interference
when plugged into a vehicle’s
power outlet. These devices may
cause excessive audio static and
malfunctions in other electronic
systems or devices used in your
vehicle.

[ Push the plug in as far as it will go. If
good contact is not made, the plug
may overheat and the fuse may open.

[ Plug in battery equipped electrical/
electronic devices with reverse
current protection. The current
from the battery may flow into the
vehicle’s electrical/electronic system
and cause system malfunction.
USB Charger
OCN7050069Insert the USB charger into the USB port,
and re-charge a smart phone or a tablet
PC.

[A charging status/charging
completion message is displayed on
a screen of a smart phone or a tablet
PC.

[ A smart phone or a tablet PC may
get warmer during the re-charging
process. It does not indicate any
malfunction with the charging system.

[ A smart phone or a tablet PC, which
adopts a different re-charging
method, may not be properly re-
charged. In this case, use an exclusive
charger of your device.

[ The charging terminal is only to
recharge a device. Do not use the
charging terminal either to turn ON
an audio or to play media on the
infotainment system.

Convenience Features5-106
Wireless Cellular Phone
Charging System (if equipped)
OCN7050070
[A] : Charging pad
There is a wireless cellular phone charger
inside the front console.
The system is available when all doors
are closed, and when the ignition switch
is in the ON position.
To charge a cellular phone
The wireless cellular phone charging
system charges only the Qi-enabled
cellular phones. Read the label on the
cellular phone accessory cover or visit
your cellular phone manufacturer’s
website to check whether your cellular
phone supports the Qi technology.
The wireless charging process starts
when you put a Qi-enabled cellular
phone on the wireless charging unit.
1. Remove other items, including the smart key, from the wireless charging
unit. If not, the wireless charging
process may be interrupted. Place the
cellular phone on the center of the
charging pad (
).
2. When charging starts, a charging icon is displayed on the infotainment
system screen. However, depending
on the infotainment system screen,
the wireless charging icon may not be
displayed. See the infotainment web
manual for details.
3. You can turn ON or OFF the wireless charging function in the user settings
mode on the instrument cluster. For
further information, refer to the “LCD
Display Modes” in this chapter.
The system warns you with a message
on the LCD display if the cellular phone
is still on the wireless charging unit after
the engine is turned OFF and the front
door is opened.

5-107
05
Information
For some manufacturers’ cellular phones,
the system may not warn you even though
the cellular phone is left on the wireless
charging unit. This is due to the particular
characteristic of the cellular phone and
not a malfunction of the wireless charging.
NOTICE

[ 7KHZLUHOHVVFHOOXODUSKRQHFKDUJLQJsystem may not support certain
cellular phones, which are not
verified for the Qi specification (
).

[ :KHQSODFLQJ\RXUFHOOXODUSKRQH on the charging mat, position the
phone in the middle of the mat for
optimal charging performance. If
your cellular phone is off to the side,
the charging rate may be less and in
some cases the cellular phone may
experience higher heat conduction.

[ ,QVRPHFDVHVWKHZLUHOHVVFKDUJLQJ may stop temporarily when the
Remote Key or Smart Key is used,
either when starting the vehicle or
locking/unlocking the doors, etc.

[ 7KHZLUHOHVVFKDUJLQJSURFHVVPD\ temporarily stop, when temperature
abnormally increases inside the
wireless cellular phone charging
system. Stop the charging cellular
phone and wait until temperature
falls to a certain level.

[ 7KHZLUHOHVVFKDUJLQJSURFHVVPD\ temporarily stop when there is
any metallic item, such as a coin,
between the wireless cellular phone
charging system and the cellular
phone.
[ :KHQFKDUJLQJVRPHFHOOXODUSKRQHV
with a self-protection feature,
the wireless charging speed may
decrease and the wireless charging
may stop.

[ ,IWKHFHOOXODUSKRQHKDVDWKLFN cover, the wireless charging may not
be possible.

[ ,IWKHFHOOXODUSKRQHLVQRW completely contacting the charging
pad, wireless charging may not
operate properly.

[ 6RPHPDJQHWLFLWHPVOLNHFUHGLW cards, phone cards or rail tickets may
be damaged if left with the cellular
phone during the charging process.

[ :KHQDQ\FHOOXODUSKRQHZLWKRXW a wireless charging function or a
metallic object is placed on the
charging pad, a small noise may
sound. This small sound is due to the
vehicle discerning compatibility of
the object placed on the charging
pad. It does not affect your vehicle or
the cellular phone in any way.
Information
If the ignition switch is in the LOCK/ OFF
position, the charging also stops.
Information
This device complies with part 15 of the
FCC Rules.
Operation is subject to the following two
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.

Convenience Features5-108

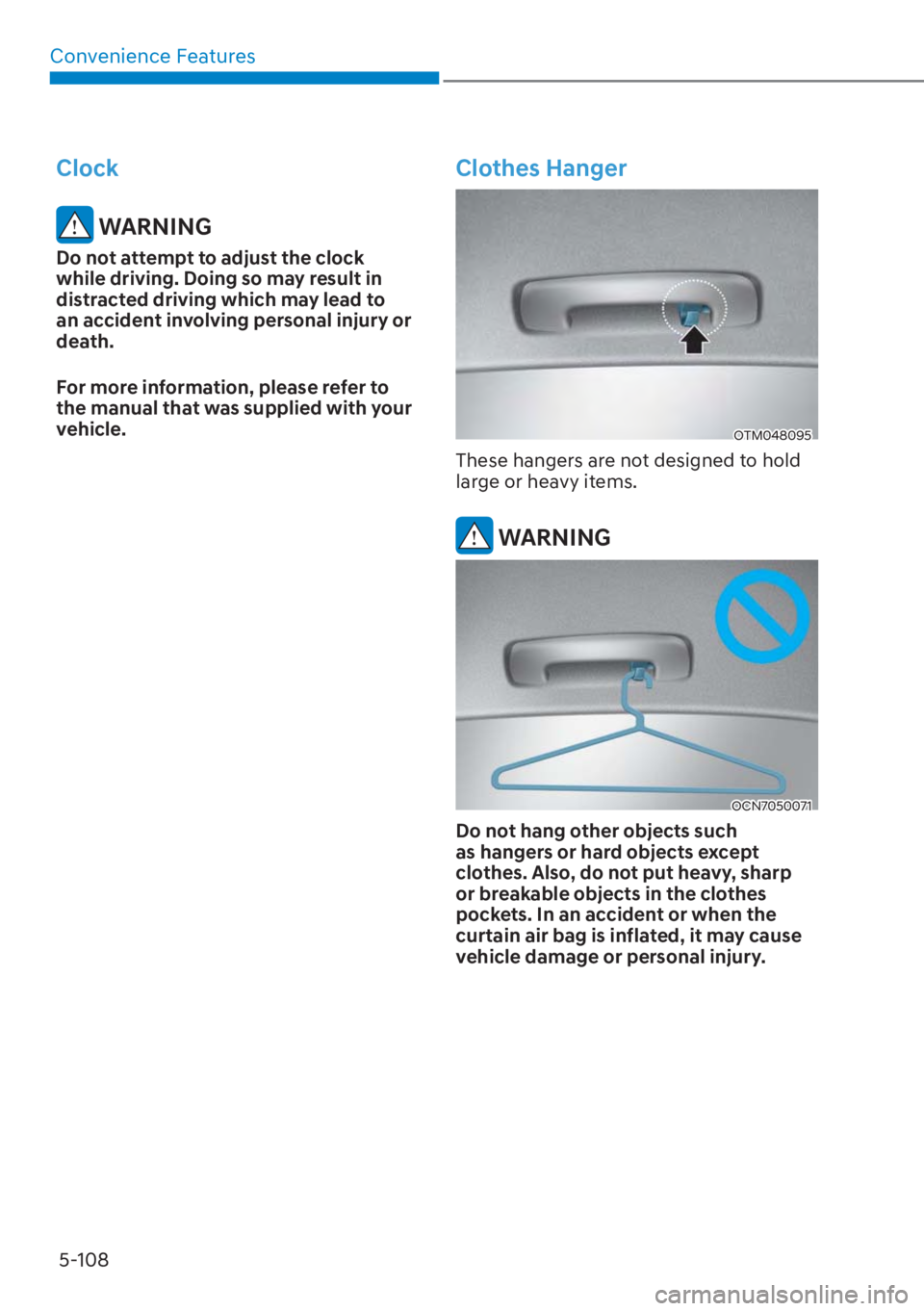

Clock
WARNING
Do not attempt to adjust the clock
while driving. Doing so may result in
distracted driving which may lead to
an accident involving personal injury or
death.
For more information, please refer to
the manual that was supplied with your
vehicle.
Clothes Hanger
OTM048095
These hangers are not designed to hold
large or heavy items.
WARNING
OCN7050071
Do not hang other objects such
as hangers or hard objects except
clothes. Also, do not put heavy, sharp
or breakable objects in the clothes
pockets. In an accident or when the
curtain air bag is inflated, it may cause
vehicle damage or personal injury.

05
5-109

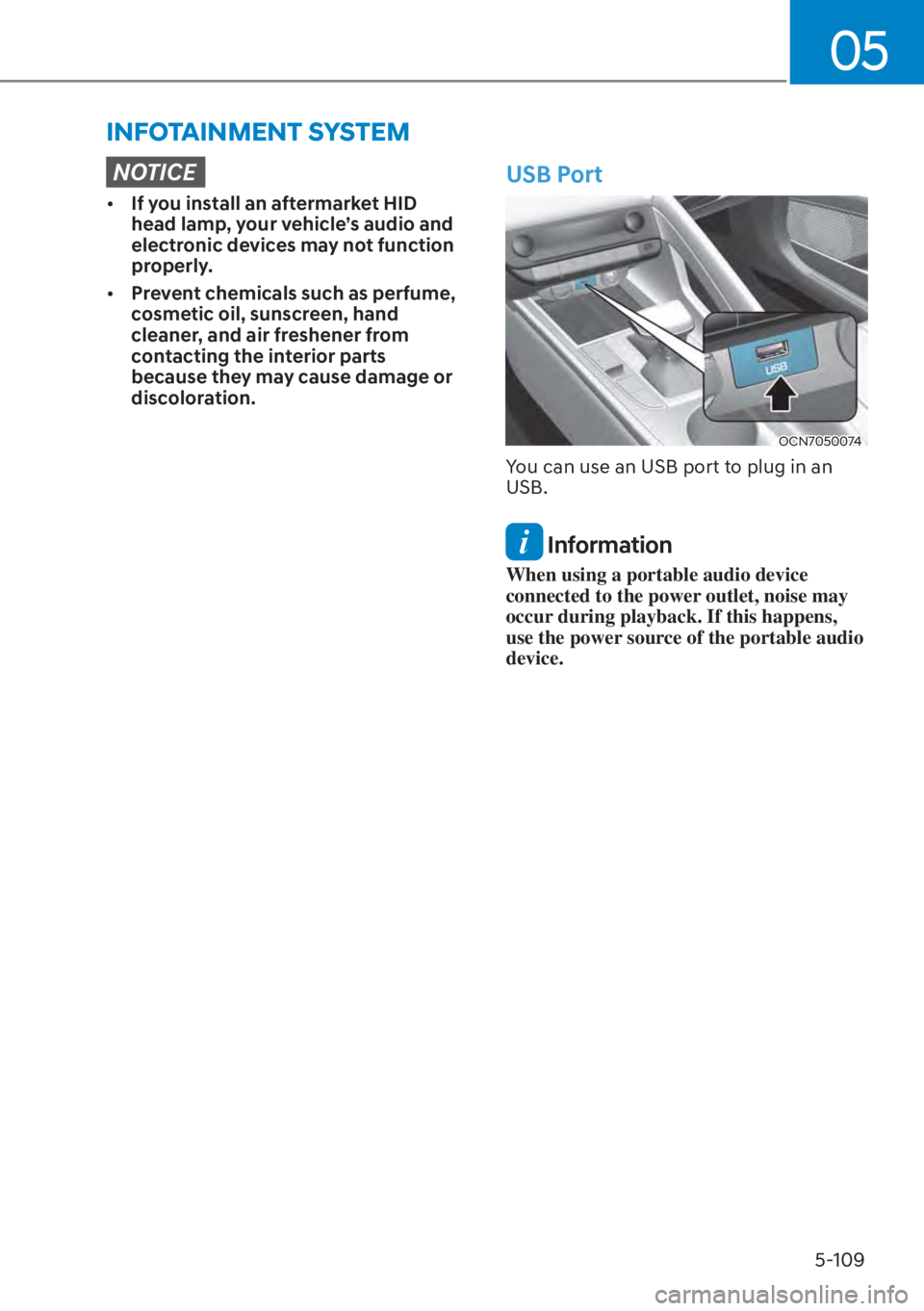

,1)27$,10(176<67(0
NOTICE

[If you install an aftermarket HID
head lamp, your vehicle’s audio and
electronic devices may not function
properly.

[ Prevent chemicals such as perfume,
cosmetic oil, sunscreen, hand
cleaner, and air freshener from
contacting the interior parts
because they may cause damage or
discoloration.
USB Port
OCN7050074
You can use an USB port to plug in an
USB.
Information
When using a portable audio device
connected to the power outlet, noise may
occur during playback. If this happens,
use the power source of the portable audio
device.

Convenience Features5-110

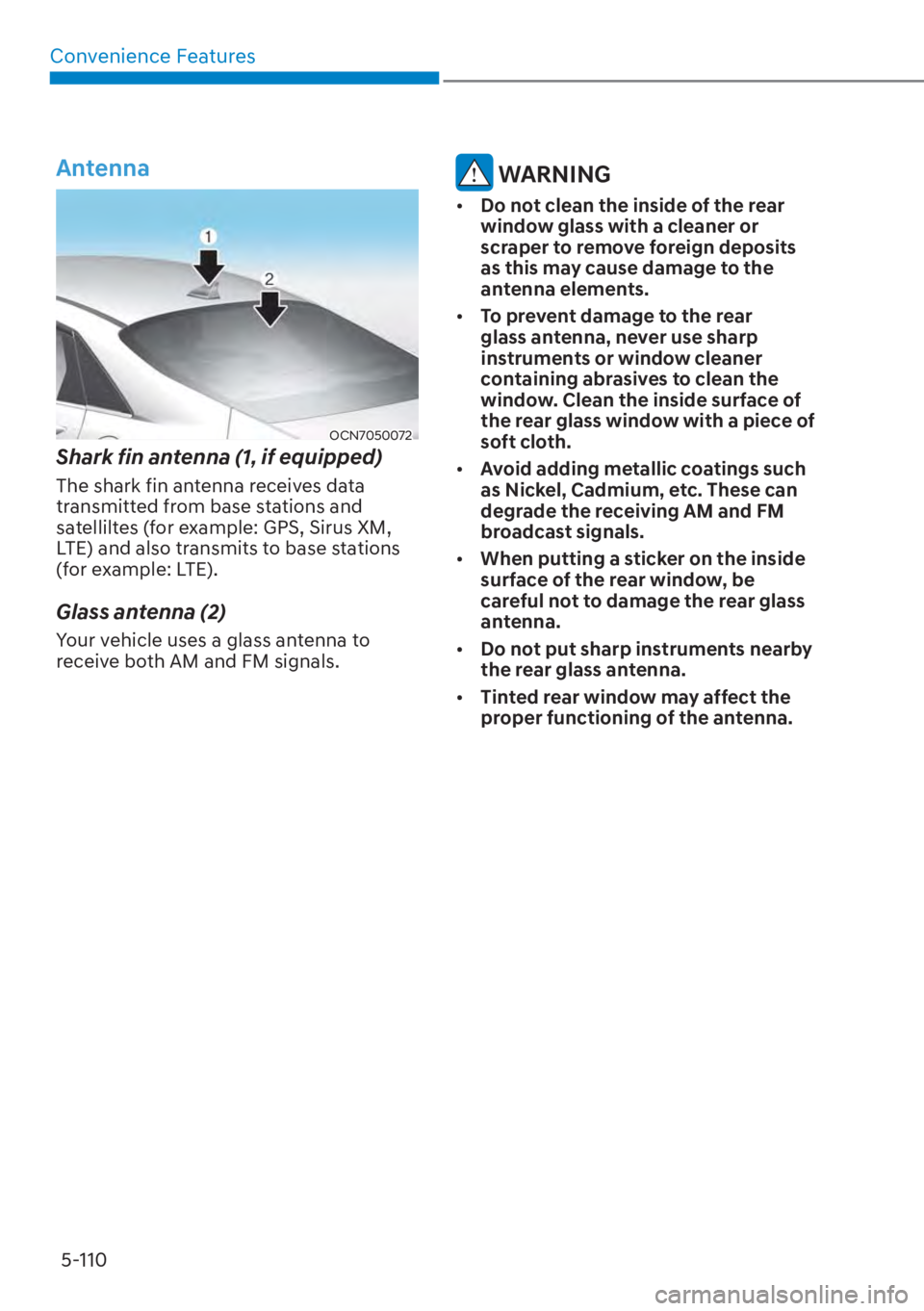

Antenna
OCN7050072
Shark fin antenna (1, if equipped)
The shark fin antenna receives data
transmitted from base stations and
satelliltes (for example: GPS, Sirus XM,
LTE) and also transmits to base stations
(for example: LTE).
Glass antenna (2)
Your vehicle uses a glass antenna to
receive both AM and FM signals.
WARNING

[ Do not clean the inside of the rear
window glass with a cleaner or
scraper to remove foreign deposits
as this may cause damage to the
antenna elements.

[ To prevent damage to the rear
glass antenna, never use sharp
instruments or window cleaner
containing abrasives to clean the
window. Clean the inside surface of
the rear glass window with a piece of
soft cloth.

[ Avoid adding metallic coatings such
as Nickel, Cadmium, etc. These can
degrade the receiving AM and FM
broadcast signals.

[ When putting a sticker on the inside
surface of the rear window, be
careful not to damage the rear glass
antenna.

[ Do not put sharp instruments nearby
the rear glass antenna.

[ Tinted rear window may affect the
proper functioning of the antenna.

05
5-111
Steering Wheel Audio Control
OCN7050073L
The steering wheel audio control
switches are installed for your
convenience.
NOTICE
Do not operate audio remote control
buttons simultaneously.
VOLUME (VOL + / VOL -) (1)

[Move the VOLUME toggle switch up
to increase volume.

[ Move the VOLUME toggle switch
down to decrease volume.
SEEK/PRESET ( / ) (2)
If the SEEK/PRESET toggle switch is
moved up or down and held for 0.8
second or more, it will function in the
following modes.
[
RADIO mode
It will function as the AUTO SEEK
select s

witch. It will SEEK until you
release the switch.

[ MEDIA mode
It will function as the FF/REW switch.
If the SEEK/PRESET t

oggle switch is
moved up or down, it will function in
the following modes.

[ RADIO mode
It will function as the PRESET STATION
UP/DOWN s

witch.

[ MEDIA mode
It will function as the TRACK UP/
DOWN s

witch.
MODE ()(3)
Press the MODE button to select Radio.
Voice recognition button ( ) (4)
[
Start or end voice recognition of a
connected smartphone via phone
projection. (The button’s operation
may vary depending on smartphone
specifications.)
Information
Detailed information for audio control
buttons are described in the following
pages in this chapter.

Convenience Features5-112

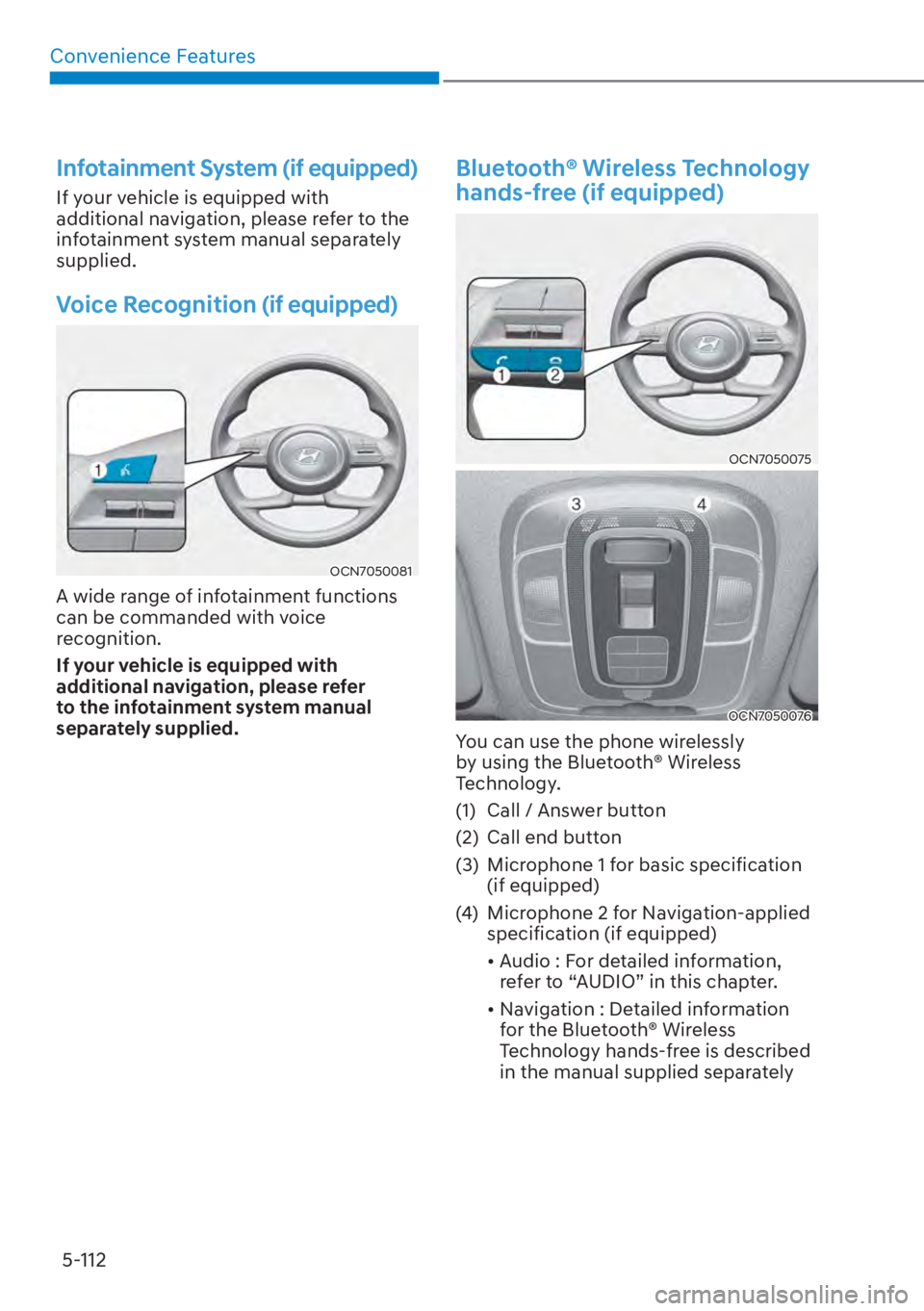

Infotainment System (if equipped)
If your vehicle is equipped with
additional navigation, please refer to the
infotainment system manual separately
supplied.
Voice Recognition (if equipped)
OCN7050081
A wide range of infotainment functions
can be commanded with voice
recognition.
If your vehicle is equipped with
additional navigation, please refer
to the infotainment system manual
separately supplied.
Bluetooth® Wireless Technology
hands-free (if equipped)
OCN7050075
OCN7050076
You can use the phone wirelessly
by using the Bluetooth® Wireless
Technology.
(1) Call / Answer button
(2) Call end button
(3) Microphone 1 for basic specification
(if equipped)
(4) Microphone 2 for Navigation-applied specification (if equipped)

[Audio : For detailed information,
refer to “AUDIO” in this chapter.

[ Navigation : Detailed information
for the Bluetooth® Wireless
Technology hands-free is described
in the manual supplied separately
