2023 HYUNDAI ELANTRA HYBRID Owners Manual

03
3-13
OCN7030009
Forward and rearward adjustment (if
equipped)
The head restraint can be adjusted
f
orward to 3 different positions by pulling
the head restraint forward to the desired
detent. To adjust the head restraint to
it’s furthest rearwards position, pull it
fully forward to the farthest position and
release it.
OLF034015
NOTICE
If you recline the seatback towards the
front with the head restraint and seat
cushion raised, the head restraint may
come in contact with the sunvisor or
other parts of the vehicle.
„Type A
OCN7030012
„Type B
OCN7030013
Removal/Reinstallation
To remove the head restraint:
1.

Recline the seatback (2) rearward
using the seatback angle lever (1).
2. Raise the head restraint as far as it can go.
3. Press the head restraint release button (3) while pulling the head restraint up
(4).
WARNING
NEVER allow anyone to travel in a seat
with the head restraint removed.

Seats & Safety System3-14
„Type A
OCN7030014
„Type B
OCN7030015

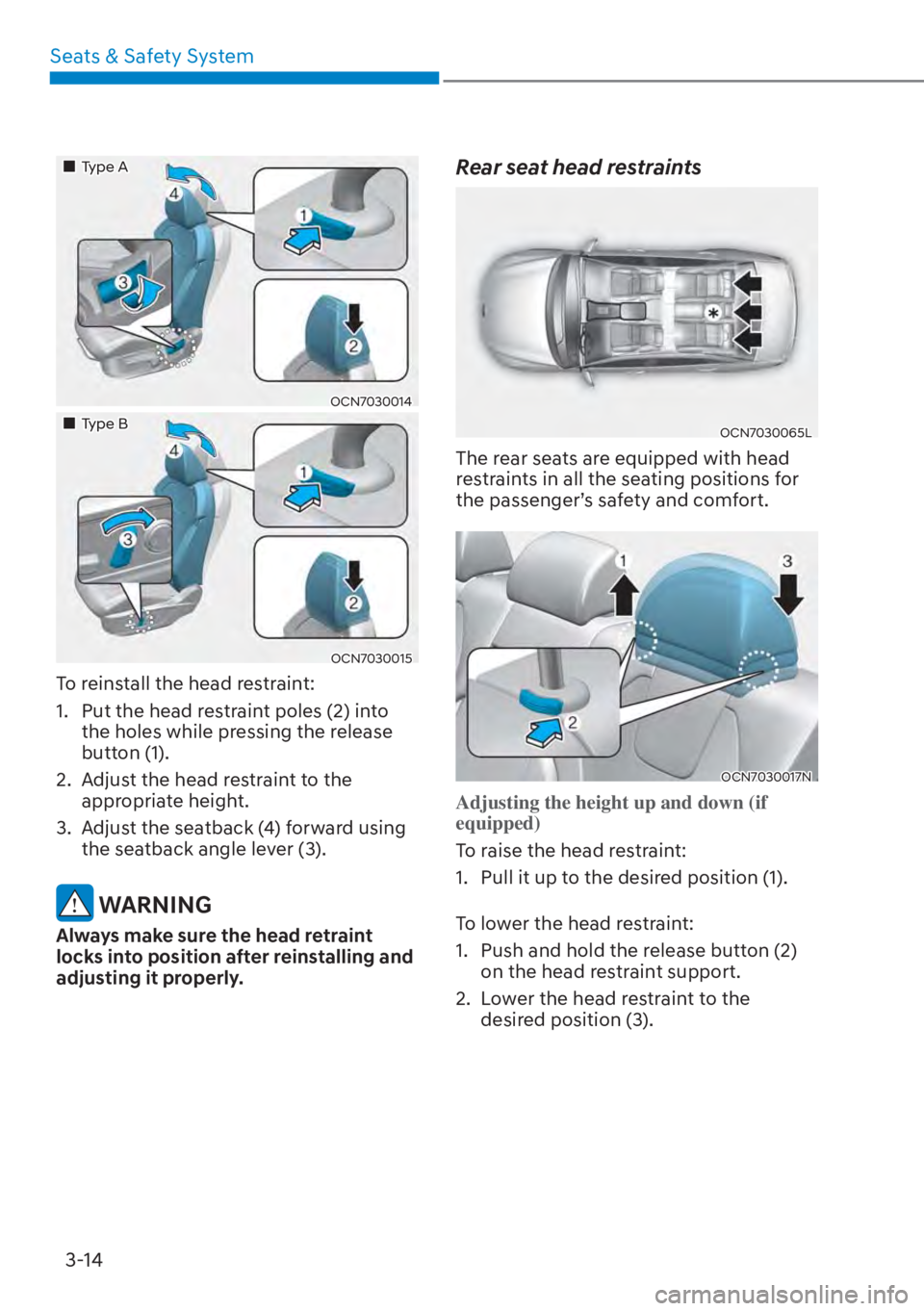

To reinstall the head restraint:
1. Put the head restraint poles (2) into the holes while pressing the release
button (1).
2. Adjust the head restraint to the appropriate height.
3. Adjust the seatback (4) forward using the seatback angle lever (3).
WARNING
Always make sure the head retraint
locks into position after reinstalling and
adjusting it properly.
Rear seat head restraints
OCN7030065L
The rear seats are equipped with head
restraints in all the seating positions for
the passenger’s safety and comfort.
OCN7030017N
Adjusting the height up and down (if
equipped)
To raise the head restraint:
1.

Pull it up to the desired position (1).
To lower the head restraint:
1. Push and hold the release button (2) on the head restraint support.
2. Lower the head restraint to the desired position (3).

03
3-15
Seat Warmers (if equipped)
Front seat warmers
Seat warmers are provided to warm the
seats during cold weather.
WARNING
The seat warmers can cause a SERIOUS
BURN, even at low temperatures and
especially if used for long periods of
time.
Passengers must be able to feel if the
seat is becoming too warm so they can
turn it off, if needed.
People who cannot detect temperature
change or pain to the skin should
use extreme caution, especially the
following types of passengers:

[Infants, children, elderly or disabled
persons, or hospital outpatients.

[ People with sensitive skin or who
burn easily.

[ Fatigued individuals.

[ Intoxicated individuals.

[ People taking medication that can
cause drowsiness or sleepiness.
WARNING
NEVER place anything on the seat
that insulates against heat when the
seat warmer is in operation, such as a
blanket or seat cushion. This may cause
the seat warmer to overheat, causing a
burn or damage to the seat.
NOTICE
To prevent damage to the seat warmers
and seats:

[Never use a solvent such as paint
thinner, benzene, alcohol or gasoline
to clean the seats.

[ Do not place heavy or sharp objects
on seats equipped with seat warmers.

[ Do not change the seat cover. It
may damage the seat warmer or air
ventilation system.

Seats & Safety System3-16
„Type A
OCN7030023
„Type B
OCN7030024
While the engine is running, push either
of the switches to warm the driver’s seat
or front passenger’s seat.
During mild weather or under conditions
where the operation of the seat warmer
is not needed, keep the switches in the
OFF position.

[ Manual temperature control
Each time you push the switch, the
temperature setting of the seat is
changed as follows:

- Front seat
OFF
LOW ( )HIGH ( )
MEDIUM ( )

[ Automatic temperature control
The seat warmer starts to
automatically control the seat
temperature in order to prevent
low-temperature burns after being
manually turned ON.
OFF
Ÿ



¡
¢0,1
0,1
LOW ( )+,*+
0(',80
You may manually press the switch to
increase seat temperature. However, it
soon returns the automatic mode again.

[
When pressing the switch for more
than 1.5 seconds with the seat warmer
operating, the seat warmer will turn
OFF.

[ The seat warmer defaults to the OFF
position whenever the ignition switch
is in the ON position. However, if the
Auto Comfort Control function is ON,
the driver’s seat warmer will turn on
and off depending on the ambient
temperature.

[ Auto Comfort Control (for driver’s
seat, if equipped)
The seat warmer automatically
controls the seat temperature
depending on the ambient
temperature when the engine is
running. If the seat warmer switch
is pushed, the seat warmer will have
to be controlled manually.To use this
function, it must be activated from
the Settings menu in the AVN system
screen. For more details, refer to the
separately supplied Car Infotainment
System manual.

03
3-17
Air Ventilation Seat (if equipped)
Front air ventilation seat
OCN7030026
The air ventilation seats are provided
to cool the front seats by blowing air
through small vent holes on the surface
of the seat cushions and seatbacks.
When the operation of the air ventilation
seat is not needed, keep the switches in
the OFF position.
While the engine is running, push the
switch to cool the driver’s seat or the
front passenger’s seat.

[Each time you push the switch, the
airflow changes as follows:
OFF
LOW ( )HIGH ( )
MEDIUM ( )

[ When pressing the switch for
more than 1.5 seconds with the
air ventilation seat operating, the
operation will turn OFF.

[ The air ventilation seat defaults to the
OFF position whenever the ignition
switch is in the ON position. However,
if the Auto Comfort Control function
is ON, the driver’s air ventilation seat
will turn on and off depending on the
ambient temperature.

[Auto Comfort Control (for driver’s
seat, if equipped)
The air ventilation seat automatically
controls the seat temperature
depending on the ambient
temperature when the engine is
running. If the air ventilation seat
switch is pushed, the seat warmer
will have to be controlled manually.
To use this function, it must be
activated from the Settings menu in
the infotainment system screen. For
more details, refer to the separately
supplied Car Infotainment System
manual.
NOTICE
To prevent damage to the air ventilation
seat:

[Use the air ventilation seat ONLY
when the climate control system
is on. Using the air ventilation seat
for prolonged periods of time with
the climate control system off could
cause the air ventilation seat to
malfunction.

[ Never use a solvent such as paint
thinner, benzene, alcohol or gasoline
to clean the seats.

[ Avoid spilling liquids on the surface
of the front seats and seatbacks;
this may cause the air vent holes
to become blocked and not work
properly.

[ Do not place materials such as
plastic bags or newspapers under
the seats. They may block the air
intake causing the air vents to not
work properly.

[ Do not change the seat covers. It may
damage the air ventilation seat.

[ If the air vents do not operate, restart
the vehicle. If there is no change,
we recommend that you have your
vehicle inspected by an authorized
HYUNDAI dealer.

Seats & Safety System3-18

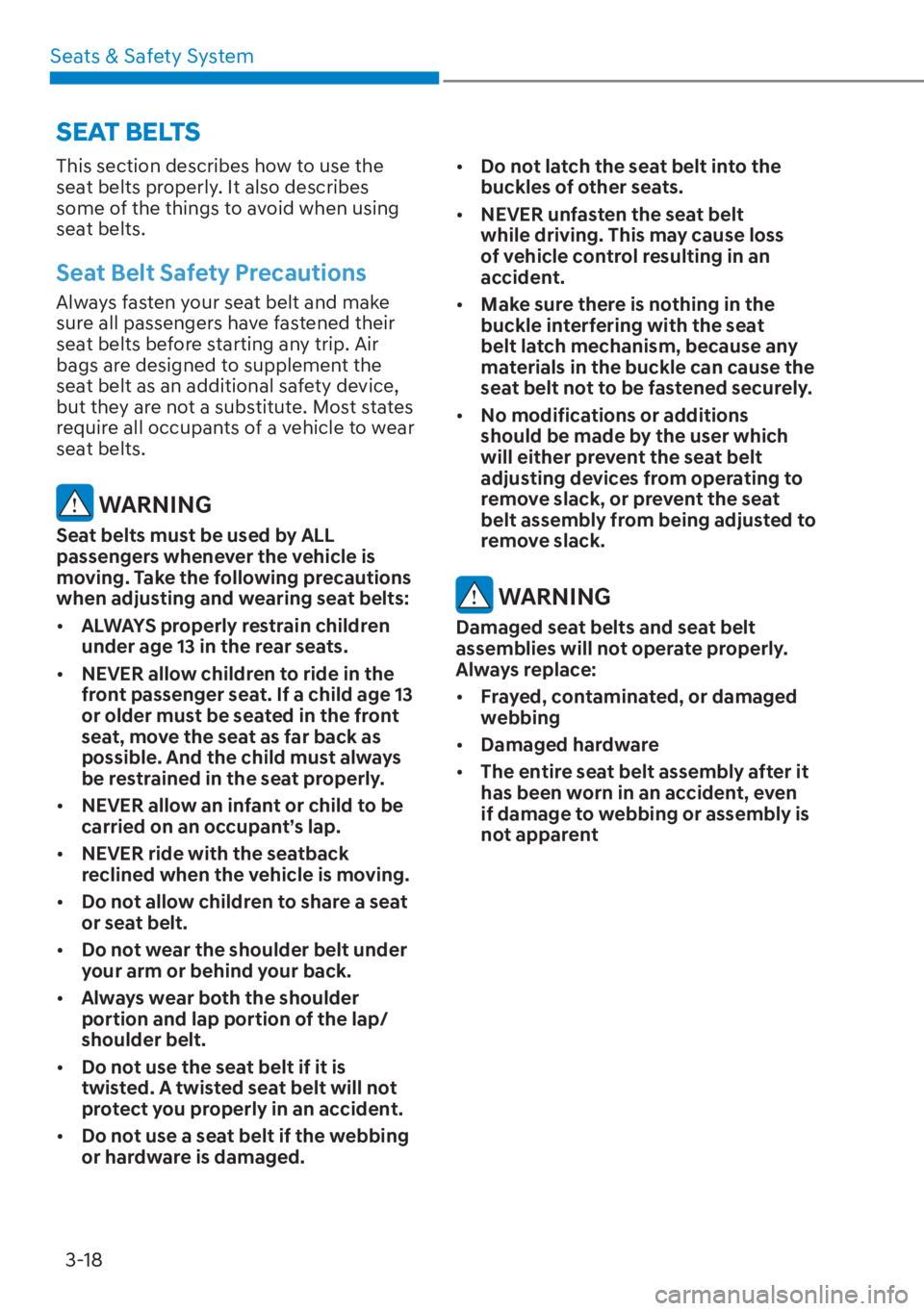

SEAT BELTS
This section describes how to use the
seat belts properly. It also describes
some of the things to avoid when using
seat belts.
Seat Belt Safety Precautions
Always fasten your seat belt and make
sure all passengers have fastened their
seat belts before starting any trip. Air
bags are designed to supplement the
seat belt as an additional safety device,
but they are not a substitute. Most states
require all occupants of a vehicle to wear
seat belts.
WARNING
Seat belts must be used by ALL
passengers whenever the vehicle is
moving. Take the following precautions
when adjusting and wearing seat belts:

[ ALWAYS properly restrain children
under age 13 in the rear seats.

[ NEVER allow children to ride in the
front passenger seat. If a child age 13
or older must be seated in the front
seat, move the seat as far back as
possible. And the child must always
be restrained in the seat properly.

[ NEVER allow an infant or child to be
carried on an occupant’s lap.

[ NEVER ride with the seatback
reclined when the vehicle is moving.

[ Do not allow children to share a seat
or seat belt.

[ Do not wear the shoulder belt under
your arm or behind your back.

[ Always wear both the shoulder
portion and lap portion of the lap/
shoulder belt.

[ Do not use the seat belt if it is
twisted. A twisted seat belt will not
protect you properly in an accident.

[ Do not use a seat belt if the webbing
or hardware is damaged.
[
Do not latch the seat belt into the
buckles of other seats.

[ NEVER unfasten the seat belt
while driving. This may cause loss
of vehicle control resulting in an
accident.

[ Make sure there is nothing in the
buckle interfering with the seat
belt latch mechanism, because any
materials in the buckle can cause the
seat belt not to be fastened securely.

[ No modifications or additions
should be made by the user which
will either prevent the seat belt
adjusting devices from operating to
remove slack, or prevent the seat
belt assembly from being adjusted to
remove slack.
WARNING
Damaged seat belts and seat belt
assemblies will not operate properly.
Always replace:

[Frayed, contaminated, or damaged
webbing

[ Damaged hardware

[ The entire seat belt assembly after it
has been worn in an accident, even
if damage to webbing or assembly is
not apparent

03
3-19
Seat Belt Warning Light
Seat belt warning
„,QVWUXPHQWFOXVWHU 'ULYHUDQGIURQWSDVVHQJHU
TVVHDW
1GQA2083
Driver’s and Passenger’s front seat belt
warning
As a reminder, the seat belt warning
light will illumina
te for approximately 6
seconds each time you turn the ignition
switch or ENGINE START/STOP button
ON regardless of belt fastening. If the
seatbelt is not fastened, the warning
chime will sound for about 6 seconds.
If you start to drive without the seat
belt fastened over approximately 5 mph
(9 km/h) and less than approximately
12 mph (20 km/h), the corresponding
warning light will illuminate. The warning
light will turn off when the vehicle speed
drops below approximately 5 mph (9
km/h).
If you start to drive without the seat belt
fastened or you unfasten the seat belt
when you drive approximately 12 mph
(20 km/h) and faster, the warning light
will blink and warning chime will sound
for approximately 100 seconds.
When the seat belt is unfastened
during driving, the warning light will
illuminate when the speed is over
approximately 5 mph (9 km/h) and less
than approximately 12 mph (20 km/h).
When the speed is approximately 12 mph
(20 km/h) and faster, the warning light
will blink and warning chime will sound
for approximately 100 seconds.
Seat Belt Restraint System
WARNING
Improperly positioned seat belts may
increase the risk of serious injury
in an accident. Take the following
precautions when adjusting the seat
belt:

[ Position the lap portion of the seat
belt as low as possible across your
hips, not on your waist, so that it fits
snugly.

[ Position one arm under the shoulder
belt and the other over the belt, as
shown in the illustration.

[ Always position the shoulder belt
anchor into the locked position at the
appropriate height.

[ NEVER position the shoulder belt
across your neck or face.

Seats & Safety System3-20
Seat Belt-Driver’s 3-point system
with emergency locking retractor
OHI038140
To fasten your seat belt:
Pull the seat belt out of the retractor and
insert the me
tal tab (1) into the buckle
(2). There will be an audible “click” when
the tab locks into the buckle.
OHI038137
You should place the lap belt (1) portion
across your hips and the shoulder belt (2)
portion across your chest.
The seat belt automatically adjusts to the
proper length after the lap belt portion
is adjusted manually so that it fits snugly
around your hips. If you lean forward in
a slow, easy motion, the belt will extend
and move with you.
If there is a sudden stop or impact, the
belt will lock into position. It will also lock
if you try to lean forward too quickly.
NOTICE
If you are not able to smoothly pull
enough of the seat belt out from the
retractor, firmly pull the seat belt out
and release it. After release, you will be
able to pull the belt out smoothly.
Height adjustment
You can adjust the height of the shoulder
belt anchor t
o one of the three different
positions for maximum comfort and
safety. The shoulder portion should be
adjusted so it lies across your chest and
midway over your shoulder nearest the
door, not over your neck. To adjust the
height of the seat belt anchor, lower
or raise the height adjuster into an
appropriate position.
„)URQWVHDW
ODN8039072L
To raise the height adjuster, pull it up
(1). To lower it, push it down (3) while
pressing the height adjuster button (2).
Release the button to lock the anchor
into position. Try sliding the height
adjuster to make sure that it has locked
into position.
