2023 HYUNDAI ELANTRA HYBRID Owners Manual

07
7-33
WARNING

[The steering wheel may not be
assisted if the steering wheel is held
very tight or the steering wheel is
steered over a certain degree.

[ Lane Keeping Assist does not operate
at all times. It is the responsibility of
the driver to safely steer the vehicle
and to maintain the vehicle in its
lane.

[ The hands–off warning message
may appear late depending on road
conditions. Always have your hands
on the steering wheel while driving.

[ If the steering wheel is held very
lightly, the hands–off warning
message may appear because the
system may not recognize that the
driver has their hands on the steering
wheel.

[ If you attach objects to the steering
wheel, the hands-off warning may
not work properly.
Information

[For more details on setting the
functions in the infotainment system,
refer to “Vehicle Settings” section in
chapter 4.

[ When lane markings (or road edges)
are detected, the lane lines on the
cluster will change from grey to white
and the green
indicator light will
illuminate.
„Lane undetected
‡Type A ‡Type B
OCN7060034OCN7060035
„Lane detected
‡Type A ‡Type B
OCN7060039OCN7060037

[Even though the steering is assisted by
Lane Keeping Assist, the driver may
control the steering wheel.

[ The steering wheel may feel heavier
or lighter when the steering wheel is
assisted by Lane Keeping Assist than
when it is not.

[ The images and colors in
the instrument cluster may differ
depending on the cluster type or theme
selected from the instrument cluster.

Driver Assistance System7-34
Lane Keeping Assist Malfunction
and Limitations
Lane Keeping Assist malfunction
OCN7070036L
When Lane Keeping Assist is not working
properly, the ‘Check Lane Keeping Assist
/.$V\VWHP
TZDUQLQJPHVVDJHZLOO
appear and the yellow
indicator
light will illuminate on the cluster. If this
occurs, have the vehicle inspected by an
authorized HYUNDAI dealer.
Limitations of Lane Keeping Assist
Lane Keeping Assist may not operate
properly or may operate unexpectedly
under the following circumstances:

[ The lane is contaminated or difficult
to detect because:
- The lane markings (or road edges) are covered with rain, snow, dirt,
oil, etc.
- The color of the lane marking (or road edges) is not distinguishable
from the road
- There are markings (or road edges) on the road near the lane
or the markings (or road edges) on
the road look similar to the lane
markings (or road edges)
- The lane marking (or road edges) is indistinct or damaged
- The shadow is on the lane marking (or road edges) by a median strip,
trees, guardrail, noise barriers, etc.
[
There are more than two lane
markings (or road edges) on the road

[ The lane number increases or
decreases, or the lane markings (or
road edges) are crossing

[ The lane markings (or road edges) are
complicated or a structure substitutes
for the lines, such as a construction
area

[ There are road markings, such as
zigzag lanes, crosswalk markings and
road signs

[ The lane suddenly disappears, such as
at the intersection

[ The lane (or road width) is very wide
or narrow

[ The number of lanes change or the
lanes merge

[ The distance to the front vehicle is
extremely short or the vehicle in front
is covering the lane marking Information
For more details on the limitations of the
front view camera, refer to “Forward
Collision-Avoidance Assist (FCA)” section
in chapter 7.

07
7-35
WARNING
Take the following precautions when
using Lane Keeping Assist:

[The driver has the responsibility to
safely drive and control the vehicle.
Do not solely rely on the system and
drive dangerously.

[ The operation of Lane Keeping Assist
can be canceled or not work properly
depending on road conditions and
surroundings. Always be cautious
while driving.

[ Refer to “Limitations of the System”
if the lane is not detected properly.

[ When you are towing a trailer or
another vehicle, we recommend that
Lane Keeping Assist is turned off due
to safety reasons.

[ If the vehicle is driven at high speed,
the steering wheel will not be
controlled. The driver must always
follow the speed limit when using
the system.

[ If any other system’s warning
message is displayed or audible
warning is generated, Lane Keeping
Assist warning message may not be
displayed and audible warning may
not be generated.

[ You may not hear the warning
sound of Lane Keeping Assist if the
surrounding is noisy.

[ If you attach objects to the steering
wheel, steering may not be assisted
properly.

[ Lane Keeping Assist may not operate
for 15 seconds after the vehicle is
started, or the front view camera is
initialized.
[
Lane Keeping Assist will not operate
when:
- The turn signal or hazard warning
flasher is turned on
- The vehicle is not driven in the
center of the lane when the system
is turned on or right after changing
a lane
- ESC (Electronic Stability Control)
or VSM (Vehicle Stability
Management) is activated
- The vehicle is driven on a sharp
curve
- Vehicle speed is below 35 mph (55
km/h) or above 130 mph (210 km/h)
- The vehicle makes sudden lane
changes
- The vehicle brakes suddenly

Driver Assistance System7-36
%/,1'

07
7-37
OCN7H070042N

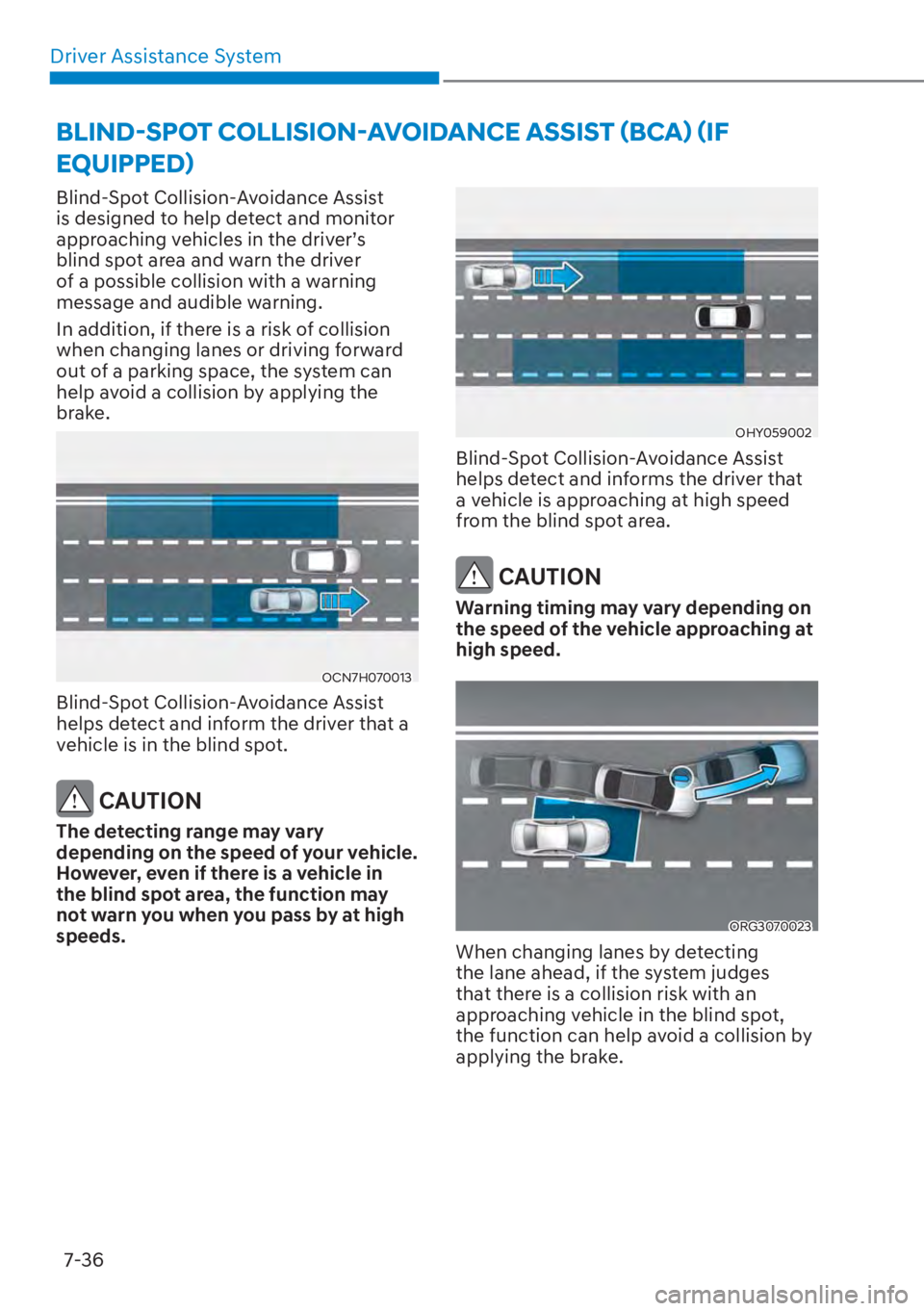

When you are driving forward out of
a parking space, if the system detects
that there is a collision risk with an
approaching vehicle in the blind spot,
the function can help avoid a collision by
applying the brake.
Information
In the following text, Blind-Spot Collision-
Avoidance Assist will be referred as Blind-
Spot Safety system.
Detecting sensor
OCN7061030L
OCN7H071016C[1] : Front view camera,
[2] : Rear corner radar
Refer to the picture above for the
detailed location of the detecting
sensors.
CAUTION
Take the following precautions to
maintain optimal performance of the
detecting sensor:

[Never disassemble the rear corner
radar or radar assembly, or cause any
damage to it.

[ If the rear corner radar or near the
radar has been damaged or impacted
in any way, even though the warning
message does not appear on the
cluster, Blind-Spot Safety system
may not operate properly. Have the
vehicle inspected by an authorized
HYUNDAI dealer.

Driver Assistance System7-38

[ If the rear corner radars have been
replaced or repaired, have the
vehicle inspected by an authorized
HYUNDAI dealer.

[ Use only genuine parts to repair the
rear bumper where the rear corner
radar is located.

[ Do not apply license plate frame or
objects, such as a bumper sticker,
film or a bumper guard near the rear
corner radar.

[ The function may not work properly
if the bumper has been replaced, or
the surroundings of the rear corner
radar have been damaged or paint
has been applied.

[ If a trailer, carrier, etc., is installed,
it may adversely affect the
performance of the rear corner radar
or the system may not operate.
For more details on the precautions
of the front view camera, refer to
“Forward Collision-Avoidance Assist

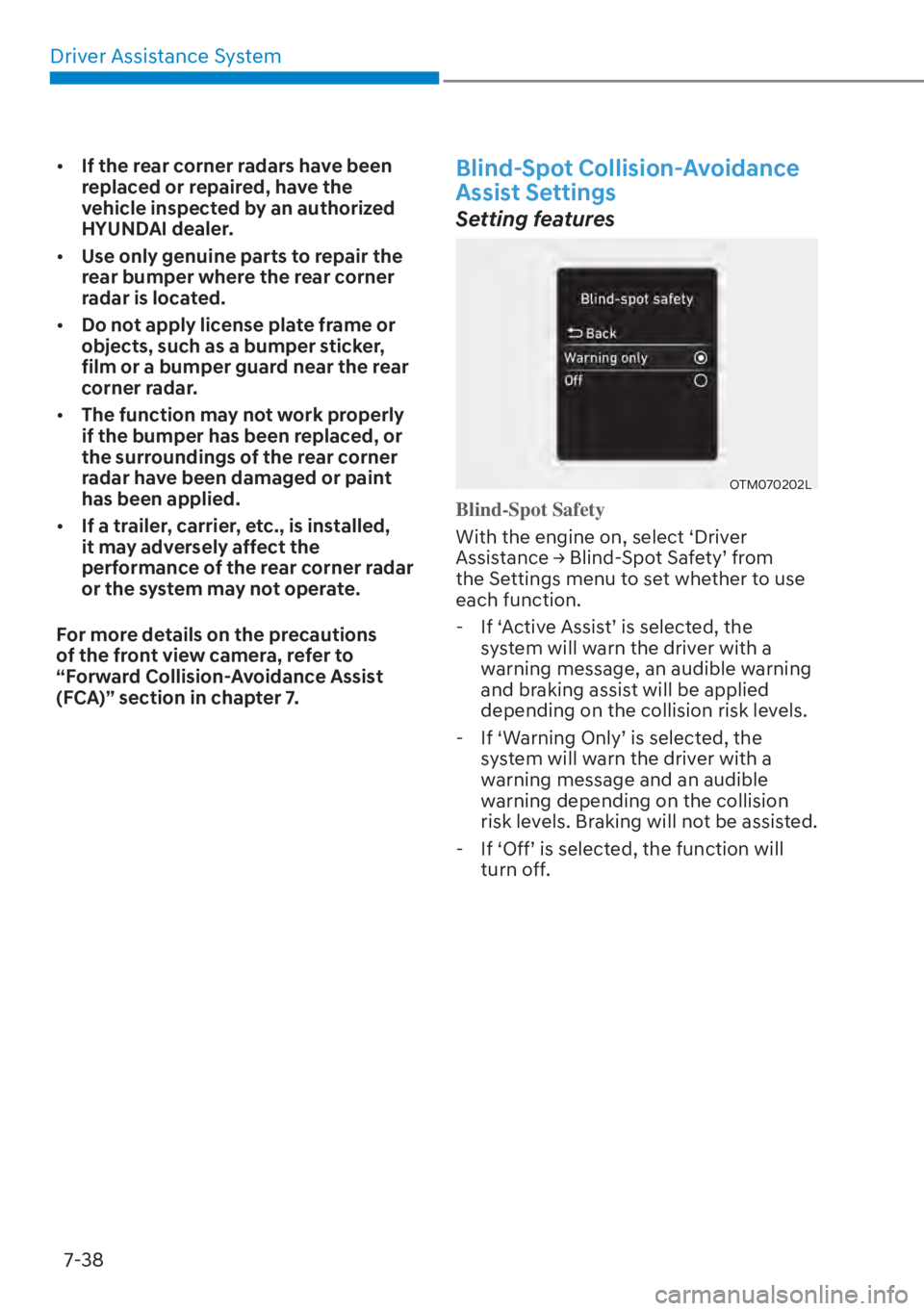

(FCA)” section in chapter 7.Blind-Spot Collision-Avoidance
Assist Settings
Setting features
OTM070202L
Blind-Spot Safety
With the engine on, select ‘Driver
$VVLV
WDQFH

07
7-39
OTM070097N
When the engine is restarted with the
system off, the ‘Blind-Spot Safety System
LV2II
TPHVVDJHZLOODSSHDURQWKH
cluster.
,I\RXFKDQJHWKHVHWWLQJIURP
S2II
TWR

S$FWLYH$VVLVW
TRU
S:DUQLQJ2QO\
TWKH
warning light on the side view mirror will
blink for three seconds.
In addition, if the engine is turned on,
ZKHQWKHV\VWHPLVVHWWR
S$FWLYH$VVLVW
T
RU
S:DUQLQJ2QO\
TWKHZDUQLQJOLJKWRQ
the side view mirror will blink for three
seconds.
WARNING

[If ‘Warning Only’ is selected, braking
is not assisted.

[ If ‘Off’ is selected, the driver should
always be aware of the surroundings
and drive safely.
Information
If the engine is restarted, Blind-Spot
Safety system will maintain the last
setting.
OTM070140N
Warning Timing
With the engine on, select ‘Driver
$VVLV

WDQFH

Driver Assistance System7-40
OTM070141N

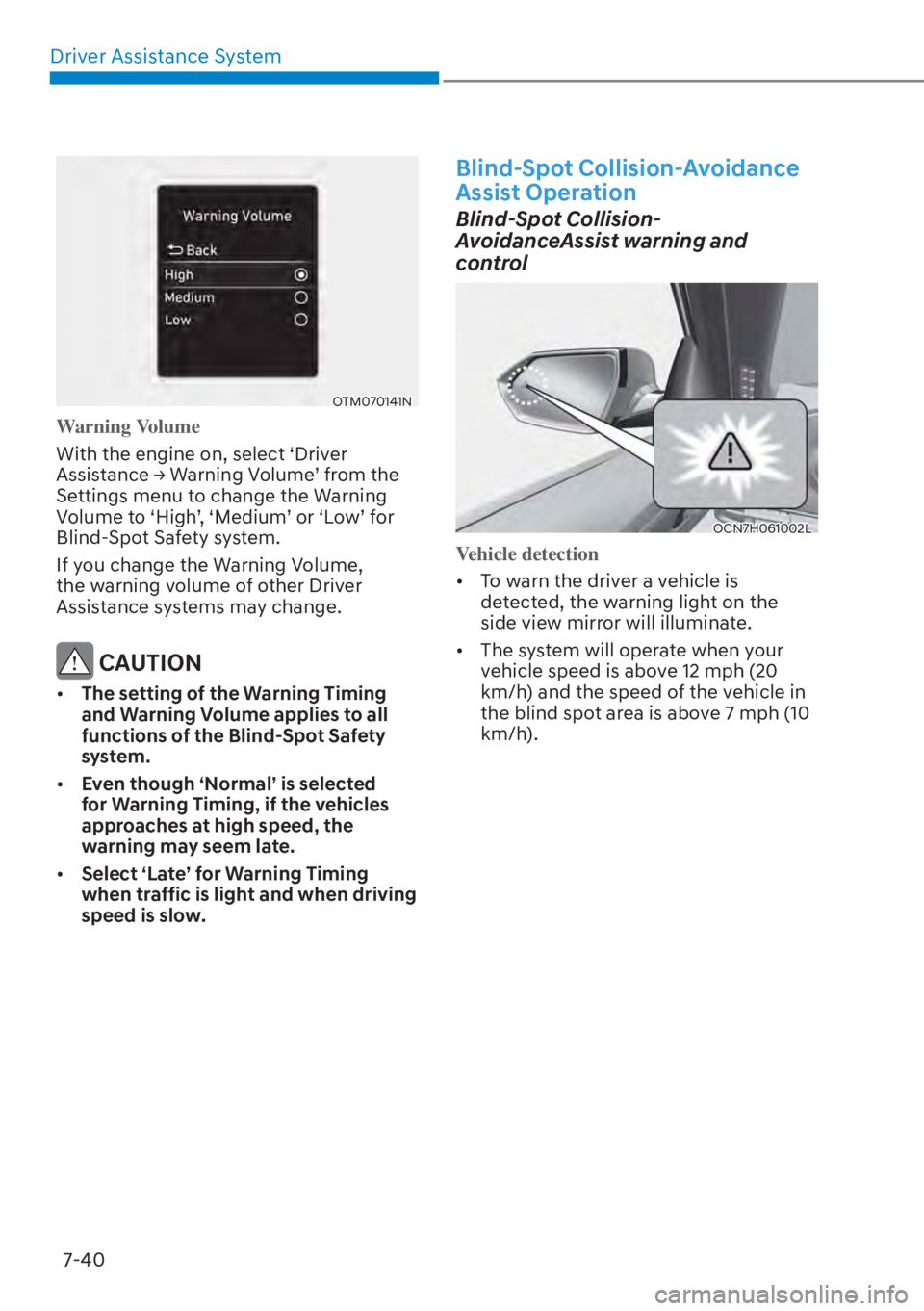

Warning Volume
With the engine on, select ‘Driver
$VVLV
WDQFH
