Engine compartment fuse panel
Fuse NameFuse Rating Circuit Protected
WIPER 25A
Wiper Relay
HORN 15A Horn Relay
IGN COIL 20A Ignition Coil #1 ~ #4
ECU2 15A ECM
SENSOR3 10A E/R Junction Block (Fuel Pump Relay)
SENSOR2 10ACamshaft Position Sensor #1/#2 (Intake/Exhaust), Mass
Air Flow Sensor, ELCM, Oil Control Valve #1/#2 (Intake/
Exhaust),
Purge Control Solenoid Valve
ECU3 10A ECM, HPCU, Clutch Actuator
SENSOR1 15A Oxygen Sensor (Up/Down)
IEB 4 10A IDB Unit, Multipurpose Check Connector
EWP 3 10A Auxiliary Electric Water Pump
ECU1 20A ECM
TCU2 15A Transaxle Range Switch, TCM

Maintenance9-54
Consult an authorized HYUNDAI dealer
to replace most vehicle light bulbs. It is
difficult to replace vehicle light bulbs
because other parts of the vehicle must
be removed before you can get to the
bulb. This is especially true for removing
the headlight assembly to get to the
bulb(s).
Removing/installing the headlight
assembly can result in damage to the
vehicle.
Information
The headlight and tail lamp lenses could
appear frosty if the vehicle is washed after
driving or the vehicle is driven at night in
wet weather. This condition is caused by
temperature difference between the lamp
inside and outside and does not indicate
a problem with your vehicle. When
moisture condenses in the lamp, it will be
removed after driving with the headlight
on. The removable level may differ
depending on lamp size, lamp position
and environmental condition. However, if
moisture is not removed, have the vehicle
inspected by an authorized HYUNDAI
dealer.
WARNING

[ Prior to replacing a lamp, depress the
foot brake, move the shift lever into P
(Park) apply the parking brake, place
the ignition switch to the LOCK/OFF
position, and take the key with you
when leaving the vehicle to avoid
sudden movement of the vehicle and
to prevent possible electric shock.

[ Be aware the bulbs may be hot and
may burn your fingers.

[ When the bulb is disconnected or the
lamp connector is removed while the
lamp is operating normally, the fuse
box electronics may recognize the
lamp as a malfunction. Therefore, a
fault record for the lamp may remain
in the Diagnostic Trouble Code (DTC)
recorded in the fuse box.
LIGHT BULBS

09
9-55
Headlight, Parking Lamp,
Daytime Running Light, Turn
Signal Lamp and Side Marker
OCN7090015N
OCN7090016N
(1) Headlight (Low)
(2) Headlight (High)
(3) Daytime running lamp (DRL)/ Parking lamp
(4) Turn signal lamp
(5) Side marker
OLMB073042L
Headlight (Halogen bulb)
WARNING

[ Handle halogen bulbs with care.
Halogen bulbs contain pressurized
gas that will produce flying pieces
of glass that could cause injuries if
broken.

[ Wear eye protection when changing
a bulb. Allow the bulb to cool down
before handling it.

[ Always handle them carefully, and
avoid scratches and abrasions. If
the bulbs are lit, avoid contact with
liquids.

[ Never touch the glass with bare
hands. Residual oil may cause the
bulb to overheat and burst when lit.

[ A bulb should be operated only when
installed in a headlight.

[ If a bulb becomes damaged or
cracked, replace it immediately and
carefully dispose of it.

Maintenance9-56
OCN7080042
1. Open the hood.
2. Disconnect the battery connector.
3. Remove the headlight bulb cover by turning it counterclockwise.
4. Disconnect the headlight bulb socket- connector.
5. Unsnap the headlight bulb retaining wire by pressing the end and pushing
it upward.
6. Remove the bulb from the headlight assembly.
7. Install a new headlight bulb and snap the headlight bulb retaining wire into
position by aligning the wire with the
groove on the bulb.
8. Connect the headlight bulb socket- connector.
9. Install the headlight bulb cover by turning it clockwise.
Information
The headlight aiming should be adjusted
after an accident or after the headlight
assembly is reinstalled at an authorized
HYUNDAI dealer. Headlight/Daytime running light (DRL) /
Parking lamp (LED type)
If the lamp (LED) does not operate, have
the s

ystem checked by an authorized
HYUNDAI dealer.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps have to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.

09
9-57
OCN7080043

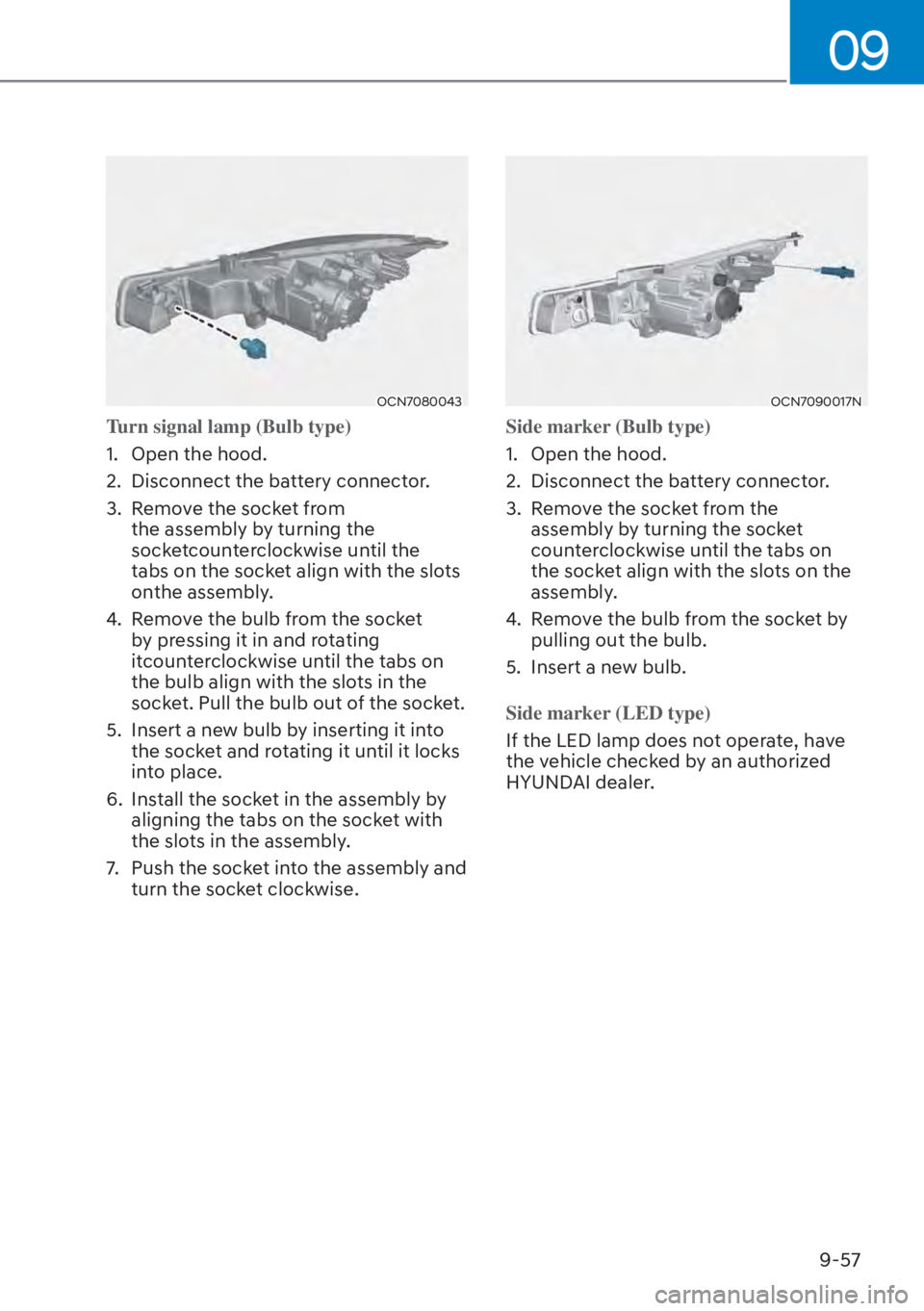

Turn signal lamp (Bulb type)
1. Open the hood.
2.
Disconnect the battery connector.
3. Remove the socket from the assembly by turning the
socketcounterclockwise until the
tabs on the socket align with the slots
onthe assembly.
4. Remove the bulb from the socket by pressing it in and rotating
itcounterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the socket.
5. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place.
6. Install the socket in the assembly by aligning the tabs on the socket with
the slots in the assembly.
7. Push the socket into the assembly and turn the socket clockwise.
OCN7090017N
Side marker (Bulb type)
1. Open the hood.
2.

Disconnect the battery connector.
3. Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
4. Remove the bulb from the socket by pulling out the bulb.
5. Insert a new bulb.
Side marker (LED type)
If the LED lamp does not operate, have
the v
ehicle checked by an authorized
HYUNDAI dealer.

Maintenance9-58
Side Repeater Lamp
Replacement (if equipped)
OCN7080074L
If the LED lamp (1) does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
Rear Combination Lamp Bulb
Replacement
„Type A
OCN7H090026N
„Type B
OCN7H090025N(1) Stop lamp (LED or bulb)
(2) Tail lamp (LED)
(3) Turn signal lamp
(4) Reverse lamp
(5) Rear side marker (LED or bulb)

09
9-59
Tail/Stop lamp/Turn signal lamp/
Side marker (Outer lamp) (Bulb type)
1. Open the trunk lid.
OCN7080045
2. Remove the service cover by pulling out the service cover.
OCN7080046
3. Loosen the assembly retaining nuts.
OCN7080047
4. Remove the rear combination light assembly from the body of the
vehicle.

Maintenance9-60
OCN7080075L
OCN7090019N
[A] : Tail/Stop lamp, [B] : Turn signal lamp,
[C] : Rear side marker
5. Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
6. Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on the
bulb align with the slots in the socket.
Pull the bulb out of the socket.
7. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place.
8. Install the socket in the assembly by aligning the tabs on the socket with
the slots in the assembly. Push the
socket into the assembly and turn the
socket clockwise.
Reverse lamp (Inner lamp)
(Bulb type)
1. Disconnect the connector and then remove the nuts by turning the nuts
counter clockwise.
2. Take the light assembly out.
OCN7080053
3. Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
4. Remove the bulb by pulling it out.
5. Insert a new bulb by inserting it into the socket.
6. Install the light assembly to the trunk.
7. Reinstall the trunk lid cover by pushing in the screw.
Stop/Tail lamp and rear side marker
(LED type)
If the LED lamp does not operate, we
recommend that you have the vehicle
checked by an authorized HYUNDAI
dealer.
