2023 HYUNDAI ELANTRA HYBRID Owners Manual

01

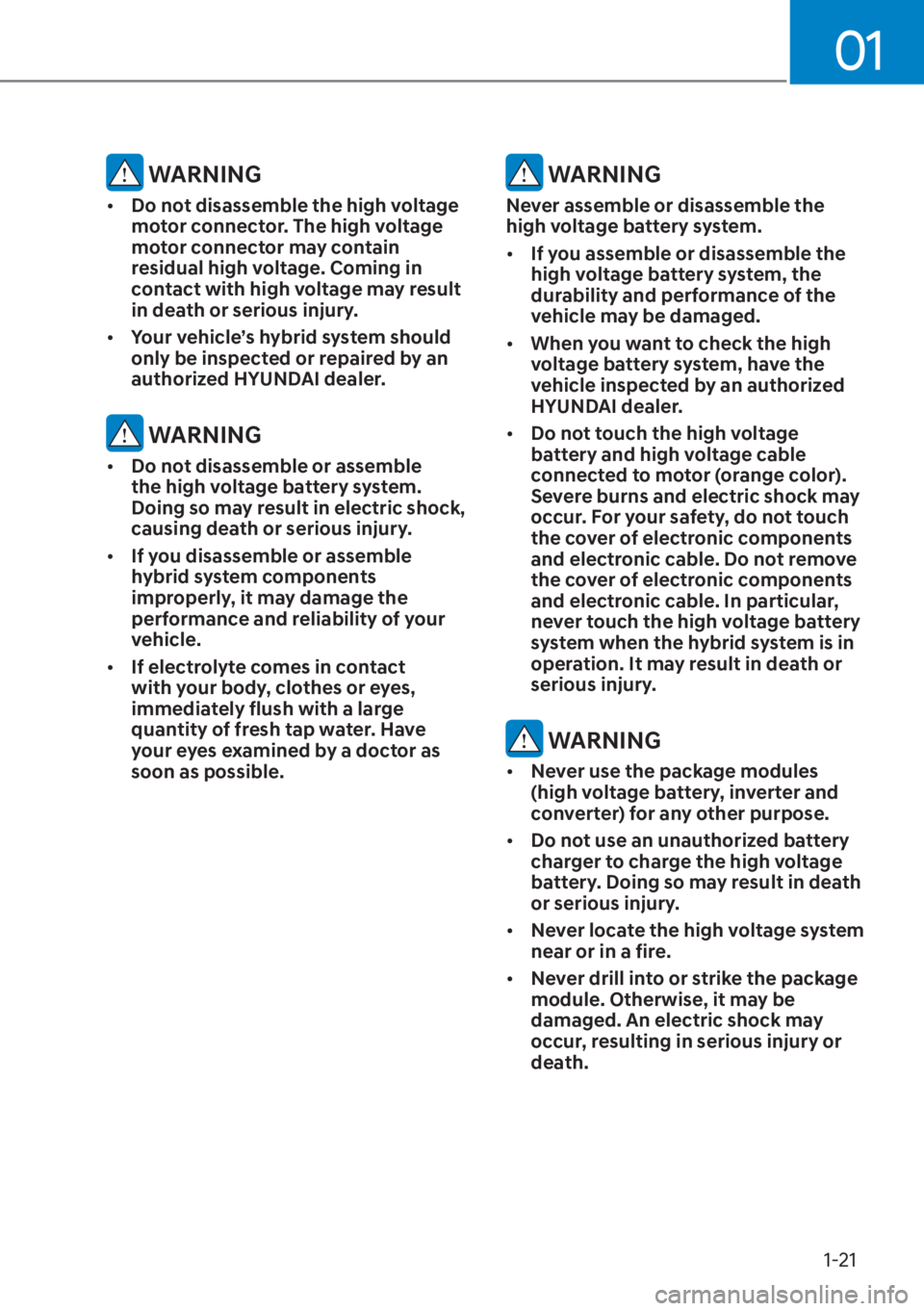

1-21
WARNING

[Do not disassemble the high voltage
motor connector. The high voltage
motor connector may contain
residual high voltage. Coming in
contact with high voltage may result
in death or serious injury.

[ Your vehicle’s hybrid system should
only be inspected or repaired by an
authorized HYUNDAI dealer.
WARNING

[Do not disassemble or assemble
the high voltage battery system.
Doing so may result in electric shock,
causing death or serious injury.

[ If you disassemble or assemble
hybrid system components
improperly, it may damage the
performance and reliability of your
vehicle.

[ If electrolyte comes in contact
with your body, clothes or eyes,
immediately flush with a large
quantity of fresh tap water. Have
your eyes examined by a doctor as
soon as possible.
WARNING
Never assemble or disassemble the
high voltage battery system.

[If you assemble or disassemble the
high voltage battery system, the
durability and performance of the
vehicle may be damaged.

[ When you want to check the high
voltage battery system, have the
vehicle inspected by an authorized
HYUNDAI dealer.

[ Do not touch the high voltage
battery and high voltage cable
connected to motor (orange color).
Severe burns and electric shock may
occur. For your safety, do not touch
the cover of electronic components
and electronic cable. Do not remove
the cover of electronic components
and electronic cable. In particular,
never touch the high voltage battery
system when the hybrid system is in
operation. It may result in death or
serious injury.
WARNING

[Never use the package modules
(high voltage battery, inverter and
converter) for any other purpose.

[ Do not use an unauthorized battery
charger to charge the high voltage
battery. Doing so may result in death
or serious injury.

[ Never locate the high voltage system
near or in a fire.

[ Never drill into or strike the package
module. Otherwise, it may be
damaged. An electric shock may
occur, resulting in serious injury or
death.

Foreword / Hybrid System Overview1-22
NOTICE

[ When the vehicle is paint baked, do
not bake over 30 minutes in 158°F
(70°C) or 20 minutes in 176°F (80°C)
degree.

[ Do not wash the engine
compartment, using water. Water
may cause an electric shock and
damage the electronic components.
WARNING
This hybrid vehicle uses the hybrid
battery system inverter and converter
to generate high voltage. High voltage
in the hybrid battery system is very
dangerous and may cause severe burns
and electric shock. This may result in
serious injury or death.

[For your safety, never touch,
replace, disassemble or remove the
hybrid battery system including
components, cables and connectors.
Severe burns or electric shock may
result in serious injury or death when
you fail to follow this warning.

[ When the hybrid battery system
operates, the hybrid battery system
can be hot. Always be careful
because burns or electric shock may
be caused by high voltage.

[ Do not spill liquid on the HPCU, HSG,
motor and fuses. If the hybrid system
components come in contact with
liquid, it may result in electric shock.
Service Interlock Connector
OCN7HQ010001
In case of emergency, cut the service
interlock connector cable to isolate the
high voltage of the battery.
WARNING
Never disconnect the service interlock
connector or cut the wire except in an
emergency situation.
Serious problems may occur, such as
the vehicle will not start.
Hybrid Battery Cooling Duct
OCN7HQ010002
The hybrid battery cooling duct is
located on the middle side of the rear
seats. The cooling duct cools down the
hybrid battery. When the hybrid battery
cooling duct is blocked, the hybrid
battery may be overheated.
Clean the cooling duct for the hybrid
battery with a dry cloth on a regular
basis.

01
1-23
WARNING

[Never clean the cooling duct of the
hybrid battery with a wet cloth. If
any water enters the cooling duct
of the hybrid battery, the hybrid
battery may cause an electric shock,
resulting in a serious damage, an
injury or death.

[ The hybrid battery is composed of
lithium-ion polymer. If the hybrid
battery is improperly handled, it is
dangerous to the environment. Also
it may cause electrical shock and
severe burns, resulting in a serious
injury or death.

[ Do not spill liquid over the cooling
duct of the hybrid battery. Doing
so is very dangerous. It may cause
electric shock or serious injury.

[ Do not cover the cooling duct with
objects.

[ Do not put any objects into the
cooling duct of the hybrid battery.
Doing so may cause loss of cooling
duct volume to the hybrid battery.
When the cooling duct is blocked
with any objects, immediately
contact your HYUNDAI dealer.

[ Never place a container of liquid on
or near the cooling duct. If the liquid
spills, the hybrid battery located in
the luggage compartment may be
damaged.

[ Secure all loads in the luggage
compartment to prevent them from
being tossed about before driving.
When a sharp or heavy load strike
with a strong impact or pierce the
interior luggage compartment
wall, the hybrid battery system
may be damaged, deteriorating its
performance.

[ Do not obstruct the cooling duct
with any other objects.
If an Accident Occurs
WARNING

[For your safety, do not touch the
high voltage cables, connectors
and package modules. High voltage
components are orange in color.

[ Exposed cables or wires may be
visible inside or outside of the
vehicle. Never touch the wires or
cables, because an electrical shock,
an injury, or death may occur.

[ Any gas or electrolyte leakage from
your vehicle is not only poisonous
but also flammable. Upon witnessing
any of these conditions, open the
windows, and remain a safe distance
from the vehicle out of the road.
Immediately call emergency services
or contact an authorized HYUNDAI
dealer and advise them that a hybrid
vehicle is involved.

[ When the vehicle is severely
damaged, remain a safe distance of
50 feet (15 meter) or more between
your vehicle and other vehicles/
flammables.

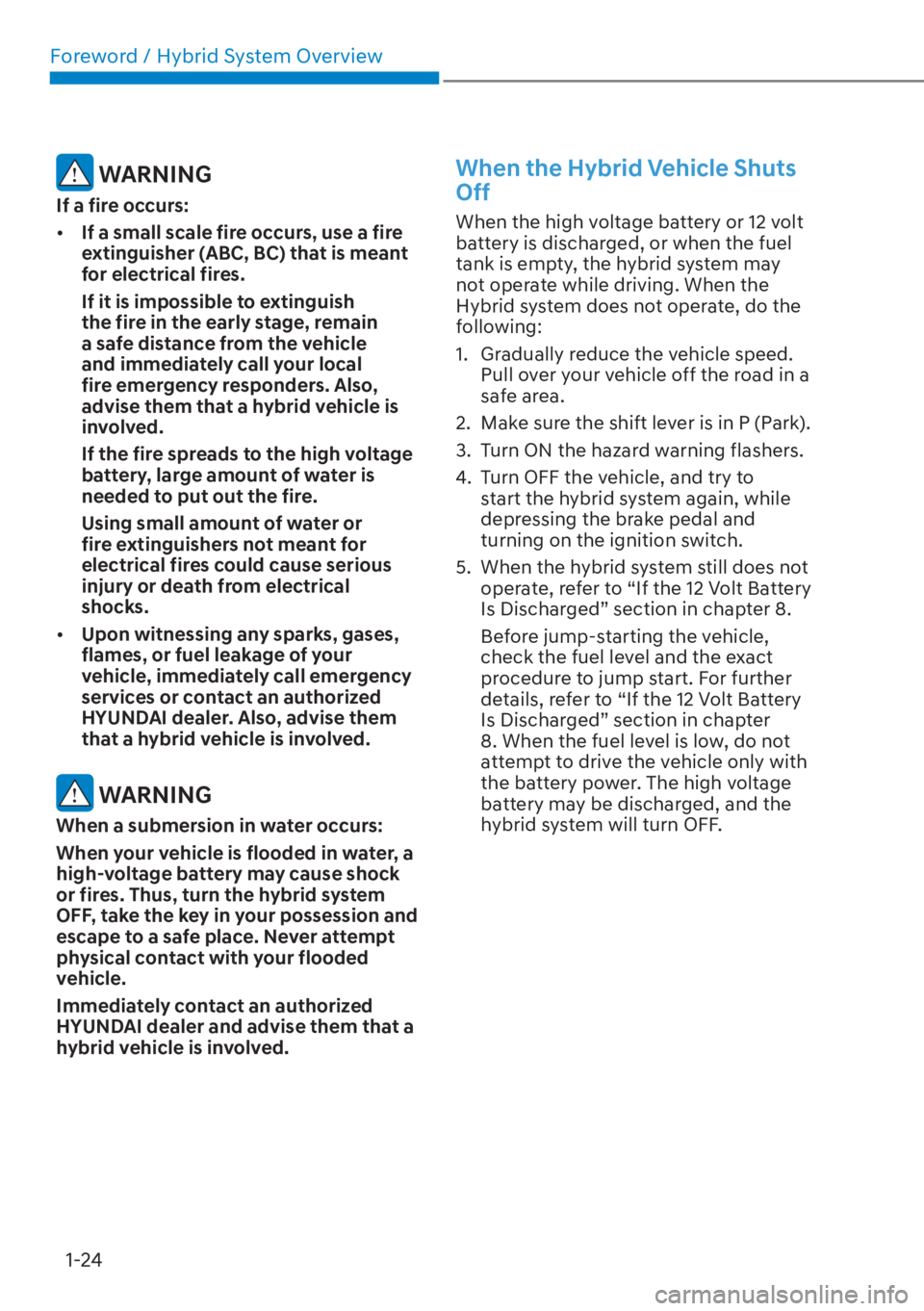

Foreword / Hybrid System Overview1-24
WARNING
If a fire occurs:

[ If a small scale fire occurs, use a fire
extinguisher (ABC, BC) that is meant
for electrical fires.
If it is impossible to extinguish
the fire in the early stage, remain
a safe distance from the vehicle
and immediately call your local
fire emergency responders. Also,
advise them that a hybrid vehicle is
involved.
If the fire spreads to the high voltage
battery, large amount of water is
needed to put out the fire.
Using small amount of water or
fire extinguishers not meant for
electrical fires could cause serious
injury or death from electrical
shocks.

[ Upon witnessing any sparks, gases,
flames, or fuel leakage of your
vehicle, immediately call emergency
services or contact an authorized
HYUNDAI dealer. Also, advise them
that a hybrid vehicle is involved.
WARNING
When a submersion in water occurs:
When your vehicle is flooded in water, a
high-voltage battery may cause shock
or fires. Thus, turn the hybrid system
OFF, take the key in your possession and
escape to a safe place. Never attempt
physical contact with your flooded
vehicle.
Immediately contact an authorized
HYUNDAI dealer and advise them that a
hybrid vehicle is involved.
When the Hybrid Vehicle Shuts
Off
When the high voltage battery or 12 volt
battery is discharged, or when the fuel
tank is empty, the hybrid system may
not operate while driving. When the
Hybrid system does not operate, do the
following:
1. Gradually reduce the vehicle speed.
Pull over your vehicle off the road in a
safe area.
2. Make sure the shift lever is in P (Park).
3. Turn ON the hazard warning flashers.
4. Turn OFF the vehicle, and try to start the hybrid system again, while
depressing the brake pedal and
turning on the ignition switch.
5. When the hybrid system still does not operate, refer to “If the 12 Volt Battery
Is Discharged” section in chapter 8.
Before jump-starting the vehicle,
check the fuel level and the exact
procedure to jump start. For further
details, refer to “If the 12 Volt Battery
Is Discharged” section in chapter
8. When the fuel level is low, do not
attempt to drive the vehicle only with
the battery power. The high voltage
battery may be discharged, and the
hybrid system will turn OFF.

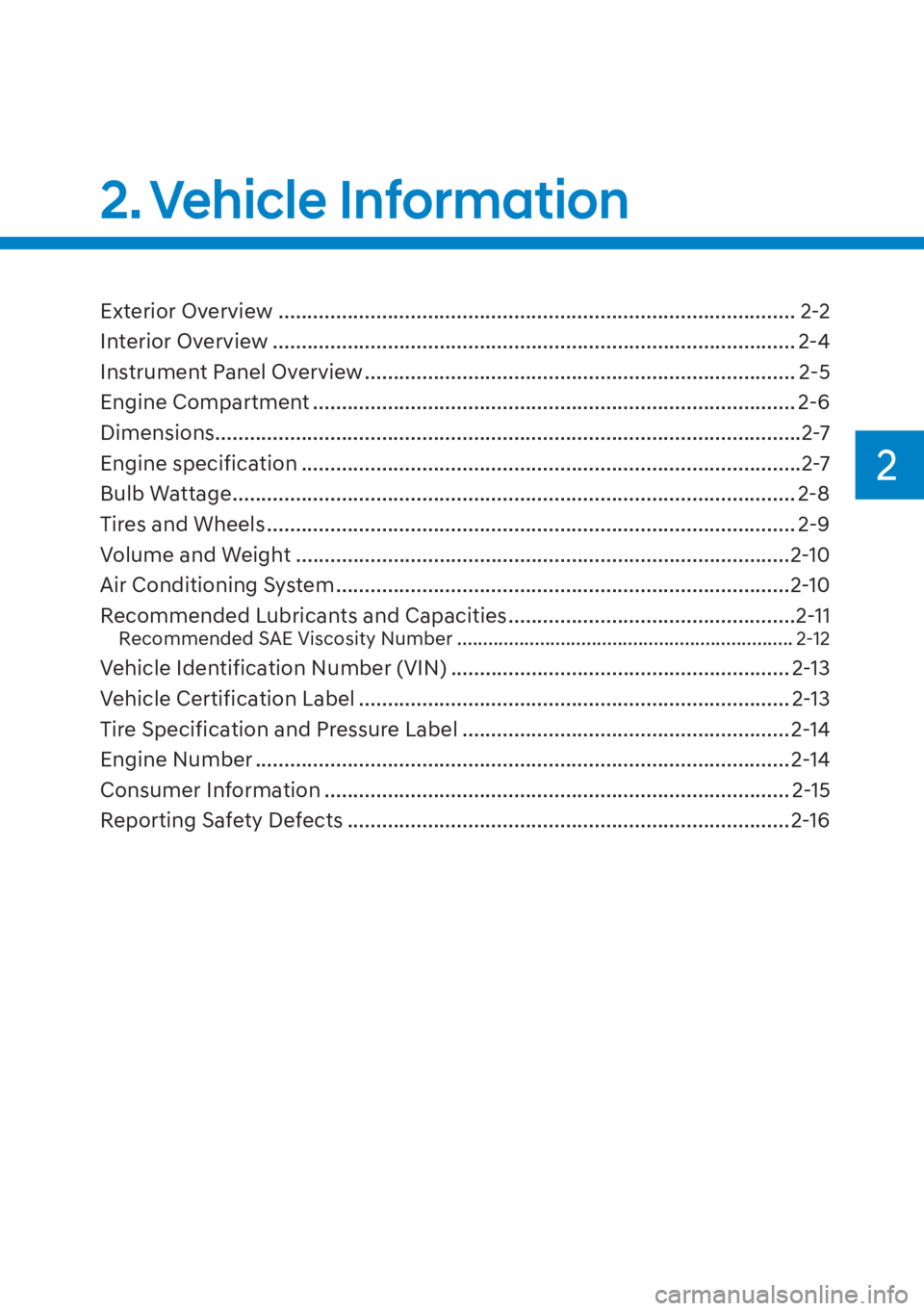

2
2. Vehicle Information
Exterior Overview ........................................................................\
.................. 2-2
Interior Overview ........................................................................\
................... 2-4
Instrument Panel Overview ........................................................................\
... 2-5
Engine Compartment ........................................................................\
............ 2-6
Dimensions .............................................................\
.........................................2-7
Engine specification ........................................................................\
...............2-7
Bulb Wattage ........................................................................\
.......................... 2-8
Tires and Wheels ........................................................................\
.................... 2-9
Volume and Weight ........................................................................\
..............2-10
Air Conditioning System ........................................................................\
.......2-10
Recommended Lubricants and Capacities ..................................................2-11
Recommended SAE Viscosity Number ................................................................. 2-12
Vehicle Identification Number (VIN) ........................................................... 2-13
Vehicle Certification Label ........................................................................\
... 2-13
Tire Specification and Pressure Label ......................................................... 2-14
Engine Number ........................................................................\
..................... 2-14
Consumer Information ........................................................................\
......... 2-15
Reporting Safety Defects ........................................................................\
..... 2-16

2-2
Vehicle Information
EXTERIOR OVERVIEW
„Front view
The actual shape may differ from the illustration.OCN7H010004
1. Hood ..................................................... 5-62
2. Headlight ............................................... 9-54
3. Tires and wheels ........................... 2-9/9-30
4. Side view mirror .................................... 5-52
5. Sunroof ................................................. 5-58
6. Front windshield wiper blades ............ 9-29
7. Windows ............................................... 5-54
8. Front radar ............................................. 7-14

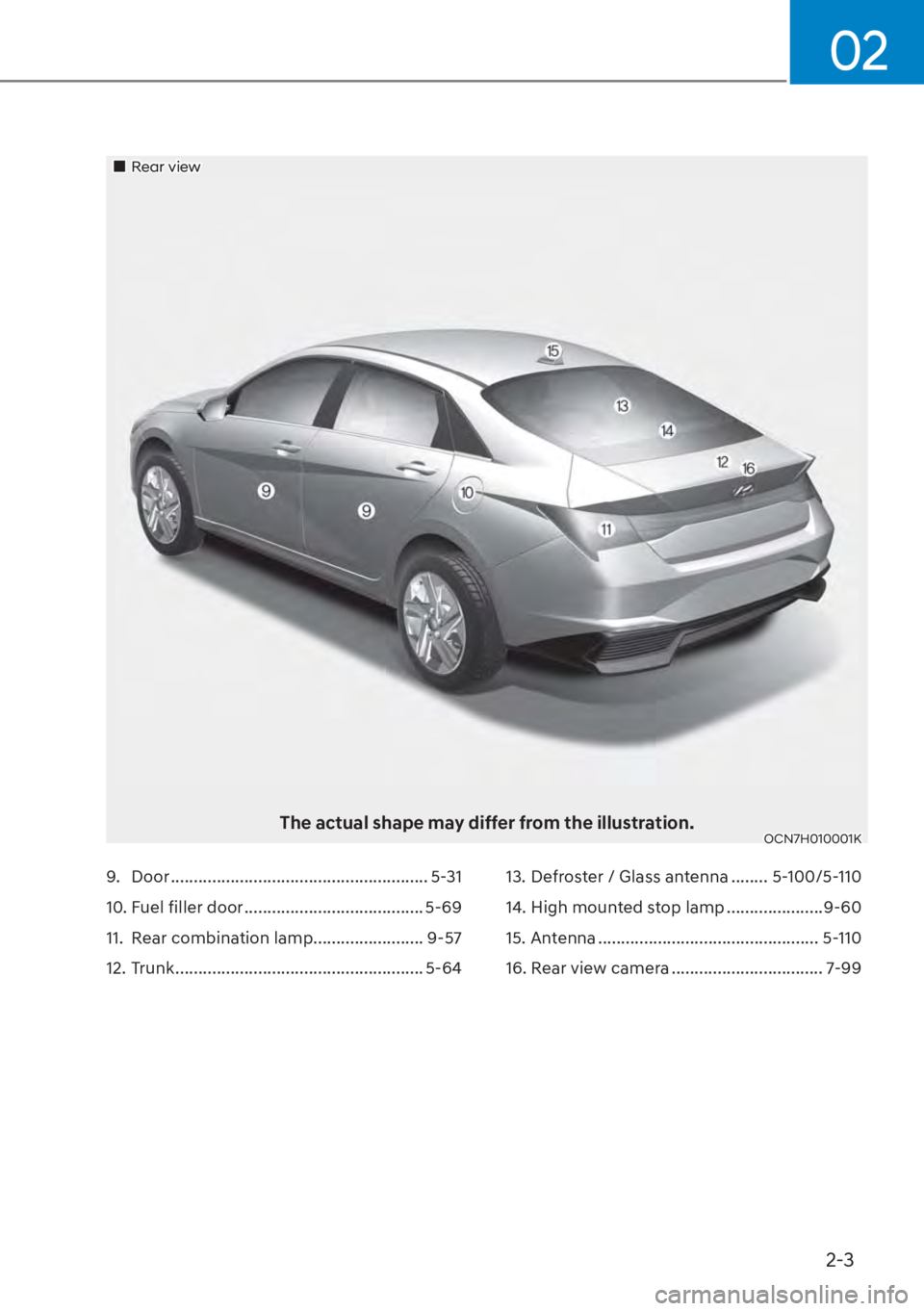

2-3
02
9. Door ........................................................ 5-31
10. Fuel filler door ....................................... 5-69
11. Rear combination lamp........................ 9-57
12. Trunk ...................................................... 5-6413. Defroster / Glass antenna ........ 5-100/5-110
14. High mounted stop lamp .....................9-60
15. Antenna ................................................ 5-110
16. Rear view camera ................................. 7-99
„Rear view
The actual shape may differ from the illustration.OCN7H010001K

2-4
Vehicle Information
The actual shape may differ from the illustration.OCN7H010003N
1. Inside door handle ................................ 5-33
2. Seat position memory system ............. 5-38
3. Side view mirror control switch ........... 5-53
4. Central door lock switch ...................... 5-33
5. Power window switches ...................... 5-54
6. Power window lock button ...................5-57
7. Steering wheel tilt/telescopic lever .... 5-42
8. Steering wheel ....................................... 5-41
9. Instrument panel illumination control
switch ...................................................... 4-5 10. 12V battery reset button ......................... 8-4
11. Lane Safety button ................................ 7-31
12. ESC OFF button .................................... 6-33
13. Fuel filler door release lever ................. 6-33
14. Trunk release lever ................................ 5-64
15. Hood release lever ................................ 5-62
16. Light control/ Turn signals .................... 5-72
17. Seat adjusting switch ............................. 3-3
18. Wiper/Washer switch ........................... 5-83
INTERIOR OVERVIEW
