Foreword / Hybrid System Overview1-20

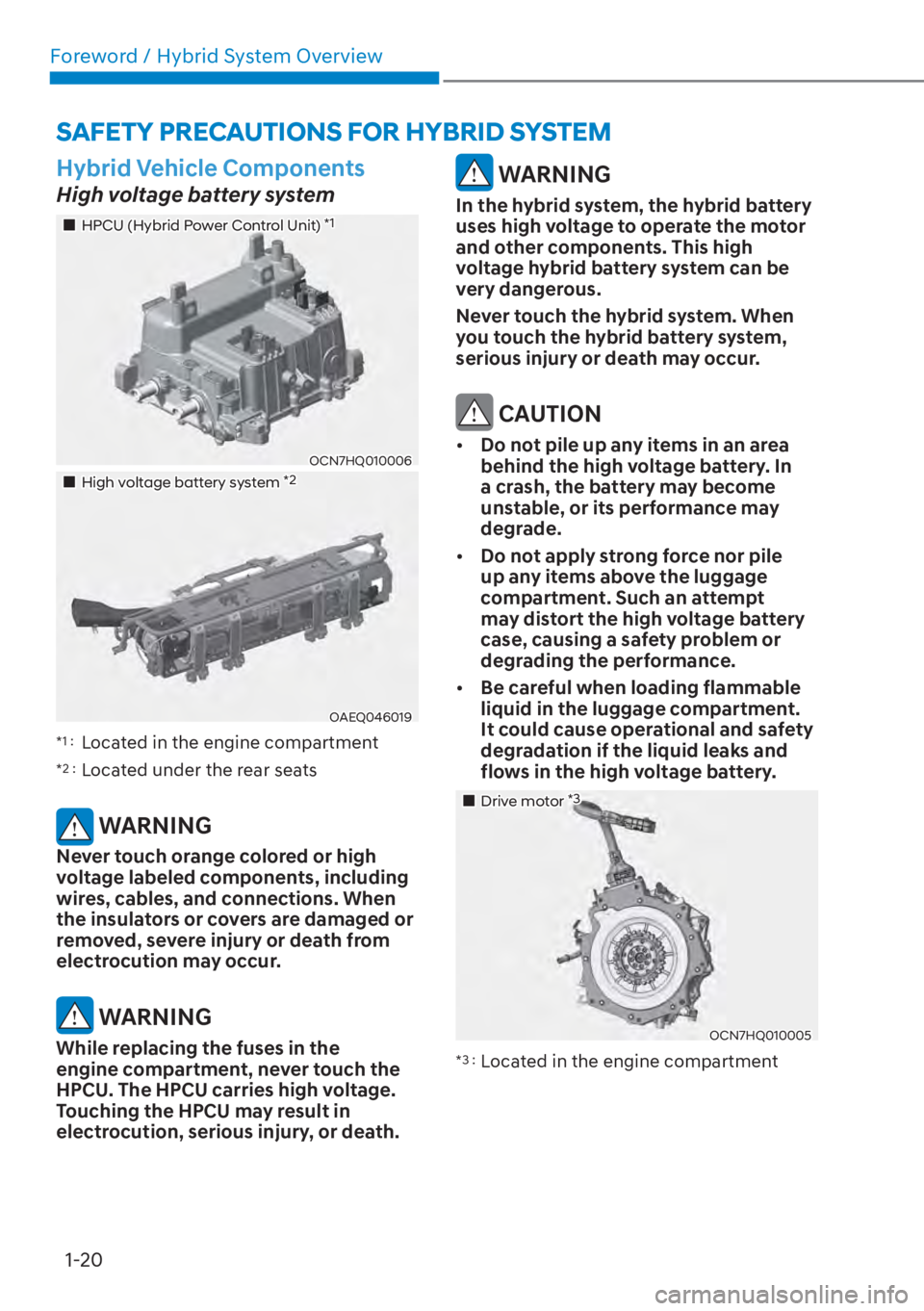

SAFETY PRECAUTIONS FOR HYBRID SYSTEM
Hybrid Vehicle Components
High voltage battery system
„HPCU (Hybrid Power Control Unit) *1
OCN7HQ010006
„High voltage battery system *2
OAEQ046019
*1 :
Located in the engine compartment
*2 : Located under the rear seats
WARNING
Never touch orange colored or high
voltage labeled components, including
wires, cables, and connections. When
the insulators or covers are damaged or
removed, severe injury or death from
electrocution may occur.
WARNING
While replacing the fuses in the
engine compartment, never touch the
HPCU. The HPCU carries high voltage.
Touching the HPCU may result in
electrocution, serious injury, or death.
WARNING
In the hybrid system, the hybrid battery
uses high voltage to operate the motor
and other components. This high
voltage hybrid battery system can be
very dangerous.
Never touch the hybrid system. When
you touch the hybrid battery system,
serious injury or death may occur.
CAUTION

[ Do not pile up any items in an area
behind the high voltage battery. In
a crash, the battery may become
unstable, or its performance may
degrade.

[ Do not apply strong force nor pile
up any items above the luggage
compartment. Such an attempt
may distort the high voltage battery
case, causing a safety problem or
degrading the performance.

[ Be careful when loading flammable
liquid in the luggage compartment.
It could cause operational and safety
degradation if the liquid leaks and
flows in the high voltage battery.
„Drive motor *3
OCN7HQ010005
*3 :
Located in the engine compartment

Foreword / Hybrid System Overview1-22

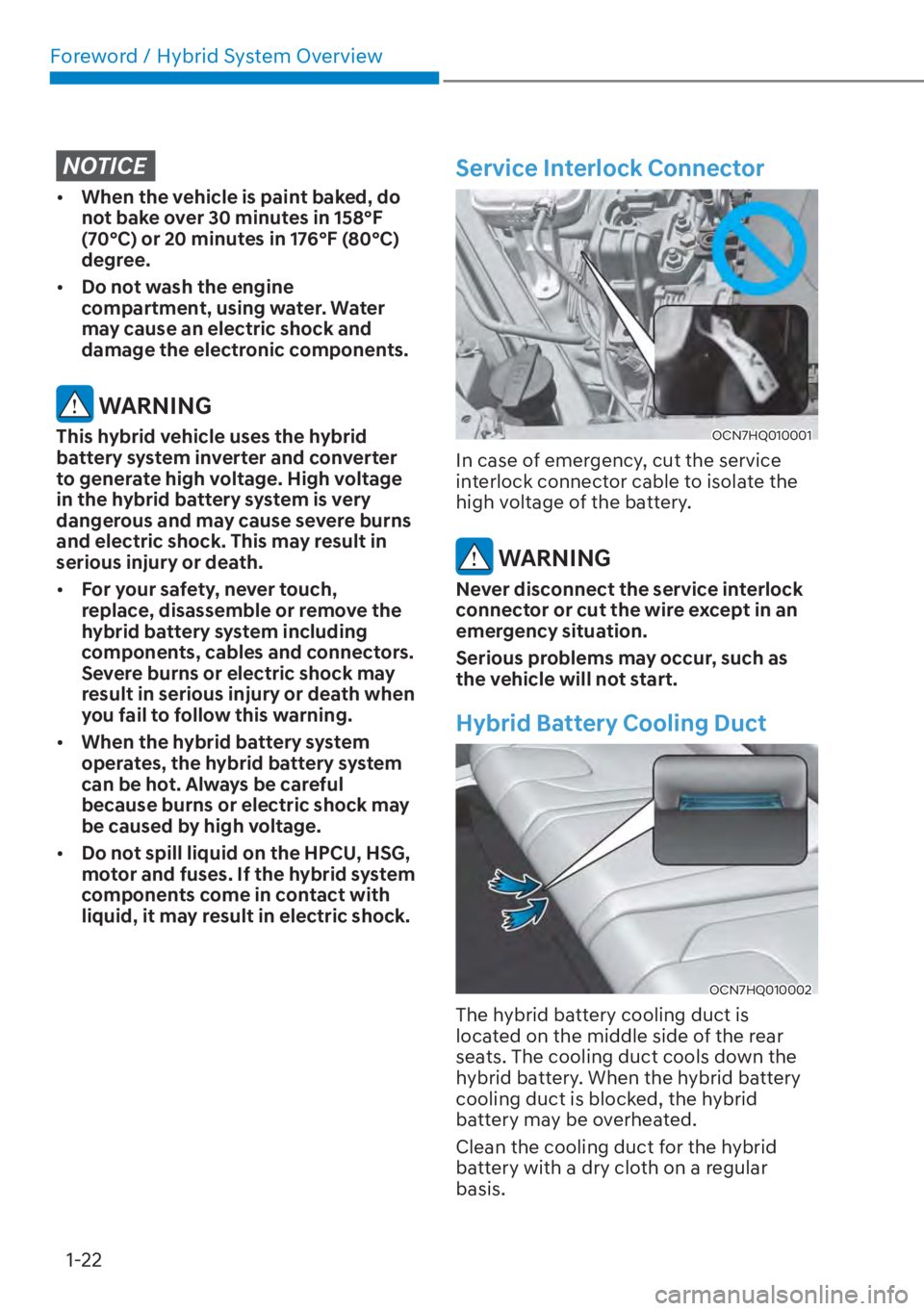

NOTICE

[ When the vehicle is paint baked, do
not bake over 30 minutes in 158°F
(70°C) or 20 minutes in 176°F (80°C)
degree.

[ Do not wash the engine
compartment, using water. Water
may cause an electric shock and
damage the electronic components.
WARNING
This hybrid vehicle uses the hybrid
battery system inverter and converter
to generate high voltage. High voltage
in the hybrid battery system is very
dangerous and may cause severe burns
and electric shock. This may result in
serious injury or death.

[For your safety, never touch,
replace, disassemble or remove the
hybrid battery system including
components, cables and connectors.
Severe burns or electric shock may
result in serious injury or death when
you fail to follow this warning.

[ When the hybrid battery system
operates, the hybrid battery system
can be hot. Always be careful
because burns or electric shock may
be caused by high voltage.

[ Do not spill liquid on the HPCU, HSG,
motor and fuses. If the hybrid system
components come in contact with
liquid, it may result in electric shock.
Service Interlock Connector
OCN7HQ010001
In case of emergency, cut the service
interlock connector cable to isolate the
high voltage of the battery.
WARNING
Never disconnect the service interlock
connector or cut the wire except in an
emergency situation.
Serious problems may occur, such as
the vehicle will not start.
Hybrid Battery Cooling Duct
OCN7HQ010002
The hybrid battery cooling duct is
located on the middle side of the rear
seats. The cooling duct cools down the
hybrid battery. When the hybrid battery
cooling duct is blocked, the hybrid
battery may be overheated.
Clean the cooling duct for the hybrid
battery with a dry cloth on a regular
basis.

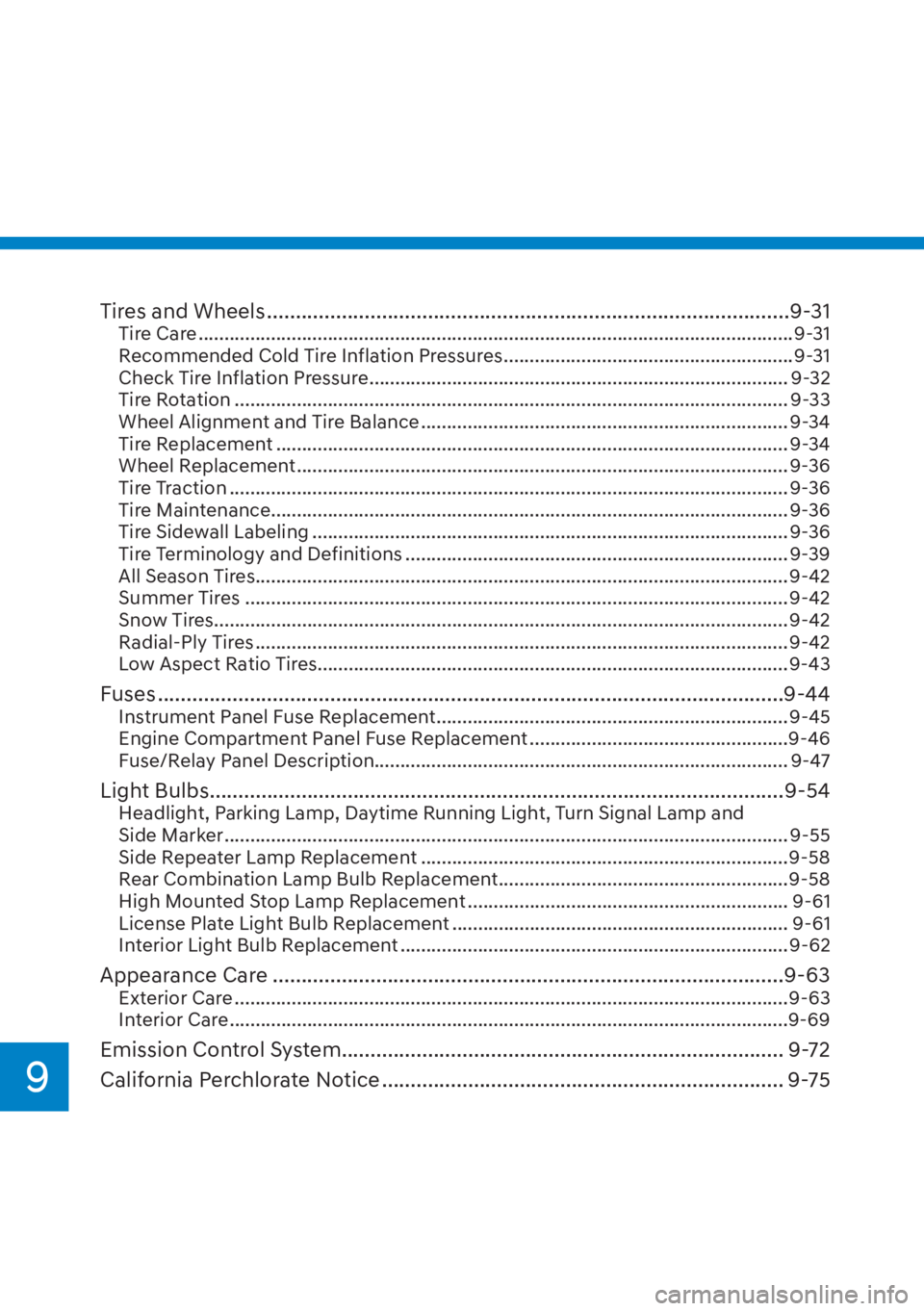

Tires and Wheels ........................................................................\
...................9-31Tire Care ........................................................................\
...........................................9-31
Recommended Cold Tire Inflation Pressures ........................................................9-31
Check Tire Inflation Pressure ........................................................................\
......... 9-32
Tire Rotation ........................................................................\
................................... 9-33
Wheel Alignment and Tire Balance ....................................................................... 9-34
Tire Replacement ........................................................................\
........................... 9-34
Wheel Replacement ........................................................................\
....................... 9-36
Tire Traction ........................................................................\
.................................... 9-36
Tire Maintenance..................................................................\
.................................. 9-36
Tire Sidewall Labeling ........................................................................\
.................... 9-36
Tire Terminology and Definitions ........................................................................\
.. 9-39
All Season Tires ........................................................................\
............................... 9-42
Summer Tires ........................................................................\
................................. 9-42
Snow Tires......................................................................\
......................................... 9-42
Radial-Ply Tires ........................................................................\
............................... 9-42
Low Aspect Ratio Tires ........................................................................\
................... 9-43
Fuses ...................................................................\
..........................................9-44Instrument Panel Fuse Replacement .................................................................... 9-45
Engine Compartment Panel Fuse Replacement ..................................................9-46
Fuse/Relay Panel Description........................................................................\
........ 9-47
Light Bulbs ........................................................................\
............................9-54Headlight, Parking Lamp, Daytime Running Light, Turn Signal Lamp and
Side Marker ........................................................................\
..................................... 9-55
Side Repeater Lamp Replacement .......................................................................9-58
Rear Combination Lamp Bulb Replacement ........................................................9-58
High Mounted Stop Lamp Replacement .............................................................. 9-61
License Plate Light Bulb Replacement ................................................................. 9-61
Interior Light Bulb Replacement ........................................................................\
... 9-62
Appearance Care ........................................................................\
.................9-63Exterior Care ........................................................................\
...................................9-63
Interior Care ........................................................................\
....................................9-69
Emission Control System ........................................................................\
..... 9-72
California Perchlorate Notice ...................................................................... 9-75
9

Maintenance9-44

v Cartridge type

v
Blade type

v Multi fuse Normal Blown
Normal Blown
Normal Blown
OTM078035
A vehicle’s electrical system is protected
from electrical overload damage by
fuses.
This vehicle has 2 (or 3) fuse panels, one
located in the driver’s side panel bolster,
the other in the engine compartment
near the battery.
If any of your vehicle’s lights,
accessories, or controls do not work,
check the appropriate circuit fuse. If a
fuse has blown, the element inside the
fuse will be melted or broken.
If the electrical system does not work,
first check the driver’s side fuse panel.
Before replacing a blown fuse, turn the
engine and all switches off, and then
disconnect the battery connector. Always
replace a blown fuse with one of the
same rating.
If the replacement fuse blows, this
indicates an electrical problem.
Avoid using the system involved and
immediately consult an authorized
HYUNDAI dealer.
WARNING
NEVER replace a fuse with anything but
another fuse of the same rating.

[A higher capacity fuse could cause
damage and possibly cause a fire.

[ Do not install a wire or aluminum
foil instead of the proper fuse -
even as a temporary repair. It may
cause extensive wiring damage and
possibly a fire.
NOTICE
Do not use a screwdriver or any other
metal object to remove fuses because
it may cause a short circuit and damage
the system.
FUSES

09
9-45

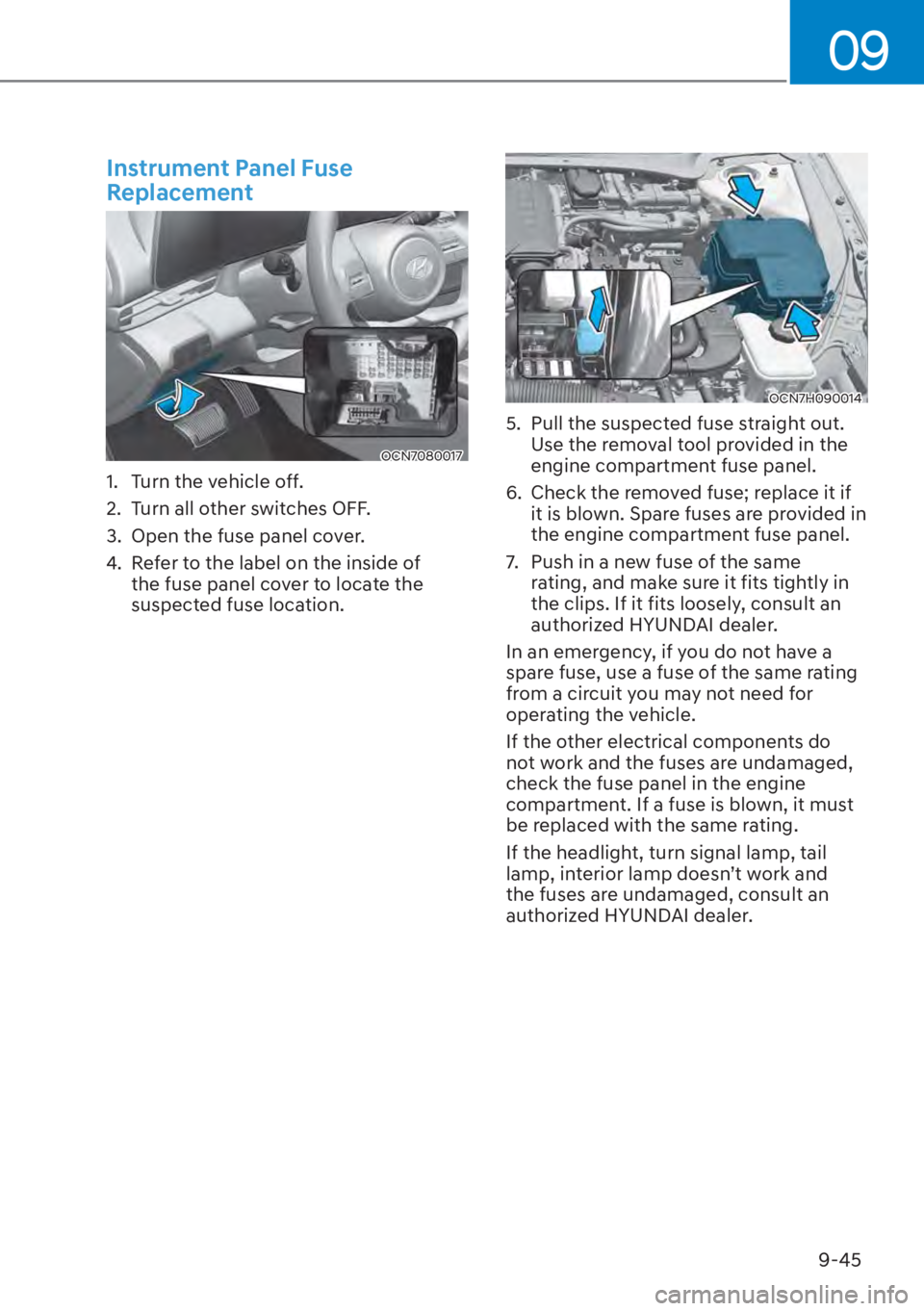

Instrument Panel Fuse
Replacement
OCN7080017
1. Turn the vehicle off.
2. Turn all other switches OFF.
3. Open the fuse panel cover.
4. Refer to the label on the inside of the fuse panel cover to locate the
suspected fuse location.
OCN7H090014
5. Pull the suspected fuse straight out. Use the removal tool provided in the
engine compartment fuse panel.
6. Check the removed fuse; replace it if it is blown. Spare fuses are provided in
the engine compartment fuse panel.
7. Push in a new fuse of the same rating, and make sure it fits tightly in
the clips. If it fits loosely, consult an
authorized HYUNDAI dealer.
In an emergency, if you do not have a
spare fuse, use a fuse of the same rating
from a circuit you may not need for
operating the vehicle.
If the other electrical components do
not work and the fuses are undamaged,
check the fuse panel in the engine
compartment. If a fuse is blown, it must
be replaced with the same rating.
If the headlight, turn signal lamp, tail
lamp, interior lamp doesn’t work and
the fuses are undamaged, consult an
authorized HYUNDAI dealer.
