2023 HONDA HRV Owners Manual

615
uuEngine Does Not StartuEmergency Engine Start
Handling the Unexpected
Emergency Engine Start
If the engine does not start using the normal engine starting procedure, you may be
able to start it using the emergency start procedure below.
Do not use this procedure if it is not an emergency.
1. Check that the parking brake is engaged.
2. Check that the transmission is in
(P, then set the power mode to ACCESSORY.
3. Firmly depress the brake pedal and hold down the ENGINE START/STOP button
for at least 15 seconds.
This should be considered a system malfun ction even if you are able to start the
engine using the above procedure.
Have your vehicle checked by a dealer immediately.
1Emergency Engine Start
Refer to the following if you cannot move the shift
lever out of the
( P position.
2 Shift Lever Does Not Move P. 619
23 HR-V-313V06000_01.book 615 ページ ２０２２年４月４日　月曜日　午前１０時４９分

616
uuEngine Does Not StartuEmergency Engine Stop
Handling the Unexpected

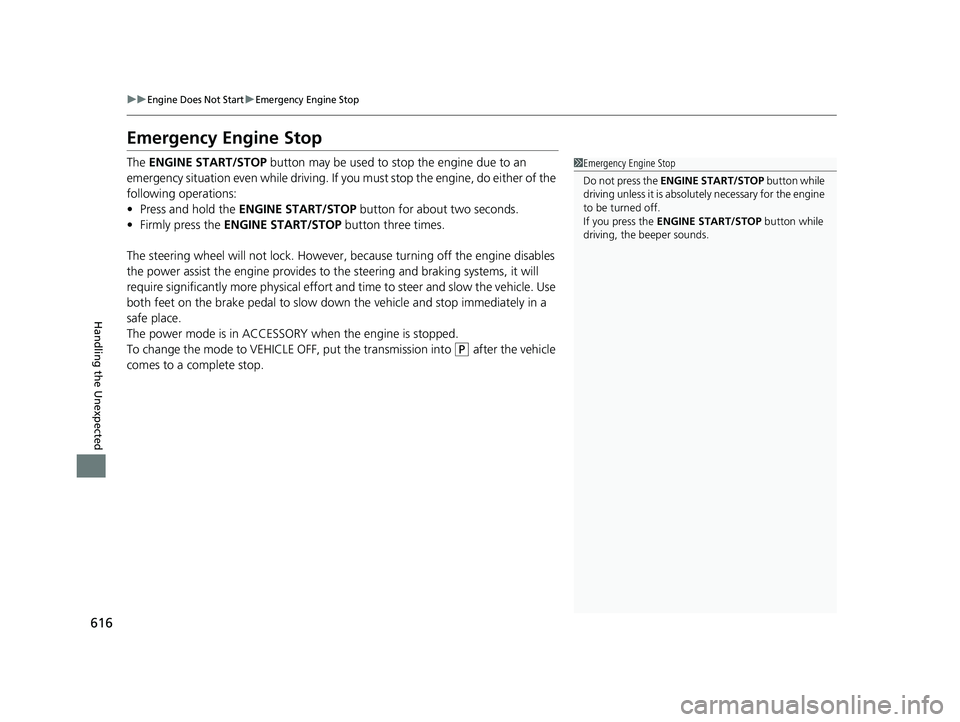

Emergency Engine Stop
The ENGINE START/STOP button may be used to stop the engine due to an
emergency situation even while driving. If you must stop the engine, do either of the
following operations:
• Press and hold the ENGINE START/STOP button for about two seconds.
• Firmly press the ENGINE START/STOP button three times.
The steering wheel will not lock. However, because turning off the engine disables
the power assist the engine provides to the steering and braking systems, it will
require significantly more physical effort an d time to steer and slow the vehicle. Use
both feet on the brake pedal to slow down the vehicle and stop immediately in a
safe place.
The power mode is in ACCESSORY when the engine is stopped.
To change the mode to VEHICLE OFF, put the transmission into
(P after the vehicle
comes to a complete stop.
1 Emergency Engine Stop
Do not press the ENGINE START/STOP button while
driving unless it is absolute ly necessary for the engine
to be turned off.
If you press the ENGINE START/STOP button while
driving, the beeper sounds.
23 HR-V-313V06000_01.book 616 ページ ２０２２年４月４日　月曜日　午前１０時４９分

617Continued
Handling the Unexpected
If the Battery Is Dead
Jump Starting Procedure
Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood. 1.Open the cover on the positive + terminal.
2. Connect the first jumper cable to your
vehicle’s battery + terminal.
3. Connect the other end of the first jumper
cable to the booster battery + terminal.
u Use a 12-volt booster battery only.
u When using the automotive battery
charger to boost your 12-volt battery,
select a lower charging voltage than 15-
volt. Check the charger manual for the
proper setting.
4. Connect the second jumper cable to the
booster battery - terminal.
5. Connect the other end of the second
jumper cable to the stud bolt as shown. Do
not connect this jumper cable to any other
part.
6. If your vehicle is connected to another
vehicle, start the assisting vehicle’s engine
and increase its rpm slightly.
7. Attempt to start your ve hicle’s engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.1 Jump Starting Procedure
Securely attach the jumper cables clips so that they
do not come off when the e ngine vibrates. Be careful
not to tangle the jumper cables or allow the cable
ends to touch each other while attaching or
detaching the jumper cables.
Battery performance degrades in cold conditions and
may prevent the engi ne from starting.
3WARNING
A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the battery.
Booster Battery
23 HR-V-313V06000_01.book 617 ページ ２０２２年４月４日　月曜日　午前１０時４９分

uuIf the Battery Is Dead uJump Starting Procedure
618
Handling the Unexpected
Once your vehicle’s engine has started, re move the jumper cables in the following
order.
1. Disconnect the jumper cable from your vehicle’s stud bolt.
2. Disconnect the other end of the jumper cable from the booster battery -
terminal.
3. Disconnect the jumper cable from your vehicle’s battery + terminal.
4. Disconnect the other end of the jumper cable from the booster battery +
terminal.
Have your vehicle inspected by a n earby service station or a dealer.
■What to Do After the Engine Starts1Jump Starting Procedure
The Vehicle Stability Assist
TM (VSA ®) system, Adaptive
Cruise Control (ACC) with Low Speed Follow, brake
system (amber), safety suppor t and low tire pressure/
TPMS
* indicators may come on in amber along with
a message in the driver information interface when
you set the power mode to ON after reconnecting
the battery.
Drive a short distance at more than 12 mph (20 km/
h). Each indicator should go off. If any do not, have
your vehicle checked by a dealer.
* Not available on all models
23 HR-V-313V06000_01.book 618 ページ ２０２２年４月４日　月曜日　午前１０時４９分

619
Handling the Unexpected

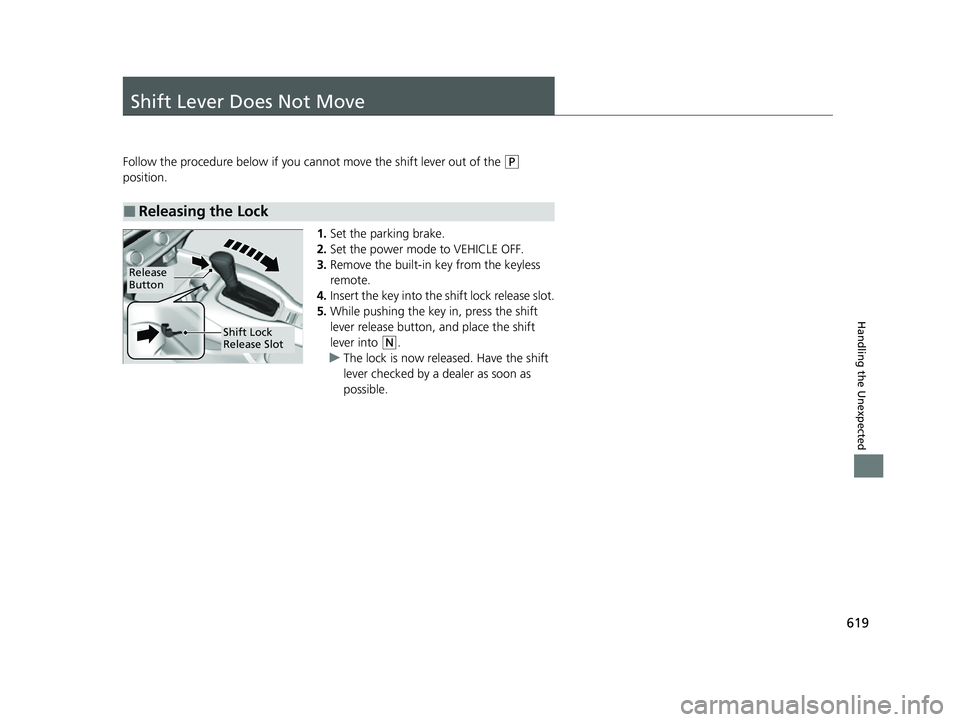

Shift Lever Does Not Move
Follow the procedure below if you cannot move the shift lever out of the (P
position.
1.Set the parking brake.
2. Set the power mode to VEHICLE OFF.
3. Remove the built-in key from the keyless
remote.
4. Insert the key into the shift lock release slot.
5. While pushing the key in, press the shift
lever release button, and place the shift
lever into
(N.
u The lock is now released. Have the shift
lever checked by a de aler as soon as
possible.
■Releasing the Lock
Release
Button
Shift Lock
Release Slot
23 HR-V-313V06000_01.book 619 ページ ２０２２年４月４日　月曜日　午前１０時４９分

620
Handling the Unexpected

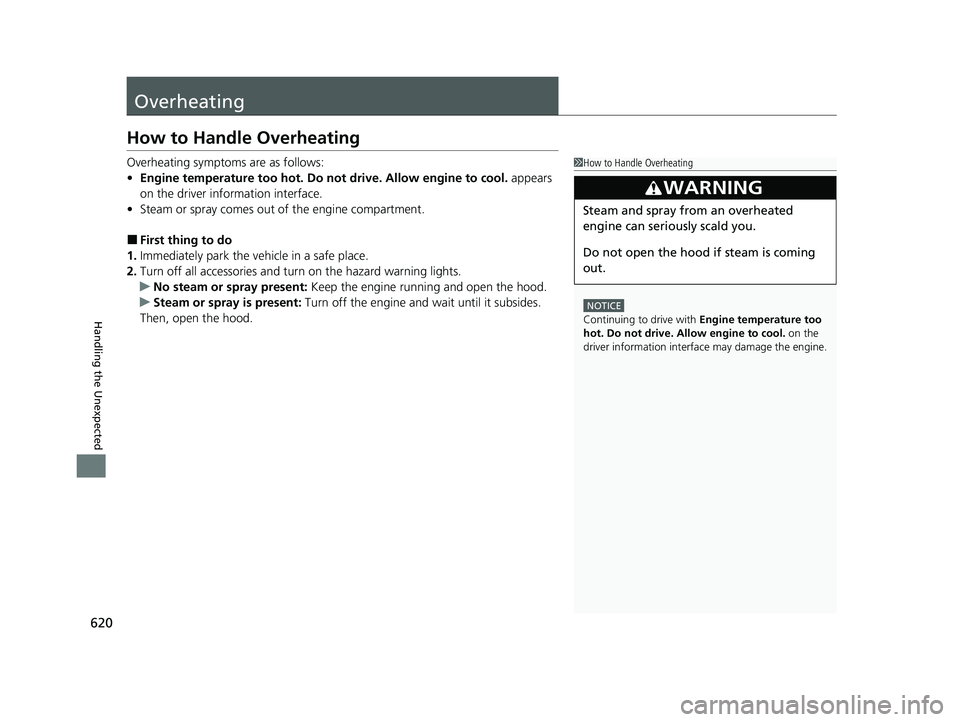

Overheating
How to Handle Overheating
Overheating symptoms are as follows:
•Engine temperature too hot. Do no t drive. Allow engine to cool. appears
on the driver information interface.
• Steam or spray comes out of the engine compartment.
■First thing to do
1. Immediately park the vehicle in a safe place.
2. Turn off all accessories and turn on the hazard warning lights.
u No steam or spray present: Keep the engine running and open the hood.
u Steam or spray is present: Turn off the engine and wait until it subsides.
Then, open the hood.
1 How to Handle Overheating
NOTICE
Continuing to drive with Engine temperature too
hot. Do not drive. Allow engine to cool. on the
driver information interfac e may damage the engine.
3WARNING
Steam and spray from an overheated
engine can seriously scald you.
Do not open the hood if steam is coming
out.
23 HR-V-313V06000_01.book 620 ページ ２０２２年４月４日　月曜日　午前１０時４９分

621
uuOverheating uHow to Handle Overheating
Handling the Unexpected

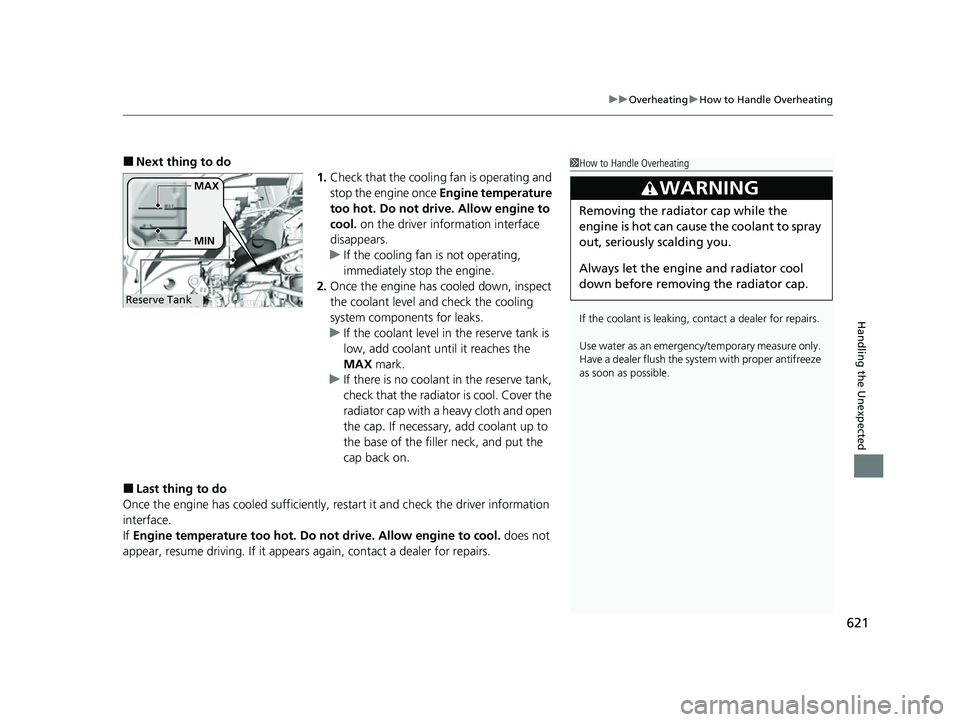

■Next thing to do
1.Check that the cooling fan is operating and
stop the engine once Engine temperature
too hot. Do not drive. Allow engine to
cool. on the driver information interface
disappears.
u If the cooling fan is not operating,
immediately stop the engine.
2. Once the engine has cooled down, inspect
the coolant level and check the cooling
system components for leaks.
u If the coolant level in the reserve tank is
low, add coolant until it reaches the
MAX mark.
u If there is no coolant in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.
■Last thing to do
Once the engine has cooled sufficiently, restart it and check the driver information
interface.
If Engine temperature too hot. Do not drive. Allow engine to cool. does not
appear, resume driving. If it appear s again, contact a dealer for repairs.
1How to Handle Overheating
If the coolant is leaking, contact a dealer for repairs.
Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Reserve TankMAX
MIN
23 HR-V-313V06000_01.book 621 ページ ２０２２年４月４日　月曜日　午前１０時４９分

622
Handling the Unexpected
Indicator, Coming On/Blinking
If the Engine oil pressure low Warning Appears
■Reasons for the warning to appear
Appears when the engine oil pressure is low.
■What to do as soon as the warning
appears
1. Immediately park the vehicle on level
ground in a safe place.
2. If necessary, turn the hazard warning lights
on.
■What to do after parking the vehicle
1. Stop the engine and let it sit for about three
minutes.
2. Open the hood and check the oil level.
u Add oil as necessary.
2 Oil Check P. 566
3.Start the engine and check the Engine oil
pressure low warning.
u The warning disappears: Start driving
again.
u The warning does not disappear within
10 seconds: Immediately stop the engine
and contact a dealer for repairs.
1If the Engine oil pressure low Warning Appears
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediatelyM
