2023 HONDA HRV jump start

Quick Reference Guide
29
Handling the Unexpected (P603)
Flat Tire (P605)
●Park in a safe location and replace the
flat tire with the compact spare tire in the
cargo area.
Indicators Come On
(P622)
●Identify the indicator and consult the
owner’s manual.
Engine Won’t Start (P612)
●If the battery is dead, jump start using a
booster battery.
Blown Fuse (P628)
●Check for a blown fuse if an electrical
device does not operate.
Overheating (P620)
●Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P634)
●Call a professional towing service if you
need to tow your vehicle.
23 HR-V-313V06000_01.book 29 ページ ２０２２年４月４日　月曜日　午前１０時４９分

612
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle to jump start it.
2 If the Battery Is Dead P. 617
Depending on the situation, it may be possible to
temporarily start the engine using the emergency
start procedure. 2 Emergency Engine Start P. 615
23 HR-V-313V06000_01.book 612 ページ ２０２２年４月４日　月曜日　午前１０時４９分

617Continued
Handling the Unexpected
If the Battery Is Dead
Jump Starting Procedure
Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood. 1.Open the cover on the positive + terminal.
2. Connect the first jumper cable to your
vehicle’s battery + terminal.
3. Connect the other end of the first jumper
cable to the booster battery + terminal.
u Use a 12-volt booster battery only.
u When using the automotive battery
charger to boost your 12-volt battery,
select a lower charging voltage than 15-
volt. Check the charger manual for the
proper setting.
4. Connect the second jumper cable to the
booster battery - terminal.
5. Connect the other end of the second
jumper cable to the stud bolt as shown. Do
not connect this jumper cable to any other
part.
6. If your vehicle is connected to another
vehicle, start the assisting vehicle’s engine
and increase its rpm slightly.
7. Attempt to start your ve hicle’s engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.1 Jump Starting Procedure
Securely attach the jumper cables clips so that they
do not come off when the e ngine vibrates. Be careful
not to tangle the jumper cables or allow the cable
ends to touch each other while attaching or
detaching the jumper cables.
Battery performance degrades in cold conditions and
may prevent the engi ne from starting.
3WARNING
A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the battery.
Booster Battery
23 HR-V-313V06000_01.book 617 ページ ２０２２年４月４日　月曜日　午前１０時４９分

uuIf the Battery Is Dead uJump Starting Procedure
618
Handling the Unexpected
Once your vehicle’s engine has started, re move the jumper cables in the following
order.
1. Disconnect the jumper cable from your vehicle’s stud bolt.
2. Disconnect the other end of the jumper cable from the booster battery -
terminal.
3. Disconnect the jumper cable from your vehicle’s battery + terminal.
4. Disconnect the other end of the jumper cable from the booster battery +
terminal.
Have your vehicle inspected by a n earby service station or a dealer.
■What to Do After the Engine Starts1Jump Starting Procedure
The Vehicle Stability Assist
TM (VSA ®) system, Adaptive
Cruise Control (ACC) with Low Speed Follow, brake
system (amber), safety suppor t and low tire pressure/
TPMS
* indicators may come on in amber along with
a message in the driver information interface when
you set the power mode to ON after reconnecting
the battery.
Drive a short distance at more than 12 mph (20 km/
h). Each indicator should go off. If any do not, have
your vehicle checked by a dealer.
* Not available on all models
23 HR-V-313V06000_01.book 618 ページ ２０２２年４月４日　月曜日　午前１０時４９分

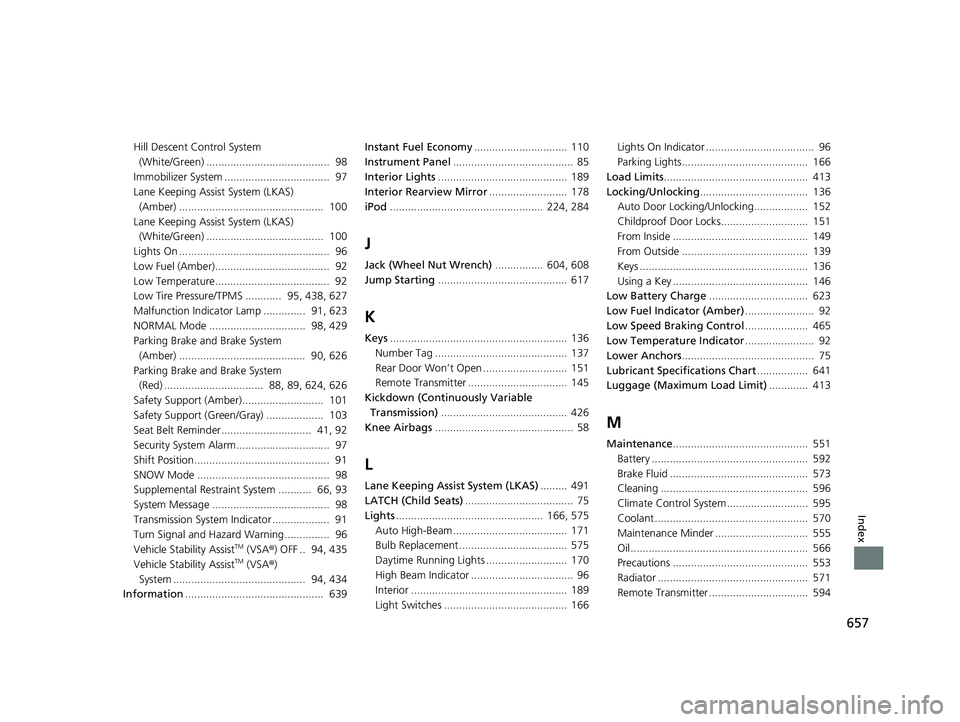

657
Index
Hill Descent Control System (White/Green) ......................................... 98
Immobilizer System ................................... 97
Lane Keeping Assist System (LKAS) (Amber) ................................................ 100
Lane Keeping Assist System (LKAS) (White/Green) ....................................... 100
Lights On .................................................. 96
Low Fuel (Amber)...................................... 92
Low Temperature...................................... 92
Low Tire Pressure/TPMS ............ 95, 438, 627
Malfunction Indicator Lamp .............. 91, 623
NORMAL Mode ................................ 98, 429
Parking Brake and Brake System
(Amber) .......................................... 90, 626
Parking Brake and Brake System (Red) ................................. 88, 89, 624, 626
Safety Support (Amber)........................... 101
Safety Support (Green/Gray) ................... 103
Seat Belt Reminder.............................. 41, 92
Security System Alarm............................... 97
Shift Position............................................. 91
SNOW Mode ............................................ 98
Supplemental Restraint System ........... 66, 93
System Message ....................................... 98
Transmission System Indicator ................... 91
Turn Signal and Hazard Warning............... 96
Vehicle Stability Assist
TM (VSA ®) OFF .. 94, 435
Vehicle Stability AssistTM (VSA ®)
System ............................................ 94, 434
Information .............................................. 639 Instant Fuel Economy
............................... 110
Instrument Panel ........................................ 85
Interior Lights ........................................... 189
Interior Rearview Mirror .......................... 178
iPod ................................................... 224, 284
J
Jack (Wheel Nut Wrench) ................ 604, 608
Jump Starting ........................................... 617
K
Keys........................................................... 136
Number Tag ............................................ 137
Rear Door Won’t Open ............................ 151
Remote Transmitter ................................. 145
Kickdown (Continuously Variable Transmission) .......................................... 426
Knee Airbags .............................................. 58
L
Lane Keeping Assist System (LKAS) ......... 491
LATCH (Child Seats) .................................... 75
Lights ................................................. 166, 575
Auto High-Beam ...................................... 171
Bulb Replacement .................................... 575
Daytime Running Lights ........................... 170
High Beam Indicator .................................. 96
Interior .................................................... 189
Light Switches ......................................... 166 Lights On Indicator .................................... 96
Parking Lights.......................................... 166
Load Limits ................................................ 413
Locking/Unlocking .................................... 136
Auto Door Locking/Unlocking.................. 152
Childproof Door Locks............................. 151
From Inside ............................................. 149
From Outside .......................................... 139
Keys ........................................................ 136
Using a Key ............................................. 146
Low Battery Charge ................................. 623
Low Fuel Indicator (Amber) ....................... 92
Low Speed Braking Control ..................... 465
Low Temperature Indicator ....................... 92
Lower Anchors ............................................ 75
Lubricant Specifications Chart ................. 641
Luggage (Maximum Load Limit) ............. 413
M
Maintenance............................................. 551
Battery .................................................... 592
Brake Fluid .............................................. 573
Cleaning ................................................. 596
Climate Control System ........................... 595
Coolant ................................................... 570
Maintenance Minder ............................... 555
Oil ........................................................... 566
Precautions ............................................. 553
Radiator .................................................. 571
Remote Transmitter ................................. 594
23 HR-V-313V06000_01.book 657 ページ ２０２２年４月４日　月曜日　午前１０時４９分
