2023 HONDA HRV Owners Manual

23
Quick Reference Guide
VOL/ AUDIO
(Volume/Power) Knob
(Home) Button
(Back) Button
Audio/Information Screen
(Seek/Track) Button
(Seek/Track) Button
(P 244)
For navigation system operation () See the Navigation System Manual
Models with 9-in. Color Touchscreen
23 HR-V-313V06000_01.book 23 ページ ２０２２年４月４日　月曜日　午前１０時４９分

24
Quick Reference Guide

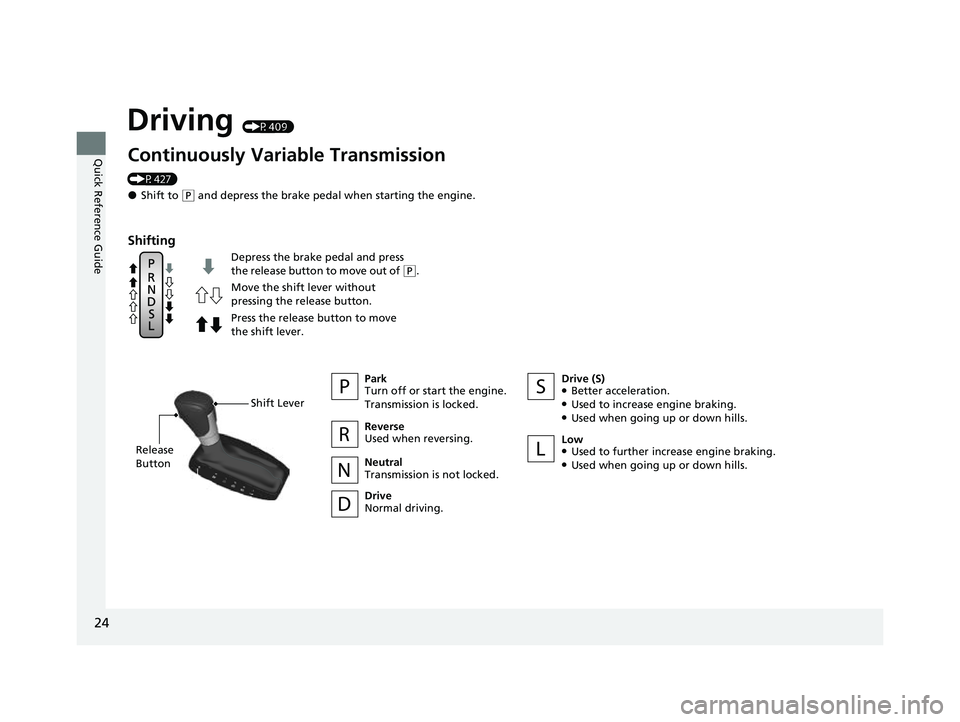

Driving (P409)
Depress the brake pedal and press
the release button to move out of
(P.
Continuously Variable Transmission
(P427)
●Shift to (P and depress the brake pedal when starting the engine.
Shifting
Park
Turn off or start the engine.
Transmission is locked.
Reverse
Used when reversing.
Neutral
Transmission is not locked.
Drive
Normal driving. Drive (S)●Better acceleration.●Used to increase engine braking.●Used when going up or down hills.
Low
●Used to further increase engine braking.●Used when going up or down hills.
Move the shift lever without
pressing the release button.
Press the release button to move
the shift lever.
Shift Lever
Release
Button
23 HR-V-313V06000_01.book 24 ページ ２０２２年４月４日　月曜日　午前１０時４９分

25
Quick Reference Guide
CMBSTM On and Off
(P457)
●When a possible frontal collision is likely
unavoidable, the CMBSTM can reduce the
vehicle speed and the severity of the
collision.
●The CMBSTM is turned on every time you
start the engine.
●To turn the CMBSTM on or off, use the
safety support of th e driver information
interface.
VSA ® On and Off (P435)
●The Vehicle Stability AssistTM (VSA® )
system helps stabilize the vehicle during
cornering and helps maintain traction
while accelerating on loose or slippery
road surfaces.
●VSA ® comes on automatically every time
you start the engine.
●To partially disable or fully restore VSA®
function, press and ho ld the button until
you hear a beep.
Tire Pressure Monitoring
System (TPMS)
(P438)
●Detects a change in tire conditions and
overall dimensions due to decrease in tire
pressures.
●The TPMS is turned on automatically
every time you start the engine.
●A calibration procedure must be
performed when certain conditions arise.
U.S. models only
Refueling (P547)
Fuel recommendation: Unl eaded gasoline, pump octa ne number 87 or higher
Fuel tank capacity: 14.0 US gal (53 L)
aUnlock the driver’s
door.
(P 149)
bPress on the edge of
the fuel fill door to
make it pop up
slightly.
cAfter refueling, wait
for about five
seconds before
removing the filler
nozzle.
23 HR-V-313V06000_01.book 25 ページ ２０２２年４月４日　月曜日　午前１０時４９分

26
Quick Reference Guide
Honda Sensing® (P449)
Honda Sensing ® is a driver support system
which employs the use of two distinctly
different kinds of sensors: the sonar sensors
located in the front and rear bumpers, and
the front grille, and a front wide view
camera mounted to the interior side of the
windshield, behind the rearview mirror.
Honda Sensing ® is a driver support system
which employs the use of a front wide view
camera mounted to the interior side of the
windshield, behind the rearview mirror.
Models with Low Speed Braking Control
Models without Low Speed Braking Control
Front Wide View
Camera
Sonar Sensors
*
Collision Mitigation
Braking System
TM
(CMBS
TM) (P453)
The system can assist you when it
determines there is a possibility of your
vehicle colliding with a vehicle (including
motorcycles) ahead from behind, an
oncoming vehicle in front, a pedestrian, or
someone riding a bicycle (moving bicycle).
The CMBS
TM is designed to alert you when
the potential for a collision is determined, as
well as assist in reducing speed, avoiding
collisions, and reducing collision severity.
Low Speed Braking
Control
* (P465)
Using sonar sensors located on the front and
rear bumpers, and the front grille, this
system can detect if there is danger of a
potential collision with a wall or other
obstacle during normal driving or when the
accelerator pedal is depressed with too
much force. The system then assists in
avoiding collisions and reducing damage
from impact through a ssistive braking and/
or assistive driving power suppression.
Adaptive Cruise Control
(ACC) with Low Speed
Follow
(P471)
Helps maintain a constant vehicle speed and
a set following-interval behind a vehicle
detected ahead of yours and, if the detected
vehicle comes to a stop, can decelerate and
stop your vehicle, without you having to
keep your foot on the brake or the
accelerator.
Lane Keeping Assist
System (LKAS)
(P491)
Provides steering input to help keep the
vehicle in the middle of a detected lane and
provides tactile and visual alerts if the
vehicle is detected drifting out of its lane.
23 HR-V-313V06000_01.book 26 ページ ２０２２年４月４日　月曜日　午前１０時４９分

27
Quick Reference Guide
Traffic Jam Assist* (P502)
The traffic jam assist system uses a camera
mounted to the upper portion of the
windshield to detect and monitor left and
right white (or yellow) traffic lane lines.
Based on inputs from the camera, the
system can apply steering torque to keep
your vehicle in the center of the detected
lane.Road Departure
Mitigation System
(P 511)
Alerts and helps assist you when the system
detects a possibility of your vehicle crossing
over detected lane markings, or
approaching the outer edge of the
pavement (into grass or gravel border) or a
detected oncoming vehicle.
Traffic Sign Recognition
System
(P519)
Reminds you of road sign information, such
as the current speed limit your vehicle has
just passed through, showing it on the
gauge.
* Not available on all models
23 HR-V-313V06000_01.book 27 ページ ２０２２年４月４日　月曜日　午前１０時４９分

28
Quick Reference Guide
Maintenance (P551)
Under the Hood (P563)
●Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
●Check brake fluid.●Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, push it to the side, and then
raise the hood. Once you have raised the hood slightly,
you can release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P575)
●Inspect all lights regularly.
Wiper Blades (P577)
●Replace blades if they leave streaks
across the windshield or become noisy.
Tires (P581)
●Inspect tires and wheels regularly.●Check tire pressures regularly.●Install snow tires for winter driving.
23 HR-V-313V06000_01.book 28 ページ ２０２２年４月４日　月曜日　午前１０時４９分

Quick Reference Guide
29
Handling the Unexpected (P603)
Flat Tire (P605)
●Park in a safe location and replace the
flat tire with the compact spare tire in the
cargo area.
Indicators Come On
(P622)
●Identify the indicator and consult the
owner’s manual.
Engine Won’t Start (P612)
●If the battery is dead, jump start using a
booster battery.
Blown Fuse (P628)
●Check for a blown fuse if an electrical
device does not operate.
Overheating (P620)
●Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P634)
●Call a professional towing service if you
need to tow your vehicle.
23 HR-V-313V06000_01.book 29 ページ ２０２２年４月４日　月曜日　午前１０時４９分

30
Quick Reference Guide
What to Do If
The power mode does not
change from ACCESSORY
to VEHICLE OFF (LOCK).
Why?The shift lever should be moved to (P.
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
2Anti-lock Brake System (ABS) (P535)
The rear door cannot be
opened from inside the
vehicle. Why?Check if the childproof lock is in the lock
position. If so, open the rear door with
the outside door handle.
To cancel this function, slide the lever up
to the unlock position.
Why do the doors lock
after I unlocked the doors?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
