2023 HONDA HRV Owners Manual

103

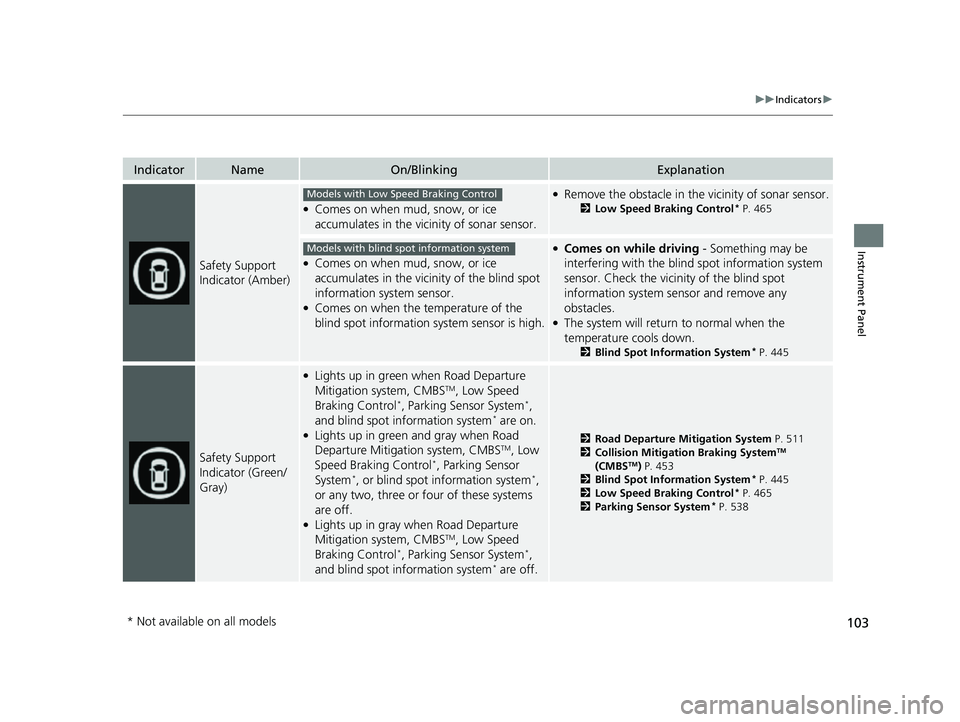

uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Safety Support
Indicator (Amber)
●Comes on when mud, snow, or ice
accumulates in the vicinity of sonar sensor.
●Remove the obstacle in the vicinity of sonar sensor.
2Low Speed Braking Control* P. 465
●Comes on when mud, snow, or ice
accumulates in the vicinity of the blind spot
information system sensor.
●Comes on when the temperature of the
blind spot information system sensor is high.
●Comes on while driving - Something may be
interfering with the blind spot information system
sensor. Check the vicinity of the blind spot
information system sensor and remove any
obstacles.
●The system will return to normal when the
temperature cools down.
2 Blind Spot Information System* P. 445
Safety Support
Indicator (Green/
Gray)
●Lights up in green when Road Departure
Mitigation system, CMBSTM, Low Speed
Braking Control*, Parking Sensor System*,
and blind spot information system* are on.●Lights up in green and gray when Road
Departure Mitigation system, CMBSTM, Low
Speed Braking Control*, Parking Sensor
System*, or blind spot information system*,
or any two, three or four of these systems
are off.
●Lights up in gray when Road Departure
Mitigation system, CMBSTM, Low Speed
Braking Control*, Parking Sensor System*,
and blind spot information system* are off.
2 Road Departure Mitigation System P. 511
2 Collision Mitigation Braking SystemTM
(CMBSTM) P. 453
2 Blind Spot Information System* P. 445
2 Low Speed Braking Control* P. 465
2 Parking Sensor System* P. 538
Models with Low Speed Braking Control
Models with blind spot information system
* Not available on all models
23 HR-V-313V06000_01.book 103 ページ ２０２２年４月４日　月曜日　午前１０時４９分

104
Instrument Panel

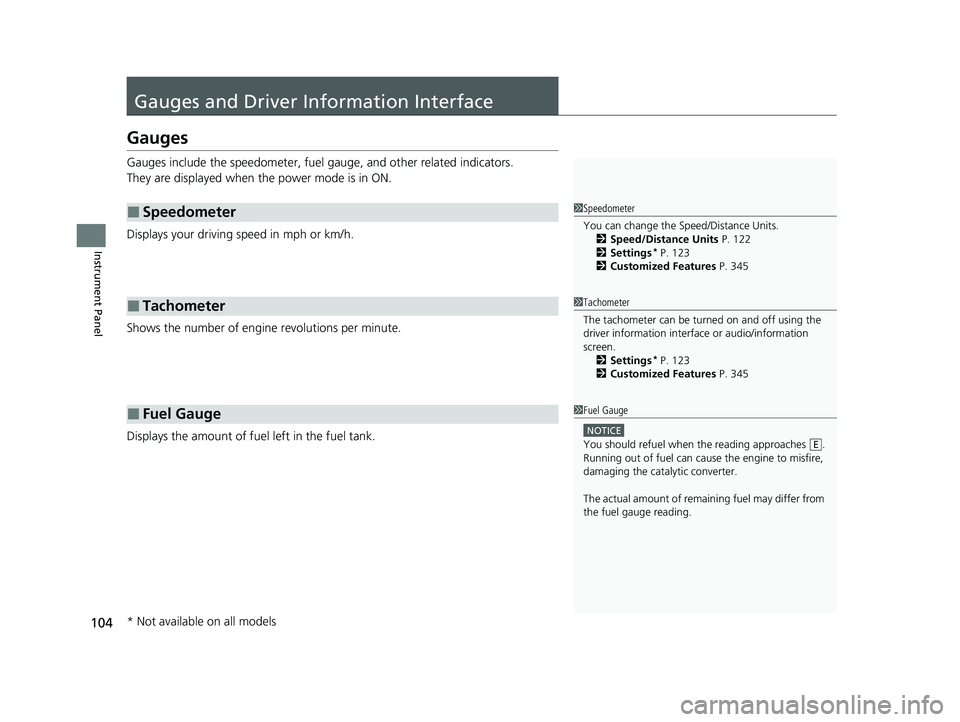

Gauges and Driver Information Interface
Gauges
Gauges include the speedometer, fuel gauge, and other related indicators.
They are displayed when the power mode is in ON.
Displays your driving speed in mph or km/h.
Shows the number of engine revolutions per minute.
Displays the amount of fuel left in the fuel tank.
■Speedometer
■Tachometer
■Fuel Gauge
1Speedometer
You can change the Speed/Distance Units.
2 Speed/Distance Units P. 122
2 Settings
* P. 123
2 Customized Features P. 345
1Tachometer
The tachometer can be tu rned on and off using the
driver information interf ace or audio/information
screen. 2 Settings
* P. 123
2 Customized Features P. 345
1Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
* Not available on all models
23 HR-V-313V06000_01.book 104 ページ ２０２２年４月４日　月曜日　午前１０時４９分

Continued105
uuGauges and Driver Information Interface uGauges
Instrument Panel
Shows the total number of miles or kilome ters that your vehicle has accumulated.
Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature display
Adjust the temperature reading by up to ±5°F or ±3°C if the temperature reading
seems incorrect.
Shows certain detected traffic signs while driving.
The indicator blinks when th e maximum speed of the traffic sign detected by the
Traffic Sign Recognition System is exceeded.
2 Traffic Sign Recognition System P. 519
■Odometer
■Outside Temperature
■Traffic Sign Recognition System
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
You can adjust the temperature reading.
2 Settings
* P. 123
2 Customized Features P. 345
* Not available on all models
23 HR-V-313V06000_01.book 105 ページ ２０２２年４月４日　月曜日　午前１０時４９分

106
uuGauges and Driver Information Interface uGauges
Instrument Panel
Shows the current mode for ACC with Low Speed Follow, LKAS, and Traffic Jam
Assist*.
2 Adaptive Cruise Control (ACC) with Low Speed Follow P. 471
2 Lane Keeping Assist System (LKAS) P. 491
2 Traffic Jam Assist
* P. 502
Shows the clock.
You can adjust the time manually and change the clock display to show the 12 hour
clock or 24 hour clock.
2Clock P. 134
■Current Mode for ACC with Low Speed Follow, the LKAS, and
Traffic Jam Assist*
■Clock
* Not available on all models
23 HR-V-313V06000_01.book 106 ページ ２０２２年４月４日　月曜日　午前１０時４９分

107
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel
Driver Information Interface
The driver information interface shows information such as the estimated travelable
distance and fuel economy of the vehicle. It also displays messages such as warnings
and other helpful information.
When a warning message displays, please check the message and contact a dealer
and have the vehicle inspected if necessary . Please refer to the pages below if the
Engine oil pressure low or Engine temperature too hot message is displayed.
2If the Engine oil pressure low Warning Appears P. 622
2 Overheating P. 620
■Accessing contents in the display
Press the (home) button, th en roll the left selector wheel to scroll to the content
you want to see. Press the left sele ctor wheel to see detailed information.
■Switching the Display1Switching the Display
You can add or delete the meter contents.
2 Customize Display P. 121
23 HR-V-313V06000_01.book 107 ページ ２０２２年４月４日　月曜日　午前１０時４９分

108
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
Customize
display
P. 121
Left Selector
Wheel
(home) Button
Roll the left
selector wheel.
No content
P. 122
Speed & time
P. 111
Warnings
P. 122
Range & fuel
P. 109
Settings
*
P. 123 Driver
attention
P. 114
Seat belts
P. 118
Safety
Support
P. 118
Maintenance
P. 118 Phone
*
P. 112 Audio
*
P. 112
Navigation
*
P. 113
AWD torque
distribution
*
P. 117
Brightness
P. 120
* Not available on all models
23 HR-V-313V06000_01.book 108 ページ ２０２２年４月４日　月曜日　午前１０時４９分

109
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel

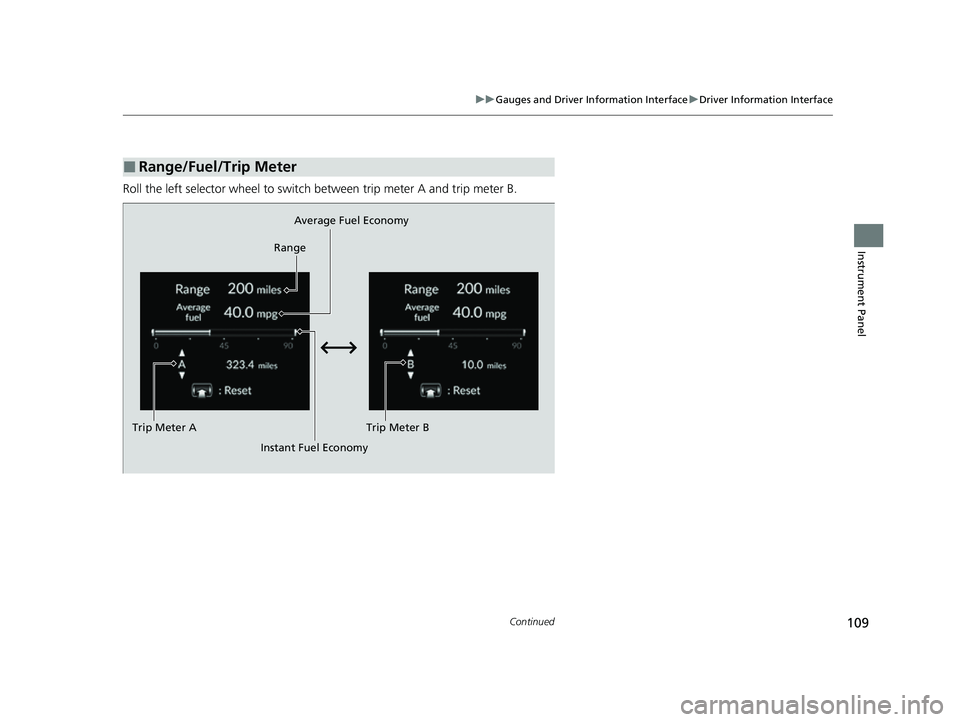

Roll the left selector wheel to switch between trip meter A and trip meter B.
■Range/Fuel/Trip Meter
Average Fuel Economy
Range
Trip Meter B
Instant Fuel Economy
Trip Meter A
23 HR-V-313V06000_01.book 109 ページ ２０２２年４月４日　月曜日　午前１０時４９分

uuGauges and Driver Information Interface uDriver Information Interface
110
Instrument Panel
■Trip meter
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
Resetting a trip meter
To reset the trip meter, display it, press the left selector wheel and then select Reset.
u The trip meter is reset to 0.0.
■Average Fuel Economy
Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. When a trip meter is reset, the average fuel
economy is also reset.
■Instant Fuel Economy
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
■Range
Shows the estimated distance you can trave l on the remaining fuel. This estimated
distance is based on the vehicle’s current fuel economy.
1 Average Fuel Economy
You can change when to reset the average fuel
economy.
2 Settings
* P. 123
2 Customized Features P. 345
1Range
The driving range displayed is only an estimate and
may differ to the actual distance the vehicle can
travel.
* Not available on all models
