2023 HONDA HRV Owners Manual

Continued143
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls

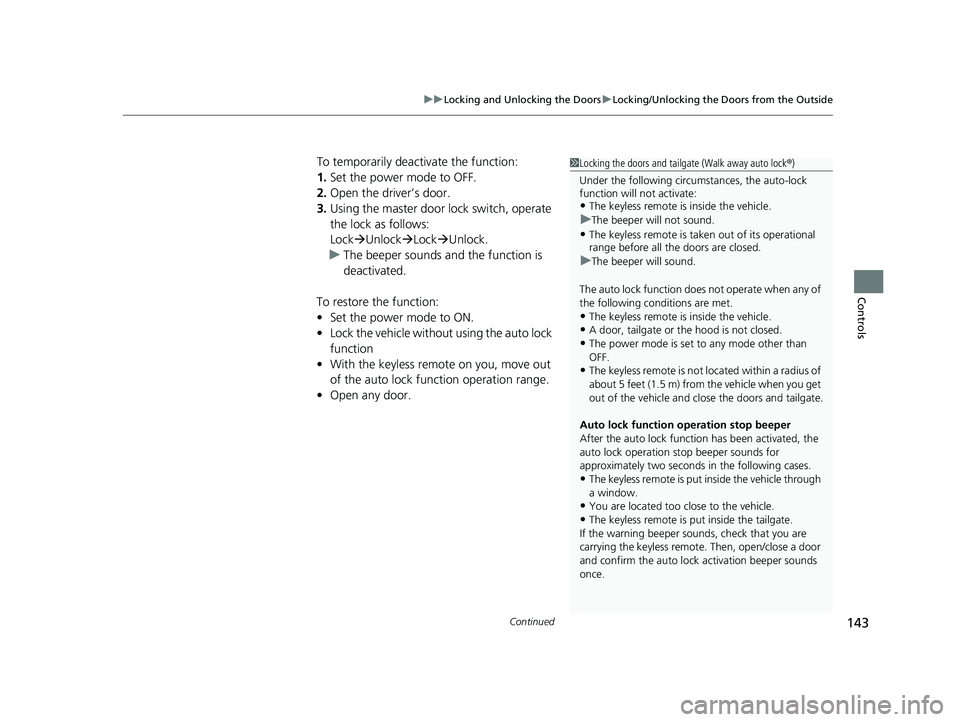

To temporarily deactivate the function:
1. Set the power mode to OFF.
2. Open the driv er’s door.
3. Using the master door lock switch, operate
the lock as follows:
Lock Unlock Lock Unlock.
u The beeper sounds an d the function is
deactivated.
To restore the function:
• Set the power mode to ON.
• Lock the vehicl e without using the auto lock
function
• With the keyless remote on you, move out
of the auto lock function operation range.
• Open any door.1Locking the doors and tailg ate (Walk away auto lock®)
Under the following circumstances, the auto-lock
function will not activate:
•The keyless remote is inside the vehicle.
uThe beeper will not sound.
•The keyless remote is taken out of its operational
range before all the doors are closed.
uThe beeper will sound.
The auto lock function does not operate when any of
the following conditions are met.
•The keyless remote is inside the vehicle.•A door, tailgate or th e hood is not closed.
•The power mode is set to any mode other than
OFF.
•The keyless remote is not located within a radius of
about 5 feet (1.5 m) from the vehicle when you get
out of the vehicle and cl ose the doors and tailgate.
Auto lock function operation stop beeper
After the auto lock function has been activated, the
auto lock operation stop beeper sounds for
approximately two seconds in the following cases.
•The keyless remote is put inside the vehicle through
a window.
•You are located too close to the vehicle.
•The keyless remote is put inside the tailgate.
If the warning beeper sounds, check that you are
carrying the keyless remote. Then, open/close a door
and confirm the auto lock activation beeper sounds
once.
23 HR-V-313V06000_01.book 143 ページ ２０２２年４月４日　月曜日　午前１０時４９分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
144
Controls

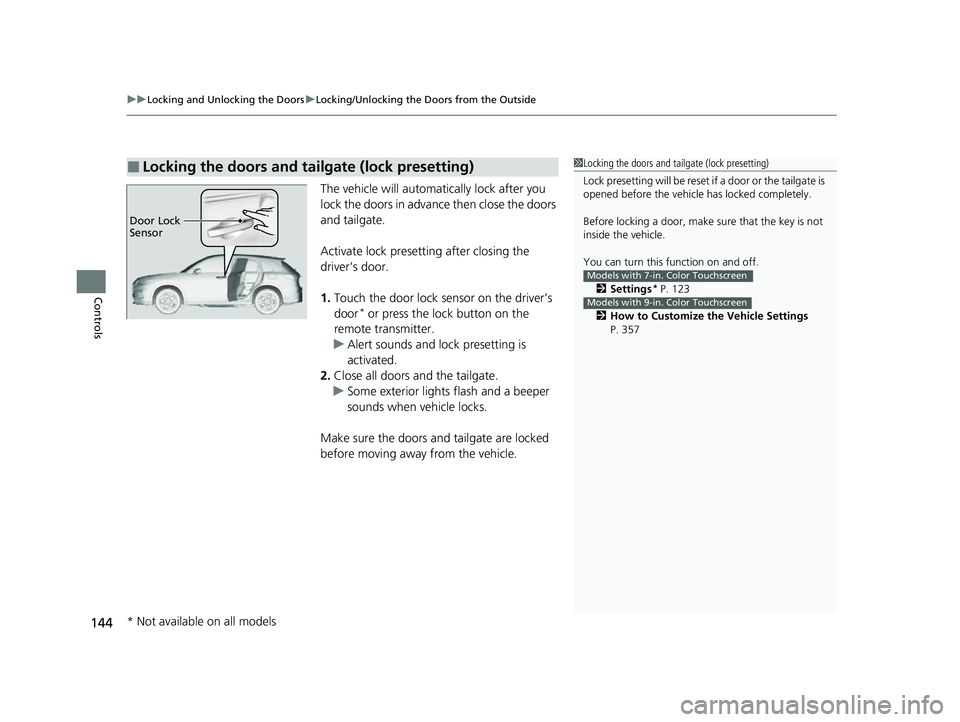

The vehicle will automatically lock after you
lock the doors in advance then close the doors
and tailgate.
Activate lock presetting after closing the
driver’s door.
1. Touch the door lock sensor on the driver’s
door
* or press the lock button on the
remote transmitter.
u Alert sounds and lock presetting is
activated.
2. Close all doors and the tailgate.
u Some exterior lights flash and a beeper
sounds when vehicle locks.
Make sure the doors and tailgate are locked
before moving away from the vehicle.
■Locking the doors and tailgate (lock presetting)1 Locking the doors and tailgate (lock presetting)
Lock presetting will be reset if a door or the tailgate is
opened before the vehicle has locked completely.
Before locking a door, make sure that the key is not
inside the vehicle.
You can turn this function on and off.
2 Settings
* P. 123
2 How to Customize the Vehicle Settings
P. 357
Models with 7-in. Color Touchscreen
Models with 9-in. Color Touchscreen
Door Lock
Sensor
* Not available on all models
23 HR-V-313V06000_01.book 144 ページ ２０２２年４月４日　月曜日　午前１０時４９分

Continued145
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls

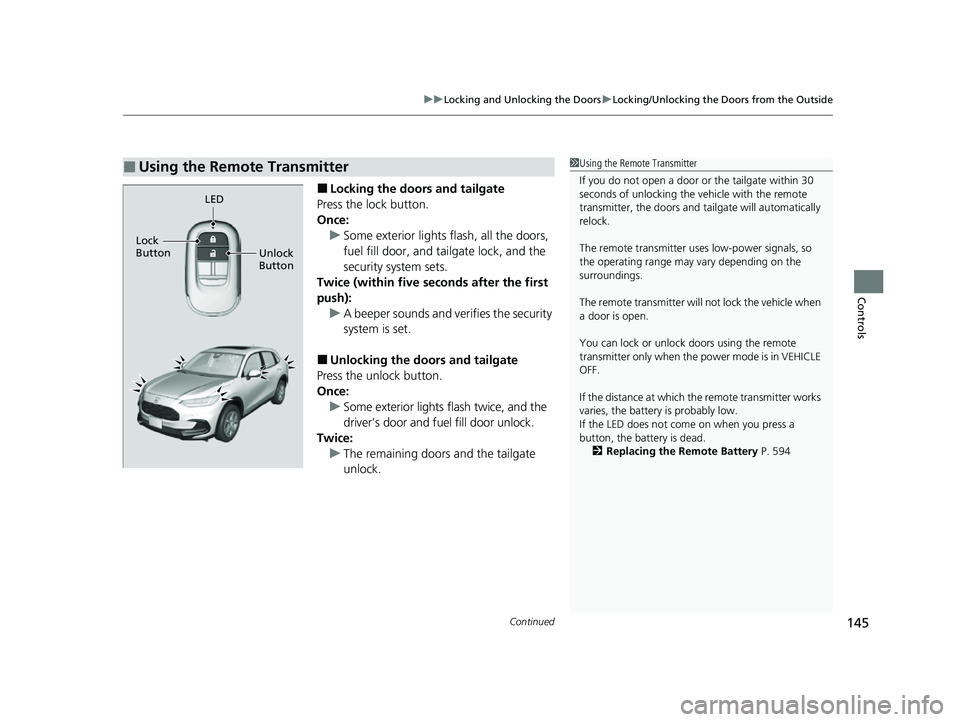

■Locking the doors and tailgate
Press the lock button.
Once: u Some exterior lights flash, all the doors,
fuel fill door, and tailgate lock, and the
security system sets.
Twice (within five se conds after the first
push): u A beeper sounds and verifies the security
system is set.
■Unlocking the doors and tailgate
Press the unlock button.
Once:
u Some exterior lights flash twice, and the
driver’s door and fuel fill door unlock.
Twice: u The remaining doors and the tailgate
unlock.
■Using the Remote Transmitter1Using the Remote Transmitter
If you do not open a door or the tailgate within 30
seconds of unlocking the vehicle with the remote
transmitter, the doors and ta ilgate will automatically
relock.
The remote transmitter us es low-power signals, so
the operating range may vary depending on the
surroundings.
The remote transmitter will not lock the vehicle when
a door is open.
You can lock or unlock doors using the remote
transmitter only when the power mode is in VEHICLE
OFF.
If the distance at which the remote transmitter works
varies, the batter y is probably low.
If the LED does not come on when you press a
button, the battery is dead. 2 Replacing the Remote Battery P. 594
LED
Unlock
Button
Lock
Button
23 HR-V-313V06000_01.book 145 ページ ２０２２年４月４日　月曜日　午前１０時４９分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
146
Controls

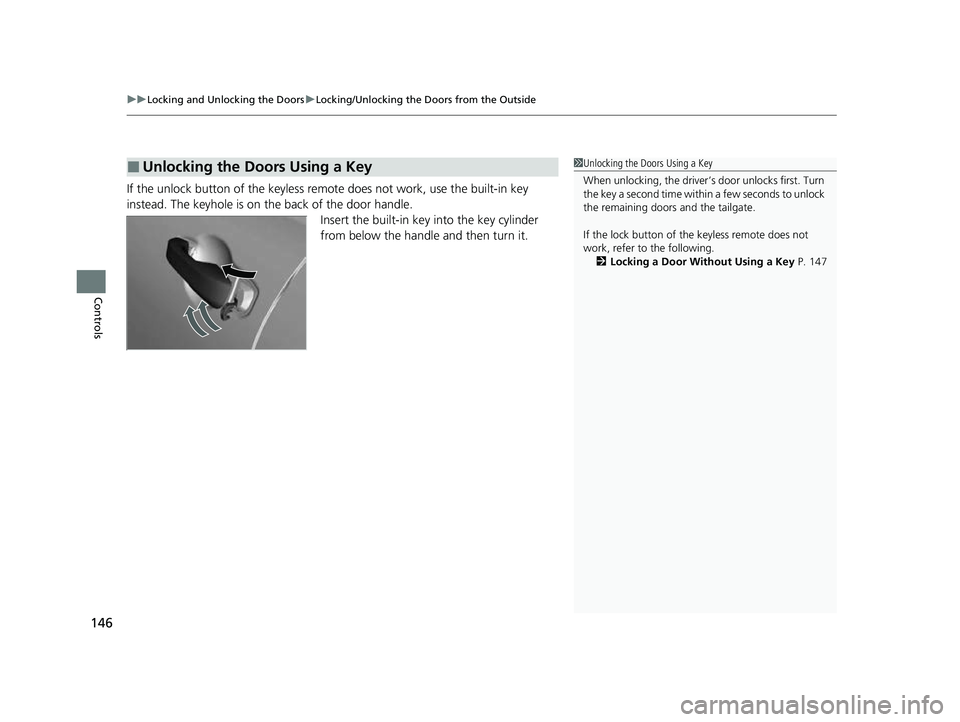

If the unlock button of the keyless re mote does not work, use the built-in key
instead. The keyhole is on the back of the door handle. Insert the built-in key into the key cylinder
from below the handle and then turn it.
■Unlocking the Doors Using a Key1Unlocking the Doors Using a Key
When unlocking, the driver’s door unlocks first. Turn
the key a second time within a few seconds to unlock
the remaining doors and the tailgate.
If the lock button of th e keyless remote does not
work, refer to the following. 2 Locking a Door Without Using a Key P. 147
23 HR-V-313V06000_01.book 146 ページ ２０２２年４月４日　月曜日　午前１０時４９分

Continued147
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls

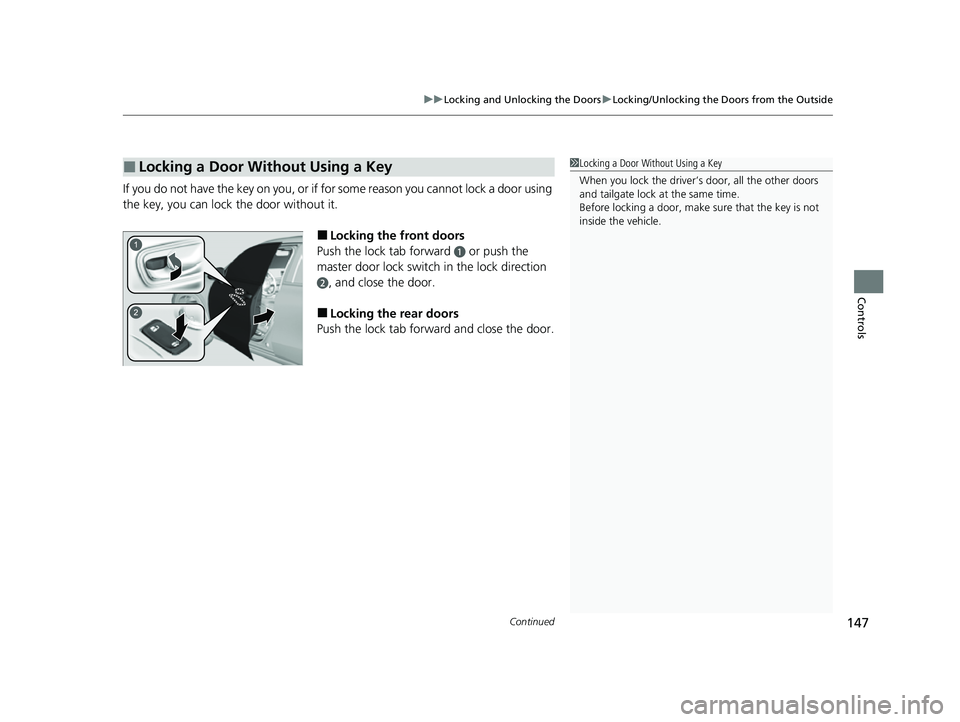

If you do not have the key on you, or if fo r some reason you cannot lock a door using
the key, you can lock the door without it.
■Locking the front doors
Push the lock tab forward
a or push the
master door lock switch in the lock direction
b, and close the door.
■Locking the rear doors
Push the lock tab forward and close the door.
■Locking a Door Without Using a Key1 Locking a Door Without Using a Key
When you lock the driver’s door, all the other doors
and tailgate lock at the same time.
Before locking a door, make sure that the key is not
inside the vehicle.
23 HR-V-313V06000_01.book 147 ページ ２０２２年４月４日　月曜日　午前１０時４９分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
148
Controls
■Lockout protection function
If the vehicle cannot detect the keyless
remote, lockout protection activates. u A beeper sounds, some exterior lights
flash, the doors unlock, and a message
appears on the driver information
interface.
u This allows you to open a door in case
the keyless remote is still inside the
vehicle.
If you do not open a door, all doors relock
after 15 seconds.
To avoid non-detection, make sure to keep
the keyless remote away from cell phones and
other devices that may cause signal
interference.
■Lockout prevention system
The doors and the tailgate cannot be locked
when the keyless remote is inside the vehicle.
1Locking a Door Without Using a Key
You can change the lockout protection operation
setting.
2 Settings
* P. 123
2 How to Customize the Vehicle Settings
P. 357
Models with keyless access system
Models with 7-in. Color Touchscreen
Models with 9-in. Color Touchscreen
Models with keyless access system
Models without ke yless access system
* Not available on all models
23 HR-V-313V06000_01.book 148 ページ ２０２２年４月４日　月曜日　午前１０時４９分

149
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Continued
Controls

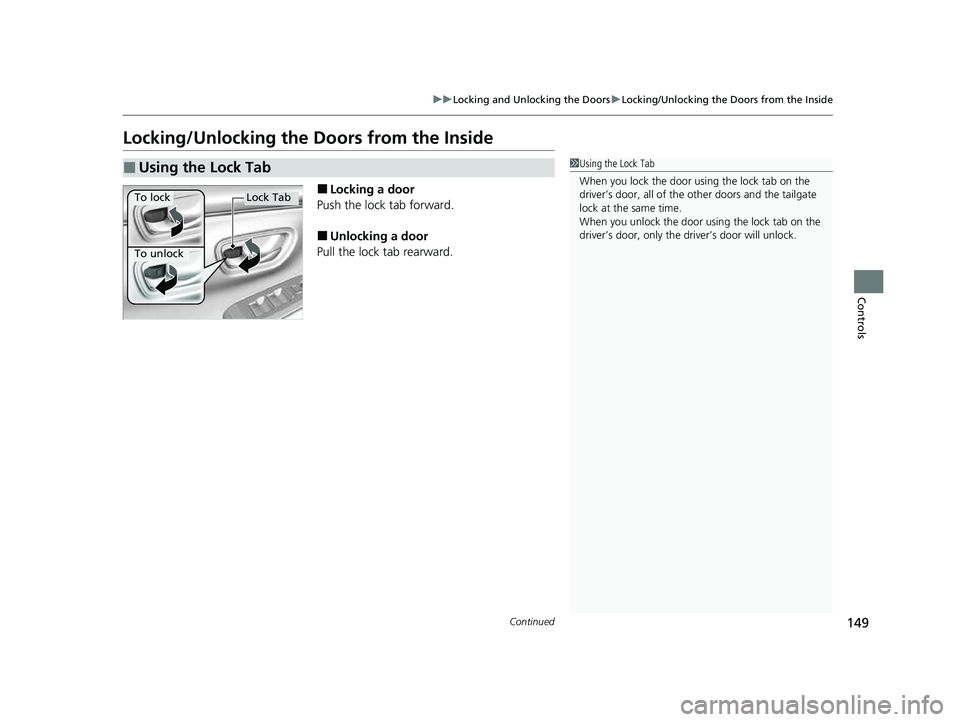

Locking/Unlocking the Doors from the Inside
■Locking a door
Push the lock tab forward.
■Unlocking a door
Pull the lock tab rearward.
■Using the Lock Tab1 Using the Lock Tab
When you lock the door using the lock tab on the
driver’s door, all of the ot her doors and the tailgate
lock at the same time.
When you unlock the door using the lock tab on the
driver’s door, only the driv er’s door will unlock.
To unlock
Lock TabTo lock
23 HR-V-313V06000_01.book 149 ページ ２０２２年４月４日　月曜日　午前１０時４９分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
150
Controls

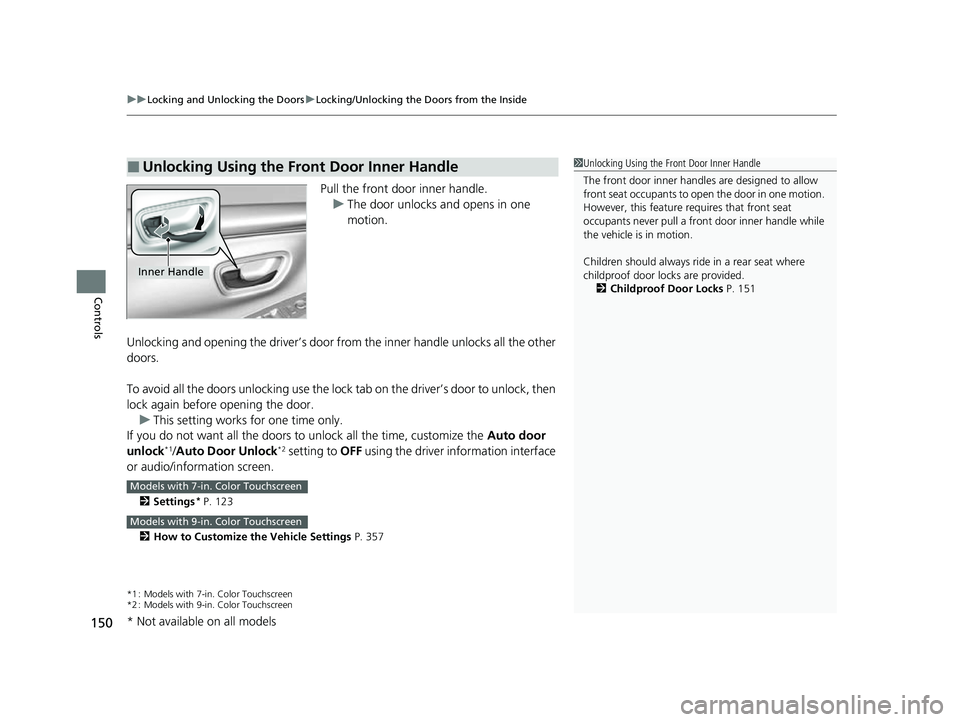

Pull the front door inner handle.
u The door unlocks and opens in one
motion.
Unlocking and opening the driver’s door from the inner handle unlocks all the other
doors.
To avoid all the doors unlocking use the lock tab on the driver’s door to unlock, then
lock again before opening the door. u This setting works for one time only.
If you do not want all the doors to unlock all the time, customize the Auto door
unlock
*1/ Auto Door Unlock*2 setting to OFF using the driver information interface
or audio/information screen.
2 Settings* P. 123
2 How to Customize the Vehicle Settings P. 357
*1 : Models with 7-in. Color Touchscreen
*2 : Models with 9-in. Color Touchscreen
■Unlocking Using the Front Door Inner Handle1Unlocking Using the Front Door Inner Handle
The front door inne r handles are designed to allow
front seat occupants to ope n the door in one motion.
However, this feature requires that front seat
occupants never pull a front door inner handle while
the vehicle is in motion.
Children should always ride in a rear seat where
childproof door locks are provided.
2 Childproof Door Locks P. 151
Inner Handle
Models with 7-in. Color Touchscreen
Models with 9-in. Color Touchscreen
* Not available on all models
23 HR-V-313V06000_01.book 150 ページ ２０２２年４月４日　月曜日　午前１０時４９分
