2023 HONDA HRV transmission fluid

uuWhen Driving uContinuously Variable Transmission
426
Driving
If there is a strong impact with something under the vehicle, stop in a safe location.
Check the underside of the vehicle for damage or any fluid leaks.
Continuously Variable Transmission
When the engine runs at higher idle speeds, the creeping force increases.
Keep the brake pedal firmly depressed when stopped.
Quickly depressing the accelerator pedal while driving uphill may cause the
transmission to drop to a lower ratio, unexpectedly increasing vehicle speed.
Depress the accelerator pedal carefully, es pecially on slippery roads and curves.
■Other Precautions
■Creeping
■Kickdown
1Driving Guidelines for Your Utility Vehicle
Failure to operate your vehi cle correctly might result
in a crash or a rollover. 2 Important Handling Information P. 36
2 Precautions While Driving P. 425
23 HR-V-313V06000_01.book 426 ページ ２０２２年４月４日　月曜日　午前１０時４９分

551
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 552
Safety When Performing Maintenance .... 553
Parts and Fluids Used in Maintenance Service ........................................... 554
Maintenance Minder
TM..................... 555
Maintenance Under the Hood
Maintenance Items Un der the Hood .... 563
Opening the Hood ........................... 564
Recommended Engine Oil ................ 565
Oil Check ......................................... 566
Adding Engine Oil ............................ 567
Changing the Engine Oil and Oil Filter ..... 568
Engine Coolant ................................ 570
Transmission Fluid ............................ 572
Brake Fluid ....................................... 573
Refilling Window Washer Fluid......... 574
Replacing Light Bulbs ....................... 575
Checking and Maintaining Wiper Blades.... 577Checking and Maintaining Tires
Checking Tires ................................. 581
Tire and Loading Information Label .. 583
Tire Labeling .................................... 583
DOT Tire Quality Grading (U.S. Vehicles).. 585Wear Indicators................................ 587 Tire Service Life ................................ 587
Tire and Wheel Replacement ........... 588
Tire Rotation .................................... 589
Winter Tires ..................................... 590
Battery ............................................... 592
Remote Transmitter Care
Replacing the Remote Battery .......... 594
Climate Control System Maintenance .. 595
Cleaning
Interior Care .................................... 596
Exterior Care.................................... 598
Accessories and Modifications ........ 601
23 HR-V-313V06000_01.book 551 ページ ２０２２年４月４日　月曜日　午前１０時４９分

560
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
1Maintenance Service Items
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
64
NPEFMT
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Inspect these items: • Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA®)
• All fluid levels and condition of fluids
• Exhaust system
#
•Fuel lines and connections#
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 25,000 miles (40,000 km).
*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
6●Replace rear differential fluid*
7●Replace brake fluid*5
* Not available on all models
23 HR-V-313V06000_01.book 560 ページ ２０２２年４月４日　月曜日　午前１０時４９分

561
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
1Maintenance Service Items
•Adjust the valves during services A, 0, 9, 1, 2, or 3
if they are noisy.
Canadian models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
*2: If you drive in dusty conditions, replace the air cleaner element every 24,000 km (15,000 miles).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace the dust and pollen filter every 24,000 km (15,000 miles).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 40,000 km (25,000 miles).
*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
0●Replace engine oil*1 and oil filter
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
6●Replace rear differential fluid*
7●Replace brake fluid*5
9●Service front and rear brakes●Inspect these items: • Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA ®)
• All fluid levels and condition of fluids
• Exhaust system
#
•Fuel lines and connections#
* Not available on all models
23 HR-V-313V06000_01.book 561 ページ ２０２２年４月４日　月曜日　午前１０時４９分

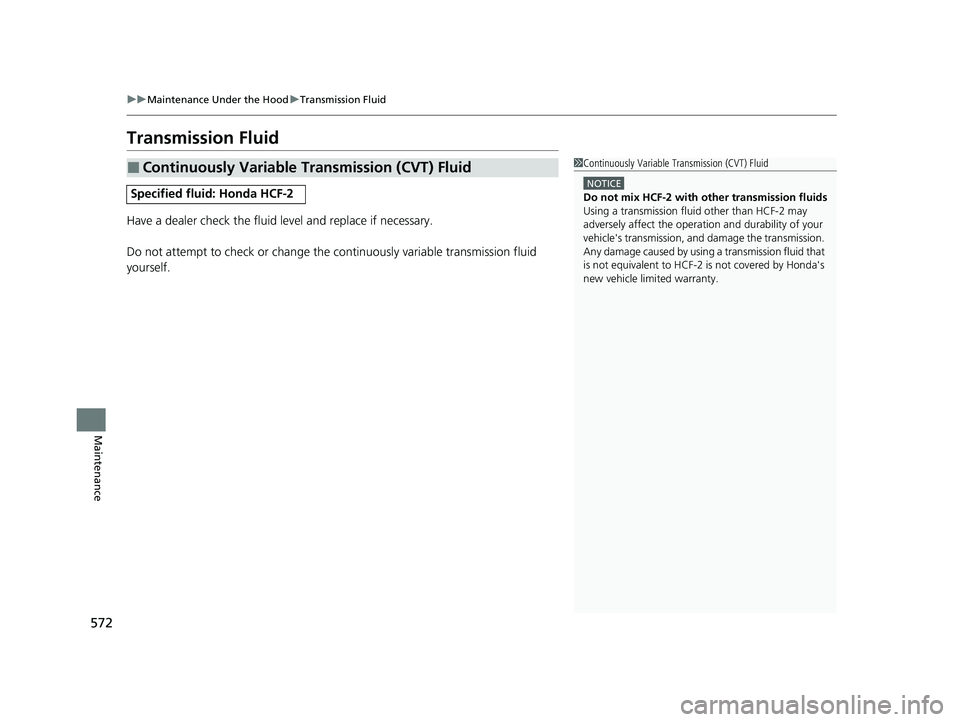

572
uuMaintenance Under the Hood uTransmission Fluid
Maintenance
Transmission Fluid
Have a dealer check the fluid level and replace if necessary.
Do not attempt to check or change the continuously variable transmission fluid
yourself.
■Continuously Variable Transmission (CVT) Fluid
Specified fluid: Honda HCF-2
1Continuously Variable Transmission (CVT) Fluid
NOTICE
Do not mix HCF-2 with other transmission fluids
Using a transmission fluid other than HCF-2 may
adversely affect the operati on and durability of your
vehicle's transmission, and damage the transmission.
Any damage caused by using a transmission fluid that
is not equivalent to HCF-2 is not covered by Honda's
new vehicle limited warranty.
23 HR-V-313V06000_01.book 572 ページ ２０２２年４月４日　月曜日　午前１０時４９分

624
uuIndicator, Coming On/BlinkinguIf the Brake System Indicator (Red) Comes On or Blinks
Handling the Unexpected
If the Brake System Indicator (Red) Comes On or
Blinks
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indicator comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate action. If necessary, downshift the
transmission to slow the vehicle using engine braking.
■Reasons for the in dicator to blink
• There is a problem with the electric parking brake system.
■What to do when the indicator blinks
• Avoid using the parking brake and ha ve your vehicle checked by a
dealer immediately.
1 If the Brake System Indicator (Red) Comes On or Blinks
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary, downshift
the gears.
If the brake system indicator (red) and ABS indicator
come on simultaneously , the electronic brake
distribution system is not wo rking. This can result in
vehicle instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.
If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking br ake may not work.
Avoid using the parking brak e and have your vehicle
checked by a dealer immediately.
2 If the Brake System Indicator (Red) Comes
On or Blinks at the Same Time When the
Brake System Indicator (Amber) Comes On
P. 626
U.S.
Canada
23 HR-V-313V06000_01.book 624 ページ ２０２２年４月４日　月曜日　午前１０時４９分

641
uuSpecifications u
Information
■
Brake Fluid
■ Continuously Variable Transmission
Fluid
*1: 2WD
*2: AWD
■ Rear Differential Fluid*
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda HCF-2 Transmission Fluid
Capacity Change 2.9 US qt (2.7 L)*1
3.7 US qt (3.5 L)*2
SpecifiedHonda DPSF-II
Capacity Change 1.318 US qt (1.247 L)
■ Engine Oil
■ Engine Coolant
Recommended·Honda Genuine Motor Oil 0W-20
·API service SN or higher grade 0W-20
Capacity Change 4.2 US qt (4.0 L)
Change
including
filter
4.4 US qt (4.2 L)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.57 US gal (5.93 L)
(change including the remaining
0.17 US gal (0.65 L) in the reserve tank)
■ Tire
*1: Original tire size is mentioned on the tire information label on
the driver’s doorjamb.
*2: Models with 215/60R17
*3: Models with 225/55R18
RegularSize*1215/60R17 96H
225/55R18 98H
Pressure
psi (kPa[kgf/cm2])Front33 (230 [2.3])Rear32 (220 [2.2])
Compact
Spare Size
T135/90D17 104M
Pressure
psi (kPa[kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular17 x 6 1/2J*2
18 x 7J*3
Compact Spare17 x 4T
* Not available on all models
23 HR-V-313V06000_01.book 641 ページ ２０２２年４月４日　月曜日　午前１０時４９分

654
Index
B
Battery....................................................... 592
Charging System Indicator ................. 91, 623
If the Battery Is Dead ............................... 617
Maintenance (Checking the Battery) ........ 592
Maintenance (Replacing).......................... 594
Belts (Seat) .................................................. 39
Beverage Holders ...................................... 193
Blind Spot Information System ................ 445
Bluetooth ® Audio ............................. 230, 290
Bluetooth ® HandsFreeLink ®........... 369, 389
Booster Seats (For Children) ....................... 82
Brake System ............................................. 528
Anti-lock Brake System (ABS) ................... 535
Automatic Brake Hold.............................. 532
Brake Assist System ................................. 536
Fluid ........................................................ 573
Foot Brake ............................................... 531
Indicator (Amber)............................... 90, 626
Indicator (Red) ..................... 88, 89, 624, 626
Parking Brake .......................................... 528
Bulb Replacement ..................................... 575
Back-Up Lights......................................... 576
Brake Lights ............................................. 576
Front Turn Signal/Parking, Daytime Running and Front Side Marker Lights ................. 575
Headlights ............................................... 575
High-Mount Brake Light .......................... 576
Rear License Plate Light............................ 576
Rear Side Marker Lights ........................... 576
Rear Turn Signal Lights ............................ 576 Side Turn Signal/Emergency Indicator
Lights .................................................... 575
Taillights.................................................. 576
Bulb Specifications ................................... 640
C
Carbon Monoxide Gas ............................... 83
Cargo Floor Box ........................................ 195
Carrying Cargo ................................. 411, 413
Certification Label .................................... 642
Changing Bulbs ........................................ 575
Charging System Indicator ................. 91, 623
Child Safety ................................................. 70
Childproof Door Locks............................. 151
Child Seat .................................................... 70
Booster Seats ............................................ 82
Child Seat for Infants................................. 72
Child Seat for Small Children ..................... 73
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 77
Larger Children ......................................... 81
Rear-facing Child Seat ............................... 72
Selecting a Child Seat ................................ 74
Childproof Door Locks ............................. 151
Cleaning the Exterior ............................... 598
Cleaning the Interior ................................ 596
Climate Control System ............................ 203
Changing the Mode ........................ 203, 204
Defrosting the Windshield and
Windows ............................................... 206 Recirculation/Fresh Air Mode................... 205
Synchronization Mode ............................ 208
Using Automatic Climate Control............ 203
Clock ......................................................... 134
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................ 453
Coat Hook ................................................ 194
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 453
Compact Spare Tire .......................... 605, 641
Console Compartment ............................. 192
Continuously Variable Transmission ....... 426
Creeping................................................. 426
Kickdown ............................................... 426
Operating the Shift ................................. 428
Operating the Shift Lever .......................... 24
Shift Lever Does Not Move ...................... 619
Shifting ................................................... 427
Continuously Variable Transmission (CVT)
Fluid ....................................................... 572
Controls .................................................... 133
Coolant (Engine) ...................................... 570
Adding to the Radiator ........................... 571
Adding to the Reserve Tank .................... 570
Overheating ............................................ 620
Creeping (Continuously Variable Transmission) .......................................... 426
Cross Traffic Monitor ............................... 542
Cup Holders .............................................. 193
Customer Service Information ................ 651
Customize Display .................................... 121
23 HR-V-313V06000_01.book 654 ページ ２０２２年４月４日　月曜日　午前１０時４９分
