2023 HONDA HRV Owners Manual

15
Quick Reference Guide
Instrument Panel (P85)
Indicators (P86)/Gauges (P104)/Driver Information Interface (P107)
Tachometer (P104) Speedometer (P104)
Traffic Sign Recognition System
(P105)
Driver Information Interface (P107)Fuel Gauge
(P104)
Outside Temperature (P105)Odometer (P105)
Shift Position Indicator (P91) /
Transmission System Indicator (P91)
23 HR-V-313V06000_01.book 15 ページ ２０２２年４月４日　月曜日　午前１０時４９分

16
Quick Reference Guide
Controls (P133)
Clock (P134)
aPress the MENU button.
bSelect Clock Settings .
cSelect Automatic Time , then select OFF.
dSelect Set Time .
eSelect 12H/24H to change 12 or 24 hour
clock.
fSelect or .
gSelect Set to set the time.
Models with 7-in. Color Touchscreen
MENU Button
34
To adjust date
To adjust time
aPress the button.
bSelect General Settings.
cSelect System .
dSelect Date & Time .
eSelect Set Date & Time .
fSelect Automatic Date & Time , then
select OFF.
Models with 9-in. Color TouchscreengSelect Set Date or Set Time .
hSelect or .
iSelect Save to set the date or time.
The clock is automatically updated through
the audio system.
ENGINE START/STOP
Button
(P163)
Press the button to change the vehicle’s
power mode.
34
23 HR-V-313V06000_01.book 16 ページ ２０２２年４月４日　月曜日　午前１０時４９分

17
Quick Reference Guide
Turn Signals (P168)
Lights (P166)
Turn Signal Control Lever
Light Control Switches
Low Beam High Beam
Flashing the high beams
Wipers and Washers
(P174)
Wiper/Washer Control Lever
Adjustment Ring
*
: Lower speed, fewer sweeps : Higher speed, more sweeps
MIST
OFF
INT : Low speed with intermittent
LO : Low speed wipe
HI : High speed wipe Pull toward
you to spray
washer fluid.
Steering Wheel (P177)
●To adjust, push the adjustment lever
down, adjust to the desired position, then
lock the lever back in place.
Unlocking the Front
Doors from the Inside
(P150)
●Pull either front door inner handle to
unlock and open it at the same time.
To adjustTo lock
Lever
*
Not available on all models
23 HR-V-313V06000_01.book 17 ページ ２０２２年４月４日　月曜日　午前１０時４９分

18
Quick Reference Guide
Tailgate (P153)
●With all the doors unlocked, press the
tailgate outer handle and lift open the
tailgate.
●Press the tailgate outer handle to unlock
and open the tailgate when you carry the
keyless remote.
Models without keyless access system
Models with keyless access system
Power Door Mirrors
(P179)
●With the power mode in ON, move the
selector switch to L or R.
●Push the appropriate edge of the
adjustment switch to adjust the mirror.
Selector Switch
Adjustment Switch
Power Windows (P159)
●With the power mode in ON, open and
close the power windows.
●If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
●If the power window lock button is in the
on position (indicator is on), each
passenger’s window switch is disabled.
Power Window
Lock Button
Window Switch
Indicator
23 HR-V-313V06000_01.book 18 ページ ２０２２年４月４日　月曜日　午前１０時４９分

19
Quick Reference Guide

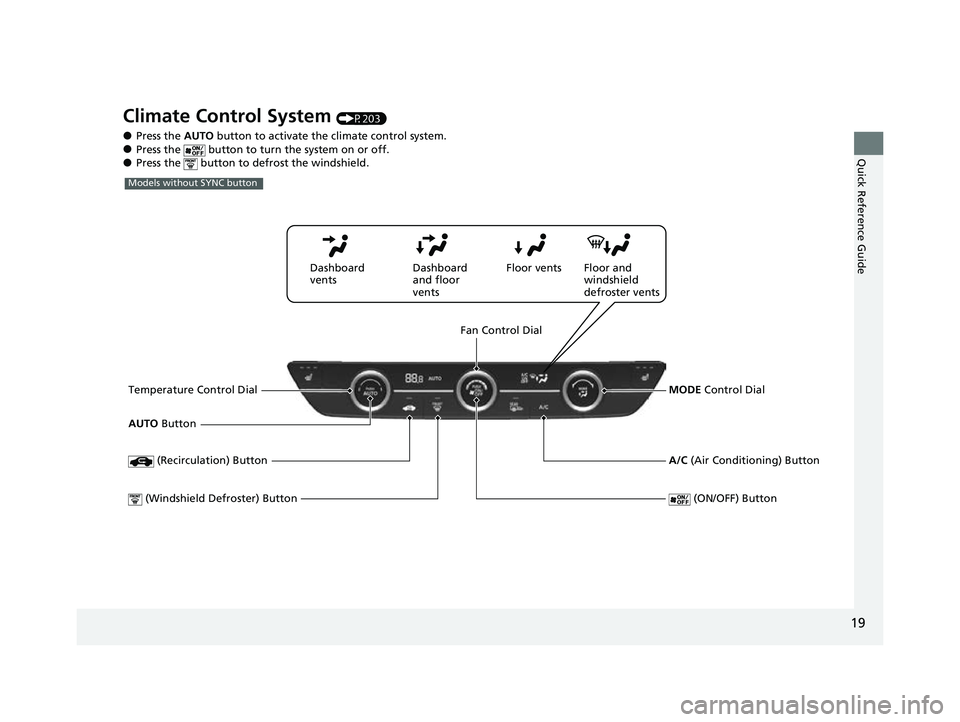

Climate Control System (P203)
●Press the AUTO button to activate th e climate control system.●Press the button to turn the system on or off.●Press the button to de frost the windshield.
Fan Control Dial
(Windshield Defroster) Button
Temperature Control Dial (Recirculation) Button
(ON/OFF) Button
AUTO Button
A/C (Air Conditioning) Button
Dashboard
ven
ts Dash
bo
ard
and floor
vents Floor vents Floor and
windshield
defroster vents
MODE Control Dial
Models without SYNC button
23 HR-V-313V06000_01.book 19 ページ ２０２２年４月４日　月曜日　午前１０時４９分

20

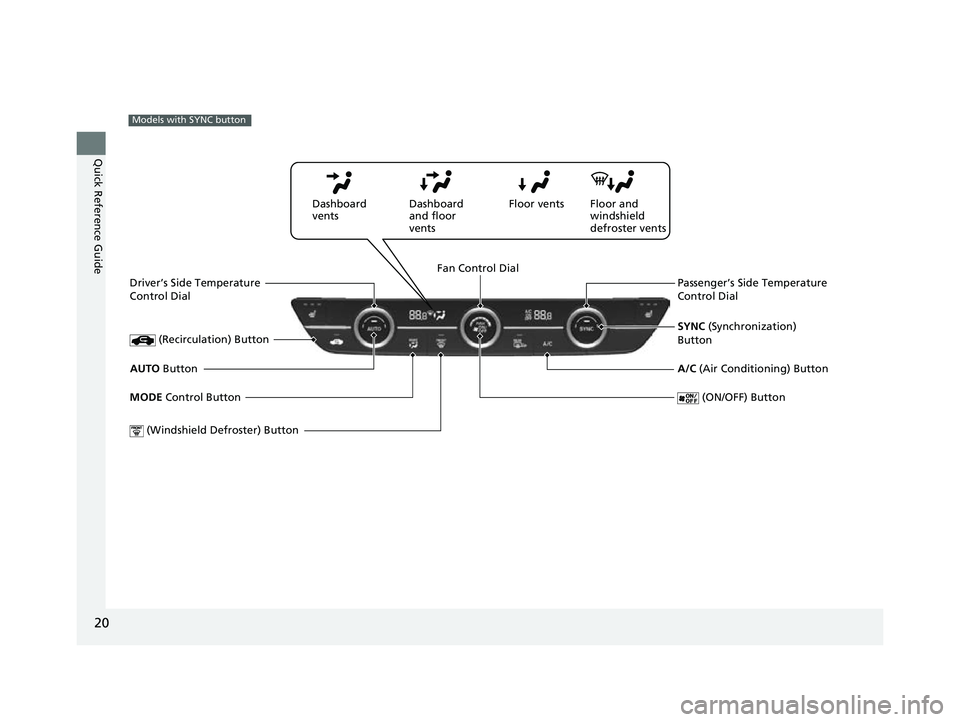

Quick Reference Guide
(Windshield Defroster) Button
Fan Control Dial
Driver’s Side Temperature
Control Dial
(ON/OFF) Button
AUTO Button A/C (Air Conditioning) Button
Dashboard
vents
D
a
shboard
and floor
vents Floor vents Floor and
windshield
defroster vents
Models with SYNC button
Passenger’s Side Temperature
Control Dial
SYNC (Synchronization)
Button
MODE Control Button
(Recirculation) Button
23 HR-V-313V06000_01.book 20 ページ ２０２２年４月４日　月曜日　午前１０時４９分

21
Quick Reference Guide
Features (P211)
Audio Remote Controls
(P 215)
●SOURCE Button
Press to cycle through the audio modes as
follows:
FM AM USB/iPod/Apple CarPlay/
Android AutoBluetooth®Audio
●VOL(+ / VOL( - (Volume) Switch
Press to adjust the volume up/down.
● / (Seek/Skip) Buttons
Radio:
Press / to change the preset
radio station. Press and hold /
to change the strong station.
iPod, USB flash drive, Bluetooth® Audio,
or Smartphone Connection:
Press / to skip to the
beginning of the next song or return to
the beginning of the current song.
Models with 7-in. Color Touchscreen
SOURCE Button
/ (Seek/Skip) Buttons
VOL(
+/VOL(-
(Volume) Switch
USB flash drive or Bluetooth® Audio:
Press and hold / to change a
folder/group.
●VOL( + / VOL(- (Volume) Switch
Press to adjust the volume up/down.
● / (Seek/Skip) Buttons
Radio:
Press / to change the preset
radio station. Press and hold /
to change the strong station.
iPod, USB flash drive, Bluetooth® Audio,
or Smartphone Connection:
Press / to skip to the
beginning of the next song or return to
the beginning of the current song.
USB flash drive:
Press and hold / to change a
folder.
Models with 9-in. Color Touchscreen
Left Selector Wheel
/ (Seek/Skip) Buttons
VOL(
+/VOL( - (Volume) Switch
(Home) Button
●Left Selector Wheel
When selecting the audio mode
Press the (Home) button, then roll up
or down to select Audio on the driver
information interface, and then press the
left selector wheel.
Roll up or down: To cycle through the
audio modes, roll up or down and then
press the left selector wheel:
FM
AM
SXM
USB
Bluetooth
Apps
(Apple CarPlay/Android Auto)
Back
23 HR-V-313V06000_01.book 21 ページ ２０２２年４月４日　月曜日　午前１０時４９分

22
Quick Reference Guide
Audio system (P 212)
(Seek/Track) Button
RADIO Button
PHONE
Button
(Seek/Track) Button
VOL
/ AUDIO
(Volume/Power) Knob
Audio/Information Screen
(Back) Button
MENU ButtonSelector Knob
MEDIA Button
CONNECT
Button
(P 219)Models with 7-in. Color Touchscreen
23 HR-V-313V06000_01.book 22 ページ ２０２２年４月４日　月曜日　午前１０時４９分
