2023 GENESIS G90 Owners Manual

3-34
Safety System
Rear seat warmers (if equipped)
ORS032042N
1. While the engine is on, press
button from the left side menu on the
armrest touchscreen.

[Climate screen is displayed.
2. Press
next to the seat which
requires heating, from the air
conditioning screen.

[Seat heater is turned on with strong
temperature level.
3. Press
to lower the temperature.
Press to raise the temperature
again.

[Press and hold
or to turn off
the seat heater, or press multiple
times until it turns off.

[Seat heater automatically turns off
once the temperature reaches the
limit, and turns on again when the
temperature drops.

[Press
multiple times to turn
on the seat heater when the seat
ventilator is on. (if equipped)
Information

[After a certain period of time, the
temperature level of the seat heater is
automatically lowered to prevent low
temperature burns.

[,IWKHHQJLQHLVWXUQHGRIIZKLOHWKH
seat heater is on, the seat heater will be
turned off after the engine is restarted.
Using rear seat heaters from front
seat
ORS032108N
ORS032043N
Rear seat heaters can be turned on/off
from the front seat.
1. Press REAR from the upper part of
the air conditioning display while the
engine is on.

[Rear seat air conditioning screen is
displayed.

3-35
03
2. Press next to the seat which
requires heating, from the air
conditioning screen.

[Seat heater is turned on with strong
temperature level.
3. Press
to lower the temperature.
Press to raise the temperature
again.

[Press and hold
or to turn off
the seat heater, or press multiple
times until it turns off.

[Seat heater automatically turns off
once the temperature reaches the
limit, and turns on again when the
temperature drops.

[Press
multiple times to turn
on the seat heater when the seat
ventilator is on. (if equipped)
Air Ventilation Seats
The air ventilation seats are provided
to cool the front seats by blowing air
through small vent holes on the surface
of the seat cushions and seatbacks.
When the operation of the air ventilation
seat is not needed, keep the air
ventilation seats OFF.
NOTICE
To prevent damage to the air ventilation
seats:

[Never use a solvent such as paint
thinner, benzene, alcohol or gasoline
to clean the seats.

[Avoid spilling liquids on the surface
of the front seats and seatbacks;
this may cause the air vent holes
to become blocked and not work
properly.

[Do not place materials such as
plastic bags or newspapers under
the seats. They may block the air
intake causing the air vents to not
work properly.

[Do not change the seat covers. It may
damage the air ventilation seat.

[If the air vents do not operate, restart
the vehicle. If there is no change,
we recommend that you have your
vehicle inspected by an authorized
retailer of Genesis Branded products.

3-36
Safety System
Front air ventilation seats (if
equipped)
ORS031041
While the engine is on, press the seat
ventilator button on the center console
to select the intensity level.

[Ventilation intensity level can be
adjusted to strong, medium, or weak.
Pressing the button each time will
change the intensity in turn from
strong, to medium, weak, and off.

[Press and hold the seat ventilator
button to turn it off.

[Auto. Controls That Use Climate
Control Settings (for driver’s seat)
The air ventilation seat automatically
controls the seat temperature
depending on the ambient
temperature when the engine is
running.
To use this function, it must be
enabled from the Settings menu in the
infotainment system screen. Select:
-6HWXS

3-37
03

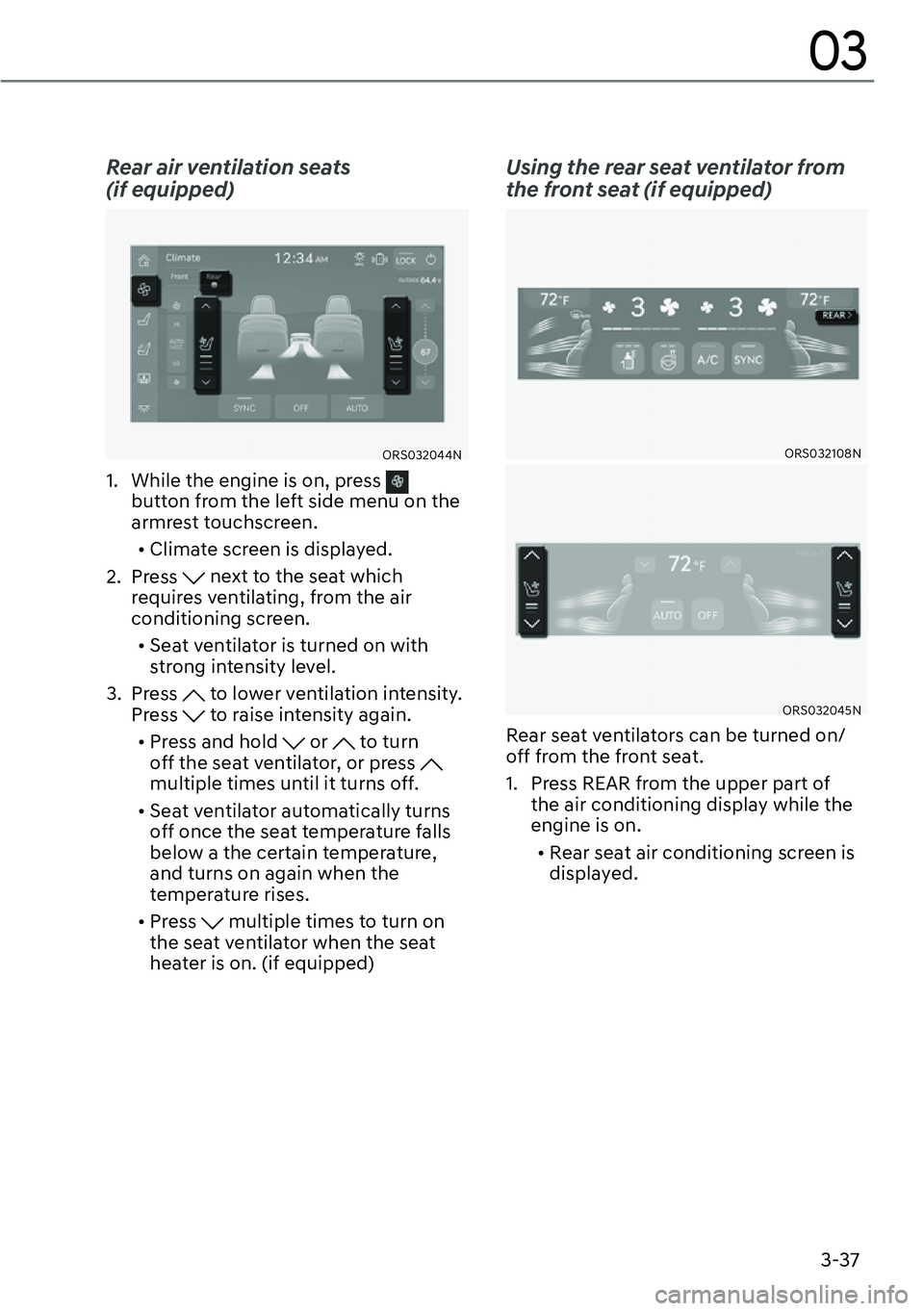

Rear air ventilation seats
(if equipped)
ORS032044N
1. While the engine is on, press
button from the left side menu on the
armrest touchscreen.

[Climate screen is displayed.
2. Press
next to the seat which
requires ventilating, from the air
conditioning screen.

[Seat ventilator is turned on with
strong intensity level.
3. Press
to lower ventilation intensity.
Press to raise intensity again.

[Press and hold
or to turn
off the seat ventilator, or press
multiple times until it turns off.

[Seat ventilator automatically turns
off once the seat temperature falls
below a the certain temperature,
and turns on again when the
temperature rises.

[Press
multiple times to turn on
the seat ventilator when the seat
heater is on. (if equipped)
Using the rear seat ventilator from
the front seat (if equipped)
ORS032108N
ORS032045N
Rear seat ventilators can be turned on/
off from the front seat.
1. Press REAR from the upper part of
the air conditioning display while the
engine is on.

[Rear seat air conditioning screen is
displayed.

3-38
Safety System
2. Press next to the seat which
requires ventilating, from the air
conditioning screen.

[Seat ventilator is turned on with
strong intensity level.
3. Press
to lower the ventilation
intensity. Press to raise intensity
again.

[Press and hold
or to turn
off the seat ventilator, or press
multiple times until it turns off.

[Seat ventilator automatically turns
off once the seat temperature falls
below the a certain temperature,
and turns on again when the
temperature rises.

3-39
03
SEAT BELTS
This section describes how to use the
seat belts properly. It also describes
some of the things not to do when using
seat belts.
Seat Belt Safety Precautions
Always fasten your seat belt and make
sure all passengers have fastened their
seat belts before starting any trip. Air
bags are designed to supplement the
seat belt as an additional safety device,
but they are not a substitute. Most states
require all occupants of a vehicle to wear
seat belts.
WARNING
Seat belts must be used by ALL
passengers whenever the vehicle is
moving. Take the following precautions
when adjusting and wearing seat belts:

[Children under the age of 13 should
be properly restrained in the rear
seats.

[Never allow children to ride in the
front passenger seat, unless the
air bag is deactivated. If a child is
seated move the seat as far back as
possible. And the child must always
be restrained in the seat properly.

[NEVER allow an infant or child to be
carried on an occupant’s lap.

[NEVER ride with the seatback
reclined when the vehicle is moving.

[Do not allow children to share a seat
or seat belt.

[Do not wear the shoulder belt under
your arm or behind your back.
[Never wear a seat belt over fragile
objects. If there is a sudden stop or
impact, the seat belt can damage it.

[Do not use the seat belt if it is
twisted. A twisted seat belt will not
protect you properly in an accident.

[Do not use a seat belt if the webbing
or hardware is damaged.

[Do not latch the seat belt into the
buckles of other seats.

[NEVER unfasten the seat belt
while driving. This may cause loss
of vehicle control resulting in an
accident.

[Make sure there is nothing in the
buckle interfering with the seat
belt latch mechanism, because any
materials in the buckle can cause the
seat belt not to be fastened securely.

[No modifications or additions
should be made by the user which
will either prevent the seat belt
adjusting devices from operating to
remove slack, or prevent the seat
belt assembly from being adjusted to
remove slack.
WARNING
Damaged seat belts and seat belt
assemblies will not operate properly.
Always replace:

[Frayed, contaminated, or damaged
webbing.

[Damaged hardware.

[The entire seat belt assembly after it
has been worn in an accident, even
if damage to webbing or assembly is
not apparent.

3-40
Safety System
Seat Belt Warning Light
Front seat belt warning
ORS031046
As a reminder to the driver and front
passenger, the seat belt warning light will
illuminate for approximately 6 seconds
each time the Engine Start/Stop button
is in the ON position regardless of belt
fastening.
If the seat belt is not fastened, the
warning chime will sound for about 6
seconds and the waning light will stay
ON until the seat belt is fastened.
If the seat belt is not fastened, when
vehicle speed is between 5.5 mph (9
km/h) and 12 mph (20 km/h) the warning
light will continue to illuminate and
warning chime will sound until the seat
belt is fastened.
If the seat belt is not fastened, when
vehicle speed is above 12 mph (20 km/h),
the warning light will blink and warning
chime will sound for approximately 100
seconds. (warning chime will sound in
three stages)
WARNING
Riding in an improper position
adversely affects the front passenger’s
seat belt warning system. It is important
for the driver to instruct the passenger
to be seated properly as instructed in
this manual.
Information

[Although the front passenger seat is not
occupied, the seat belt warning light
will blink or illuminate for 6 seconds.

[The front passenger’s seat belt warning
may operate when luggage is placed on
the front passenger seat.

3-41
03
Seat Belt Restraint System
WARNING
Improperly positioned seat belts may
increase the risk of serious injury
in an accident. Take the following
precautions when adjusting the seat
belt:

[Position the lap portion of the seat
belt as low as possible across your
hips, not on your waist, so that it fits
snugly.

[Position one arm under the shoulder
belt and the other over the belt, as
shown in the illustration.

[Always position the shoulder belt
anchor into the locked position at the
appropriate height.

[NEVER position the shoulder belt
across your neck or face.
Seat Belt-Driver’s 3-point
System with Emergency Locking
Retractor
Lap/shoulder belt
ORS031126
To fasten your seat belt:
Pull it out of the retractor and insert the
metal tab M into the buckle N. There will
be an audible “click” when the tab locks
into the buckle.
ORS031130
You should place the lap belt M portion
across your hips and the shoulder belt N
portion across your chest.
The seat belt automatically adjusts to the
proper length after the lap belt portion
is adjusted manually so that it fits snugly
around your hips. If you lean forward in
a slow, easy motion, the belt will extend
and move with you.
If there is a sudden stop or impact, the
belt will lock into position. It will also lock
if you try to lean forward too quickly.
